TGM MWVT09S / MRVT09AS User manual

Content
- 1 -
Content
1Precaution ......................................................................................................................2
1.1 Safety Precaution............................................................................................................................. 2
1.2 Warning............................................................................................................................................ 2
2Function ........................................................................................................................5
3Dimension.......................................................................................................................7
4Specification...................................................................................................................8
5Refrigerant cycle diagram...........................................................................................16
6Operation limits............................................................................................................17
7Wiring diagram.............................................................................................................17
8Installation details........................................................................................................24
8.1 Wrench torque sheet for installation.................................................................................................. 24
8.2 Connecting the cables ...................................................................................................................... 24
8.3 Pipe length and the elevation............................................................................................................ 24
8.4 Air purging of the piping and indoor unit ........................................................................................... 25
8.5 Pumping down (Re-installation) ........................................................................................................ 26
8.6 Re-air purging (Re-installation) ......................................................................................................... 27
8.7 Balance refrigerant of the 2-way, 3-way valves................................................................................. 28
8.8 Evacuation ........................................................................................................................................ 29
8.9 Gas charging .................................................................................................................................... 30
9Electronic function ......................................................................................................31
9.1 Abbreviation ................................................................................................................................... 31
9.2 Display function.............................................................................................................................. 31
9.3 Protection ....................................................................................................................................... 32
9.4 Fan-Only Mode .............................................................................................................................. 33
9.5 Cooling Mode ................................................................................................................................. 33
9.6 Drying mode................................................................................................................................... 34
9.7 Heating mode................................................................................................................................. 35
9.8 Auto mode function ........................................................................................................................ 38
9.9 Forced operation function............................................................................................................... 38
9.10 Action of 4-way valve ................................................................................................................... 38
9.11 Two speeds outdoor fan function.................................................................................................. 39
9.12 Timer function............................................................................................................................... 39
9.13 Sleep function mode..................................................................................................................... 39
9.14 Auto-Restart function.................................................................................................................... 40
9.15 Automatic panel function .............................................................................................................. 40
9.16 Ionizer (Clean Air) function ........................................................................................................... 40
9.17 Self-clean function........................................................................................................................ 40
9.18 Follow me function ....................................................................................................................... 41
9.19 Outdoor chassis heating cable function (optional)........................................................................ 41
10 Troubleshooting...........................................................................................................42
10.1 Indoor Unit Error Display.............................................................................................................. 43
10.2 Diagnosis and Solution................................................................................................................. 43

Service manual
-2-
1 Precaution
1.1 Safety Precaution
To prevent injury to the user or other people and property damage, the following instructions must be
followed.
Incorrect operation due to ignoring instruction will cause harm or damage.
Before service unit, be sure to read this service manual at first.
1.2 Warning
Installation
Do not use a defective or underrated circuit breaker. Use this appliance on a dedicated circuit.
There is risk of fire or electric shock.
For electrical work, contact the dealer, seller, a qualified electrician, or an Authorized service center.
Do not disassemble or repair the product, there is risk of fire or electric shock.
Always ground the product.
There is risk of fire or electric shock.
Install the panel and the cover of control box securely.
There is risk of fire of electric shock.
Always install a dedicated circuit and breaker.
Improper wiring or installation may cause fore or electric shock.
Use the correctly rated breaker of fuse.
There is risk of fire or electric shock.
Do not modify or extend the power cable.
There is risk of fire or electric shock.
Do not install, remove, or reinstall the unit by yourself (customer).
There is risk of fire, electric shock, explosion, or injury.
Be caution when unpacking and installing the product.
Sharp edges could cause injury, be especially careful of the case edges and the fins on the condenser and evaporator.
For installation, always contact the dealer or an Authorized service center.
There is risk of fire, electric shock, explosion, or injury.
Do not install the product on a defective installation stand.
It may cause injury, accident, or damage to the product.
Be sure the installation area does not deteriorate with age.
If the base collapses, the air conditioner could fall with it, causing property damage, product failure, and personal injury.
Do not let the air conditioner run for a long time when the humidity is very high and a door or a window is
left open.
Moisture may condense and wet or damage furniture.
Take care to ensure that power cable could not be pulled out or damaged during operation.
There is risk of fire or electric shock.
Do not place anything on the power cable.
There is risk of fire or electric shock.
Do not plug or unplug the power supply plug during operation.
There is risk of fire or electric shock.
Do not touch (operation) the product with wet hands.
There is risk of fire or electric shock.

Service manual
-3-
Do not place a heater or other appliance near the power cable.
There is risk of fire and electric shock.
Do not allow water to run into electric parts.
It may cause fire, failure of the product, or electric shock.
Do not store or use flammable gas or combustible near the product.
There is risk of fire or failure of product.
Do not use the product in a tightly closed space for a long time.
Oxygen deficiency could occur.
When flammable gas leaks, turn off the gas and open a window for ventilation before turn the product on.
Do not use the telephone or turn switches on or off.
There is risk of explosion or fire.
If strange sounds, or small or smoke comes from product. Turn the breaker off or disconnect the power
supply cable.
There is risk of electric shock or fire.
Stop operation and close the window in storm or hurricane. If possible, remove the product from the
window before the hurricane arrives.
There is risk of property damage, failure of product, or electric shock.
Do not open the inlet grill of the product during operation. (Do not touch the electrostatic filter, if the unit is
so equipped.)
There is risk of physical injury, electric shock, or product failure.
When the product is soaked (flooded or submerged), contact an Authorized service center.
There is risk of fire or electric shock.
Be caution that water could not enter the product.
There is risk of fire, electric shock, or product damage.
Ventilate the product from time to time when operating it together with a stove, etc.
There is risk of fire or electric shock.
Turn the main power off when cleaning or maintaining the product.
There is risk of electric shock.
When the product is not be used for a long time, disconnect the power supply plug or turn off the breaker.
There is risk of product damage or failure, or unintended operation.
Take care to ensure that nobody could step on or fall onto the outdoor unit.
This could result in personal injury and product damage.
CAUTION
Always check for gas (refrigerant) leakage after installation or repair of product.
Low refrigerant levels may cause failure of product.
Install the drain hose to ensure that water is drained away properly.
A bad connection may cause water leakage.
Keep level even when installing the product.
To avoid vibration of water leakage.
Do not install the product where the noise or hot air from the outdoor unit could damage the
neighborhoods.
It may cause a problem for your neighbors.
Use two or more people to lift and transport the product.
Avoid personal injury.
Do not install the product where it will be exposed to sea wind (salt spray) directly.
It may cause corrosion on the product. Corrosion, particularly on the condenser and evaporator fins, could cause
product malfunction or inefficient operation.
Operational
Do not expose the skin directly to cool air for long periods of time. (Do not sit in the draft).
This could harm to your health.

Service manual
-4-
Do not use the product for special purposes, such as preserving foods, works of art, etc. It is a consumer
air conditioner, not a precision refrigerant system.
There is risk of damage or loss of property.
Do not block the inlet or outlet of air flow.
It may cause product failure.
Use a soft cloth to clean. Do not use harsh detergents, solvents, etc.
There is risk of fire, electric shock, or damage to the plastic parts of the product.
Do not touch the metal parts of the product when removing the air filter. They are very sharp.
There is risk of personal injury.
Do not step on pr put anything on the product. (outdoor units)
There is risk of personal injury and failure of product.
Always insert the filter securely. Clean the filter every two weeks or more often if necessary.
A dirty filter reduces the efficiency of the air conditioner and could cause product malfunction or damage.
Do not insert hands or other object through air inlet or outlet while the product is operated.
There are sharp and moving parts that could cause personal injury.
Do not drink the water drained from the product.
It is not sanitary could cause serious health issues.
Use a firm stool or ladder when cleaning or maintaining the product.
Be careful and avoid personal injury.
Replace the all batteries in the remote control with new ones of the same type. Do not mix old and mew
batteries or different types of batteries.
There is risk of fire or explosion.
Do not recharge or disassemble the batteries. Do not dispose of batteries in a fire.
They may burn of explode.
If the liquid from the batteries gets onto your skin or clothes, wash it well with clean water. Do not use the
remote of the batteries have leaked.
The chemical in batteries could cause burns or other health hazards

Service manual
-5-
2 Function
Maintain the room temperature in accordance with the setting
temperature.
The mode can be change by the room temperature.
The louver can be set at the desired position or swing
up and down automatically
The function is usually used in rainy days in
springtime or damp areas.
The fan is turn to low speed (cooling/heating).
The unit will be turn off at the seventh hour.
The unit will decide the louver direction according to
operation mode.
Turbo wind, high, med, low, breeze.
Restarting is for approx. 3 minutes..
Prevent the water being frozen on evaporator by sensing the
evaporator pipe temperature in cooling mode
Room temperature sensor.
Pipe temperature sensor.
Indoor unit
Operation by remote controller
Sensing by room temperature
Room temperature control
Anti-freezing control in cooling
Time Delay Safety control
Indoor fan speed control
Two-direction air vane
Sleep mode auto control
Independent dehumidification
Air flow Direction control
Auto mode
Temp. Compensation Flexible wiring connection
Auto defrost
Follow me
Anti-cold function
Self-diag. function
Auto-restart function
Timer function
Self clean
Prevent the cold wind at the
beginning of unit start.
Ionizer

Service manual
-6-
It protects the valves and prevents water from dripping.
The unit has 3 mins delay between continuously ON/OFF operations.
Outdoor unit
Power relay control
The hydrophilic fin can improve the heating efficiency at operation mode.
Hydrophilic aluminum fin
It is only operated in the heating operation mode except defrosting operation.
Anti-rust cabinet
Valve protection cover
4 way valve control
Made from electrolytic zinc steel sheet and anti-rust coated components.
Low noise air flow system
Bird tail propeller fan makes the outdoor unit run more quietly.
Discharge pipe temperature protect
Heating cable (Optional)
Driving heating at -15

Service manual
-7-
3 Dimension
Indoor unit:

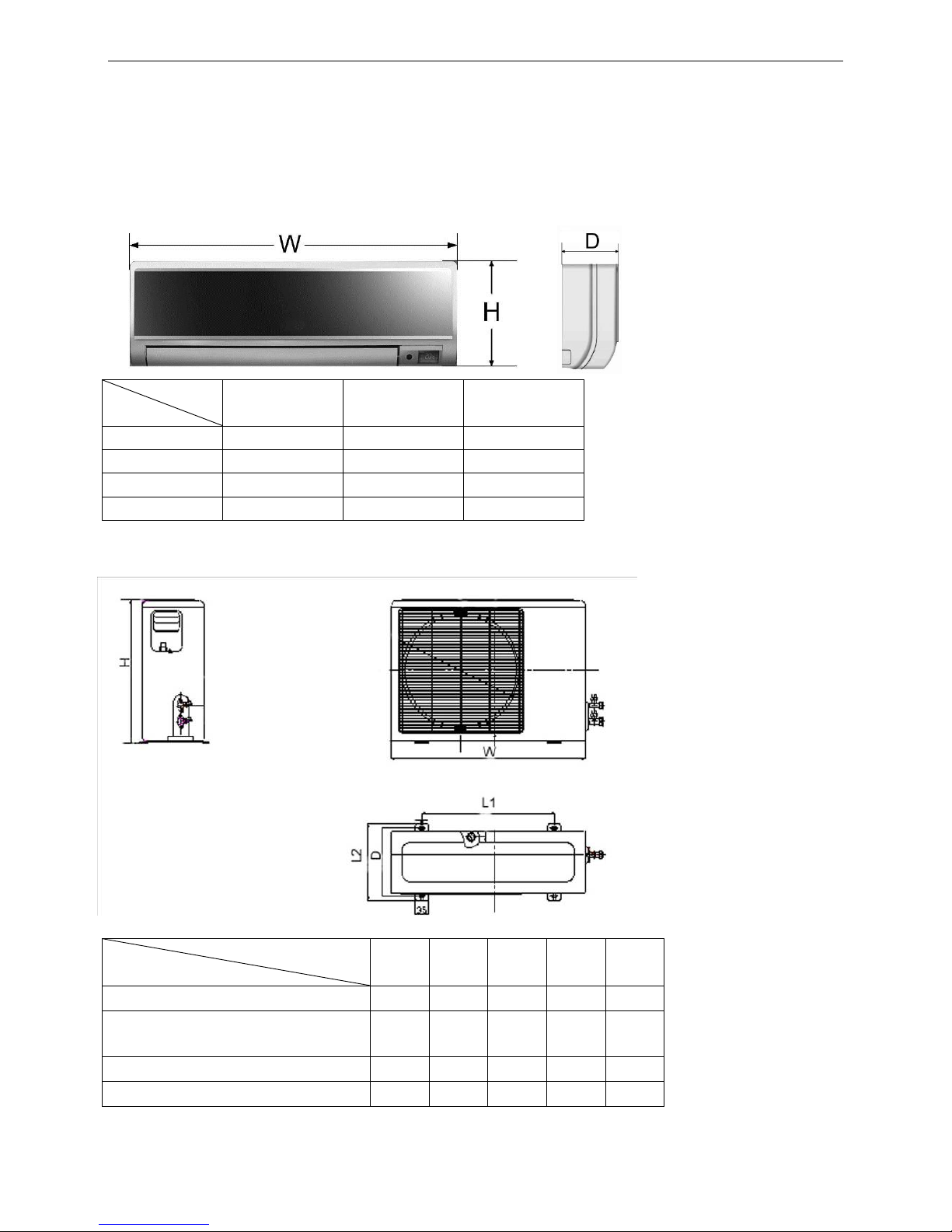

Dimension
Model W H D
9K 795 270 165
12K 845 286 165
18K 995 292 194
24K 1180 320 200
Outdoor unit:
Dimension
Model W H D L1 L2
9K, 12K Cooling 780 540 250 549 266
9K, 12K Cooling & Heating
18K Cooling 760 590 290 530 315
18K Cooling & Heating 845 695 335 560 360
24K 895 860 330 560 360

Service manual
-8-
4 Specification
Table 1:
Model MWVT09S/ MRVT09AS MWHVT09S/ MRHVT09AS
Indoor MWVT09S MWHVT09S
Outdoor MRVT09S MRHVT09S
Power supply Ph-V-Hz 1Ph, 220-230V～, 60Hz 1Ph, 220-230V～, 60Hz
Cooling
Capacity Btu/h 9000(3300~11200) 9000(3300~11200)
Input W 850(240~1200) 830(240~1200)
Rated current A 4.8(1.2~5.3) 4.1(1.2~5.3)
EER W/W 3.2 3.2
Heating
Capacity Btu/h ----- 10000(4000~13000)
Input W ----- 820(240~1250)
Rated current A ----- 4.1(1.2~5.6)
COP W/W ----- 3.6
Moisture Removal L/h 1.0 1.0
Max. input consumption W 1750 1750
Max.current A 8.0 8.0
Compressor
Model DA89X1C-23FZ DA108X1C-20FZ3
Type ROTARY ROTARY
Brand TOSHIBA TOSHIBA
Capacity Btu/h 9040 10918
Input W 680 855
Rated current(RLA) A 4.7 5.3
Locked rotor Amp(LRA) A 10 10
Thermal protector CS-74 INT01L-4639 / CS-74
Thermal protector position internal EXTERNAL
Capacitor uF 35 35
Refrigerant oil/oil charge ml ESTER OIL VG74 370 ml ESTER OIL VG74 / 480
Indoor fan motor
Model RPG20B RPG20B
Brand Welling Welling
Input W 43 43
Capacitor uF 1.5 1.5
Speed(Hi/Mi/Lo) r/min 1100/1000/850 1100/1000/850
Indoor coil
Number of rows 2/1 2/1
Tube pitch(a)x row pitch(b) mm 21x13.37 21x13.37
Fin spacing mm 1.3 1.3
Fin type (code) Hydrophilic aluminium Hydrophilic aluminium
Tube outside dia. and type mm φ7 INNEGROOVE TUBE φ7 INNEGROOVE TUBE
Coil length x height x width mm 621X(189+126)X(26.74+13.37) 621X(189+126)X(26.74+13.37)
Number of circuits 2 2
Indoor air flow (Hi/Mi/Lo) m3/h 540/490/420 540/490/420
Indoor noise level (Hi/Mi/Lo) dB(A) 38/35/32 38/35/32

Service manual
-9-
Indoor unit
Dimension(W*D*H) mm 795x165x270 795x165x270
Packing (W*D*H) mm 850x285x340 850x285x340
Net/Gross weight kg 9/12.5 9/12.5
Outdoor fan motor
Model YDK24-6GB YDK24-6GB
Brand Welling Welling
Input W 72/53 72/53
Capacitor uF 2.5 2.5
Speed r/min 830/570 830/570
Outdoor coil
Number of rows 1 1.5
Tube pitch(a)x row pitch(b) mm 21x13.37 25.4x22
Fin spacing mm 1.4 1.4
Fin type (code) Unhydrophilic aluminium Hydrophilic aluminium
Tube outside dia. and type mm φ7, innergroove tube φ9.52, innergroove tube
Coil length x height x width mm 754x504x13.37 (644+327.6)x558x22
Number of circuits 1 2
Outdoorairflow m
3/h 1800 1800
Outdoor noise level dB(A) 55 55
Outdoor unit
Dimension(W*D*H) mm 780x250x540 760x285x590
Packing (W*D*H) mm 910x335x575 887x355x645
Net/Gross weight kg 30.5/33 39.5/42.5
Refrigerant type g R410A/740g R410A/1000g
Design pressure MPa 4.2/1.5 4.2/1.5
Refrigerant piping
Liquid side/ Gas side
mm(inch
) φ6.35/φ9.53(1/4"/3/8") φ6.35/φ9.53(1/4"/3/8")
Max. refrigerant pipe length m 20 20
Max. difference in level m 8 8
Connection wiring 1.5(Optional) 1.5(Optional)
Plug type 1.5x3/Brazil 1.5x3/Brazil
Thermostat type Remote control Remote control
Operation temp  17-30 17-30
Ambient temp (cooling/heating)  18-50/---- 18-50/-15-34
Application area m213-22 13-22
Qty’per 20’ /40’ /40'HQ 111/243/258 94/201/241
Note:
The noise date is base on hemi-anechoic chamber, during actual operation; these values are normally somewhat different
as a result of ambient condition.
The above design and specifications are subject to change without prior notice for product improvement.
