TGM T16CU16VT36S User manual

R410A 60Hz Universal Outdoor Series Technical Manual Outdoor Unit
16 SEER TOP-DISCHARGE UNIT
STANDARD TECHNICAL MANUAL
1
TGM Air Conditioners

R410A 60Hz 16 SEER Universal Outdoor Series Technical Manual
Part 1. General Information 3
1. Model Names of Indoor/Outdoor Units 4
2. External Appearance 5
3. Features 6
Part 2 Outdoor Unit 7
1. Specification 8
2.Dimensions 10
3. Service Space 11
4. Wiring Diagrams 12
5. Electric Characteristics 14
6. Operation Limits 14
7. Sound Levels 15
8. Exploded View 16
9. Troubleshooting 17
Part 3 Indoor units 27
1.Round-way cassette 28
2.Floor & Ceiling 39
Part 4 Installation 53
1. Precaution on Installation 54
2. Vacuum Dry and Leakage Checking 55
3. Additional Refrigerant Charge 57
4. Insulation Work 58
5.Test Operation 60
2
TGM Air Conditioners

R410A 60Hz 16 SEER Universal Outdoor Series Technical Manual
Part 1. General Information
2. Model Names of Indoor/Outdoor Units 4
3. External Appearance 5
4. Features 6
3
TGM Air Conditioners

R410A 60Hz 16 SEER Universal Outdoor Series Technical Manual
1. Model Names of Indoor/Outdoor Units
1.1 Indoor Units
Model name
Dimension(W×H×D)
(mm)
Power supply
SEER 16 Cooling Only
T16CU16VT36S
1250×675×235
208~230V-1Ph-60Hz
T16CU16VT60S
1670×750×235
208~230V-1Ph-60Hz
1.2 Outdoor Units
Model name
Dimension (W×H×D)
(mm)
Power supply
24V control
T16CROVT36AS
740×633×740
208~230V-1Ph-60Hz
T16CROVT60AS
740×835×740
208~230V-1Ph-60Hz
4
TGM Air Conditioners

R410A 60Hz 16 SEER Universal Outdoor Series Technical Manual
2. External Appearance
2.1 Indoor unit
Cassette
Floor-ceiling
2.2 Outdoor unit
Top-discharge
5
TGM Air Conditioners

R410A 60Hz 16 SEER Universal Outdoor Series Technical Manual
Note: Standard outdoor unit is using metal grill, and plastic grill can be customized.
3. Features
3.1 Capacity range : 36k/60k, cooling only type.
3.2 Well known brand inverter compressor: Mitsubishi & GMCC, reliable quality.
3.3 Can be matched with cassette\floor-ceiling and air-handler units.
3.4 Coils constructed with enhanced aluminum fins, golden fins/ blue dins are
avaliable.
3.5 Integrated circuit with refrigerant cooling design
3.6 24V control, time delay relay, fan relay and transformer included.
3.7 R410A environment friendly refrigerant.
3.8 Flexible installation, ceiling suspended and floor standing .
3.9 New panel for cassette units,simple and voguish appearance suit for different.
6
TGM Air Conditioners

R410A 60Hz 16 SEER Universal Outdoor Series Technical Manual
Part 2 Outdoor Unit
1. Specification 8
2. Dimensions 10
3. Service Space 11
4. Wiring Diagrams 12
5. Electric Characteristics 14
6. Operation Limits 14
7. Sound Levels 15
8. Exploded View 16
9. Troubleshooting 17
7
TGM Air Conditioners

R410A 60Hz 16 SEER Universal Outdoor Series Technical Manual
1. Specification
Model name
Unit
T16CROVT36AS
T16CROVT60AS
Code
Outdoor code
821039000061
821039000060
Power supply
V/Ph/Hz
208~230-1-60
208~230-1-60
Cooling
Capacity
Btu/h
36000
60000
Capacity
W
10500(3500-10500)
16000(6200-16000)
Power Input
W
600-4000
600-5500
Current Input
A
2.5-19
2.5-30
Outdoor coil
Number of row
1
2
Fin spacing
mm
1.4
1.4
Fin material
Hydrophilic
aluminum foil
aluminum
Hydrophilic
aluminum foil
aluminum
Tube outside
diameter
mm
φ7
Ф7
Tube material
Inner grooved
Inner grooved
Coil length x height
x width
mm
2148×588×13.37
2136×798×26.76
Compressor
Brand
GMCC
Mitsubishi
Model
ATM240D57UFT
MNB40FEQMC
Type
Twin-rotary
Twin-rotary
Capacity
W/h
7190
12900
Input
W
1935
3960
Rated current(RLA)
A
8.85
14.8
Refrigerant oil
ml
670
1100
Outdoor fan motor
Brand
Lvzhi
SINJUN
Model
YDK-110-8P2
YDK-230-6P2
Output
W
110.00
230.00
Running current
A
0.9
/
Capacitor
μF
6μF/450V
12μF/450V
Speed
r/min
850
1100
Outdoor air flow
m3/h
4500
6000
Outdoor noise level
dB(A)
57
60
Outdoor dimension
Unit (WxHxD)
mm
740×740×635
740×740×835
Packing (WxHxD)
mm
760×760×660
760×760×875
Net/Gross weight
kg
66/70
80/85
Refrigerant
Type
R410A
R410A
Charge
kg
2.2
3.8
Refrigerant pipe
Liquid side/ Gas
side
mm(inch)
3/8 / 3/4
3/8 / 3/4
Max. refrigerant
pipe length
m
25
30
Max. difference in
level
m
20
20
Operation temperature range
℃
16～32
16～32
Ambient temperature range
℃
16～50
16～50
8
TGM Air Conditioners

R410A 60Hz 16 SEER Universal Outdoor Series Technical Manual
Model
36K
60K
820023100002
820023100001
T16CU16VT36S
T16CU16VT60S
Indoor power supply
V/Ph/H
z
208~230/1/60
208~230/1/60
Cooling
Capacity
kW
10.5
16
Input
W
240
320
Rated current
A
1.0
1.5
Max. power input
W
4000
6800
Max. current input
A
19.0
35.0
Indoor fan motor
Model
YSK110-180LD-4P2
YSK110-85LD-4P2
Brand
XINJUN
KANGBAO
Power output
W
180
85*2
Capacitor
μF
5
5
Speed
r/min
1330/1230/1130
1560/1430/1300
Insulation class
B
B
Indoor coil
Number of rows
3
4
Tube pitch(a) x row
pitch(b)
mm
25*21.65
22*19.05
Fin spacing
mm
1.7
1.4
Fin type
Hydrophilic
Hydrophilic
Tube outside dia. and type
mm
9.52
7.94
Inner grooved
Inner grooved
Coil length x height x width
mm
982/250/65
1360/252/70
Number of circuits
5
4
Indoor air flow(High speed)
m3/h
1800
2000
Indoor noise level
dB(A)
≤64
≤65
Indoor unit
Dimension(W×H×D)
mm
1250×675×235
1670×675×235
Packing(W×H×D)
mm
1380×765×325
1750×765×325
Gross/Net weight
kg
38/33
49/43
Max pressure
MPa
4.5
4.5
Refrigerant type
R410A
R410A
Refrigerant
piping
Liquid side/Gas side
mm
Ф9.52/Ф15.88
Ф9.52/Ф15.88
Drainage pipe
mm
DN25
DN25
Standard controller
Wired control
Operation temp
°C
16-32
16～32
9
TGM Air Conditioners

R410A 60Hz 16 SEER Universal Outdoor Series Technical Manual
10
TGM Air Conditioners

R410A 60Hz 16 SEER Universal Outdoor Series Technical Manual

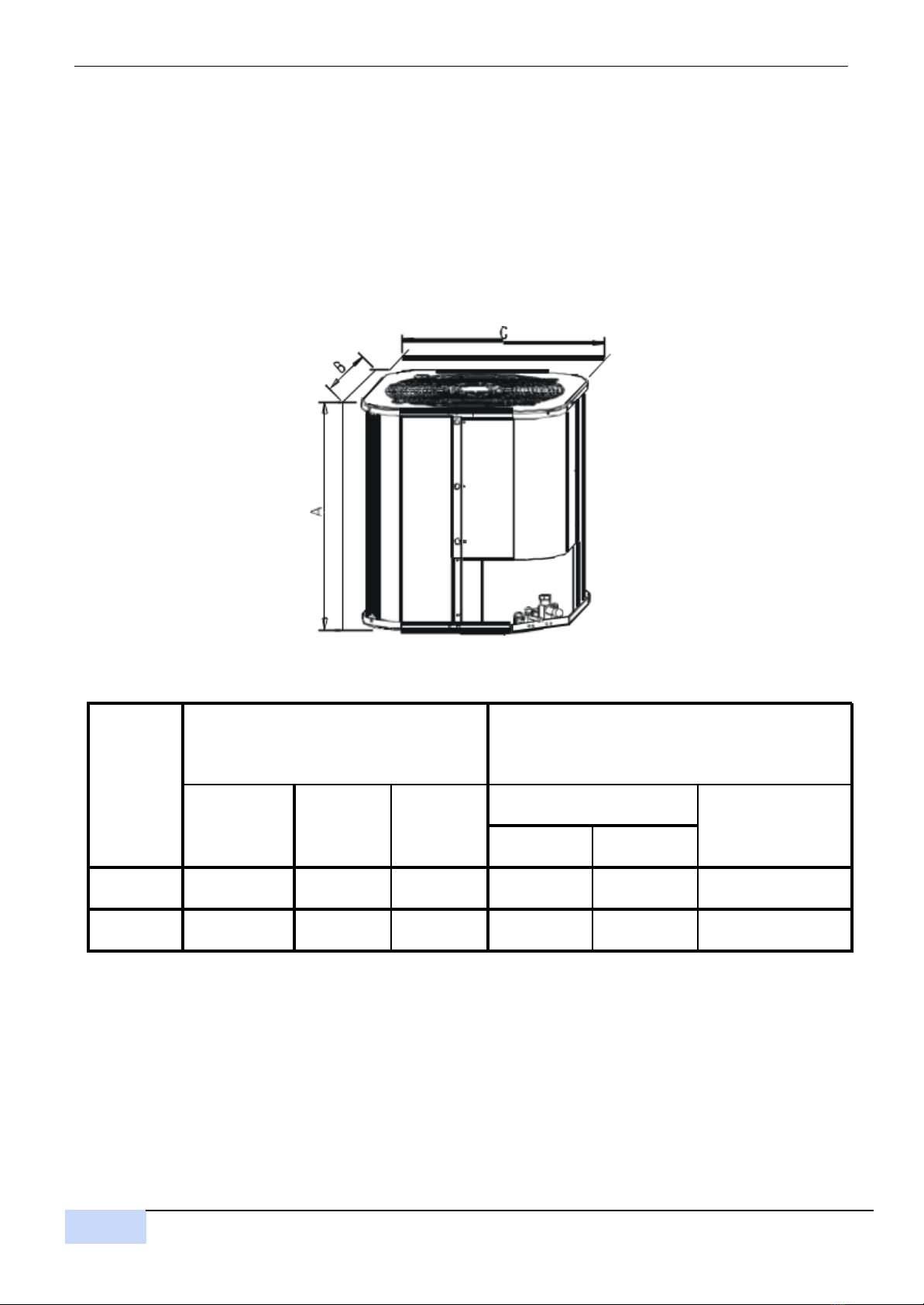

2.Dimensions
All dimensions are in mm. They are subject tochange without
notice.
Certified dimensions will be provided upon request.
Model
Dimensions(mm)
Refrigerant Connection pipe
Size(mm)
A
B
C
Liquid(φ)
Vapor(φ)
LF
RF
36K
633
740
740
9.52
12.7
19.05
60K
835
740
740
9.52
12.7
19.05
NOTE: LF means cooling only model; RF means heat pump model.
11
TGM Air Conditioners

R410A 60Hz 16 SEER Universal Outdoor Series Technical Manual
3. Service Space
12
TGM Air Conditioners

R410A 60Hz 16 SEER Universal Outdoor Series Technical Manual
4. Wiring Diagrams
13
TGM Air Conditioners

R410A 60Hz 16 SEER Universal Outdoor Series Technical Manual
14
TGM Air Conditioners

R410A 60Hz 16 SEER Universal Outdoor Series Technical Manual

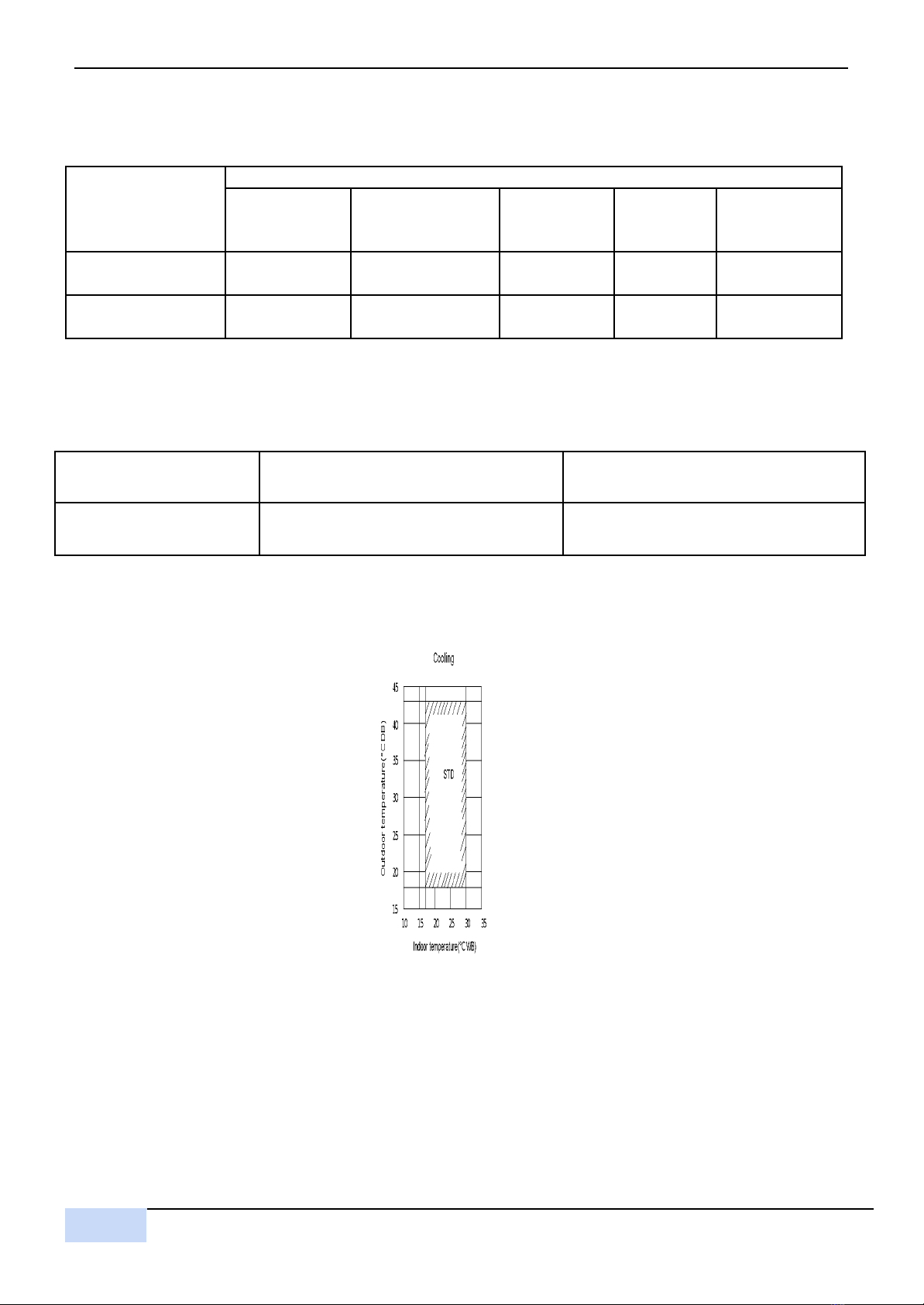

5. Electric Characteristics
Model
Outdoor Unit
Hz
Voltage
Min.
Max.
Outdoor
motor
output(kw)
COT-36CNVR1-1
6
60
208~230V
198V
242V
0.21
COT-60CNVR1-1
6
60
208~230V
198V
242V
0.36
6. Operation Limits
Operation mode
Outdoor temperature(℃)
Room temperature(℃)
Cooling operation
18~47
16~32
15
TGM Air Conditioners

R410A 60Hz 16 SEER Universal Outdoor Series Technical Manual
7. Sound Levels
Model
Noise level dB(A)
COT-36CNVR1-16
57
COT-60CNVR1-16
60
Note: Sound level is measured at a point 1 m in front of the unit, at a height of (Unit body height +1)/2 m.
16
TGM Air Conditioners

R410A 60Hz 16 SEER Universal Outdoor Series Technical Manual
8. Exploded View
No.
Part Name
Qty
No.
Part Name
Qty
1
Cover net
1
11.3
Gas outlet pipes welded assy
1
2
Outdoor motor
1
11.3.
1
Gas outlet pipe
1
3
Axial-flow fan
1
11.3.
2
Gas concentration filter pipe
1
4
Top cover assy
1
12
Cooler cover
1
5
Support board
3
13
Electronic components
1
6
Refrigenrant cooling tubes assy
1
13.1
Terminal block
1
7
Top panel
1
13.2
Outdoor display board
1
8
Compressor
1
13.3
Outdoor integrated E-board
1
9
Chassis assy
1
13.4
Reactor
1
10
Bottom side panel
1
13.5
Inserted fan motor capacitor
1
11
Refrigerant flow tubes assy
1
13.6
E-parts installation board welded assy
1
11.1
High pressure valve welded assy
1
13.7
Main control board installation base
1
11.1.
1
High pressure valve connecting
pipe
1
13.8
Communication board installation
base
1
11.1.
2
Square valve
1
13.9
Terminal block installation board
1
11.2
Low pressure valve welded assy
1
14
Reactor installation lid
1
11.2.
1
Square valve
1
15
Condenser
1
17
TGM Air Conditioners

R410A 60Hz 16 SEER Universal Outdoor Series Technical Manual
11.2.
2
Low pressure valve connecting pipe
1
16
Outdoor unit protecting net
1

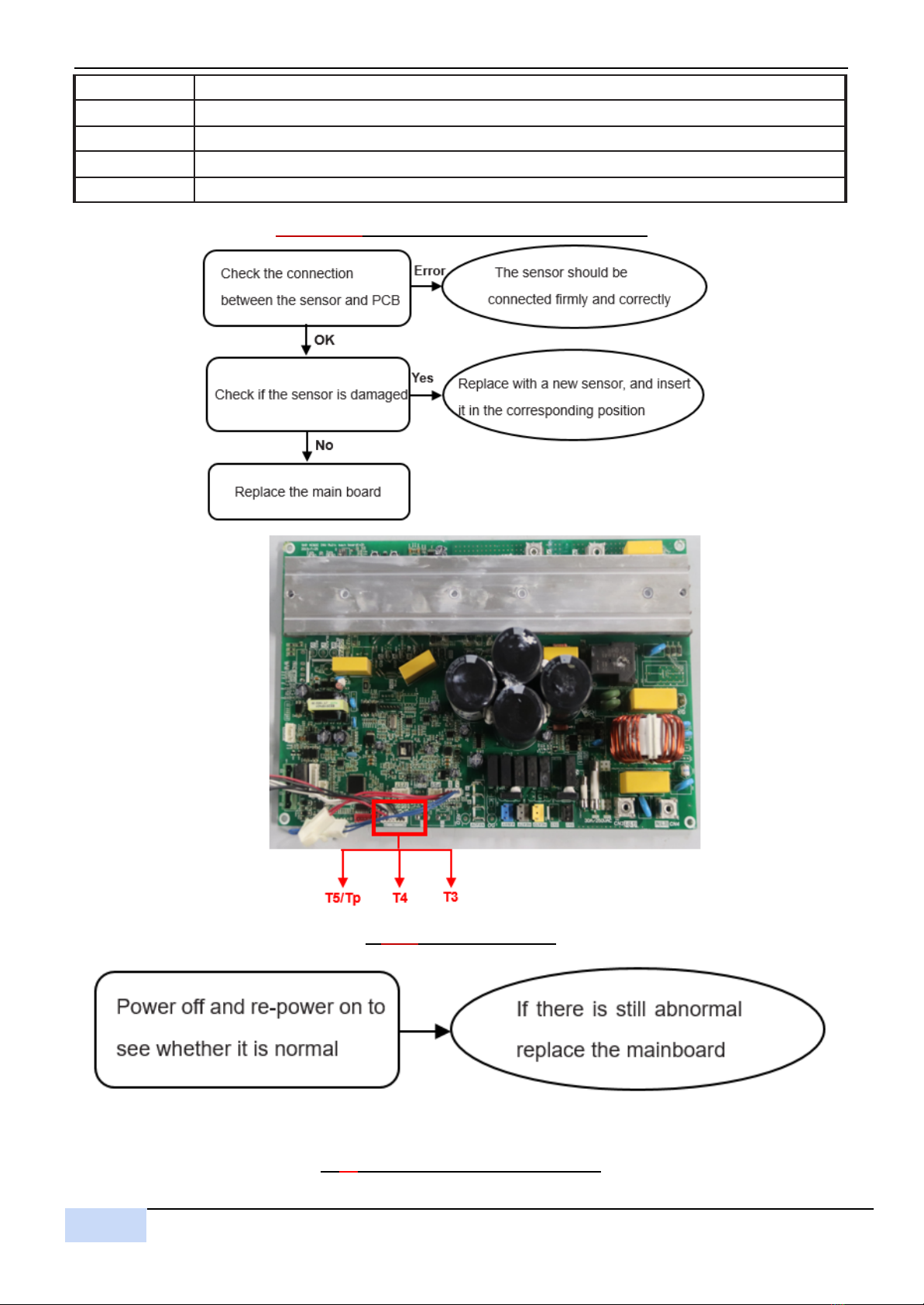

9. Troubleshooting
The fault codes for outdoor unit as follows:
CODE
FAULT DESCRIPTION
E4
T4 Outdoor ambient temperature sensor error
E5
T5 Discharge temperature sensor error
E6
T3 Condenser temperature sensor error
E9
AC under voltage protection
E10
EEPROM error
E12
IPM modular sensor error
E13
HLP Pressure sensor error
E14
T3 or T5 sensor disconnect error
E15
High pressure switch error
H0
Communication error of main chip and IPM chip
H1
T3 sensor high temperature error(In cooling mode) (20 times P5 error within 180mins)
H2
High pressure switch error(20 times P1 error within 150 mins)
H3
High pressure abnormal in heating mode (20 times P13 error within 180 mins)
H4
IPM modular high temp error (20 times P8 within 120 mins)
H5
Low pressure error (20 times P2 within 100 mins)
H6
Discharge temperature abnormal error(20 times P4 within 100 mins)
H7
Wet operation error (20 times P12 within 200 mins)
H8
T3 condenser sensor disconnect error (20 times E14 within 100 mins)
H12
Discharge temp sensor disconnect error(20 times E14 within 180 mins)
P1
High pressure protection
P2
Low pressure protection
P3
DC over current protection
P4
T5 Discharge temperature abnormal error
P5
T3 Condenser sensor high temp protection(In cooling mode)
P6
IPM module protection
P8
IPM high temperature protection (Ft)M high temperature protection (Ft)
P9
DC fan motor error
P12
Wet operation error
P14
High compression ratio protection
P15
Low compression ratio protection
L1
DC cable bus low voltage protection
L2
DC cable bus high voltage protection
L4
MCE fault / sync / closed loop
L5
Zero speed protection
L7
Compressor phase loss protection ratio protection
L8
Compressor stalls
L9
Frequency limitation or decline by high pressure
18
TGM Air Conditioners

R410A 60Hz 16 SEER Universal Outdoor Series Technical Manual
LA
Frequency limitation by voltage
LC
Frequency limitation by condenser temp.
LD
Frequency limitation by discharge temp
LE
Frequency limitation by IPM modular high temp
LF
Frequency limitation by current
1.E4/E5/E6 (T4/T5/T3 temperature sensors error)
2. E10 (EEPROM failure）
3. E9 ( AC under voltage protection )
19
TGM Air Conditioners

R410A 60Hz 16 SEER Universal Outdoor Series Technical Manual
4.E12 (IPM modular sensor error）
20
TGM Air Conditioners
