TGM T16CU16VT36S User manual

R410A 60Hz Universal Outdoor Series Technical Manual Outdoor Unit
16 SEER TOP-DIACHARGE UNIT
TECHNICAL MANUAL
1

R410A 60Hz 16 SEER Universal Outdoor Series Technical Manual
Part 1. General Information 3
1. Nomenclature 4
2. Model Names of Indoor/Outdoor Units 6
3. External Appearance 7
4. Features 8
Part 2 Outdoor Unit 9
1. Specification 10
2 .Dimensions 10
3. Service Space 12
4. Wiring Diagrams 13
5. Electric Characteristics 14
6. Operation Limits 14
7. Sound Levels 15
8. Exploded View 16
9. Troubleshooting 17
Part 3 Floor & ceiling 23
1. Specification 24
2. Dimensions 25
3. Service Space 26
4. Wiring Diagrams 27
5. Electric Characteristics 29
6. The Specification of Power 29
7. Exploded View 30
8. Troubleshooting 32
Part 4 Installation 33
1. Precaution on Installation 34
2. Vacuum Dry and Leakage Checking 35
3. Additional Refrigerant Charge 37
4. Insulation Work 38
5.Test Operation 40
2
TGM Air Conditioners

R410A 60Hz 16 SEER Universal Outdoor Series Technical Manual
Part 1. General Information
1. Model Names of Indoor/Outdoor Units 4
2. External Appearance 5
3. Features 6
3
TGM Air Conditioners

R410A 60Hz 16 SEER Universal Outdoor Series Technical Manual
1. Model Names of Indoor/Outdoor Units
1.1 Indoor Units
Model name
Dimension(W×H×D)
(mm)
Power supply
SEER 16 Cooling Only
T16CU16VT36S
1250×675×235
208~230V-1Ph-60Hz
T16CU16VT60S
1670×750×235
208~230V-1Ph-60Hz
1.2 Outdoor Units
Model name
Dimension (W×H×D)
(mm)
Power supply
Cooling Only
T16CROVT36AS
740×622×740
208~230V-1Ph-60Hz
T16CROVT60AS
740×835×740
208~230V-1Ph-60Hz
24V control
T16CROVT36AS
740×633×740
208~230V-1Ph-60Hz
T16CROVT60AS
740×835×740
208~230V-1Ph-60Hz
4
TGM Air Conditioners

R410A 60Hz 16 SEER Universal Outdoor Series Technical Manual

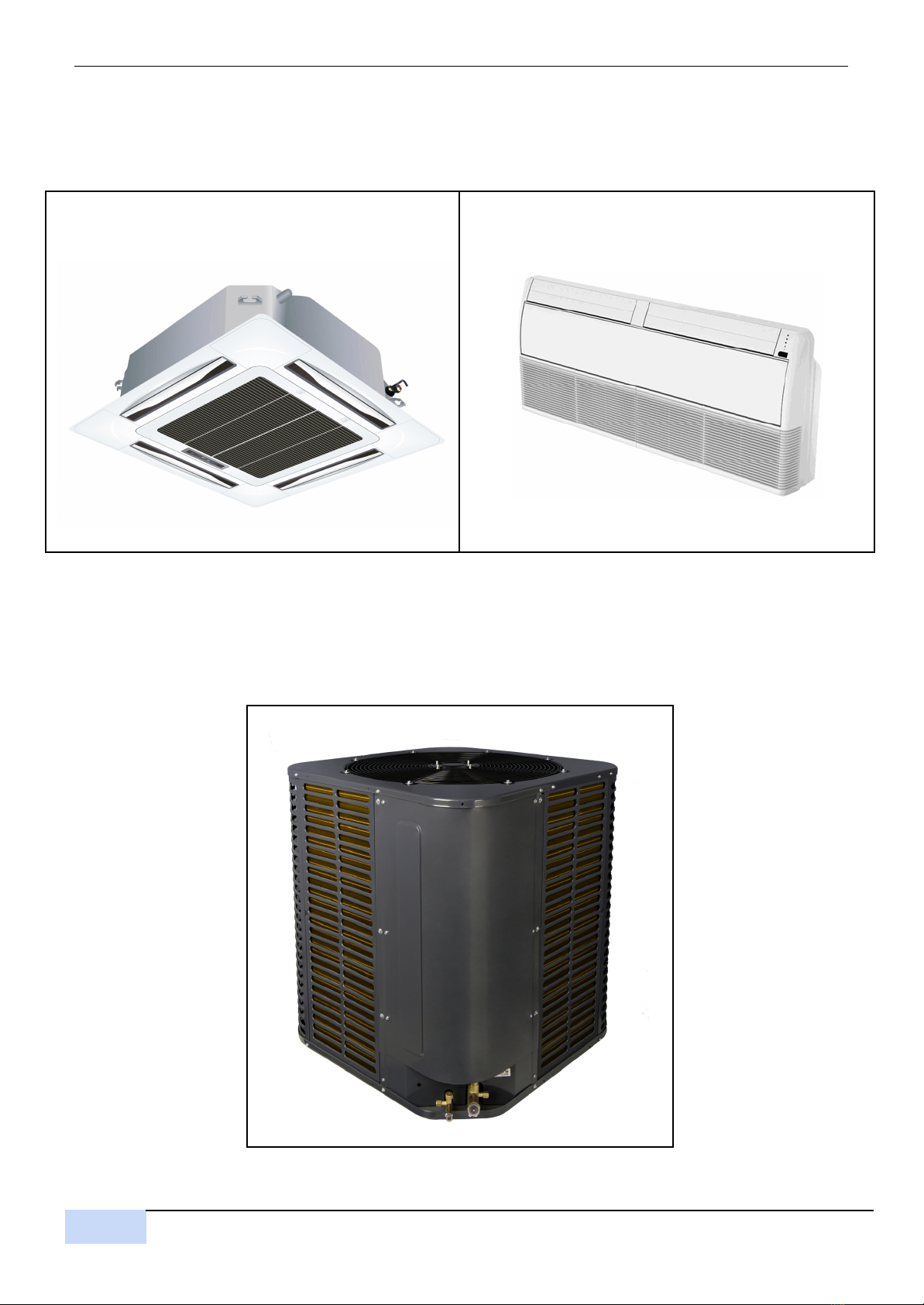

2. External Appearance
2.1 Indoor unit
Cassette
Floor-ceiling
2.2 Outdoor unit
Top-discharge
Note: Standard outdoor unit is using metal grill, and plastic grill can be customized.
5
TGM Air Conditioners

R410A 60Hz 16 SEER Universal Outdoor Series Technical Manual
3. Features
3.1 Capacity range : 36k/60k, cooling only type.
3.2 Well known brand inverter compressor: Mitsubishi & GMCC, reliable quality.
3.3 Can be matched with cassette\floor-ceiling and air-handler units.
3.4 Coils constructed with enhanced aluminum fins, golden fins/ blue dins are
avaliable.
3.5 Integrated circuit with refrigerant cooling design
3.6 R410A environment friendly refrigerant.
3.7 Flexible installation, ceiling suspended and floor standing .
3.8 New panel for cassette units,simple and voguish appearance suit for different.
6
TGM Air Conditioners

R410A 60Hz 16 SEER Universal Outdoor Series Technical Manual
Part 2 Outdoor Unit
1. Specification 8
2. Dimensions 9
3. Service Space 10
4. Wiring Diagrams 11
5. Electric Characteristics 12
6. Operation Limits 12
7. Sound Levels 13
8. Exploded View 14
9. Troubleshooting 15
7
TGM Air Conditioners

R410A 60Hz 16 SEER Universal Outdoor Series Technical Manual
1. Specification
Model name
Unit
COT-36CNVR1-16
COT-60CNVR1-16
Code
Outdoor code
821039000041
821039000042
Power
supply
V/Ph/Hz
208~230-1-60
208~230-1-60
Input
consumption
W
600-4000
600-5500
Current
A
2.5-19
2.5-30
Outdoor coil
Number of row
1
2
Fin spacing
mm
1.4
1.4
Fin material
Hydrophilic aluminum
foil
Unhydrophilic
aluminum foil
Tube outside diameter
mm
φ7
Ф7
Tube material
Inner grooved
Inner grooved
Coil length x height x
width
mm
2148×588×13.37
2148×798×26.76
Number of circuit
2
4
Compressor
Brand
GMCC
Mitsubishi
Model
ATM240D57UMT
MNB40FEQMC
Type
Twin-rotary
Twin-rotary
Capacity
W/h
7235
12900
Input
W
1945
3960
Rated current(RLA)
A
8.85
14.8
Refrigerant oil
ml
670
1100
Outdoor fan
motor
Brand
Lvzhi
Lvzhi
Model
YDK-110-8P2
YDK-230-6P2
Input
W
207
331
Running current
A
0.9
1.5
Capacitor
μF
6μF/450V
12μF/450V
Speed
r/min
850
1110
Outdoor air
flow
m3/h
4500
6000
Outdoor
noise level
dB(A)
57
60
Outdoor
dimension
Unit (WxHxD)
mm
740×740×633
740×740×835
Packing (WxHxD)
mm
760×760×660
760×760×875
Net/Gross
weight
kg
66/70
80/85
Refrigerant
Type
R410A
R410A
Charge
kg
2.2
3.8
Refrigerant
pipe
Liquid side/ Gas side
mm(inch)
Φ9.52/Φ19.05(3/8"/3/4"
)
Φ9.52/Φ19.05(3/8"/3/4"
)
Max. refrigerant pipe
length
m
25
30
Max. difference in level
m
20
20
Operation
temperature
range
℃
16～32
16～32
Ambient
temperature
range
℃
16～50
16～50
8
TGM Air Conditioners

R410A 60Hz 16 SEER Universal Outdoor Series Technical Manual

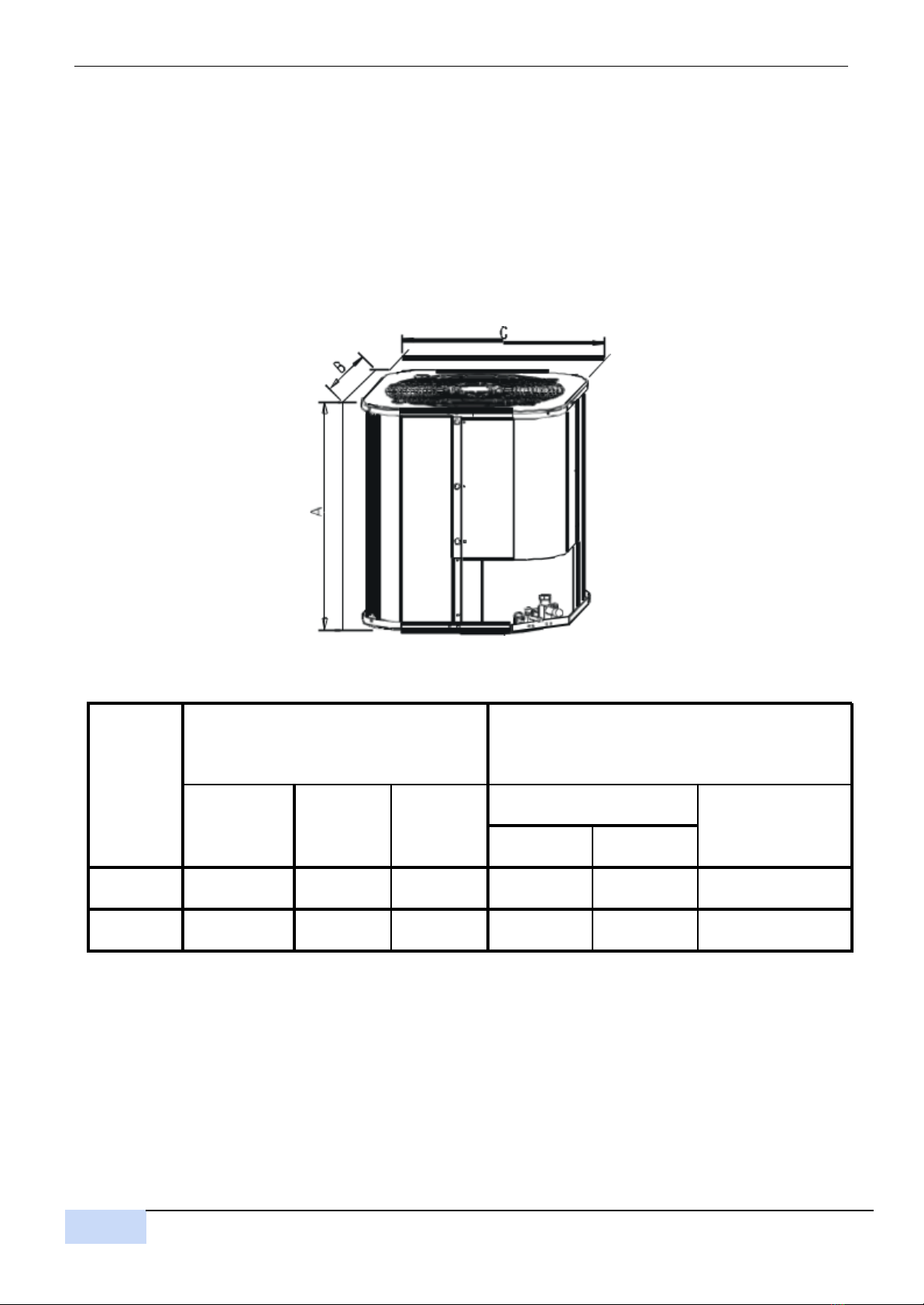

2 .Dimensions
All dimensions are in mm. They are subject tochange without
notice.
Certified dimensions will be provided upon request.
Model
Dimensions(mm)
Refrigerant Connection pipe
Size(mm)
A
B
C
Liquid(φ)
Vapor(φ)
LF
RF
36K
633
740
740
9.52
12.7
19.05
60K
835
740
740
9.52
12.7
19.05
NOTE: LF means cooling only model; RF means heat pump model.
9
TGM Air Conditioners

R410A 60Hz 16 SEER Universal Outdoor Series Technical Manual
3. Service Space
10
TGM Air Conditioners

R410A 60Hz 16 SEER Universal Outdoor Series Technical Manual
4. Wiring Diagrams
11
TGM Air Conditioners

R410A 60Hz 16 SEER Universal Outdoor Series Technical Manual

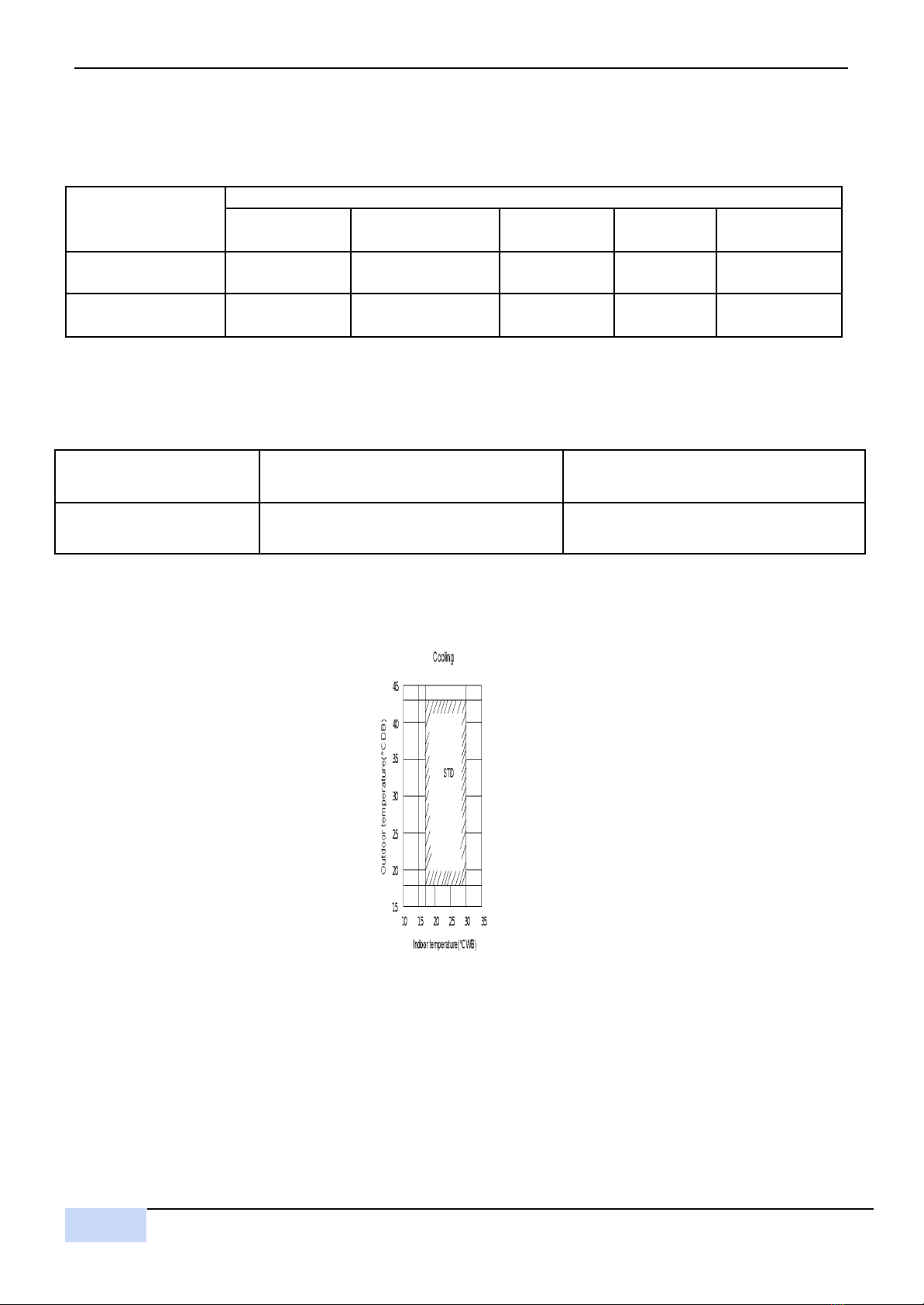

5. Electric Characteristics
Model
Outdoor Unit
Hz
Voltage
Min.
Max.
Outdoor
motor (kw)
COT-36CNVR1-1
6
60
208~230V
198V
242V
0.21
COT-60CNVR1-1
6
60
208~230V
198V
242V
0.36
6. Operation Limits
Operation mode
Outdoor temperature(℃)
Room temperature(℃)
Cooling operation
18~47
16~32
12
TGM Air Conditioners

R410A 60Hz 16 SEER Universal Outdoor Series Technical Manual

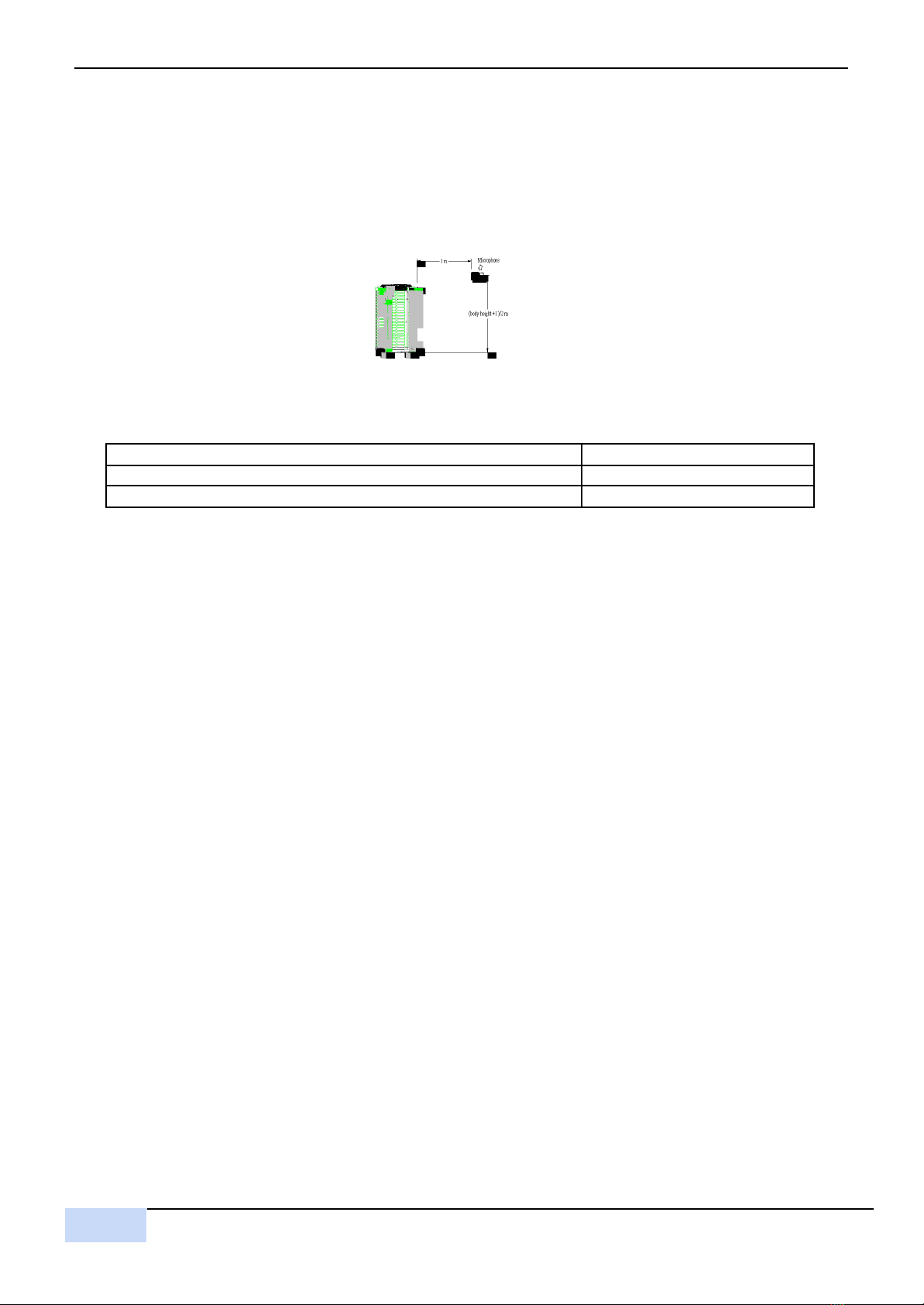

7. Sound Levels
Model
Noise level dB(A)
COT-36CNVR1-16
57
COT-60CNVR1-16
60
Note: Sound level is measured at a point 1 m in front of the unit, at a height of (Unit body height +1)/2 m.
13
TGM Air Conditioners

R410A 60Hz 16 SEER Universal Outdoor Series Technical Manual

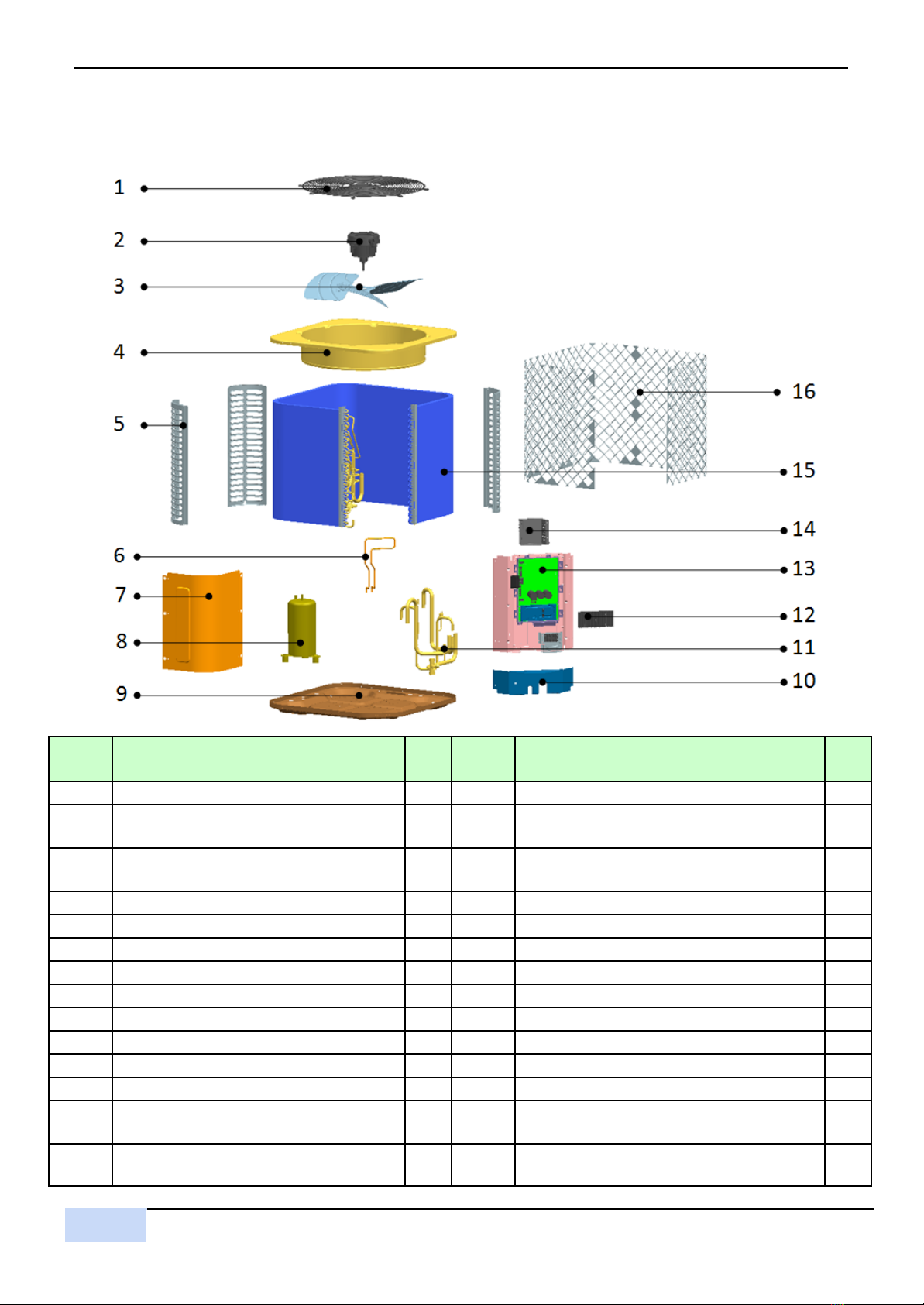

8. Exploded View
No.
Part Name
Qt
y
No.
Part Name
Qt
y
1
Cover net
1
11.3
Gas outlet pipes welded assy
1
2
Outdoor motor
1
11.3.
1
Gas outlet pipe
1
3
Axial-flow fan
1
11.3.
2
Gas concentration filter pipe
1
4
Top cover assy
1
12
Cooler cover
1
5
Support board
3
13
Electronic components
1
6
Refrigenrant cooling tubes assy
1
13.1
Terminal block
1
7
Top panel
1
13.2
Outdoor display board
1
8
Compressor
1
13.3
Outdoor integrated E-board
1
9
Chassis assy
1
13.4
Reactor
1
10
Bottom side panel
1
13.5
Inserted fan motor capacitor
1
11
Refrigerant flow tubes assy
1
13.6
E-parts installation board welded assy
1
11.1
High pressure valve welded assy
1
13.7
Main control board installation base
1
11.1.
1
High pressure valve connecting
pipe
1
13.8
Communication board installation
base
1
11.1.
2
Square valve
1
13.9
Terminal block installation board
1
14
TGM Air Conditioners

R410A 60Hz 16 SEER Universal Outdoor Series Technical Manual
11.2
Low pressure valve welded assy
1
14
Reactor installation lid
1
11.2.
1
Square valve
1
15
Condenser
1
11.2.
2
Low pressure valve connecting pipe
1
16
Outdoor unit protecting net
1
9. Troubleshooting
The fault codes for outdoor unit as follows:
CODE
FAULT DESCRIPTION
E2
Communication error between indoor unit and outdoor unit
E4
T4 Outdoor ambient temperature sensor error
E5
T5 Discharge temperature sensor error
E6
T3 Condenser temperature sensor error
E9
AC under voltage protection
E10
EEPROM error
H0
Communication error of main chip and IPM chip
P1
High pressure protection
P2
Low pressure protection
P3
DC over current protection
P4
T5 Discharge temperature abnormal error
P6
IPM module protection
1.E4/E5/E6 (T4/T5/T3 temperature sensors error)
15
TGM Air Conditioners

R410A 60Hz 16 SEER Universal Outdoor Series Technical Manual

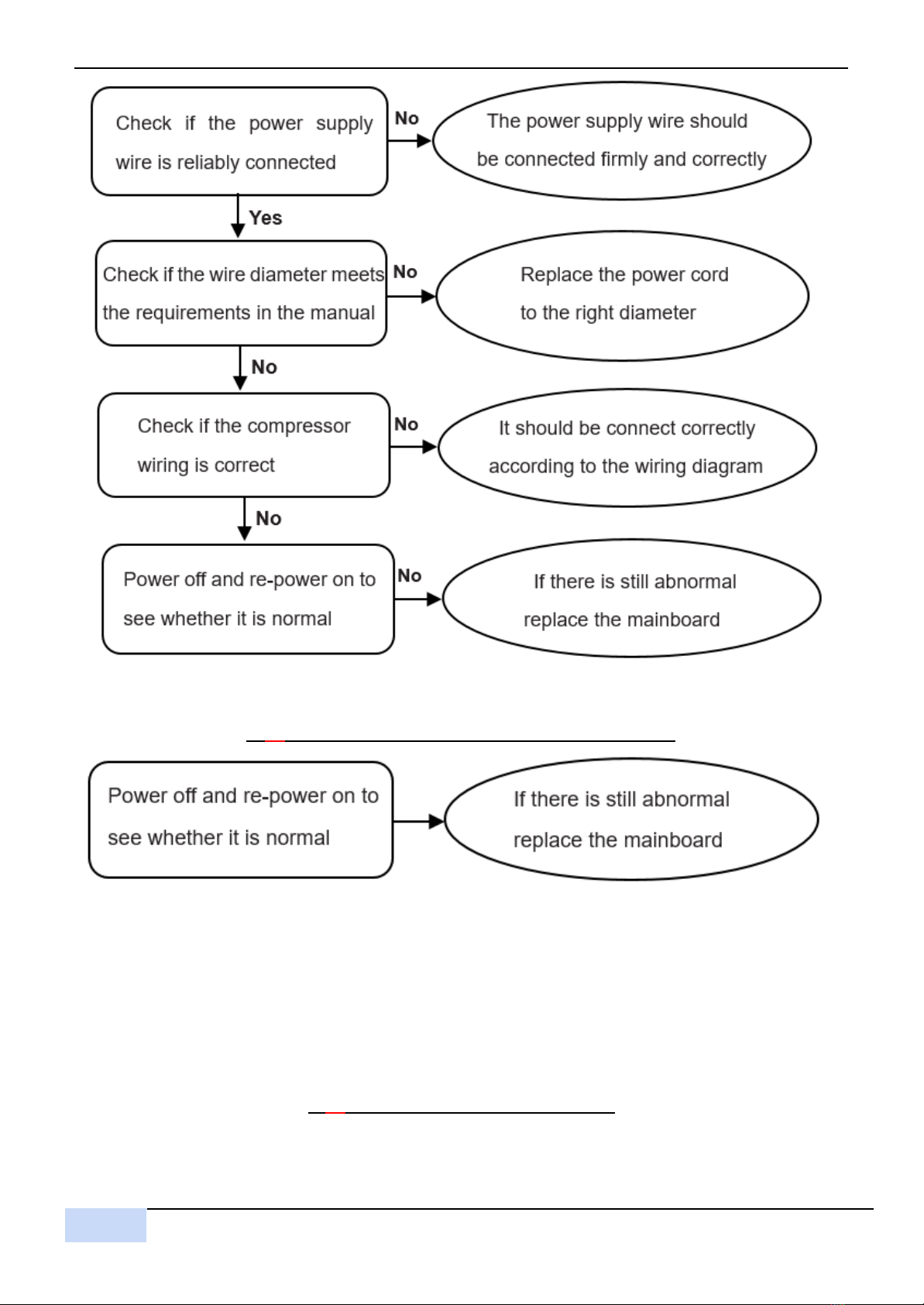

2. E10 (EEPROM failure）
3. E9 ( AC under voltage protection )
16
TGM Air Conditioners

R410A 60Hz 16 SEER Universal Outdoor Series Technical Manual

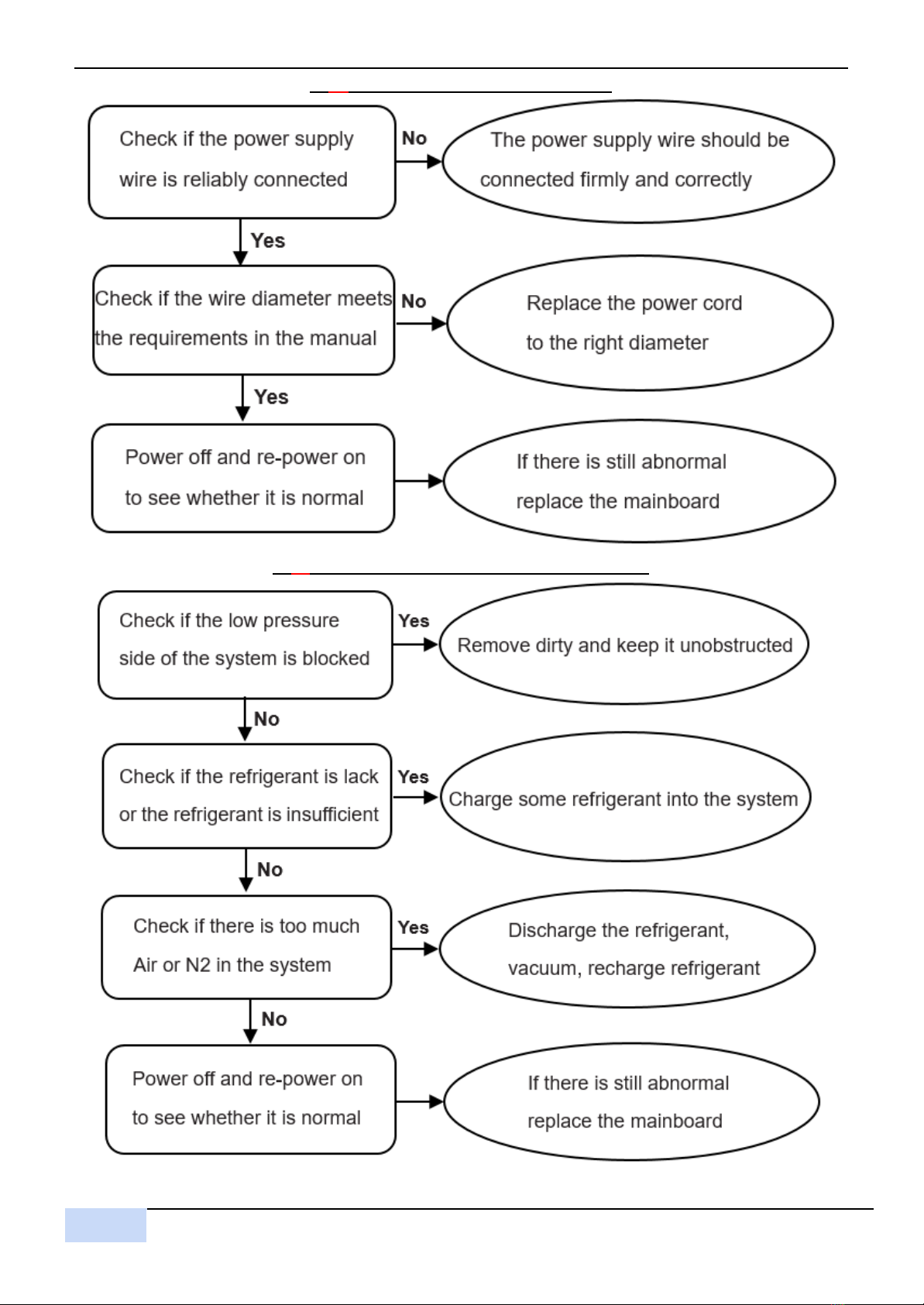

4. H0 (Communication error of main chip and IPM chip )
5. P1( High pressure switch protection )
17
TGM Air Conditioners

R410A 60Hz 16 SEER Universal Outdoor Series Technical Manual
6. P2 (Low pressure switch protection）
18
TGM Air Conditioners

R410A 60Hz 16 SEER Universal Outdoor Series Technical Manual
7. P3( Inverter over current protection )
8. P4 (T5 Discharge temperature abnormal error）
19
TGM Air Conditioners

R410A 60Hz 16 SEER Universal Outdoor Series Technical Manual

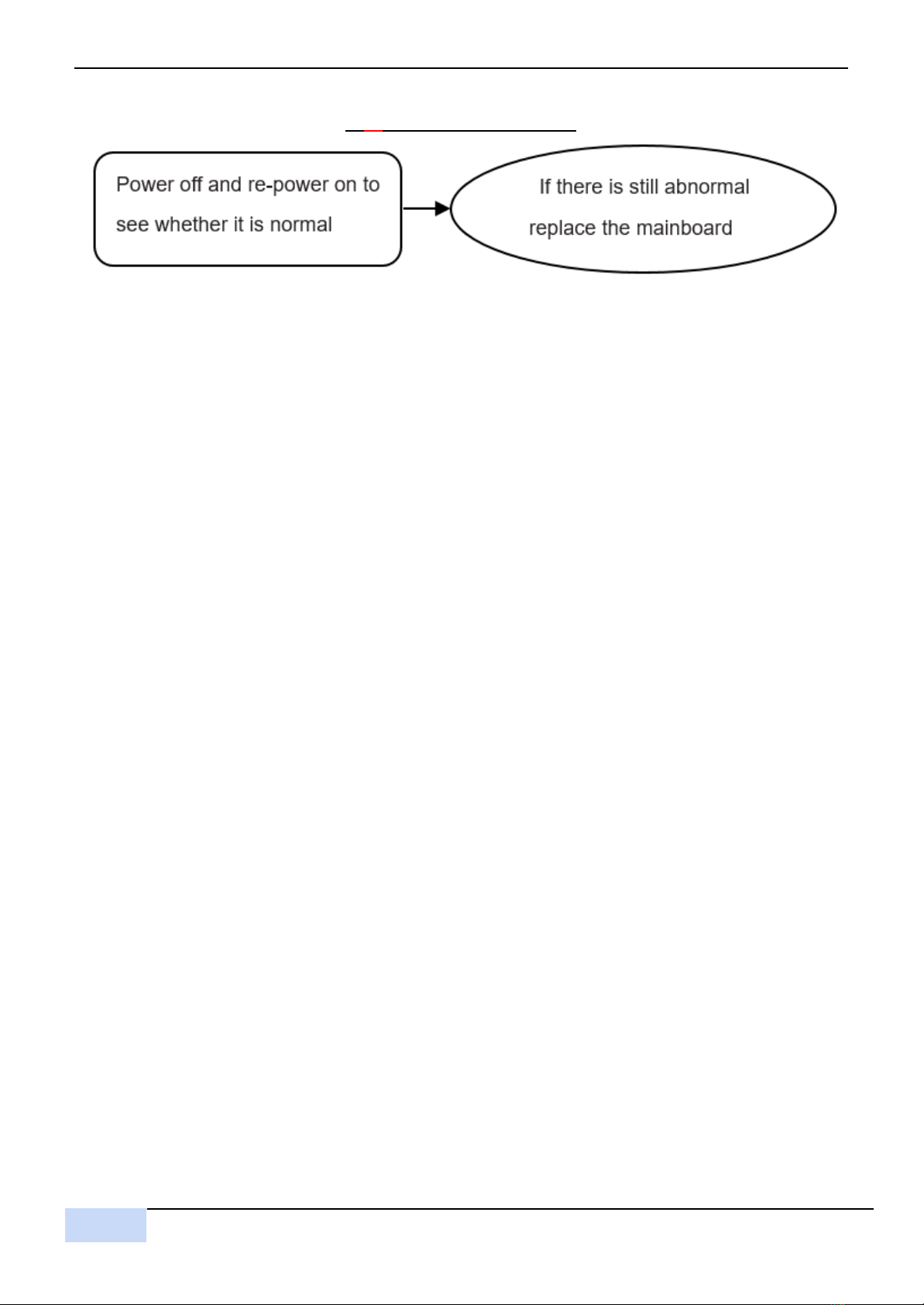

9. P6 (IPM module protection）
20
