Thales POST-L-0H-10 User manual

Release A
THALES
LPOS
THALES POST
-
L
-
0H
-
10
USER GUIDE
THALES
Document
1
/1
3
USER GUIDE
THALES POST-L-0H-10

Release A
THALES
LPOS
THALES POST
-
L
-
0H
-
10
USER GUIDE
THALES
Document
2
/1
3
CONTENTS
I. Terminal Description
II. Electromagnetic Compatibility
III Safety recommendations when installing and using the computer
IV. Specific Labelling
* * * * * *
ABOUT THIS COMPUTER
-Appliance inlet is used as disconnect device.
-This product is also designed for IT power distributionsystem with phase-to-phase 230V
-The Maximum RecommendedAmbient Temperature (Tmra) is 41°C
* * * * * *
Remark : This user guide is based on “THALES LPOS (POST-L-0H-10) Specification, Design
& Manufacturing” document.

Release A
THALES
LPOS
THALES POST
-
L
-
0H
-
10
USER GUIDE
THALES
Document
3
/1
3
I. TERMINAL DESCRIPTION
WARNING : The THALES POST-L-0H-10 terminal must only be used by authorized and
trained technician. It’s normally protected by specific seals. For accessing to its internal
parts, the authorized technician must use special screwdrivers and keys.
The THALES POST-L-0H-10 terminal must only be used in standing (vertical) position.
Button for opening thermal printer
cover and loadingpaper
Thermal printer output
Contactless Smart Card
Reader/Writer
I.1) Front Side view
8” LCD display with resistive type 5wire touch screen
LED indicator
Power ON/OFF
Loading paper
Built-in Speakers

Release A
THALES
LPOS
THALES POST
-
L
-
0H
-
10
USER GUIDE
THALES
Document
4
/1
3
I.3 Rear Side View
Main Processing Unit
Main Unit front panel
RESET AT/ATX
COM1 COM3 VGA USB (x4) LAN RJ12 +24VDC
(+12VDC INPUT
Output)

Release A
THALES
LPOS
THALES POST
-
L
-
0H
-
10
USER GUIDE
THALES
Document
5
/1
3
I.2.a) Removing the Main Processing Unit
WARNING: Before removing any part of the LPOS (THALES POST-L-0H-10) terminal, all
power cables must be disconnected from their electrical outlets.
For removing the Main Processing Unit
from the LPOS (THALES POST-L-0H-
10) terminal, the (trained) technician must
-remove all cables and devices connected
to the Main Unit front panel [specially the
AC Adapter connected to the “+24VDC
INPUT” and the two cables connected to
COM3 (RJ45 connector) and to Cash
Drawer (RJ12 connector)(see previous
page)]
-remove the four (4) screws located inside
the 4 red circles
Compact Flashlocation Removed Main Processing Unit
LCD display & touch screen interfaces 2.5” Hard Disk Drive location

Release A
THALES
LPOS
THALES POST
-
L
-
0H
-
10
USER GUIDE
THALES
Document
6
/1
3
I.2.b) Removing the Side Cover
LPOS (POST-L-0H-10) terminal side cover
This side cover can be temporarily
removed for maintenance operations.
After that, it will be immediately put
back in its place.
To access the internal parts of the computer, side covers
can be removed (or put back to its place) by loosening
(or tightening) the six (6) screws located inside the red
circles (3 screws for each side cover).

Release A
THALES
LPOS
THALES POST
-
L
-
0H
-
10
USER GUIDE
THALES
Document
7
/1
3
II. Electromagnetic Compatibility
Electromagnetic Compatibility is the ability of items of electronic equipment to function properly
together in the electronic environment.
This terminal has been designed to be compliant with regulatory agency limits for Electromagnetic
Interference :
FCC CFR 47 part 15.107 et 15.109 classe A
CISPR 22 (2006) classe A (ICES 003 pour Industry Canada)
EN61000-4-2,
EN61000-4-3,
EN61000-4-4,
EN61000-4-5,
EN61000-4-6,
EN61000-4-8,
EN61000-4-11
Information to user:
For ICES003 and Europa
Warning
This is a Class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
For FCC
“This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.”
Pursuant to Part 15.21 of the FCC Rules, any changes or modifications to this
equipment not expressly approved by THALES may cause, harmful interference
and void the FCC authorization to operate this equipment.

Release A
THALES
LPOS
THALES POST
-
L
-
0H
-
10
USER GUIDE
THALES
Document
8
/1
3
III. SAFETY instructions for installing and using the computer
III.1) General
Remark : This terminal is a specific device. Its inner parts can only be accessed by authorized and
trained technician.
Do not attempt to service the terminalyourself unless you are a trained technician.
Always follow the installation instructions closely.
To help avoid hazard of electric shock, do not connect or disconnect any cable or perform maintenance
or reconfiguration of this product during an electric storm.
Before adding or replacing any device, all power cables must be disconnected from their electrical
outlets.
Before cleaning the computer, it must be disconnected from the electrical outlet. The computer must
be cleaned with a soft cloth dampened with water. Do not use liquid or aerosol cleaners, which may
contain flammable substances.
III.2) Power
To help prevent electric shock, plug
a) the AC adapter (ACà24VDC) to the Main Processing Unit grounded “24VDC INPUT” (marked
“DC IN 24V”, see § “I.3 Rear Side View”), then plug
b) the AC Adapter to main AC outlet by using a power cable equipped with 3-prong plugs to provide
an earth grounding connection.
Do not remove the grounding prong from the power cable plug.
Suitable 3-prong main outlet
If you use a power extension cable, use the
appropriate type (3-prong) to mate the AC power
cable.
FSP070-RAA AC power adapter used with LPOS (POST-L-0H-10) (POST-L-0H-10) terminal

Release A
THALES
LPOS
THALES POST
-
L
-
0H
-
10
USER GUIDE
THALES
Document
9
/1
3
III.3) Motherboard’s Battery
For saving data stored in LPOS (POST-L-0H-10) terminal motherboard’s CMOS RAM, a
“Lithium coin” battery is used. It’s 3.0 volts (nominal voltage) Lithium / Manganese Dioxide
(Li/MnO2) battery (see the battery location in the following photography).
EP-308A motherboard
Lithium “coin” battery Main Processing Unit’s cover
This “coin” battery must be changed periodically to make the computer properly work
(typical periodicity > 2 years).
CAUTION : Risk of explosion if battery is replaced by an incorrect type. Dispose of used
batteries according to the instructions.
Instructions : Do not dispose of your LPOS (POST-L-0H-10) terminal’s battery in a fire or
in abnormal household waste : battery cells may explode. Discard a used battery according to
the manufacturer’s instructions or contact your local waste disposal agency for disposal
instructions. Dispose of a spent or damaged battery promptly.
IMPORTANT REMARK :
Because the LPOS (POST-L-0H-10) terminal’s motherboard is not easy to reach, only trained
technicians are allowed to do the “coin battery” replacement operation [cf. “LPOS (POST-L-
0H-10) Maintenance” document.

Release A
THALES
LPOS
THALES POST
-
L
-
0H
-
10
USER GUIDE
THALES
Document
10
/1
3
III.4) Signal Cables quality
Use shielded signal cables to ensure that the appropriate electromagnetic compatibility
classification is maintained for the intended environment.
III.5) Static Electricity
Static electricity can destroy electronic components inside the computer. To prevent static
damage, discharge static electricity from your body before you touch any of the computer’s
electronic components, such as a memory module. You can do so by touching an unpainted
metal surface on the computer’s input/output panel.
Handle components with care. Hold a component such as a memory module by its edges, not
its pins.
III.6) General Instructions
III.6.a) WHEN USING THE TERMINAL
Protect the computer from environmental hazards as dirt, dust, food, liquids, temperature
extremes and over exposure to sunlight.
When the computer is moved between two environments with very different temperature
and/or humidity ranges, condensation may form on or within the computer. To avoid
damaging the terminal, allow sufficient time for the moisture to evaporate before using the
terminal.
When taking the terminal from low-temperature conditions into a warmer environment or
from high-temperature conditions into a cooler environment, allow the computer to acclimate
to room temperature before turning on power.
When you disconnect a cable, pull on its connector or on its strain-relief loop, not on the cable
itself. As you pull out the connector, keep it evenly aligned to avoid bending any connector
pins. Also, before you connect a cable make sure that both connectors are correctly oriented
and aligned.
III.6.b) IF YOUR TERMINAL GETS WET
If the terminal is connected to an electric outlet, it is recommended to turn off AC power at
the circuit breaker before attempting to remove the power cables from the electrical outlet.
Use the utmost caution when removing wet cables from a live power source.
Do not use artificial means such as hair dryer or a fan to speed the drying process.
To help prevent electrical shock, verify that the computer is thoroughly dry before continuing
to work
III.7) When working inside the terminal.
Before performing maintenance inside or outside the terminal, wait at least 5 seconds after
turning off the computer before disconnecting an external device (peripheral), removing or
changing a memory module or an add-on card, to help prevent possible damage to the main
board.

Release A
THALES
LPOS
THALES POST
-
L
-
0H
-
10
USER GUIDE
THALES
Document
11
/1
3
III.8) Protecting against Electrostatic Discharge
Static electricity can harm or destroy electronic components inside the computer.
To prevent static damage, discharge static electricity from your body before you touch any of
your computer’s electronic components. You can do so by touching any unpainted metal
surface on the back of the computer.
You can also take the following steps to prevent damage from electrostatic discharge (ESD) :
-When unpacking a static-sensitive component from its shipping carton, do not remove the
component from the antistatic packing material until you are ready to install the component.
Just before unwrapping the antistatic packaging, be sure to discharge static electricity from
your body.
-When transporting a sensitive component, first place it in an antistatic container or
packaging.
-Handle all sensitive components in a static-safe area. If possible, use antistatic floor pads
and workbench pads.

Release A
THALES
LPOS
THALES POST
-
L
-
0H
-
10
USER GUIDE
THALES
Document
12
/1
3

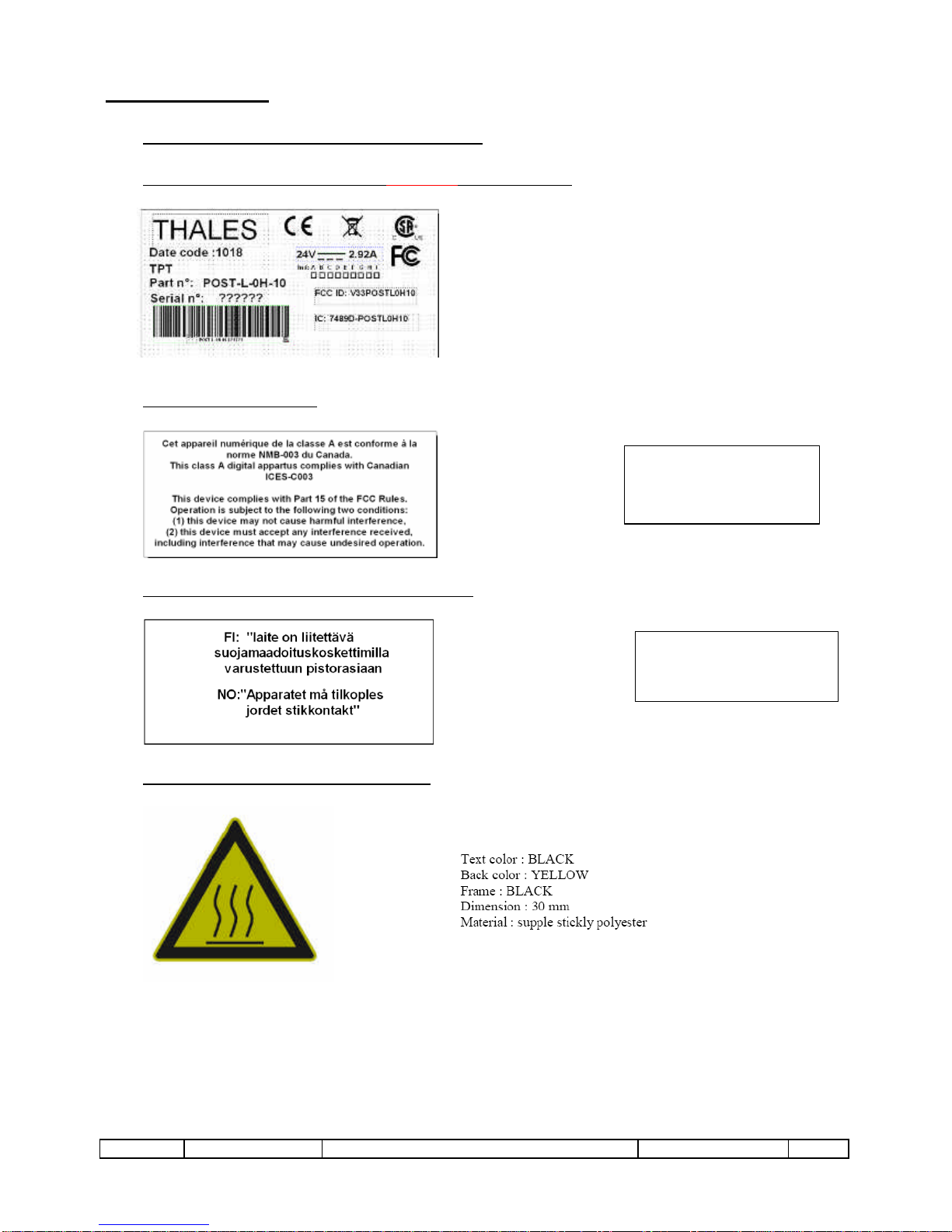

IV) Specific Labelling
IV.1) CSA Approval Labelling (project)
Planned final label (with expected cCSAus Approval logo)
IV.2) EMC Labelling -
IV.3 Labelling in Finnish & Norwegian
IV.4Temperature warning Label
EMC labels
(in French & in English)
Labelling in Finnish & in
Norwegian

Release A
THALES
LPOS
THALES POST
-
L
-
0H
-
10
USER GUIDE
THALES
Document
13
/1
3

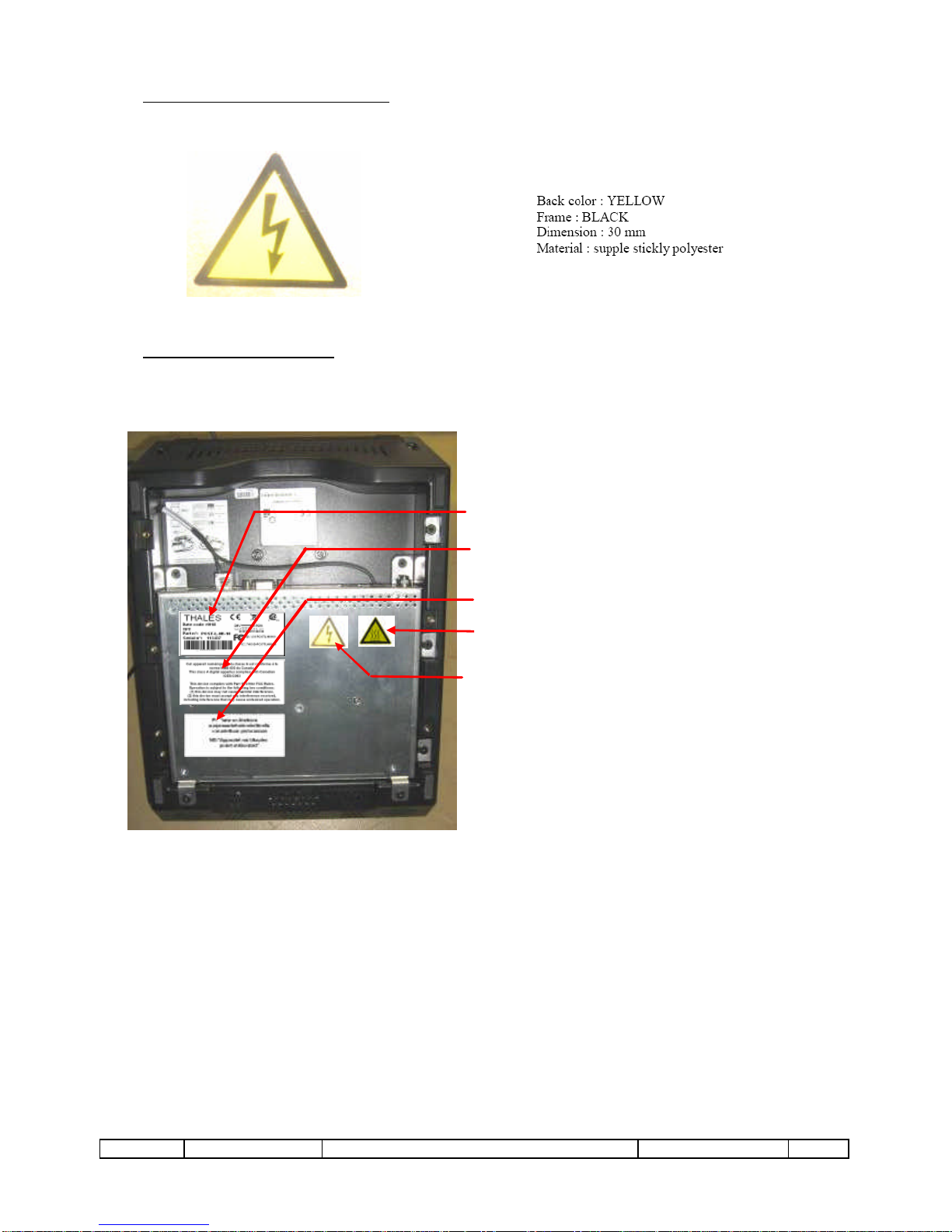

IV.5Electrical warning label
IV.6) Labels locations
The three (3) LPOS (POST-L-0H-10) specific
labels are stuck under the EP-308A case as
shown in the picture.
Serial Number with CSA Approval Label
EMC Labels (in French & in English
Labelling in Finnish & Norwegian
Temperature warning label
Electrical warning label
