IVC Displays NP-600S User manual

NP-600S
RISC-based operator interface terminal with 5.7” flat panel display
Users Manual

2
Copyright.......................................................................................................................3
Safety Instructions......................................................................................................... 4
Chapter 1 Introduction .................................................................................................. 5
1.1 Introduction........................................................................................... 5
1.2 Specifications........................................................................................ 5
Chapter 2 Installation Instructions ................................................................................ 7
2.1 Mounting Instructions....................................................................................... 7
2.1.1 Location Considerations........................................................................... 7
2.1.2 Making a NEMA-4 Mounting.................................................................. 7
2.1.3 Environmental Considerations................................................................. 8
2.2 Power Connections............................................................................................ 8
2.2.1 Power Requirements ................................................................................ 9
2.2.2 Grounding Requirements ....................................................................... 10
2.2.3 CE Requirements.................................................................................... 10
2.2.4 Safety Guidelines ................................................................................... 10
2.3 Communications Connections..........................................................................11

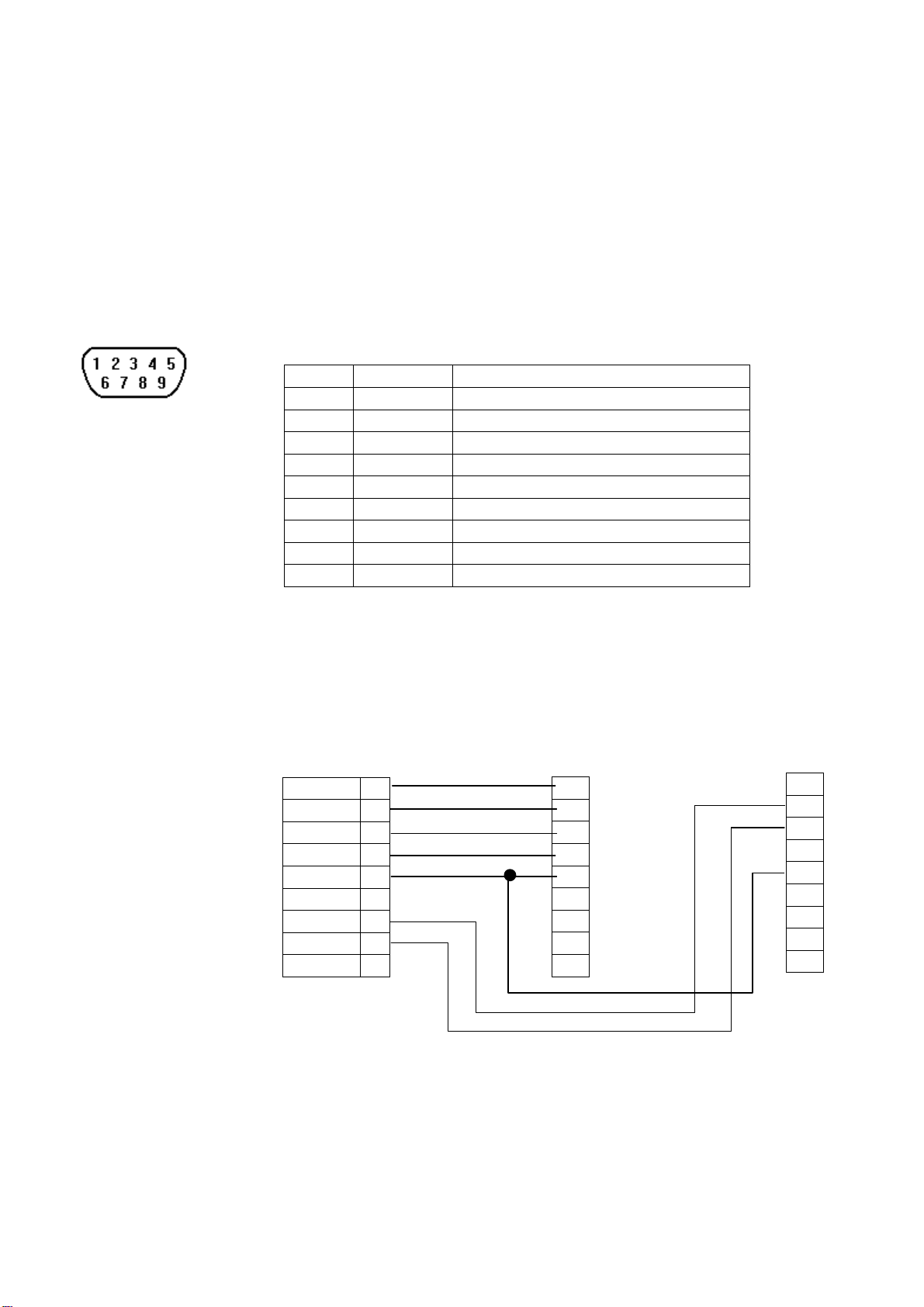

2.3.1 Connecter COM 1 [RS232].....................................................................11
2.3.2 Connecter COM1[RS485] COM2[RS232]............................................ 13
2.3.4 Dip Switch.............................................................................................. 14
2.4 CE Requirements............................................................................................. 14
2.5 Dimensions of NP-600S.................................................................................. 15
Chapter 3 Windows CE.NET...................................................................................... 17
3.1 Introduction..................................................................................................... 17
3.2 Utilities............................................................................................................ 17
3.2.1 Soft-Keyboard........................................................................................ 17
3.2.2 System Settings...................................................................................... 18
3.2.3 IPSM....................................................................................................... 20
3.2.4 Startup .................................................................................................... 20
3.2.5 Remote Desktop Connection.................................................................. 21
3.3 NP-600S Networking...................................................................................... 23
3.3.1 Networking via Ethernet ........................................................................ 23
3.3.2 Networking via USB Client Port............................................................ 24
3.3.3 Web browser........................................................................................... 25
3.4 Application program development.................................................................. 25

3
Copyright
This document is copyrighted April, 2003, by IVC Displays, Inc. All rights are
reserved. IVC Displays, Inc. reserves the right to make improvements to the products
described in this manual at any time. Specifications are thus subject to change without
notice.
No part of this manual may be reproduced, copied, translated, or transmitted in any
form or by any means without the prior written permission of IVC Displays, Inc.
Information provided in this manual is intended to be accurate and reliable. However,
IVC Displays, Inc. assumes no responsibility for its use, nor for any infringements
upon the rights of third parties which may result from its use.

4
Safety Instructions
Overview
This section states the safety instructions, which must be followed when installing,
operating and servicing the NP-600S. If neglected, physical injury and death may
follow, or damage may occur to controller and related equipment. The material in this
chapter must be studied before attempting any work on, or with, the unit.
Warnings and Notes
This manual distinguishes safety instructions. Warnings are used to inform of
conditions, which can, if proper steps are not taken, lead to a serious fault condition,
physical injury or death. Notes are used when the reader is required to pay special
attention or when there is additional information available on the subject. Notes are
less crucial than warnings, but should not be disregarded.
Warnings Readers are informed of situations that can result in serious physical injury
and/or serious damage to equipment with the symbol shown to the left. A
Warning symbol indicates that the reader should pay special attention to the
accompanying text. Precautionary steps should be taken to insure that the
installation is in compliance with warnings. Warnings include hazardous
conditions that could cause personal injury or equipment damage if care is
not taken. The text next to this symbol describes ways to avoid the danger.
Warnings Dangerous Voltage Warnings: Warns of situations in which high voltage
can cause physical injury and or damage equipment.
General warning: Warns of situations, which can cause physical injury and
or damage equipment by means other than electrical.
Electrostatic Discharge Warning: Warns of situations in which an
electrostatic discharge can damage equipment.
Readers are notified of the need for special attention or additional in formation
available on the subject with the following symbols:
CAUTION! Aims to draw special attention to it.
Note: Note: gives additional information or points out more information available
on the subject.

5
Chapter 1 Introduction
1.1 Introduction
The NP-600S is a miniature and compact platform that has no redundant functions. It
is designed for small-sized operator interface market. It has 5.7" STN LCD display,
which is a good cost effective choice for limited budget. Its RISC kernel, the Intel
StrongARM 1110 processor, is of low power consumption without sacrificing
performance. The NP-600S has 10Base-T Ethernet port offering good
communication ability as the world is webized. IVC Displays, Inc. is offering this OI
solution in the way that the NP-600S is bundled with Windows CE OS. The built-in
Windows CE OS platform forms a bridge that lets NP-600S be an open HMI solution
for system integration.
Features
 Built-in flash memory and Windows CE OS inside
 All in one platform: the CPU, DRAM and Windows CE are integrated
 Low power consumption and Fan-less
 NEMA 4 / IP65 compliant front panel
 One CompactFlash™ slot
 Audio
 Ethernet port(10Base-T)
1.2 Specifications
 Construction: plastic molding housing
 Display: 5.7" QVGA Color STN LCD
 CPU and core logic: Intel™ StrongARM 1110
 DRAM: 32/64 MB on board
 Storage: 16/32 MB flash memory on board,
 1 CompactFlash™ card slot

6
 I/O: 2 serial ports (port1: RS-232/485, port2: RS232),
 1 Ethernet port (10Base-T)
 1 USB client for ActiveSync
 Sound output: 16 bit sound output
 RTC: Dallas DS1685
 Power input: 24 VDC, 0.5Amaximum
 Dimension (W x H x D): 204 x 150 x 48mm
 Weight: 1.0kg
LCD Display
 Display type STN color LCD
 Display size (diagonal) 5.7"
 Max colors 4096
 Resolution 320 x 240
 Pixel pitch (HxV, mm) 0.36 x 0.36
 Viewing angle (°) 100
 Luminance (cd/m2)150
 Storage temperature (°C) -20~60
 Operating temperature (°C) 0~45
 Backlight1 CCFL
 Contrast ratio 30:1
Touch screen
 Type: 4-wire, analog resistive
 Resolution: continuous
 Light transmission: above 80%
 Life: 1 million activation minimal
Environmental Specifications
 Operating temperature: 0° ~ 45°C (32° ~ 113°F)
 Relative humidity: 10% ~ 90% @ 40°C, non-condensing
 Shock (operation): 10 to 25Hz(X,Y,Z direction 2G 30minutes)
 EMI: Complies FCC class A
 CE: Complies with EN50081-2 and EN50082-2 standards
 Front panel meets NEMA4 / IP65

7
Chapter 2 Installation Instructions
2.1 Mounting Instructions
2.1.1 Location Considerations
Care should be taken when locating equipment behind the unit to ensure thatAC
power wiring, PLC output modules, contactors, starters and relays, and any other
source of electrical interference are located away from the back of the unit.
Particular note should be taken to the position of variable speed drives and switching
power supplies. Their input and load cables should be screened to a central star earth
point.
2.1.2 Making a NEMA-4 Mounting
Panel Details The unit can be mounted into panels with a depth of 4”(105mm). It
is recommended that the unit be mounted on the front panel of a
steel enclosure, through an appropriate opening*.Allow a clearance
of 1”(25mm) around the sides of the unit for mounting hardware.
Allow clearance for cable connections to the back of the unit. Unit
depth may vary according to cable type used. Typically, plan a
depth to accommodate at least 4”(105mm) behind the panel.
NEMA-4
Mounting Put the unit through the panel cut out. Slide the clamps into the 6 holes provided around the case. Tighten the clamping screws in an
even pattern until the unit is secured in the panel.
Caution! Do not over tighten mounting clamps!
Note: Specifications Note:
To seal to NEMA-4 specifications, all supplied mounting clamps
must be used and panel cannot flex more than 0.010”.

8
2.1.3 Environmental Considerations
 The NP-600S are to be used indoors as built in displays. Make sure that the
displays are installed correctly and that the operating limits are followed (See
Specifications).
 Do not operate the unit in areas subject to explosion hazards due to flammable
gases, vapors or dusts.
 The unit should not be installed where fast temperature variations and/or high
humidity are present. This will cause condensation of water in the device.
 Do not install these terminals in environments where have inflammable gases.
2.2 Power Connections
Make sure that all local and national electrical standards are met when the installing
the unit. Contact your local authorities to determine which codes apply.

9
2.2.1 Power Requirements
Power The NP-600S can be powered by DC power only. The specified
voltage range is +21 to 25 Volts DC. This insures compatibility
with most controller DC systems. The power conditioning circuitry
inside the unit is accomplished by a switching power supply. The
peak starting current can be as high as 700mA.
Fusing
Requirements If the display does not come on within 2 seconds of power up,
remove power. An internal fuse will prevent damage if the polarity
of the DC power is incorrect. Check wiring to insure proper
connections and try to power up again.
Caution
High Voltage An Internal fuse will prevent damage for over voltage condition
however it isn’t guaranteed.
DC voltage sources should provide proper isolation from mainAC
power and similar hazards.
Caution
Emergency
Stop
A Hard-wired EMERGENCY STOP should be fitted in any system
using an NP-600S to comply with ICS Safety Recommendations.
Caution
Supply Voltage
Condition
Do not power the NP-600S and inductive DC loads, or input
circuitry to the controller, with the same power supply. Note: The 24
VDC output from some controllers may not have enough current to
power the NP-600S.
Caution
Wire Routing Wire lengths should be minimized (Maximum 1600’ (500 m)
shielded, 1000’(300 m) unshielded).
Wires should be run in pairs with a neutral or common paired with a
hot or signal line.
If wiring is to be exposed to lightning or surges, use appropriate
surge suppression devices.
Keep AC, high energy, and rapidly switching DC wiring separate
from signal wires.
Equip ungrounded DC supplies with a resistor and capacitor in
parallel to earth ground. This provides a path for static and high
frequency dissipation. Typical values to use are 1MOhm and
4700pF.
Connection To make a connection, strip about 3/8” of insulation off the end of
the wire, turn the connector screw counterclockwise until the gap is
wide open, insert the wire all the way in, and turn the screw
clockwise until it’s tight.
Connect positive DC line to the ‘+24V’terminal and the DC ground
to the ‘0V‘ terminal.

10
2.2.2 Grounding Requirements
Chassis ground must be used. DC ground is not directly coupled to Earth ground
internally. It is preferable not to ground DC negative return to chassis ground as poor
site earths can introduce noise into a system, but if necessary an earth connection
should be made, from the power supply return point to the central star earth point.
Ground conductors should be as short and as large in size as possible. The conductors
must always be large enough to carry the maximum short circuit current of the path
being considered. Ground conductors should be connected to a tree from a central star
earth ground point. This ensures that no ground conductor carries current from any
other branch.
2.2.3 CE Requirements
To make an NP-600S comply with EMC directives, and to reduce susceptibility to
electrical interference, a separate #14 AWG ground wire should be taken to the chassis
ground terminal of the power connector. This ground connection should be run
directly to the central star earth connection point (as recommended in most
Installation Instructions).
2.2.4 Safety Guidelines
This section presents recommended installation practices, and procedures. Since no
two applications are identical, these recommendations should be considered as
guidelines.
Hardware Considerations WARNING!
The system designer should be aware that devices in Controller systems could fail and
thereby create an unsafe condition. Furthermore, electrical interference in an operator
interface, such as an NP-600S, can lead to equipment start-up, which could result in
property damage and/or physical injury to the equipment operator.
If you, or your company, use any programmable control systems that require an
operator or attendant, you should be aware that this potential safety hazard exists and
take appropriate precautions. Although the specific design steps depend on your
particular application, the following precautions generally apply to installation of
solid-state programmable control devices. In addition, these precautions conform to
the guidelines for installation of Controllers as recommended in the NEMAICS 3-304
Control Standards.

11
Programming Considerations
To conform with ICS Safety Recommendations, checks should be placed in the
controller to ensure that all writable registers that control critical parts of plant or
machinery have limit checks built into the program, with an out-of-limit safe shut
down procedure to ensure safety of personnel.
ICS 3-304.81 Safety Recommendations:
Consideration should be given to the use of an emergency stop function, which is
independent of the programmable controller.
Where the operator is exposed to the machinery, such as in loading or unloading a
machine tool, or where the machine cycles automatically, consideration should be
given to the use of an electromechanical override or other redundant means,
independent of the programmable controller, for starting and interrupting the cycle.
If provision is required for changing programs while the equipment is in operation,
consideration should be given to the use of locks or other means of assuring that only
authorized personnel can make such changes.
These recommendations are intended as safeguards against the failure of critical
components and the effects of such failures or the inadvertent errors that might be
introduced if programs are changed while the equipment is in operation. *
 The ICS 3-304.81 Safety Recommendations are reproduced by permission of the
National Electrical Manufacturers Association from NEMA ICS 3-304
2.3 Communications Connections
The ports as you look at the back of the case, are the ports for connecting to a
PLC or some external device (Controller Connectors).
2.3.1 Connecter COM 1 [RS232]
Cable
Requirements Different cables are required for various devices.
Caution Restrict cable length to less than 500’(150m) for
RS485/422 devices and 50’(15m) for RS232
devices to avoid communications problems.
The COM light on the front of the NP-600S will turn
on with each communication.
Shielded cable must be used for long lengths or cables

12
run in an electrically noisy environment.
Do not run cables next to AC power lines or near
sources of electrical noise.
Be sure that the cable ends have been inserted all of
the way into mating connectors and are secure
Pin Designations
COM1 [RS-232]
Pin assignment of the 9 Pin, Female, SUB-D, COM1
[RS-232] Port. This port is used for connecting the
NP-600S to a controller.
Note: This port is not used for programming the NP-
600S or for printing functions.
Pin # Symbol Function
1 Not used
2 TxD Transmitted Data
3 RxD Received Data
4 Not used
5 GND Signal Ground
6 Not used
7 CTS Clear to send input
8 RTS Ready to send output
9 Not used

13
2.3.2 Connecter COM1[RS485] COM2[RS232]
The 9 Pin, Female, SUB-D, COM1 [RS-485] & COM2 [RS-232] Port on the
back of the unit is the programming port (PC Connector) and RS485/422
communications port for connecting to a controller.
Connection
This port can be attached to a Computer via a special DB9 Female to DB9
Female cable provided with the unit. (P/N: MT5_PC)
Pin Designations
COM1 [RS-485] &
COM2 [RS-232]
Pin assignment of the 9 Pin, Male, SUB-D COM1 [RS-485] &COM2
[RS-232] Port
Pin # Symbol Function
1 Rx- RS485 Receive
2 Rx+ RS485 Receive
3 Tx- RS485 Transmit
4 Tx+ RS485 Transmit
5 GND Signal Ground
6 Not used
7 TxD RS232 Transmit
8 RxD RS232 Receive
9 Not used
NP-600S RS485 RS232
COM 1 [RS485]
COM 2 [RS232]
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
Rx- 1
Rx+ 2
Tx- 3
Tx+ 4
GND 5
6
TxD 7
RxD 8
9
NP-600S to PC
MT5_PC Cable
Configuration

14
2.3.4 Dip Switch
 Touch Screen Calibrate mode: In this mode when you power on the NP-600S,
the screen will display a “+” sign at the center of the screen. Use a stylus or
finger to push the center of the “+” until it moves. The “+” moves to upper-
left, lower-left, lower-right and upper-right corners. When all five “+” are
done the “+” will disappear. The Touch Screen parameter will store at Flash
Rom.
 Boot Loader mode: Load new Windows CE image file.
If the NP-600S already load the CE image with boot loader. Set the DIP SW2
ON then power ON into boot loader mode. Refer the load Win CE image
document.
2.4 CE Requirements
EU directives that apply to the NP-600S Series:
 EMC Directive (89/336/EEC, 92/31/EEC, 93/68/EEC) electromagnetic
emissions and immunity
 Machinery Directive (89/392/EEC, 91/368/EEC, 93/44/EEC, 93/ 68/EEC)
machine safety
 NP-600S products will be CE-marked to indicate compliance with the EMC
Directive.
The NP-600S Series has been designed to operate satisfactorily in electromagnetic
SW1 SW2 Mode
ON OFF Touch Screen Calibrate mode
OFF ON Boot Loader mode

15
noise (immunity) and without emitting high levels of electrical noise into the
environment (emission). The units are designed to meet European Community
standards when installed per the wiring instructions in this manual.
Compatibility
Standards The NP-600S has been designed to meet electromagnetic
compatibility for industrial environments.
• CISPR (EN 55011) Group 1, Class A Radiated Emissions
levels
• EN50081-2 Generic emission standard, industrial
environment (Also US FCC Class A)
• EN50082-2 Generic immunity standard, industrial
environment
2.5 Dimensions of NP-600S
5.90
[150]
8.03 [204]
Front View Side View
Panel-mounting clamp
4 places (only 1 shown
1.89 [48]
1.53 [39] 0.36
[9.2]

16
Cutout dimensions:
N
P-600S:
7.56”(192mm) W x 5.43”(138mm) H
Rear View
Reset button
Di
p
S
w
i
tc
h
C
ontras
t
A
djust VR
COM1 [RS485]
COM2 [RS232]
COM1 [RS232]
MIC SP
K
USB Client
Ethernet port (10Base-T)

17
Chapter 3 Windows CE.NET
3.1 Introduction
The NP-600S series operator interface terminal is designed to serve on the Windows
CE platform. Windows CE .NET is the successor to Windows CE 3.0. Designed from
the ground up for the embedded marketplace, Windows CE .NET delivers a robust
real-time operating system for rapidly building the next generation of smart mobile
and small footprint devices. With a complete operating system feature set and end-to-
end development environment, Windows CE .NET contains everything you need to
create a custom Windows CE–based device that requires rich networking, hard real-
time, and a small footprint, as well as rich multimedia and Web browsing capabilities.
3.2 Utilities
There are several useful utilities built in the standard Windows CE OS of NP-600S:
3.2.1 Soft-Keyboard
The NP-600S is dedicated to the small-sized operator interface. It is often
inconvenient for users to attach a keyboard to such small machine. Thus, a software
keyboard is embedded in the standard Windows CE OS. Upon boot-up, a small
keyboard icon will appear on the status bar. Tap this icon by the stylus to activate/hide
this Soft-keyboard.

18
3.2.2 System Settings
NP-600S provides an integrated utility for users to make basic setting of the machine.
Step
1. Tap the “cecp” icon from Desktop.
2. Launch the System Settings Control
Panel.
Touch Screen settings
The touch screen calibration can be executed from the Control Panel.
Step
1. Launch the System Settings
Control Panel.

19
Tapping the “Calibrate” button.
The screen will display a “+” sign
at the center of the screen.
Use a stylus or finger to push the
center of the “+” until it moves.
The “+” moves to upper-left,
lower-left, lower-right and upper-
right corners. When all five “+”
are done the “+” will disappear.
The Touch Screen parameter will
store at Flash Rom.
Backlight
“LCD Settings” page of the cecp provides the function to turn off the LCD backlight,
and thus elongates the period of service. For example, if the user wants the backlight
turned off automatically after 10 minutes when the device was no longer used. The
user must select “10 minutes” in the put down box and then press “OK” button. Then
the screen save function is enabled. Once the backlight was turned off, events or
perturbations from the touch screen can turn it on.
On the other hand, if users want to disable the screen save function, select “Never”
and press “OK” button.
MAC address
The MAC address page the block shows
the network MAC address.

20
Save
Tap the Save registry button, would save
the registry data to the IPSM folder.
Next time reboot the NP-600S,Windows
CE system will use the stored registry
data.
3.2.3 IPSM
IPSM(Intel Persistent Storage Manager)
The IPSM serves as a small capacity hard disk. You can store your data
and application in the Flash ROM via IPSM function to prevent
unexpected loss of data as power failure. When power is shutdown and cold boot,
the data in the Flash ROM area would be saved.
3.2.4 Startup
After the system boot up, the startup execution function would automatically perform.
This function is useful for control system to do the initialization processes or some
other programs.
Step1: Create "startup" directory in in "\IPSM\".
Step2: Copy executable files or Shortcut to "startup" directory which is created in
Step 1.
An alternative way to setup startup files is to make a shortcut and copy it to
"iPSM\Startup". A shortcut can execute a program with Parameters.
