THE BOLD LOOK OF KOHLER 97070-4-CP Assembly instructions

Installation and Care Guide
Diverter Bath Faucet with Remote Valve
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de
Mcorresponden a México (Ej.
K-12345M)
Français, page “Français-1”
Español, página “Español-1”
1330094-2-B

Tools and Materials
Before You Begin
WARNING: Risk of personal injury. Do not install the bath
faucet in an area where it may inadvertently be used for
support by the bather.
CAUTION: Risk of property damage. Select a cutting tool
appropriate for the deck/rim surface type. Refer to the
surface manufacturer’s instructions for the proper cutting
procedures.
Observe all local plumbing and building codes.
Turn OFF the water supply.
Protect the surface of the bath deck or rim during installation.
Kohler Co. recommends installing a Sioux Chief 652-AD vacuum
breaker arrestor (or equivalent) close to the outlet of the remote
valve. This will reduce cavitation and water hammer when the
valve or diverter is activated. Visit Sioux Chief’s website at
siouxchief.com for technical and installation information.
Plumbers
Putty Solder
Plus:
• Cutting Tools
• Wood Reinforcement (Optional)
Vacuum
Breaker
Arrestor
5/8" OD
Copper Tubing
(1/2" Nominal)
1330094-2-B 2 Kohler Co.

Roughing-In
1. Prepare the Site
CAUTION: Risk of property damage. Select a cutting tool
appropriate for the deck/rim surface type. Refer to the
surface manufacturer’s instructions for proper cutting
procedures.
NOTE: To simplify future servicing, install an access panel to reach
the plumbing.
NOTICE: The remote valve may be installed anywhere on the deck.
To allow adequate clearance for handle rotation, provide a minimum
distance of 5-3/4″(146 mm) from the center of the spout to the
center of the valve.
Determine the mounting-hole locations for the spout diverter and
remote valve. Refer to the roughing-in dimensions illustrated for
proper placement and diameters.
5/8"
(16 mm)
Min
3"
(76 mm)
Max
Ø 1-1/8"
Ø 1-1/2"
5-3/4"
(146 mm)
Ø 1-7/16"
(37 mm)
8-1/32"
(204 mm)
7-7/16"
(189 mm)
5"
(127 mm)
Ø 2-1/2"
(64 mm)
3"
(76 mm)
max
Ø 2-1/2"
(64 mm)
5-3/4"
(146 mm)
Kohler Co. 3 1330094-2-B

Prepare the Site (cont.)
For a finished bath deck/rim less than 5/8″(16 mm) thick: Install
wood reinforcement to the underside of the deck/rim. The
combined thickness of the reinforcing material and the deck/rim
must not exceed 3″(76 mm).
NOTICE: Do not exceed 1-1/2″(38 mm) hole diameters for the
spout diverter and the remote valve mounting holes. Maximum
contact area is necessary for a successful installation.
Carefully cut mounting holes for the spout diverter and remote
valve.
Carefully cut mounting holes for the spout and valve bodies.
Install or relocate the water supplies as needed.
1330094-2-B 4 Kohler Co.

2. Install the Remote Valve
Insert the O-ring into the groove in the underside of the remote
valve.
Insert the remote valve assembly through the mounting hole.
Slide the plate onto the remote valve.
Wrench-tighten the three nuts to secure the remote valve.
O-Ring
Nut
Plate
Remote Valve
Kohler Co. 5 1330094-2-B

3. Install the Spout
Thread the nut all the way down the diverter valve.
Insert the diverter valve into the mounting hole from underneath.
Thread the brass collar with the O-ring down the diverter valve
until it stops.
Wrench-tighten the nut to secure the diverter valve.
Use needlenose pliers to lift and hold the diverter tube. Then
thread the lift rod into the diverter tube.
Brass
Collar
Lift Rod
Diverter
Tube
Nut
Diverter Valve
O-Ring
1330094-2-B 6 Kohler Co.

4. Install the Lift Knob
IMPORTANT! Do not bend the lift rod during spout installation.
Position the spout over the lift rod, and slide it down onto the
diverter valve.
Tighten the setscrew.
Insert the plug button into the setscrew hole.
Verify that the setscrew does not protrude beyond the inside wall
of the spout. Back the setscrew out if needed.
Use needle-nose pliers to lift and hold the stem up for knob
installation.
Install the lift knob onto the lift rod.
Spout Assembly
Setscrew
Plug Button
Lift Knob
Kohler Co. 7 1330094-2-B

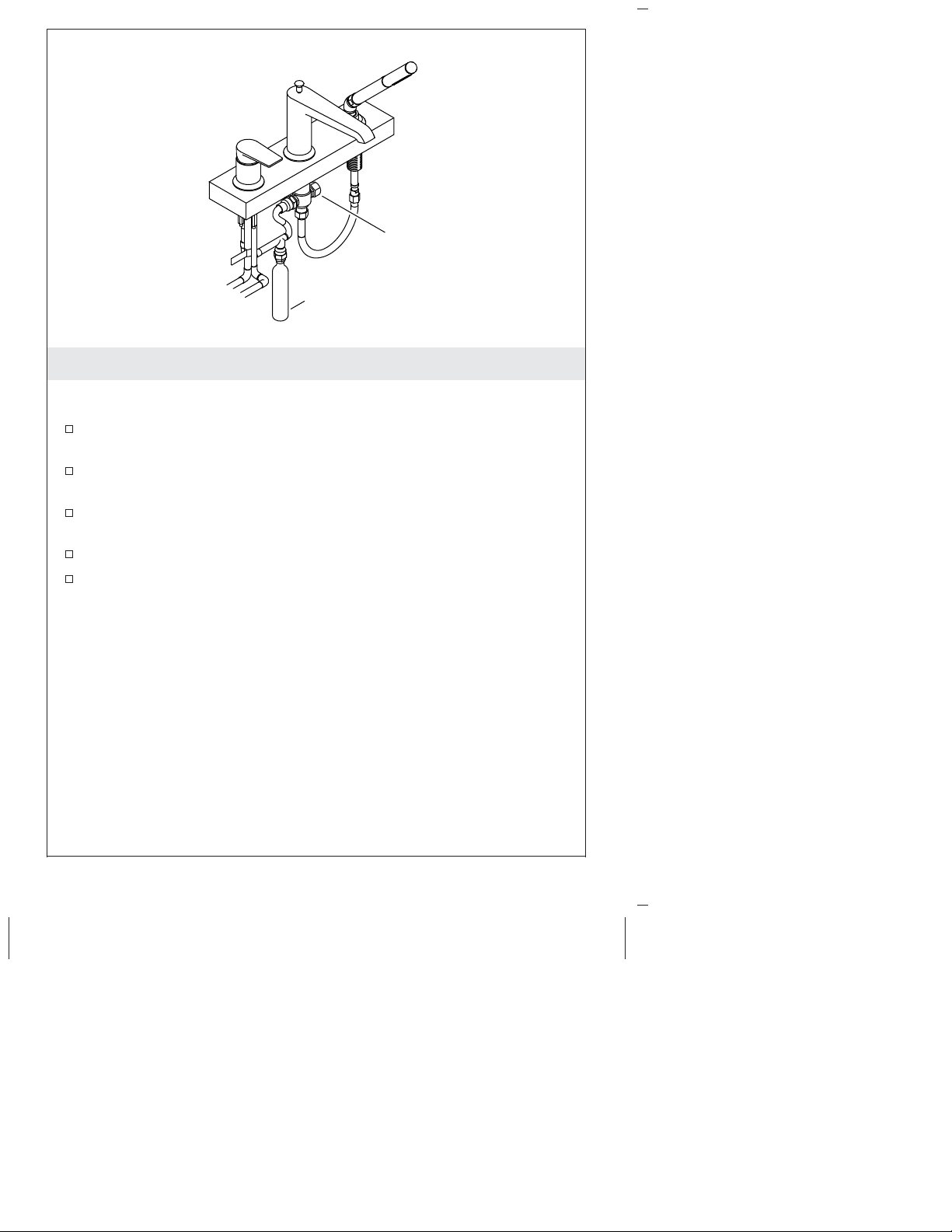

5. Connect the Plumbing
NOTE: The illustration shown is a suggested plumbing connection
method. Actual plumbing connections will vary by site.
Verify that the spout, diverter valve, and remote valve are
properly positioned and secured.
Cut and assemble the copper tubing and connections to fit the
installation layout.
Install a vacuum breaker arrestor near the diverter valve inlet.
Follow the vacuum breaker arrestor manufacturer’s instructions.
Solder the connections.
Use thread sealant tape, and securely wrench tighten a cap
(provided) to the open inlet port of the diverter valve.
Vacuum Breaker
Arrestor
Cap
1330094-2-B 8 Kohler Co.

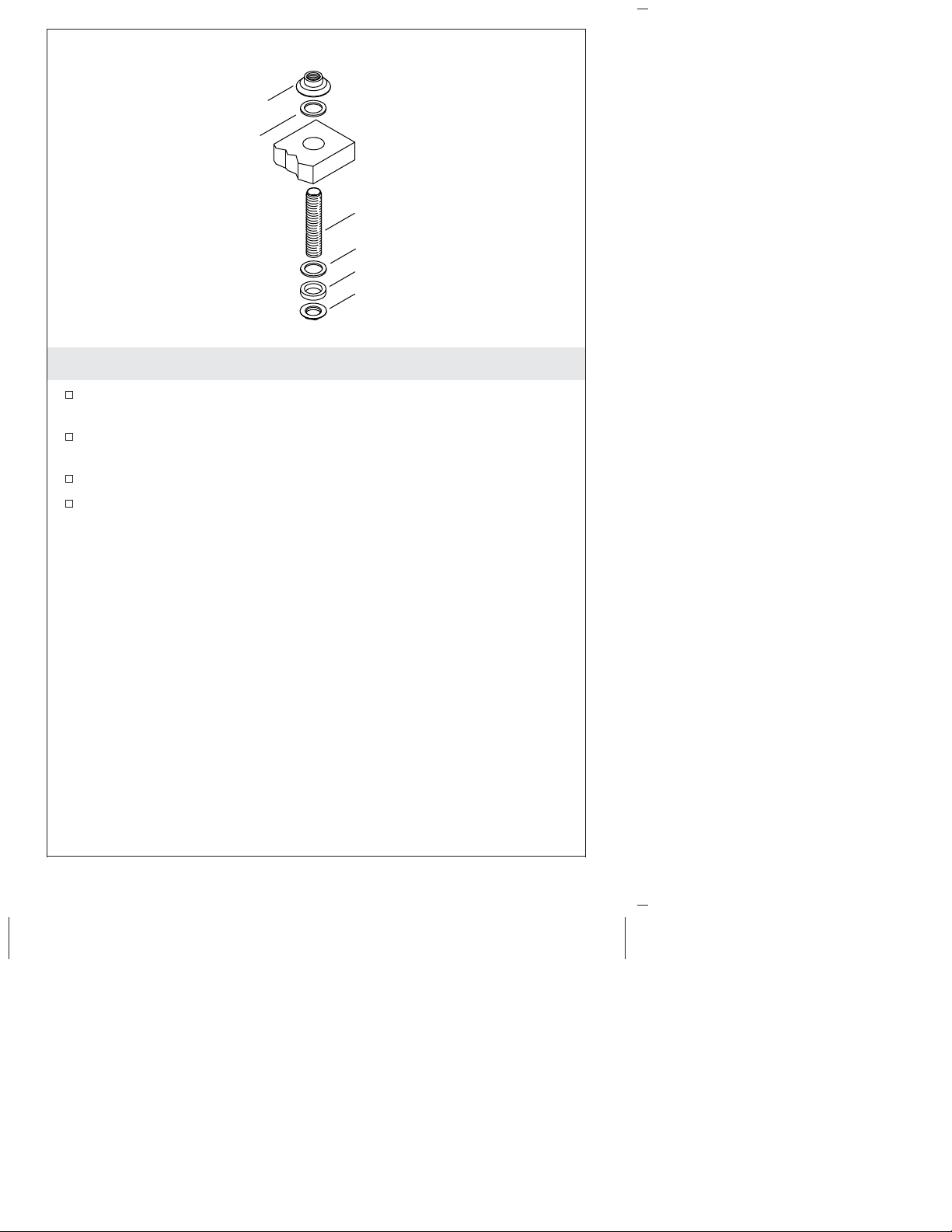

6. Install the Hose Guide
Install the gasket into the underside of the hose guide escutcheon.
Place the assembly over the mounting hole.
Thread the shank into the mounting hole and hose guide
escutcheon from underneath.
Slide the washer and spacer onto the shank from underneath.
Thread the nut onto the hose guide. Securely wrench-tighten.
Hose Guide
Escutcheon
Gasket
Shank
Washer
Spacer
Nut
Kohler Co. 9 1330094-2-B

7. Install the Handshower
Run cold and hot water through the shower outlet to flush out
dirt and debris.
Insert the screen washer into the outlet end of the elbow. Thread
the handshower onto the elbow. Adjust the position of the elbow
as needed so the installed handshower will lean over the bath
rim.
Fit a rubber gasket into the tapered end of the handshower hose.
Securely handtighten the handshower hose to the elbow from
underneath.
Securely handtighten the handshower hose to the high-pressure
hose.
Fit a rubber gasket into the end of the high-pressure hose.
Securely wrench-tighten the high-pressure hose to the spout
diverter.
Screen Washer
Nut
Inlet
To spout
diverter.
Elbow
High-Pressure
Hose
Handshower Hose
Rubber
Gasket
Rubber Gasket
1330094-2-B 10 Kohler Co.

8. Complete the Installation
Turn on the water supplies.
Check for leaks at all connections. Repair as needed.
Turn the remote valve handle to the ON position.
Check for leaks at all connections. Repair as needed.
Activate the handshower. Check for leaks at the connections.
Tighten the connections as needed.
Turn OFF the water, and check that the lift knob drops back to its
original position.
Turn ON the water, and verify that water is only flowing from
the spout.
Kohler Co. 11 1330094-2-B

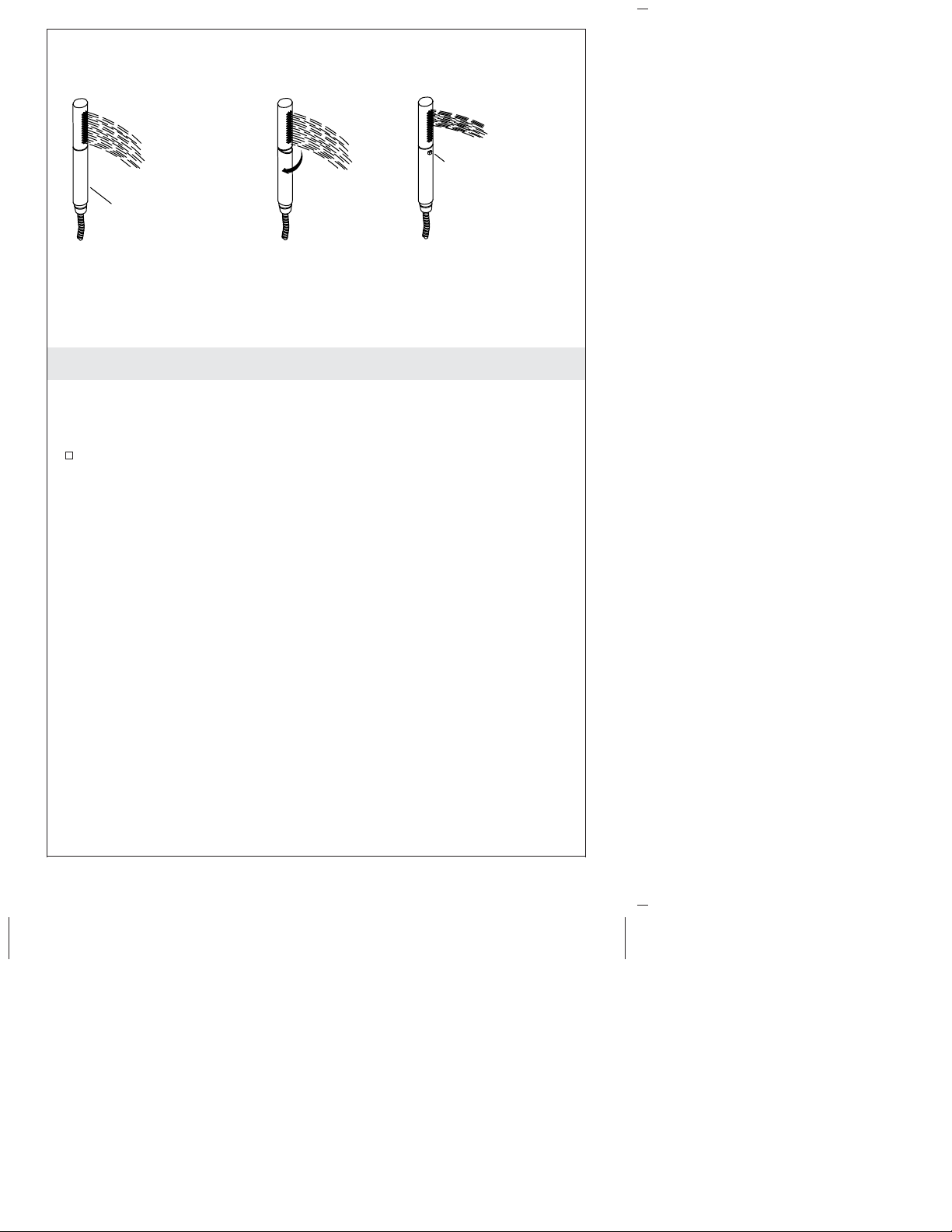

Using Your Handshower
Your handshower has two spray options, wide-coverage and utility
spray.
To change the spray of your handshower from wide-coverage to
utility spray, turn the handle until the sprayface aligns with the
nub on the handle.
Wide Coverage
Position
Utility Spray
Position
1330094-2-B 12 Kohler Co.

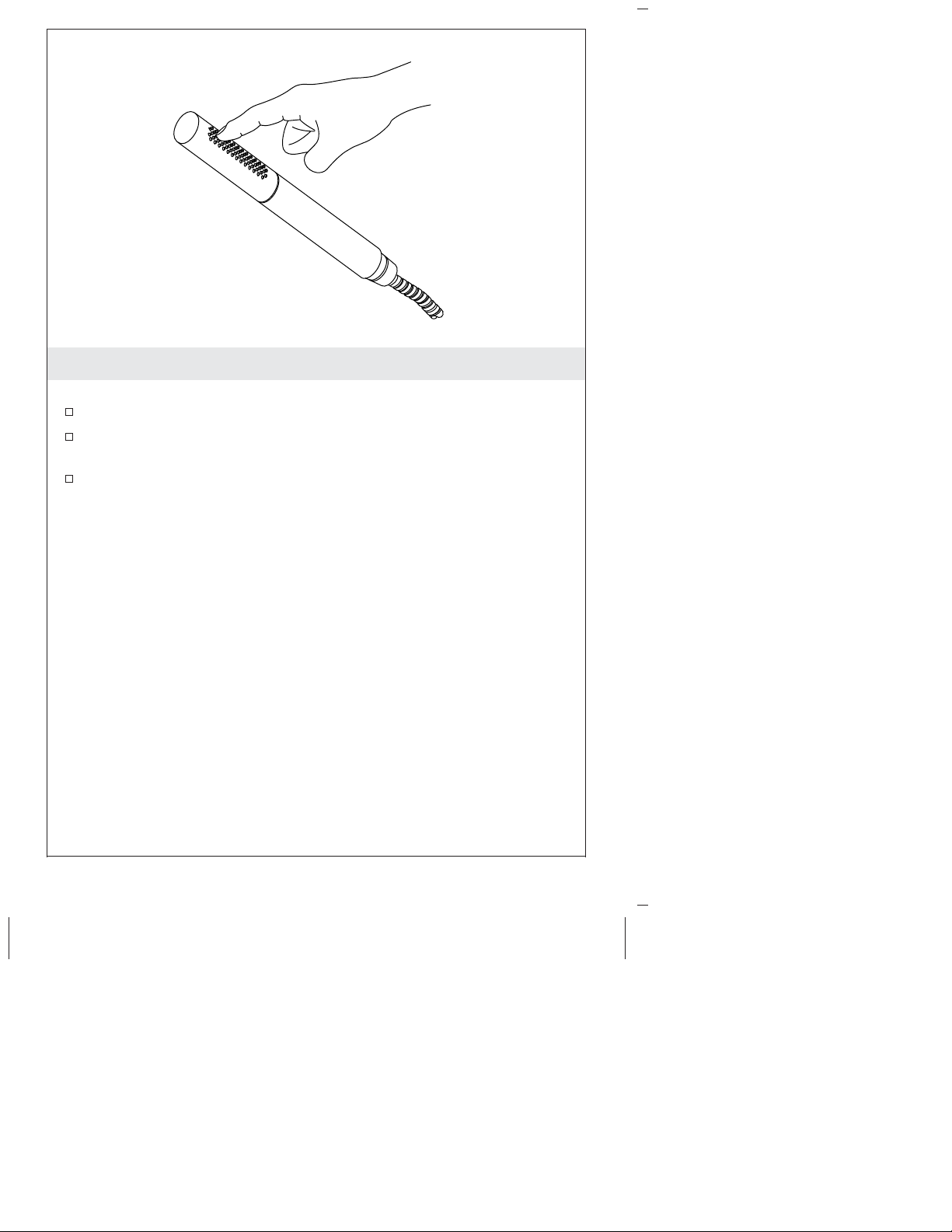

Clean the Nozzles
To dislodge debris and mineral build-up:
Run water through the handshower.
Firmly rub your finger back and forth across the spray nozzles on
the handshower face.
If this procedure fails to improve the performance of the
handshower, proceed to the ″Clean the Screen Washer″section of
this guide.
Kohler Co. 13 1330094-2-B

Clean the Screen Washer
Remove the handshower from the elbow.
Using a thin, flat-blade screwdriver, carefully pry up the edge of
the screen washer.
Remove the screen washer. Do not attempt to remove the flow
control.
Clean the screen washer to dislodge debris and mineral build-up.
Reinstall the screen washer.
Reinstall the handshower to the elbow.
