GUARANTEE
This guarantee is in addition to your statutory and other legal rights.
BOSS products are carefully designed, manufactured, tested and inspected and in consequence, we undertake to
replace or repair any part found to be defective in material or workmanship, within one year of delivery to the original
purchaser, free of charge. You may be required to take the product to your nearest service provider if the product
requries attention during the first year.
There are certain conditions which may invalidate this guarantee:
a. It is dependent upon the appliance being correctly installed and used in accordance with the Company's instruc-
tions under normal domestic conditions within the United Kingdom or the Republic of Ireland.
b. Service at all times must be carried out by an Electrolux Service Representative or authorised agent.
c. The guarantee may be invalidated by unauthorised repair or modification of the appliance.
d. You may be charged by the Electrolux Group if you call for an engineer to resolve a problem that we believe is cov-
ered in the instruction booklet.
The Company does not accept liability for defects arising from neglect, misuse or accident. This guarantee excludes
such normal wearing parts as filters, brushes and dust bags as the life of these depends upon the amount and nature
of use.
Proof of the date of purchase will be required before service under guarantee is provided.
For futher assistance call the
Electrolux Group Floorcare Helpline on 08706 055 055.
Important:
For future reference we suggest you record the following details here, and keep the receipt with this booklet as proof
or purchase.
Purchased from: ___________________________________________________________________________
Date purchased ____________________________Model No _______________________________________
Before you start …check the voltage
Before connecting the cleaner to an electrical supply
ensure that voltage marked on the data plate (on the
underside of cleaner) is correct for your electrical sup-
ply. If is not, do not use the cleaner but refer back to
your dealer.
Connecting the your electrical supply
Permanently connected to the cleaner is a mains sup-
ply (2-core) cable fitted with a non-rewirable plug incor-
porating a 13A fuse. In the event of the fuse requiring
replacement the fuse cover should be removed using
a small screwdriver. The old fuse MUST be replaced
by a 13A ASTA approved BS1362 fuse and the fuse
cover must be replaced before the plug is used again.
In the event of loss of the fuse cover, replacements can
be obtained from your Electrolux dealer or Electricity
Board and must be of the same colour as indicated by
the coloured insert on the base plug.
If difficulty is experienced in obtaining a replacement,
contact your nearest Electrolux Service Centre.
(Please see the separate Electrolux Service
Organisation leaflet).
In no circumstances must the plug be used with-
out a correct fuse cover fitted.
If the plug that is fitted to your appliance is not suitable
for your socket outlet, it must be cut off and the appro-
priate plug fitted. Remove the fuse from the cut off
plug. The cut off plug should then be disposed of to
prevent hazard of shocks in case it should be plugged
into a 13 Amp socket in another part of your home.
The wires in the mains cable of this appliance are
coloured in accordance with the following code:
Blue: Neutral.
Browm: Live.
As the colours of the wires in the mains cable of this
appliance may not correspond with the coloured mark-
ings identifying the terminals in your plug, proceed as
follows:
The wire which is coloured blue must be connected to
the terminal which marked with the letter N or coloured
black. The wire which is coloured brown must be con-
nected to the terminal which is marked the letter L or
coloured red.
If using a three-pin plug, do not make any connection
to the terminal marked with the letter E or by the earth
symbol or coloured green or green-and-yellow. [This
cleaner is double insulated and no earth-connection is
necessary.]
It is in your interest to ensure that the plug is correctly
attached to the mains cable. In case of doubt, consult
a qualified electrician, as Electrolux cannot regard the
repair of faults on the plug connection as a service that
can be given free of charge under the terms of guar-
antee.
As a general guide to fitting any plug
• Ensure that the lengths of wire inside the plug are
prepared correctly.
• Connection should be firmly made after all conductor
stands are entered into the terminal posts.
• When preparing the cable ends take care not to dam-
age the outer seal, or insulation surrounding the inner
conductors.
• Tighten all screws.
• Replace the top cover of the plug and secure.
When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL THE INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER.
WARNING
To reduce the risk of fire, electric shock, or injury:
• Do not use outdoors or on wet surfaces.
• Do not leave vacuum cleaner when plugged in.
• Do not allow to be used as a toy. Close attention is necessary when used near
children. Do not allow children to operate this appliance.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not use with damaged cord or plug. If vacuum cleaner is not working as it should, has been
dropped, damaged, left outdoors, or dropped into water, return it to a service centre before using.
• Do not pull or carry by cord, use cord as a handle, close door on cord. Keep cord away from heated
surfaces.
• Do not use extension cords or outlets with inadequate current carrying capacity.
• Turn off all controls before unplugging.
• Do not unplug by pulling on cord. To unplug, grasp the plug instead of the cord.
• Do not handle plug or vacuum cleaner with wet hands.
• Do not put any object into openings. Do not use with any opening block, keep free of dust, lint, hair and
anything that may reduce air flow.
• Do not use to pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.
• Do not use without dustbag in place.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids such as gasoline, or use in areas where they
may be present.
• Store your cleaner indoors in a cool, dry area.
• Keep your work area well lighted.
• Unplug electrical appliances before vacuuming them.
SAVE THESE INSTRUCTIONS
B4300B4300B4300
The Electrolux Group, 101 Oakley Road, LUTON, BEDFORDSHIRE, LU4 9QQ
Features of the BOSS vacuum cleaner and accessories with it are protected in Great Britain and abroad by Patents
of Registered Designs.
This appliance conforms with the requirements of the amended E.E.C. directive No. 89/336/EEC relating to electro-
magnetic compatibility (EMC) CE.
The Electrolux Group may introduce modifications to their product from time to time, and consequently the details
given in this booklet are subject to alteretion without notice.
ELECTRICAL SUPPLY INSTRUCTIONS
ifu_B4300_4.qxp 8/10/2001 10:51 AM Page 4

B4300 B4300
20.19. 21
23.22. 24
MAINTENANCE
REPLACING THE DUSTBAG
ØAlways operate the cleaner with the dustbag installed.
ØIf you forget to attach the dustbag or attach it in the wrong manner, the dust cover may not
close completely.
ØThe dustbag must be replaced if the window of the dustbag full indicator is illuminated.
ØAfter removing the flexible hose, open the front cover using the compartment open button
(fig. 19).
ØRotate the support of the bag to the vertical position.
ØRemove the dustbag and insert a new one (fig. 20).
ØClose the cover by pressing down until it clicks (fig. 19).
ØThe dustbag reference number is U53.
BLOCKED AIRFLOW AND DIRTY FILTERS
ØThe cleaner stops automatically if a blockage occurs in the nozzle/tube/hose or if the filters
are blocked with dirt.
ØDisconnect from mains and allow the cleaner to cool for 45-60 minutes. Remove blockage
and/or replace filters.
ØRestart the cleaner.
REPLACING THE FILTERS
ØFilters should be replaced at least twice a year or when they become visibly soiled.
ØAlways operate the cleaners with filters installed to avoid reduced suction.
ØDisconnect from electrical outlet before cleaning filters.
Replacing the motor filter
ØPull dustbag upward and remove the motor protection filter (fig. 21).
ØRinse the filter under tap water and dry it completely (fig.24).
ØPut the filter back into the cleaner and close the cover (fig.21).
Replacing the exhaust filter
ØOpen the filter grill and remove the exhaust filter (fig.22, fig.23).
ØRinse the filter under tap water and dry it completely (fig.24).
ØPut the filter back into the cleaner and close the filter grill (fig.23, fig.22).
ifu_B4300_4.qxp 8/10/2001 10:51 AM Page 7

IMPORTANT SAFEGUARDS
ØPlease read this instruction booklet carefully.
ØBefore using the appliance, check that the mains power voltage corresponds to the voltage shown on
the rating plate.
ØDo not switch the appliance on if it appears to be faulty in any way or it has a damaged cord or plug.
Do not try to repair the appliance by yourself. For repairs or accessories, contact the Electrolux
Group Floorcare Helpline on 08706 055 055.
ØAlways remove the plug from the power socket when the appliance is not in use and before carrying
out any cleaning or maintenance operations.
ØNever leave the appliance unattended when it is switched on. Keep the appliance out of reach of chil-
dren.
ØThis appliance is for domestic use only. Use as described in this instruction booklet.
ØDo not pull the appliance by the cord. Do not unplug by pulling on the cord.
ØDo not use the appliance on wet surfaces or to vacuum liquids.
ØDo not vacuum up mud, ash and burning cigarette butts.
ØDo not vacuum up very fine dust from plaster, cement, cold cinders, flour or ash.
ØDo not vacuum up any highly flammable or explosive substances or gases.
ØThese materials can cause serious damage to the motor - a damage which is not covered by the
warranty.
ØDo not unplug the vacuum cleaner with wet hands.
ØDo not operate or store the vacuum cleaner too close to heaters and radiators, stoves etc.
ØBefore you start using the vacuum cleaner, please remove large or sharp objects from the floor in order
to prevent damage to the dustbag and hose.
INSTRUCTIONS FOR USE
ØBefore operating the vacuum cleaner, make certain that the filters are in the proper position.
ØUnwind a sufficient length of cable and insert the plug into the power socket. A YELLOW mark on the
power cable shows the ideal cable length. Do not extend the cable beyond the RED mark.
ØPress the ON/OFF button to switch the appliance on.
ØTo rewind the power cable, press the rewind button with your foot, and guide the cable with your hand
to ensure that it does not whip causing damage.

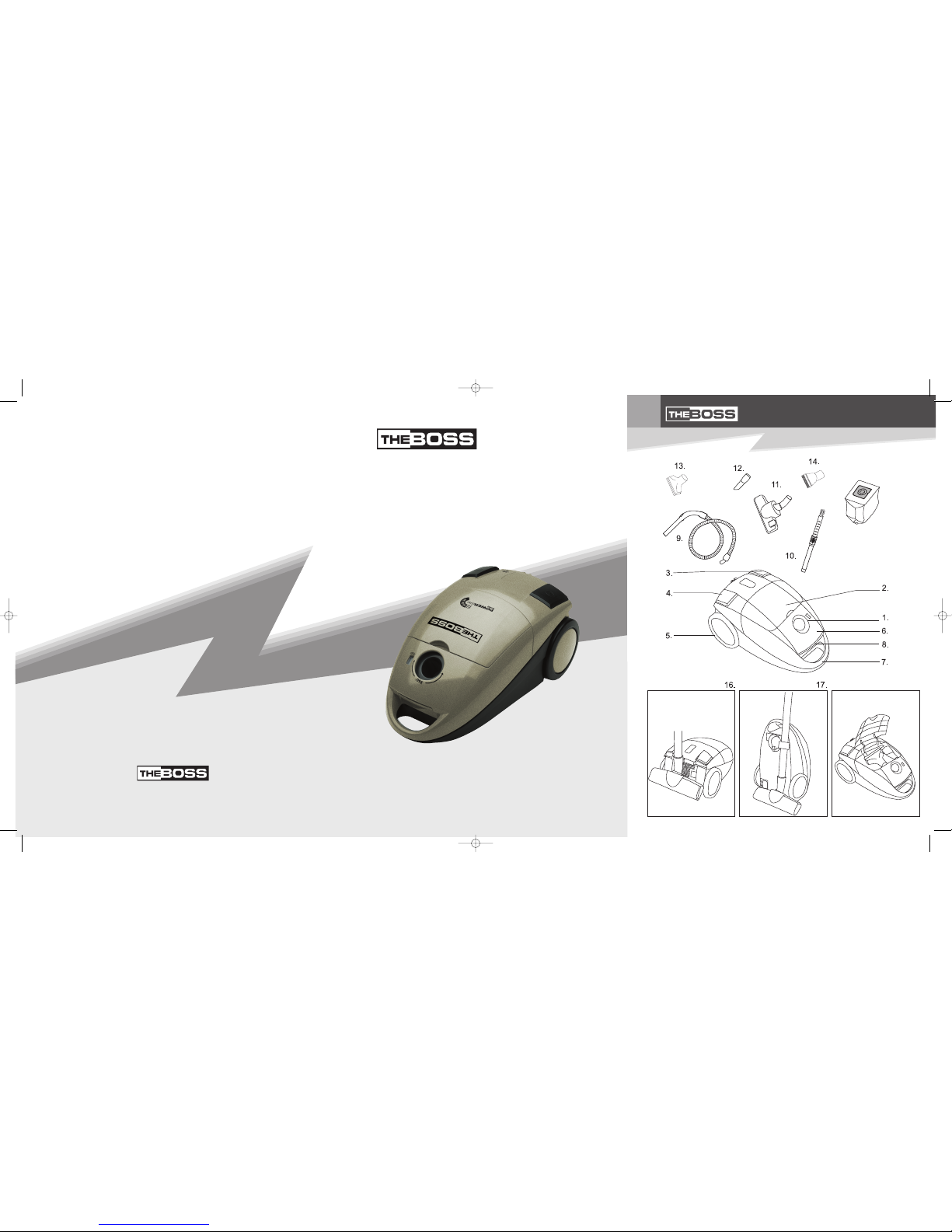

DESCRIPTION OF PARTS
1. Suction inlet
2. Dustbag full indicator
3. Cable rewind button
4. On/off switch
5. Wheel
6. Dustbag compartment
7. Carrying handle
8. Compartment open button
9. Hose
10. Telescopic tubes
11. Basic nozzle
12. Crevice nozzle
13. Upholstery nozzle
14. Dusting brush
15. Dustbag
16. Horizontal parking
17. Vertical parking
18. Accesories on board
SERVICE
Should you require service on your Boss cleaner, please telephone the Electrolux
Group Floorcare Helpline on 08706 055 055.
PROTECTING THE ENVIRONMENT
ØAttempt to recycle packaging material and old appliances.
ØThe cardboard packaging can be placed in the waste paper collection.
ØDeposit the plastic bag made of polyethylene (PE) at the PE collection point for recycling.
Recycling the appliance at the end of its life:
ØThe plastic components all carry a material identification marking so that, like the other
materials, they can by recycled at the end of the life of the appliance.
ØPlease inquire with your local authority.
