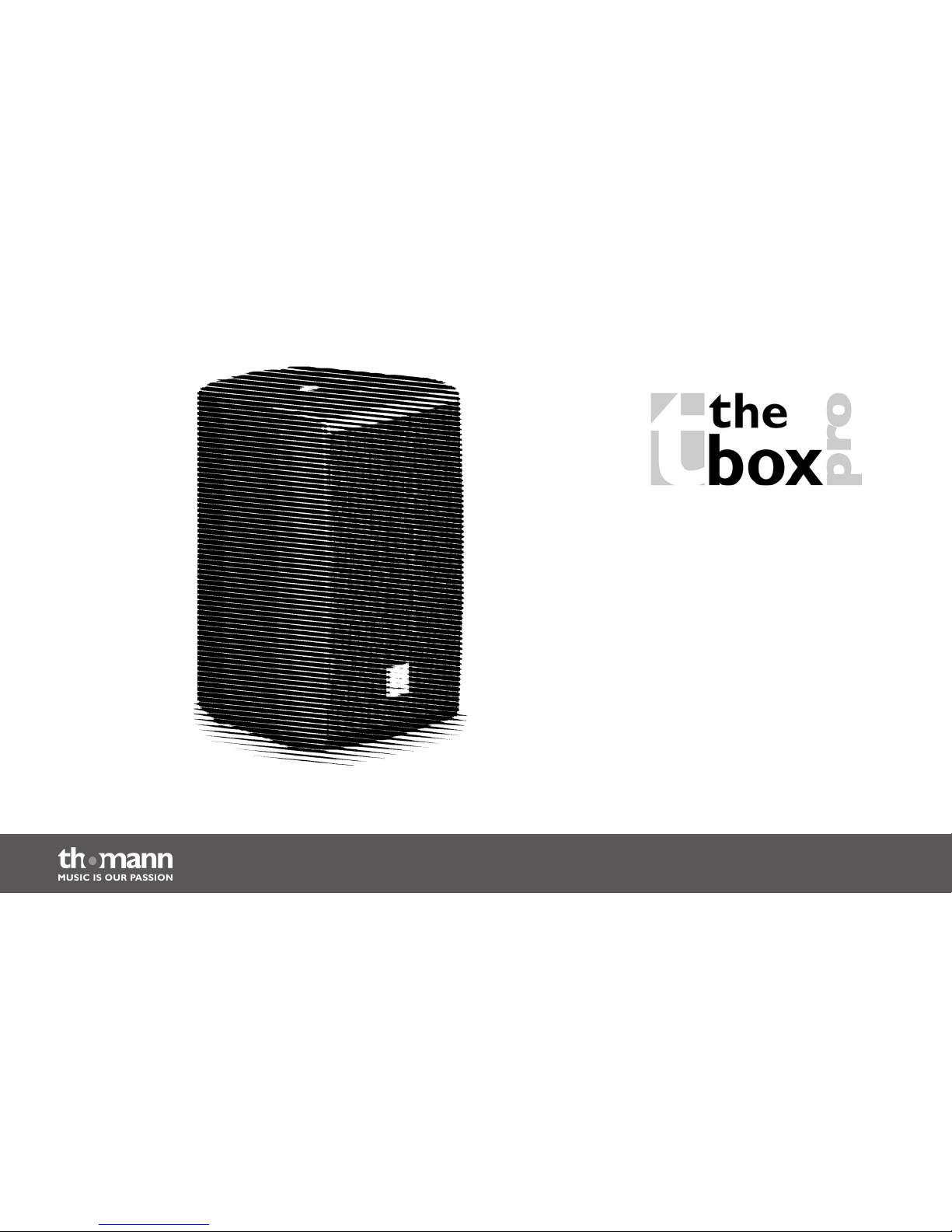

The box TP 105 MA User manual

TP 105 MA
active 2 way
full-range speaker
user manual

Musikhaus Thomann e.K.
Treppendorf 30
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
13.10.2014, ID: 291776

Table of contents
1 General notes............................................................................................................................................... 4
2 Safety instructions..................................................................................................................................... 7
3 Features....................................................................................................................................................... 11
4 Installation.................................................................................................................................................. 12
4.1 Tips on handling speakers............................................................................................................ 14
4.2 Hanging the speaker....................................................................................................................... 15
4.3 Pin assignment.................................................................................................................................. 15
5 Connections and operating elements........................................................................................... 19
6 Technical specifications....................................................................................................................... 23
7 Troubleshooting...................................................................................................................................... 25
8 Protecting the environment.............................................................................................................. 28
Table of contents
TP 105 MA
3

1 General notes
This user manual contains important information on safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to other users, be sure
that they also receive this manual.
Our products are subject to a process of continuous development. We therefore reserve the
right to make changes without notice.
General notes
active 2 way full-range speaker
4

This section provides an overview of the symbols and signal words used in this user manual.
Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in death or serious
injury if it is not avoided.
CAUTION! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in minor injury if it
is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Symbols and signal words
General notes
TP 105 MA
5
