GLIDERPOLE®
HAND DRAWN • CORDED
Installation Instructions
CONTACT
Web www.bradleycollection.com
Email [email protected]
Follow
WORLD
The Bradley Collection Ltd
Lion Barn • Maitland Road
Needham Market • Suffolk
IP6 8NS • UK
Telephone [phone]
Fax [phone]
USA & Canada
The Bradley Collection Inc.
3625 Hayden Avenue, Suite E
Culver City • CA • 90232 • USA
Telephone [phone]
Fax [phone]

Single Brackets
To align the brackets, the top of the mid brackets should be
fitted inline with the top of the side brackets.
Side
Bracket positioning and fixing
Side brackets should be positioned approximately 100mm (4”) in from the end of the gliderpole.
Mid

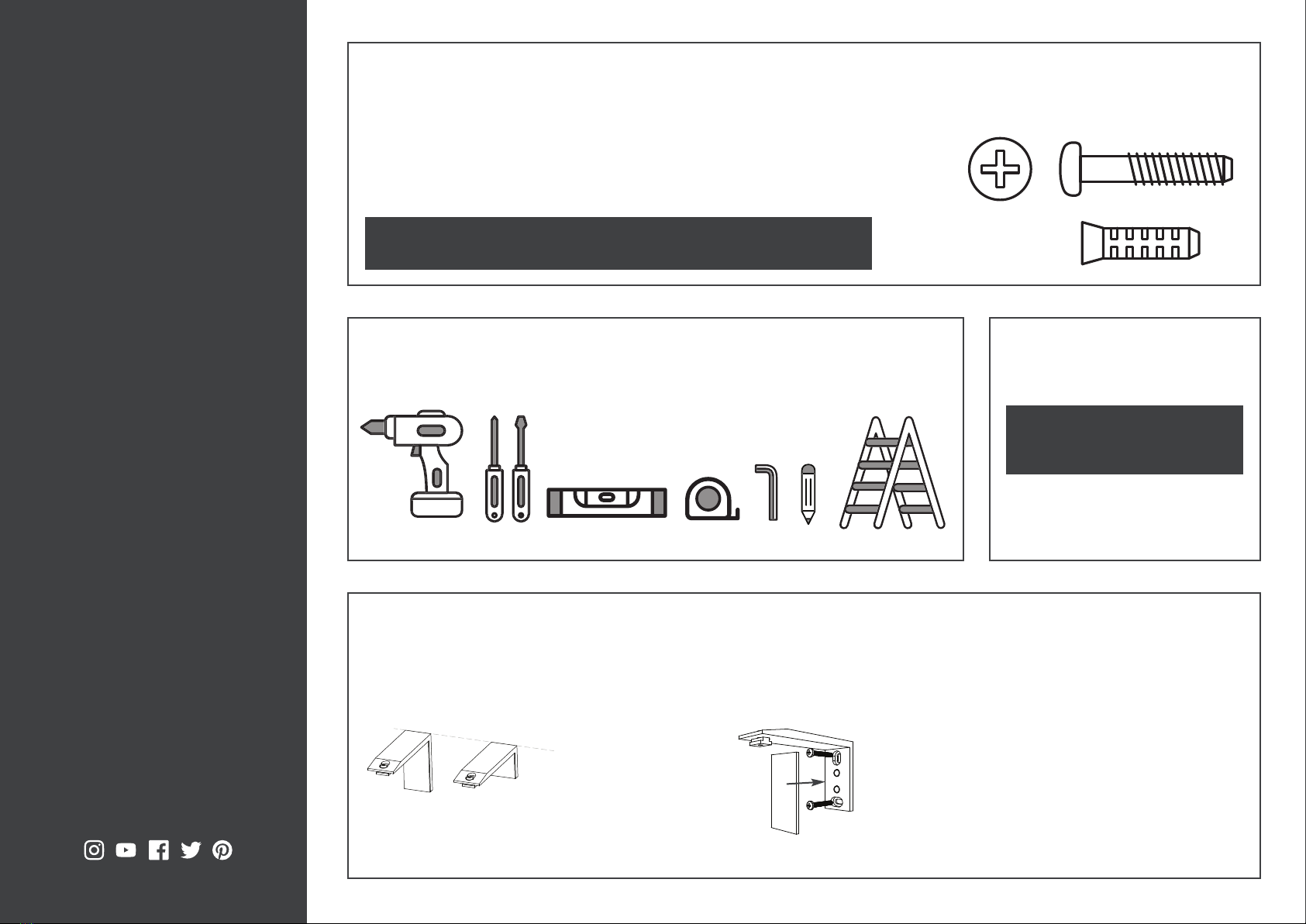

Tools
For the installation of the system the following items may be required.
GLIDERPOLE®
HAND DRAWN &
CORDED
Installation Instructions
Exploded
bracket
assembly
THANK YOU FOR YOUR ORDER
Before fitting this product please ensure
that you have thoroughly read these
instructions.
We have taken every care to design and
manufacture a quality system; incorrect
installation could lead to poor
performance.
If any queries arise when reviewing these
instructions or during installation please
feel free to contact us for assistance.
We will be glad to talk you through the
process.
Please retain these instructions for future
reference.
CONTACT
Web www.bradleycollection.com
Email [email protected]
World [phone]
USA & Canada [phone]
Follow
Fixings
As a courtesy we have supplied a set of fixings for the system.
These screws and wall plugs are designed to be used in wood and brick walls. We understand our
systems may be used on a variety of materials; drywall, aluminim and steel stud, or lath and plaster.
To properly secure a system onto these or other types of
surfaces; appropriate fixings must be independently obtained.
Care & Maintenance
This gliderpole can be cleaned using
a soft cloth and furniture polish.
Please do not use any solvent or
chlorine based cleaners as this
will damage the finish.
!
Assess your own wall construction and source the appropriate screw type.
Please note that the enclosed fixings may not be suitable for all wall types.
!

Bracket Positioning & Fixing
Side brackets should be positioned approximately 100mm (4”) from the
ends of the pole.
Mark the position of the brackets. for longer poles a mid bracket is required.
Drill holes & insert plugs.
Screw each bracket into position.
Push cover plate over arm, the cover is held in place by magnets.
Finials
Attach the finials by pushing them into position
and tightening the set screws on the finial.
Fitting Gliderpole to the Brackets
Flat • 30mm (1 3/16”) • 50mm (2”) Gliderpoles
Offer the gliderpole up to the bracket, and tighten the button head
screw into the t-bar, ensuring that the pole is fully secured. Making sure
that the overhangs at each end are equal.
If the gliderpole is made of two connected lengths, the mid bracket
should be fitted on the join.
Square Gliderpoles
Offer the gliderpole up to the bracket, and turn the swivel clamps until
there is a positive click.
Making sure that the overhangs at each end are equal.
If the gliderpole is made of two connected lengths, the mid bracket
should be fitted on the join.
When fitting the track
ensure the higher edge
of the profile is at the front.
Flat • 30mm (1 3/16”) • 50mm (2”) Gliderpoles
T-bars are pre-installed into the poles, spare
T-bars are supplied in with the brackets.
Square Gliderpole
Swivel Clamps are pre-attached to the brackets.
Joining the Gliderpole
Gliderpoles are supplied pre-cut to your specified lengths, in
some cases the gliderpole may be made in two or more parts,
joined by a connector.
Push the joiner* into the pole ends and push the gliderpoles
together. tighten the set screws in the top channel of the profile
Please note, if there is a gap between joins gliders/rollers may
not run efficiently.
* Internal joiner will vary between gliderpole type and diameter.
A
Adding and removing gliders/rollers
Gliderpoles are supplied with gliders/rollers
pre-installed, in some instances it may be
necessary to add or remove gliders, to do
this follow the steps overleaf
Hand drawn
A stop eyelet is provided at the end of the
gliderpole, this allows the curtain to be
hung all the up to the finial.
Corded
there is a trapped glider/roller in the
cording block at the end of the gliderpole,
this allows the curtain to be hung all the
up to the finial and to hide the control
cord.
A

Double bridge
Locate t-bar into the top of the pole & tighten the counter
sunk screw
Offer the gliderpole up to the bridge, and tighten the
button head screws into the t-bars, ensuring that the pole is
fully secured.
Tighten setscrew in the center of the bridge to fix the
projection on the rear pole.
Please note, where poles join, substitute the two
t-bars for a joiner
Adjustable Brackets
Mark the position of the brackets. for longer
poles a mid bracket is required.
Drill holes & insert plugs.
Screw each bracket into position.
Push cover plate over arm, the cover is held in
place by magnets.
Screw in the button head screws into the bracket
arm and slide to the desired projection, once
the projection is set tighten the screws to ensure
the bracket arm is firmly secure.
Offer the gliderpole up to the bracket, and
tighten the button head screw into the t-bar,
ensuring that the pole is fully secured.
Please note, all joins must be supported by a
bracket. where poles join, substitute the t-bar
for a joiner
A
A
A
Heavy Duty Ceiling Brackets - Suitable for use with all gliderpole types
Mark the position of the brackets. For longer poles additional brackets are required.
Drill holes & insert plugs.
Locate t-bar into the top of the pole & tighten the counter sunk screw.
Screw each bracket into position.
Please note, bracket must be secured to the gliderpole before
being fitted to the ceiling. All joins must be supported by a
bracket. Where gliderpoles join, substitute the t-bar for a joiner
Adjustable & Stand-off Ceiling Brackets - Suitable for use with all gliderpole types
Mark the position of the brackets. for longer poles additional brackets
are required.
Drill holes & insert plugs.
Screw each bracket into position.
Locate t-bar into the top of the pole & screw the post into the t-bar,
until secure.
Offer the gliderpole up to the ceiling,the post should slide into fixing,
when at the desired projection from the ceiling tighten the grub screw
on the fixing, ensuring that the pole is fully secured.
Please note, please note, all joins must be supported by a bracket.
where gliderpoles join, substitute the t-bar for a joiner
Light Duty Ceiling Brackets - Suitable for use with flat and 30mm gliderpoles
Mark the position of the brackets. for longer gliderpoles additional
brackets are required.
Drill holes & insert plugs.
Locate t-bar into the top of the pole & tighten the counter sunk screw.
Screw each bracket into position.
Please note, bracket must be secured to the gliderpole before being fitted to the ceiling. all
joins must be supported by a bracket. where gliderpoles join, substitute the t-bar for a joiner
Recess brackets
1. Use a suitable wall fixing when attaching the plate to the
wall.
2. Slide the locking tab inside the top of the pole up in to the
fix plate.
3. Tighten the setscrew in both the top of the bracket and top
channel of the pole.

Young children can be strangled by loops in pull cords, chains, tapes and inner cords that
operate the product.
To avoid strangulation and entanglement, keep cords out of the reach of young children. cords
may become wrapped around a child’s neck.
Move beds, cots and furniture away from window covering cords.
Do not tie cords together.
Make sure cords do not twist and create a loop.
Children can be strangled if this safety device is not installed.
Always use this device to keep cords or chains out of the reach of children.
This retaining device should be installed at the maximum distance possible from the control
mechanism to prevent the looped pull cord(s) becoming slack.
Mark and drill holes for the fixing plate.
Put pulley wheel onto fixing plate. Feed cord through the cover plate and pull into position.
Slide coverplate down and locate over fixing plate. tighten grub screw on the underside.
Adding and Removing Gliders/Rollers
Gliderpoles are supplied with gliders/rollers pre-installed, in some instances it may be necessary to
add or remove gliders, to do this follow the steps below
Hand Drawn
Before fitting the finial or flush end cap add/remove gliders or
rollers from the bottom channel. If using wave ensure that there is
an even number or wave gliders/rollers on each stack
Corded
Locate and remove the spring stop in the bottom channel of the
track.
Add/remove gliders or rollers from the bottom channel. If using
wave ensure that there is an even number or wave gliders/rollers
on each stack
Refit the spring stop.
CORDED GLIDERPOLES
WARNING
!
