The Handy THGT750 User manual

V1 14-05-2019
340kg (750lb)
TOWED STEEL
GARDEN TRAILER
MODEL NO: THGT750 -- PRODUCT NO: 1938211001
EN - ORIGINAL INSTRUCTIONS
ASSEMBLY REQUIRED - MINIMUM TWO PERSONS
SAVE THESE INSTRUCTIONS
SPARES & SUPPORT: 01793 333212
FOR YOUR SAFETY
Please read & understand this manual, paying attention to the safety instructions, before use.
Incorrect use of the product could put the operator or machine in danger.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, our
policy of continuous improvement determines the right to make modifications without prior warning.
Images used are for illustration purposes only
INSTRUCTION MANUAL

Copyright Notice
Copyright © Handy Distribution
Permission is granted to reproduce this publication for personal & educational use only.
Commercial copying, redistribution, hiring or lending is prohibited.
No part of this publication may be stored in a retrieval system or transmitted in any other form or means without
written permission from Handy Distribution.
In all cases this copyright notice must remain intact.

CONTENTS
SPECIFICATIONS
IMPORTANT INFORMATION
GENERAL SAFETY INSTRUCTIONS
KNOW YOUR MACHINE
COMPONENTS
ASSEMBLY
OPERATION
MAINTENANCE
STORAGE
PARTS DIAGRAM & LIST
WARRANTY
CE DECLARATION OF CONFORMITY
ASSEMBLY IS REQUIRED - MINIMUM TWO PERSONS
This product requires assembly before use. See “Assembly”section for instructions. Because of the
weight and/or size of the trailer, it is recommended that another adult be present to assist with the
assembly. INSPECT ALL COMPONENTS closely upon receipt to make sure no components are missing or
damaged.
If you require assistance with regards to the contents or operation of the machine, please contact us:
TEL: [phone]
EMAIL: [e-mail]
(MON –FRI 8.00AM TO 5.30PM EXCL. BANK HOLIDAYS)

SPECIFICATIONS
The manufacturer reserves the right to change the product specification and livery according to continued
product improvements.
Model
THGT750
Product Number
1938211001
Weight
N.W 45kg
Load Capacity
340kg (750lb)
Box & Frame
Steel
Overall Dimensions
L163 x W77 x H81cm
Internal Dimensions
L107 x W70 x H34cm
Tyre
Pneumatic - 40cm (16”)
Recommended Tyre Pressure
25 PSI
Hitch Type
Pin
IMPORTANT INFORMATION
INTENDED USE
The garden trolley is designed for use in private gardens and primarily used around GRASS OR LAWN AREAS,
but not in public facilities, parks or sports grounds and not for agricultural or forestry use. Never exceed the
rated load capacity of 340kg (750lb).
This is a garden trolley, therefore extended use over abrasive surfaces (e.g. concrete, tarmac etc.) could cause
premature wear on the trolley tyres. Commercial or industrial environments are not recommended.
When operating with a tractor, do not exceed 10mph.
Generally acknowledged accident prevention regulations and enclosed safety instructions must be observed.
Only perform work described in these instructions for use, any other use is incorrect. The manufacturer will
not assume responsibility for damage resulting from such use.
WARNING
Read this instruction manual carefully before operating this machine. Make sure that you are familiar with
the controls and properly operate the machine. Following these instructions can reduce the risk of personal
injury.
IF NOT USED PROPERLY THIS MACHINE CAN BE DANGEROUS!
This machine can cause serious injury to the operator and others, the warning and safety instructions must be
followed to ensure reasonable safety and efficiency in using this product. The operator is responsible for
following the warning and safety instructions in this manual and on the machine. Never use the product unless
the components are correctly positioned and operational.
TRAINING
Read the instructions carefully: Be familiar with the controls and the proper use of the equipment.
Never allow children or people unfamiliar with these instructions to use the product.
Local regulations can restrict the age of the operator.
Keep in mind that the operator or user is responsible for accidents or hazards involving the machine that occur
to other people or their property.

GENERAL SAFETY INSTRUCTIONS
It is important that you read and understand the owner’s manual and labels affixed to the machine. Learn its
application and limitations as well as the specific potential hazards. Retain these instructions for future
reference. The operator is responsible for following the warnings & instructions in this manual and on the
product.
SAFETY SYMBOLS
Read & understand the
operator’s manual for the trailer
and the ride on product used to
pull the trailer before using the
machine. Failure to follow
instructions could result in death
or serious injury.
Risk of Slicing.
Keep hands out of the way of
all moving parts.
Wear gloves to protect your
hands.
Wear foot protection at all
times.
Safety alert symbol. Used to
alert you to potential
personal injury hazards.
Obey all safety messages
that follow this symbol to
avoid possible injury.
DANGER
Indicates an imminently
hazardous situation which, if not
avoided, will result in serious
injury.
WARNING
Indicates a potentially
hazardous situation which, if
not avoided, could result in
serious injury.
CAUTION
Indicates a potentially hazardous
situation which, if not avoided,
may result in minor or moderate
injury.
CAUTION
Used without the safety alert
symbol indicates a
potentially hazardous
situation which, if not
avoided, may result in
property damage.
IMPORTANT SAFETY WARNINGS
TO REDUCE RISK OF INJURY: Before any use be sure everyone using this product reads and understands all
safety instructions and other information contained in this manual.
GENERAL SAFETY
STAY ALERT
Do not operate the machine while under the influence of drugs, alcohol, or any medication that could affect
your ability to use it properly. Do not use this machine when you are tired or distracted from the job at hand.
Be aware of what you are doing at all times. Use common sense.
USERS
Do not at any time carry passengers sit or stand on the trailer. Do not allow children to play on, stand upon or
climb in the trailer. Never allow children or people unfamiliar with these instructions to use the machine. Local
regulations can restrict the age of the operator.
AVOID DANGEROUS CONDITIONS
Work in daylight or in good artificial light; always be sure of your footing on slopes; walk, never run with the
machine; exercise extreme caution when changing direction on slopes; do not work on excessively steep
slopes; use extreme caution when reversing or pulling the machine towards you; do not put hands or feet near
or under rotating or moving parts.
KEEP BYSTANDERS AND CHILDREN AWAY
Keep unauthorised persons a safe distance away from the machine. If approached, stop the machine
immediately. Do not allow children to handle, climb on or use the machine. Keep in mind the operator or user
is responsible for accidents or hazards occurring to other people or their property.

INSPECT YOUR MACHINE
Check all bolts, nuts, and screws for tightness before each use, especially those securing guards and drive
mechanisms. Vibration during use, may cause these to loosen.
Form a habit of checking to see that all other tools/equipment are removed from the working area before
turning it on. Replace damaged, missing or failed parts before using it. Warning labels carry important
information. Replace any missing or damaged warning labels.
DRESS PROPERLY
Do not wear loose clothing, gloves, scarfs, neckties or jewellery (rings, wrist watches), which can be caught in
moving parts. Always wear long trousers. Always wear substantial non slip, substantial or heavy-duty safety
footwear are highly recommended when working. Never operate barefoot or when wearing sandals. Wear a
face or dust mask if the operation is dusty. Always wear safety glasses/goggles and/or face shields. Everyday
eyeglasses have only impact resistant lenses; they are not safety glasses/goggles. Wear protective hair
covering to contain long hair, preventing it from getting caught in machinery.
DO NOT OVERREACH
Always keep proper footing and balance when using the machine. Use on slopes with great care. Never stand
on the machine. Serious injury could occur if the machine is tipped or if the moving parts are unintentionally
contacted. Do not store anything above or near the machine, where anyone might stand on the machine to
reach them.
AVOID INJURY FROM UNEXPECTED ACCIDENT
Keep hands & feet out of the way of all moving parts. Do not place any part of your body or any tool e.g. in the
machine during operation.
DO NOT FORCE TOOL
Do not exceed equipment maximum load capacity of 340kg (750lb). Avoid large holes and ditches when
transporting loads. Always work within the rated capacity. Do not use machine for a purpose for which it was
not intended. Be careful when operating on steep grades (hill) the trailer may tip over. Always operate at
reduce speed in rough terrain, along creeks, ditches and on hillsides. Do not operate close to creeks, ditches
and public highways. To avoid personal injury and/or equipment damage DO NOT EXCEED 10 MPH. Always use
caution when loading and unloading the trailer. Only tow with recommended vehicles (Lawn/Garden Tractors
and ATVs). Always secure and lock trailer to the vehicle hitch before operating.
TYRE INFLATION
Only use HAND or FOOT manual operated tyre inflation machines, not mechanical and do not exceed
recommended PSI.
NEVER LEAVE MACHINE RUNNING UNATTENDED
Do not leave the machine unattended until it has come to a complete stop.
INSPECT
Before using, always visually inspect to see that the tools are not worn or damaged. Replace worn or damaged
elements and bolts in sets, to preserve balance.
MAINTAIN YOUR MACHINE WITH CARE
Clean the machine immediately after use. Keep the machine clean to ensure it operates to it’s full and safest
performance. When maintaining this machine, only the manufacturer’s original replacement parts should be
used. The use of non-original manufacturer parts may invalidate your warranty.
PROTECT THE ENVIRONMENT
Take left over materials to an authorised collection point or follow the stipulations in the country where the
machine is used. Do not discharge into drains, soil or water.
STORE IDLE EQUIPMENT
When not in use, the machine should be stored in a dry location. Keep the machine away from children and
others not qualified to use it. Keep away from direct sunlight.
WARNING
The warnings, cautions, and instructions outlined in this instruction manual cannot cover all possible
conditions or situations that may occur. It must be understood by the operator that common sense and
caution are factors which cannot be built into this product and must be supplied by the operator.

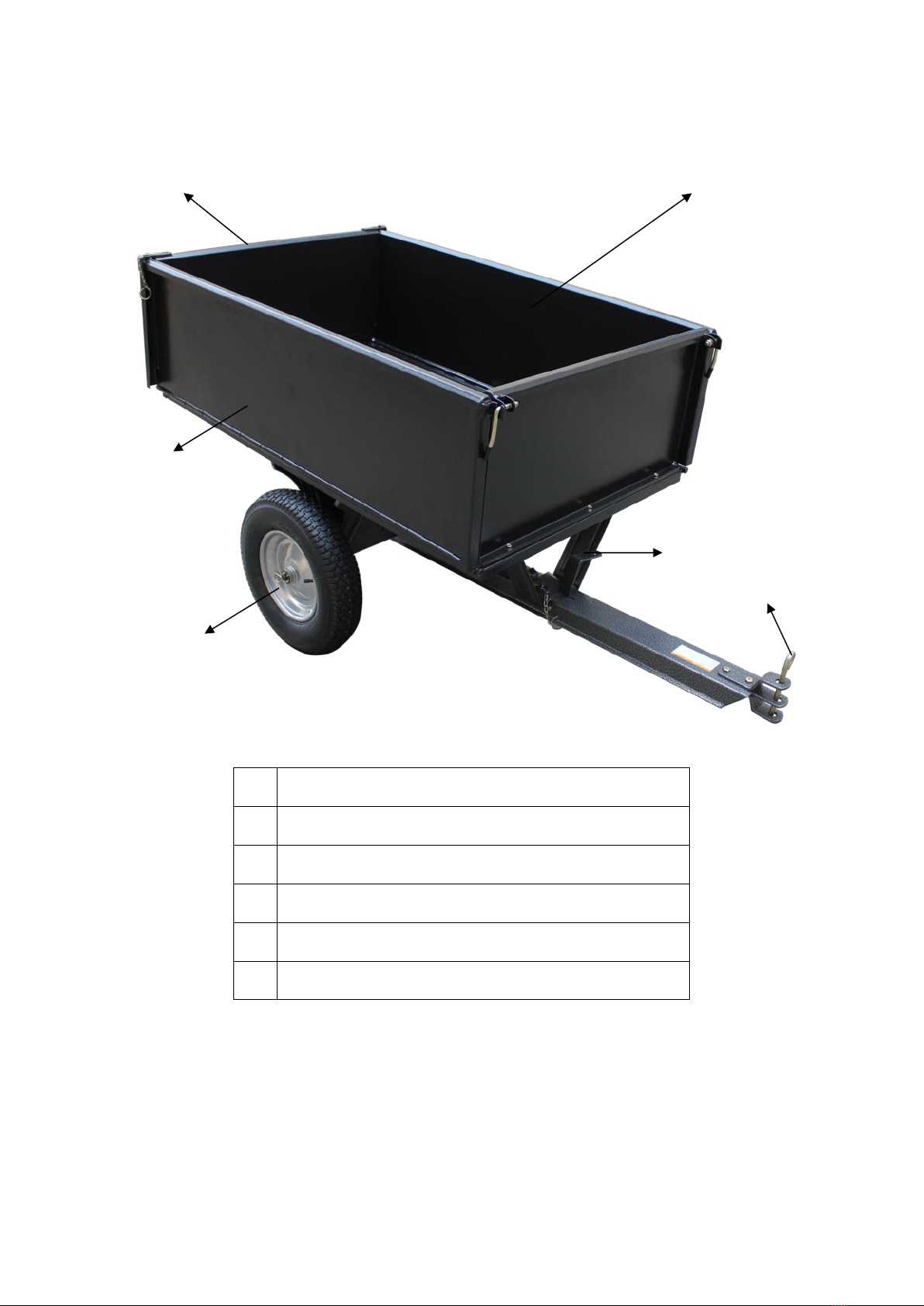

KNOW YOUR MACHINE
1.
Removeable Tailgate
Push up to remove for loading & unloading
2.
Steel Load Bay
Do not exceed 750lb (340kg)
3.
Wheel
Do not exceed recommended 25 PSI pressure
4.
Hitch
Pin-type design for use with only approved ride on machinery
5.
Release Pedal
To tip load area.
6.
Side Panels
Can be folded for easy access to loads
1
2
3
4
5
6

COMPONENTS
This product must be assembled correctly before use. Carefully remove the product and any accessories from
the carton. Inspect the product carefully to make sure there are no breakages or damage occurred during
shipping. Do not discard the packing material and carton until you have carefully inspected and satisfactorily
operated the product.
Take all parts out of the shipping crate and inspect components to ensure there are no missing pieces before
starting to assemble the trailer follow steps 1 through 8.
TOOLS REQUIRED
•Screwdriver
•10mm Wrench
If you require assistance with regards to the contents or operation of the machine, please contact us:
TEL: [phone]
EMAIL: [e-mail]
(MON –FRI 8.00AM TO 5.30PM EXCL. BANK HOLIDAYS)
WARNING
If any parts are damaged or missing do not operate this product until the parts are replaced. Failure to heed
this warning could result in serious personal injury.
Do not attempt to modify this product or create accessories not recommended for use with this product. Any
such alteration or modification is misuse and could result in a hazardous condition leading to possible
serious personal injury.
Read and follow all instructions for assembly and operation. Failure to properly assemble this equipment
could result in serious injury to the user or bystanders, or cause equipment damage.

ASSEMBLY
All numbers mentioned in the below steps are listed in the parts list and diagram, located at the rear of this
instruction manual.
STEP 1
Lay down the bottom panel on a flat surface, remove the two wing nuts M6 (No.36) on the wheel axle support
to release wheel axle supports, wing nuts need to reinstall after releasing wheel axle support.
STEP 2
Turn up the wheel axle support and reinstall the wing nuts M6 (No.36). Remove the hex nuts M6 (No.3) and flat
washers Ø6 (No.2) on the bottom panel, attach the tongue support (No.1) and pay attention to the orientation
of the hole on tongue support, hole should be oriented as shown below. Reinstall flat washers Ø6 (No.2) and hex
nuts M6 (No.3), tighten all hardware when trailer is turned upright.
Pay attention to the orientation of the
hole within the tongue support (No.1)

STEP 3
Remove R pin (No.14) from tongue. Line up protrusion on tongue with hole on tongue support, slightly pull the
foot pedal (No.4) back into a released position and lock while protrusion stick in place, see IMAGE A. Insert axle
(No.25) into wheel axle support and tongue. Insert R pin (No.14) through the hole on protrusion.
STEP 4

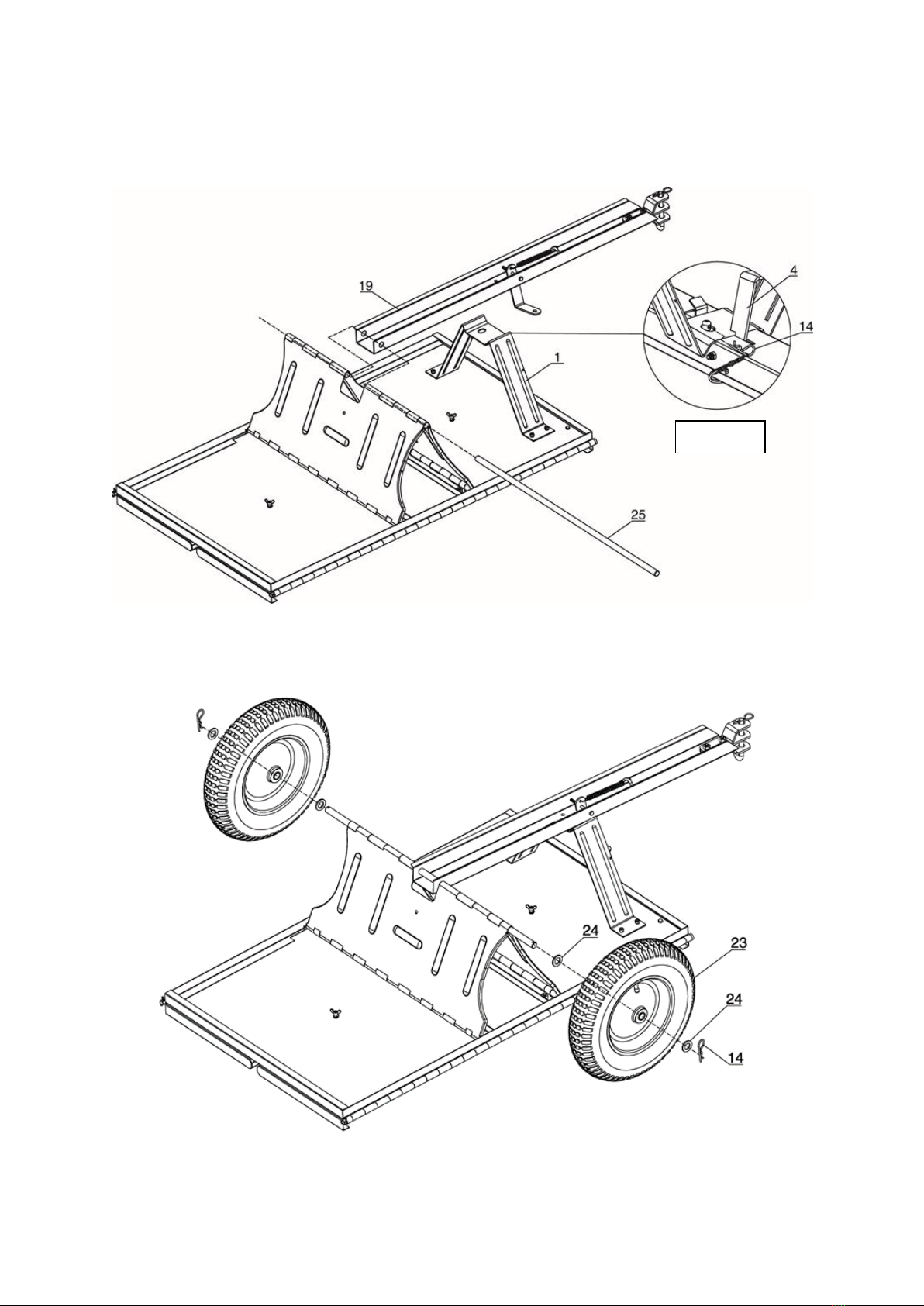

Remove all flat washers and R pins from axle. Add one flat washer Ø16 (No.24) on one side of axle, put the
wheel (No.24) on ensuring the valve is on the outside as shown below, and then put on another flat washer
Ø16 (No.24), lock with R-pin (No.14). Repeat on the other wheel.

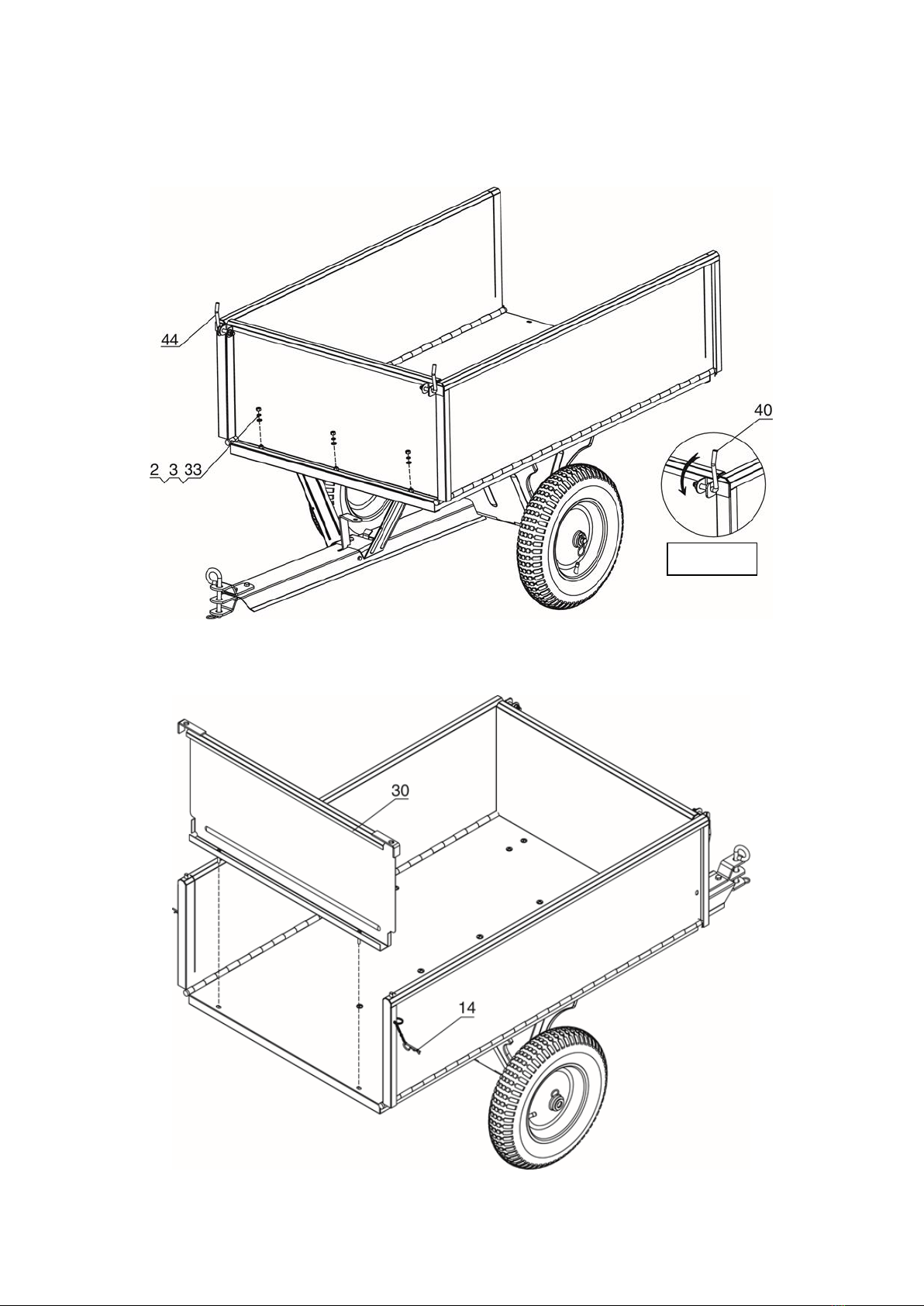

IMAGE A

STEP 5
Turn the trailer upright, remove three pairs of nuts (No.3), lock washers (No.2) and flat washers (No.33) at the
front of bottom panel.
STEP 6
Line up the holes at the bottom of front panel (No.43) with bolt studs on the bottom panel.

STEP 7
Line up the front and one of the side panels, push down L pin (No.40 & No.44) and lock, see IMAGE B. Repeat
on the other side panel. Tighten the front panel with lock washer Ø6 (No.2), flat washer Ø6 (No.6) and nut M6
(No.3).
STEP 8
Insert the rear panel (No.30) into slots at the side panels until the end. Insert R pin (No.14) through the hole on
protrusion.
IMAGE B

OPERATION
WARNING
Before using the trailer, review the instructions below and safety information. Failure to follow these
instructions may result in property damage or injury to the operator or bystanders.
USING YOUR TRAILER
1. DO NOT exceed rated load capacity of 340kg (750lb).
2. ALWAYS secure and lock the trailer to the ride on machinery hitch before operating.
3. ONLY use approved vehicles when towing the trailer (Lawn/Garden Tractors and ATVs).
4. NEVER tow the trailer with box raised.
5. DO NOT over fill the trailer. Overflow loads can cause the trailer and towing vehicle to lose traction and
skid out of control.
6. ONLY fill the trailer to a comfortable tipping load. Extremely heavy loads will be difficult to operate and tip.
7. ALWAYS use the trailer for its intended purpose.
8. ALWAYS make sure that the tow vehicle and the combined weight of the operator MUST BE greater than
the load of the trailer weight for proper control.
9. DO NOT use trailer on public highways or roads. This is not a road legal product. Use of this nature can
cause premature wear of the tyres, not covered by the manufacturer’s warranty.
10. NEVER exceed the recommended PSI of the tyre. Inflation must always be undertaken by a foot or hand-
controlled inflation device.
11. NEVER exceed 10 MPH when towing the trailer.
12. DO NOT make sharp turns that may cause the Lawn/Garden Tractor or ATV tyres to rub against the trailer.
13. ALWAYS slow down before turning.
14. ALWAYS use caution when backing the trailer. To avoid the trailer from “jack-knifing” always back up in a
straight line.
ATTACHING THE TRAILER TO THE TOW VEHICLE
•Park the tow vehicle and trailer on level ground.
•Set the height adjustment handle to middle of its adjustment.
•Insert the hitch pin through the hitch brackets and towing eye of the tow vehicle and secure with the
cotter pin.
EMPTYING THE TRAILER
•Stop the tow vehicle and turn off the engine.
•Stand to the side of the trailer.
•Ensure your footing is secure and use your foot to apply pressure to the release pedal. Ensuring the
tipping trailer does not come into contact with you.
•Release carefully to rehouse trailer to frame. Ensure it is correctly housed before starting the engine of the
towing vehicle.
MAINTENANCE
WARNING
Improper maintenance and storage of the trailer may void your warranty.
•After each use, clean material out of the trailer.
•Rinse/dry inside and outside of the trailer after each use.
•Before operating make sure the tyres have the recommended 25 PSI tyre pressure.
•Regularly grease the axle and the wheel bearing area or when needed.
•Periodically check all fasteners for tightness.
•Annually clean and lightly lubricate parts.
•Use a glossy enamel spray paint to touch up scratched or worn painted metal surfaces.
•Never exceed load capacity rating of 340kg (750lb).

IMPORTANT:
If a part needs replacement, only use parts that meet the manufacturer’s specifications. Replacement parts
that do not meet specifications may result in a safety hazard or poor operation.
STORAGE
•Never allow material to remain in the trailer for extended periods of time.
•Before storing, make sure the trailer is clean and dry for years of trouble-free service.
•Store indoors or in a protected area during severe weather and winter months.
•When storing outside, always keep the tongue a little higher than the back of the trailer to allow the
moisture to easily run out the back and will not accumulate in the trailer.

PARTS DIAGRAM –THGT750 (1938211001)
NOTE: Parts Lists are supplied for information
purposes only, not all parts are stocked
individually & we recommend you contact
our Spares Team on 01793 333212 for expert
advice.

PARTS LIST –THGT750 (1938211001)
ITEM NO.
HANDY PART NO.
DESCRIPTION
QTY
1
TH253-N16000005
Tongue Support
1
2
TH253-930606000CD
Lock Washer Ø6
9
3
TH177-40
Hex Nut M6
11
4
TH253-N87900002
Foot Pedal
1
5
TH177-18
Spacer
2
6
TH177-34
Hex Bolt M6x90
1
7
TH177-38
Nylon Lock Nut M6
1
8
TH177-19
Latch Spring
1
9
TH253-910108030CD
Hex Bolt M8x30
2
10
TH177-36
Flat Washer Ø8
4
11
TH253-930608000CD
Lock Washer Ø8
8
12
TH253-920108000CD
Hex Nut M8
8
13
TH253-N18000013CD
Hitch Pin
1
14
TH177-27
R-Pin
6
15
TH253-N39000002
Hitch Pin Bracket
2
16
TH253-DC400A00004
Connecting Plate
1
17
TH253-Z33000017CD
Key Ring
3
18
TH253-DC070000004CD
Small Chain
3
19
TH253-DC070006000
Hitch Tongue
1
20
TH253-DC070007000
Wheel Axle Support
2
21
TH253-DC070000001
Connect Plate of Axle Support
2
22
TH253-DC070000003DY
Wheel Axle
1
23
TH177-3
Wheel
2
24
TH177-37
Flat Washer Ø16
4
25
TH253-DC070000002DY
Axle
2
26
TH253-940402025CD
Cotter Pin Ø2x25
4
27
TH253-DC070003000
Right Side Panel
1
28
TH253-940403025CD
Cotter Pin Ø3x25
2
29
TH253-DC070008000DY
Hinge Pin
2
30
TH253-DC070005000
Rear Panel
1
31
TH177-23
Plug
2
32
TH253-930606000CD
Lightened Lock Washer Ø6
2
33
TH177-35
Flat Washer Ø6
5
34
TH253-DC070001000
Bottom Panel
1
35
TH253-91990106016CD
Philips Big Flat Head Screw M6x16
2
36
TH253-920806000CD
Wing Nut M6
2
37
TH177-33
Philips Big Flat Head Screw M8x16
6
38
TH253-91990106014CD
Philips Big Flat Head Screw M6x14
4
39
TH253-DC070002000
Left Side Panel
1
40
TH177-22
Handle A
1
41
TH177-39
Nylon Lock Nut M8
2
42
TH253-NW0100006
Handle Sleeve
2
43
TH253-DC070004000
Front Panel
1
44
TH177-25
Handle B
1

GJ HANDY & CO LTD USER WARRANTY POLICY
Users Statement of Warranty
Each new machine is warranted against defective material or assembly of material under normal usage. The
warranty applies to the original purchaser and covers faulty parts and the labour involved in replacing and
repairing those parts, which are of original manufacture.
Period of Warranty
Webb (excludes Electric Handheld, Dynamic, Heritage, Legacy), Webb Pro, Sanli Engine
a) 2 years from the original date of sale to the first domestic user.
b) 90 days from the original date of sale to the professional/commercial user.
c) 90 days from the original date of sale when used for hire.
d) A reduced warranty period of 90 days applies to those items which are subject to normal wear and tear
(e.g. but not limited to wheels, tyres, cutter bars, cylinders, cutting blades, blade boss, belts, cables,
nylon line & spool, collection bags, spark plugs).
e) Engines are supplied with a separate warranty to the machine. The engine manufacturers warranty
statement which will be supplied within the engine instruction manual. All enquiries and warranty
repairs should be discussed with the engine manufacturer or approved warranty repair dealer.
f) 90 days from the original date of purchase for Replacement Spare Parts (unless normal wear & tear
component, which are covered for 30 days).
g) All machines’ must be serviced within the first 12 months from the original date of purchase to comply
with the warranty, failure to do so will invalidate the 2nd year of the warranty.
Webb Electric Handheld, Webb Dynamic, Heritage & Legacy, Handy, Mowerland, Q-Garden
a) 1 year from the original date of sale to the first domestic user.
b) 90 days from the original date of sale to the professional/commercial user.
c) 90 days from the original date of sale when used for hire.
d) A reduced warranty period of 90 days applies to those items which are subject to normal wear and tear
(e.g. but not limited to wheels, tyres, cutter bars, cylinders, cutting blades, blade boss, belts, cables,
nylon line & spool, collection bags, spark plugs).
e) Engines are supplied with a separate warranty to the machine. The engine manufacturers warranty
statement which will be supplied within the engine instruction manual. All enquiries and warranty
repairs should be discussed with the engine manufacturer or approved warranty repair dealer.
f) 90 days from the original date of purchase for Replacement Spare Parts (unless normal wear & tear
component, which are covered for 30 days).
All warranty repairs must be undertaken by an authorised service dealer. These dealers have been accredited by
GJ Handy & Co Ltd and agree to only use genuine parts and follow our repair procedures.
Not covered by this warranty
a) The warranty policy does not cover any depreciation or damages caused by ordinary wear, rusting or
corrosion, lack of correct maintenance or operation, misuse, abuse, lack of transportation or accident.
b) The warranty policy does not cover any costs necessary for the standard periodic maintenance services
instructed by the operator’s manual, or service parts replacement which would include oil, filters, tyres,
belts, brake linings, fuses, blades, seals and other service parts unless it can be proven that the item has
evidence of faulty manufacture.
c) The warranty policy will not cover failure or damage caused as a result of parts or accessories being
modified without the written approval of GJ Handy & Co Ltd.
d) The warranty policy will not cover the unit if non-genuine parts have been fitted and as a result damage
has occurred to the unit.
e) The warranty policy is non-transferable and is only applicable to the original purchaser.

Disclaimer
a) This warranty is only a remedy for defect of products. GJ Handy & Co Ltd will never warranty in terms
of the merchantability or the fitness for a particular purpose.
b) No person is authorised to make any warranties, representations or promises, expressed or implied, on
behalf of GJ Handy & Co Ltd, or to modify the terms conditions or limitation of this warranty policy in
any way.
c) Neither GJ Handy & Co Ltd nor any company affiliated with GJ Handy & Co Ltd shall be liable in any event
or manner whatsoever for incidental or consequential damages or injuries, including, but not limited
to, loss of crops, loss of profit, out of pocket expenses or profits, rental of substitute equipment or other
commercial losses.
General
a) Most warrantable failures show up within the first few weeks of use. These failures are usually
straightforward and warranty assessment is relatively easy.
b) Failures relating to cutter decks and belts need careful investigation, as the cause may not always be
straightforward. Look for damage to blades and pulleys especially when the cutter belt or blade boss
have snapped or cracked as this could be due to impact damage.
c) Customers should always refer to the operator/instruction manual when any disputed problem arises,
you will find most areas covered within the manual.

EC DECLARATION OF CONFORMITY
We Handy Distribution Ltd - SN3 5HY (Importer) declare that the product:
Designation: 340kg (750lb) Towed Steel Garden Trailer
Model(s): THGT750
Product Number: 1938211001
Type/Serial No: As per rating label on machine
Max Load Capacity: 340kg (750lb)
Complies with the following directives:
2006/42/EC –Machinery Directive
The conformity assessment procedure followed was in accordance with
EN ISO 12100:2010,
EN 349:1993+A1:2008,
EN ISO 1420:2015,
EN ISO 13857:2008
Notified Bodies:
ENTE CERTIFICAZIONE MACCHINE
Address(es):
Via Ca’ Bella, 243 - Loc. Castello id Serravalle - 40053 Valsamoggia (BO) - ITALY
Authorised signatory & technical file holder
Date:
14/05/2019
Signature:
Name:
Mr. Simon Belcher
Position:
Chairman
Company:
Handy Distribution Ltd
Address:
Murdock Rd, Dorcan, Swindon, Wiltshire, SN3 5HY.

For spares or support of your handy product,
please contact us:
Tel: [phone]
Email: customerservic[email protected]
(Mon –Fri 8.00am to 5.30pm excl. Bank Holidays)
To see our range of garden machinery & equipment visit:
www.thehandy.co.uk
Making gardening easier & affordable since 1938
Distributed by Handy Distribution, Murdock Road, Dorcan, Swindon, SN3 5HY
