THE WORLD MODELS At-6 Texan EP User manual

The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
Wing Span 44 in / 1120 mm
Wing Area 295 sq in / 19 sq dm
Flying Weight 31 oz / 870 g
Fuselage Length 31.5 in / 800 mm
Specifications
INSTRUCTION MANUAL
At-6 texan EP
* Specifications are subject to change without notice.*
Warning ! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of electric powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
Requires : 5-channel radio w/ 5 micro servos,
Outrunner Motor KM0283010
w/ Propeller Adaptor HW2340100,
20A brushless ESC, 3 cells 11.1V
2100 mAh Li - Po battery & charger.
FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY (ARF) SERIES
MADE IN CHINA
E269XMPO24481007
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.co m
The World Models
Manufacturing Co., Ltd.
w w w.theworldmod e ls.com
The World Models
Manufacturing Co., Ltd.
www.thew o rldmo d els.com
The World Models
Manufacturing Co., Ltd.
www.theworldmo d els.com
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.com
The World Models
Manufacturing Co., Ltd.
w w w.theworldmo d e l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.co m
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.com
The World Models
Manufacturing Co., Ltd.
www.thewo r ld m odels.com
The World Models
Manufacturing Co., Ltd.
www.theworld m ode l s.com
The World Models
Manufacturing Co., Ltd.
www.thewo r ld m odels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmod e ls.com
The World Models
Manufacturing Co., Ltd.
w w w.the w orldmodels.co m
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.co m
The World Models
Manufacturing Co., Ltd.
w w w.theworldmod e ls.com
The World Models
Manufacturing Co., Ltd.
w w w.thewo r ldmo d e l s.com
The World Models
Manufacturing Co., Ltd.
w w w.theworldmode l s.com

P.1
INDEX
BEFORE YOU BEGIN
BEFORE YOU BEGIN
PARTS LIST
ASSEMBLY
SAFETY PRECAUTIONS
P.1
P.2
P.3-P.10
P.10
Check all parts. If you find any defective or missing parts contact your local dealer. Please
DRY FIT and check for defects for all parts that will require CA or Epoxy for final assembly.
Any parts you find to be defective after the gluing process may be difficult to remove for
warranty replacement. The manufacturer will replace any defective parts, but will not extend
to the parts that are good before gluing to defective parts during assembly. Warranty will
not cover any parts modified by customer.
Symbols used throughout this instruction manual comprise of the following :-
Read through the manual before you begin, so you will have an overall idea of what to do.
1
2
3
Cut off shaded portion.
Ensure smooth non-binding
movement while assembling.
Apply instant glue
(C.A.glue, super glue.)
Assemble left and right
sides the same way.
Peel off shaded portion
covering film.
Pay close attention here!
Apply epoxy glue.
Must be purchased separately !
Drill holes with the specified
diameter (here: 3mm).
Pierce the shaded portion
covering film.
3mm
Do not overlook this symbol !
Warning!
Apply thread locker
At-6 texan EP
E269XMPO24481007
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.co m
The World Models
Manufacturing Co., Ltd.
w w w.theworldmod e ls.com
The World Models
Manufacturing Co., Ltd.
www.thew o rldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmo d els.com
The World Models
Manufacturing Co., Ltd.
www.thewo r ldmode l s.c o m
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmo d els.co m
The World Models
Manufacturing Co., Ltd.
www.theworldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.thewo r ldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmod e ls.com
The World Models
Manufacturing Co., Ltd.
w w w.the w orldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmo d els.com
The World Models
Manufacturing Co., Ltd.
w w w.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.thewo r ldmo d els.com
The World Models
Manufacturing Co., Ltd.
www.theworldmode l s.com

P.2

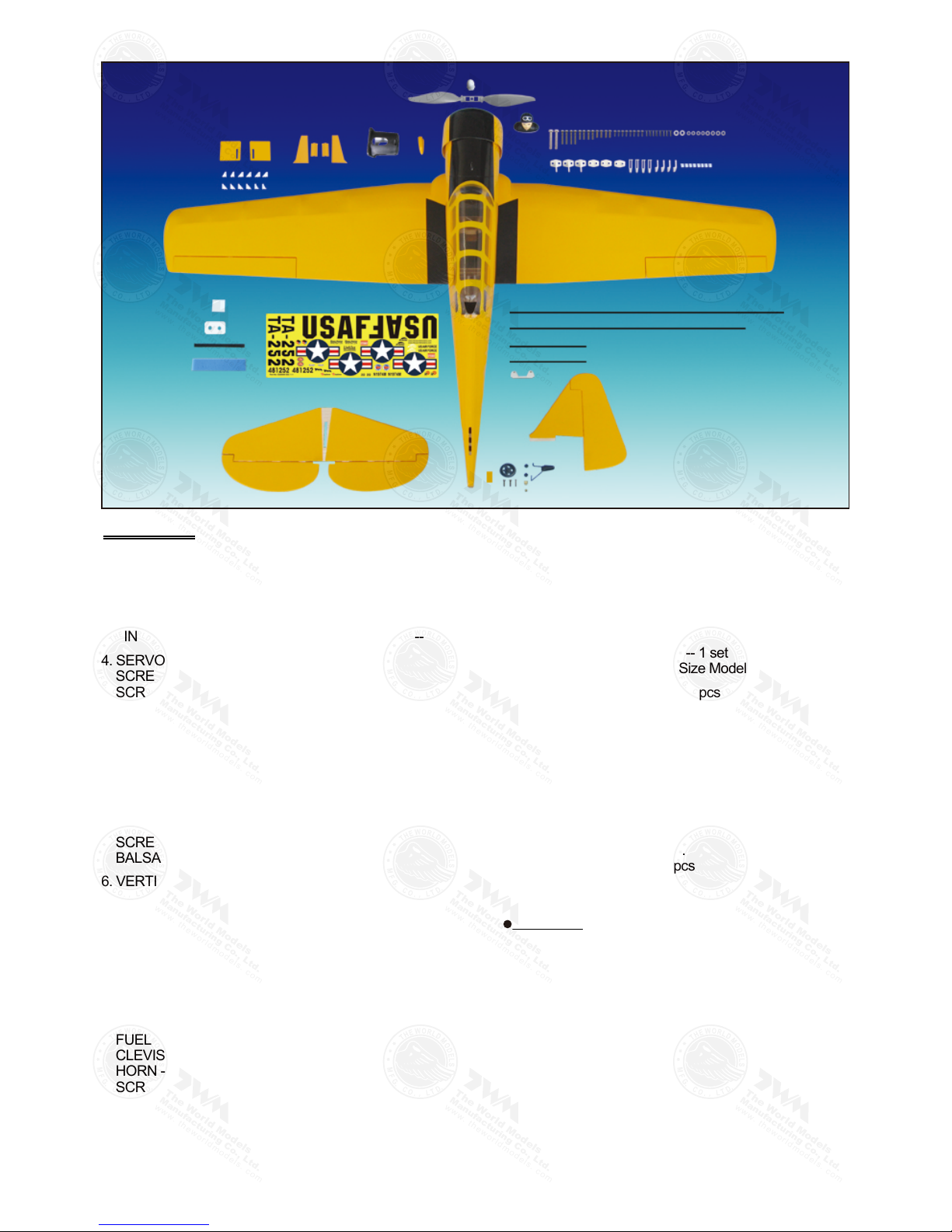

Parts List
COVERING:--
LIGHTEX SGX 201 BLACK
LIGHTEX SGX 331 CUB YELLOW
1. MAIN WING -- 1 pc.
2. RETRACTABLE LANDING GEAR -- 1 pair
MAIN WHEEL Ø40mm -- 2 pcs
RETRACTABLE LANDING GEAR COVER -- 2 sets
3. LINKAGE CONNECTOR Ø2.1mm w/ Set Screw -- 2 sets
4. SERVO MOUNTING PANEL -- 1 pair
SCREW PA1.7x8mm -- 8 pcs
SCREW PB2x16mm -- 4 pcs
FUEL TUBE d2xD4x4mm -- 4 pcs
STRAPER -- 2 pcs
CLEVIS -- 2 pcs
HORN -- 2 sets
PUSHROD Ø1.4x48.5mm w/ Threads (For Aileron) -- 2 pcs
5. STABILIZER & ELEVATOR -- 1 set
FUSELAGE -- 1 pc.
ELEVATOR PL4510010 -- 1 pc.
SCREW PB2x8mm -- 2 pcs
BALSA 4x11.9x24mm -- 1 pc.
6. VERTICAL FIN & RUDDER -- 1 pc.
7. TAIL LANDING GEAR -- 1 set
TAIL WHEEL Ø23mm -- 1 pc.
PLASTIC COLLAR d1xD5x2mm -- 2 pcs
SCREW PA2x8mm -- 2 pcs
ALUMINUM PLATE 0.3mm -- 1 pc.
SCREW PM2x8mm -- 1 pc.
M2 NUT -- 1 pc.
8. PUSHROD Ø1.4x414mm w/ Threads (For Rudder) -- 1 pc.
FUEL TUBE d2xD4x4mm -- 1 pc.
CLEVIS -- 1 pc.
HORN -- 1 set
SCREW PB2x8mm -- 2 pcs
9. PUSHROD Ø1.4x398mm w/ Threads (For Elevator) -- 1 pc.
FUEL TUBE d2xD4x4mm -- 1 pc.
CLEVIS -- 1 pc.
10. SOCKET HEAD SCREW M2.5x8mm -- 4 pcs
WASHER d3xD7mm -- 8 pcs
SCREW PM3x6mm -- 4 pcs
FOLDING PROPELLER SET (10x6) -- 1 set
COWLING -- 1 pc.
SCREW PWA2x8mm -- 4 pcs
EP SPINNER NUT Ø15mm -- 1 set
MOTOR MOUNT (For 400 Size Model) -- 1 pc.
11. FUEL TUBE d2xD4x4mm -- 2 pcs
STRAPER -- 2 pcs
SPONGE 10x50x150mm -- 2 pc.
DOUBLE-SIDED TAPE 30x35mm -- 1 pc.
BATTERY TIE -- 1 pc.
12. NYLON BOLT PM2.5x20mm -- 2 pcs
NYLON WASHER d2.6xD9mm -- 2 pcs
PLASTIC PLATE 1x25x50mm (Wing Protection) -- 1 pc.
13. CANOPY -- 1 pc.
PILOT (PC101042B) -- 1 pc.
SCREW PWA2x8mm -- 4 pcs
CARB INTAKE -- 1 pc.
14. DECALS E269XMDEC -- 1 set
E269XMPO24481007
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.co m
The World Models
Manufacturing Co., Ltd.
w w w.theworldmod e ls.com
The World Models
Manufacturing Co., Ltd.
www.thew o rldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.com
The World Models
Manufacturing Co., Ltd.
w w w.thewo r ldmo d e l s.c o m
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldm o d e l s.co m
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.co m
The World Models
Manufacturing Co., Ltd.
www.thewo r ld m od e ls.com
The World Models
Manufacturing Co., Ltd.
www.theworld m odels.com
The World Models
Manufacturing Co., Ltd.
www.thewo r ld m od e ls.com
The World Models
Manufacturing Co., Ltd.
www.theworldmod e ls.com
The World Models
Manufacturing Co., Ltd.
w w w.the w orldmodels.co m
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.co m
The World Models
Manufacturing Co., Ltd.
w w w.theworld m od e ls.com
The World Models
Manufacturing Co., Ltd.
w w w.theworldm o d e l s .com
The World Models
Manufacturing Co., Ltd.
w w w.theworldmodels.com

P.3
Main Wing
1
Retractable Landing Gear
2
Bottom View
Bottom View
Completed
Aileron Servo Lead
Aileron Servo Lead
Apply instant type CA glue to both sides of each hinge.
E269XMPO24481007
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.co m
The World Models
Manufacturing Co., Ltd.
w w w.theworldmod e ls.com
The World Models
Manufacturing Co., Ltd.
www.thew o rldmo d els.com
The World Models
Manufacturing Co., Ltd.
www.theworldmo d els.com
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.com
The World Models
Manufacturing Co., Ltd.
w w w.theworldmo d e l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.co m
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.com
The World Models
Manufacturing Co., Ltd.
www.thewo r ld m odels.com
The World Models
Manufacturing Co., Ltd.
www.theworld m ode l s.com
The World Models
Manufacturing Co., Ltd.
www.thewo r ld m odels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmod e ls.com
The World Models
Manufacturing Co., Ltd.
w w w.the w orldmodels.co m
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.co m
The World Models
Manufacturing Co., Ltd.
w w w.theworldmod e ls.com
The World Models
Manufacturing Co., Ltd.
w w w.thewo r ldmo d e l s.com
The World Models
Manufacturing Co., Ltd.
w w w.theworldmode l s.com

P.4
Retract Servo
To L-Side
Wheels Up Position
16mm
Travel
16mm
Travel
Wheels Down Position
To R-Side Linkage connector
Please refer to attached sheet for linkage connector installation.
4
8
PB2x16mm Screw
PA1.7x8mm Screw
TWM PL8210010
CLEVIS WRENCH
Aileron Servo
4
3
Please choose either 02L & 02R or 03L & 03R or 04L & 04R that suits your servo.
Clevis
Horn
Fuel Tube
d2xD4x4mm
PB2x12mm
Ø1mm pilot holes for World Models horn are pre-drilled.
Please look for pin-hole marks at under side of control surfaces.
Straper Fuel Tube
d2xD4x4mm
PA1.7x8mm
Pushrod
Ø1.4x48.5mm
Bottom View
E269XMPO24481007
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.co m
The World Models
Manufacturing Co., Ltd.
w w w.theworldmod e ls.com
The World Models
Manufacturing Co., Ltd.
www.thew o rldmo d els.com
The World Models
Manufacturing Co., Ltd.
www.theworldmo d els.com
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.com
The World Models
Manufacturing Co., Ltd.
w w w.thewo r ldmo d e l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.co m
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.com
The World Models
Manufacturing Co., Ltd.
www.thewo r ld m odels.com
The World Models
Manufacturing Co., Ltd.
www.theworld m ode l s.com
The World Models
Manufacturing Co., Ltd.
www.thewo r ld m odels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmod e ls.com
The World Models
Manufacturing Co., Ltd.
w w w.the w orldmodels.co m
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.co m
The World Models
Manufacturing Co., Ltd.
w w w.theworld m od e ls.com
The World Models
Manufacturing Co., Ltd.
w w w.thewo r ldmo d e l s.com
The World Models
Manufacturing Co., Ltd.
w w w.theworldmode l s.com

P.5

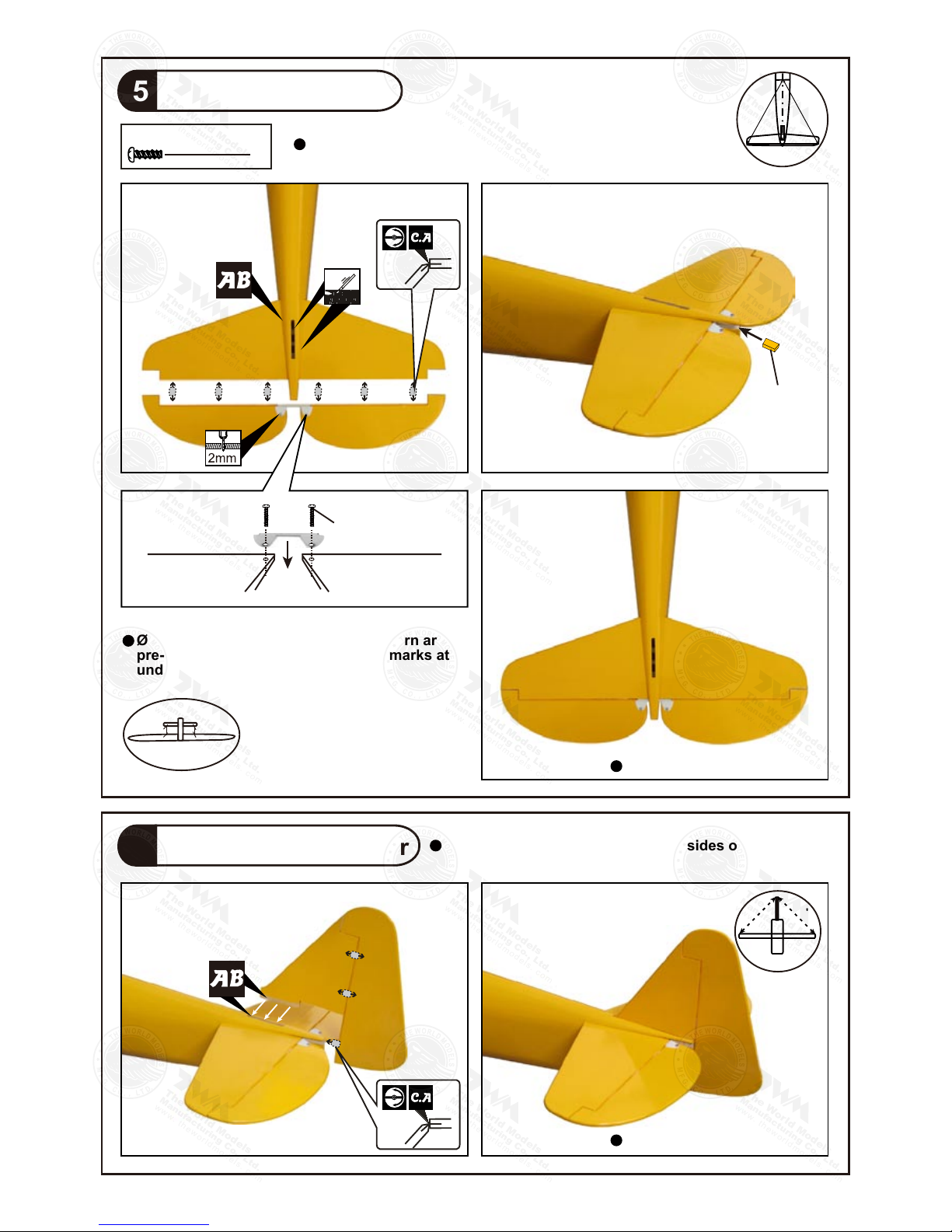

Vertical Fin & Rudder
2
PB2x8mm Screw
Balsa
4x11.9x24mm
Stabilizer & Elevator
5
6
Completed
Completed
PB2x8mm
B=B'
B B'
(Main Wing)
(Stabilizer)
A=A'
A A'
Temporary install the main
wing, adjust leveling of the
stabilizer to make it as parallel
to the main wing as possible.
Ø1mm pilot holes for World Models horn are
pre-drilled. Please look for pin-hole marks at
under side of control surfaces.
Apply instant type CA glue to both sides of each hinge.
Apply instant type CA glue to both sides of each hinge.
C=C'
C C'
E269XMPO24481007
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.co m
The World Models
Manufacturing Co., Ltd.
w w w.theworldmod e ls.com
The World Models
Manufacturing Co., Ltd.
www.thew o rldmo d els.com
The World Models
Manufacturing Co., Ltd.
www.theworldmo d els.com
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.com
The World Models
Manufacturing Co., Ltd.
w w w.theworldmo d e l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.co m
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.com
The World Models
Manufacturing Co., Ltd.
www.thewo r ld m odels.com
The World Models
Manufacturing Co., Ltd.
www.theworld m ode l s.com
The World Models
Manufacturing Co., Ltd.
www.thewo r ld m odels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmod e ls.com
The World Models
Manufacturing Co., Ltd.
w w w.the w orldmodels.co m
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.co m
The World Models
Manufacturing Co., Ltd.
w w w.theworldmod e ls.com
The World Models
Manufacturing Co., Ltd.
w w w.thewo r ldmo d e l s.com
The World Models
Manufacturing Co., Ltd.
w w w.theworldmode l s.com

P.6
2
PA2x8mm Screw
TWM PL8210010
CLEVIS WRENCH
Tail Landing Gear
7
Bottom View
1
PM2x8mm Screw
M2 Nut
1
Ø1mm pilot holes for World Models horn are pre-drilled.
Please look for pin-hole marks at under side of control surfaces.
Plastic Collar
PM2x8mm
Aluminum Plate 0.3mm
M2 Nut
PA2x8mm
2
PB2x8mm Screw
Rudder Pushrod
8
Bottom View
TWM PL8210010
CLEVIS WRENCH
Ø1mm pilot holes for World Models horn are pre-drilled.
Please look for pin-hole marks at under side of control surfaces.
Elevator Pushrod
9
Bottom View
Clevis
Horn
Fuel Tube
d2xD4x4mm
PB2x8mm
Pushrod
Ø1.4x414mm
Pushrod
Ø1.4x398mm
Clevis
Fuel Tube
d2xD4x4mm
100mm
100mm
20mm
38mm
E269XMPO24481007
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.co m
The World Models
Manufacturing Co., Ltd.
w w w.theworldmod e ls.com
The World Models
Manufacturing Co., Ltd.
www.thew o rldmo d els.com
The World Models
Manufacturing Co., Ltd.
www.theworldmo d els.com
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.com
The World Models
Manufacturing Co., Ltd.
w w w.theworldmo d e l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.co m
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.com
The World Models
Manufacturing Co., Ltd.
www.thewo r ld m odels.com
The World Models
Manufacturing Co., Ltd.
www.theworld m ode l s.com
The World Models
Manufacturing Co., Ltd.
www.thewo r ld m odels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmod e ls.com
The World Models
Manufacturing Co., Ltd.
w w w.the w orldmodels.co m
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.co m
The World Models
Manufacturing Co., Ltd.
w w w.theworldmod e ls.com
The World Models
Manufacturing Co., Ltd.
w w w.thewo r ldmo d e l s.com
The World Models
Manufacturing Co., Ltd.
w w w.theworldmode l s.com

P.7

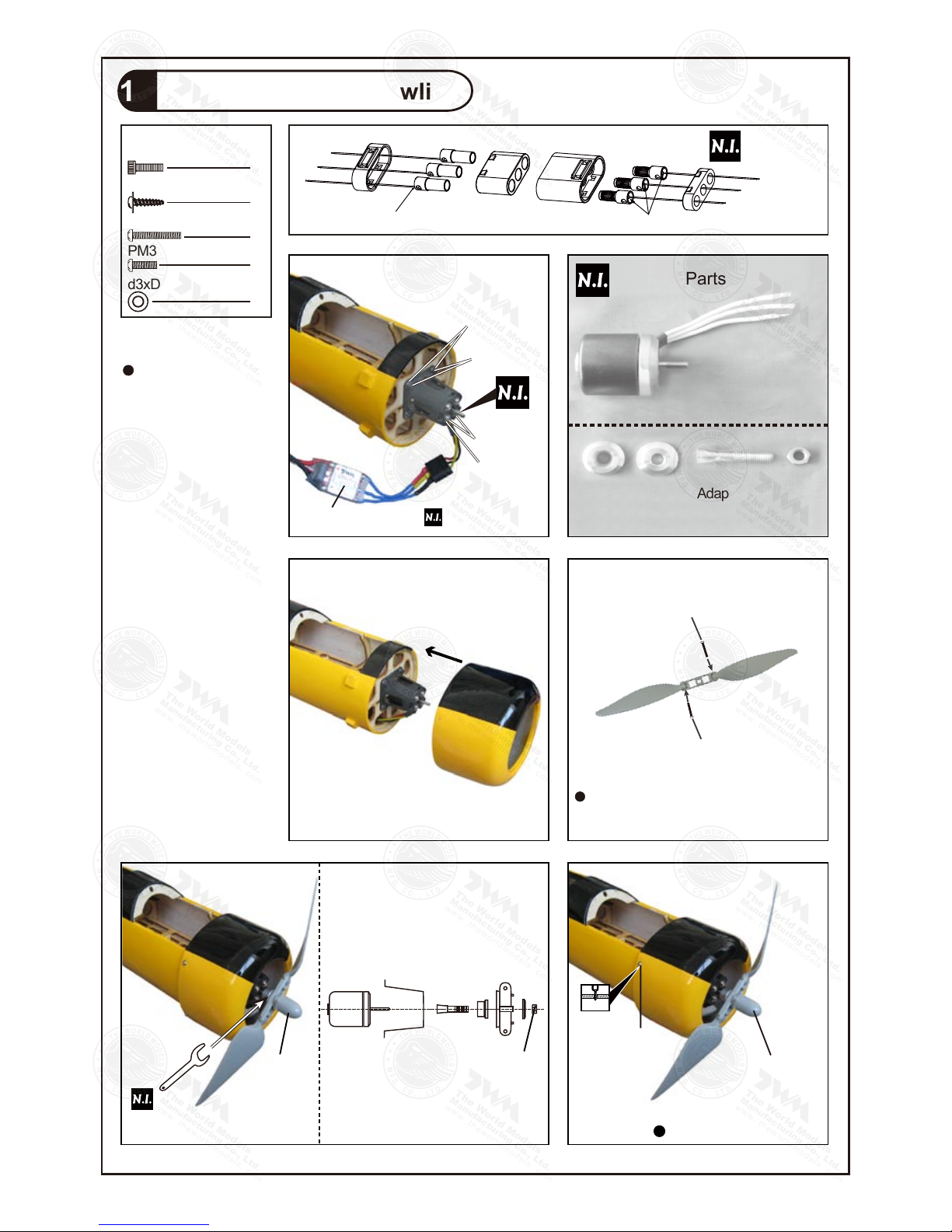

Outrunner Motor / Cowling
10
4
PM3x6mm Screw
d3xD7mm Washer
8
2
PM2x12mm Screw
4
PWA2x8mm Screw
M2.5x8mm
Socket Head Screw
M2.5x8mm
4
Make sure rotating
motor casing is not
in contact with
wirings or anything.
PM2x12mm
PM2x12mm
Don’t over-tighten the PM2 screws,
let the propeller blades align
themselves when spinning.
M5 Nut M5 Nut
PWA2x8mm
Spinner Nut
Ø15x25mm
Outrunner Motor 28/ 30
KM0283010
Propeller Adaptor
(d3xD5)
HW2340100
Optional Parts
TWM HW3111400
PROPELLER ADAPTOR WRENCH
Solder Solder
TWM
KP0011310
TWM
25A Brushless ESC
TWM KC2025A02A
1.5mm
Completed
d3xD7mm
Washer
d3xD7mm
Washer
PM3x6mm
E269XMPO24481007
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.co m
The World Models
Manufacturing Co., Ltd.
www.theworldmod e ls.com
The World Models
Manufacturing Co., Ltd.
www.thew o rldmo d e l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmo d els.com
The World Models
Manufacturing Co., Ltd.
w w w.thewo r ldmo d e l s.c o m
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.co m
The World Models
Manufacturing Co., Ltd.
www.theworldmo d els.co m
The World Models
Manufacturing Co., Ltd.
www.theworldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.theworld m ode l s.com
The World Models
Manufacturing Co., Ltd.
www.thewo r ldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmod e ls.com
The World Models
Manufacturing Co., Ltd.
www.the w orldmodels.co m
The World Models
Manufacturing Co., Ltd.
www.theworldmo d els.co m
The World Models
Manufacturing Co., Ltd.
w w w.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.thewo r ldmo d els.com
The World Models
Manufacturing Co., Ltd.
w w w.theworldmode l s.com

P.8
Radio Equipment
11
Bottom View
Bottom View
Completed
Elevator Servo
20A Brushless ESC
Receiver
Battery
Straper
Battery Tie
Sponge
Sponge
Front
Front
Front
Elevator Pushrod
Rudder Servo
Rudder Pushrod
Fuel Tube
d2xD4x4mm
2
2
PM2.5x20mm
Nylon Bolt
PM2.5x20mm
Nylon Bolt
Plastic Plate
1x23x74mm
d2.6xD9mm
Nylon Washer
d2.6xD9mm
Nylon Washer
Main Wing
12
2.5mm
E269XMPO24481007
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.co m
The World Models
Manufacturing Co., Ltd.
w w w.theworldmod e ls.com
The World Models
Manufacturing Co., Ltd.
www.thew o rldmo d els.com
The World Models
Manufacturing Co., Ltd.
www.theworldmo d els.com
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.com
The World Models
Manufacturing Co., Ltd.
w w w.thewo r ldmo d e l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.co m
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.com
The World Models
Manufacturing Co., Ltd.
www.thewo r ld m odels.com
The World Models
Manufacturing Co., Ltd.
www.theworld m ode l s.com
The World Models
Manufacturing Co., Ltd.
www.thewo r ld m odels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmod e ls.com
The World Models
Manufacturing Co., Ltd.
w w w.the w orldmodels.co m
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.co m
The World Models
Manufacturing Co., Ltd.
w w w.theworld m od e ls.com
The World Models
Manufacturing Co., Ltd.
w w w.thewo r ldmo d e l s.com
The World Models
Manufacturing Co., Ltd.
w w w.theworldmode l s.com

P.9
Canopy
Wing Setting
14
13

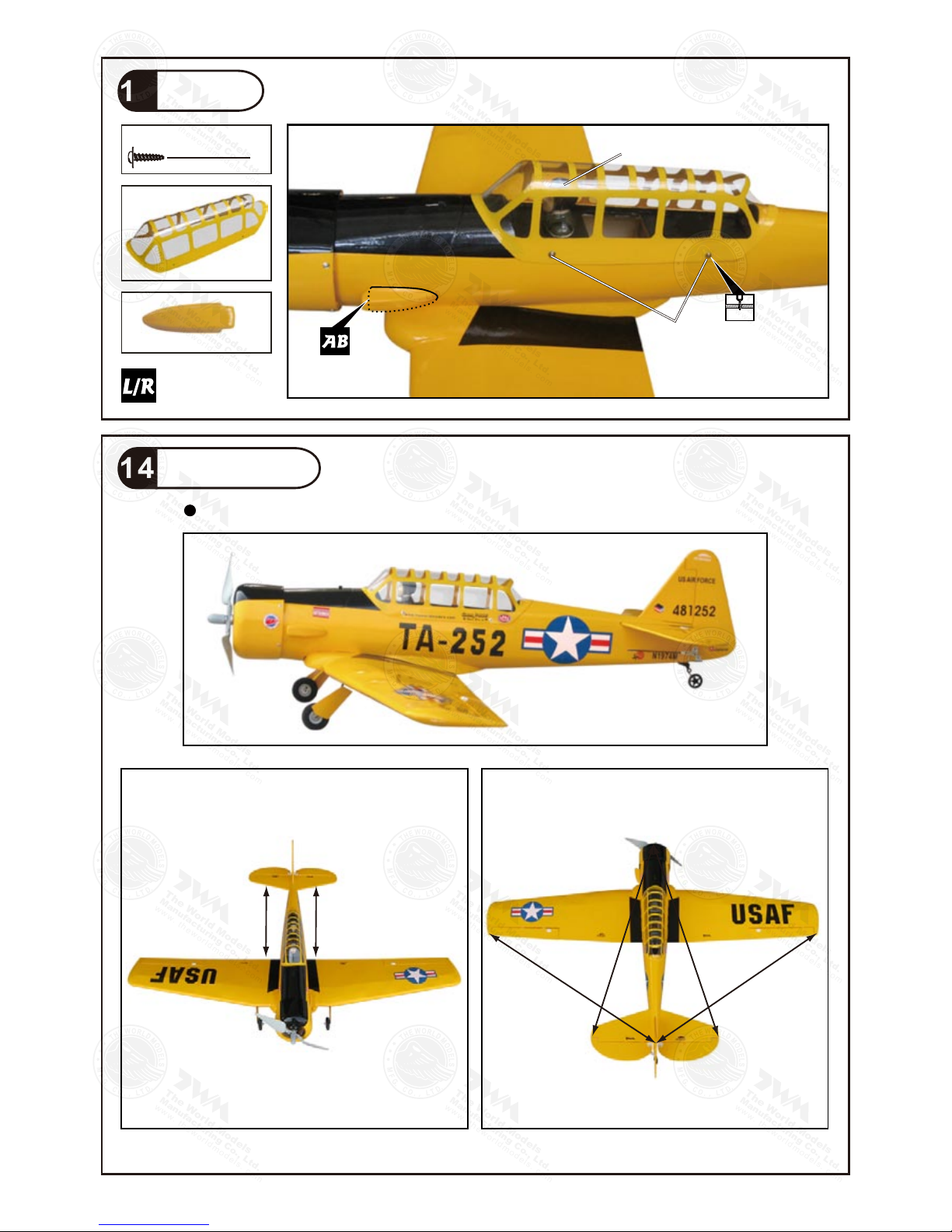

Adjust the wing and fuselage configuration as shown in the diagrams.
4
PWA2x8mm Screw
PWA2x8mm
Pilot
1.5mm
A
A=A' B=B' C=C'
A'
B'B C'C
Canopy
Carb Intake
E269XMPO24481007
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.co m
The World Models
Manufacturing Co., Ltd.
www.theworldmod e ls.com
The World Models
Manufacturing Co., Ltd.
www.thew o rldmo d e l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmo d els.com
The World Models
Manufacturing Co., Ltd.
w w w.thewo r ldmo d e l s.c o m
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.co m
The World Models
Manufacturing Co., Ltd.
www.theworldmo d els.co m
The World Models
Manufacturing Co., Ltd.
www.theworldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.theworld m ode l s.com
The World Models
Manufacturing Co., Ltd.
www.thewo r ldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmod e ls.com
The World Models
Manufacturing Co., Ltd.
www.the w orldmodels.co m
The World Models
Manufacturing Co., Ltd.
www.theworldmo d els.co m
The World Models
Manufacturing Co., Ltd.
w w w.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.thewo r ldmo d els.com
The World Models
Manufacturing Co., Ltd.
w w w.theworldmode l s.com

P.10

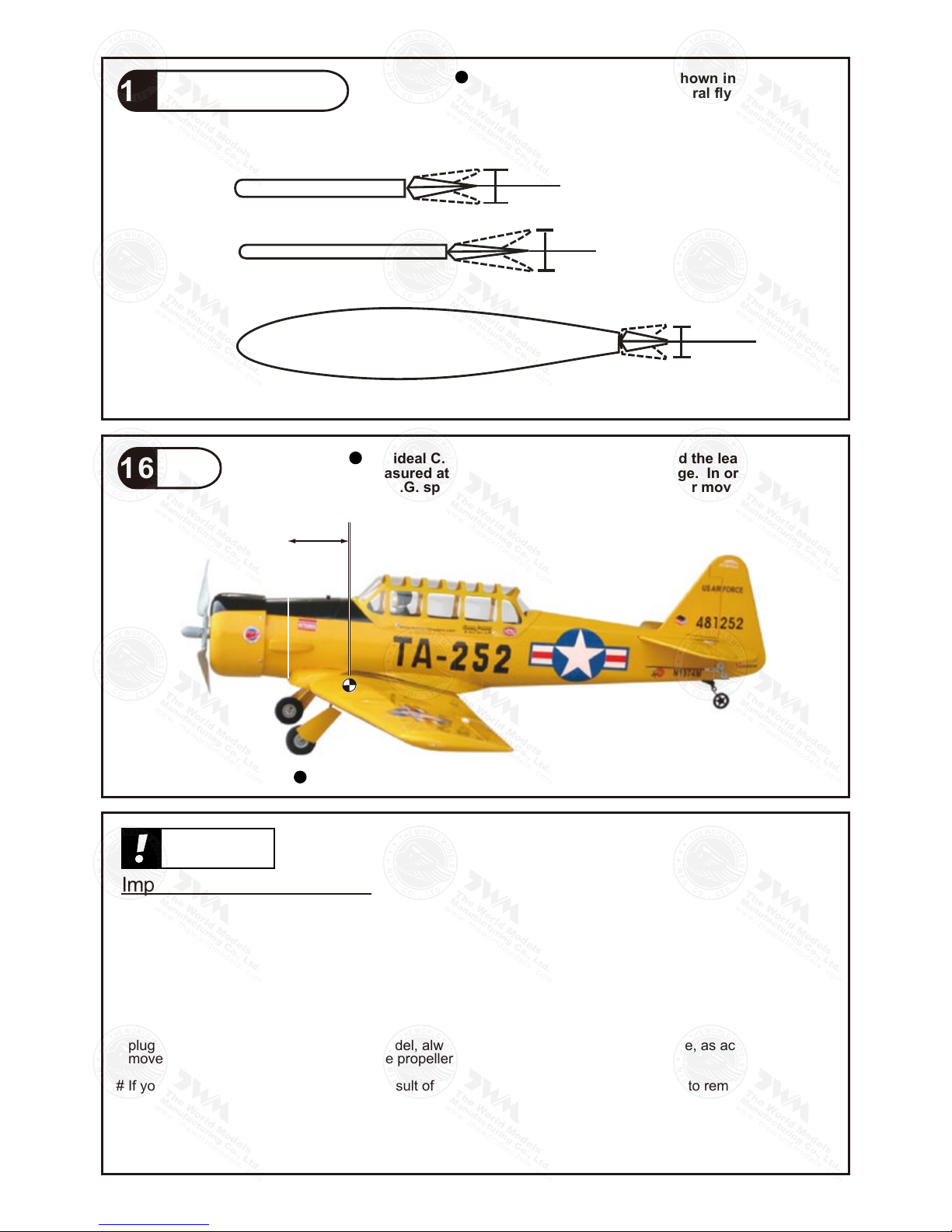

Control Throws
15
C.G.
16
The ideal C.G. position is 76mm ( 3 in. ) behind the leading edge
measured at where the wing meets the fuselage. In order to obtain
the C.G. specified, add weight to the fuselage or move the battery
position. Check the C.G. before flying.
10mm
10mm
Elevator
15mm
15mm
Rudder
6mm
6mm
Ailerons
Adjust the control throws as shown in the diagram.
These throws are good for general flying. You can
adjust according to your personal preference.
Measure C.G. with the wheels in retracted position.
Important Safety Precautions
# First time flyer should never fly by himself / herself. Assistance from experienced flyer is absolutely necessary.
# Pre-flight adjustment must be done before flying, it is very dangerous to fly a badly pre-adjusted aircraft.
# is specially designed to be powered by KM0283010 Outrunner Motor.
# Make sure the air field is spacious, never fly the plane too close to people and never get too close to a running
propeller. Extreme caution should be exercised when working with electric powered models. Make sure the
propeller is cleared of all objects, especially your hands before connecting the battery to the model. Make sure
you understand the operation of the ESC (Electronic Speed Control) by studying the ESC manual. Once you
plug in the battery for electric powered model, always treat the propeller as a rotating one, as accidental
movement of the throttle stick will spin the propeller and could cause injuries.
# If you find wrinkles on the covering as a result of weather changes, you can use hot iron to remove the wrinkles.
Please begin with lower temperature setting and gradually raise the temperature until the wrinkles are gone.
Too hot an iron may damage the covering. Don't use hot iron near the seams or edges, hot iron will melt the
glue and shrink the covering at the same time, causing the seams to pull away.
# Check and re-tighten up all factory assembled screws, use thread locker if necessary.
Warning!
At-6 texan EP
C.G.
76mm
3 in.
E269XMPO24481007
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.co m
The World Models
Manufacturing Co., Ltd.
www.theworldmod e ls.com
The World Models
Manufacturing Co., Ltd.
www.thew o rldmo d e l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmo d els.com
The World Models
Manufacturing Co., Ltd.
w w w.thewo r ldmo d e l s.c o m
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.co m
The World Models
Manufacturing Co., Ltd.
www.theworldmo d els.co m
The World Models
Manufacturing Co., Ltd.
www.theworldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.theworld m ode l s.com
The World Models
Manufacturing Co., Ltd.
www.thewo r ldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmod e ls.com
The World Models
Manufacturing Co., Ltd.
www.the w orldmodels.co m
The World Models
Manufacturing Co., Ltd.
www.theworldmo d els.co m
The World Models
Manufacturing Co., Ltd.
w w w.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.thewo r ldmo d els.com
The World Models
Manufacturing Co., Ltd.
w w w.theworldmode l s.com

The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
Ｗａｒｂｉｒｄｓ
Ｓｃａｌｅ
Ｓｐｏｒｔｓ
Ｔｒａｉｎｅｒ
Ｄｕｃｔｅｄ Ｆａｎ Ｐａｔｔｅｒｎ
Ｆｕｎｆｌｙ
Ｅｌｅｃｔｒｉｃ
Ｇｌｉｄｅｒ
Ｂｏａｔ
Ａｃｃｅｓｓｏｒｉｅｓ
Ｃｏｖｅｒｉｎｇ
（Ｌｉｇｈｔｅｘ ／ Ｔｏｕｇｈｌｏｎ）
E269XMPO24481007
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.co m
The World Models
Manufacturing Co., Ltd.
www.theworldmod e ls.com
The World Models
Manufacturing Co., Ltd.
www.thew o rldmo d e l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmo d els.com
The World Models
Manufacturing Co., Ltd.
w w w.thewo r ldmo d e l s.c o m
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.co m
The World Models
Manufacturing Co., Ltd.
www.theworldmo d els.co m
The World Models
Manufacturing Co., Ltd.
www.theworldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.theworld m ode l s.com
The World Models
Manufacturing Co., Ltd.
www.thewo r ldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmod e ls.com
The World Models
Manufacturing Co., Ltd.
www.the w orldmodels.co m
The World Models
Manufacturing Co., Ltd.
www.theworldmo d els.co m
The World Models
Manufacturing Co., Ltd.
w w w.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.thewo r ldmo d els.com
The World Models
Manufacturing Co., Ltd.
w w w.theworldmode l s.com
