THE WORLD MODELS Extra 300 EP User manual

Wing Span
Wing Area
Flying Weight
Fuselage Length
50.5 in / 1280 mm
450 sq in / 29 sq dm
53.5 oz / 1510 g
42.5 in / 1100 mm
450W Motor System
Requires : 4-channel radio w/ 4 mini servos,
40A Brushless ESC, 4 cells 14.8V
3200mAh Li - Po battery & charger.
Specifications
*Specifications are subject to change without notice.*
INSTRUCTION MANUAL
Extra 300 EP (40)
FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY(ARF)SERIES
MADE IN CHINA
Warning ! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of electric powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
E2710709
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com

INDEX
BEFORE YOU BEGIN
BEFORE YOU BEGIN
PARTS LIST
ASSEMBLY
SAFETY PRECAUTIONS
P.1
P.2
P.3-P10
P.10
Check all parts. If you find any defective or missing parts contact your local dealer. Please
DRY FIT and check for defects for all parts that will require CA or Epoxy for final assembly.
Any parts you find to be defective after the gluing process may be difficult to remove for
warranty replacement. The manufacturer will replace any defective parts, but will not extend
to the parts that are good before gluing to defective parts during assembly. Warranty will
not cover any parts modified by customer.
Symbols used throughout this instruction manual comprise of the following :-
Read through the manual before you begin, so that you can have an overall idea of what to do.
1
2
3
Do not overlook this symbol !
Apply thread locker
Cut off shaded portion.
Ensure smooth non-binding
movement while assembling.
Apply instant glue
(C.A.glue, super glue.)
Assemble left and right
sides the same way.
Peel off shaded portion
covering film.
Pay close attention here!
Apply epoxy glue.
Pierce the shaded portion
covering film.
Must be purchased separately !
Drill holes with the specified
diameter (here: 3mm).
3mm
Warning!
Extra 300 EP (40)
P.1
E2710709
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com

COVERING:
LIGHTEX SGX550 PEARL BLUE
LIGHTEX SGX331 CUB YELLOW
P.2
Parts List
1. MAIN WING -- 1 pair
2. SCREW PM2x16mm -- 4 pcs
CLEVIS -- 2 pcs
STRAPER -- 2 pcs
FUEL TUBE d2xD4x4mm -- 4 pcs
HORN -- 2 sets
PUSHROD Ø1.4x110mm w/ Threads (For Aileron) -- 2 pcs
3. STABILIZER & ELEVATOR -- 1 set
FUSELAGE -- 1 pc.
4. VERTICAL FIN & RUDDER -- 1 set
5. TAIL LANDING GEAR -- 1 set
TAIL WHEEL Ø23mm -- 1 pc.
SCREW PA2.6x12mm -- 2 pcs
SCREW PM2x10mm -- 1 pc.
M2 NUT -- 1 pc.
COLLAR Ø2.1mm w/ set screw -- 1 set
STEERING BRACKET -- 1 pc.
6. SCREW PM2x10mm -- 2 pcs
CLEVIS -- 1 pc.
HORN -- 1 set
FUEL TUBE d2xD4x4mm -- 1 pc.
PUSHROD Ø1.4x565mm w/ Threads (For Rudder) -- 1 pc.
7. SCREW PM2x10mm -- 4 pcs
CLEVIS -- 2 pcs
HORN -- 2 sets
FUEL TUBE d2xD4x4mm -- 2 pcs
PUSHROD Ø1.4x470mm w/ Threads (For Elevator) -- 2 pcs
8. COWLING--1 pc.
SCREW PWA2X8mm--4 pcs
SPINNER Ø57mm--1 set
SOCKET HEAD SCREW M3x8mm -- 4 pcs
WASHER d3xD7mm -- 4 pcs
9. MAIN LANDING GEAR -- 1 pc.
MAIN WHEEL Ø40mm -- 2 pcs
COPPER TUBE d3.1xD4x5mm -- 2 pcs
SCREW PA2x6mm -- 4 pcs
SCREW PA2.6x8mm -- 3 pcs
SCREW PM3x30mm -- 2 pcs
M3 NUT -- 2 pcs
WHEEL PANTS -- 1 pair
WASHER d2xD5mm -- 4 pcs
WASHER d3xD7mm -- 4 pcs
COLLAR Ø3.1mm w/ set screw -- 2 sets
ALUMINUM PLATE 0.5mm -- 2 pcs
10. EYE SCREW PA2.5x10x23mm -- 2 pcs
WING TUBE Ø14.5x397mm -- 1 pc.
RUBBER BAND D30x1mm -- 2 pcs
11. STRAPER -- 2 pcs
FUEL TUBE d2xD4x4mm -- 2 pcs
BATTERY TIE 200mm--1 pc.
DOUBLE-SIDED TAPE 30x35mm--1 pc.
SPONGE 10x50x150mm -- 1 pc.
PUSHROD Ø1.4x75mm (For Elevator) -- 1 pc.
PUSHROD CONNECTOR 3.2x7.2x16mm (For Elevator) -- 1 set
12. COCKPIT -- 1 set
PILOT(PC001063B)-- 1 pc.
13. DECALS -- 1 set
E2710709
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com

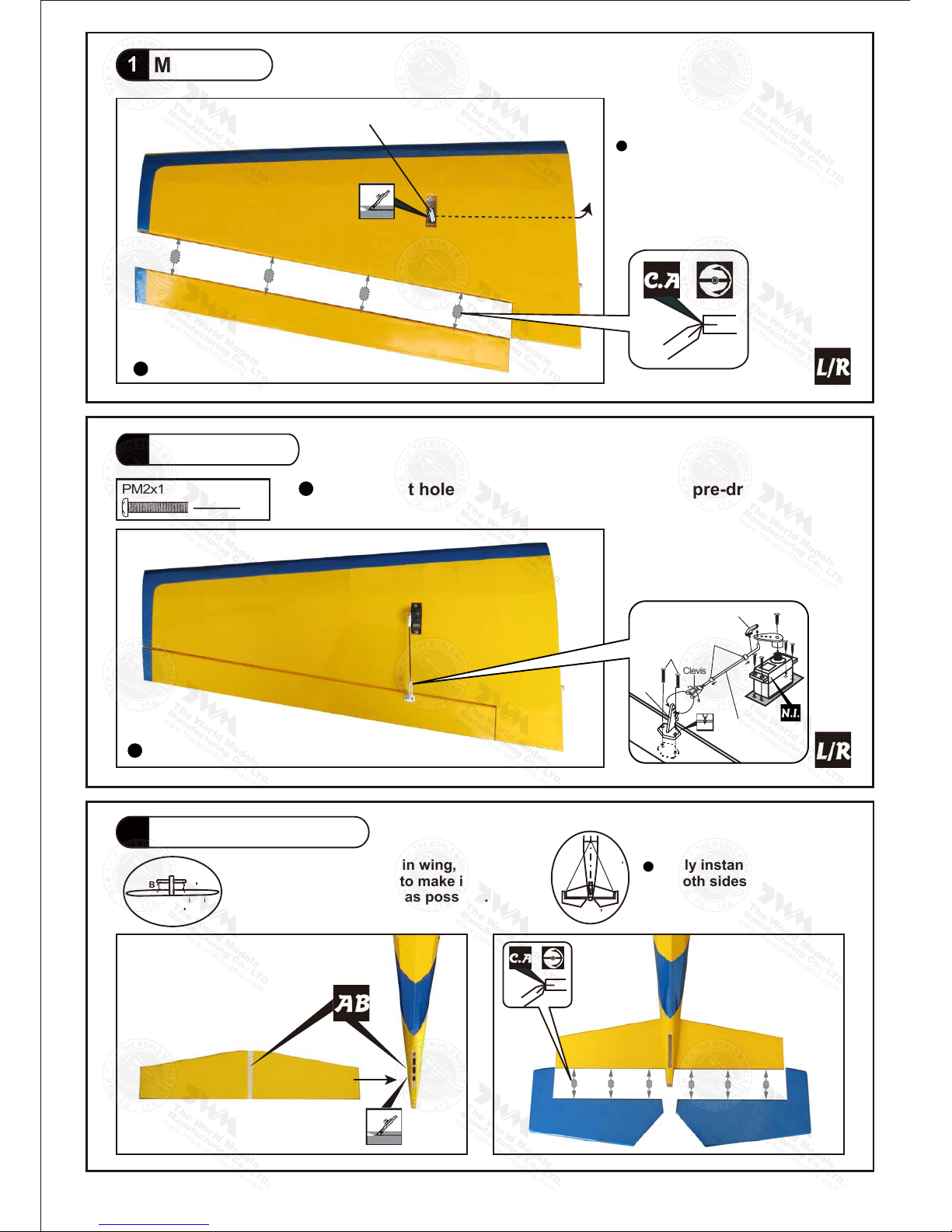

Temporary install the main wing, adjust
leveling of the stabilizer to make it as
parallel to the main wing as possible.
(Stabilizer)
(Main Wing)
Apply instant type CA glue
to both sides of each hinge.
*Also refer to step 13 Wing Setting*
B
B=B A=A
A A
B
Aileron Servo Lead
1
Aileron Servo
Stabilizer & Elevator
Main Wing
2
3
P.3
PM2x16mm Screw
4
Bottom View
Bottom View
Ø1mm pilot holes for World Models horn are pre-drilled. Please
look for pin-hole marks at under side of control surfaces.
Apply instant type CA glue
to both sides of each hinge.
2mm
Fuel Tube
d2xD4x4mm
Clevis
PM2 x 16mm
Horn
Pushrod
Ø1.4x110mm
Straper
E2710709
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com

4Vertical Fin & Rudder
P.4
Completed
C
C=C
C
Apply instant type CA glue to both sides
of each hinge.
1 2
3
5Tail Landing Gear
PM2x10mm Screw
PA2.6x12mm Screw
PA2.6x12mm
M2 Nut
1
1
2
Bottom View
1.5mm
2mm
PM2x10mm
M2 Nut
Steering Bracket
2.1mm Collar
1
3mm
set screw
PA2.6x12mm
E2710709
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com

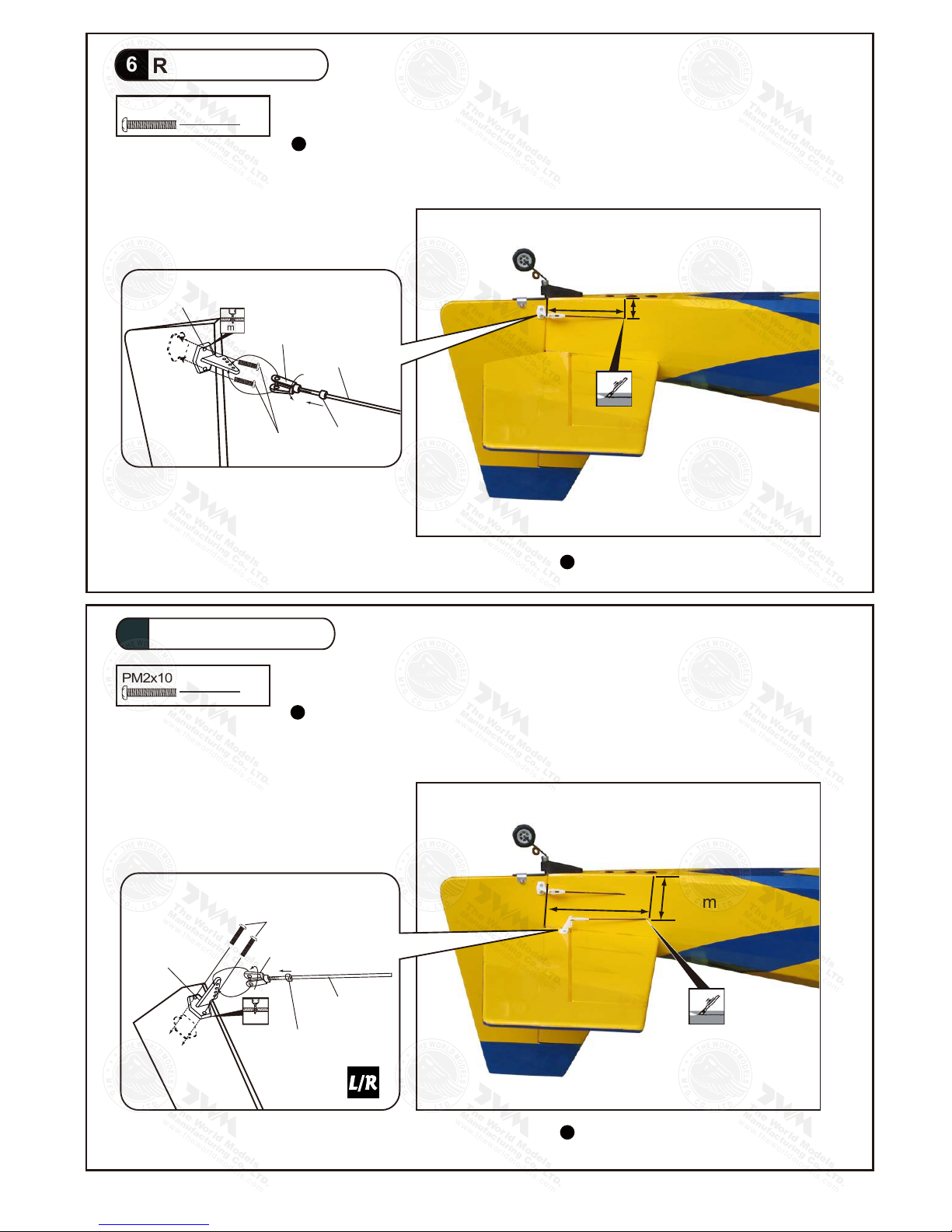

Rudder Pushrod
6
P.5
Ø1mm pilot holes for World Models horn are pre-drilled.
Please look for pin-hole marks at under side of control surfaces.
Ø1mm pilot holes for World Models horn are pre-drilled.
Please look for pin-hole marks at under side of control surfaces.
48mm
105mm
21mm
80mm
Elevator Pushrod
7
PM2x10mm Screw
4
PM2x10mm Screw
2
Bottom View
Bottom View
Clevis
Horn
Fuel Tube
d2xD4x4mm
PM2x10mm
Pushrod
Ø1.4x470mm
2mm
Clevis
Fuel Tube
d2xD4x4mm
PM2x10mm
Pushrod
Ø1.4x565mm
Horn
2mm
E2710709
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com

P.6
9Main Landing Gear
8Outrunner Motor / Cowling
Bottom View
Make sure the rotating motor
casing is not in contact with
wirings or anything.
Ø1mm pilot holes are pre-drilled. Please look for pin-hole
marks at under side of fuselage.
PM3x30mm Screw
PA2.6x8mm Screw
PA2.6x8mm
3.1mm Collar
PA2x6mm Screw
d3.1xD4x5mm Copper Tube
M3 Nut
M3x8mm
Socket Head Screw
E271 EPTS Optional Parts
d3xD7mm Washer
d2xD5mm Washer
d3xD7mm Washer
d3xD7mm
Washer
PWA2x8mm Screw
PWA2x8mm
Ø57mm
Spinner
1.5m m
Installation based on optional electric power package from
World Models, parts no. E271 EPTS.
Outrunner 37/48 Deluxe
KM0374810
Propeller Adaptor (D5mm)
HW2340102
Propeller 11x8 (Electric)
PL6211108
1.5mm
43
2
3
4
4
4
2
2
1
2
2
4
4
4
M3x8mm SocketHeadScrew
d2xD5mm
Washer
Wheel Pant
Completed
PM3x30mm
Plate 0.5mm
d3xD7mm
Washer
Wheel
Ø40mm
3mm
Set Screw
3.1mm
Collar
M3 Nut
Copper Tube
d3.1xD4x5mm
PA2x6mm
1mm
E2710709
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com

P.7
10 Main Wing
Bottom View
Top View
Completed
Eye Screw
PA2.5x10x23mm
Bottom
Up
90
1.5m m
Wing Tube
Ø14.5x397mm
Aileron Servo Lead
Rubber Band
E2710709
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com

11 Radio Equipment
Cockpit
12
P.8
Install and arrange the servo as shown in the diagram.
Front
SpongeReceiver BatteryBattery Tie
Pilot
Rudder Servo
Straper
40A Brushless ESC
Fuel Tube
d2xD4x4mm Double-Sided tape
Elevator Servo
Elevator Servo
Completed
Elevator Pushrod
Ø1.4x75mm
KA1.7x6mm
E2710709
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com

13 Wing Setting
P.9
Adjust the wing and fuselage configuration as shown in the diagrams.
A'
A=A' B=B' C=C'
C'
B'B
C
A
E2710709
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com

14 Control Throws
C.G.
P.10
Adjust the control throws as shown in the diagram.
These throws are good for general flying. You can
adjust according to your personal preference.
The ideal C.G. position is 80mm (3.15 in.) behind the leading edge
measured at where the wing meets the fuselage. In order to obtain
the C.G. specified, add weight to the fuselage or move the battery
position. Check the C.G. before flying.
# First time flyer should never fly by himself / herself. Assistance from experienced flyer is absolutely
necessary.
# Pre-flight adjustment must be done before flying, it is very dangerous to fly a badly pre-adjusted aircraft.
# Check and re-tighten up all factory assembled screws, use thread locker if necessary.
# Make sure the air field is spacious, never fly the plane too close to people and never get too close to
a running propeller. Extreme caution should be exercised when working with electric powered models.
Make sure the propeller is cleared of all objects, especially your hands before connecting the battery to
the model. Make sure you understand the operation of the ESC (Electronic Speed Control) by studying
the ESC manual. Once you plug in the battery for electric powered model, always treat the propeller as
a rotating one, as accidental movement of the throttle stick will spin the propeller and could cause injuries.
# If you find wrinkles on the covering as a result of weather changes, you can use hot iron to remove
the wrinkles. Please begin with lower temperature setting and gradually raise the temperature until
the wrinkles are gone. Too hot an iron may damage the covering.
# is specially designed to be powered by 450W Motor System.
15
80mm
C.G.
3.15 in
Warning!
Important Safety Precautions
Rudder 30mm
30mm
20mm
20mm
12mm
12mm
Elevator
Aileron
Extra 300 EP (40)
E2710709
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com

E2710709
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
The World Models
Manufacturing Co., LTD.
ww w.theworldmodels.com
