MagFlo™Series
Product Manual
TM
Important Information........................2
Package Contents.............................3
Installing Your MagFlo Pump................. 4-5
Maintaining Your MagFlo Pump .............. 6-7
Troubleshooting..............................7
Technical Specs ...............................8
Replacement Parts ...........................8
Warranty Information.........................8
Table of Contents:
For Models:
THANK YOU FOR CHOOSING:
• MagFlo 290
(Item #120930)
• MagFlo 460
(Item #120932)
• MagFlo 590
(Item #120933)
• MagFlo 1000
(Item #120935)
• MagFlo 1340
(Item #120936)
• MagFlo 2160
(Item# 120938)

IMPORTANT INFORMATION:
Please read these instructions thoroughly before use. Failure to follow instructions may result in
equipment damage or failure, losses, injury or death.
DANGER:
To avoid possible electric shock:
• If the power cord has been damaged, DO NOT operate, the MagFlo Pump should be replaced.
• Close supervision is necessary when the unit is used by or near children.
WARNING:
To reduce the risk of electric shock:
• Connect only to a properly grounded receptacle, which is serviced by a Ground Fault Circuit
Interrupter and never remove the ground pin from the plug.

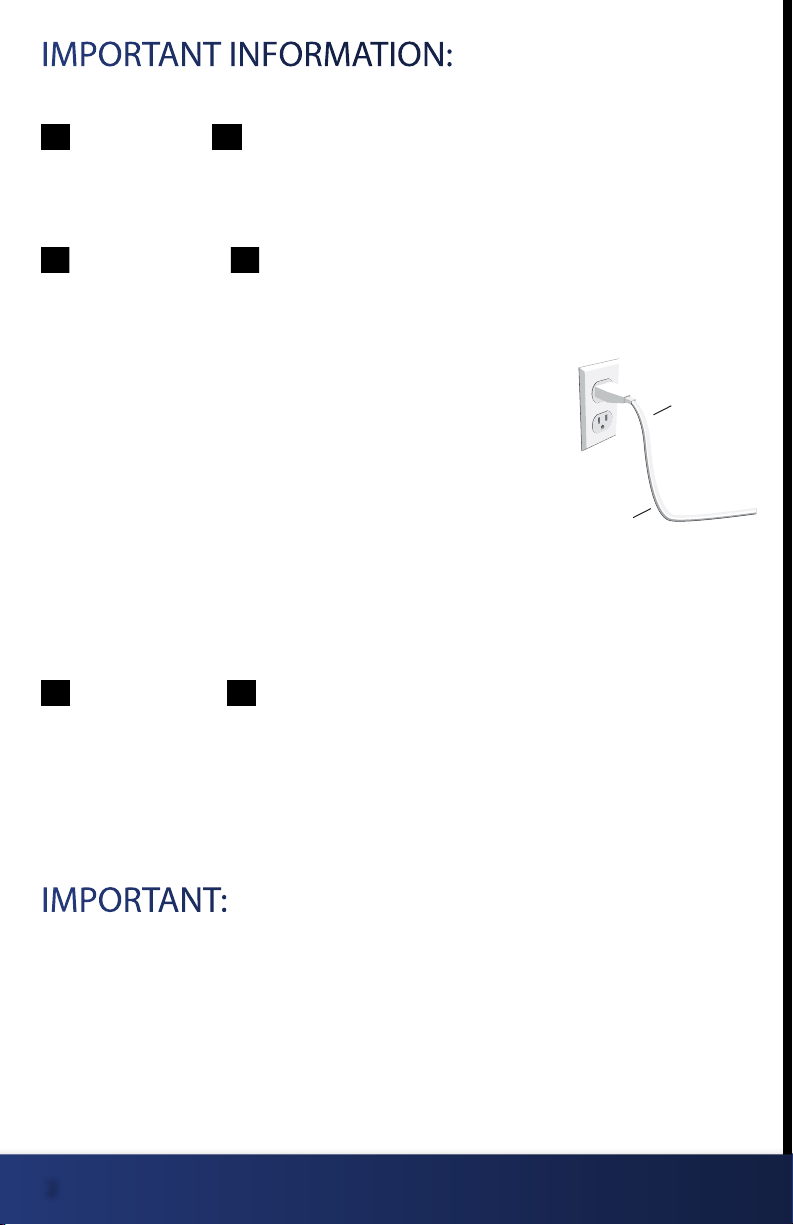

• Provide a“drip loop”for the power cord. This is a loop in the cord below
the level of the receptacle or plug that prevents water from traveling
along the cord in the direction of the receptacle.
• ALWAYS unplug the MagFlo Pump from power source when it is not
in use, and before installing, removing or servicing the MagFlo Pump
components.
• If an extension cord is necessary, a cord 14 gauge up to 100 ft. must be
used. A cord may overheat if the cord is rated for less amperes or watts
than the unit rating.
• DO NOT immerse the MagFlo Pump plug in water or attempt to use a wet
plug.
• The MagFlo Pump is NOT suitable for use in swimming pools, swimming ponds, or other situations
where bodily contact is made with the water.
Important – This unit is equipped with a permanent magnet. The magnetic eld may aect the
function of pacemakers.
CAUTION:
To reduce the risk of equipment damage or failure:
• This pump has been evaluated for use with fresh water only.
• DO NOT place MagFlo Pump near ammable or other dangerous materials or objects.
• ALWAYS unplug the unit if there is no water running through it to prevent over heating.
• DO NOT run the pump dry.
• DO NOT operate during freezing conditions. Drain MagFlo Pump and store in a protected location.
IMPORTANT:
The Pond Guy is not responsible for equipment damage or failure, losses, injury or death resulting from
failure to follow safety precautions, misuse or abuse of equipment.
Power Cord
Drip Loop
thepondguy.com | 866-POND-HELP (766-3435)
2

Package Contents
MAGFLO PUMP:
A
B
*MagFlo 1340 shown here. All MagFlo units include suction cup feet with exception to the Mago 290.
**Venturi Adapter can be used to add small amounts of aeration to into pump line
C FED
M
L
K
MagFlo Pump
A1- MagFlo Pump H1- VenturiAdapter**
B4- Suction Cup Feet* I1- Inlet MaleTubing Adapter
C1- Diverter Assembly J2- Outlet MaleTubing Adapters
D1- Fountain ExtensionTube K1-Volcano Spray Pattern
E1-Coupler L1-Water Bell Spray Pattern
F1- Pivot Attachment M1- DoubleVolcano Spray Pattern
G2- FemaleTubing Adaptors
H
G
CLEANINGTHEPUMP
I J
Please Note: Kits may vary depending on
pump purchased.
15425 Chets Way | Armada, MI 48005 3

For Best Results
INSTALLING YOUR MAGFLO PUMP:
Step 1
Determine Installation Method
The MagFlo’s versatile nature allows you to congure
your pump set up in multiple ways. Select the method
below that best suits your use.
Fountain Only
1. Connect ttings to the pump outlet in this
order; diverter assembly (C), pivot attachment
(F), coupler (E), fountain extension tube (D).
2. Select the fountain spray pattern (K, L, M) you
will be using and press on to the extension
tube (D).
3. Continue with step 2.
Fountain& Waterfall/Feature
1. Complete set up for “fountain only”rst.
2. Unscrew the diverter cap on the diverter (C) and
attach one of the female tubing adaptors (G).
3. Connect and secure tubing to the diverter (C)
and your waterfall/feature.
4. Continue with step 2.
• MagFlo Pump should be placed on a at
surface away from sludge or
algae mats.
• Keep MagFlo Pump pre-lter free of
debris.
• DO NOT operate during freezing
conditions. Drain the MagFlo Pump and
store in a protected area.
Note: All MagFlo units can function as both a waterfall or fountain simultaneously with
exception to the Mago 290.
thepondguy.com | 866-POND-HELP (766-3435)
4

INSTALLING YOUR MAGFLO PUMP:
Step 3
Plug in Pump
Plug the power cord into a standard 120-volt GFCI
protected outlet.
Step 4
Adjust Water Flow
Adjust water ow using the diverter valve ow control, if
applicable, for your installation. For the Water Bell fountain
pattern, it may also be necessary to unscrew or tighten the
deector disc on the top of the nozzle for proper ow.
Step 5
Adjust Fountain Spray
To compensate for uneven surfaces, adjust the
fountain spray direction by tilting the fountain
assembly gently at the pivot attachment (F)
Step 2
Submerge Pump
Submerge the MagFlo Pump in a at area in your pond.
For ideal water circulation, the pump should be at the
opposite end of the pond from where the water will
discharge. If the fountain feature will be used, be sure the
nozzle is at least a few inches above the water’s surface.
Waterfall/Feature Only
1. Connect one of the male adaptors to the
pump outlet.
2. Connect and secure tubing to the pump and
waterfall/feature.
3. Continue with step 2.
Note: You may also choose to use a separate pre-lter inline by removing the pump
intake screen and connecting the Inlet Male Tubing Adaptor (I). This pump can also be
used in-line, out of the water for the waterfall/feature only option but it must still be placed
below water level. This pump has a ooded suction intake and will not suction lift.
15425 Chets Way | Armada, MI 48005 5

WARNING:
Before performing any maintenance, always unplug the MagFlo Pump from
the power source.
Perform maintenance anytime there is a reduction in water ow or
before being stored for the winter.
MAINTAINING YOUR MAGFLO PUMP:
Step 1
Unplug and Remove
Unplug the pump and move to a dry area.
Step 2
Remove Pre-Filter
Pull rmly to remove the pump pre-lter from the
pump motor.
Step 3
Wash Pre-Filter Sponge
Remove pump pre-lter sponge and wash thoroughly
with water.
CLEANINGTHEPUMP
Tools Required: • Damp Cloth or Small Brush
• Descaler such as Airmax©D-Scale™
thepondguy.com | 866-POND-HELP (766-3435)
6

TROUBLESHOOTING :
Pump does not turn on:
• Check that the power cord is connected.
• Check to see if the circuit breaker is tripped.
• GFCI may be faulty.
• Check power cord for damage.
Pump turns on and then shuts o:
• Verify pump is completely submerged for proper cooling.
• Check for debris clogging the pump intake.
• If using an extension cord, verify that it is of the proper rating for the pump’s electrical
requirements.
Reduced water ow:
• Check for debris clogging the pump pre-lter.
• Perform maintenance cleaning of the pump.
• Verify that water level is not low.
• Check plumbing for clogs.
MAINTAINING YOUR MAGFLO PUMP:
Step 4
Remove Impeller Cover
Remove the impeller cover by turning counter-clockwise
and then pull to separate. Remove the Impeller.
Step 5
Clean Impeller
Clean impeller and impeller chamber with water. A small
brush or descaler may be helpful.
Step 6
Reassemble Pump
Reassemble impeller, impeller cover and pump pre-lter.
Please note: Lower the impeller carefully into the chamber.
Allowing the impeller to drop into the chamber with too much
force can damage the pump.
15425 Chets Way | Armada, MI 48005 7

View other great products on-line at www.thepondguy.com
PRODUCT WARRANTY:
MagFlo Pumps carry a 5-year warranty. The Pond Guy
will repair or replace any unit found to be defective. This
limited warranty is extended exclusively to the original
purchaser and begins from the date of original purchase
receipt. Abuse or misuse of this product or power cord
alterations void all warranty. Impeller and lter sponge
are wear items and are not covered by this warranty.
Please call for a RMA number prior to returning product
by calling our Customer Care Department at 866-766-
3435. Failure to request an RMA number may result in
delay or dismissal of your warranty claim.
THANK YOU FOR CHOOSING:
The Pond Guy®Inc.
We Know Ponds™
15425 Chets Way
Armada, MI 48005
866-POND-HELP (766-3435)
thepondguy.com
REPLACEMENT PARTS: MAGFLO PUMP
013_RES V2
MAGFLO
PUMP MODEL
REPLACEMENT
IMPELLER
REPLACEMENT
FILTER SPONGE REPLACEMENT FOUNTAIN KIT
MagFlo 290 #120939 #120948 #120956
MagFlo 460 #120941 #120950 #120958
MagFlo 590 #120942 #120950 #120958
MagFlo 1000 #120944 #120952 #120960
MagFlo 1340 #120945 #120953 #120960
MagFlo 2160 #120947 #120955 #120963
TECHNICALSPECS :
MODEL VOLTAGE WATTAGE CORD GPH @ 3’ HEAD MAX HEAD DISCHARGE INLET FITTING
MagFlo 290 120V / 60 Hz 17 Watts 20’ 197 GPH 6.5’ ½” 1” ½”& ¾”
MagFlo 460 120V / 60 Hz 45 Watts 20’ 260 GPH 7’ ½” 1” ½”& ¾”
MagFlo 590 120V / 60 Hz 40 Watts 20’ 420 GPH 7.5’ ½” 1” ½”& ¾”
MagFlo 1000 120V / 60 Hz 70 Watts 20’ 760 GPH 9’ ½” 1” ¾”
MagFlo 1340 120V / 60 Hz 125 Watts 20’ 1250 GPH 13.5’ ¾” 1¼” ¾”& 1”
MagFlo 2160 120V / 60 Hz 226 Watts 20’ 1790 GPH 16.5” 1” 1¼” ¾”, 1”& 1¼”
