ThePondguy MagFlo Series User manual

MagFlo™Series
Product Manual
TM
Important Information........................2
Package Contents.............................3
Installing Your MagFlo Pump................. 4-6
Maintaining Your MagFlo Pump .............. 6-8
Troubleshooting..............................8
Replacement Parts ...........................8
Technical Specs ...............................8
Warranty Information.........................8
Table of Contents:
For Models:
• MagFlo 460
(Item #120932)
• MagFlo 590
(Item #120933)
• MagFlo 1000
(Item #120935)
• MagFlo 1340
(Item #120936)

IMPORTANT INFORMATION:
Please read these instructions thoroughly before use. Failure to follow instructions may result in
equipment damage or failure, losses, injury or death.
DANGER:
To avoid possible electric shock:
• If the power cord has been damaged, DO NOT operate. The MagFlo Pump should be replaced.
• Close supervision is necessary when the unit is used by or near children.
WARNING:
To reduce the risk of electric shock:
• Connect only to a properly grounded receptacle, which is serviced by a Ground Fault Circuit
Interrupter, and never remove the ground pin from the plug.
• Provide a“drip loop”for the power cord. A drip loop is a downward-
facing loop in the power cord, falling below the level of the electric
receptacle and plug, which prevents water from traveling along the cord
in the direction of the receptacle.
• ALWAYS unplug the MagFlo Pump from power source when it is not in
use.
• ALWAYS unplug the MagFlo Pump from power source before installing,
removing or servicing the MagFlo Pump components.
• If an extension cord is necessary, a cord 14 gauge up to 100 ft. must be
used. A cord may overheat if the cord is rated for less amperes or watts
than the unit rating.
• DO NOT immerse the MagFlo Pump plug in water or attempt to use a wet plug.
• The MagFlo Pump is NOT suitable for use in swimming pools, swimming ponds, or other situations
where bodily contact is made with the water.
Important – This unit is equipped with a permanent magnet. The magnetic eld may aect the
function of pacemakers.
CAUTION:
To reduce the risk of equipment damage or failure:
• ONLY use the MagFlo Pump in fresh water applications.
• DO NOT place MagFlo Pump near ammable or other dangerous materials or objects.
• ALWAYS unplug the unit if there is no water running through it to prevent overheating.
• DO NOT run the pump dry.
• DO NOT operate during freezing conditions. Drain MagFlo Pump and store in a protected location.
IMPORTANT:
The Pond Guy is not responsible for equipment damage or failure, losses, injury or death resulting from
failure to follow safety precautions, or from misuse or abuse of equipment.
Power Cord
Drip Loop
thepondguy.com | 866-POND-HELP (766-3435)
2

MAGFLO PUMP: PACKAGE CONTENTS
* A Venturi adapter can be used to add a small amount of aeration to the water line. To use, attach a standard
1/8” diameter airline tube to the barb of the Venturi adapter, and run the airline tube outside the waterbody
(airline tube length will vary depending on pond size). 
** Frothy Spray Pattern is only available on the MagFlo 1340.
MagFlo Pump Package Contents
A1- MagFlo Pump H1- VenturiAdapter*
B4- Rubber Feet I1- Inlet MaleTubing Adapter
C1- Diverter Assembly J2- Outlet MaleTubing Adapters
D1- Fountain ExtensionTube K1- Volcano Spray Pattern
E1- Coupler L1- Water Bell Spray Pattern
F1- Fountain Pivot Attachment M1- DoubleVolcano Spray Pattern
G2- FemaleTubing Adapters N1- Frothy Spray Pattern**
A
B
C
H I
D F
G
E
K L M N
J
thepondguy.com | 866-POND-HELP (766-3435) 3

INSTALLING YOUR MAGFLO PUMP:
Step 1
Determine Installation Method
The MagFlo’s versatile nature allows you to congure
your pump set up in multiple ways. Select the method
below that best suits your application.
Fountain Only
1. Attach diverter assembly (C) to pump outlet of
MagFlopump (A).
2. Attach fountain pivot attachment (F) to outlet
on diverter assembly (C).Connection will be
snug.
3. Attach coupler (E) to outlet onfountain pivot
attachment (F). Attach fountain extension tube
(D) to coupler (E).
4. Attach desired fountain spray pattern (K, L, M or
N) to fountain extension tube (D).
5. Continue to Step 2.
Fountain& Waterfall/Feature
1. Complete“Fountain Only”setup above.
2. Unscrew and remove the diverter cap on the
diverter assembly (C). Attach female tubing
adapter (G) to side outlet of diverter assembly (C).
3. Connect and secure your pond tubing to tubing
adapter with a hose clamp (not included).
4. Connect pond tubing to your waterfall
orwaterfeature.
5. Continue to Step 2.
For Best Results
• MagFlo Pump should be placed on a at
surface away from sludge or algae mats.
• DO NOT run the pump dry. To prevent
overheating, unplug pump if there is no
water running through it.
• Keep MagFlo Pump pre-lter free of
debris.
• DO NOT operate during freezing
conditions. Drain the MagFlo Pump and
store in a protected area.
thepondguy.com | 866-POND-HELP (766-3435)
4

INSTALLING YOUR MAGFLO PUMP CONT:
Step 3
Plug in Pump
Plug the power cord into a standard 120-volt GFCI
protected outlet.
Step 2
Submerge Pump
Submerge the MagFlo pump in a at area in your pond. For
ideal water circulation, the pump should be at the opposite
end of the pond from where the water will discharge. If the
fountain feature will be used, be sure the spray nozzle is at
least a few inches above the water’s surface.
Optional In-Line Setup
You may use MagFlo pumps in-line (out of the water)
to power a waterfall/feature only, but the pump must
be placed below the water level. MagFlo pumps must
be set up with a ooded suction intake and will not
suction lift.
1. Remove pump intake screen, pre-lter
sponge, and impeller screen.
2. Connect inlet male tubing adapter (I) to pump
intake and outlet male tubing adapter (J or
H) to pump discharge of MagFlo Pump (A).
Connect and secure your pond tubing with a
hose clamp (not included).
3. Connect pond tubing to your waterfall or
water feature.
4. Continue to Step 3.

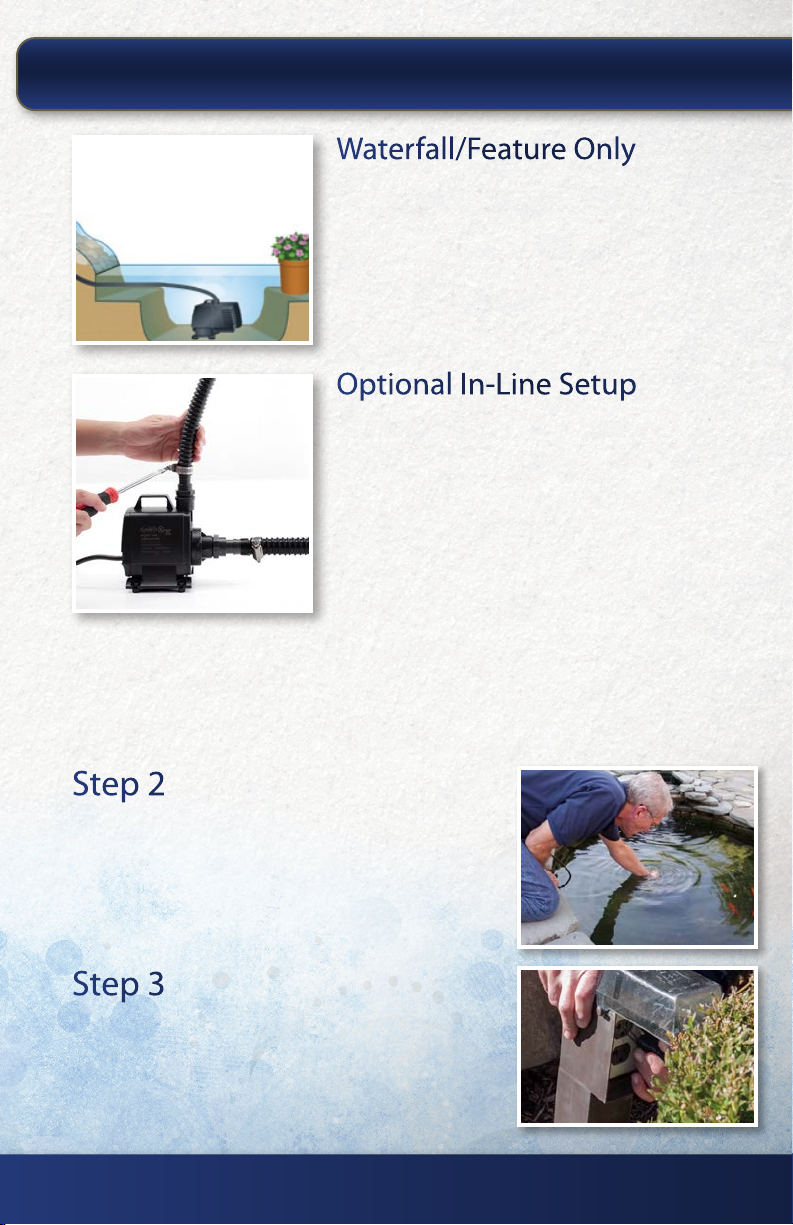

Waterfall/Feature Only
1. Attach outlet male tubing adapter (J or H) to
pump outlet ofMagFloPump (A).
2. Connect and secure your pond tubing to
tubing adapter with a hose clamp (not
included).
3. Connect pond tubing to your waterfall
orwaterfeature.
4. Continue to Step 2.
thepondguy.com | 866-POND-HELP (766-3435) 5

INSTALLING YOUR MAGFLO PUMP CONT:
WARNING:
Before performing any maintenance, always unplug the MagFlo Pump from
the power source.
Perform maintenance any time there is a reduction in water ow or
before storing for the winter.
MAINTAINING YOUR MAGFLO PUMP:
Step 1
Unplug and Remove
Unplug the pump and detach from pond tubing.
Remove fountain assembly, if applicable.Move pump
to a dry workspace.
CLEANINGTHEPUMP
Tools Required: • Damp Cloth or Small Brush
• Descaler such as Airmax® D-Scale™
thepondguy.com | 866-POND-HELP (766-3435)
6
Step 5
Adjust Fountain Spray
For the water bell fountain spray pattern (L), it may be
necessary to unscrew or tighten the deector disc on
the top of the nozzle for proper ow. To compensate
for uneven surfaces, adjust the fountain spray
direction by tilting the fountain assembly gently at the
pivot attachment, if applicable for your installation.
Step 4
Adjust Water Flow
Adjust water ow using the diverter valve ow control
located on the diverter assembly (C), if applicable for your
installation.

Step 2
Remove Pre-Filter
Pull rmly to remove the pump pre-lter from the
pump motor.
Step 3
Wash Pre-Filter Sponge & Impeller Screen
Remove pump pre-lter sponge and impeller screen.
Wash thoroughly with water.
MAINTAINING YOUR MAGFLO PUMP CONT:
Step 4

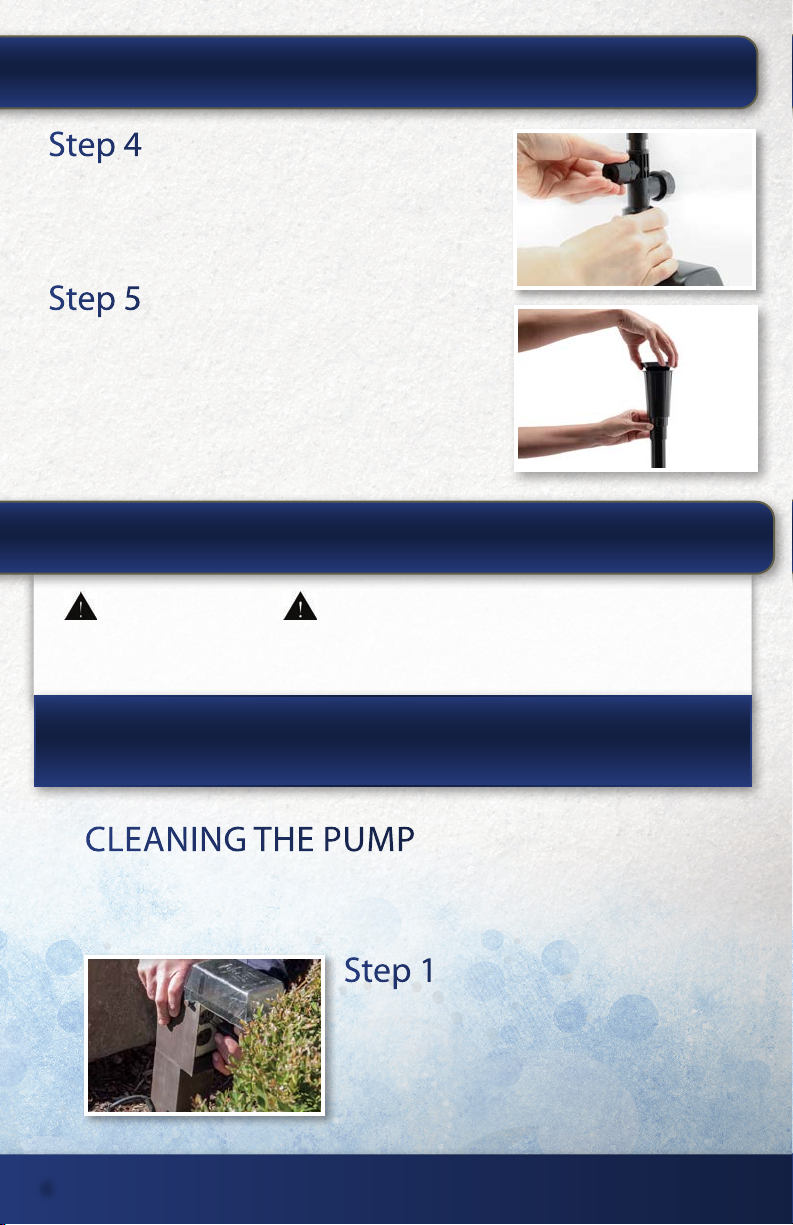

Remove Impeller Cover & Impeller
Remove the impeller cover by turning counter-clockwise
and then pulling to separate. Grasp by white impeller and
lift out of chamber.
(Warning: Pump is magnetically driven. You may experience a
magnetic pull when removing and re-installing impeller.)
Step 5
Clean Impeller & Fountain
Clean impeller and impeller chamber with water. Remove
and disassemble fountain connections and tubing
adapters. Washthoroughly withwater. A small brush or
descaler may be helpful. If using a descaler, be sure to
rinse all parts with clean water before reassembly.
(Note: Lower the impeller carefully into the chamber, allowing the
impeller to gently drop into the chamber. Too much force can damage
the pump.)
Step 6
Reassemble Pump
Reassemble impeller, impeller cover, impeller screen, pre-
lter sponge, and pump pre-lter.
thepondguy.com | 866-POND-HELP (766-3435) 7

View other great products on-line at www.thepondguy.com
PRODUCT WARRANTY:
MagFlo Pumps carry a 5-year warranty. The Pond Guy
will repair or replace any unit found to be defective. This
limited warranty is extended exclusively to the original
purchaser and begins from the date of original purchase
receipt. Abuse or misuse of this product or power cord
alterations void all warranty. Impeller and lter sponge
are wear items and are not covered by this warranty.
Please call for a RMA number prior to returning product
by calling our Customer Care Department at 866-766-
3435. Failure to request an RMA number may result in
delay or dismissal of your warranty claim.
THANK YOU FOR CHOOSING:
The Pond Guy®Inc.
We Know Ponds™
15425 Chets Way
Armada, MI 48005
866-POND-HELP (766-3435)
thepondguy.com
V1
MAGFLO
PUMP MODEL
REPLACEMENT
IMPELLER
REPLACEMENT
FILTER SPONGE REPLACEMENT FOUNTAIN KIT
MagFlo 460 #120941 #120950 #120958
MagFlo 590 #120942 #120950 #120958
MagFlo 1000 #120944 #120952 #120960
MagFlo 1340 #120945 #120953 #120960
TECHNICALSPECS :
MODEL VOLTAGE WATTAGE CORD GPH @ 3’ HEAD MAX HEAD DISCHARGE INLET FITTING
MagFlo 460 120V / 60 Hz 45 Watts 20’ 260 GPH 7’ ½” 1” ½”& ¾”
MagFlo 590 120V / 60 Hz 40 Watts 20’ 420 GPH 7.5’ ½” 1” ½”& ¾”
MagFlo 1000 120V / 60 Hz 70 Watts 20’ 760 GPH 9’ ¾” 1” ¾”& 1”
MagFlo 1340 120V / 60 Hz 125 Watts 20’ 1250 GPH 13.5’ ¾” 1” ¾”& 1”
TROUBLESHOOTING :
Pump does not turn on:
• Check that the power cord is connected.
• Check to see if the GFCI or main circuit breaker is tripped.
• Check to see if GFCI is faulty.
• Check power cord for damage.
Pump turns on and then shuts o:
• Verify pump is completely submerged for proper cooling.
• Check for debris clogging the pump intake.
• If using an extension cord, verify that it is of the proper rating for the pump’s electrical
requirements.
Reduced water ow:
• Check for debris clogging the pump pre-lter.
• Perform maintenance cleaning of the pump.
• Verify that water level is sucient and pump is completely submerged.
• Check plumbing for clogs.
MAINTAINING YOUR MAGFLO PUMP CONT:
Note: Diverter discharge accepts 1/2”& 3/4” ttings.
REPLACEMENTPARTS :
