Thermador HS-HST-HSB User manual

READ AND SAVE THESE INSTRUCTIONS
INSTALLATION INSTRUCTIONS
HS-HST-HSB WALL HOODS
APPROVED FOR
RESIDENTIAL APPLIANCES
FOR RESIDENTIAL USE ONLY
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING.
INSTALLATION MUST COMPLY WITH ALL LOCAL CODES.
IMPORTANT: Save these nstructions for the Local Electrical nspectors use.
INSTALLER: Please leave these nstructions with this unit for the owner.
OWNER: Please retain these instructions for future reference.
Safety Warning: Turn off power circuit at service panel and lock out
panel, before wiring this appliance.
Requirement: 120 V AC, 60 Hz. 15 or 20 A Branch Circuit

Page 2
IMPORTANT SAFETY INSTRUCTIONS
CAUTION: FORGENERALVENTI-
LATING USE ONLY. DO NOT USE
TO EXHAUST HAZARDOUS OR
EXPLOSIVE MATERIALS OR VA-
PORS.
WARNING-TOREDUCETHERISK
OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
A. Use this unit only in the manner
intended by the manufacturer.
f you have questions, contact
the manufacturer (Thermador
Customer Service at 800/
735.4328).
B. Before servicing or cleaning the
unit, switch power off at service
panel and lock service panel
disconnecting means to prevent
power from being switched on
accidentally. When the service
disconnecting means cannot be
locked, securely fasten a
prominent warning device,
such as a tag, to the service
panel.
C. nstallation Work and Electri-
cal Wiring Must Be Done By
Qualified Person(s) n Accor-
dance With All Applicable Codes
& Standards, ncluding Fire-
rated Construction.
D. Sufficient air is needed for
proper combustion and ex-
hausting of gases through the
flue (chimney) of fuel burning
equipment to prevent back-
drafting. Follow the heating
equipment manufacturers
guideline and safety standards
such as those published by the
National Fire Protection Asso-
ciation (NFPA), the American
Society for Heating, Refrigera-
tion and Air Conditioning Engi-
neers (ASHRAE), and the local
code authorities.
E. When cutting or drilling into
wall or ceiling, do not damage
electrical wiring and other
hidden utilities.
F. Ducted systems must always be
vented to the outdoors.
CAUTION: To reduce risk of fire
and to properly exhaust air, be
sure to duct air outside - do not
vent exhaust air into spaces
withinwalls,ceilings,attics,crawl
spaces, or garages.
WARNING - TOREDUCETHERISK
OFFIRE,USEONLYMETALDUCT
WORK.
nstall this hood in accordance with
all requirements specified.
WARNING - To Reduce The Risk
Of FireOr ElectricShock,DoNot
UseThisHoodWithAnyExternal
Control Device.
CAUTION: To Reduce The Risk Of
Fire And Electric Shock, nstall
This Rangehood Only With Blower
Models specified.

Page 3
IMPORTANT SAFETY INSTRUCTIONS
WARNING- TOREDUCETHERISK
OF A RANGE TOP GREASE FIRE.
a) Never leave surface units
unattended at high settings.
Boilovers cause smoking and
greasy spillovers that may
ignite. Heat oils slowly on low
or medium settings.
b) Always turn hood ON when
cooking at high heat or when
flambeing food (i.e. Crepes
Suzette, Cherries Jubilee,
Peppercorn Beef Flambee).
c) Clean ventilating fans
frequently. Grease should not
be allowed to accumulate on
fan or filter.
d) Use proper pan size. Always
use cookware appropriate for
the size of the surface element.
WARNING - TO REDUCE THE
RISK OF INJURY TO PERSONS,
INTHEEVENT OF ARANGETOP
GREASE FIRE, OBSERVE THE
FOLLOWING:
a) SMOTHER FLAMES with a
close-fitting lid, cookie sheet,
or other metal tray, then turn
off the gas burner or the electric
element. BE CAREFUL TO
PREVENT BURNS. f the flames
do not go out immediately,
EVACUATE AND CALL THE F RE
DEPARTMENT.
b) NEVER P CK UP A FLAM NG PAN
- you may be burned.
c) DO NOT USE WATER, including
wet dishcloths or towels - a
violent steam explosion may
result.
d) Use an extinguisher ONLY if:
1)You know you have a class
ABC extinguisher, and you
already know how to operate it.
2)The fire is small and
contained in the area where it
started.
3)The fire department is being
called.
4)You can fight the fire with
your back to an exit.

Page 4
ATTENTION: SEULEMENTPOUR
L’UTILISATIOND’AÉRATION. NE
PAS L’UTILISER POUR ÉPUISER
LA VAPEUR OU LES MATIÈRES
EXPLOSIVESOUDANGEREUSES.
AVERTISSEMENT - POUR
RÉDUIRE LE RISQUE
D’INCENDIE, DE CHOC
ÉLECTRIQUE, OU DE LA
BLESSUREAUXPERSONNES,OB-
SERVER LE SUIVANT:
A. Utiliser cet appareil seulement
dans la manière destinée par
le fabricant. Si vous avez des
questions, contacter le
fabricant.
B. Avant lentretien ou le
nettoyage de lappareil, couper
le courant au tableau de ser-
vice, et fermer à clef la moyenne
de débrayage de service pour
empêcher lalimentation dêtre
allumée par hasard. Quand la
moyenne de débrayage de ser-
vice ne peut pas être fermée à
clef, attacher une étiquette au
tableau de service pour indiquer
que l'alimentation a été coupée
pour l'entretien.
C. Le Travail d nstallation et de
Câblage Électrique Doit Être Fait
Par les Personne(s) Qualifiées
Conformément à Tous les Codes
& Normes Applicables, y
Compris la Construction
Calculée à Feu.
D. Lécoulement comburant pour
le fonctionnement sûr du
matériel de la combustion du
combustible peut être affecté
par le fonctionnement de cet
LES INSTRUCTIONS DE SÉCURITÉ IMPORTANTES
appareil. Suivre la directive
des fabricants du matériel
chauffant et les normes de
sécurité tel que ceux publiées
par lAssociation du Protection
de Feu National (NFPA), et la
Société Américaine pour les
ngénieurs de Chauffage, de
Réfrigération et de Climatisa-
tion (ASHRAE), et les autorités
des codes locales.
E. En coupant ou en forant dans
un mur ou dans un plafond, ne
pas endommager le câblage
électrique et des autres
utilités cachées.
F. Les ventilateurs canalisés
doivent être toujours
déchargés à lextérieur.
ATTENTION: Pour réduire le
risque d’incendie, utiliser
seulement le travail du conduit
métallique.
nstaller ce capot conformé- ment
aux toutes exigences spécifiées
par le fabricant de votre cooktop/
cuisinière.
ATTENTION: Pour réduire le
risque d’incendie, de choc
électrique, ne pas utiliser cette
hotte avec aucun dispositif de
contrôle exterieur.
ATTENTION: Pour réduire le risque
dincendie, de choc électrique,
installer cette hotte seulement
avec des modeles des moteurs
indiqués.

Page 5
LES INSTRUCTIONS DE SÉCURITÉ IMPORTANTES
AVERTISSEMENT - POUR
RÉDUIRE LE RISQUE D’UN FEU
DE GRAISSE DU SOMMET DE LA
CUISINIÈRE:
1. Garder le ventilateur, les
filtres et les surfaces chargées
de la graisse propres.
2. Toujours mettre le capot EN
MARCHE en cuisinant à la
haute chaleur.
3. Utiliser les hauts
positionnements du
cuisinière sur la cuisinière
seulement quand cest
nécessaire. Chauffer lhuile
lentement sur un positionnement
bas à moyen.
4. Ne pas laisser la cuisinière
sans surveillance pendant la
cuisson.
5. Utiliser toujours les batteries
de cuisine et les ustensiles
appropriés pour le type et la
quantité de la nourriture ayant
préparée.
AVERTISSEMENT: - POUR
RÉDUIRE LE RISQUE DE
BLESSURE AUX PERSONNES
DANS L’ÉVÉNEMENT D’UN FEU
DE GRAISSE DU SOMMET DE LA
CUISINIÈRE, OBSERVER LES
SUIVANTS:
a) ÉTOUFFER LES FLAMMES avec
un couvercle ajusté, une tôle
du biscuit ou un plateau
métallique, puis fermer le bec.
SOYEZ CERTA N DEMPÊCHER
LES BRÛLURES. Si les
flammes ne séteindront pas
immédiatement, ÉVACUER ET
APPELER LE SERV CE DES
NCEND ES.
b) NE JAMA S RAMASSER UNE
CASSEROLE EN FLAMMES -
Vous pouvez être brûlé.
c) NE PAS UT L SER DE LEAU, y
compris les torchons mouillés
ou les serviettes - une
explosion violente résultera.
d) Utiliser un extincteur
SEULEMENT si:
1) Vous savez que vous
avez un extincteur de Classe
ABC et vous. savez déjà
comment le faire fonctionner.
2) Le feu est petit et est
contenu dans la région où il a
commencé.
3) Le service des incendies
est appelé.
4) Vous pouvez combattre
le feu avec votre dos à une
sortie.

Page 6
Parts Included with your
Hood
•Hood Canopy Assembly with
Light Bulbs nstalled
 Care & Use / nstallation
nstructions
 Registration Card
 Filters, 2, 3 or 4 depending on
model and size
 Metal Transition with Back
draft dampers installed (On
HST Series hoods it is
temporarily fixed for shipping
inside the hood with two
screws)
 Screws and Drywall Anchors
 Remote Blower (pigtail)
Adaptor (HS and HST Series
hoods only)
 Wooden Strip for Hood
Support (HST Series hoods
only)
 Mounting Hooks
 Wire Clamp (HS and HST
Series hoods only)
 Side mould (HSB30 and HS30
Series hoods only)
 Contents Sheet
Parts Not Included with
your Hood
 Duct Tape
 1/2" Conduit
 Wire Nuts
 Ventilator- The HS and HST
series Hoods can be installed
with any Thermador
VTR600R, VTR1000Q,
VTN420B or VTN620B Blower
 Optional duct cover, 6 or 12
height (HSB and HS Series
hoods only)
 Optional telescopic duct cover
(HST Series hoods only).
 R Lamp (Purchase and use
only lamps mod. 175R-PAR,
175W maximum infrared
bulbs).
 Recirculating kit (HSB and HS
Series hoods only)

Page 7
BEFORE INSTALLING HOOD
1. For the most efficient air flow
exhaust, use a straight run or
as few elbows as possible.
CAUTION: Vent unit to
outside of building, only.
2. Almost two people are
necessary for installation.
3. The hood is fitted with Screws
and Drywall Anchors suitable
for most surfaces, consult a
Qualified nstaller, check if
they perfectly fit with your
cabinet/wall.
4. Do not use flex ducting.
5. COLD WEATHER installations
should have an additional
backdraft damper installed to
minimize backward cold air
flow and a nonmetallic
thermal break to minimize
conduction of outside tem-
peratures as part of the
ductwork. The damper should
be on the cold air side of the
thermal break.
The break should be as close
as possible to where the
ducting enters the heated
portion of the house.
6. Remote blowers require a five
wire installation.
7. Make up air: Local building
codes may require the use of
Make-Up Air Systems when
using Ducted Ventilation
Systems greater than
specified CFM of air
movement.
The specified CFM varies
from locale to locale. Consult
your HVAC professional for
specific requirements in your
area.

Page 8
HOOD WIDTH DIM. "A"
30" 12 - 3/16"
36" 15 - 3/16"
42" 18 - 3/16"
48" 21 - 3/16"
HOOD DEPTH DIM. "B"
30" 22 - 11/16"
36" 23"
42" 23 - 5/16"
48" 23 - 7/8"
Note: t is important to select the
ventilator to be used before
cutting the duct opening on the
cabinet or wall.
Figure 1
Figure 2
4-1/ "
1/2"
(HS-HSB)
4-3/4"
(HST)
-1/16"
(HST)
1/2"
(HS-HSB)
Cabinet
Cabinet Front
A
5-7/8"
4-7/8"
1 "
Vertical
Discharge
1-7/8"
4-3/8"
Hood Width
0"
Optional Rear
Discharge
Rear
Wall
Bottom of
Cabinet or
Soffit
1-1/2"
Dia. Holes
9"
1 "
11"
B
4"
B
18"
HSB and HS
Series Hoods
HST
Series Hoods
Table 1
Table 2
BEFORE INSTALLING HOOD
APPLIANCE INSTALLATION
CABINETORSOFFITPREPARATION

Page 9
TYPICALINSTALLATION
The hoods are designed for either
vertical or horizontal discharge as
shown in Figure A and B
respectively.
The height from the countertop
tothebottomofthehoodis30"to
36”.These hoods are not
recommended to be used over
indoor grills.
DUCTING
Provide a Round Duct having a
diameter of 8 (see Figure A and B
for location and Figure 1 for location
on wall or cabinet bottom).
nstall a 1/2 conduit from the
service panel long enough to reach
the hood once it is installed.
Power supply must be rated for 120V
60Hz, 15 amps (minimum).
Note - Horizontal Discharge:
The Transition for this discharge
direction is not supplied and
must be purchased separately.
BEFORE INSTALLING HOOD

Page 10
plate
fixing
point
Plate
Figure 3
Discharge Direction: The hood is
shipped ready for horizontal
discharge. To change to vertical
discharge move plate to the rear
side and ventilator (if supplied) to
the top side.
The plate and ventilator are held in
place by four nuts each, see also
Figures 3 and ,at page 9, Figure A
and Figure B.
Read also paragraph  ntegral
Ventilator nstallation at pages
14-15 for further informations.
Note: f an integral ventilator is
already supplied (HSB series hoods
only), remove it to allow installation
of hood to the wall/cabinet.
Assembly of the Transition:
The transition supplied with the
hood mounts to the top of the
hood, Figure 4.
1. Fold outwards all six Tabs (HS
and HSB series only).
2.Align mounting holes at base
of transition with mounting
holes on 1/2 flange located at
the top of the hood.
3.Fasten transition to hood using
6 (4 mm x 9.5 mm) screws
(included with hood).
4.Duct tape connection between
transition and hood.
5. Remove tape holding damper
Transition
Top outlet
Tongue
Figure 4
BEFORE INSTALLING HOOD
Tab

Page 11
closed.
Wall Mount Installation -
HS and HSB series only.
(see Figure 5)
1. After the hood installation height
has been determined draw a
horizontal line at a distance
above the cooktop equal to the
desired hood installation height
plus 7- 1/2”.
2. Find the centerline of the
cooktop. Draw a vertical line
along this centerline up to
the horizontal line drawn in
step 1 and draw a vertica
line right and left at a
distance of 12-5/8” to
determine the mounting
location of the mounting
hooks shipped with the hood.
3. Fit two mounting hooks on
the wall to hang the hood
through the provided slots (2
wall anchors+2 hooks + 2
screws 5x45).
4. Run 8 Duct, long enough to
reach the transition once the
hood has been installed plus 1
1/2 inch to connect
ductwork.
Fix Duct to transition with
screws and seal with tape.
5. f mounted, remove the
grease filter.
6. Remove 1 of 2 knockouts and
install 1/2 conduit connector
in j-box.
7. Hang the hood and adjust its
position through the screws
on the hooks.
8. Fix the hood to 4 additional
point,2 on upper side, 2 on
lower side (use 4 wall anchors
+ 4 washers + 4 screws 5x35.
K
CL
bottom mounting
screws locations
Top
screw
location
W
Transition
Top
outlet
Knoc outs
(junction box)
Side slot
for cabinet
bottom mount.
Top
screw
location
Z
7 1/2"
Z
W
CL
Screw for
cabinet
bottom
installation
Hoo for wall
installation
Adjusting
screw
Square
slot
K
25 3/16"
25 3/16"
7 1/2"
Bottom of the Hood
12 5/8" 12 5/8"
Figure 5
HOOD WIDTH DIM. "W" DIM. "K" DIM. "Z"
30" 29 - 1/8" 2 - 1/2" 7 - 1/16"
36" 35 - 1/16" 2 - 1/2" 7 - 1/16"
42" 41 - 1/16" 2 - 1/2" 7 - 1/16"
48" 47 - 1/16" 2 - 1/2" 7 - 1/16"
Table 3
BEFORE INSTALLING HOOD

Page 12
Wall Mount Installation -
HST series Hood only
(see Figure 6-7-8)
1. Hood nstallation Height
After the hood installation height
has been determined draw a
horizontal line at a distance
above the cooktop equal to the
desired hood installation height
plus 16 1/2. This line is the
mounting location of the wooden
bracket shipped with the hood.
2. Find the centerline of the
cooktop. Draw a vertical line
along this centerline up to the
horizontal line drawn in step 1.
3. The HST series hoods are
mounted to the wall using a
wooden bracket shipped with
the hood. Remove the bracket
from the hood by removing two
shipping screws. Mark the
centerline of the bracket.
4. Find studs behind the drywall
by tapping the wall or using a
stud finder. Locate one stud on
either side of the cooktop
centerline to use for mounting
the wooden bracket as shown
in Figure 6.
5. Align the top of the wood bracket
along the horizontal line drawn
in step 1. Align the centerlines
of the bracket and cooktop.
6. Drill a 3 deep 1/8 tap hole
through the wooden bracket,
drywall, and into the stud.
7. Use 2-4 (6mm x 80 mm) screws
to attach the bracket to the wall
as shown in Figure 7. For
support of longer hoods, use
Figure 6
Figure 7
6 7/8
6

Page 13
three or four studs as available.
Countersink the heads to pre-
vent interference with the
hood.
8. On the wood bracket mark the
locations used to hang the hood
according to Figure 7.
9. Drill a 1/8 tap hole through
the wooden bracket and drywall.
These screws do not need to go
into the studs.
10.Screw 2 (4.2mm x 18 mm)
screws into the wood bracket
leaving 1/4 of the screw ex-
posed for hanging the hood.
11.Discharge Direction: Horizon-
tal discharge requires a wall
cutout, as shown in Figure 1 of
this manual, to provide clear-
ance for the transition. The
location of the cutout is deter-
mined by the hood installation
height.
For Vertical discharge,please
refer to step 4, Page 10.
12.Hang the hood using slots I in
Figure 8. Make sure the wood
bracket fits into the recess on
the back of the hood.
13.Tighten the screws in slots I.
Use slots I to level the hood.
14.From inside the hood drive 4 or
6 screws depending on model
(4.2 mm x 18 mm) through holes
J into wooden bracket.
15.Drill a 3/8 tap hole through
the center of the holes K into
the wall. nsert two wall plugs
into drilled holes. Tighten hood
to wall anchors by installing 2
screws with washers.
J
I
K
Figure 8

Page 14
Cabinet Installation:
(Figure 5)
Note: distances on page 10, Table
3.
1. Find the centerline of the
cabinet bottom. Draw a line
along this centerline from rear
to front of the cabinet.
2. Draw two lines, one at a K
distance from the wall, the other
one at a Z distance from the
previous line.
Mark 4 points , two along each
line at a distance of half W from
the center line, to determine
the screw locations.
3. Fit 4 screws on cabinet bottom
do not tighten completely but
leave a space of about 1/2 from
cabinet bottom surface and
head screws.
4. Run 8 Duct, long enough to
reach the transition once the
hood has been installed plus 1
1/2 inch for connect
ductwork.
Fix Duct to transition with
screws and seal with tape.
5. f mounted, remove the
grease filter.
6. Remove 1 of 2 knockouts and
install 1/2 conduit connector
in j-box.
7. Hang the hood on screws
through side slots provided on
hood top.
Tighten the four screws.
f possible fix the hood on the wall at
4 additional point (2 on upper side,
2 on lower side).
INTEGRALVENTILATOR
INSTALLATION
(Models VTN420B or VTN620B)
(see figure 9)
The ntegral ventilator can be
mounted to discharge air as shown
on figure A and B at page 9.
t must be fixed through the slots of
the ventilator and pins with nuts of
the hood.
Tighten all four nuts.

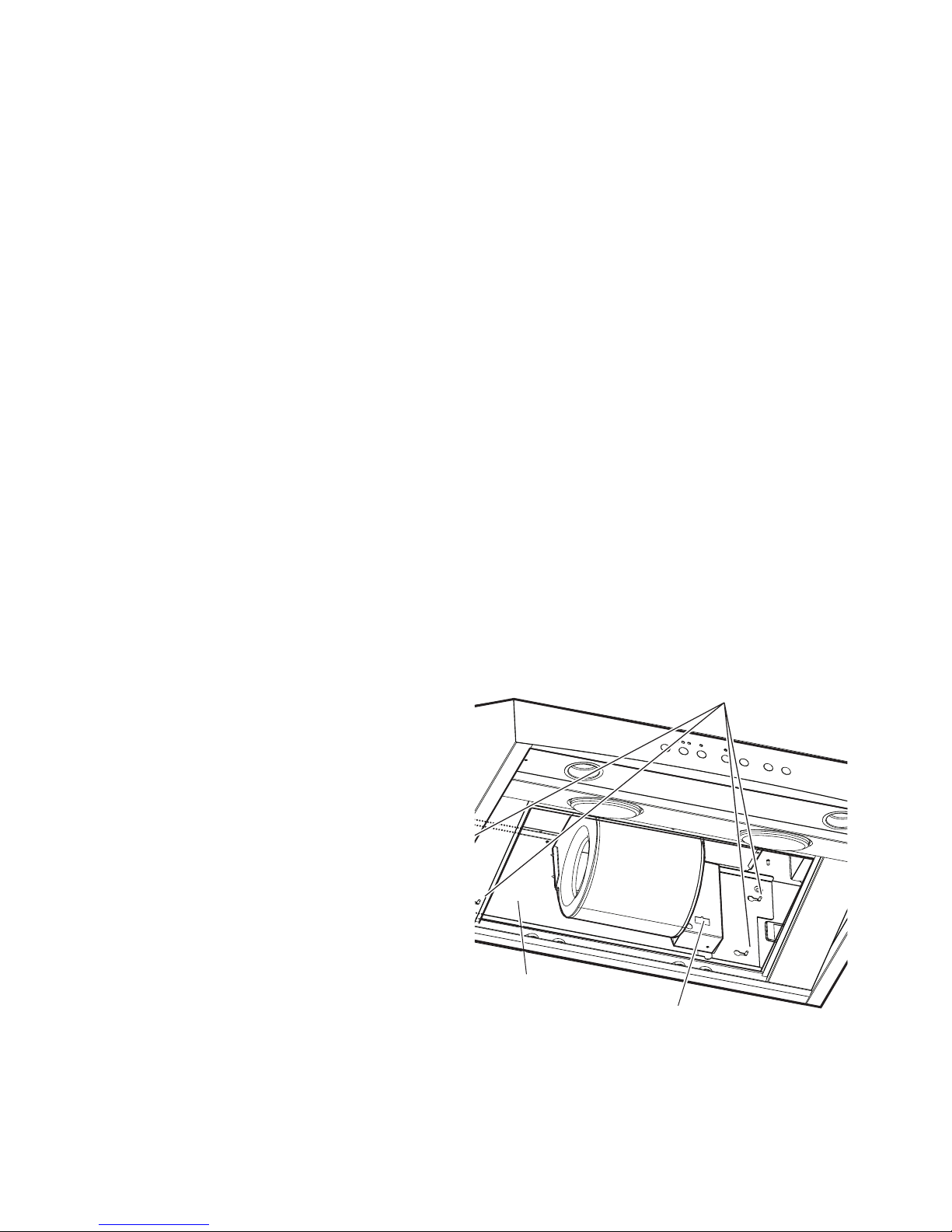

Motor
connector
Integral ventilator
fixing point
Motor
support brac et
Figure 9

Page 15
From Control
Panel
Motor connector
VTN 420 or VTN 620
Wiring the HOOD with an
IntegralVentilator:
Warning: Turn off electricity at
the service panel before wiring the
unit.
1. Connect the ntegral Ventilator
molex plug connector to the
connector present inside the
hood as shown in Figure 9 or
Figure 10.
2. Remove the j-box cover as
shown in Figure 11.
3. Remove 1 of 2 knockouts and
install 1/2 conduit connector
in j-box.
4. Run black, white, and green
wires (#14 AWG) in 1/2 conduit
from power supply to j-box.
5. Connect black, white, and
green wires from power supply
to black, white, and green/
yellow wires in j-box
respectively.
6. Close j-box cover.
Final installation steps
7. Only HSB30 and HS30 Series
hoods: fit the side mould on the
right side, and fix it with 3
screws as shown in Figure 12.
8. Replace filters as described in
the Care & Use section of this
manual.
Turn power on at service panel.
Check operation of the hood.
Figure 10
Figure 11
From
control
panel
Figure 12

Page 16
REMOTE VENTILATOR
INSTALLATION Models
VTR600R or VTR1000Q (Only
HS and HST Series Hood):
The hood is designed to work with
Thermadors remote ventilator (see
list under paragraph Parts Not
Included with your Hood). For
installation instructions see the
instructions supplied with the
ventilator unit.
Wiring the Hood with a Remote
Ventilator:
Warning: Turn off electricity at
the service panel before wiring the
unit.
1. Remove the j-box cover as
shown in Figure 13.
2. Remove cover T from the j-box.
3. Remove the 2 knockouts and
install 1/2 conduit connectors.
4. Run black, white, and green
wires (#14AWG) in 1/2 conduit
from power supply to j-box.
5. Connect black, white, and
green wires from power supply
to black, white, and green/
yellow wires in j-box
respectively.
6. Connect wire clamp to pigtail
as shown in Figure 12. nsert
pigtail wires into j-box and fix
wire clamp to j-box using nut
supplied with wire clamp V.
7. Run five wires (#14 AWG) in 1/
2 conduit from the remote
blower to the second conduit
connector.
8. Connect the black, white, red,
and blue wires from the remote
ventilator to the black, white,
red, and blue wires of the pigtail Figure 13
respectively. Connect the
remote blower green/yellow
(ground) wire to the ground wire
from the service panel.
9. Close junction box cover. Check
that all light bulbs are secure
in their sockets. nstall filters.
Turn power on at service panel,
and check lights and blower
operation per Care & Use
section of this manual.
Ground

Page 17
Assembly and Installation of the
Duct Covers (HS and HSB Series
Hoodonly):
Optional duct covers shown in Fig-
ure 14 may be used to fill the space
between the hood and ceiling in
wall mount installations. 6 and
12 high duct covers are available
and may be ordered separately.
1. f multiple duct covers are used,
connect the pieces together using
sheetmetal screws provided with
chimneys.
2. Attach the duct cover(s) to the
hood using sheetmetal screws as
shown in Figure 14.
Figure 14
Fixing Screws
(number
depends on
hood size)
