SERVICE MANUAL
for
Professional Series
Custom Inserts
Models:
VCIB36JP
VCIB48JP
VCIB54JP
VCIN36JP
VCIN48JP
VCIN54JP
VCIN60RP
WARNING
The information provided in this document is intended for
trained, qualified personnel only. The proper function and the
safety of the appliance can be affected by an improper repair,
and even serious threats to life or physical condition may arise.
BSH Home Appliances Corporation is not liable for damages
caused by improper repairs performed by unauthorized parties.
Local codes and standards apply and must be observed.
Authorized servicers may contact the Technical Support Team
for further assistance.
!

Service Manual for Thermador Professional Series Custom Inserts
Page 2 of 16

1SYMBOLS USED IN THIS MANUAL..........................................3
2IMPORTANT SAFETY INFORMATION ......................................4
2.1 Safety Before Servicing the Appliance.................................. 4
3GENERAL...................................................................................6
3.1 Specifications ....................................................................... 6
3.2 Blower Options for VCINxxJP Models* ................................. 6
3.3 Accessories.......................................................................... 7
3.4 Data Plate ............................................................................ 7
3.5 Warranty............................................................................... 7
4Operation ...................................................................................8
4.1 Control and Control Panel .................................................... 8
4.1.1 AUTO Function............................................................... 8
4.1.2 DELAY Function ............................................................. 8
4.1.3 Clean Filter Reminder.................................................... 8
4.1.4 Heat Sensor .................................................................. 8
4.2 Ventilator / Power Harness................................................... 9
4.3 Main Relay Board / Power Supply ........................................ 9
4.4 Lights ................................................................................... 9
4.5 Resistor.............................................................................. 10
5Disassembly ............................................................................11
5.1 Filters, Spacer Panels, Grease Trays ................................. 11
5.2 Filter Top Trim.................................................................... 11
5.3 Electronics.......................................................................... 11
5.3.1 Resistor(s) and Relay Board / Power Supply............... 12
5.3.2 Control Module............................................................ 12
5.3.3 Halogen Lamp Assemblies.......................................... 13
6Troubleshooting ......................................................................14
6.1 Self-test Program ............................................................... 14
6.2 Additional Troubleshooting Steps ....................................... 14
7Additional References.............................................................15
7.1 Technical Support .............................................................. 15
8Notes ........................................................................................16

Service Manual for Thermador Professional Series Custom Inserts
Page 3 of 16
1 SYMBOLS USED IN THIS MANUAL
Symbols used within this manual are illustrated and defined in the
table below.
WARNING – this symbol alerts you to dangers that may
result in bodily injury or death
CAUTION – this symbol alerts you to actions that may
result in damage to the product or property
NOTICE – this symbol alerts you to important information
and/or service tips.
VIDEO – related service video available for viewing on
QuickFinder
¿
¿

Service Manual for Thermador Professional Series Custom Inserts
Page 4 of 16
2 IMPORTANT SAFETY INFORMATION
Before starting to service an appliance, familiarize yourself with all
safety information and precautions included in this manual.
2.1 Safety Before Servicing the Appliance
WARNING
Before disassembly, removal, or installation of any
component…
9Turn off electrical power by removing the power cord from
the electrical outlet or putting the circuit breaker in the OFF
position.
9Be sure the entire appliance has cooled to a safe
temperature (including filters and light bulbs), and grease has
solidified in grease trays.
¿
WARNING
Use of replacement parts…
Use only authorized replacement parts for this appliance. Use of
unauthorized substitutions may cause non-compliance with safety
standards set for home appliances, will void the warranty, and may
create safety hazards resulting in damage, bodily injury, or death.
!
WARNING
Electrical hazards…
9Before servicing the appliance, remove electrical power by
either disconnecting the power cord from the wall receptacle
or by putting the circuit breaker in the OFF position.
9If tests must be conducted while the appliance is live, always
use a residual-current-operated circuit breaker. The
protective conductor connection must not exceed the
recommended values.
9When repairs are complete, perform a function test in
accordance with the appropriate regulations.
9Do not, under any circumstances, cut or remove the separate
ground wire or the third (ground) prong from the power cord
plug.
9Improper grounding or reverse polarization will cause
malfunction, which can damage the appliance and create an
electrical shock hazard. Make sure the circuit is properly
grounded and polarized in accordance with applicable local
codes and ordinances. Receptacle replacement shall be in
accordance with the National Electric Code.
!
WARNING
Sharp components…
This appliance has sheet metal parts and components which may
have sharp edges. Avoid injury by handling parts with care and using
adequate protective measures, such as wearing gloves.
!

Service Manual for Thermador Professional Series Custom Inserts
Page 5 of 16
WARNING
Clean-up hazards…
Do not allow any cleaning or polishing solutions/compounds,
disinfectants, or bleaches to remain in contact with the stainless steel
surfaces for long periods, or after clean-up. These may contain
chemicals or materials which could release harmful inhalants and
may cause damage to the appliance. After cleaning or polishing,
always rinse the cleaning/polishing materials with clear water and
wipe dry with a clean, soft, non-abrasive cloth.
!
WARNING
Prior to returning appliance to service, confirm that…
9All electrical connections are correct and secure
9All safety grounds (internal and external) are correctly and
securely connected
9All panels and components are properly and securely
reassembled.
¿

Service Manual for Thermador Professional Series Custom Inserts
Page 6 of 16
3 GENERAL
The Thermador VCINxxJP and VCIBxxJP Professional Series Custom
Inserts are available in 36-, 48-, and 54-inch widths, and are designed
for installation with all professional-style cooktops and ranges. They
may be used with custom wall or island hood applications to create a
seamless look.
VCIBxxJP models include an integrated VTN1030C 1000 CFM blower
as well as a liner (LINER2xx) to protect the exterior base.
VCINxxJP models include a set of four trim pieces which can be used
in lieu of the optional LINER2xx accessory. For these models, a
blower must be purchased separately.
All models include dishwasher-safe grease trays and commercial-style
stainless steel baffle filters. Convenience features include a
10-minute delayed shutoff, a Clean Filter indicator light, and an Auto
function, which enables a sensor that recalculates the temperature
every 30 seconds and adjusts the blower speed accordingly.
Custom inserts are shipped with halogen lamps, a transition with
backdraft damper, and pig tail wire assembly for use when wiring a
remote blower.
3.1 Specifications
Three fan speeds
10” round duct size at discharge
Requires vertical ducting
Halogen lighting – 120V 40-Watt max, G-9 base
Electrical – 120VAC, 60Hz (Amperage requirement will vary
depending on blower option selected)
Blower must be purchased separately for the VCINxxJP models
(see Blower Options)
3.2 Blower Options for VCINxxJP Models*
The capacity of the hood is determined by the optional blower selected
and the ducting used.
Blower options include inline (mounted between kitchen and external
wall), remote (mounted on roof or external wall), or integrated
(mounted on hood). All blowers listed below are 120V AC and a 15
AMP circuit breaker is recommended. For VCIN60RP Use VTN1090R
TYPE MODEL CFM BLOWER
CURRENT
(AMPS)
INSTALLATION
ACCESSORIES
REMOTE
VTR630D 600 4.2
Use RFPLT600 in
roof-mount
applications
VTR1030D 1000 5.7 Use RFPLT1000 in
roof-mount
applications
VTR1330E 1300 8.5
INLINE VTI610D 600 4.2 Use WC10 Wall
Cap
VTI1010D 1000 5.7
INTEGRATED VTN630C 600 2.7 Use WC10 Wall
Cap
VTN1030C 1000 5.4
* VCIBxxJP models include an integrated VTN1030C 1000 CFM blower.
NOTICE
The 16 or18 screws (#8A X 3/8 PH PN HD ZNC) used to attach
either the trim set or the LINER2xx to the custom insert are supplied
with the custom insert. The same screws are used for either
application, so if a LINER2xx is installed after the 4-piece trim set
was initially installed, save and reuse the screws when installing the
LINER2xx.

Service Manual for Thermador Professional Series Custom Inserts
Page 7 of 16

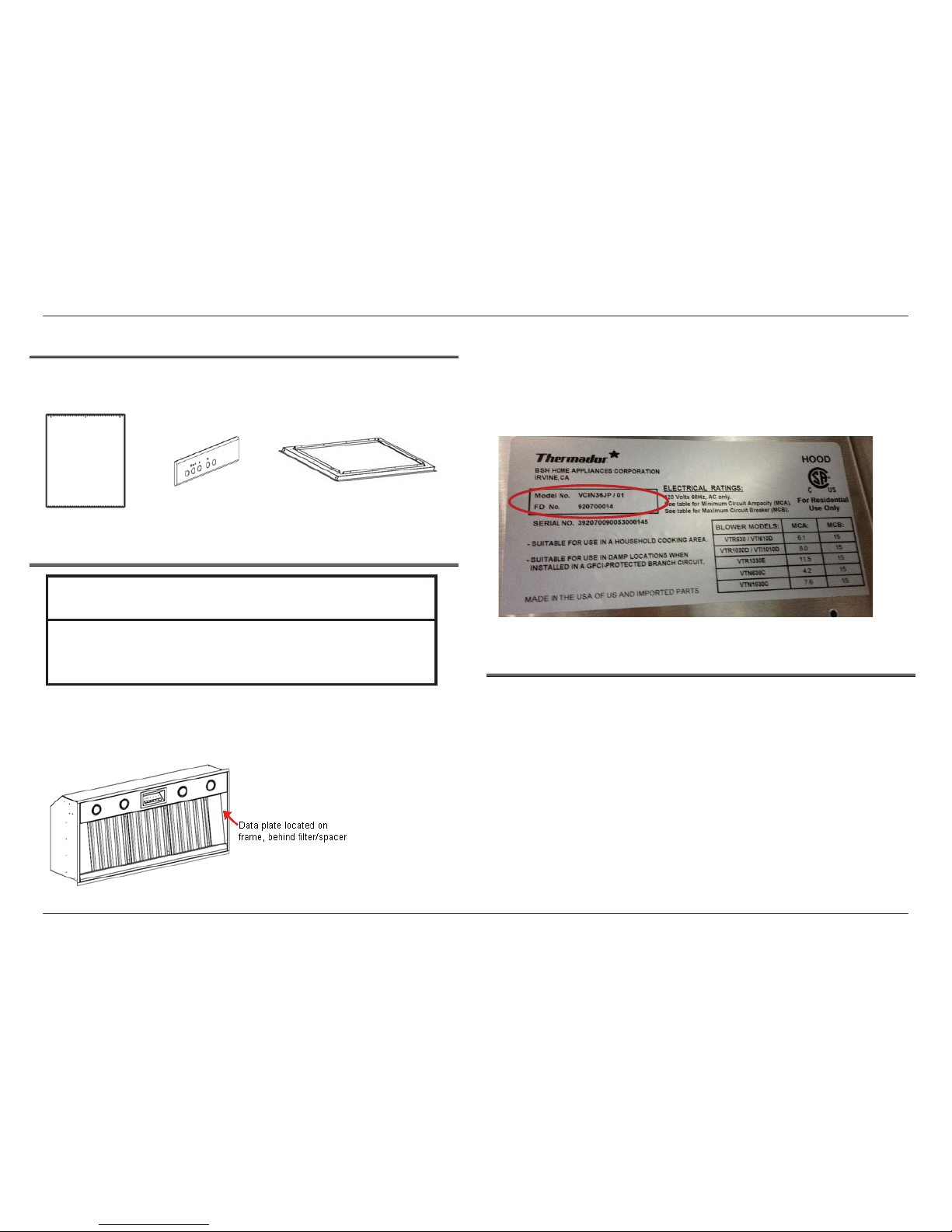

3.3 Accessories
Accessories include a stainless steel backsplash for the 36” and 48”
custom inserts (PAxxJBS), a stainless steel remote control panel
(VCI2REMKS), and a stainless steel custom hood liner (LINER2xx).
3.4 Data Plate
After removing the filter and spacer, on the right, the English and
French data plates reflecting model number and FD number will be
visible on the right side of the frame (see Figure 2). The Spanish
language data plate is located on the left side.
The first 4 positions of the FD number reflect the year/month the
product was built. FD numbers that begin with 92 were built in 2012,
93 = 2013, etc.
The first 4 digits of the FD number (9207) shown in Figure 3 indicate
the VCIN36JP/01 was built in July 2012.
3.5 Warranty
Find the complete product warranty statement in the Use and Care
Guide.
During the warranty period, BSH Home Appliances (BSH) will pay for
all repair labor and replacement parts found to be defective due to
materials and workmanship. Service must be performed by an
authorized service provider during normal working hours. BSH will
have no responsibility or liability for repairs or work performed by a
non-authorized servicer.
Figure 2 To view the EN or FR data plate, remove RH filter and RH spacer.
NOTICE
Be prepared to provide the complete Model Number and FD
number printed on the data tag of the unit when contacting
Thermador Customer Support or Technical Support for assistance.
Figure 1 (L to R) Backsplash, remote control panel, custom hood liner
Figure 3 Location of Model No. and FD No. on data plate.

Service Manual for Thermador Professional Series Custom Inserts
Page 8 of 16
4 OPERATION

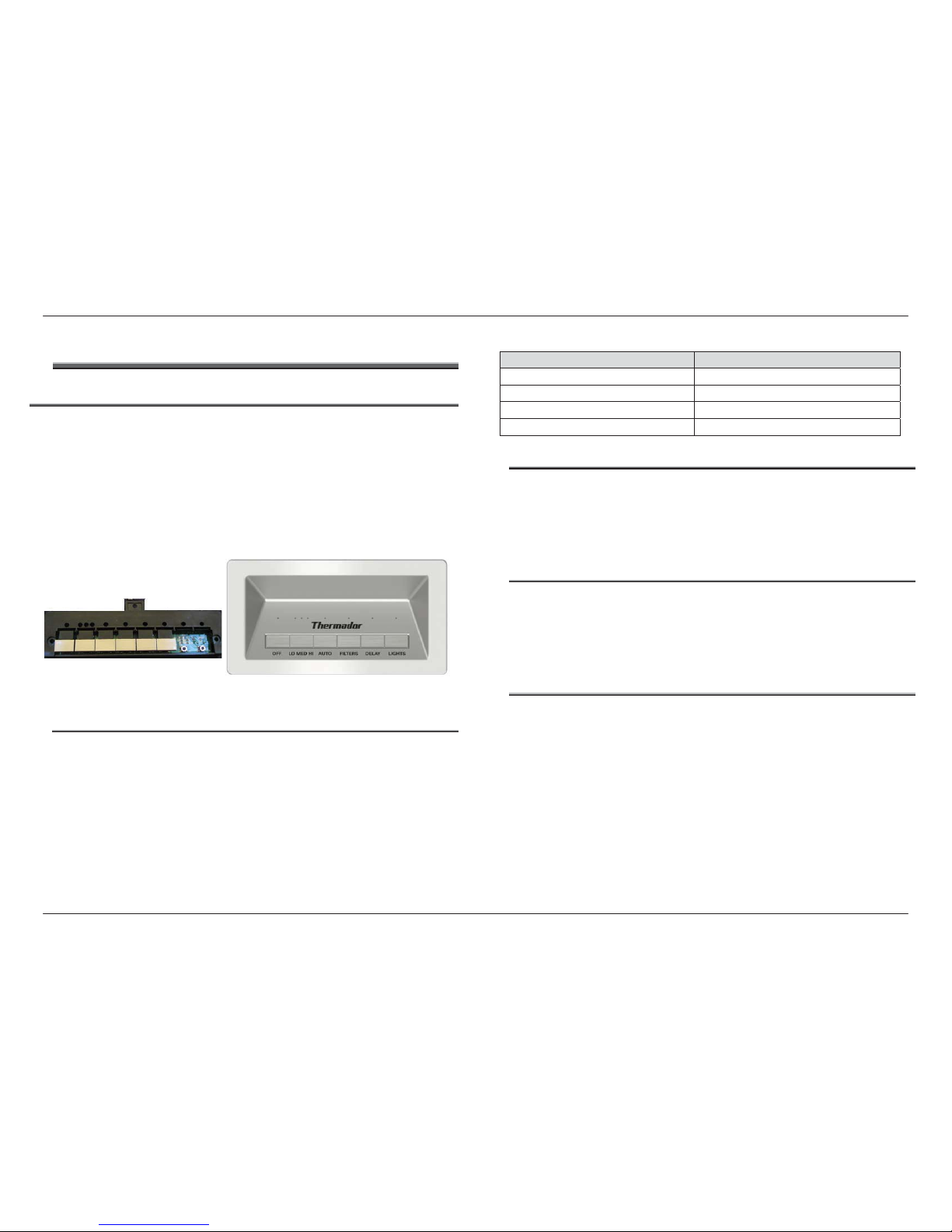

4.1 Control and Control Panel
The 120V /60Hz / 60A control board is populated by 6 push-buttons
(buttons 7and 8 have been removed from the board) and LEDs for the
control panel, and serves as a selector switch. The mode is selected
when a button is pressed. The control board then sends commands to
the relay board / power supply through the ribbon cable used for
communication.
The LED above each button will illuminate when that particular
function is activated.
4.1.1 AUTO Function
When the automatic blower function is enabled by pressing AUTO, the
function will control both the activation and speed of the fan based on
the temperature read by the heat sensor on the control board.
If the AUTO function is selected while the blower is already running,
(LO,MED,HI, or DELAY), the control will disable that function and
immediately initiate the automatic function.
When AUTO is enabled, the control will poll the temperature every 30
seconds and automatically adjust the blower speed accordingly.
TEMPERATURE READING BLOWER ACTION
< 86° F (30°C) Disabled
86° - 103° F (30 - 39°C) Low speed
104° - 121° F (40 - 49°C) Medium speed
122° - 166° F (50 - 74°C) High speed
4.1.2 DELAY Function
If the DELAY button is pressed when the blower is off, the fan will turn
on at the high speed setting for 10 minutes, then shut off.
If the blower is operating when the DELAY button is pressed, the fan
will run for 10 minutes at the currently selected speed, then shut off.
4.1.3 Clean Filter Reminder
After 40 hours of operation, the LED above the FILTERS button will
illuminate, indicating that the filters need to be cleaned.
Pressing the button for 3 seconds will reset the 40-hour period and
turn the LED off. The activated tone will occur after reset.
4.1.4 Heat Sensor
The control board includes an over-temperature sensor to protect the
hood from high temperatures which may damage components.
Over-Temperature Condition - The sensor is set to activate at 167º F
(75º C) and reset when temperature returns to 140º F (60º C).
When the over-temperature condition is activated, the ventilator will
turn on high, and the corresponding LED will blink at .5 second
intervals.
While the over-temperature condition is activated, the ventilator speed
and delay switches are not functional. Light controls will remain
operational. When the sensor cools and once again reaches 140º F
Figure 4 Control board and control panel

Service Manual for Thermador Professional Series Custom Inserts
Page 9 of 16
Figure 5 Molex plug on ventilator/power harness
(60º C), the control will revert back to the operational state prior to the
over-temperature condition.
Over-Temperature Fault Condition - The circuit is equipped with an
alarm indicating that the over-temperature protection is not working
due to a damaged sensor. In the case of this extreme condition, all
speed-indicator LEDs will start blinking. All controls will still be
operational except the speed indicators.
4.2 Ventilator / Power Harness
The ventilator / power harness is wrapped in black sleeving. One end
is connected to the main relay/power board, and the other end has a
molex plug connector for the blower, as well as the L1 (black) and
neutral (white) power supply leads.
4.3 Main Relay Board / Power Supply
The 120V / 60Hz / 16A main relay board / power supply is connected
to high voltage. Relays on a printed circuit board beneath the housing
control the ventilator and lights. The relays react to input and
commands from the control board and activate the components in the
hood.
4.4 Lights
Halogen lamp assemblies include a receptacle, a G-9 120V 40W bulb,
and lens cover.
There are two settings - normal and dim - which are controlled by the
resistor(s).
Figure 6 Main relay board / power supply
NOTICE
The heat sensor is not field-replaceable; the control must be replaced
when the sensor malfunctions.
Figure 7 Halogen lamp assembly

Service Manual for Thermador Professional Series Custom Inserts
Page 10 of 16
To replace a halogen bulb, use a flat-blade screwdriver to gently pry
the lens cover off the lamp assembly. Remove the damaged bulb from
the receptacle. Wearing gloves or using a cloth, insert the new 120V
40W G-9 bulb into the receptacle.
CAUTION
4.5 Resistor
A 100-watt 68 ohm resistor operates the dimming function of the lights.
When selected, the brightness of the lamps is dimmed by
approximately 40%.
There is one resistor for every two halogen lamp assemblies installed.
Figure 9 Resistor
Any surface contamination, including the oil from fingertips, may
damage a halogen bulb.
¿
Figure 8 Replacing a halogen lamp

Service Manual for Thermador Professional Series Custom Inserts
Page 11 of 16

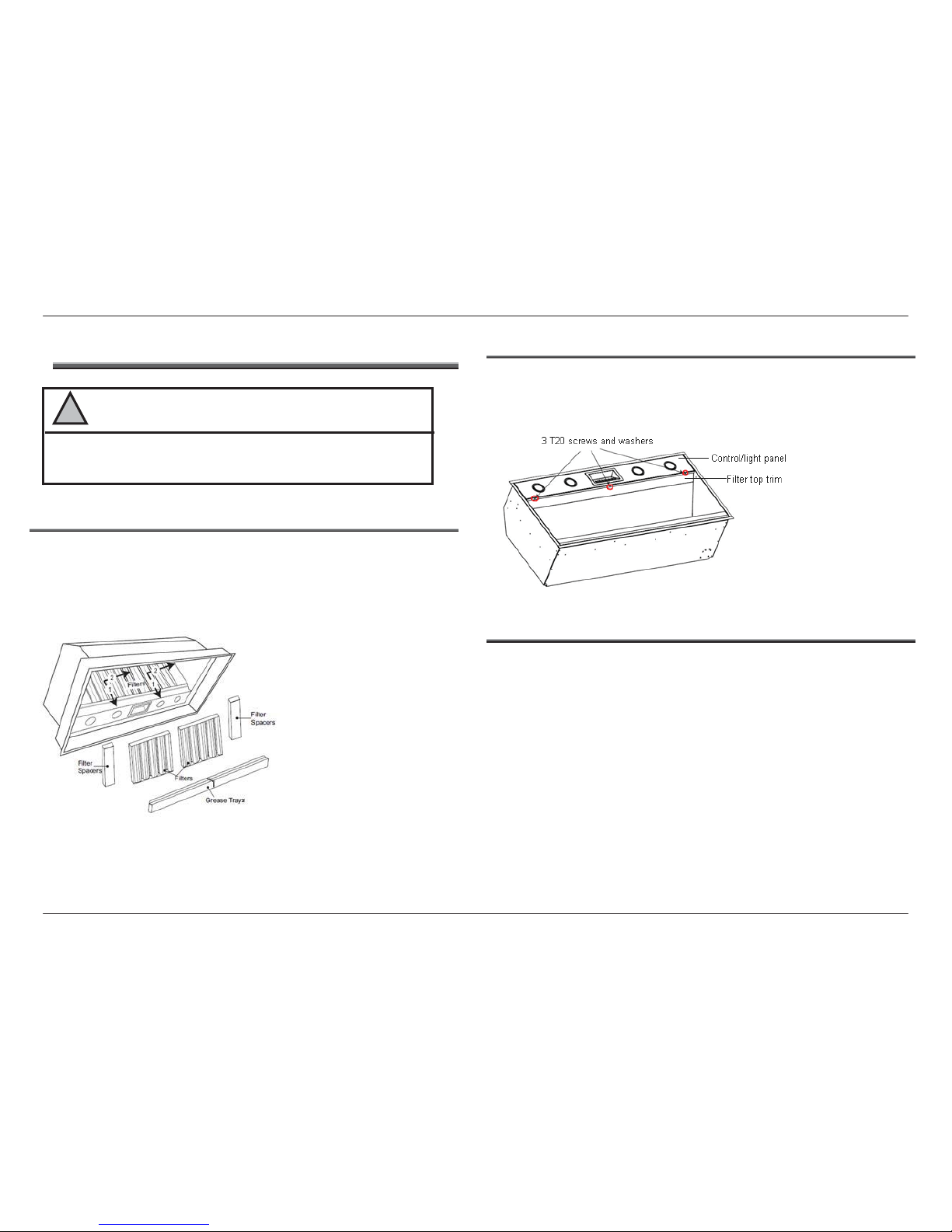

5 DISASSEMBLY
5.1 Filters, Spacer Panels, Grease Trays
For models with more than 2 filters, remove center filter(s) first. Push
filter up, then pull out from the bottom. Repeat with remaining filter(s).
Spacer panels are removed in the same manner as filters; push up,
then pull out from the bottom.
Grease trays lift up and out.
5.2 Filter Top Trim
To detach the stainless steel filter top trim from the stainless
control/light panel, remove the filters, spacer panels, and grease trays,
then remove the 3 screws and washers which secure the filter top trim
panel.
5.3 Electronics
The electronics mounting panel supports the resistor and the main
relay board / power supply. The control module is mounted to the rear
of the control mounting assembly, which is attached to the stainless
steel control/light panel. The halogen lamp assemblies are also affixed
to the stainless control/light panel.
To access the resistor(s), relay board / power supply, control module,
or halogen lamp assemblies, first remove the filters, spacers, grease
trays, and filter top trim as described above.
Next, remove the 2 screws securing the junction box cover to the core
partition (see Figure 12), and disengage the junction box tabs from the
custom insert housing.
WARNING
Before servicing, review all safety information found in Section 2
IMPORTANT SAFETY INFORMATION.
¿
Figure 11 Removing the filter top trim
Figure 10 Removing filters, spacer panels, and grease trays

Service Manual for Thermador Professional Series Custom Inserts
Page 12 of 16
Remove the 4 side screws securing the core partition to brackets, and
4-6 screws securing the core partition to top mounting plate. (Filter
bracket will remain attached to core partition.)
5.3.1 Resistor(s) and Relay Board / Power Supply
The gold-colored resistors are attached to the electronics mounting
panel with 2 Phillips-head screws. To detach, disconnect the wire
harness and remove the screws.
The main relay board / power supply is secured to the mounting panel
with 1 screw on the side of the relay, and 4 plastic tabs on the relay
housing, which engage with 4 slots on the mounting panel.
To remove the power supply, first remove the screw, then press the
two leftmost tabs forward to release the module.
5.3.2 Control Module
The control is secured to 3 studs affixed to the control mounting plate
(which is taped to the control mounting panel) by 3 M4 hex nuts. To
remove the control, disconnect the communication harness, and
remove the 3 nuts.
Figure 14 Push two leftmost tabs forward to release power supply from mounting panel
Figure 13 Components on the electronics mounting panel
NOTICE
When replacing the control module, buttons 7 and 8 must be
removed prior to installation. Instructions are provided with the part.
Figure 12 Removing junction box cover and core partition
Figure 15 Removing the control module

Service Manual for Thermador Professional Series Custom Inserts
Page 13 of 16
The control mounting panel assembly is secured to the stainless steel
control/light panel by 4 corner studs (which are permanently affixed to
the assembly) and 4 M5 nuts. Due to the offset position of the taped
mounting plate, this assembly is not serviceable at this time.
5.3.3 Halogen Lamp Assemblies
The halogen lamp assemblies are also affixed to the stainless steel
control/light panel.
The halogen lamp receptacles will snap out. Depress the clips on the
receptacle housing (using a flat blade screwdriver, if necessary), while
gently pushing the receptacle downward through the front of the
canopy as shown in Figure 18. Disconnect the wire harness.
Figure 18 Removing a halogen lamp receptacle.
Figure 16 Control module with buttons 7 and 8 removed
Figure 17 Control mounting panel assembly front view (R) and rear view (L).

Service Manual for Thermador Professional Series Custom Inserts
Page 14 of 16
6 TROUBLESHOOTING
The procedures below are recommended if the custom insert
malfunctions…
6.1 Self-test Program
Press the FAN and DELAY buttons simultaneously for 3 seconds to
enable the test program, which activates the following sequence...
1. LEDs switch on simultaneously
2. LEDs switch off simultaneously
3. Blower runs at low speed with corresponding LED illuminated
4. Blower runs at medium speed with corresponding LED
illuminated
5. Blower runs at high speed with corresponding LED illuminated
6. Blower switches off
7. Light switch turns on at maximum power
8. Lights are dimmed
9. Lights turn off
10. Audible beep indicates that self-test is completed
6.2 Additional Troubleshooting Steps
If the blower or hood is malfunctioning, verify the following…
9Filters are sufficiently clean to allow air to flow freely
9Wire and plug connections are tight and correct
9Buttons on the control board are not sticking
9Audible switching noises can be heard from the main relay /
power supply
Using a voltmeter…
9Check for 120V coming into the unit at the power supply leads
9Check for 120V at each of the speed wires to chassis ground

Service Manual for Thermador Professional Series Custom Inserts
Page 15 of 16
7 ADDITIONAL REFERENCES
For further information, please refer to the following documents on
QuickFinder:
Wiring diagram
Installation Instructions
Use and Care Guide
Repair videos
Blower manuals and instructions
Remote control Installation Instructions
LINER2xx Installation Instructions
Backsplash Installation Guide
Exploded views, parts lists, and related service and parts notes are
also available on QuickFinder. Visit http://portal.mch.bshg.com/portal.
7.1 Technical Support
Additional assistance is available to authorized servicers by contacting
the Thermador Technical Support Team at 800 444-9091. Technicians
are available Monday – Friday, between the hours of 5am and 5pm,
Pacific Time.
NOTICE
Not all service parts may be shown on the QuickFinder exploded
views; review the parts list for additional information.

58300000167356 ARA EN B BSH Home Appliances Corporation Page 16 of 16
1901 Main Street, Suite 600, Irvine, CA 92614
July 2016
8 NOTES
