Thermador PROFESSIONAL HPCN36NS User manual

INSTALLATION MANUAL
THERMADOR PROFESSIONALTM Chimney Hoods
MANUEL D'INSTALLATION
Hottes avec conduit PROFESSIONALMC de THERMADOR
MANUAL D INSTALACIÓN
Campanas con conducto PROFESSIONALTM de
THERMADOR
Models/
Modèles/
Modelos:
HPCN36NS
HPCB36NS
HPCN48NS
HPCB48NS

This THERMADOR®appliance is made by
BSH Home Appliances Corporation
1901 Main Street, Suite 600
Irvine, CA 92614
Questions?
1-800-735-4328
www.thermador.com
We look forward to hearing from you!
Table of Contents
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Advance Planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Overall Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Installation Preparation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installation Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Ductwork Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Electrical Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Hood Transition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Hood Height Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Wiring Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Back Wall Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Hanging the Chimney Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Wire Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Integral Blower Motor Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Chimney Extension Assembly & Installation (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Grease Trays and Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Service and Installer Checklist. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Before Calling Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Installer Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Customer Support, Accessories & Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . back page

English 1
Safety
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
INSTALLER: Please leave these instructions with this unit
for the owner. Show the owner the location of the circuit
breaker. Mark it for easy reference.
OWNER: Please retain these instructions for future
reference.
Electric Safety
GROUNDING INSTRUCTIONS
This appliance must be grounded. Grounding reduces the
risk of electric shock by providing a safe pathway for
electric current in the event of a short circuit.
WARNING!
If the information in this manual is not followed exactly,
fire or shock may result causing property damage or
personal injury.
WARNING!
Turn off power circuit at service panel and lock out panel
before wiring this appliance. Requirement: 120 VAC, 60
Hz 15 A. Allow the appliance to cool after the power has
been turned off before servicing the appliance.
WARNING!
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
• Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the
manufacturer at the address or telephone number
listed on the back page.
• Before servicing or cleaning unit, switch power off at
service panel and lock the service panel to prevent
power from being switched on accidentally. When
the service panel cannot be locked, securely fasten
a prominent warning device, such as a tag, to the
service panel.
WARNING!
Do not repair or replace any part of the appliance unless
specifically recommended in the manuals. Improper
installation, service or maintenance can cause injury or
property damage. Refer to this manual for guidance. All
other servicing should be done by a qualified technician.
WARNING!
State of California Proposition 65 Warnings:
This product contains chemicals known to the State of
California to cause cancer, birth defects or other
reproductive harm.
WARNING!
IMPROPER GROUNDING CAN RESULT IN A
RISK OF ELECTRIC SHOCK
If the power cord is too short, have a qualified
electrician install an outlet near the appliance.
DO NOT USE AN EXTENSION CORD.
Consult a qualified electrician if the grounding
instructions are not completely understood, or
if doubt exists as to whether the appliance is
properly grounded.
WARNING!
ELECTRICAL SHOCK HAZARD
•DO NOT remove connections.
•DO NOT use an extension cord.
• Improper grounding can result in a risk of
electric shock.
• Failure to follow these instructions can
result in death, fire, or electrical shock.

English 2
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
Ensure appliance is properly installed and grounded by a
qualified technician. Installation, electrical connections and
grounding must comply with all applicable codes.
If required by the National Electrical Code (or Canadian
Electrical Code), this appliance must be installed on a
separate branch circuit.
Appliance Handling Safety
Related Equipment Safety
Never modify or alter the construction of the appliance. For
example, do not remove panels, wire covers or brackets/
screws.
When cutting or drilling into wall or ceiling, be careful not to
damage electrical wiring and other hidden utilities.
Use a quali¿ed and trained installer.
Safety Codes and Standards
This appliance complies with one or more of the following
Standards:
• UL 507, The Standard for the Safety of Electric Fans
• CSA C22.2 No. 113, Fans and Ventilators
It is the responsibility of the owner and the installer to
determine if additional requirements and/or standards
apply to specific installations.
Ventilation Safety
WARNING!
To reduce the risk of fire or electric shock, do not use
this appliance with any solid-state speed control
devices.
CAUTION!
Unit is heavy and requires at least two
people or proper equipment to move and
install.
Hidden surfaces may have sharp edges.
Use caution when handling the appliance.
Failure to do so may result in property
damage or personal injury.
CAUTION!
FOR GENERAL VENTILATING USE ONLY. Do not use
to exhaust hazardous or explosive materials and vapors.
To reduce the risk of fire, use only metal ductwork.
WARNING!
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
• Installation work and electrical wiring must be done
by qualified person(s) in accordance with all
applicable codes and standards, including fire-rated
construction.
• Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of
fuel burning equipment to prevent back drafting.
Follow the heating equipment manufacturer's
guideline and safety standards such as those
published by the National Fire Protection
Association (NFPA), and the American Society for
Heating, Refrigeration and Air Conditioning
Engineers (ASHRAE), and the local code
authorities.
• Use only metal ductwork.
• Ducted fans must always be vented to the outdoors.
Do not vent exhaust air into spaces within walls,
ceilings, attics, crawl spaces or garages.
• When cutting or drilling into wall or ceiling, do not
damage electrical wiring and other hidden utilities.

English 3
Advance Planning
Before You Begin
Remove all tape and packaging before using the
appliance. Please, recycle the packaging
material, as all THERMADOR appliance
packaging material is recyclable. Never allow
children to play with packaging material.
NOTE:
Do not throw away any packaging until appliance is fully
installed.
PARTS INCLUDED
1 – VTN1080 integral blower (HPCB
models only)
1 – Metal transition with backdraft
damper
2 or 3 – Stainless steel baffle filters
(depending on model size)
2 or 3 – Grease trays (depending on
model size)
1 – Remote blower adaptor
(HPCN models only)
1 – Wood bracket used as Hood
Mounting Bracket. Part of install –
DO NOT THROW AWAY.
1 – Fastener assortment*
Literature Packet
* Hardware provided is for mounting through standard
thickness drywall or plaster into wood studs. Installers
are responsible to provide hardware for other types of
mounting situations.
TOOLS AND PARTS NEEDED
Aluminum tape, DO NOT use duct tape
1/2” (13 mm) Conduit if required, follow local codes
1” (25.4 mm) Strain relief
Ducting as needed
Blower (HPCN36NS and HPCN48NS models only)
Torx head and phillips screwdrivers
Drill with ¼”, 5/16”, and countersink drill bits
3/8” (9 mm) nut driver or socket and ratchet
Wire stripper Stud Finder
Step Ladder Level
Tape Measure
Optional accessories are available for separate
purchase. For available options and dealer
information, visit our website at
www.thermador.com.
Chimney Extensions (see page 16 for available options)
25 ft. Blower Connector Cable for distances up to 25 ft.
(EXTNCB25)
Keep Hot Shelf
Backsplash
Remote Blower Roof Plate (RFPLT600 and RFPLT1000)

English 4
General Information
This manual provides the proper installation instructions for two styles of THERMADOR PROFESSIONAL®Chimney
Hoods:
HPCNxxNS — This model series features brushed stainless-steel filters and halogen lights.
HPCBxxNS — This model series features brushed stainless-steel filters, an integral blower, and halogen lights.
Overall Dimensions
NOTE:
Transition is centered.
36” (914)
inches (mm)
48” (1,219)
inches (mm)
A21” (533) 33” (838)
B35 15/16” (838) 47 15/16” (1218)
C10½” (267) 16½” (419)
NOTE: Transition fits 10” (254) duct.
measurements in inches (mm)

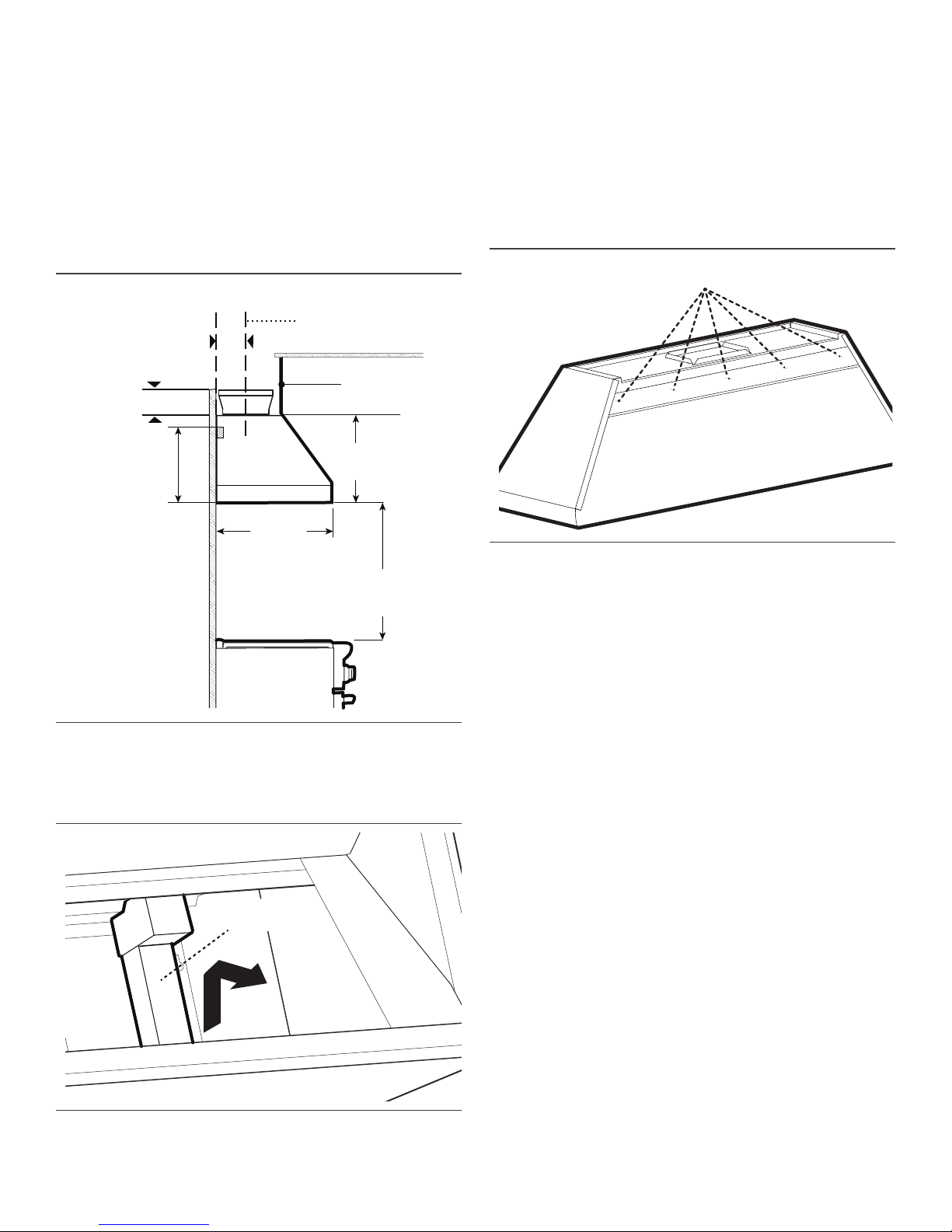

Figure 1: Overall Hood Dimension
14"
(356)
24"
(610)
18"
(457)
8
(212)
dia. 9½"
(dia. 243)
A
B
7¾”
"
3/8
(148)
C
C

English 5
Installation Preparation
Installation Considerations
The chimney hood requires the ducting to be vented to the
outside. It cannot be used in conjunction with a
recirculation unit.
Hood installation height above a cooktop, rangetop or
range can vary. To obtain the necessary installation height
above a cooktop, rangetop or range, consult the
appliance's installation manual.
NOTICE:
The hood could incur some damage from heat if a
THERMADOR PROFESSIONAL series range or rangetop
is operated with multiple burners at high settings under a
hood that is installed at minimum clearances while the
hood is turned off.
Hood Width
The hood width should be no less than the width of the
cooking surface. For proper performance, the housing must
cover the entire cooking surface.
Where space is not restricted, a wider hood can be used to
increase coverage.
The hood needs to be centered over the cooking surface
for best performance.
Distance From Cooking Surface
The installation height has a minimum height of 30”
(762 mm) from the cooking surface; however, it is
necessary to follow the cooking appliance manufacturer’s
installation instructions for proper hood height.
Unit Weight
When calculating the load for the housing support system,
be sure to consider the weight of the ventilation unit.
measurements in inches (mm)

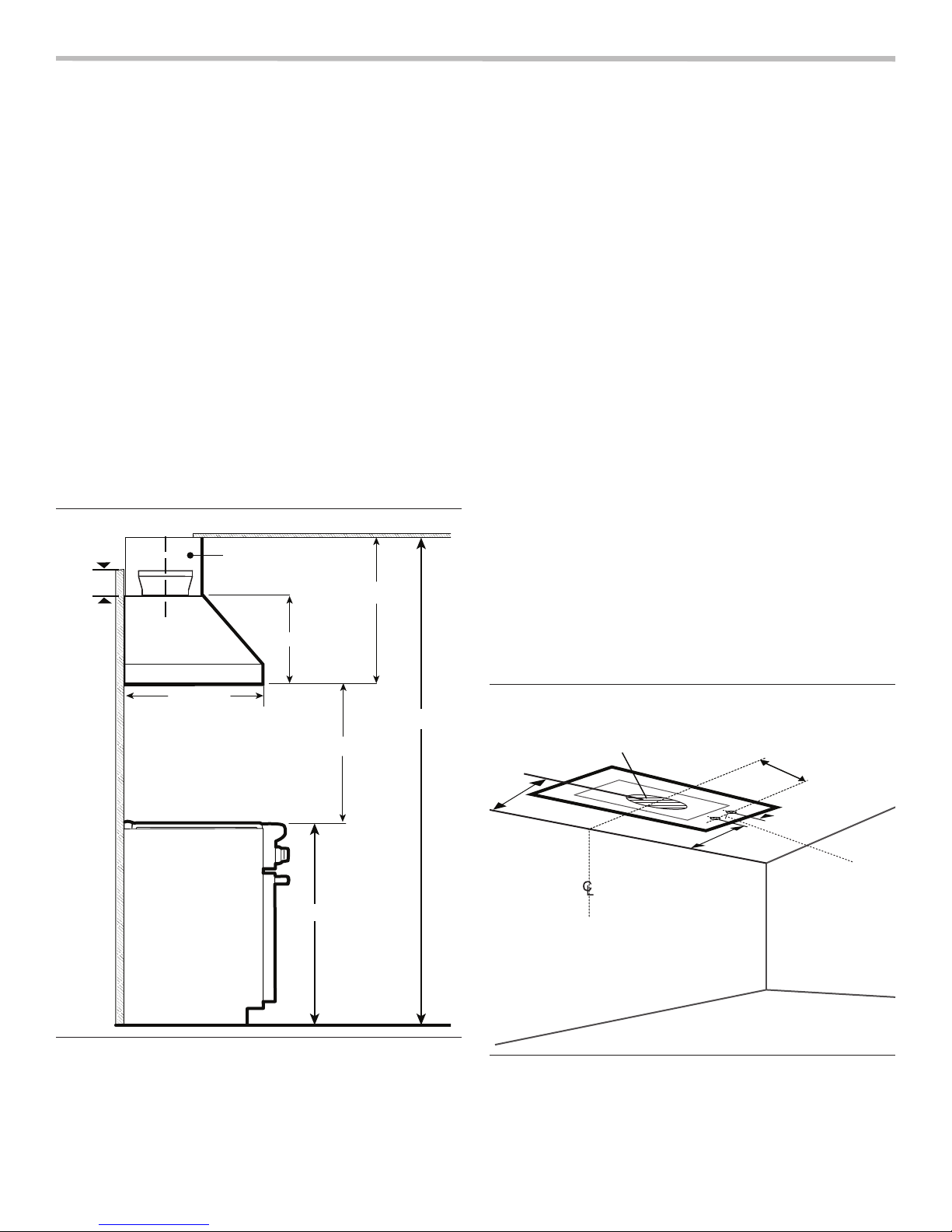

Figure 2: Typical Hood Installation
Cooking
Surface
18”
18”
(457)
(457)
(457)
* Hood width should be no less
than the width of the cooking
surface.
E
* Follow cooking appliance
manufacturer’s recommendations
* 30" (762) min.
36” (914) max.
to Cooking Surface
* 30" (762) min.
36” (914) max.
to Cooking Surface
* 30" (762) min.
36” (914) max.
to Cooking Surface
3¼”
(83)
Electrical Location
6½” (165)
MODEL WEIGHT
HPCN36NS 33 lbs. (15 kg)
HPCB36NS 49 lbs. (22 kg)
HPCN48NS 47 lbs. (21 kg)
HPCB48NS 63 lbs. (29 kg)
NOTE: “HPCN” models do not include the weight of an
integral blower. The integral blower weight is an
additional 16 lbs. (7 kg). “HPCB” models do include the
weight of an integral blower.
IMPORTANT:
The supplied weights address only the ventilation unit
and blower. Installer must account for weight of any
materials of construction when calculating the total dead
weight load of installation, including but not limited to:
wall, tile, mortar, plaster, brick, finishes, partitions, and
other similarly incorporated architectural and structural
items. It is the responsibility of the owner and the
installer to determine if additional requirements and/or
standards apply to specific installations.

English 6
Wall Framing
Due to the weight of the hood, make sure the wood
mounting bracket is attached to all available wall studs.
Framing must be fastened together and to ceiling joists to
provide enough structural strength to support the weight of
the hood and internal blower, if applicable.
Wall framing should be, at minimum, made of 2" x 4"
lumber. Proper structural support is required to
accommodate the weight of the hood.
Ductwork Preparation
Discharge Direction
The exhaust air is discharged upwards through a duct or
directly through the outside wall into the open.
The hood can be mounted on the wall only with a vertical
discharge.
Ducting Recommendations
Proper performance is dependent upon proper ducting.
Local building codes may require the use of make-up air
systems when using ducted ventilation systems greater
than speci¿ed cubic feet per minute (CFM) of air
movement.
The speci¿ed CFM varies from locale to locale. It is the
responsibility of the owner and the installer to determine if
additional requirements and/or standards apply to specific
installations.
DO NOT USE FLEXIBLE DUCT; it creates back pressure/
air turbulence and reduces performance.
Always install a metal vent cover where the ductwork exits
the house.
COLD WEATHER installations should have an additional
backdraft damper installed to minimize reverse cold air flow
and a nonmetallic thermal break to minimize conduction of
outside temperatures as part of the ductwork. The damper
should be on the cold air side of the thermal break. The
break should be as close as possible to where the ducting
enters the heated portion of the house.
MAKE-UP AIR: Local building codes may require the use
of make-up air systems when using ducted ventilation
systems greater than specified CFM of air movement. The
specified CFM varies based on locale. It is the
responsibility of the owner and the installer to determine if
additional requirements and/or standards apply to specific
installations.
The unit cannot be used in conjunction with a recirculation
unit.
THERMADOR recommends not exceeding 50 ft (15.24 m)
of duct.
Keep duct runs as short and straight as possible. Elbows
and transitions fittings reduce air flow efficiency. Back to
back elbows and “S” turns give very poor delivery and are
not recommended. A short straight length of duct at the
inlet of a remote blower gives the best delivery.
Hoods are supplied with a 10" (254 mm) round transition. A
locally supplied transition is required for other sizes.
Use “Equivalent Duct Lengths for Commonly Used
Transitions” on page 7 to compute permissible lengths for
duct runs to outdoors.
WARNING!
Vent ducting directly outdoors (not into an attic,
underneath the house, into the garage or into any
enclosed space).

English 7

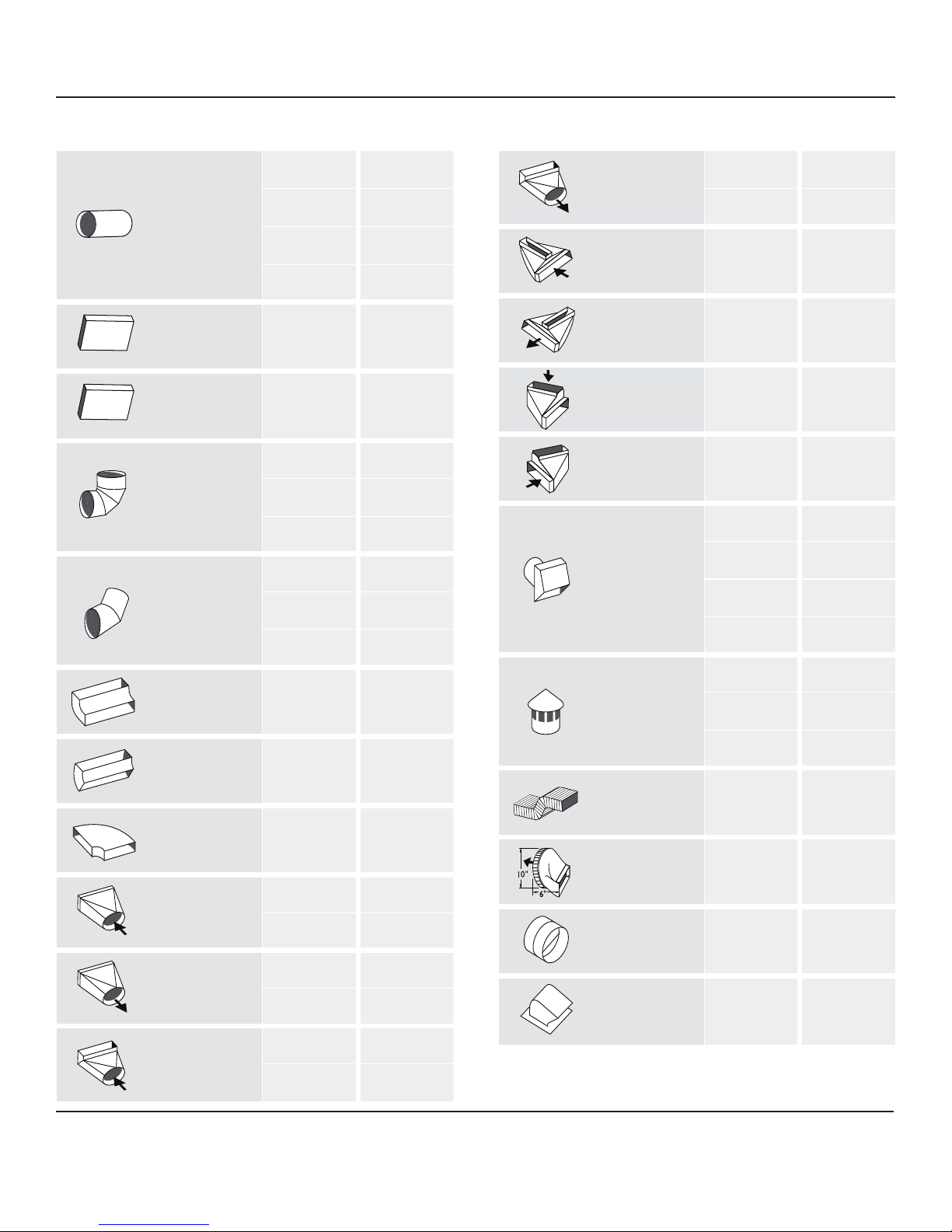

Equivalent Duct Lengths for Commonly Used Transitions
Smooth
Straight
6 1.2
7 0.95
8 0.7
10 0.6
3¼" x 10"
Straight N/A 1
3¼" x 14"
Straight N/A 0.7
90° Elbow
Round
612
78
86
45° Elbow
Round
65
74
83
3¼"x 10"
90° Elbow
Round
N/A 5
3¼” x 10"
45° Elbow
Round
N/A 15
3¼"x 10"
Flat Elbow N/A 20
Round to
3¼"x 10"
61
71
3¼"x 10"
to Round
65
73
Round to
3¼"x 10"
90° Elbow
610
78
3¼"x 10"
to Round
90° Elbow
610
75
3¼"x 10"
Center Reverse
Elbow Left
N/A 15
3¼"x 10"
Center Reverse
Elbow Right
N/A 25
3¼"x 10" Left
Reverse Elbow N/A 15
3¼"x 10"
Right Reverse
Elbow
N/A 25
Round
Wall Cap
62
72
82
10 2
Round
Roof Cap
62
72
82
2' Long
3¼"x 10"
Flex
N/A 20
3¼"x 10"
to Round 10 1
7" Inline
Backdraft
Damper
7
3¼"x 10"
Roof Jack
and Shutter
N/A
NOTE: These commonly used installation parts can be purchased
at a local hardware store. THERMADOR® does not manufacture all
these parts.
Duct Piece
Size of Duct
Piece (in) Duct Piece Size of Duct Piece (in)
Equivalent
Length (ft)
Equivalent
Length (ft)

English 8
Electrical Requirements
The unit requires a 120V AC, 60Hz. 15A branch circuit.
The hood should only be connected to a dedicated circuit
(with ground) that has been installed according to relevant
regulations.
When connected to a GFCI-protected supply,
THERMADOR PROFESSIONAL hoods are suitable for
use in damp locations that are protected from outside
weather conditions and not subject to saturation with water
and other liquids, but can be subject to moderate degrees
of moisture (such as an outdoor covered patio or lanai
area). Refer to local codes, NEC/CEC, and or the Authority
Having Jurisdiction (AHJ) for additional information.
Check your local building codes for proper method of
installation. In the U.S., if there are no applicable local
codes, this unit should be installed in accordance with the
National Electric Code ANSI/NFPA No. 70, Current Issue.
In Canada, installation must be in accordance with the CAN
1- B149.1 and .2 - Installation Codes for Gas Burning
Appliances and/or local codes.
The appliance must be grounded. In the event of an
electrical short circuit, grounding reduces the risk of electric
shock by providing a wire that allows the electric current to
escape.
Electrical Data on the Data Rating Plate:
Data, including the model and serial number, is located on
the product data rating plate inside the appliance, visible
after removal of the filter frame (see Figure 29 on page 19).
Hood Transition
Assembly of the Transition:
The overall height of the transition is 8Ǫ" (212 mm). The
hood transition sits 6½” (165 mm) above the top of the
hood. 1Ǭ" will mount below the top edge of the hood. See
Figure 4 on page 9 for overall hood dimensions.
1. Align mounting holes at base of transition with the
mounting holes of the ½” (13 mm) flange located at the
top.
2. Fasten transition to hood using (4) 1” (25.4 mm) sheet
metal screws, included with hood.
3. Seal connection between transition and hood with
aluminum tape.
4. Remove tape holding damper closed.
CAUTION!
This range hood must be properly grounded. The unit
should be installed by a qualified electrician in
accordance with all applicable national and local
electrical codes.
WARNING!
The appliance must be grounded.
Figure 3: Transition Connection
3
2
1

English 9
Installation Instructions
Hood Height Specifications
Figure 4 indicates a typical installation of the hood with an
optional chimney extension. Add or subtract chimney
extensions as appropriate to accommodate ceiling height
and recommended hood height.
The installation height is a minimum height of 30”
(762 mm) above the cooking surface; however, it is
necessary to follow the cooking appliance manufacturer’s
installation instructions for proper hood height.
Calculating Optional Duct Cover Height
Optional duct covers are available for purchase in 6”
(153 mm), 12” (305 mm), and 18” – 35” (457 – 889 mm)
sizes.
1. Measure height from floor to ceiling (A, Figure 4).
2. Measure height from floor to cooking surface (B,
Figure 4).
3. Measure hood mounting height from the bottom of
hood to cooking surface (C, Figure 4). Dimension must
be a minimum 30" (762 mm).
4. Calculate optional duct cover height (D, Figure 4):
D = A – (B + C).
NOTICE:
The hood could incur some damage from heat if a
THERMADOR PROFESSIONAL series range or rangetop
is operated with multiple burners at high settings under a
hood that is installed at minimum clearances while the
hood is turned off.
Wiring Preparation
Ensure wiring does not interfere with optional chimney duct
covers (where the cover touches the wall).
Ceiling Cutout for Electrical Location
The junction box is located on the top right side of the hood
(see Figure 9). Wiring should enter the back wall at least
20" (508 mm) above the bottom of the installation height.
Prepare the wire hole cutout in the ceiling as indicated in
Figure 5 (only one hole cutout is necessary for the conduit).
measurements in inches (mm)
Figure 4: Hood Height Calculation
18” (457)
Optional
Chimney
Extension
A
B
D
24” (610)
*Follow cooking
appliance manufacturer’s
recommendations
*30” (762) min.
36” (914) max.
to cooking surface.
*30” (762) min.
36” (914) max.
to cooking surface.
*30” (762) min.
36” (914) max.
to cooking surface.
C
C
C
L
C
L
C
L
6½”
(
165)
measurements in inches (mm)
Figure 5: Electrical Location
Hole to accomodate
10” (254) duct minimum
5/8” (16) dia. clearance
holes for ½” (12.7)
conduit to junction box
1 ft –1 ft ¼” (336)
613/16”(173)
Hood Centerline
Ba
c
k
W
a
l
l
4
7
/8”(48)
7¾”
(197)

English 10
Back Wall Preparation
NOTE:
Hardware provided is for mounting through standard
thickness drywall or plaster into wood studs. Installers are
responsible to provide hardware for other types of
mounting situations.
IMPORTANT:
The hood needs to be centered over the cooking surface
for best performance.

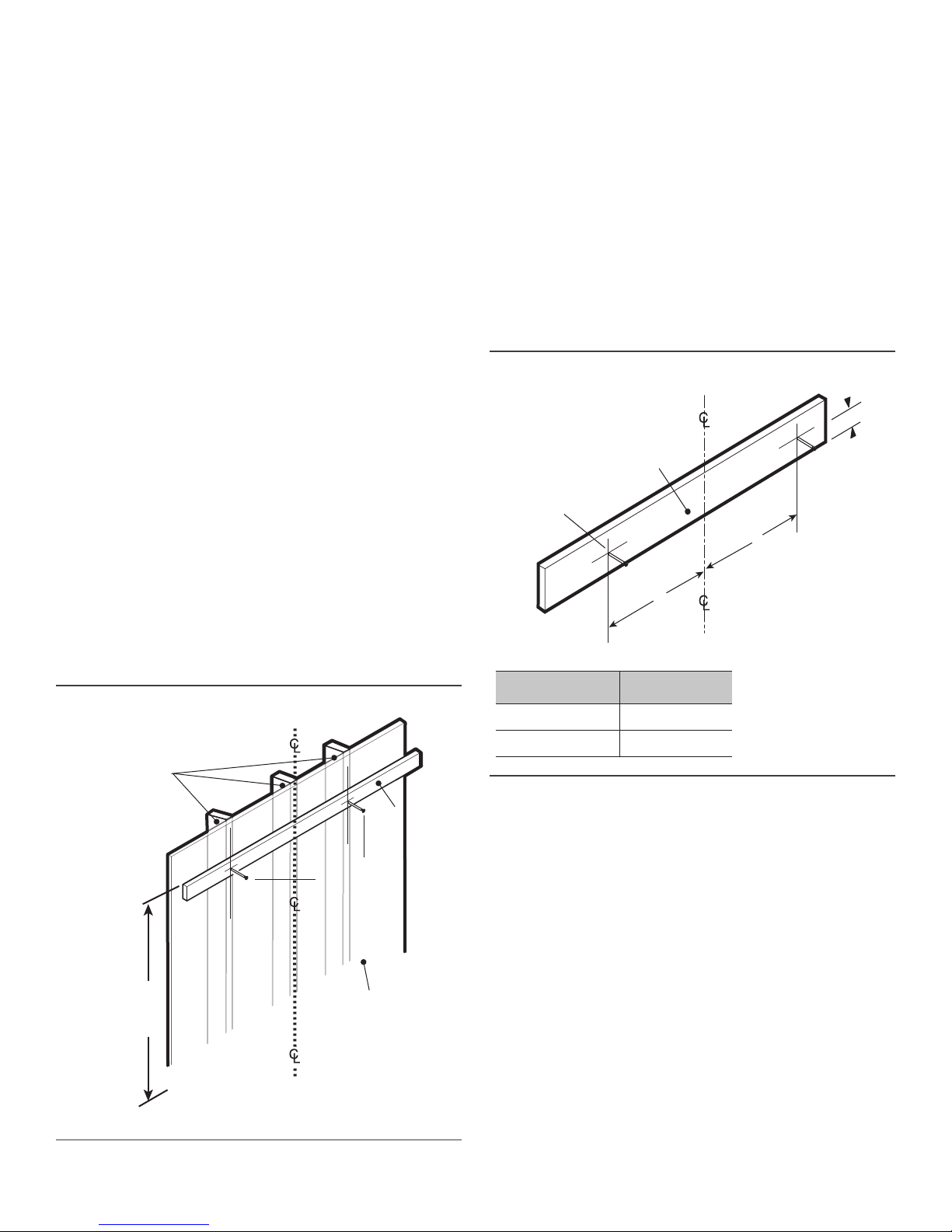

Wood Hanging Bracket
1. Calculate the hood installation height as described on
page 9.
2. Draw a horizontal line at a distance above the cooking
surface equal to the hood installation height plus 16”
(406 mm). This line is the mounting location of the
wood bracket shipped with the hood.
3. Find the centerline of the hood. Draw a vertical line
along this centerline up to the horizontal line drawn in
Step 2.
4. The hood is mounted to the wall using the wood
bracket shipped with the hood. Remove the wood
bracket located at the back side of the hood by
removing the two shipping screws (discard screws).
Mark the centerline of the wood bracket.
5. Locate a stud on both sides of the hood centerline to
use for mounting the wood bracket as shown in
Figure 6.
6. Align the top of the wood bracket along the horizontal
line drawn in Step 2. Align the centerlines of the
bracket and cooktop.
7. Drill a 3” (76 mm) deep ¼” (6 mm) tap hole through the
wood bracket, wall, and into the stud.
8. Remove the bracket and on a sturdy surface, make the
hole larger by drilling a 5/16” (8 mm) hole through the
wood bracket. Use a countersink bit to make a hole
large enough to countersink the screw heads to
prevent interference with the hood.
9. Use (2), 3” (76 mm) screws to attach the wood bracket
to the wall, as shown in Figure 6.
10. On the wood bracket, mark the locations used to hang
the hood according to Figure 7.
11. Drill a 3/16” (4.8 mm) tap hole through the wood
bracket and wall. These 5/8” (16 mm) screws do not
need to go into the studs.
12. Use (2) 1½” (38 mm) screws to secure the wood
bracket leaving ¼” (6 mm) of each screw exposed for
hanging the hood.
measurements in inches (mm)
Figure 6: Mounting the Wooden Bracket
Cooking Surface
Distance to
cooking surface
plus 16” (406)
Distance to
cooking surface
plus 16” (406)
Distance to
cooking surface
plus 16” (406)
Cooktop Centerline
Wood
Bracket
(included)
Wood
Bracket
(included)
Wood
Bracket
(included)
Wall Studs
Screws 2 ea
3” (76)
Screws 2 ea
3” (76)
Screws 2 ea
3” (76)
Drywall
Drywall
Drywall
measurements in inches (mm)
Figure 7: Hanging the Hood
Wood
Bracket
Screws 2 ea
1½” (38)
A
A
2” (51)
HOOD SIZE A
36” (914) 7¾” (197)
48” (1219) 13¾” (350)

English 11
Hanging the Chimney Hood
The transition supplied with the hood connects to standard
10-inch round duct. Installations require a cutout in the
ceiling to accommodate 10" (254 mm) duct and the ½”
(13 mm) conduit carrying power to the unit.
Chimney extensions, sold separately, are available to cover
the space between the top of the hood and ceiling (see
“Chimney Extension Installation (optional)” on page 16).
1. Use a T-10 Torx head screwdriver to remove the screw
securing the junction box channel covering the wires.
2. Remove one circular knockout behind junction box
channel.
3. Using two people to lift, rest the hood on the wood
bracket. Make sure the wood bracket fits into the
recess on the back of the hood.
4. From inside the hood, predrill the holes labeled “J” in
Figure 10 in hood into the wood bracket with a 5/8”
(16 mm) drill bit. Secure the hood to the wood bracket
with five (5) 1½” (38 mm) screws.
5. Connect additional ducting.
measurements in inches (mm)
Figure 8: Transition Centerline
Figure 9: Junction Box Channel
6½”
(165)
Transition
Centerline
7¾”
(197)
24” (610)
Hood Depth
18”
(457)
*Follow cooking
appliance
recommendations
Optional
Chimney
Extension
C
L
C
L
C
L
16" (406)
to top of wood
mounting strip
*Hood height
*Hood height
*Hood height
min. 30” (762)
max. 36” (914) to
cooking surface
min. 30” (762)
max. 36” (914) to
cooking surface
min. 30” (762)
max. 36” (914) to
cooking surface
Junction Box
Channel
Figure 10: Location of Screw Holes
J

English 12
Wire Connection
Wire Routing
1. Run a 120V AC, 15 amp circuit power cable from the
service panel through one of the holes in the top plate.
2. Connect black wire to power supply black wire, white
wire to power supply white wire and green wire to
green wire or bare wire.
3. Place all wiring connections inside the junction box
channel. Reinstall on the top plate. Ensure that the
wires are secure and that no wires are pinched.
EXTNCB25 Blower Connection Cable
(optional)
Blower Extension Cable Connection
The internal blower harness should be routed through the
knockout and secured with a 1” (25.4 mm) strain relief. The
remote harness can then be connected to the blower
harness outside the unit (refer to Figure 11).
IMPORTANT:
Cutting of the connector will void the warranty of the
appliance.
The blower extension cable is compatible with the
following Inline & Remote blowers:
Figure 11: Route Wire
Figure 12: Wire Connection
Route Wire
White to white
Black to black
Green to green
or bare wire
PARTS INCLUDED:
1 – 25ft cable
2 – Adapter Cables
(NOT NEEDED for
HPCN or HPCB
models)
Figure 13: Optional Blower Connection Cable
BLOWER SKU
Remote Blower VTR630*
Remote Blower VTR1030*
Remote Blower VTR1330*
Inline Blower VTI610*
Inline Blower VTI1010*
*Indicates a letter designating the release year.
25ft cable
Connects
to Hood
Connects to
Remote or
Inline blower

English 13
Blower Motor Installation
HPCB36NS and HPCB48NS models have a VTN1080
integral blower included. All other blower models are sold
separately. Use only THERMADOR blowers with these
ventilation hoods. See Table 1 Blower & Circuit Breaker
Ratings for recommended blowers. Contact Customer
Service for additional options.
All hood models are rated for 120V AC installed with a
blower listed in Table 1, using a 15 amp dedicated circuit
breaker.
Blower selection will vary based on the volume of air that
needs moved and the length and location of the duct run.
For long duct runs with multiple turns and bends, consider
using a more powerful blower. For the most efficient air-
Àow exhaust, use a straight run or as few elbows as
possible (refer to “Ductwork Preparation” on page 6).
Integral Blower Installation Only
1. The blower is attached to the hood using weld studs
provided on the mounting plate (see Figure 14).
2. Guide the motor mounting plate over the studs.
3. Attach (4) nuts (included with hood) to the weld studs.
Tighten nuts with a 3/8” (9 mm) nut driver to secure the
blower to the hood.
Wiring the Hood with an Integral Blower
Integral Blower model VTN1080 should be installed after
hood is mounted to the wall.
Blower SKU Voltage
(AC)
Blower
Current
(Amps)
**Circuit
Breaker
(Amps)
Remote VTR630* 120 4.2 15
Remote VTR1030* 120 5.7 15
Remote VTR1330* 120 8.5 15
Inline VTI610* 120 4.2 15
Inline VTI1010* 120 5.7 15
Integral VTN1080* 120 5.4 15
* Indicates a letter designating the release year.
** With blower installed.
Table 1: Blower & Circuit Breaker Ratings
CAUTION!
To reduce the risk of fire and electric shock, install this
range hood only with the blowers listed in Table 1.
WARNING!
Cutting the plug of the blower will void the warranty or
eligibility for return or exchange.
Figure 14: Integral Blower Motor Install
measurements in inches (mm)
Figure 15: Integral Blower Model VTN1080
Blower Housing
Hood Top
Plate
Transition
Hood Back
Plate

English 14
1. Remove junction box channel covering the wires (see
Figure 9 on page 11).
2. Remove circular knockouts (Figure 9 on page 11).
3. Connect the blower’s Molex plug connector to the
connector present inside the hood, as shown in
Figure 16.
4. Install 1” (25.4 mm) conduit connector in junction box.
5. Run black, white, and green wires (#12 AWG) in 1”
(25.4 mm) conduit from the power supply to the
junction box.
6. Connect the power supply wires to the hood wires in
the following order: black to black, white to white, and
green wire to green ground screw on chassis. Use
spring type wire nuts.
• Wire nuts should be spring type wire nuts rated for
a minimum of two (2) #18 gauge wires and
maximum of four (4) #14 gauge wires, UL & CSA
rated to 600V and 302°F (150°C).
7. Reinstall the junction box channel.
Wiring the Hood with a Remote Blower
Depending on preference and ducting situation, these
blowers can be mounted on the roof or exterior wall of the
home. An exterior installation may be more appealing to
reduce noise in the kitchen.
1. Remove junction box channel covering the wires (see
Figure 9 on page 11).
2. Remove circular knockouts (Figure 9 on page 11).
3. Install 1” (25.4 mm) conduit connectors.
4. Run black, white, and green wires (#12 AWG) in 1”
(25.4 mm) conduit from the power supply to the
junction box.
5. Connect the power supply wires to the hood wires in
the following order: black to black, white to white, and
green wire to green ground screw on chassis. Use
spring type wire nuts.
• Wire nuts should be spring type wire nuts rated for
a minimum of two (2) #18 gauge wires and
maximum of four (4) #14 gauge wires, UL & CSA
rated to 600V and 302°F (150°C).
6. Connect the “pigtail” to the connector inside the
junction box.
7. Run five (5) #14 AWG wires in 1” (25.4 mm) conduit
from the remote blower to the second conduit
connector.
8. Connect the remote blower to the pigtail wires as per
Figure 18. Connect the remote blower green (ground)
wire to the ground screw in the junction box. Refer to
the blower installation instructions for further wiring
details.
9. Reinstall the junction box channel.
Figure 16: Wiring the Hood with an Integral Blower
measurements in inches (mm)
Figure 17: VTR1330 Remote Blower
From Hood
From Hood
From Hood From Blower
From Blower
From Blower
19
7/8
"
(505)
2
1/8
"
(54)
10 "
(254)
2
1/8
"
(54)
20
3/4
"
(527)
12
7/8
"
(327)
12
1/8
"
(308)
6
1/2
"
(165)
1
7/8
"
(48)
13
5/8
"
(346)
dia. 9
7/8
"
(251)
Figure 18: Wiring the Hood with a Remote Blower
SPEED 1
SPEED 2
SPEED 3
NEUTRAL
RD
BU
BN
WH
SP4
GROUND
N
SP1
SP2
SP3
Brown
Brown
Brown
Green/Yellow
Green/Yellow
Green/Yellow
White
White
White
Red
Red
Red
Blue
Blue
Blue
Orange
Orange
Orange
WH / BC / BL (16 AWG)
BK / N / NE (16 AWG)
120V, 60HZ, 20A
POWER SUPPLY
L1NT1T2S3

English 15
Wiring the Hood with an Inline Blower
To minimize noise in the kitchen, these blowers are
mounted along the duct line anywhere between the kitchen
and the exterior wall. If there is easy access to duct line (in
an attic, for example), this may be an appealing option.
1. Remove junction box channel covering the wires (see
Figure 9 on page 11).
2. Remove circular knockouts (Figure 9 on page 11).
3. Install 1” (25.4 mm) conduit connectors.
4. Run black, white, and green wires (#12 AWG) in 1”
(25.4 mm) conduit from power supply to junction box.
5. Connect the power supply wires to the hood wires in
the following order: black to black, white to white, and
green wire to green ground screw on chassis. Use
spring type wire nuts.
• Wire nuts should be spring type wire nuts rated for
a minimum of two (2) #18 gauge wires and
maximum of four (4) #14 gauge wires, UL & CSA
rated to 600V and 302°F (150°C).
6. Connect the “pigtail” to the connector inside the
junction box.
7. Run five (5) wires (#14 AWG) in 1” (25.4 mm) conduit
from the inline blower to the second conduit connector.
8. Connect the inline blower to the pigtail wires as per
Figure 20. Connect the inline blower green (ground)
wire to the ground screw in the junction box.
9. Reinstall the junction box channel.
measurements in inches (mm)
Figure 19: VTI1010 Inline Blower
12
1/8
"
(308)
14
3/8
"
(365)
7/8
" (22)
1
3/4
"
(44)
19
1/8
"
(486)
ø9
7/8
"
(251)
12"
(305)
12
7/8
"
(327)
Figure 20: Wiring the Hood with an Inline Blower
SPEED 1
SPEED 2
SPEED 3
NEUTRAL
RD
BU
BN
WH
SP4
GROUND
N
SP1
SP2
SP3
Brown
Brown
Brown
Green/Yellow
Green/Yellow
Green/Yellow
White
White
White
Red
Red
Red
Blue
Blue
Blue
Orange
Orange
Orange
WH / BC / BL (16 AWG)
BK / N / NE (16 AWG)
120V, 60HZ, 20A
POWER SUPPLY
L1NT1T2S3

English 16
Chimney Extension
Installation (optional)
Optional chimney extensions and telescoping extensions
are used to fill the space between the hood and ceiling
(available for separate purchase). Chimney extensions fill
the space between the hood and ceiling of 8' (2.4 m) and 9'
(2.7 m) ceilings. Telescoping extensions accommodate 10'
(3 m) ceilings. For dealer information, visit the Find a
Dealer section on our website at www.thermador.com.
Chimney Extension Installation
IMPORTANT NOTE: Secure the Chimney Hood to the wall
before installing the Chimney Extension. See “Hanging the
Chimney Hood” on page 11 before securing the actual
Extension.
1. Installation of the chimney hood should maintain a
minimum height of 30" (762 mm) from the bottom of the
hood to the cooking surface. To determine placement
of the hood with a Chimney Extension, the height of the
chimney extension must be calculated (see
“Calculating Optional Duct Cover Height” on page 9).
2. From inside of hood, screw the supplied 5/8” (16 mm)
sheet metal screws through the holes on each side and
along the front into bottom of the extension, as shown
in Figure 21. (Screw quantity is dependent on hood
size.)
Telescoping Chimney Extension
Installation
IMPORTANT NOTE:
Secure the Chimney Hood to the wall after installing the
Extension Mounting Bracket, but before installing the
Telescoping Chimney Extension. See “Hanging the
Chimney Hood” on page 11 before securing the actual
Extension.
Securing the Telescoping Chimney Extension Bracket
1. Ensure that the minimum height of 30" (762 mm) from
the bottom of the hood to the cooking surface will be
maintained (see “Calculating Optional Duct Cover
Height” on page 9).
2. Locate two studs at the mounting location, as shown in
Figure 22.
3. At the wall stud locations, measure ǫ” (16 mm) down
from the ceiling to the top of the bracket.
MODEL 6” EXTENSION 12” EXTENSION
HPCN36NS CHMHP366N CHMHP3612N
HPCB36NS CHMHP366N CHMHP3612N
HPCN48NS CHMHP486N CHMHP4812N
HPCB48NS CHMHP486N CHMHP4812N
Figure 21: Attachment of Chimney Extension to Hood
1
2
measurements in inches (mm)
Figure 22: Hood Location
18” (457)
18” (457)
18” (457)
B
B
B
A
A
18” – 35”
( 457 – 889)
18” – 35”
( 457 – 889)
18” – 35”
( 457 – 889)
⅝” (16)
⅝” (16)
18”
(457)
18”
(457)
18”
(457)
17”
(432)
17”
(432)
17”
(432)
AB
36" 14" (356) 20¾" (527)
48" 14" (356) 32⅞" (835)

English 17
4. Mount the bracket at the wall stud locations using (2)
1½” (38 mm) screws (provided). Ensure that the
bracket is level.
5. See “Hanging the Chimney Hood” on page 11 before
securing the Telescopic Chimney Extension.
6. Insert the complete duct cover at an angle and swivel
toward the wall.
7. Carefully pull the top part of the extension upwards.
Screw the left and right sides of the extension to the
mounting bracket with the supplied stainless screws.
8. From inside of hood, screw the supplied 5/8” (16 mm)
sheet metal screws through the holes on each side and
along the front into bottom of the extension. Screw
quantity is dependent on hood size.
measurements in inches (mm)
Figure 23: Securing Bracket to the Wall
Figure 24: Inserting Completed Cover
Adjustable
mount holes
3½” (89)
3½” (89)
3½” (89)
2
1
Figure 25: Securing Completed Cover
Figure 26: Securing Telescopic Chimney Extension to Hood
2
1

English 18
Installing Grease Trays and
Filters
NOTE:
Do not use cooktop while hood is disassembled.
To Install Filters and Grease Trays:
1. Turn the fan and lights off.
2. Install in the following order:
1) Grease Tray — Insert in rear tray. Grease trays
must be in place before installing the filters. Push
the grease tray in and down inside the grease tray
trough.
2) Filters — Depending upon the size and model of
hood, there will be 2 or 3 filters per hood. Start with
an outside filter. Slide the filter up, toward the front
of the hood, then push down on top of the grease
tray.
Reverse the above directions to remove the filters and
grease trays. Ensure filters are cool and grease has
congealed before removal.

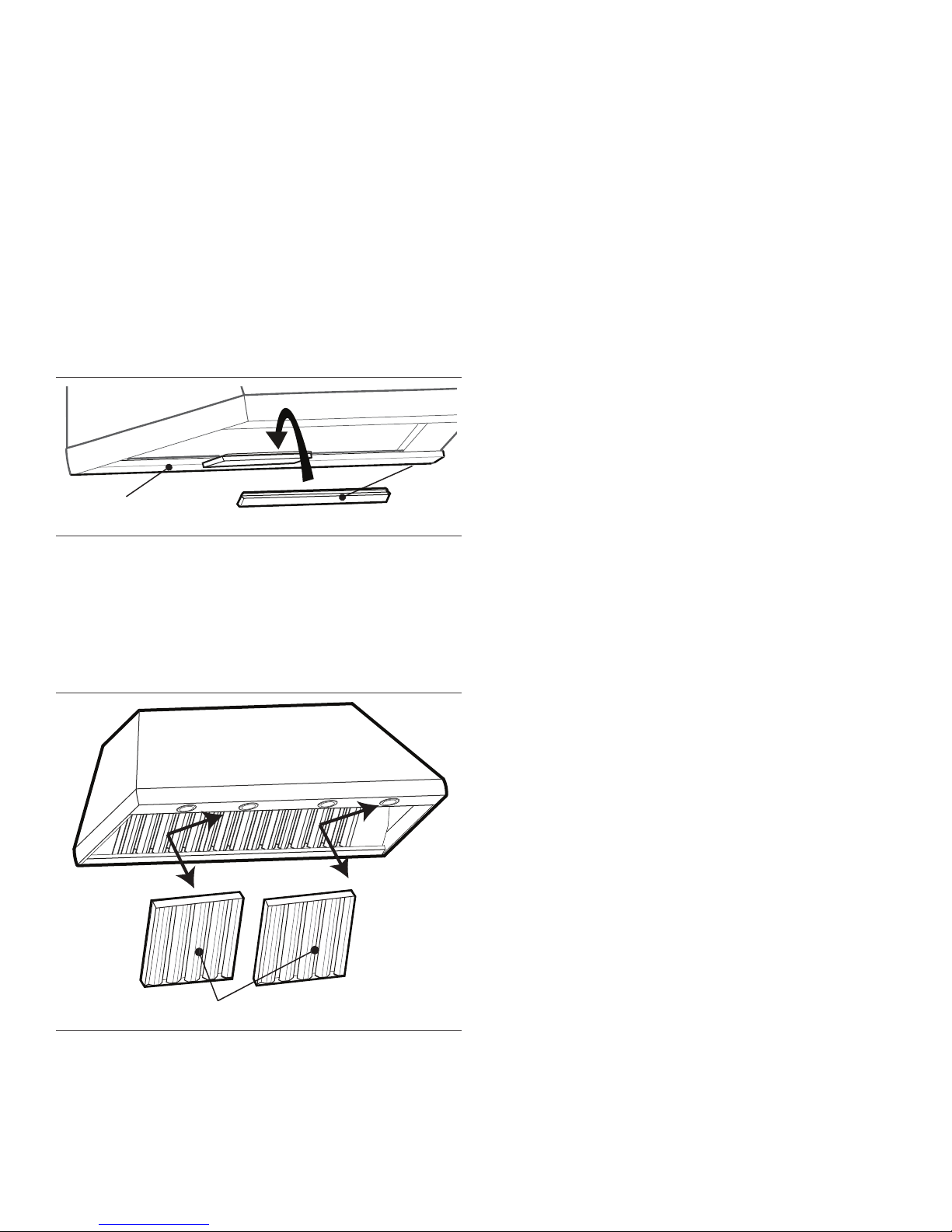

Figure 27: Grease Tray Install
Figure 28: Filter Install
Grease
Grease
Grease
Tray
Tray
Tray
Grease
Grease
Grease
Tray Trough
Tray Trough
Tray Trough
Filters
