INSTALLATION INSTRUCTIONS MANUAL
30" BUILT-IN RANGES WITH COOK'N'VENT
ELECTRIC MODEL RED30V
DUAL-FUEL MODEL RDDS30V
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING.
IMPORTANT: Save these instructions for the local electrical inspector’s use.
INSTALLER: Please leave these Installation Instructions with this unit for the owner.
OWNER: Please retain these instructions for future reference.
IMPORTANT:
LOCAL CODES VARY. INSTALLATION, ELECTRICAL CONNECTIONS
AND GROUNDING MUST COMPLY WITH ALL APPLICABLE CODES.
Check your local building codes for the proper method of
installation. In the U.S.A., if there are no applicable local codes,
this unit should be installed in accordance with the National Fuel
Gas Code #Z223.1-Current Issue, and the National Electrical
Code ANSI/NFPA No. 70 Current Issue. (In Canada, installation
mustbeinaccordancewiththeCAN1-B149.1and.2-Installation
Codes for Gas Burning Appliances and/ or local codes).
MOBILE home installation must conform with the Manufactured
Home Construction and Safety Standard, Title 24 CFR, Part 3280
{formerly the Federal Standard for Mobile Home Construction
and Safety, Title 24, HUD (Part 280)} or, when such standard is
notapplicable,theStandardforManufacturedHomeInstallations,
ANSI A255.1 / NFPA501A, or with local codes.
◆Ne pas emmagasiner ou utiliser de l’essence
ou des autres vapeurs inflammables et liquides
aux endroits de celui-ci ou aucun autre
appareil.
◆CE QUI FAIRE SIVOUS SENTEZ LE GAZ
• Ne pas essayer d’allumer aucun appareil
• Ne pas toucher aucun interrupteur
électrique; ne pas utiliser aucun téléphone
dans votre bâtiment.
• Appeler immédiatement votre fournisseur
de gaz du téléphone d’un voisin. Suivre
l’instruction du fournisseur de gaz.
• Si vous ne pouvez pas contacter votre
fournisseur, téléphoner le service des
incendies.
◆L’installation et le service doivent être
exécutés par un installateur qualifié, une agence
de service ou le fournisseur de gaz.
WARNING: If the information in this manual
is not followed exactly, a fire or explosion may
result causing property damage, personal
injury or death.
UL LISTED #157J FILE # E521958
AVERTISSEMENT: Avant l’installation,COUPER au tableau de service,et fermer a clef le tableau de service
pour empecher l’alimination d’etre allumée per hasard.
WARNING: Before installing turn power OFF at the service panel.Lock service panel to prevent
power from being turned ON accidentally.
AVERTISSEMENT: Si l'information dans ce
manuel n'est pas suivie exactement, un feu ou
une explosion peut résulter et causer des dégâts
matèriels et des risques d'accidents, ou la mort.
◆Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
◆WHATTO DO IFYOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone.Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call
the fire department.
◆Installation and service must be performed
by a qualified installer,service agency or the
gas supplier.

2
■
CAUTION:To reduce risk of fire and to properly exhaust
air, be sure to duct air outside. Do not vent exhaust air
into spaces within walls or ceilings or into attics, crawl
spaces, or garages.
WARNING: TO REDUCE THE RISK OR FIRE,
ELECTRIC SHOCK. OR INJURY TO PERSONS,
OBSERVETHE FOLLOWING:
a) InstallationWork And Electrical Wiring Must Be Done
By Qualified Person(s) In Accordance With All
Applicable Codes And Standards, Including Fire-Rated
Construction.
b) Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of fuel
burning equipment to prevent backdrafting. Follow the
heating equipment manufacturer's guideline and safety
standards such as those published by the National Fire
Protection Association (NFPA), and the American
Society for Heating,Refrigeration andAir Conditioning
Engineers (ASHRAE), and the local code authorities.
c) When cutting or drilling into wall or ceiling, do not
damage electrical wiring and other hidden utilities.
d) Ducted fans must always be vented to the outdoor.
SAFETYWARNINGS
AVERTISSEMENT - Pour réduire le risque
d'incendie, utiliser seulement le travail du
conduit métallique.
a) Le Travail d’Installation et de Câblage Éectrique Doit
Être Fait Par les Personne(s) Qualifiées Conformément
à Tous les Codes & Normes Applicables, y Compris la
Construction Calculée à Feu.
b). Il faut suffisamment d'air pour permettre une bonne
combustion et une évacuation appropriée des gaz par
le conduit de fumée (cheminée) des appaeils à
combustible pour éviter le refoulement. Suivre la
directive des fabricants du matériel chauffant et les
normes de sécurité tel que ceux publiées par
l’Association du Protection de Feu National (NFPA),
et la Société Américaine pour les Ingénieurs de
Chauffage, de Réfrigération et de Climatisation
(ASHRAE), et les autorités des codes locales.
c) En coupant our en forant dans un mur ou dans un
plafond, ne pas endommager le câblage électrique et
des autres utilités cachées.
d) Les ventilateurs canalisé doivent être toujours
déchargés.
AVERTISSEMENT:– POUR RÉDUIRE LE RISQUE
D'INCENDIE, DE CHOC ÉLECTRIQUE, OU DE LA
BLESSURE AUX PERSONNES, OBSERVER LES
SUIVANTS:
ATTENTION: Pour réduire le risquie d'incendie et alfin
que l'air s'échappe bien, s'assurer de diriger l'air vers
l'extérieur – N'evacuez pas l'air vicié dans le vide intérieur
des murs,le vide des plafonds,les greniers,les vides sanitaires
ni le garages.
AVERTISSEMENT: L'installation inexacte,
l'ajustment, la modification, le service ou
l'entretien peut causer la blessure ou la
propriété endommagée. Se référer â ce
manuel. Pour l'assistance ou l'information
additionnelle consulter un installateur qualifié,
une agence de service, le fabricant (le
marchand) ou le fournisseur de gaz.
WARNING: Improper installation,adjustment,
alteration, service or maintenance can cause
injury or property damage. Refer to this
manual. For assistance or additional
information consult a qualified installer,service
agency, manufacturer (dealer) or the gas
supplier.
WARNING:To Reduce the risk of fire,use only
metal ductwork.

3
■
CONVECT.BAKE
CLEAN BROIL
LIGHT
XLOHI
OFF
LO
HI
OFF
STOP
TIME
CLOCK
TIMER
CANCEL
LO
HI
OFF
COOK
MIN/HR
+
-
XLOHI
OFF

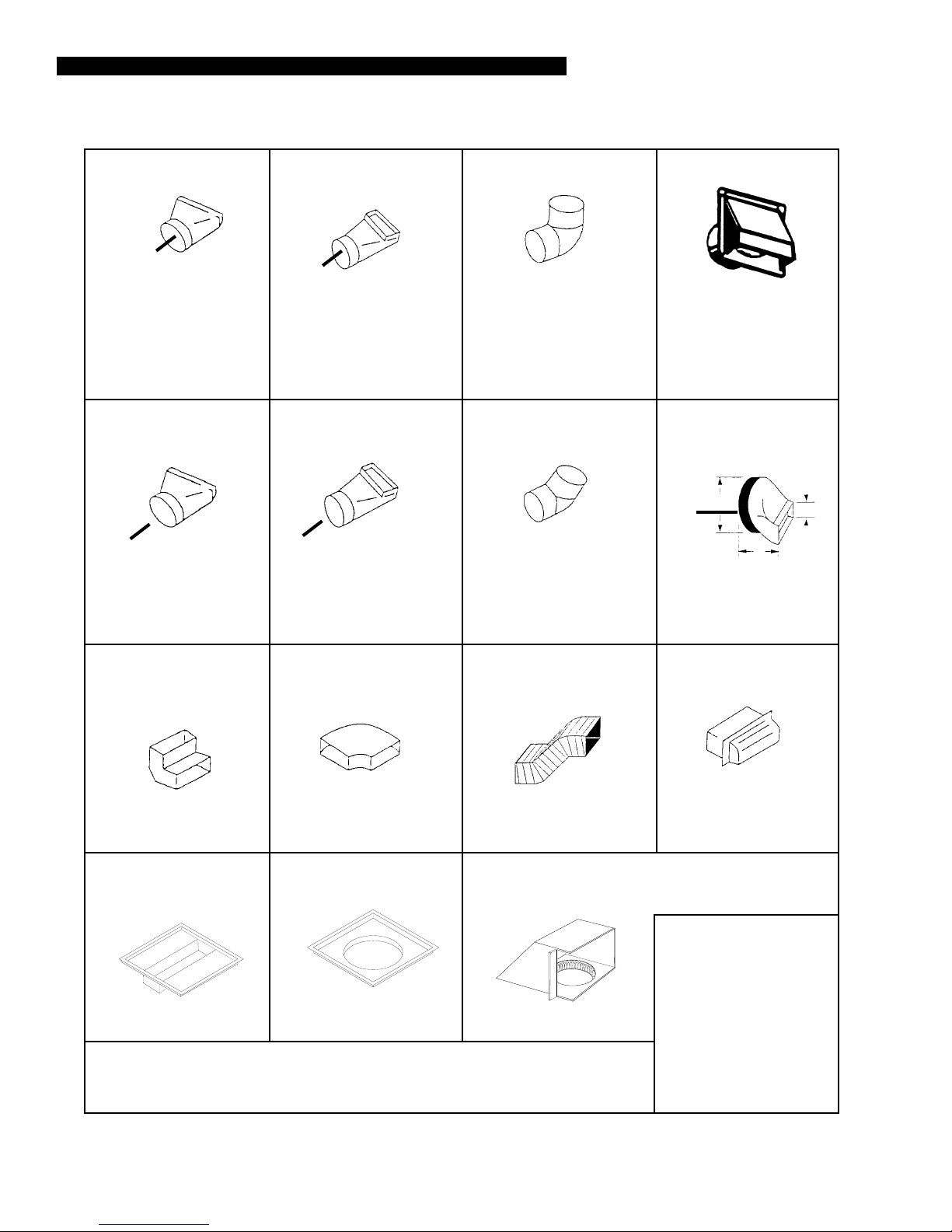

COOK'N'VENT®VENTILATION SYSTEM

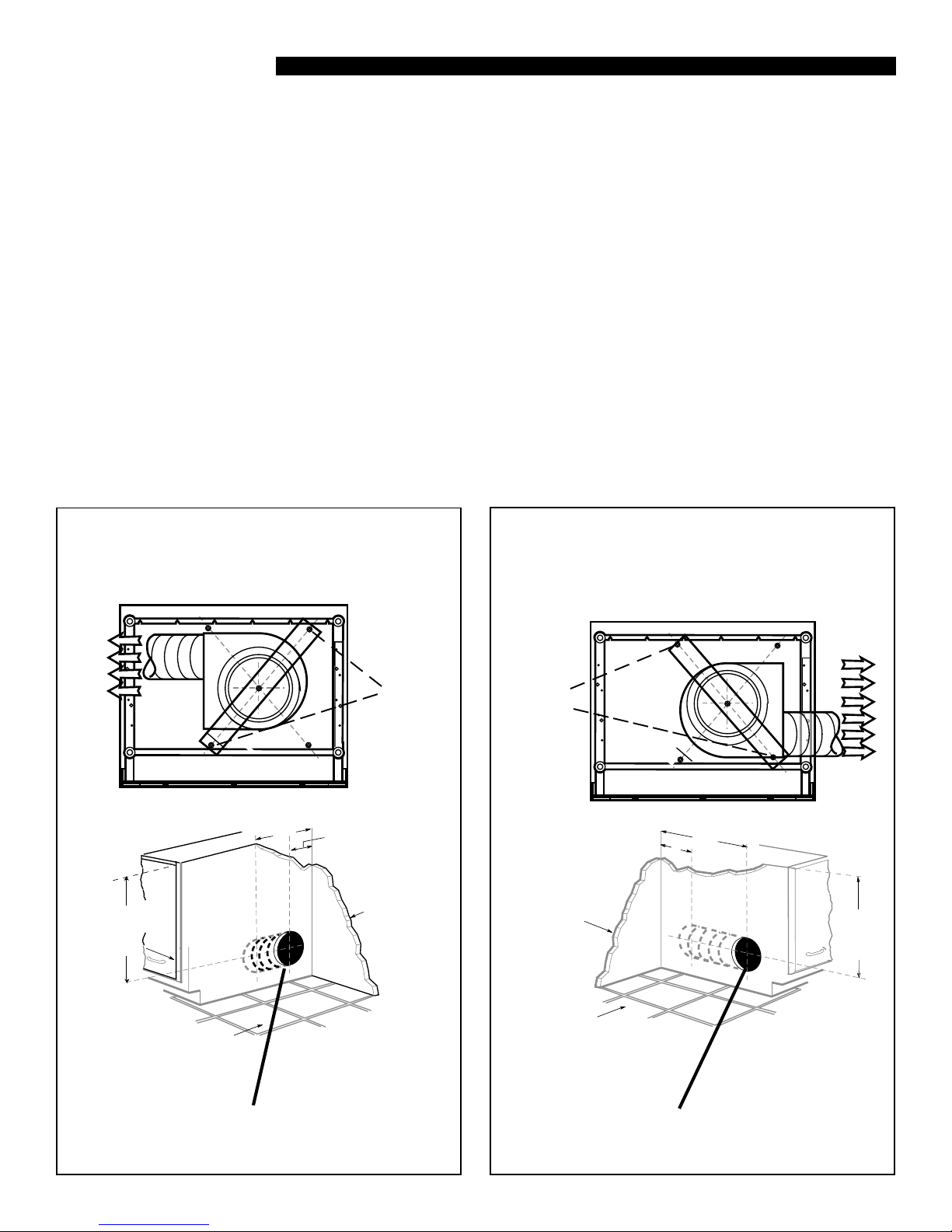

The range is equipped with a retractable rear ventilation
intake and integral plenum. The plenum outlet,located under
the range may be connected to an integral blower or a
remote blower (purchased separately). See Pages 8 – 17.
SAFETYWARNINGS
No Clearance
to Wall
Required
No Clearance
to Wall
Required
30" Min.
30" Minimum
Centered
Safety Instructions and Applicable Codes...........................................................................................................1,2
Ventilation and Cabinet Considerations .............................................................................................................3,4
Gas Connections Model RDDS30VQ .................................................................................................................5,6

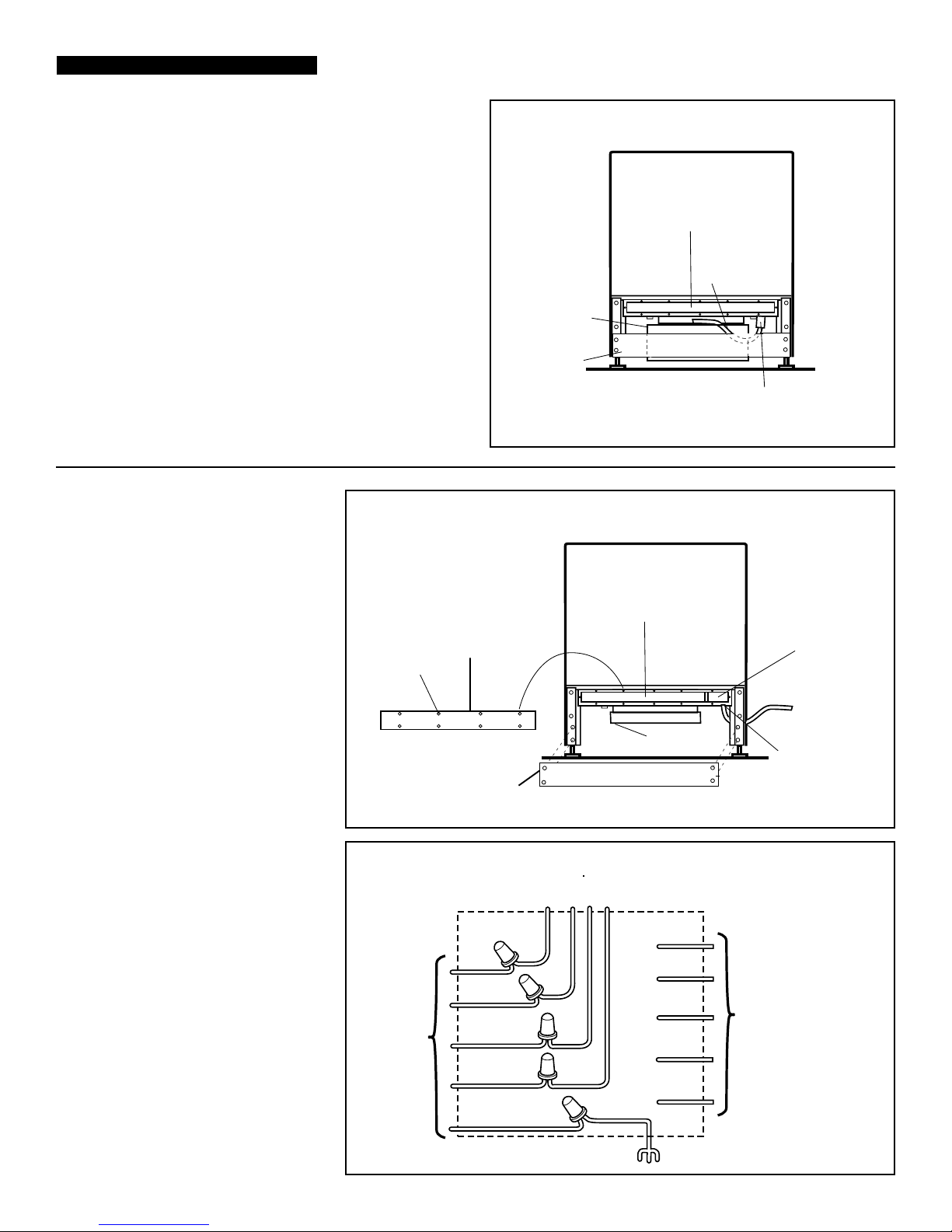

Electrical Connections ............................................................................................................................................ 6,7
Installing theVentilation.......................................................................................................................................... 8-9
Ventilation ............................................................................................................................................................... 9-14
Blower Duct Sizing..............................................................................................................................................15-17
Anti-Tip Bracket Installation .............................................................................................................................18-19
To eliminate the risk of burns or fire by reaching over
heated surface units, cabinet storage space located
above the surface units should be avoided.
Instructions are based on Standard American cabinets
measuring 36" high x 24" deep.
CABINET
This unit is designed for installation in a countertop near
adjacent walls and projecting surfaces constructed of
combustible materials. There must be a minimum clearance
of 30 inches between the top of the cooking surface and
the bottom of an unprotected wood or metal cabinet; or
24 inches when bottom of wood or metal cabinet is
protected by not less than 1/4" of flame retardant material
covered with not less than No. 28 MSG sheet metal, 0.015
inch stainless steel,or 0.024 inch aluminum or copper. (See
Figure 1). The minimum horizontal distance from the side
and back edge of the unit to adjacent vertical combustible
walls are as follows: Zero clearance is permitted on rear,
right and left walls.
For the cabinets over the cooking surface and the adjacent
cabinets,the maximum cabinet depth from back wall is 13".

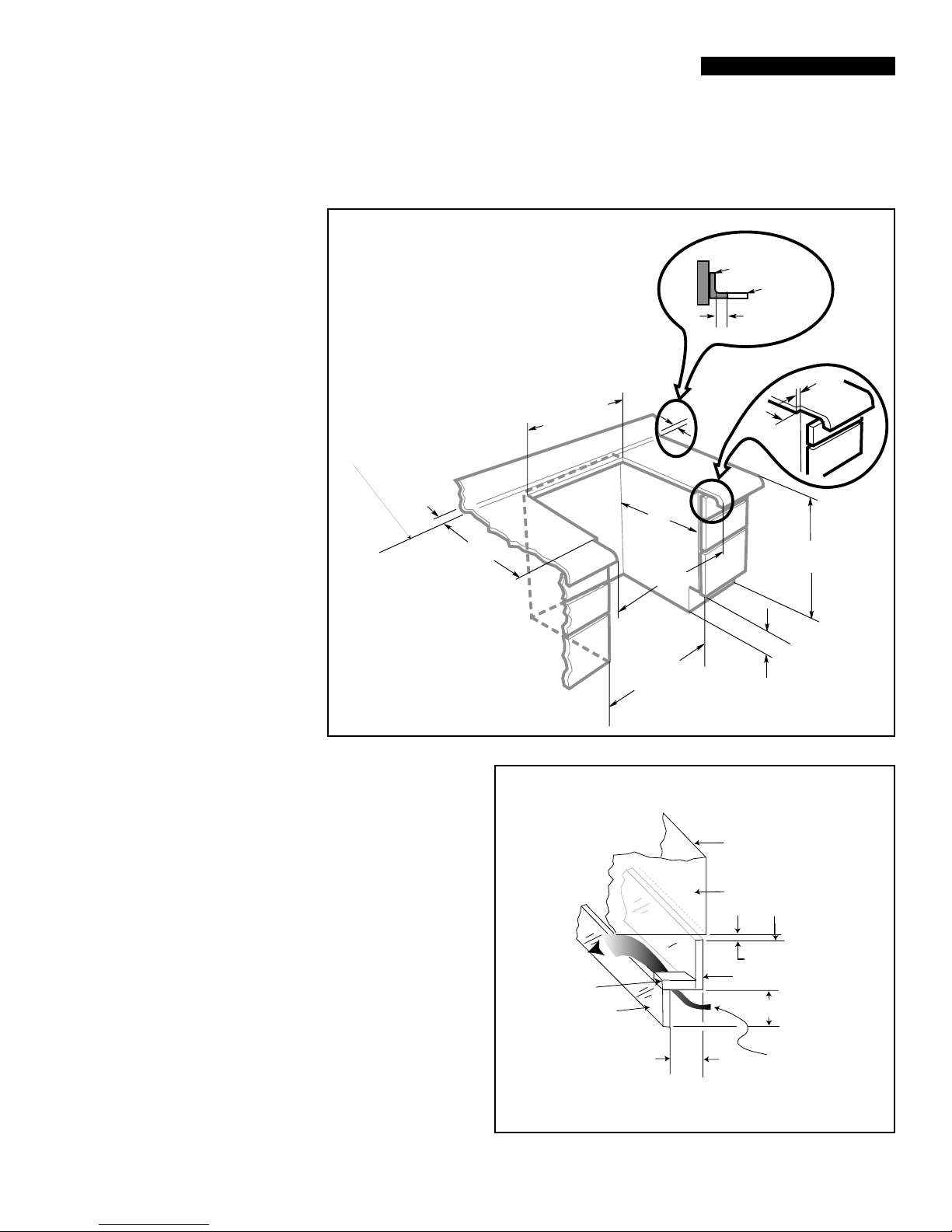

Figure 1 Installation Guide
VENTILATION AND CABINET CONSIDERATIONS ■
TABLE OF CONTENTS ■
WARNING: This unit is designed as a cooking
appliance. Based on safety consideration,never
use it for warming or heating a room.
WARNING: DO NOT LIFT RANGE BY
DOOR HANDLE. Remove the door before
removing the unit from the pallet to provide
more stability before installation. See 'Do-It-
Yourself Maintenance: Removing the Oven
Door' in the Care and Use Manual.
AVERTISSEMENT: L'appareil est pour la
cuisson. Basé sur les considérations de sécurité,
ne jamais utiliser le Cooktop pour chauffer une
chambre.
AVERTISSEMENT: NE PAS ÉLEVER LA
CUISINÈRE PAR LA POIGNÉE DE LA PORTE.
Énlever la porte avant d'énlever l'appareil du
plateforme de bois pouvoir plus de stabilité
avant d'installation. Lire ce manuel de Soin y
Utilisation.

4
■VENTILATION AND CABINET CONSIDERATIONS
PREPARING CABINET
Use the dimensions in Figure 2 to make the countertop
cutout. The cutout center line must be the same as the
center line of the space between the cabinet side walls.
NOTICE. Some cabinet finishes
cannot survive the temperatures
allowed by U.L., particularly self–
cleaning ovens; the cabinets may
discolor or stain. This is most
noticeable with laminated cabinets. If
your cabinet company does not
approve a temperature of 180°F., the
range should be installed such that the
oven front frame does NOT line up
BEHIND the plane of the front of the
cabinet doors. The cabinets and
countertop must be flush with the
kitchen wall. The rear edge of the
cutout must be between 1-3/4" and
1-7/8" from the wall. In an island or
peninsula installation, first layout a
notch in the countertop on each side,
so the back of the notches line up
with the front of the cabinet doors
(see Figure 2). Lay out the remaining
dimensions positioned from the back
of these notches. Recommended
locations for gas supply and electrical
outlet are on the floor.To get more
available space, remove the existing

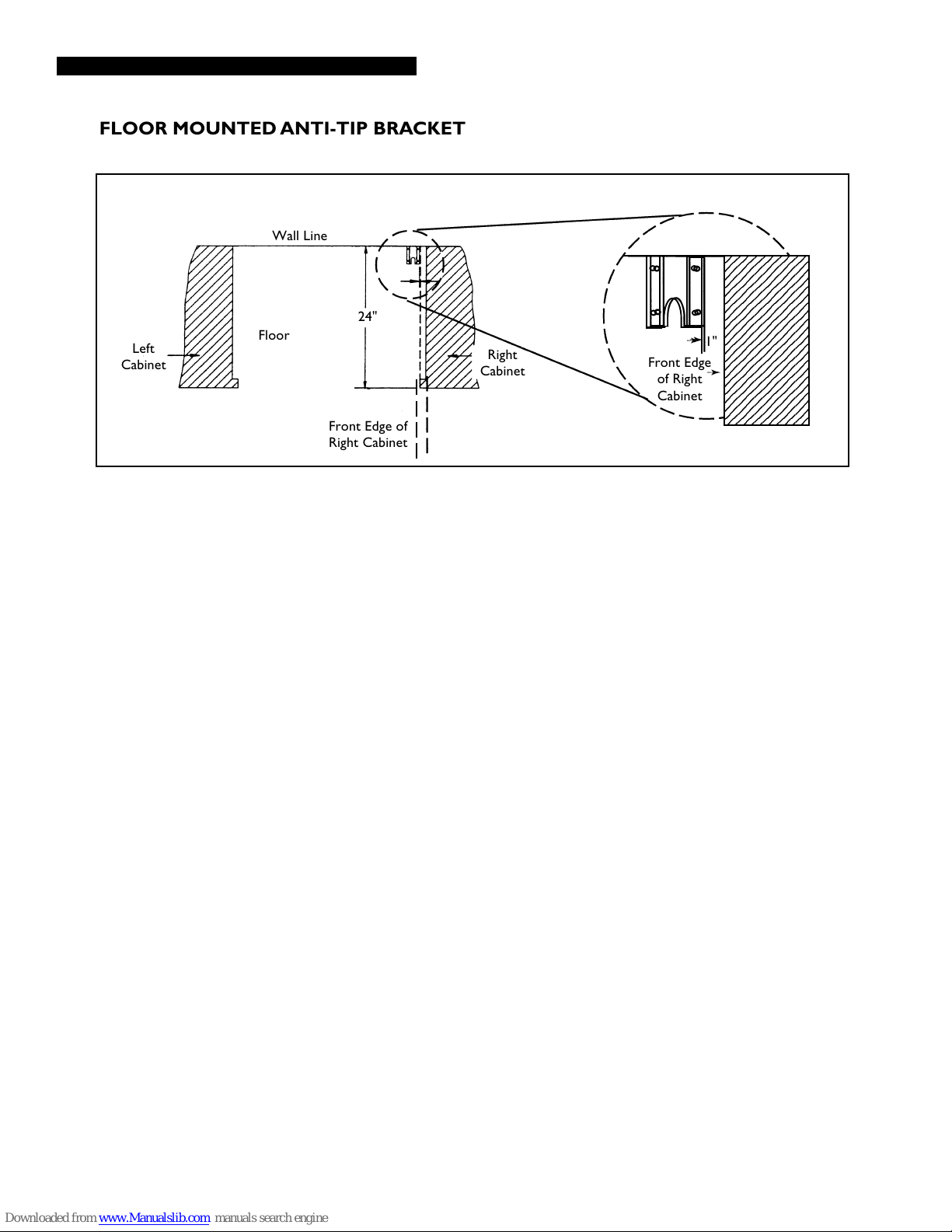

back brace (see Figure 27,Page 18) and use floor mounted
anti-tip bracket (see Figure 30, Page 19).
NOTE: Follow all measurements precisely.If working with
nonstandard cabinets,take care to alter the dimensions to
maintain the minimum clearances.
29-1/4"
Counter
Opening
Back Splash
Countertop
5/16 Flat
Min.
Wall
35-1/2" to 37"
High Counter
4" Toe Recess
Extend Across
Opening
30" Min.
Opening
29-15/16" Min.
23 3/16"
Rear Edge
of Cutout
1-3/4"
Wall
24"
Face of
Cabinet
3/8"
23-3/16"
Figure 2 – Preparing the
Cabinet
If nonstandard cabinets are used, care should be taken to
alter dimensions accordingly.
If you don’t have the optional toe kick accessory for your
range,you’ll need to fabricate the toe space cover according
to the specifications shown in Figure 3. This toe space
cover must be mounted so that it may be easily removed
for servicing. There must be 25" minimum dimension
between the top of the countertop and the top of the under
range panel. A minimum of 25 square inches air inlet is
required in the toe kick area. Warranty is not valid without
gap and inlet.
25 in Min.
Air Inlet
3-1/2"
4" to Desired
ToeKick Height
Air Inlet
Minimum
Side of Range
Range Front
Face Frame
Front Panel
1/4" Min. Clearance
25" From
Top of
Counter
1/2" to 3/4"
Thick Wood
Supports
Figure 3 –Toe Space Cover
Side View (Not to Scale)

5
■
Figure 4 – Gas Supply Location
Be sure the unit being installed is compatible with
the type of gas available.The range is shipped from the
factory for use with natural gas. Conversion for use with
propane gas can be made by using a kit,NLPKIT 6 P/N 35-
00-688. Only a qualified technician or installer can convert
the range. This kit includes instructions for adjusting valves
and pressure regulator and contains new burner jets.The
RDDS model is equipped with an intermittent/interrupted
ignition device (ExtraLow®).
CAUTION: When connecting unit to propane gas,
make certain the propane gas tank is equipped with
its own high pressure regulator in addition to the
pressure regulator supplied with the appliance. The
gas supply to the appliance regulator must be a
minimum of 11.0" water column.The maximum gas
pressure to the appliance regulator is not to exceed
14.0" water column from the propane gas tank.
6"
3" From Floor
1-3/4" From Wall
4-1/8" From
Cabinet Both
Sides
ATTENTION: En branchant l'appareil au gaz de
propane, soyez certain que le réservoir de gaz du
propane est équipé avec son régulateur de haute
pression en addition du régulateur de pression fourni
avec cet appareil. La founriture de gaz au régulateur
de l'appareil doit être un minimum de 11.0" colonne
d'eau. La pression de gaz maximale à cet appareil ne
doit pas excéder une colonne d'eau de 14.0 pounces
du régulateur du réservoir de gaz du propane.
WARNING: Do not attempt any adjustment of the
pressure regulator except conversion to propane.
AVERTISSEMENT: Ne pas entreprener aucun
ajustement du régulateur de la pression excepte la
conversion à propane.
GAS CONNECTION (MODEL RDDS30V)
GAS PRESSURE (INCH WATER COLUMN)
GAS SUPPLY MANIFOLD
Natural 6 TO 14 5
Propane 11 to 14 10
IMPORTANT NOTES
(a) The appliance and its individual shut-off valve must be
disconnected from the gas supply piping system during any
pressure testing of that system at test pressures in excess
of 1/2 psig (3.5kPa).
(b) The appliance must be isolated from the gas supply
piping system by closing its individual manual shut-off valve
during any pressure testing of the gas supply piping system
at test pressures equal to or less than 1/2 psig (3.5 kPa).
Always use pipe dope orTelflon® tape on the
pipe threads and be careful not to apply
excessive pressure when tightening the
fittings.
Turn on gas and check supply line connections
for leaks using a soap solution. Do not use a
flame of any sort.
PROPANE GAS
NATURAL GAS
The cooktop is shipped from the factory for use with natural
gas only. The gas supply to the appliance regulator must be
a minimum of 6.0" water column. The maximum gas
pressure to the range regulator shall not exceed 14"W. C.
For Massachusetts Installations:
1. Shut-off valve must be a “T” handle gas cock.
2. Flexible gas connector must not be longer than
36 inches.
3. Not approved for installation in a bedroom or
a bathroom unless unit is direct vent.

6
■
ELECTRICAL SUPPLY
(Electric and Gas models)
• The Range,provided with a 4' length of flex conduit and
conductors, shall be connected to a junction box
specified below.
• The electrical supply should be 3 wire,single phase,A.C.
with a grounded neutral.
• For electrical connection,a 4" x 4" junction box should
be placed within the shaded area. (See Figure 6). The
box has to be recessed into the wall. The maximum
protrusion of flex conduit and connector shall not
exceed 1-3/4" as shown in Figure 6.
GROUNDING
The unit is supplied with a flexible metallic conduit.
• If flexible metallic conduit is connected to a grounded
metallic conduit system, oven is grounded through the
metallic conduit.
• If local code permits grounding through the neutral,
connect both bare ground wire and white wire to white
wire neutral supply.
• If local code requires separate ground, separate white
wire and bare gound wire, connect white to white and
ground bare wire separately.
GAS CONNECTION (MODEL RDDS30V)
GAS CONNECTION
For gas units, a 1/2" N.P.T. wall gas supply can lie anywhere
within the shaded area. (See Figure 4). Attach a 1/2" N.P.T.
shut-off valve to the wall stub-out. The other end of the
valve should be connected to a 3/8" flexible gas connector -
(not supplied). The flexible connector shall be secured to
the pressure regulator located in the lower left area of the
range shown in Figure 5.
Figure 6 – Electrical Location
1-3/4"
Max Protrusion
From Wall
4-1/8" From Cabinet
Both Sides
3" From Floor
32" From
Floor
MODEL VOLTS HZ RATING CIRCUIT
KW REQUIRED
RDDS30V 120/240 60 5.1 30 Amps
120/208 60 4.0 20 Amps
RED30V 120/240 60 12.0 50 Amps
120/208 60 9.8 50 Amps
■ELECTRICAL CONNECTION (ALL MODELS)
Figure 5 – Gas Supply Flexible
Connector Routing
Front
Up
Regulator
Flexible
Connector
To Shut Off
Valve
View of Bottum Side From Left Front of Range

7
■
Range
Remote
Blower
Green
Green
Black
Blue
Red
White
Molded Connector
White
White
Red
Red
Blue
Blue
Black
Black
BLOWER ELECTRICAL CONNECTION
The electrical connection of either the integral or remote
blower shall be made on the right front corner of the plenum
as shown in Figures 7 & 8.
Based on the type of ventilation (integral or remote blower)
proceed with directions either 1 or 2.
1. Units using Integral Blower:
The integral blower is furnished with a cord and connector.
Insert cord connector into receptacle located in lower right
plenum bottom. See Figure 7.
ELECTRICAL CONNECTION (ALL MODELS)
Figure 7 – Blower Cord Connection
OVEN FRONT
Plenum Opening
Blower Cord
Receptacle
Integral Blower
Front Rail
2. Units using Remote Blower:
a) Wiring the Remote Blower
Wire connections between the range
and remote blower shall be made as
follows:
1. Remove plenum cover and
front rail for access to range
blower wiring. (See Figure 8.)
2. Grasp the five wires and cut
as close to molded connector as
possible.
3. Remove plug from electric
"knockout" from plenum bottom
(right front corner). Secure
remote blower flex conduit/wiring
to plenum conduit connector,
4. Connect color coded range
wires to remote blower wires
using wire nuts or approved splices.
(See Figure 9.)
5. Reinstall plenum cover and
front rail.
Figure 8 – Remote BlowerWiring
Figure 9 – Range - Remote Blower Electrical Connection
Range Front
Screws
Plenum Opening
Wiring
Compartment
To Remote
Blower
Duct
Attachment Box
Removable
Plenum Cover
Removable
Front Rail
K.O.'s
Location

8
■INSTALLING THE VENTILATION
NOTE: Remove and discard shipping bracket (attached to
bottom of motor and inlet collar). Check to see if blower
wheel turns freely. Do not replace top until installation is
complete.
FRAMING:
1. Provide a square hole through the roof (or wall), as
shown by dashed lines, or cut a round hole to fit duct
with a separate hole for electrical conduit as shown by
solid lines in Figure 10. See Figure 12 for remote blowers
dimensions.
2. Install the Remote Blower on the roof or wall (with
discharge pointing down slope) according to the
Standard Roofing Procedures (front discharge edge
should be on the top of shingles and the rear edge
underneath the shingles). See Figure 12.
3. Connect blower to the exhaust system with 8 inch dia.
duct forVTR600R and 10" dia. duct forVTR1000Q and
VTR1400Q.Use adjustable elbow to adjust to roof angle.
Tape all joints to prevent air leaks.
NOTE: The unit must be sealed between the roof (or
wall) and the underside of the flange with roofing mastic to
prevent leaks. For installation on a flat roof, or roofs with a
pitch less than 1-1/2" in 12",install ventilator on the curb as
shown in Figure 11. Position the curb on flat roofs so that
the discharge (low) end points away from prevailing wind.
AAdjustable Elbow
F
Conduit
(Not Provided)
H
Figure 12 -
Remote
Blower
Dimensions
MODEL A B C D E F G H I J
VTR1000Q 10" Dia. 10" Dia. 10-3/4 10-1/4 3-3/16 17-5/8 10-3/4 10 26-1/4 4
VTR600R 8" Dia. 8" Dia. 10-3/8 11-1/4 4-5/8 14-1/2 8-3/4 8 24 3-1/2
"J" Box
28"
C
J
I
11-3/8"
9-3/8"
20-3/4"
D
5-7/8"
E
G
Tape Joints
B Dia. Duct
Conduit
14"
6-1/8"
1"
4-11/16" for VTR600R
6-1/4" for VTR1000Q
1-1/4" Hole
14"
1"
9" dia.
VTR600R
10" dia
VTR1000Q

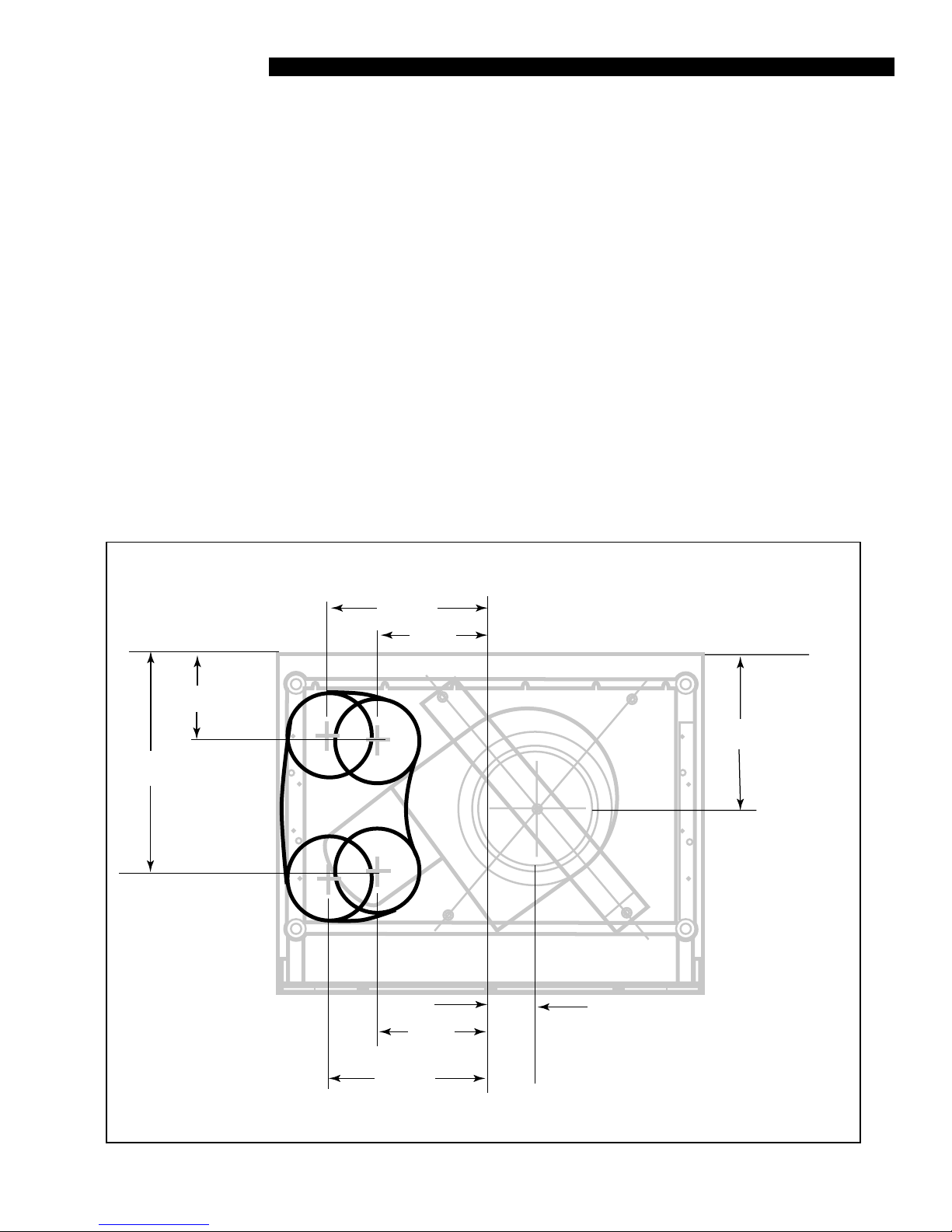

Figure 10 - Remote Blower Cutouts
INSTALLING A REMOTE BLOWER
Figure 11 – Curb for roof
CAUTION - For general ventilating use
only. Do not use to exhaust hazardous or
explosive materials and vapors.
➛
➛
➛
20-3/4"
2"
➛
➛
➛
➛
➛
5-1/2"
28"

9
■
INSTALLINGTHEVENTILATION
The range is equipped with a factory installed ventilator
intake and an exhaust plenum which will not be shipped
separately. The plenum exhaust outlet is located below the
oven in the base area shown in Fig.14. An Integral Blower
Model VTN30Q or Remote Model VTR1000Q Blower
System must be installed with the range. (Blower systems
are purchased separately).
INSTALLING AN INTEGRAL BLOWER
THE VTN30Q blower may be mounted prior to or after
range installation depending on duct and taping variables.
The integral blower housing inlet (See Figure 15) fits over
the plenum outlet ring (Figure 14), and is secured to the
plenum with a blower mounting bracket.
The blower may be rotated in various directions to achieve
right side,left side,rear or floor venting. See pages 10 to 12
for specific installation steps.
Threaded rods included in the blower kit will be secured to
the mounting nuts "A" or "B" shown in Figure 15. Further
installation instructions are specified in the following
sections.
4. The duct put into the unit inlet blower should be taped
at the joint and the inlet collar.
5. Clearance to combustible material is 0".
6. Run electrical conduit up through extruded hole in
bottom of the remote blower. Connect it to the bottom
of the “J” box (Fig.13).
Figure 13
SAFETY WARNING: Before wiring the
unit, turn off the proper circuit at the
service box.
VENTILATION ■
Figure 14 – BottomView of Exhaust plenum
Figure 15 – Integral BlowerVent to
Side Back and Floor
Front
Up
B
A
A
Plenum
Exhaust
Outlet B
7. Run five #14 AWS wires (white, red, blue, black and
green) to the conduit,(Fig.13).For the wire connection
between the remote blower and range see page 7 and
Figs. 8 & 9.
OFF
OFF
OFF
OFF
OFF
OFF
Mounting
Bracket
Threaded
Rods
Blower
Inlet

10
■
INTEGRAL BLOWER - RIGHT OR LEFT DUCTING
VENTILATION
Cabinet
Floor
Rear Wall
31-1/2"
to
Counter
Top
7-1/4"
13-1/4"
A
A
B
B
Figure16 – Left SideVenting, Integral Blower
(Bracket Position B)
Front
4. Place blower inlet over plenum outlet ring (Figure
14), temporarily supporting blower with wood blocks.
5. Place slot end of blower mounting bracket over
rear mounting rod lower nut.
6. Rotate blower mounting bracket under blower for
support, removing wood blocks as necessary.
7. Place hole in blower mounting bracket over front
mounting rod and secure tightly with nut provided.
Insure gasket between blower and plenum is
compressed.
1. Determine blower direction and cutout in cabinet
as shown in Figs. 16 & 17.
Remove the existing 1/4 – 20 screws from either
positions “A” or “B” and discard them.
2. Secure the rear mounting rod in either position "A"
or "B" as determined in Step 1. The rear mounting rod
has preset nuts on each end. Tighten nut against plenum.
3. Secure the front mounting rod in either position
"A" or "B" as determined in Step 1. The front mounting
rod has one preset nut which shall be tightened against
plenum.
Figure 17 – Right SideVenting, Integral
Blower (Bracket Position A)
Floor
Rear Wal
l
Cabinet
14-3/4"
31-1/2"
to
Counter
Top
7"
A
A
B
B
Front
Clearance hole for 6" round duct exit.Clearance hole for 6" round duct exit.
Mounting
Rod Mounting
Rod

11
■
1. Determine blower direction. Blower may be rotated
as indicated in Figs.18 and19 in order to miss wall studs.
Remove the existing 1/4 – 20 screws from either
positions “A” or “B” and discard them.
2. Secure the rear mounting rod in either position
"A" or "B", as determined in Step 1. The rear mounting
rod has preset nuts on each end. Tighten nut against
plenum.
3. Secure the front mounting rod in either position
"A" or "B" as determined in Step 1. The front mounting
rod has one preset nut which shall be tightened against
plenum.
VENTILATION
4. Place blower inlet over plenum outlet ring (Figure
14), temporarily supporting blower with wood blocks.
5. Place slot end of blower mounting bracket over
rear mounting rod lower nut.
6. Rotate blower mounting bracket under blower for
support removing wood blocks as necessary.
7. Place hole in blower mounting bracket over front
mounting rod and secure tightly with nut provided.
Insure gasket between blower and plenum is
compressed.
Figure 19 – Right RearVenting, Integral
Blower (Bracket Position A)
Figure18 – Left RearVenting, Integral Blower
(Bracket Position B)
INTEGRAL BLOWER - REAR DUCTING
AB
A
B
Front
Floor
Rear Wall
Cabinet
31-1/2"
to
Counter
Top
1-1/8"
7-1/2"
L
cof Cutout
➛
8"
1-1/8"
C
L
Cabinet
of Cutout
Rear Wall
31-1/2"
to
Counter
Top
Floor
B
BA
A
Front
Mounting
Rod
Mounting
Rod
C
L

12
■VENTILATION
9-1/8"
11-1/2"
15"
7"
3-3/8"
10-3/4"
9-1/8"
11-1/2"
A
Front
A
B
B
Rear Wall

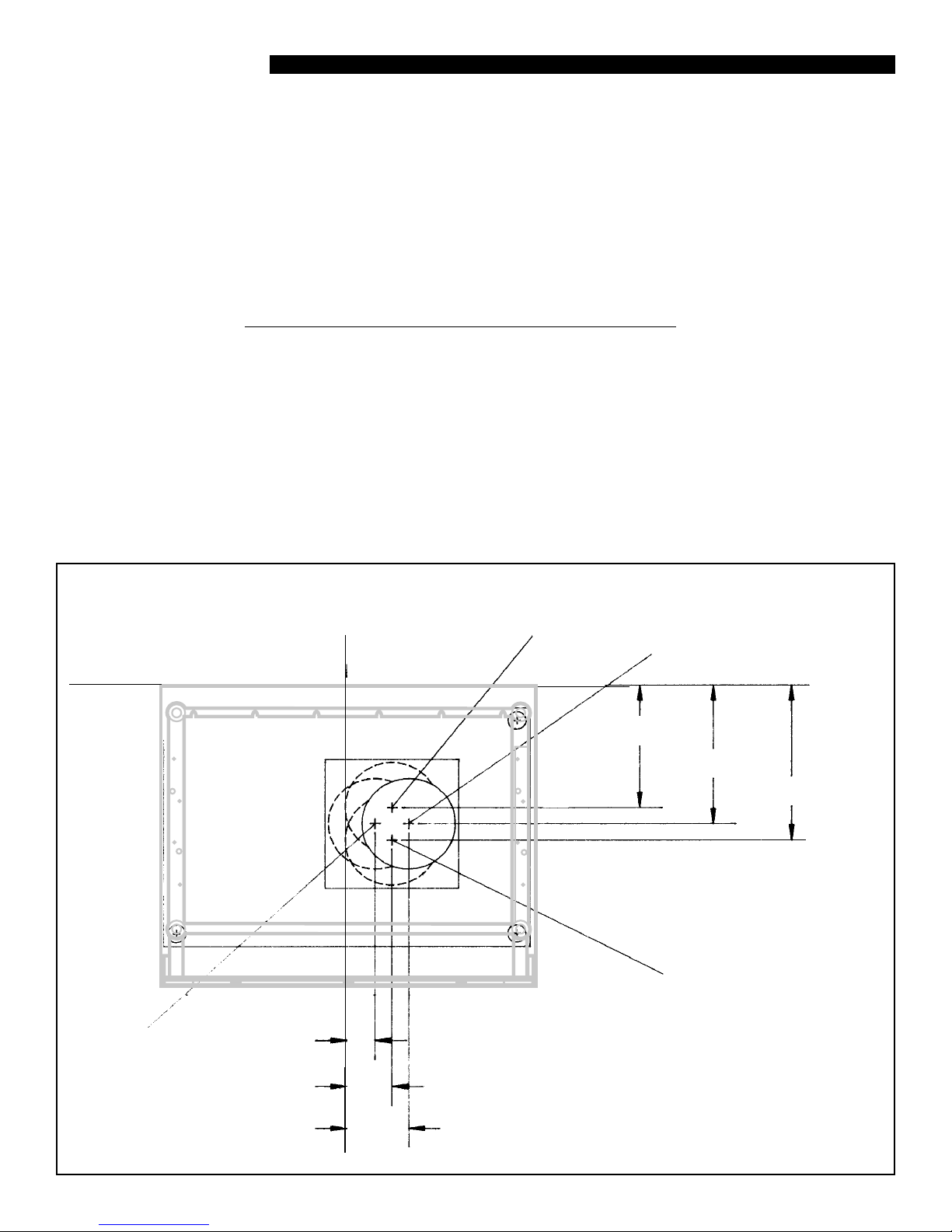

Figure 20 – FloorVenting
C
L
* See Step 8
*
*
1. Floor ducting with an integral blower requires ducting
to the left within the area shown in Figure 20. Floor
joists may be avoided by rotating the blower and using
Elbow Model #STL90R,(purchased separately). SeeTable
1, Page 17.
2. Secure the rear mounting rod in position "A". The
rear mounting rod has preset nuts on each end. Tighten
nut against plenum.
3. Secure the front mounting rod in position "A". The
front mounting rod has one preset nut which shall be
tightened against plenum.
4. Place blower inlet over plenum outlet ring (Figure
14), temporarily supporting blower with wood blocks.
5. Place slot end of blower mounting bracket over
rear mounting rod lower nut.
6. Rotate blower mounting bracket under blower for
support removing wood blocks as necessary.
7. Place hole in blower mounting bracket over front
mounting rod and secure tightly with nut provided. Insure
gasket between blower and plenum is compressed.
8. A short 90°Elbow Model STL90R (see page 17) is
available when integral blower exit hole through floor is
9-1/8" from centerline in Figure 20. A standard 6", 90°
elbow shall be used when hole is more than 9-1/8"
from .
INTEGRAL BLOWER - FLOOR DUCTING
C
L

13
■
The remote blower VTR1000Q, with 3-speed motor, is
recommended for roof and exterior wall installations. Other
remote blowers, without the 3-speed motor, are not
compatible with the range ventilation system.
Ducting adapters are available (purchased separately) to
connect the plenum exhaust to standard ducts. (See Figure
21.)
Exterior ducting may be routed right, left, rear, up rear wall,
above and below floor line. See Figure 22.
VENTILATION
Figure 21 – Ducting Adapters
Model RD7
Model RD310
REMOTE BLOWER SYSTEM
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
Ducting to Rear and Up Wall
Figure 22 – Ducting Routes
Ducting Through Floor (3-1/4" x 10")
OFF
OFF
OFF
OFF
OFF
OFF
Ducting Through Floor 7" Dia.
Ducting to right and left, above and below floor

14
■VENTILATION

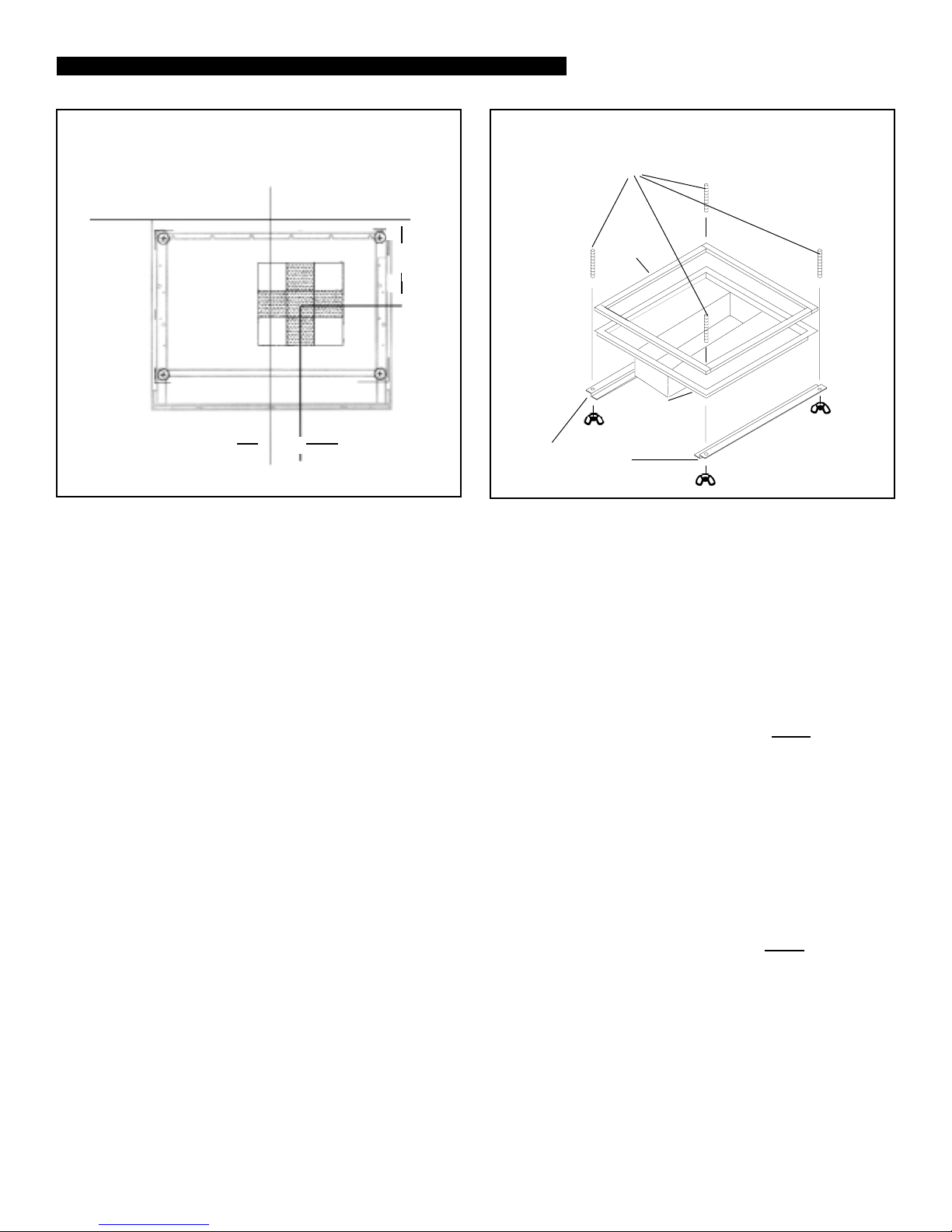

EXHAUST PLENUM ADAPTER INSTALLATION
Wall
10-3/4"
Adapter Shown with Offset to Right
Model # RD7
With Offset to Rear
4-5/8"
With Offset to Left
3-3/8"
2-1/8"
12"
9-1/2"
With Offset to Right
With Offset to Front
Figure 23A Top View of 7" Round Adapter in 4 Positions
DETERMINING REMOTE BLOWER DUCTS AND FITTINGS
High levels of air flow provide better performance. For
best results, use larger duct and keep the duct length as
short as possible.
The VTR1000Q remote blower requires a 10" diameter
round duct to match the inlet ring. You will need to transition
from other duct sizes to achieve the 10" diameter. Be sure
to use proper transitions from one size duct to another.
NOTE: You need to calculate the equivalent lengths of
straight duct for each elbow or transition you use. See
Blower Duct Sizing Section, Page 15 to 17.
1. Select type of adapter (Figure 21) based on ducting
options (Fig 22).
- 3-1/4" x 10" adapter Model #RD310
or
- 7" Diameter Adapter Model #RD7
2. Apply foam gasket to flange (Figure 24).
3. Position adapter over exhaust plenum ring. Note: The
adapter's opening allows the choice of 4 positions (see
Figure 23A) or 2 positions (see Figure 23B).
4. Secure adapter in place with the two mounting brackets
shown in Figure 24. Tighten wing nuts to compress
gasket.
C
L
C
L
C
L
C
L

15
■
A. Duct Fitting Equivalent
Quantity Fitting Equivalent
Description Length
1 6" Dia to 3-1/4" x 10" 1 Ft.
2 3-1/4" x 10" 90°elbows
(2 @ 10 feet) 20 Ft.
1 3-1/4 x 10" Wall cap
(Model# 12551) 2 Ft.
Total "A" Duct Fitting Equipment 23 Ft.
B. Straight Duct Length
1 15 Ft.of 3-1/4 x 10"
rectangular duct 15 Ft.
1 1 Ft. of 3-1/4" x 10"
rectangular duct 1 Ft.
1 6 Ft. of 3-1/4 x 10"
rectangular duct 6 Ft.
Total "B" Straight Duct Length 22 Ft.
C. Total Equivalent Straight =23+22=45 Ft.
Once you've determined the value of C, refer to Chart 1
for internal blower (Page 16) to find the minimum C.F.M.
for 3-1/4" x 10" rectangular duct. Note that the chart
legend furnishes different lines for different ducting sizes
and shapes. By using the correct line, you can see that 45
feet of rectangular duct equates to approximately 420
C.F.M.
BLOWER DUCT SIZING
Based on the blower position, determine the
required straight duct length and size, and the
number and types of elbows or transitions.
Calculate the total equivalent length using this
equation:A+B = C
A= Duct fitting equivalent straight length (use Table 1,
Page 17).
B= Straight duct length of smallest duct used.
C= Total equivalent straightlength of the smallest size
ducting used.
Use the value of C from Chart 1, Page 16 (Internal
Blower) or Chart 2 (Remote Blower) to determine the
C.F.M.
NOTE: We recommend a minimum of 350 cubic
feet per minute (C.F.M.) Flow for the range
downdraft system.
FOR EXAMPLE: An internal ventilation system, using
model VTN30RQ, would have a total equivalent length of
45 feet when using fittings noted on Page 17.
Figure 23B - TopView of 3-1/4" x 10" Adapter
in two positions
➛
Model # RD310
3-3/8"
➛
10-3/4"
➛
➛
CALCULATING CUBIC FEET PER MINUTE (C.F.M.)
Gasket
Plenum
Adapter
Studs Located on Bottom of
Exhaust Plenum
➝
Adapter Mounting
Bracket
Figure 24
C
L

16
■BLOWER DUCT SIZING

17
■
Fitting = Straight
(Dia.) Length
6" = 5 Ft.
7" = 3 Ft. Model #129517
Fitting = Straight
(Dia.) Length
6" = 6 Ft.
7" = 4 Ft.
Fitting = Straight
(Dia.) Length
6" = 10 Ft.
7" = 8 Ft.
8" = 6 Ft.
3-1/4 " x 10" to Round
Fitting = Straight
(Dia.) Length
6" = 2 Ft.
7" = 2 FT.
8" = 2 Ft.
3-1/4 " x 10"
Plenum Adapter
Model #RD310
Integral Blower 90°Through Floor
Model #STL90R
Equiv. Length = 10 Ft.
Equiv. Length = 15 Ft.
NOTE: Fittings with
model numbers stated
are available through
yourThermador dealer.
All other fittings are
available from any ma-
jor hardware store.
3-1/4 " x 10" x to
Round 90°Elbow 90°Elbow Wall Cap
Round to
3-1/4 " x 10"
Round to
3-1/4 " x 10" 90°Elbow
45°Elbow 3-1/4 " x 10" to
10" Dia.
Model # 310TR10
Equiv. Length = 1 Ft.
Fitting = Straight
(Dia.) Length
6" = 5 Ft.
7" = 4Ft.
8" = 3 Ft.
Fitting = Straight
(Dia.) Length
6" = 1 Ft.
7" = 1 Ft. Model #129517
Fitting = Straight
(Dia.) Length
6" = 10 Ft.
7" = 8 Ft.
3-1/4 " x 10" 90°Elbow
Model # 12557
3-1/4 " x 10" 90°Flat
Elbow 3-1/4 " x 10" Flexible
Model #RD1 3-1/4 " x 10" Wall Cap
Model #WC310
Equiv. Length = 2 Ft.Equiv. Length = 20 Ft.
Straight = 2 Ft.
Equiv. Length = 20 Ft.
➜
➜
10" Dia.
6"
➜
➜
➜
EQUVILANT LENGTHS OF FITTINGS TABLE 1
BLOWER DUCT SIZING
Equiv. Length included
in Chart 2
Equiv. Length included in
Chart 2
7" Dia. Plenum Adapter
Model #RD7
3-1/4"
Model #I 40 7" In-Line Backdraft Damper (not shown) = 5 Ft.
Model #RJ310 3-1/4" x 10" Roof Jack and Shutter (not shown) = 5 Ft.

18
■ANTI-TIP BRACKET INSTALLATION

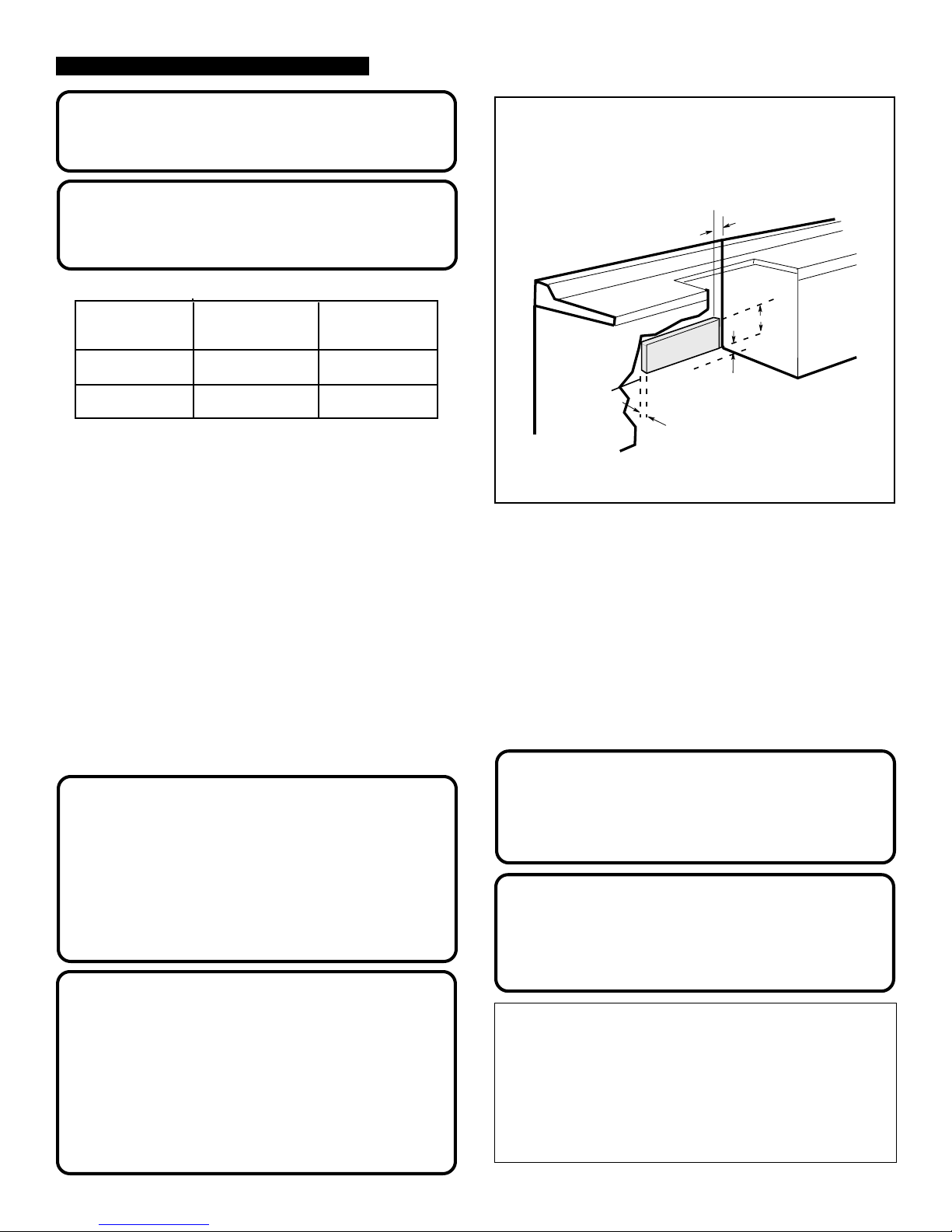

INSTALL ANTI-TIP BRACKET
Two anti-tip brackets are supplied. The wall mounted anti-
tip bracket shall be used when possible. An alternative floor
mounted bracket is provided when rear side to side bracket
must be removed to clear ducting. Figure 29
WALL MOUNTED ANTI-TIP BRACKET
Install anti-tip device as follows:
a) Adjust height of range and level by rotating the
adjustable leg supports, (See Figure 25) using 1/2"
wrench.
b) Attach anti-tip bracket to wall stud 1/4" maximum above
cross brace in back of oven. (See Figs. 26 & 27.) The
anti-tip bracket shall allow the range back brace to slide
under the anti-tip bracket (See Figure 26.)
c) If necessary add spacer between bracket and wall to
insure anti-tip bracket engagement.
d) Slide range into position insuring the range back brace
slides under the anti-tip bracket. Insure flexible gas
connections are not crimped.
e) Carefully tip range forward to insure that the anti-tip
bracket engages the range back brace and prevents tip-
over. See Figure 28.)
4-1/8" Min From Cabinet Both Sides
Wall Stud
Anti-Tip
Bracket
1/4" Lag
Screws
Washer
Figure 27 – Anti-tip Bracket to Wall Stud
Figure 28 – SideView of Restrained Range
Anti-Tip Bracket
➛
➝
Figure 26 – SideView of Installed Range
Anti-Tip Bracket
➝
➝
Back Brace on Range
➝
➝
1/4" Max
Figure 25 – Adjust Range Height and Level
Adjustable Legs
Wrench
➝
➝

19
■
The alternative floor mounted bracket shall be installed as follows:
a) Place bracket on floor in position shown in Figure 29.
b) Secure to floor.
c) Later, when the unit is installed, the adjustable leg will slide under the bracket.
ANTI-TIP BRACKET INSTALLATION
Figure 29 – Placement of Anti-tip Bracket to Floor (TopView)
12345678901
1
234567890
1
1
234567890
1
1
234567890
1
1
234567890
1
1
234567890
1
1
234567890
1
1
234567890
1
1
234567890
1
1
234567890
1
1
234567890
1
1
234567890
1
1
234567890
1
1
234567890
1
1
234567890
1
1
234567890
1
1
234567890
1
1
234567890
1
1
234567890
1
1
234567890
1
12345678901
➛1"
Front Edge of
Right Cabinet
Right
Cabinet
24"
Floor
Wall Line
Left
Cabinet ➛
Front Edge
of Right
Cabinet
FLOOR MOUNTED ANTI-TIP BRACKET

Specifications are for planning purposes only. Refer to installation instructions and consult your
countertop supplier prior to making counter opening.Consult with a heating and ventilating engineer
for your specific ventilation requirements. For the most detailed information, refer to installation
instructions accompanying product or write Thermador indicating the model number.
Thermador reserves the right to change specifications or design without notice. Some models are
certified for use in Canada. Thermador is not responsible for products which are transported
from the United States for use in Canada. Check with your local Canadian distributor or dealer.
Thermador, 5551 McFadden Avenue, Huntington Beach, CA 92649.
For the most up to date critical installation dimensions by fax, use your fax handset and phone
702/833-3600. Use code #8030.
5551 McFadden Avenue , Huntington Beach, CA 92649 • 1-800-735-4328
ECO14028 • 14-33-873F • © BSH Home Appliances Corp. 1998 • Litho in USA 4/01
