Thermia WT-V User manual

Installation Guide
WT-V Accumulator tanks
www.thermia.com

Thermia AB is not liable or bound by warranty if these instructions
are not adhered to during installation or service.
The English language is used for the original instructions.
Other languages are a translation of the original instructions.
(Directive 2006/42/EC)
© Copyright Thermia AB

Table of Contents
1 Getting started .................................................................. 4
1.1 Getting started ............................................................... 4
2Model specifications .............................................................. 5
2.1 WT-V ..................................................................... 5
2.2 WT-V FC (Front Connection) ...................................................... 12
Installation Guide WT-V Accumulator tanks
Thermia AB VIBNE502 3

1 Getting started
1.1 Getting started
Installation
The accumulator tank should stand on a solid surface and be leveled with assistance from the setscrews underneath the tank (not fitted
on all models). The tank models that come without setscrews can be leveled with assistance of a shim. This must be done before the
tank is connected to the pipes and filled with water. The setscrews can be adjusted down to a maximum of 25mm. Connections not in
use must be plugged appropriately. During water filling, condensed water may emerge on the outside of the tank. This will result in
water underneath the tank, on the floor. This will cease when the tank is heated. There must be a floor drain in the same room.
To temporarily remove the insulation, for instance if there is a narrow passage to fit the tank through, see the below instructions (not
applicable to all models). All the screws holding the insulation in place is of Torx 10 type.
1
2
3
2
1
1. Start by removing the screws that holds the locks in
place. At the top and bottom.
2. Flip the locks.
3. Remove the screws all the way down. The side is also fit-
ted with a velcro on the inside.
4. Put the insulation back in the reversed order.
Adjust the setscrews according to the measures below.
1 2
3
1. Foot length is 14mm.
2. Maximum length between floor and tank is 39mm, in-
cluding foot.
3. Maximum screw length is 25mm, excluding foot.
Commissioning
Start by filling the tank, then pressurize it. Continue to fill the radiator system (the enclosed water). The working pressure may not ex-
ceed the test pressure (4,3 or 8,6 bars, gauge). A safety valve with releasing pressure of that of the test pressure must always be installed.
Maintenance
Check the safety valve annually by manually opening and closing the valve handle and making sure that water is released. Check annu-
ally all connections for eventual leakage (also peripheral installations, i.e. a heat pump, etc).
Electric installation
▪The electrical installation must be performed by an authorised installer and follow applicable norms and regulations.
▪When selecting electrical equipment, it must be selected with approved materials and enclosure class.
Disassembling the product
When disassembling the product, applicable laws and regulations must be observed. Contact your installer for more information.
Installation Guide WT-V Accumulator tanks
VIBNE502 Thermia AB
4

2 Model specifications
2.1 WT-V
Technical data
WT-V Unit 100 200 300 500 750 1000
Storage volume V litres 102 204 293 473 721 971
Test pressure bar 4,3
Working pressure bar 3
Max. temperature °C 100
Weight kg 40 68 91 113 120 165
Standing loss S W 60 68 78 101 127 130
Energy efficiency class - C
Dimensions
WT-V Unit 100 200 300 500 750 1000
Height mm 1158 1153 1564 1754 1809 1913
Dimensions mm Ø380 601 x 600 635 x 600 726 x 756 Ø960 Ø1090
Installation Guide WT-V Accumulator tanks
Thermia AB VIBNE502 5

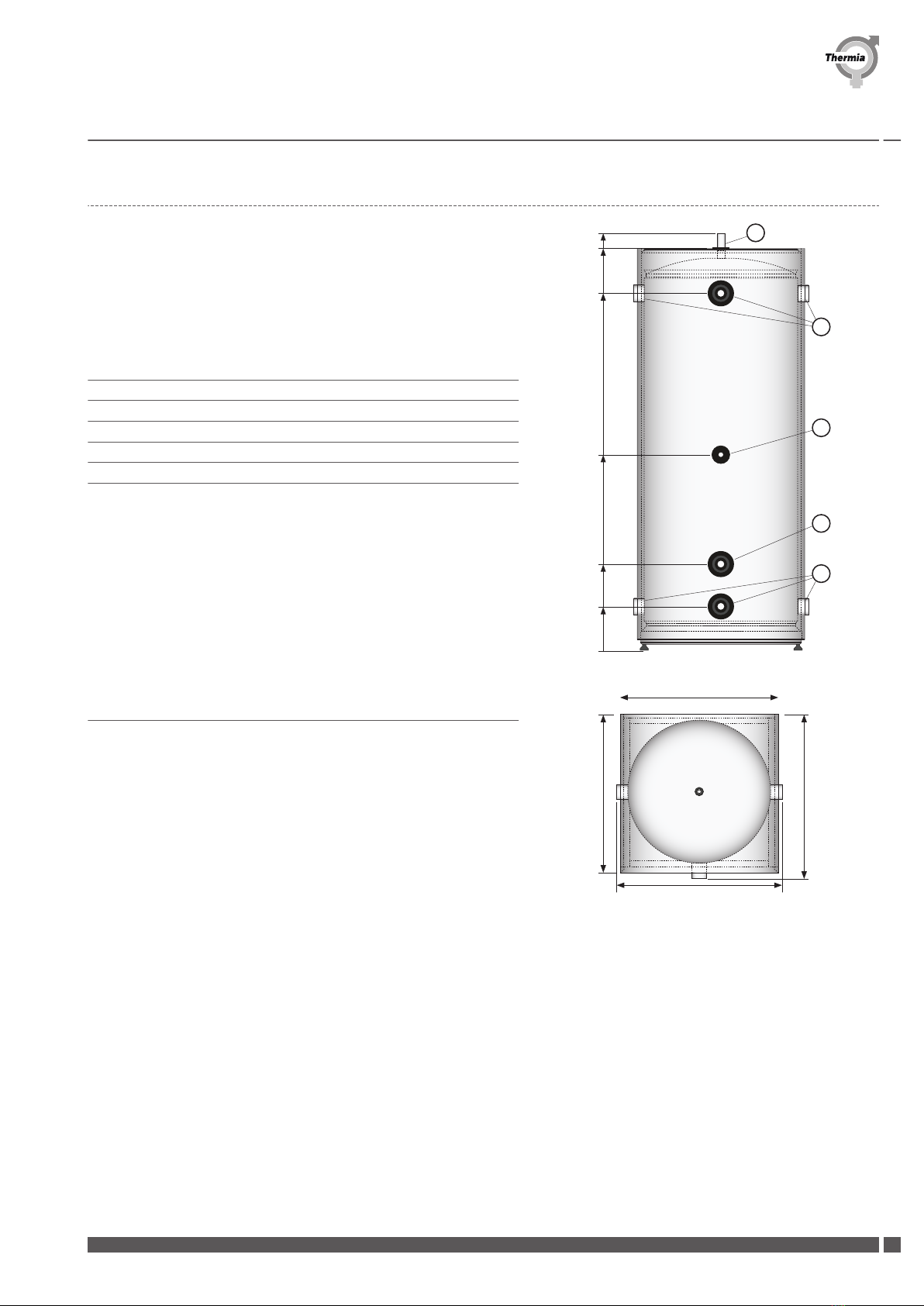

2.1.1 WT-V 100
Connections
4
0
85
1 558
1 540
125
502
1 Venting (1/8" int.)
2 Connections (DN25 x 4 int.)
3 Sensor connection (Ø9 int.)
4 Drain tap (DN15 int.)
Technical data
Storage volume V 102 litres
Test pressure 4,3 bar
Working pressure 3 bar
Max. temperature 100 °C
Weight 40 kg
Standing loss S 60 W
Energy efficiency class C
Dimensions
2
31
2
2
2
100
100
40
Radiator in
HP in
Radiator out
HP out
ø380
Height (mm) 1558
Diameter (mm) 380
Required ceiling height for tilting: 1595 mm
Installation Guide WT-V Accumulator tanks
VIBNE502 Thermia AB
6

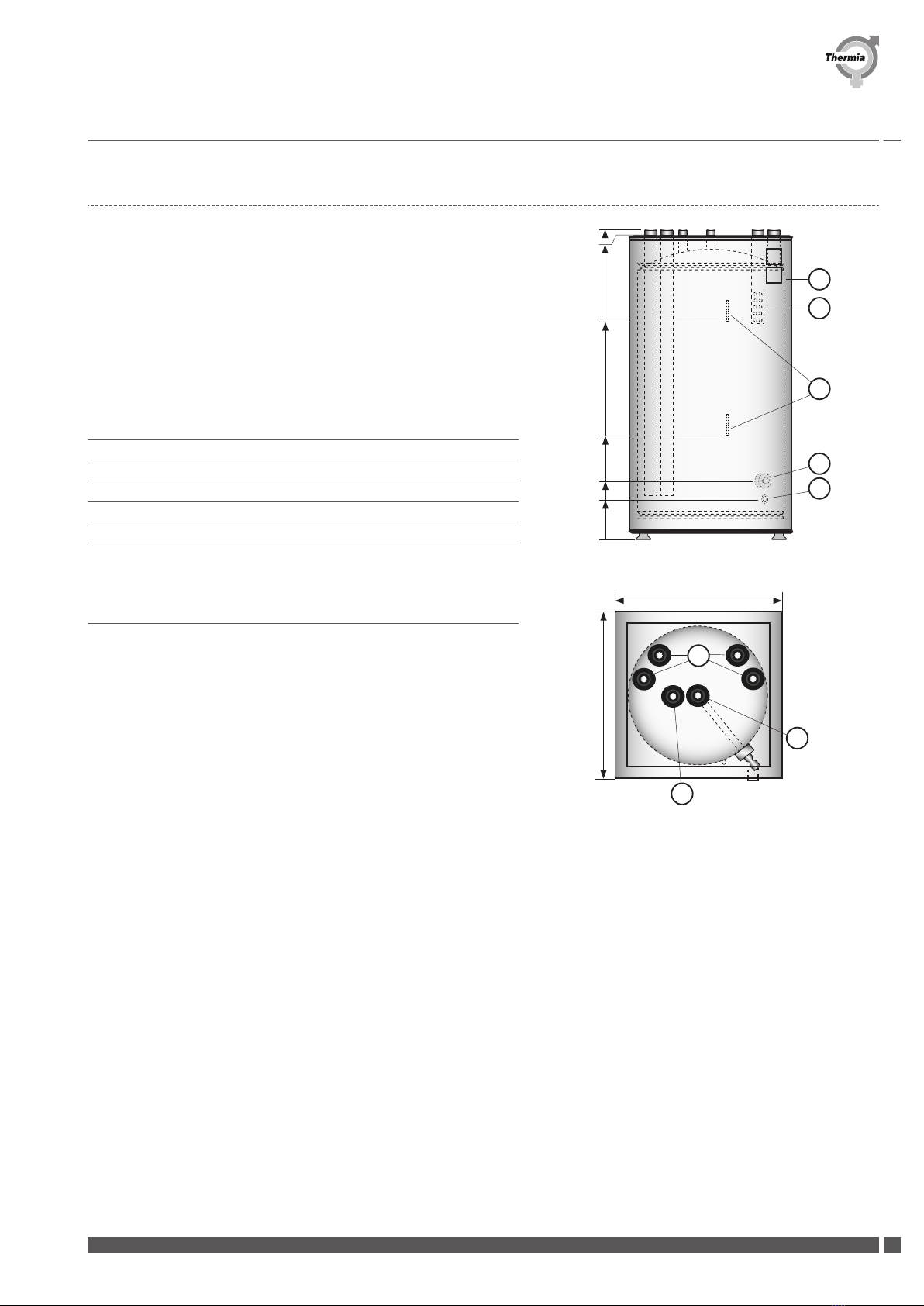

2.1.2 WT-V 200
Connections
1153
1126
147
227
377
777
0
4
7
5
6
3
1 Expansion/Venting (DN25 int.)
2 Connections (DN32 x 4 int.)
3 Temperature sensor (2x)
4 Drainage valve (DN15)
5 Teamperature sensor pipe (Ø7 int.)
6 Diffuser
7 Connection (DN50)
Technical data
Storage volume V 204 litres
Test pressure 4,3 bar
Working pressure 3 bar
Max. temperature 100 °C
Weight 68 kg
Standing loss S 68 W
Energy efficiency class C
Dimensions
600
601
1
2
3
Height (mm) 1153
Diameter (mm) 601 x 600
Required ceiling height for tilting: 1280 mm
Installation Guide WT-V Accumulator tanks
Thermia AB VIBNE502 7

2.1.3 WT-V 300
Connections
0
227
527
147
1 536
1 082
1 564
4
5
6
7
8
1 Expansion/Venting (DN25)
2 Connections (DN32 x 4)
3 Temperature sensor conn. (DN20)
4 Drainage valve (DN15)
5 Teamperature sensor pipe (Ø7 x 5 int.)
6 Immersion heater conn. (DN50)
7 Diffuser (DN32)
8 Temperature sensor (2x)
Technical data
Storage volume V 293 litres
Test pressure 4,3 bar
Working pressure 3 bar
Max. temperature 100 °C
Weight 91 kg
Standing loss S 78 W
Energy efficiency class C
Dimensions
600
635
1
2
3
Height (mm) 1564
Diameter (mm) 635 x 600
Required ceiling height for tilting: 1665 mm
Installation Guide WT-V Accumulator tanks
VIBNE502 Thermia AB
8

2.1.4 WT-V 500
Connections
1754
1710
1492
367
842
192
0
2
3
1
2
4
1 Venting (DN25 ext.)
2 Connections (DN50 x 6 int.)
3 Temperature sensor conn. (DN20)
4 Immersion heater conn. (DN50 int.)
Technical data
Storage volume V 473 litres
Test pressure 4,3 bar
Working pressure 3 bar
Max. temperature 100 °C
Weight 113 kg
Standing loss S 101 W
Energy efficiency class C
Dimensions
695
756
696
726
Height (mm) 1754
Diameter (mm) 726 x 756
Required ceiling height for tilting: 1850 mm
Installation Guide WT-V Accumulator tanks
Thermia AB VIBNE502 9

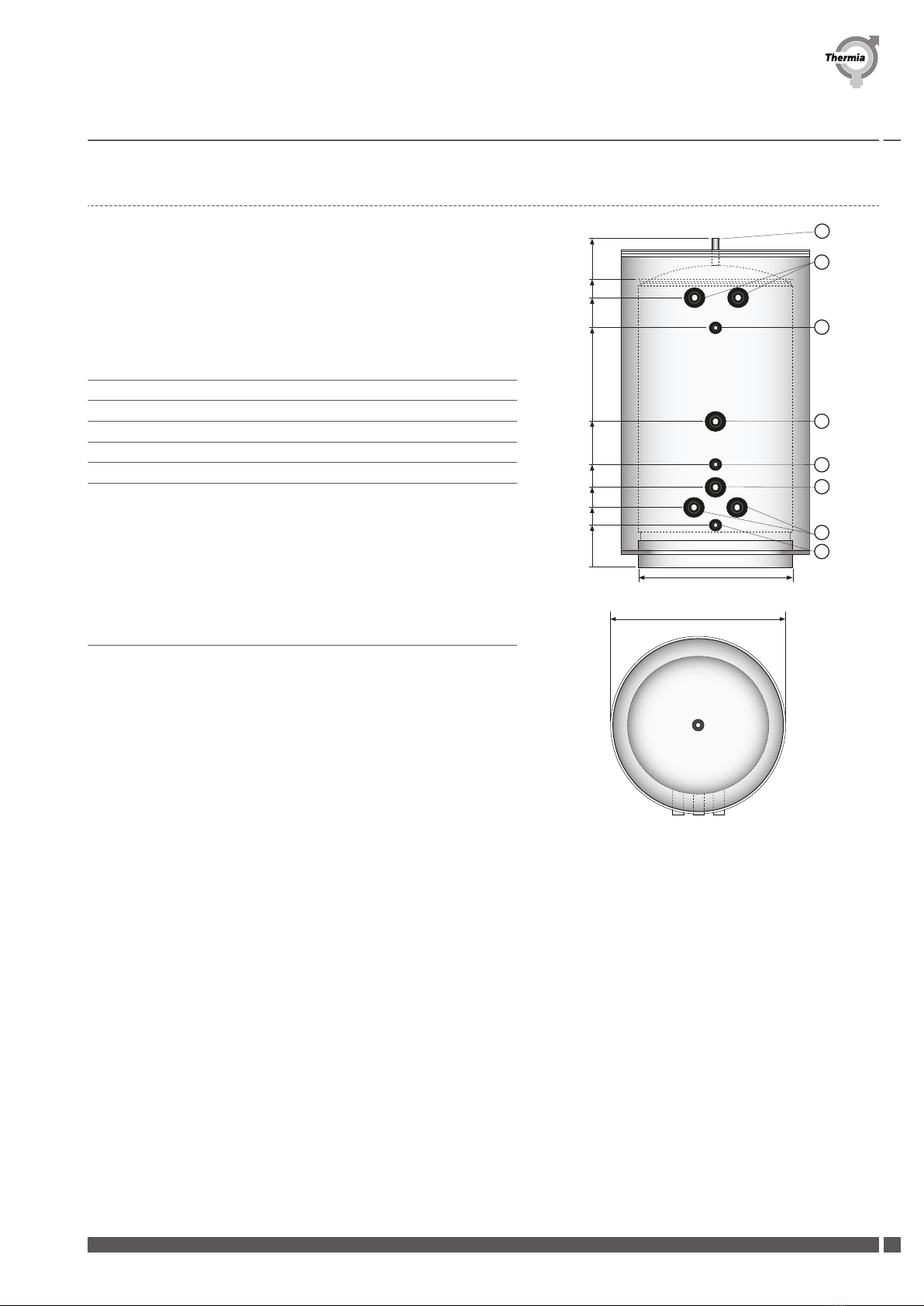

2.1.5 WT-V 750
Connections
1 809
1 775
1 515
1 410
1 300
1015
665
420
295
185
1
2
2
2
4
3
3
5
ø780
0
1 Venting (DN32 ext.)
2 Connections (DN50 x 4)
3 Temperature sensor (DN20)
4 Immersion heater (DN50 int.)
5 Drain tap/expansion (DN20)
Technical data
Storage volume V 721 litres
Test pressure 4,3 bar
Working pressure 3 bar
Max. temperature 100 °C
Weight 120 kg
Standing loss S 127 W
Energy efficiency class C
Dimensions
ø960
Height (mm) 1809
Diameter (mm) Ø960
Required ceiling height for tilting: 2005 mm
Installation Guide WT-V Accumulator tanks
VIBNE502 Thermia AB
10

2.1.6 WT-V 1000
Connections
1 913
1 560
1 656
1 380
835
585
455
340
235
1
2
2
4
4
3
3
3
ø890
0
1 Venting (DN25 ext.)
2 Connections (DN50 x 4)
3 Temperature sensor conn. (DN20)
4 Immersion heater conn. (DN50 x 2)
Technical data
Storage volume V 971 litres
Test pressure 4,3 bar
Working pressure 3 bar
Max. temperature 100 °C
Weight 165 kg
Standing loss S 130 W
Energy efficiency class C
Dimensions
ø1090
Height (mm) 1913
Diameter (mm) 1090
Required ceiling height for tilting: 2125 mm
Installation Guide WT-V Accumulator tanks
Thermia AB VIBNE502 11

2.2 WT-V FC (Front Connection)
Technical data
WT-V 500 FC Unit 500 FC (3Bar) 500 FC (6Bar) 500 FC DN80 (3Bar) 500 FC DN80 (6Bar)
Storage volume V litres 477 503 477 503
Working pressure bar 3 6 3 6
Test pressure bar 4,3 8,6 4,3 8,6
Max. temperature °C 100
Weight kg 94 117 97 120
Standing loss S W 104 104 104 104
Energy efficiency class - C
Height mm 1765 1788 1765 1788
Dimensions mm Ø840 Ø840 Ø840 Ø840
WT-V 750 FC Unit 750 FC (3Bar) 750 FC (6Bar) 750 FC DN80 (3Bar) 750 FC DN80 (6Bar)
Storage volume V litres 721 676 721 676
Working pressure bar 3 6 3 6
Test pressure bar 4,3 8,6 4,3 8,6
Max. temperature °C 100
Weight kg 114 135 117 138
Standing loss S W 127 127 127 127
Energy efficiency class - C
Height mm 1825 1837 1825 1837
Dimensions mm Ø960 Ø950 Ø960 Ø950
WT-V 1000 FC Unit 1000 FC (3Bar) 1000 FC (6Bar) 1000 FC DN80 (3Bar) 1000 FC DN80 (6Bar)
Storage volume V litres 971 907 971 907
Working pressure bar 3 6 3 6
Test pressure bar 4,3 8,6 4,3 8,6
Max. temperature °C 100
Weight kg 173 166 176 169
Standing loss S W 130 130 130 135
Energy efficiency class - C
Height mm 1947 1900 1947 1900
Dimensions mm Ø1090 Ø1050 Ø1090 Ø1050
Installation Guide WT-V Accumulator tanks
VIBNE502 Thermia AB
12

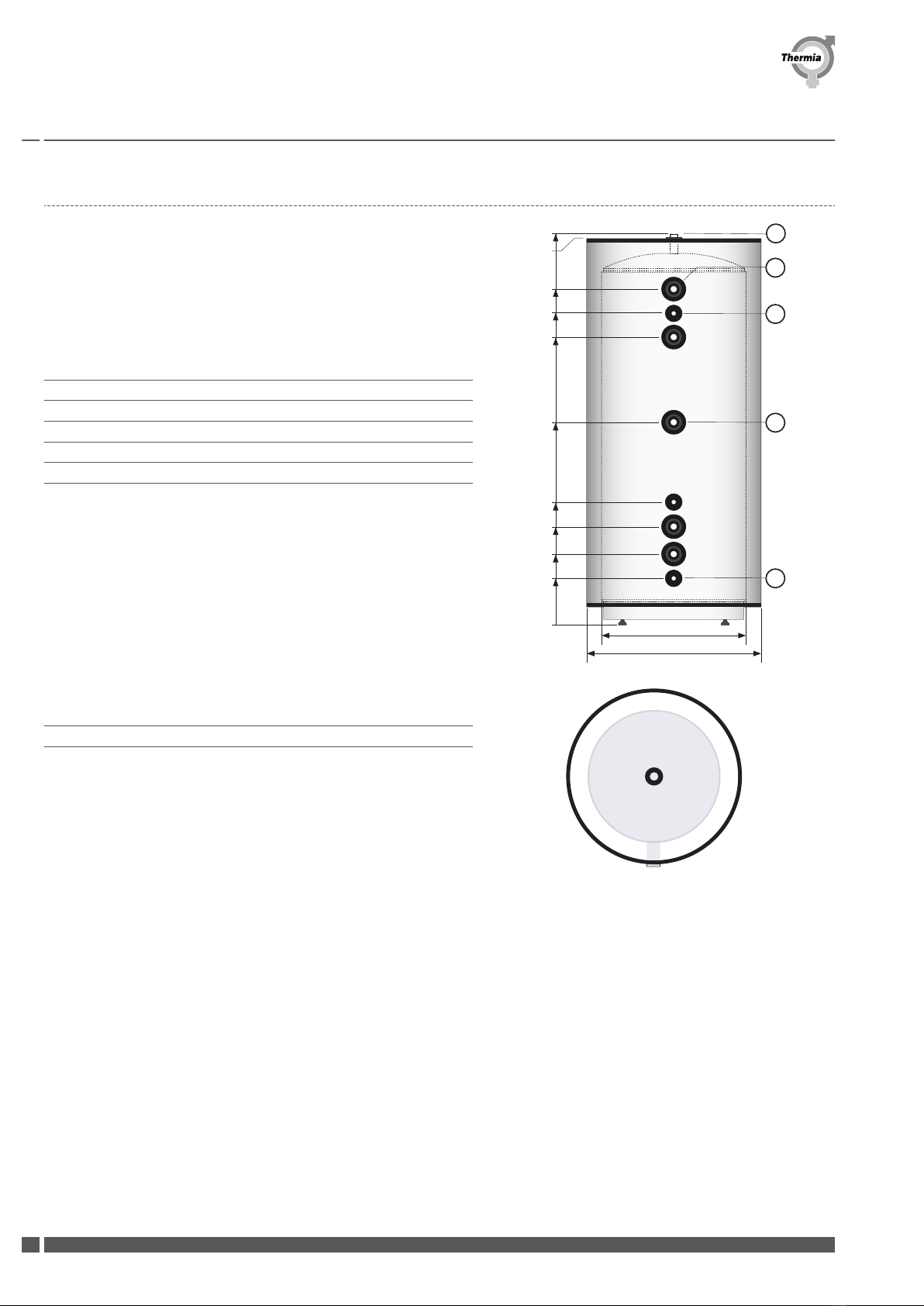

2.2.1 WT-V 500 FC (3Bar)
1765
1505
1400
1290
865
285
175
1
2
3
4
5
Ø840
Ø640
0
525
410
Connections
1 Venting (DN32)
2 Heat source (DN50, x4)
3 Temperature sensor (DN20, x2)
4 Immersion heater (DN50)
Technical data
Storage volume V 477 litres
Working pressure 3 bar
Test pressure 4,3 bar
Max. temperature 100 °C
Weight 94 kg
Standing loss S 104 W
Energy efficiency class C
Dimensions
Height (mm) 1765
Diameter (mm) Ø840
Diameter without insulation (mm) Ø640
Required ceiling height for tilting: 1900 mm
Installation Guide WT-V Accumulator tanks
Thermia AB VIBNE502 13
5 Drain tap/Temperature sensor (DN20)

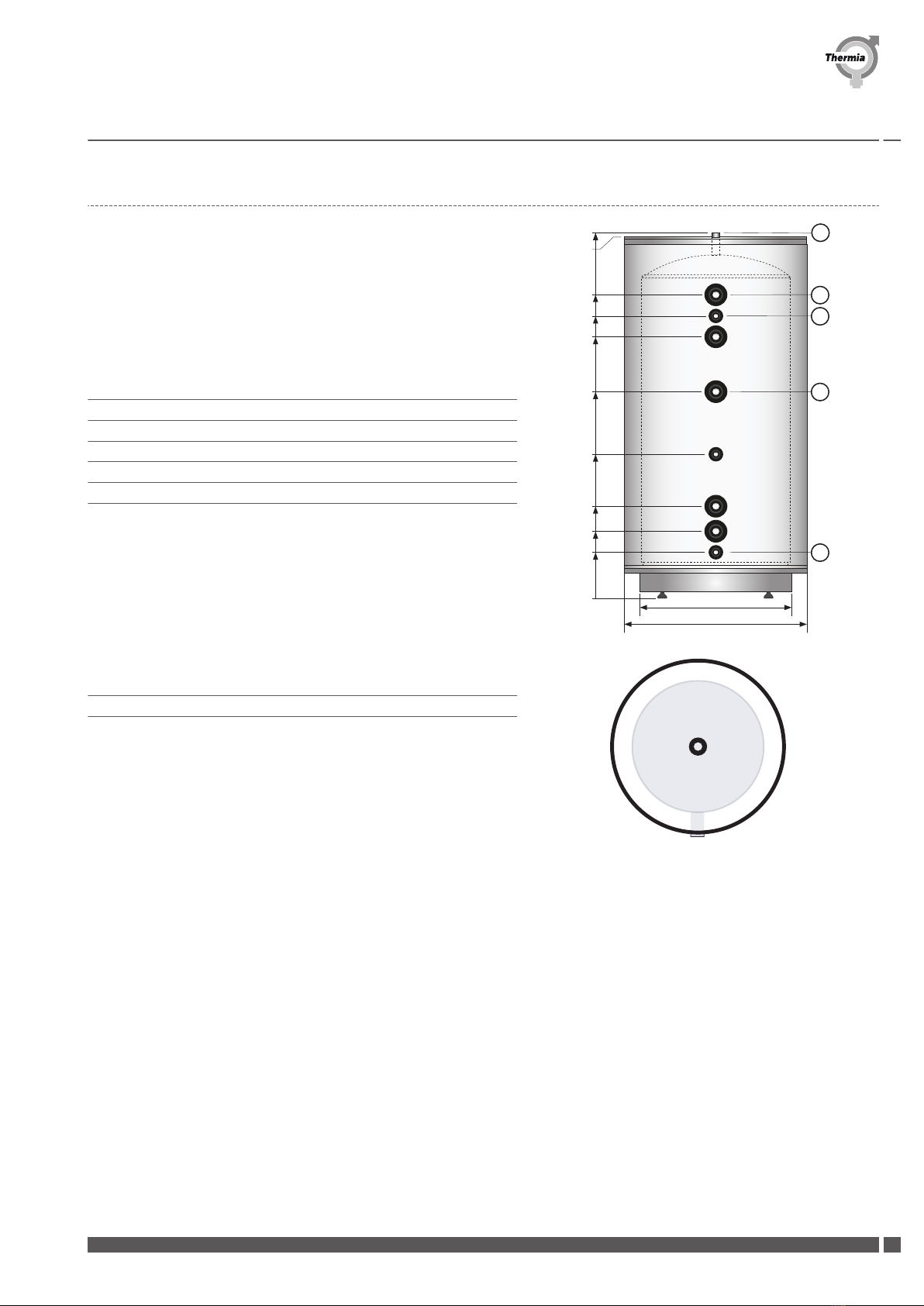

2.2.2 WT-V 500 FC (6Bar)
1788
1762
1480
1375
1265
920
340
230
1
2
4
3
5
Ø840
Ø650
0
580
465
Connections
1 Venting (DN32)
2 Heat source (DN50, x4)
3 Temperature sensor (DN20, x2)
4 Immersion heater (DN50)
Technical data
Storage volume V 503 litres
Working pressure 6 bar
Test pressure 8,6 bar
Max. temperature 100 °C
Weight 117 kg
Standing loss S 104 W
Energy efficiency class C
Dimensions
Height (mm) 1788
Diameter (mm) Ø840
Diameter without insulation (mm) Ø640
Required ceiling height for tilting: 1900 mm
Installation Guide WT-V Accumulator tanks
VIBNE502 Thermia AB
14
5 Drain tap/Temperature sensor (DN20)

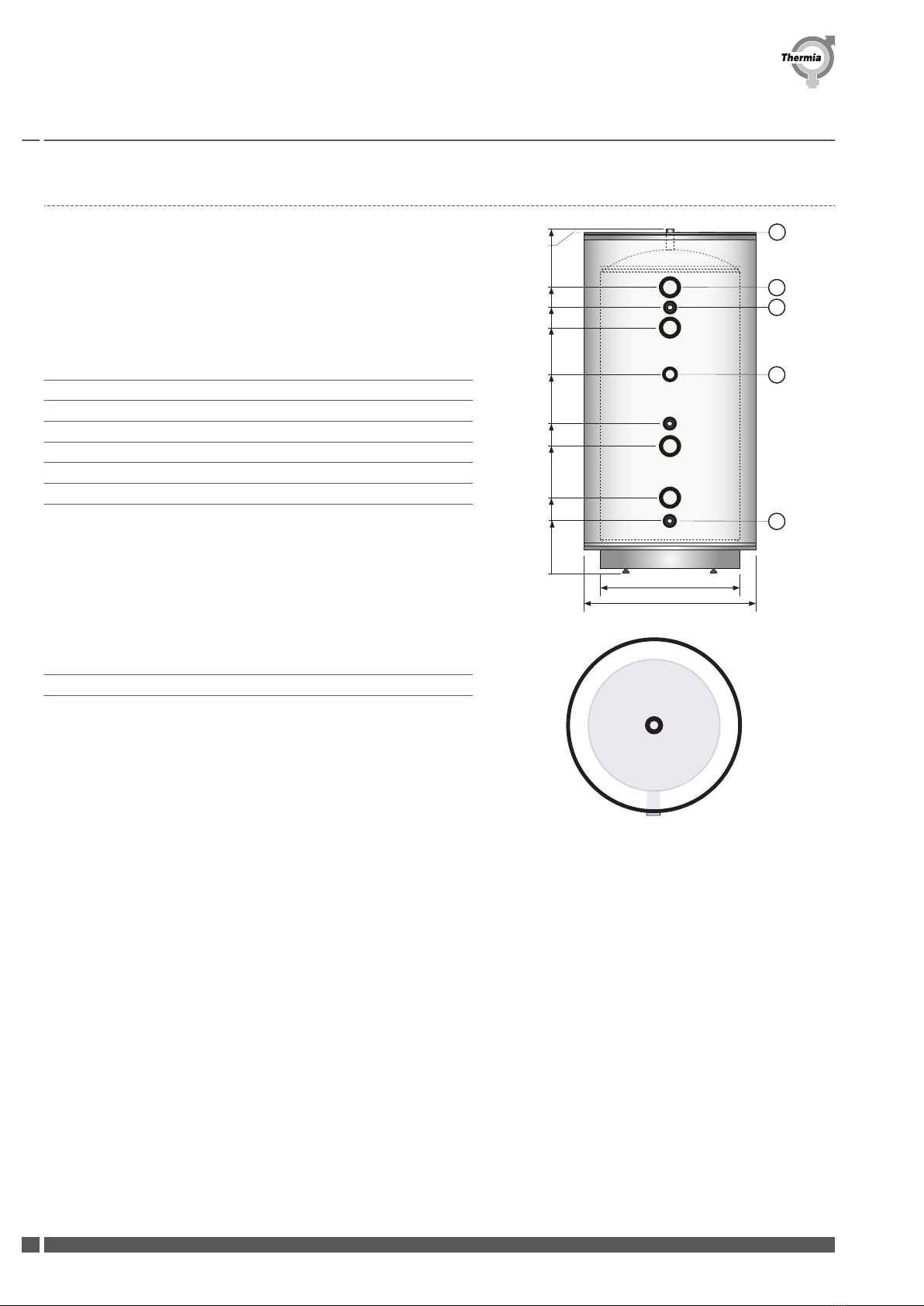

2.2.3 WT-V 500 FC DN80 (3Bar)
1765
1495
1370
1245
1005
315
175
1
2
4
3
5
Ø840
Ø640
0
705
565
Connections
1 Venting (DN32)
2 Heat source (DN80, x4)
3 Temperature sensor (DN20, x2)
4 Immersion heater (DN50)
5 Drain tap/Temperature sensor (DN20)
Technical data
Storage volume V 477 litres
Working pressure 3 bar
Test pressure 4,3 bar
Max. temperature 100 °C
Weight 97 kg
Standing loss S 104 W
Energy efficiency class C
Dimensions
Height (mm) 1765
Diameter (mm) Ø840
Diameter without insulation (mm) Ø640
Required ceiling height for tilting: 1900 mm
Installation Guide WT-V Accumulator tanks
Thermia AB VIBNE502 15

2.2.4 WT-V 500 FC DN80 (6Bar)
1788
1760
1475
1350
1225
1065
375
235
1
2
4
3
5
Ø840
Ø650
0
765
625
Connections
1 Venting (DN32)
2 Heat source (DN80, x4)
3 Temperature sensor (DN20, x2)
4 Immersion heater (DN50)
5 Drain tap/Temperature sensor (DN20)
Technical data
Storage volume V 503 litres
Working pressure 6 bar
Test pressure 8,6 bar
Max. temperature 100 °C
Weight 120 kg
Standing loss S 104 W
Energy efficiency class C
Dimensions
Height (mm) 1786
Diameter (mm) Ø840
Diameter without insulation (mm) Ø650
Required ceiling height for tilting: 1900 mm
Installation Guide WT-V Accumulator tanks
VIBNE502 Thermia AB
16

2.2.5 WT-V 750 FC (3Bar)
1825
1792
1529
1424
1314
1029
309
199
1
2
3
4
5
Ø960
Ø780
0
679
434
Connections
1 Venting (DN32)
2 Heat source (DN50 x 4)
3 Temperature sensor (DN20 x 2)
4 Immersion heater (DN50)
5 Drain tap/Temperature sensor (DN20)
Technical data
Storage volume V 721 litres
Working pressure 3 bar
Test pressure 4,3 bar
Max. temperature 100 °C
Weight 114 kg
Standing loss S 127 W
Energy efficiency class C
Dimensions
Height (mm) 1825
Diameter (mm) Ø960
Diameter without insulation (mm) Ø780
Required ceiling height for tilting: 2000 mm
Installation Guide WT-V Accumulator tanks
Thermia AB VIBNE502 17

2.2.6 WT-V 750 FC (6Bar)
1837 1
1812
1501 2
1396 3
1286
1081 4
731
486
361
251 5
0Ø750
Ø950
Connections
1 Venting (DN32)
2 Heat source (DN50 x 5)
3 Temperature sensor (DN20 x 2)
4 Immersion heater (DN50)
Technical data
Storage volume V 676 litres
Working pressure 6 bar
Test pressure 8,6 bar
Max. temperature 100 °C
Weight 135 kg
Standing loss S 127 W
Energy efficiency class C
Dimensions
Height (mm) 1837
Diameter (mm) Ø950
Diameter without insulation (mm) Ø750
Required ceiling height for tilting: 2000 mm
Installation Guide WT-V Accumulator tanks
VIBNE502 Thermia AB
18
5 Drain tap/Temperature sensor (DN20)

2.2.7 WT-V 750 FC DN80 (3Bar)
1825
1804
1525
1400
1275
1035
345
205
1
2
3
4
5
Ø960
Ø780
0
735
595
Connections
1 Venting (DN32)
2 Heat source (DN80 x 4)
3 Temperature sensor (DN20 x 2)
4 Immersion heater (DN50)
5 Drain tap/Temperature sensor (DN20)
Technical data
Storage volume V 721 litres
Working pressure 3 bar
Test pressure 4,3 bar
Max. temperature 100 °C
Weight 117 kg
Standing loss S 127 W
Energy efficiency class C
Dimensions
Height (mm) 1825
Diameter (mm) Ø960
Diameter without insulation (mm) Ø780
Required ceiling height for tilting: 2000 mm
Installation Guide WT-V Accumulator tanks
Thermia AB VIBNE502 19

2.2.8 WT-V 750 FC DN80 (6Bar)
1837
1812
1491
1366
1241
1001
641
391
251
1
4
3
2
5
Ø950
Ø750
0
781
Connections
1 Venting (DN32)
2 Heat source (DN80 x 4)
3 Temperature sensor (DN20 x 2)
4 Immersion heater (DN50)
5 Drain tap/Temperature sensor (DN20)
Technical data
Storage volume V 676 litres
Working pressure 6 bar
Test pressure 8,6 bar
Max. temperature 100 °C
Weight 138 kg
Standing loss S 127 W
Energy efficiency class C
Dimensions
Height (mm) 1837
Diameter (mm) Ø950
Diameter without insulation (mm) Ø780
Required ceiling height for tilting: 2000 mm
Installation Guide WT-V Accumulator tanks
VIBNE502 Thermia AB
20
