Congratulations on choosing a DE DIETRICH product, a product of quality. We strongly recommend that you read the following instructions in
order to guarantee the optimal operation of your appliance. We are sure that you will not be disappointed and that it will satisfy all of your
expectations.
Introduction
BH 150 domestic hot water calorifiers are connected to De Dietrich
ELITEC DTG 130 central heating boilers. For a proper operating of the boiler, follow carefully the instructions.
1 Compliance
Compliance of design and manufacture
This product complies with the requirements of European Directive
97 / 23 / EC, Article 3, Paragraph 3, on pressure equipment.
Electrical compliance / Marking 1
ThisproductcompliestotherequirementstotheEuropeanDirectives
and following standards:
• 73/23/EEC Low VoltageDirective
Reference Standard : EN 60.335.1.
• 89/336/EEC Electromagnetic Compatibility Directive
Reference Standards : EN 50.081.1 / EN 50.082.1 / EN 55.014.
2 Important recommendations
Positioning the appliance:
- in a frost-free room
- on a base to facilitate cleaning the room
- asclose aspossibletodraw-offpointsinordertominimiseenergy
losses through the pipes.
Insulating the pipes.
Heating water and domestic water must not come into
contact with each other. Domestic water must not circulate
via the exchanger.
Service the appliance regularly to ensure that it operates correctly.
Any operation on the installation must be performed by a
qualified technician respecting professional regulations
and in accordance with this document.
Keep this document close to the place where the tank is installed.
No modifications must be made to the domestic hot water tank if the
guarantee is to remain valid.
Description
The high quality steel tank is lined with food standard quality vitrified
enamel, which protects it from corrosion and preserves all the
qualities of the domestic water.
The tank is protected against corrosion by a titanium anode (Titan
Active System®).
The thermal exchanger welded into the tank is made of smooth
piping, the inside of which, which is in contact with the domestic
water, is enamelled.
The calorifier is efficiently insulated with CFC-free polyurethane
foam, which reduces thermal loss to a minimum.
The insulating material can be easily detached from the tank. A
polyethylene film prevents the foam sticking to the tank. This
measure facilitates the recycling of materials.
The outside casing is made of painted steel sheeting.

4BH 150 22/02/06 - 300001069-001-G

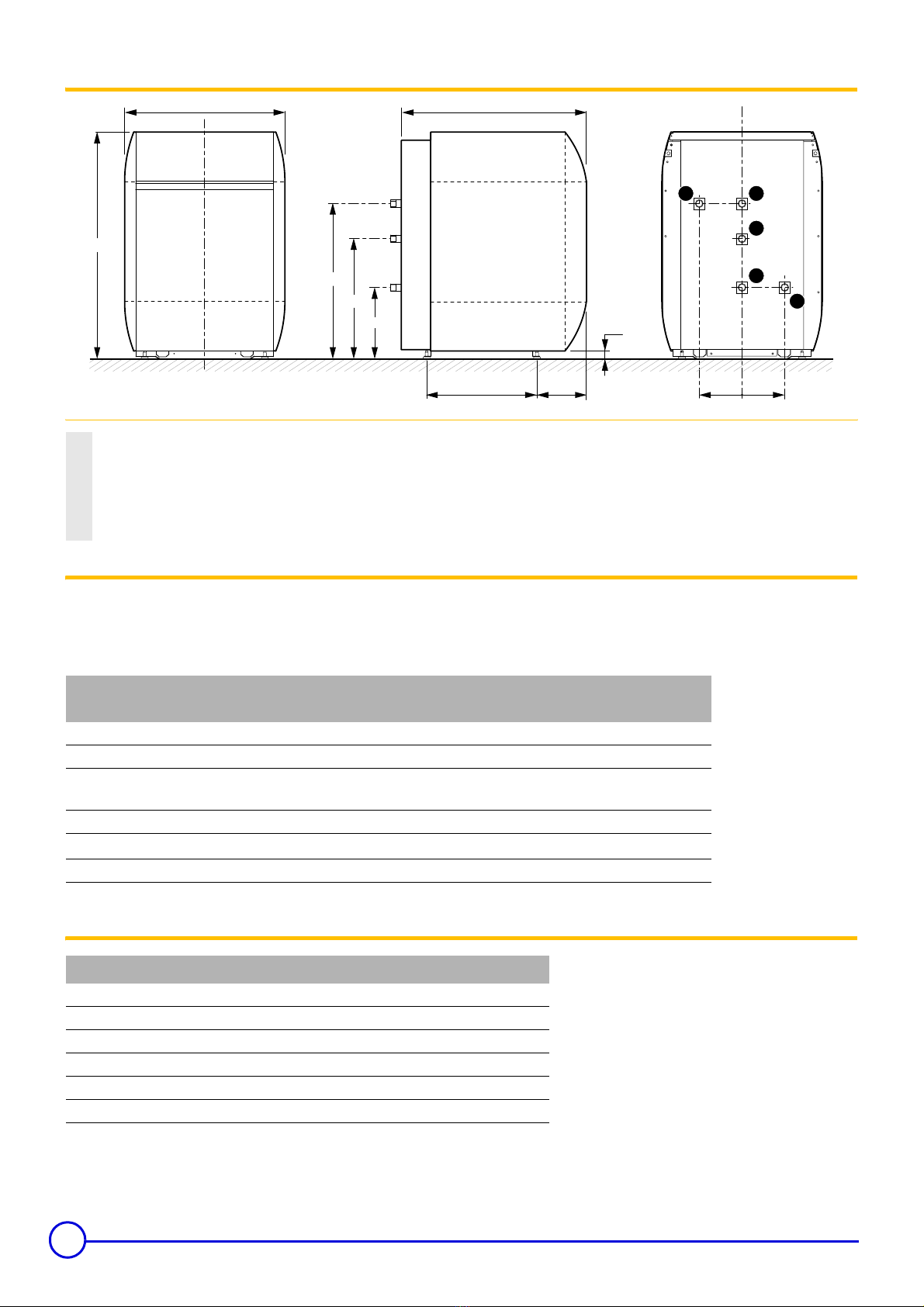

1 Main dimensions
(1) Basic dimension (feet + base: 30 mm
adjustment possible: 30 à 42 mm
R: Conical threading
2 Technical characteristics
The original factory setting of DE DIETRICH boilers limits the
temperature of the primary circuit to 75°C. It can be adjusted
between 50 and 95 °C °C. Refer to the connection instructions
supplied with the control panel..
3 Package list
(1) Themagnesium anode is highlyrecommendedinhomes with a low
rate of occupation (the anode Titan Active System®requires a
permanent electricity supply).
850
600 726
413 185 160160
270 30 (1)
450
580
1
5
2
3
4
8952N123
1Domestic hot water outlet GR 3/4
2Circulator R 3/4
3Cold water inlet R 3/4
4Heat exchanger inlet R 3/4
5Heat exchanger outlet R 3/4
Primary circuit
heating water Secondary circuit domestic water
Maximum operating temperature °C 90 90
Maximum operating pressure bar 12 10
Maximum operating pressure in accordance with W/
TPW (1) bar 6 6
Water capacity l 6 150
Coil exchange surface m20.91 -
Shipping weight kg 110
(1) Swiss Directives
Description package
BH 150 calorifier GL 29
Connecting kit for boiler DTG 130 EA 92
Connecting kit for boiler DTG E 130 EA 94
Options:
Support kit DTG 130/BH 150 EA 82
Magnesium anode (1) EA 103

5
300001069-001-G - 22/02/06 BH 150
Installation
Installation must be carried out in accordance with the
prevailing regulations, the codes of practice and the
recommendations in these instructions.
1 Assembly of the calorifier with an ELITEC DTG 130
The BH 150 calorifier is designed to be connected to an
ELITEC DTG 130 boiler and perfectly matches the esthetic of this
boiler.
The boiler can be installed:
- either to the side of the calorifier (left or right)
- or on the calorifier (in this case, you must use the stiffening kit
package EA 82, delivered as an option, and respect the assembly
instructions which accompany it).

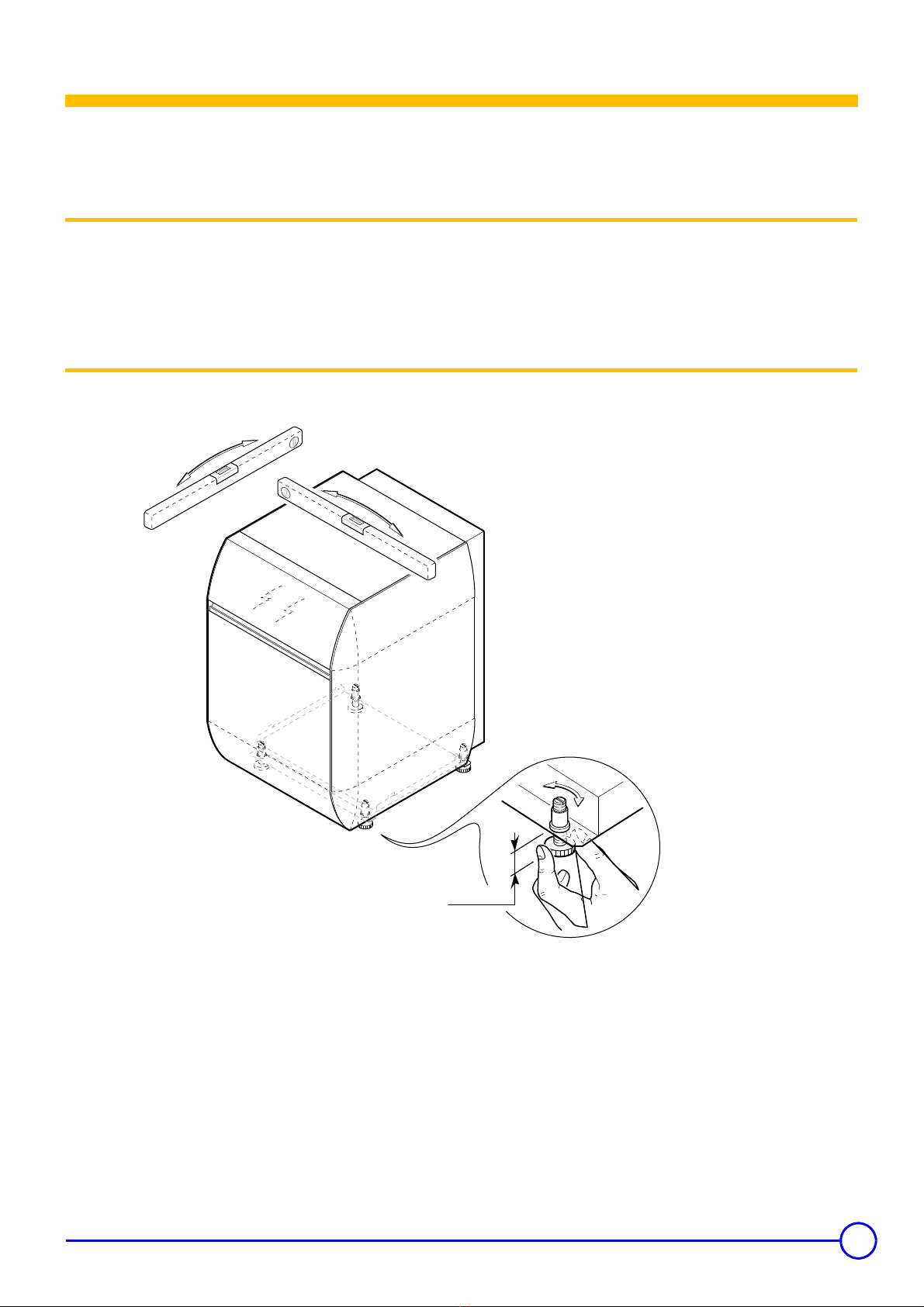

2 Levelling
Leveling is done using the adjustable feet located on the base of the
calorifier
To make the adjustment, take the load off the foot to be
adjusted using a lever.
(1) Adjustable feet:
Basic dimension 10 mm
adjustment possible: 10 à 22 mm
8952N125
(1)
10 mm

6BH 150 22/02/06 - 300001069-001-G
3 Connecting the tank to the domestic water circuit (secondary circuit)
Whenmakingthe connections,itisimperativethatthestandardsand
corresponding local directives are respected Thesedomestichotwatertankscanoperateatamaximumoperating pressure of 10 bars. As a general rule, the tanks operate at 7 bars.
3.1 Specific precautions
Before making the connection, rinse the domestic water inlet
pipes to prevent the introduction of metal or other particles into the
DHW tank.
3.2 Provision for Switzerland
Make the connections according to the instructions of the Société
Suisse de l'Industrie du Gaz et des Eaux. Comply with local
instructions from water distribution plants.
3.3 Isolation valves
Hydraulically isolate the primary and secondary circuits using stop
valves to facilitate maintenance operations on the calorifier. The
valves make it possible to carry out maintenance on the tank and its
components without draining the entire installation.
These valves are also used to isolate the calorifier when conducting
apressurisedcheckon the leak tightness of the installation if the test
pressure for the calorifier is greater than the admissible operating
pressure.
If the mains pipes are made of copper, fit a sleeve made of
steel, cast iron or any other insulating material between the
tank's hot water outlet and the pipes to prevent corrosion
to the connection
3.4 Connecting the domestic cold water
To carry out connection with cold water (See next page). Install a
water drain in the boiler room and a "funnel-siphon" for the safety
unit.
The components used for the connection to the cold water supply
must comply with the prevailing standards and regulations in the
country concerned. Fit a non-return valve to the domestic cold water
circuit.
3.5 Safety valve
In compliance with the safety rules, fit a sealed safety valve
to the tank's domestic cold water inlet.
Calibration of the safety valve : J10 bar.
For France, we recommend hydraulic safety units fitted with a
membrane with the NF marking.
- Integrate the safety valve in the cold water circuit.
- Install the safety valve close to the calorifier in a place which is
easy to access.
Dimensions
ThesafetyunitanditsconnectiontotheDHWtankmustbeofatleast
the same diameter as the cold water supply pipe in the tank's
domestic circuit.
No isolating devices should be located between the safety valve or
unit and the tank.
Thesafetyunitoutletpipemusthaveauniformandsufficientgradient
and its diameter must be at least equal to that of the outlet opening
in the safety unit (to prevent the flow of water being hindered if the
pressure is too high).
The outlet pipe in the valve or safety unit must not be blocked.
France
The level of the safety unit must be lower than that of the cold water
inlet to enable draining. Otherwise, fit a drainage pipe to the lowest
point of the tank.
Germany
Definethedimensions ofthesafetyvalveinaccordancewith the DIN
1988 standard :
Fit the safety valve above the calorifier to obviate having to drain the
tank during servicing
Install the drainage valve at the lowest point on the calorifier.
Capacity
litres
Dimension of the valve
Min. dimension of the inlet
connection
Heating output
kW
max
< 200 R or Rp 1/2 75
200 J1000 R or Rp 3/4 150

7
300001069-001-G - 22/02/06 BH 150
3.6 Pressure reducer
Ifthesupplypressure exceeds 80% of thevalveorsafetyunit setting
(e.g.5.5bars for a safety unit set at 7 bars), a pressure reducer must
be installed upstream of the DHW tank. Install the pressure reducer
downstream of the water meter in such a way as to ensure the same
pressure in all of the pipes in the installation.
3.7 Bleed circuit
During the heating process, water can flow through the
bleed circuit to guarantee the safety of the installation. Do
not block!
3.8 Domestic hot water circulation loop
See diagram .
3.9 Measures to take to prevent hot water blow back
Fit a non-return valve to the domestic cold water circuit. If using a closed calorifier, the non-return valve must be easily
accessible.
3.10 Typical systems.
9. Isolation valve
17. Drain cock
27. Non-return valve
28. Domestic cold water inlet
29. Pressure reducer
30. Safety unit
32. Domestic hot water loop pump (optional)
54. End of the discharge pipe free and visible 2 to 4 cm above the flow
funnel
56. Domestic hot water circulation return loop
57. Domestic hot water outlet

8BH 150 22/02/06 - 300001069-001-G
4 Electrical connections
In no event place sensor cables (very low voltage) and
wires from other circuits (230 V) in the same conduit or
cable feed. To prevent interference, respect a minimum
distance of 10 cm between these.
1. Remove the boiler control panel hood.
2. Thread in the domestic hot water sensor from the calorifier and
the power cable from the anode as shown in the diagram and
connect them to the location provided in the boiler control panel
(-+, S.ECS).
3. Open the door of the calorifier and place the domestic hot water
sensor in the thimble tube on the hatch in front of the tank.
4. Connectthebrownwire(+)totheanodewiththewasherandnut,
and the blue wire (-) to the tab.
5. Connectthecablefromthe circulator pump coming from the rear
of the calorifier in the position marked in the boiler control panel.
If you modify the wiring of the titanium anode, be careful to
respect the correct connections (brown wire to +, blue wire
to -).
8952N127A
1
2
2
3
4
3
5
1
+ -
S.ECS
3940
41
ACI
42
1213 11
ÇNL
Ä Ã
13
4

9
300001069-001-G - 22/02/06 BH 150
Commissionning
Firstly, fill the tank with domestic hot water.
Domestic hot water circuit
1. If need be, flush the domestic circuit and fill the tank through the
cold water inlet tube.
2. Carefully degas the DHW tank and the distribution network in
order to eliminate noises and hammering caused by trapped air
moving in the pipes during draw-off.
To do so:
- Completely fill the DHW tank via the cold water inlet pipe, leaving
the hot water valve open. Only reclose this valve when the flow is
regular and there are no noises or hammering in the pipes.
- Then successively degas all the hot water pipes by opening the
corresponding valves.
These operations also make it possible to rinse and clean the
hot water pipes located at the DHW tank outlet.
3. Degas the primary (heating) circuit at the highest point with a
suitable bleed valve designed for that purpose (not supplied with
the hot water tank).
4. Check the safety devices (particularly the valve or safety unit),
referring to the instructions provided with these components.
During the heating process, a certain amount of water may
flow through the valve or safety unit; this is caused by
water expansion. This phenomenon is completely normal
and must in no event be hindered.
Heating circuit
The heating circuit (boiler and tank exchanger) must be filled using
the drainage tap to the rear of the tank. When filling the heating
circuit,correctly bleed theexchangeron the domesticwater calorifier
as follows::
1. Unscrew the cap on the automatic bleed valve by a few turns.
2. Ensure that the non-return angle valve is in the automatic
position.
3. Ensure that the drainage tap is in the open position.
4. Fill the low flow heating circuit using the drainage tap in order to
favor the bleed.
5. After filling the installation, close the drainage tap.
6. Unstick the load pump in necessary: to do this, unscrew the
protection cap in front of the pump and insert a screwdriver into
theslit(V)onthepumpcenterline.Turnseveraltimestotheright
and left. Cold run the pump for a few minutes to enable priming.
The heating circuit will be bled by the automatic bleed valve
delivered with the appliance at the highest point of the
installation.
8952N134
A
6
1
2
3
5
4

10 BH 150 22/02/06 - 300001069-001-G
Maintenance and periodic checks
Titane anode
No maintenance required.
The panel must be switched on to ensure that the anode is
working.
Magnesium anode - Package EA 103 (optional)
The titanium anode can be replaced by a magnesium anode.
The magnesium anodes must be checked at least every 2, years.
After the first check, determinethe frequency of future checks on the
basis of anode wear.
The anodes can be checked by two methods:
`Inspection
the anode must be replaced if its diameter is less than 15 mm
(original diameter = 33 mm).
`Function test
- disconnect the earth wire from the anode.
- measure the strength of the current between the tank and the
anode. if the current is less than 0.1 mA, the anode must be
replaced.
If the anodes must be replaced, proceed as described below.
Valve or safety unit
The valve or safety unit must be operated at least once a month in
order to ensure that it is operating correctly and to be forewarned of
any overpressure which would damage the DHW tank.
Failure to comply with this maintenance rule may cause
deterioration of the DHW tank and the cancellation of the
guarantee.
Descaling
In hard water regions, it is advisable to ask the fitter to descale the
DHW tank exchanger once a year in order to maintain its level of
performance.
Cladding
The cladding of the DHW tank can be cleaned with soapy water.
Procedures to follow for descaling, or checking or replacing the magnesium anodes
• The titanium anode (standard)
8952N135A
6x

11
300001069-001-G - 22/02/06 BH 150
• The magnesium anode (optional) - Package EA 103
1. Prepare a new sealing gasket.
2. Cut the power supply to the boiler.
3. Cut off the cold water supply and drain the DHW tank. To drain
though the safety unit, turn the unit to drain and turn on a hot
water tap (or a bleed valve) to allow air to enter.
4. Remove the front panel and the sensors.
5. Remove the inspection trap (13 mm spanner).
6. Check the anode and replace it if necessary.
7. Remove limescale deposits in the form of sludge or strips in the
bottom of the tank. On the other hand, do not touch limescale
adheringtothewallsofthetankasitprovideseffectiveprotection
against corrosion and improves the insulation of the DHW tank.
8. Descale the exchanger in order to maintain its performance
levels.
9. Fittheunittogether.Replacethelip sealandpositionitinthevisit
opening, making sure that you place its lug outside the DHW
tank. Be sure to replace the thimble tube on the hatch pointing
downwards.
10. When replacing the titanium anode by a magnesium anode,
connect the TAS anode simulation connector (provided with
package ) to the boiler's control panel, on the terminal
normally used by the titanium anode.
11. After fitting, check the tightness of the seal on the calorifier.
The screws retaining the visit trap must be tightened
to 6 Nm +1/-0. Use a dynamometric spanner.
Comments: Approximately 6 Nm is obtained by
holding the box spanner by the small lever.
12. Switch on.
8952N136A
6x
o
45 46
35 36
o
o
43
44
o
BAMIANC CIE RCUIT A
S RAUM KRE IA
ROOM CIRC UIT AB
EAU CHAUDE AN T IRIASE
WAR WM SSA ER
DOME TIC HOT WATERS
HC ADIUERE
SSELKE
BIOLRE
ERIEEXT UR
AUS ESN
ERENLAXT
DE AR CI P T RCUIT B
UA FS BVRO L KREI
WTE ARFLOW CI T RCUI B
oo
37 38
oo
39 40
oo
S EXT S CH S ECS S DEP
(B)
S AMB
(A)
SONDE - FÜHLER - SENSOR
OPTION -
ZUBEHÖR
COURANT MIANODE A P OS É
SNORFEMDTROAMDE
I PRES ED CURRENT AMS NODE
o
42
o
TA
TA
41
A000010
1

12 BH 150 22/02/06 - 300001069-001-G
Maintenance form
No. Date Checks made Comments By Signature
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

DEDIETRICHTHERMIQUE S.A.S.-Spare partscentre
4,rue d’Oberbronn-F-67110REICHSHOFFEN -Tél. :[phone]-Fax:[phone]
cprdedietrichthermique.com
Spare parts - BH 150
22/02/06 - 300001069-002-F
To order a spare part, quote the reference number next to the part required.
8952N129B
11
13
14
2
4
3
5
89
76
12
191
10
20
15
26
25
895 N1322

14 BH 150 22/02/06 - 300001069-001-G
Cladding
Support kit - Package EA 82
8952N130
30
40
31
36
35
34
33
32
38
39
37
89 N1352 3
50
51
52
52

15
300001069-001-G - 22/02/06 BH 150

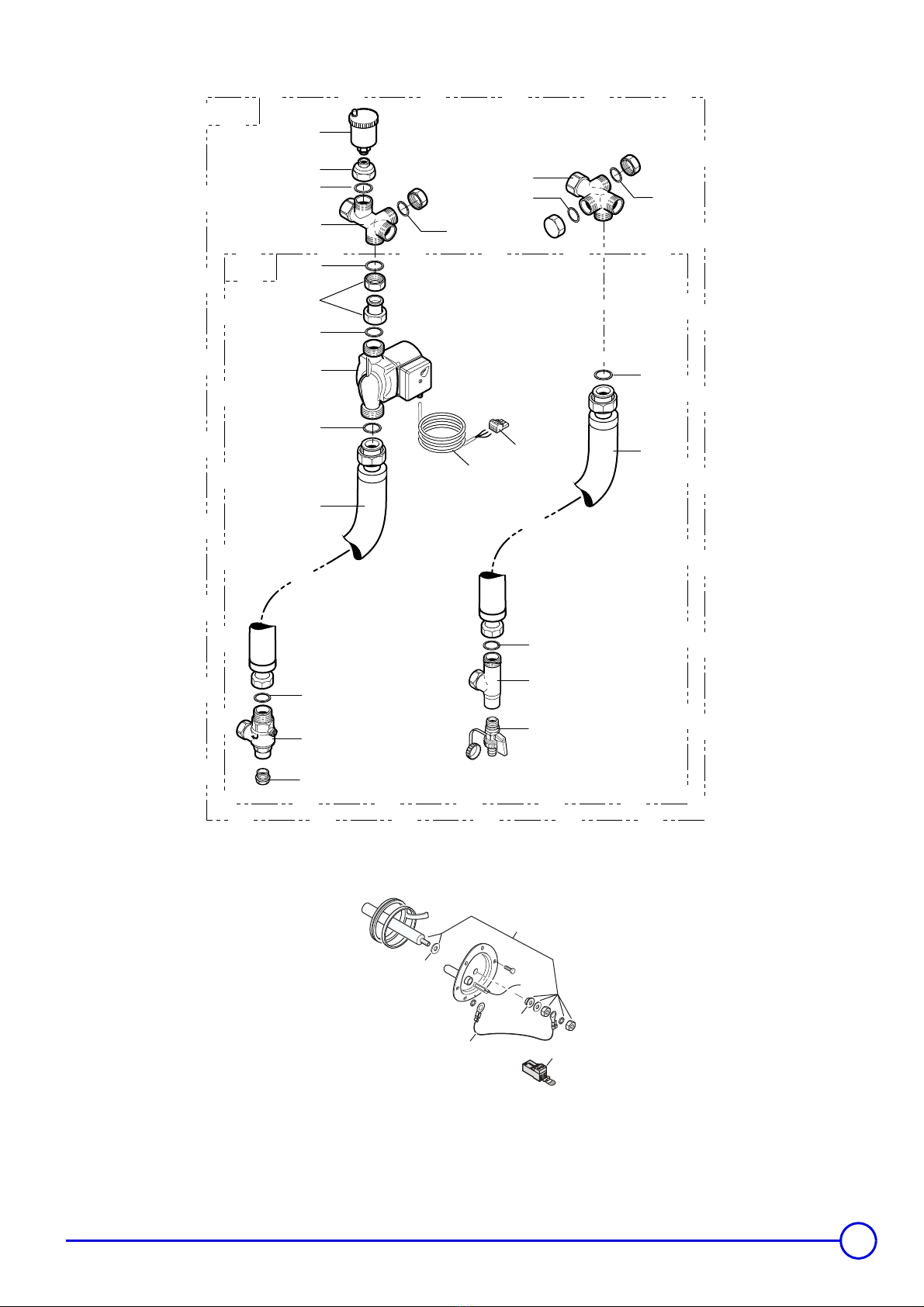

Connecting kits for boilers DTG 130 and DTG 130 E - Package EA 92 and EA 94
Magnesium anode - Package EA 103 (optional)
8952N131A
73
72
62
62
67
62
71
64
62
63
EA94
EA92
62
62
63
62
69
68
62
62
71
60
62
61
65
66
8952N138B
80
82
83
81
84

16 BH 150 22/02/06 - 300001069-001-G
Rep Reference Description
DHW tank BH 150
189525516 BH 150 foam tank
289525518 Complete lateral cover
395013133 Lip seal ø 82 mm
4200000093 Complete Anode
595013023 Vilton seal 20x8.25x2
694974525 Nylon brace
795365613 Contact spring for pocket
888014964 Cabling ACI anode length (with connecter)
9200000049 TA connector
10 89525501 Complete top mounting
11 89705511 Seal kit 7 mm + retainer ring
12 89524007 Insulation disk
13 89524006 Insulation disk
14 89584009 Lateral insulation disk
15 95610097 Screw 8x20
16 97758783 Cage nut
17 95610000 Anti-rotation screw 8X25
18 95800278 HM 8 nut
19 89528574 Complete folded base
20 97581059 Adjustable foot M8x25
25 95362448 KVT sensor 60 l. 5 m
26 85754909 2-pin connector for DHW sensor
Cladding
30 89525517 BH 150 casing
31 89528834 Complete front panel
32 200000471 Complete left lateral plate DTG 130
33 200000470 Complete left lateral plate DTG 130
34 89528575 Complete cross bar
35 85188554 Complete top DTG 130
36 89528044 Lower stiffener
37 97525380 Door handle
38 94820110 Catch
39 94820120 Bolt
40 89528572 Complete rear panel
Support kit - Package EA 82
50 89520550 Upper stiffener white
51 89528576 Complete boiler base
52 95037117 Lateral finishing panel
Connecting kit (package EA 92) for
boiler DTG 130
60 94950113 Plug 1/2"
61 94914292 Non-return valve
62 95013010 EPDM seal 29x19x3
63 300000504 Stainless steel hose kit
64 95132254 Dhw pump
65 89554900 Power supply cable load pump
66 85754925 3-pin connector fitted to DHW pump
67 89998522 Complete 1" connector + nut
68 94902073 Drain cock
69 94914419 Elbow90°
71 300001300 Connection cross kit 1"
72 94914421 Brass reducer
73 85000023 Automatic bleed valve
300002019 Connecting hose + joint
Connecting kit (package EA 94) for
boiler DTG 130 E
60 94950113 Plug 1/2"
61 94914292 Non-return valve
62 95013010 EPDM seal 29x19x3
63 300000504 Stainless steel hose kit
64 95132254 Dhw pump
65 89554900 Power supply cable load pump
66 85754925 3-pin connector fitted to DHW pump
67 89998522 Complete G 1 connector + nut
68 94902073 Drain cock 1/2"
69 94914419 Elbow90°
300002019 Connecting hose + joint
Magnesium anode - Package EA 103
(optional)
80 89608950 Complete Anode
81 95014035 Gasket 8.5x25x2
82 94974525 Nylon brace
83 89604901 Earth wire
84 8801-4963 TAS protection connector
Rep Reference Description

17
300001069-001-G - 22/02/06 BH 150
Warranty
You have just purchased a DE DIETRICH appliance and we
thank you for the trust you have placed in our products.
Please note that your appliance will provide good service for a
longer period of time if it is regularly checked and maintained.
Your fitter and the DE DIETRICH customer support network are
at your disposal at all times.
Warranty terms
Starting from the purchase date shown on the original fitter's
invoice, your appliance has a contractual guarantee against any
manufacturing defect.
The length of the guarantee is mentioned in the price catalogue.
The manufacturer is not liable for any improper use of the
appliance or failure to maintain or install the unit correctly (the
user shall take care to ensure that the system is installed by a
qualified fitter).
In particular, the manufacturer shall not be held responsible for
any damage, loss or injury caused by installations which do not
comply with the following:
- applicable local laws and regulations
- specific requirements relating to the installation, such as
national and/or local regulations
- the manufacturer's instructions, in particular those relating to
the regular maintenance of the unit
- the rules of the profession
Thewarrantyislimitedto the exchange or repair of suchpartsas
have been recognised to be faulty by our technical department
and does not cover labour, travel and carriage costs.
Thewarrantyshallnotapplytothereplacementorrepairofparts
damaged by normal wear and tear, negligence, repairs by
unqualified parties, faulty or insufficient monitoring and
maintenance, faulty power supply or the use of unsuitable fuel.
Sub-assemblies such as motors, pumps, electric valves etc. are
guaranteed only if they have never been dismantled.
France
The preceding dispositions are not exclusive of benefits for the
purchaser of the legal guarantee as stated in Civil Code articles
1641 to 1648.
Belgium
The preceding dispositions about the contractual guarantee are
not exclusive of profit if the need arises for the purchaser in
Belgium of the applicable legal dispositions on hidden defects.
Switzerland
The application of the warranty is subject to the terms and
conditions of sale, delivery and warranty of the company
marketing DE DIETRICH products.
Other countries
The above provisions do not restrict the benefit of the legal laws
regarding hidden defects applicable in the buyer's country.

18 BH 150 22/02/06 - 300001069-001-G
Warranty certificate
Date of purchase: .............................................................................
Name and address of the purchaser: ...............................................
..........................................................................................................
..........................................................................................................
..........................................................................................................
..........................................................................................................
..........................................................................................................
Tel.:...................................................................................................
Information on the appliance (to be found on the rating plate):
Model:...............................................................................................
Serial number: ..................................................................................
Retailer's stamp:

19
300001069-001-G - 22/02/06 BH 150

DE DIETRICH THERMIQUE S.A.S.
www.dedietrich.com
DE DIETRICH HEIZTECHNIK
www.dedietrich.com
VAN MARCKE
www.vanmarcke.be
VESCAL S.A.
www.chauffer.ch / www.heizen.ch
DE DIETRICH THERMIQUE
57, rue de la Gare F- 67580 MERTZWILLER - BP 30
www.dedietrich.com
AD001Z • 02.2006
DE
BE
CH
NEUBERG S.A.
www.dedietrich.com
LU
FR
DE DIETRICH
www.dedietrich.com
DE DIETRICH
www.dedietrich.com
RU
DE DIETRICH HEIZTECHNIK
www.dedietrich.com
AT
CN
Direction des Ventes France
57, rue de la Gare
F- 67580 MERTZWILLER
[phone]
[phone]
Rheiner Strasse 151
D- 48282 EMSDETTEN
+49 (0)25 72 / 23-5
+49 (0)25 72 / 23-102
[email protected]
Weggevoedenlaan 5
B- 8500 KORTRIJK
+32 (0)56/23 75 11
Z.I de la Veyre, St-Légier
1800 VEVEY 1
[phone]
[phone]
39 rue Jacques Stas
L- 2010 LUXEMBOURG
[phone]
8 Gilyarovskogo Str. 7
R- 129090 MOSCOW
+7 495.974.16.03
+7 495.974.66.08
[email protected]
Room 512, Tower A, Kelun Building
12A Guanghua Rd, Chaoyang District
C-100020 BEIJING
+86 (0)106.581.4017
+86 (0)106.581.4018
+86 (0)106.581.7056
+86 (0)106.581.4019
contact
BJ @dedietrich.com.cn
Am Concorde Park 1 - B 4 / 28
A-2320 SCHWECHAT / WIEN
+43 (0)1 / 706 40 60-0
+43 (0)1 / 706 40 60-99
[email protected]
Intheinterestofcustomers,DeDietrichThermiqueSASarecontinuouslyendeavouringto make improvements inproduct quality. Allthespecificationsstatedinthisdocumentarethereforesubject to changewithout notice
