Installation & Operating Manual
BA-ST 9022 - FE
BA-ST 9030 - FE
BA-ST 9040 - FE
BA-ST 9050 - FE
BA-ST 9075 - FE
BA-ST 9100 - FE
Hot Water Storage Tank

All installation diagrams in this manual do not replace the system design; they can only be used for illustrative
purposes. The product is not intended for use by persons with reduced physical tness/mental e󰀩ciency or with-
out su󰀩cient experience and knowledge, if they are not supervised or instructed by a person responsible for their
safety. Operation of the product by children is strictly prohibited.
We reserve the right to make the product design changes and changes in the manual.
©NIBE-BIAWAR 2019

3
Table of Contents |
BA-ST 9022-9100-FE
List of contents
1 General ______________________ 4
Introduction _____________________ 4
Intended Use____________________ 4
Contact ________________________ 4
2 Design ________________________ 5
3 Installation____________________ 7
Location of the Storage Tank________ 7
Housing Disassembly _____________ 7
Installation Requirements __________ 8
4 Connection and start-up______10
Connection ____________________ 10
Start-Up_______________________ 10
Thermal Insulation of the System ___ 10
Warnings and Practical
Requirements __________________ 10
5 Maintenance _________________ 11
Inspection of the Protective
Magnesium Anode ______________ 11
Measurement of the Protective
Magnesium Anode Wear __________ 11
Replacement of the Protective
Magnesium Anode ______________ 12
Cleaning of the Storage Tank ______ 12
6 Accessories and spare parts ___13
7 Service ______________________14
8 Recycling and disposal ______14
9. Technical data_______________15
Dimensions ____________________ 15
Dimensions ____________________ 16

4Chapter 1 | General BA-ST 9022-9100-FE
Thank you for your trust and selection of a NIBE
device. To fully take advantage of this device, you
should read this manual before using the equipment,
in particular chapters relating to installation, safety,
service and warranty. Please keep the manual in a
safe place, for the future reference.
NIBE-BIAWAR hot water storage tanks are only in-
tended for heating up, storage and supply the domes-
tic hot water. The accumulated energy is transferred
to the heating system. After installing the heating
module, storage tanks of BA-ST Series are designed
to heat and store hot water in systems.
The storage tank enables trouble-free operation with
almost any central heating system with forced circula-
tion. They are easy to install, safe and comfortable to
use, if installed and operated in accordance with the
advices contained in this Manual. The heated water
can be supplied to several intake points at various,
mutually distant locations, such as, a bathtub, wash-
basin, sink, etc.
1 General
Introduction
Intended Use
Sections of the Manual relating to the instal-
lation, inspection and maintenance are in-
tended for the quali ed installer.
CAUTION
The manufacturer shall not be held liable for
any damages caused by failure to comply
with the recommendations and observations
contained in this Manual.
CAUTION
Storage tanks are designed to heat up and
supply water for domestic purposes. Any in-
appropriate use, not in compliance with its
intended use is not permitted. Neither manu-
facturer nor supplier shall be responsible for
damages resulting from this.
CAUTION
Fig. 1 BA-ST hot water storage tank.
If you have any questions or doubts, please contact
us:
NIBE-BIAWAR sp. z o.o.
15-703 Białystok,
Al. Jana Pawła II 57,
Tel [phone], fax [phone],
www.nibe.pl
NIBE-BIAWAR sp. z o.o. reserve the right to make
technical changes of our products.
Contact

5Chapter 2 | DesignBA-ST 9022-9100-FE
Vertical storage tanks with of BA-ST Series are pres-
sure equipment, i.e. the pressure within the storage
tanks are equivalent to the pressures in the corre-
sponding systems.
Storage tank is made of high quality steel. Storage
tank is allowed to work in water installations with a
maximum pressure of 10 bar (BA-ST 9022-FE up to 6
bar). Storage tanks are equipped with all the neces-
sary connections: for hot and cold water, connections
for the circulation, an adapter for mounting an electri-
cal heating unit, thermometer and temperature sensor
cover. All storage tanks have an inspection opening.
Thermal insulation of the tank is a specially selected
insulation that provides excellent thermal insulation
properties of all devices. Storage tanks have aesthet-
ic plastic housing, a temperature indicator, inspection
opening and connectors for mounting electric heating
unit and connecting the hot water circulation.
FR1 Protective magnesium anode
UL1 Adjustable foot
XL54 Thermometer
XL35 Connector pipe for mounting electric
heating unit
QQ1 Inspection opening
XL4 Hot water intake connector pipe
XL8 Hot water inlet connector pipe
XL5 Hot water circulation connector pipe
UA1-2 Temperature sensor cover
XL9 Cold water inlet connector pipe
XL3 Cold water supply connector pipe
2 Design
All products are ready for the installation of
a heating unit containing an electric heater
with thermostat and thermal switch.
INFORMATION
Fig. 2 Section of the BA-ST 9022-9050-FE storage
tanks.
Fig. 3 Side view of the BA-ST 9022-9050-FE storage
tanks.
XL3
XL35
UL1
QQ1
FR1
XL4
XL9
UA2
UA1
XL8
XL5
XL54

6BA-ST 9022-9100-FEChapter 2 | Design
FR1 Protective magnesium anode
UL1 Adjustable foot
XL54 Thermometer
XL35 Connector pipe for mounting electric
heating unit
QQ1 Inspection opening
XL4 Hot water intake connector pipe
XL8 Hot water inlet connector pipe
XL5 Hot water circulation connector pipe
UL1-3 Temperature sensor cover
XL9 Cold water inlet connector pipe
XL3 Cold water supply connector pipe
Fig. 4 Section of the BA-ST 9075-9100-FE storage
tanks.
Fig. 5 Side view of the BA-ST 9075-9100-FE storage
tanks.
UL1
QQ1
XL35
XL3
XL9
UA3
UA2
XL5
UA1
XL8
XL4
FR1 XL54

7Chapter 3 | InstallationBA-ST 9022-9100-FE
The storage tanks can be installed in any room pro-
tected against a temperature drop below 0°C, which
will prevent freezing of water in the tanks. It should
be installed in a convenient place for the user (eg
basement, boiler room, etc.), in a way that will enable
easy maintenance or servicing in the future. Consider
the  lled tank weight when selecting its location. As a
rule, select the device location in a way allowing the
rational routing of both the hot water and the heating
lines. To avoid loss of heat energy, all hydraulic pipes
should be thoroughly insulated.
Removable housing with thermal insulation facilitates
transport and installation of the storage tank. Disas-
sembly the housing in the following order (see Fig. 8):
After the installation of the storage tank in its  nal lo-
cation, reinstall the removed components in the re-
verse order.
The storage tank stands on three feet that can be ad-
justed within the range from 0 to 15 mm to level the
tank.
1. Remove the Temperature gauge, plug of the
heating element connector pipe and blanking
plate of the inspection opening.
2. Remove the upper cover of the housing together
with thermal insulation.
3. Remove the plugs from the connector pipes and
black bushings.
4. Remove the  xing screws and the strip connect-
ing the housing jacket.
5. Remove the jacket surrounding the tank (housing
jacket.)
6. Remove the four-piece thermal insulation.
If space for the installation of the magnesium bar an-
ode (used as standard), you can use the appropriate
titanium anode (that should be installed in accordance
with the anode manufacturer’s instructions) or the ap-
propriate magnesium chain anode. For the speci ca-
tion of the protective anodes available at NIBE, see
Section 6 “Accessories and Spare Parts”.
For the minimum clearances to be observed
when installing the storage tank, see Table 3.
CAUTION
3 Installation
Location of the Storage Tank
Housing Disassembly
Fig. 7 Levelling the unit.
Fig. 6 Min clearance for the replacement of the pro-
tective magnesium anode.
Amin
0-15 mm
When installing the storage tank, consider
free space above the unit required to main-
tain/replace the protective magnesium anode.
INFORMATION
You can decrease the Amin clearance when us-
ing the magnesium chain anode or titanium
anode.
INFORMATION

8Chapter 3 | Installation BA-ST 9022-9100-FE
Protection against overpressure shall be made in ac-
cordance with the relevant regulations in force.
Connect the storage tank to the water supply system
of water pressure at least 1 bar and max 10 bar (BA-
ST 9022-FE up to 6 bar)(see Table 6 Technical data).
Install a pressure reducer if the pressure at the cold
water inlet to the tank is higher than allowed.
Connect the heating and water supply systems in ac-
cordance with the installation diagram (see Fig. 9, 10,
11.)
Pressure increases during heating the water in the
storage tank. Therefore, the appropriate safety valve
must be installed in each storage tank, at the cold
water inlet that will protect the storage tank against
overpressure. During heating the water, small and
temporary water  ow from the safety valve can oc-
cur, which indicates that the pressure has increased
above the rated value, which triggered the valve. This
may in no way be prevented. Blocked safety valve
can cause equipment failure. Drain the out ow from
the safety valve to the sewerage or drain grate. The
safety valve out ow line should be installed with a
slope and be protected against water freeze, and it
should remain open to the atmosphere. The manu-
facturer is not responsible for  ooding the room as a
result of the valve operation.
Installation and commissioning of the storage
tank shall only be done by appropriately qual-
i ed installer. The installer should inform the
user of the functions of the product and pro-
vide the necessary information on its safe use.
CAUTION
When heating water, slight, temporary di-
scharge from the safety valve can occur. This
is a correct safety valve function. Any attempt
to interfere in its operation can lead to the
danger and destruction of the storage tank.
CAUTION
Installation of necking of any kind (such as
reducers, dirt pockets, etc.) and cut-o valves
between the storage tank and the safety valve
is not allowed. Only a T-pipe with a drain valve
and a T-pipe with an expansion vessel may be
installed in these line sections.
CAUTION
Never block the safety valve or drain line.
This can cause a dangerous overpressure in
the storage tank.
CAUTION
Installation of the appropriate safety valve in
the cold water supply line protecting the unit
against overpressure is mandatory!
CAUTION
Fig. 8 Housing and thermal insulation disassembly.
In order to minimize the fl ow of water from the
safety valve associated with the thermal ex-
pansion of the liquid, it is advisable to install
a suitable expansion vessel at the cold water
connection (see Fig. 9, 10, 11 item CM1.)
INFORMATION
We recommend installing a strainer in order
to protect the pumps, check valve and the
components of the heating system.
INFORMATION
Installation Requirements
Never use the equipment with clogged safety
valves.
CAUTION
1
2
3 4 6
5

9Chapter 3 | InstallationBA-ST 9022-9100-FE
c.w.u.
hot water
circulation
water
supply
system
Fig. 9 Installation diagram of the BA-ST 9022-FE storage
tank
CP1 BA-ST xx-FE storage tank.
CP2 BA-ST xx-1FE N storage tank.
QM30 Cut-o󰀨 valve-Hot water out ow
QM31 Cut-o󰀨 valve-supply from the heat source
QM32 Cut-o󰀨 valve-return to the heat source
QM33 Cut-o󰀨 valve-hot water circulation
QM35 Cut-o󰀨 valve-Cold water intake
QM42 Cut-o󰀨 valve-loading the storage tank
FL1 Safety valve.
QM1 Drain valve.
PR1 Pressure reducer (option, if the pressure in the
system exceeds the allowable value).
HQ1 Strainer  lter.
GP11 Hot water circulating pump.
GP12 Circulation pump - return from the tank
GP14 Circulation pump - supply to the exchanger.
GP15 Pump for loading the hot water tank
CM1 Hot water expansion vessel.
Fig. 10 Preparing hot water using a plate heat exchanger and a BA-ST water tank
Fig. 11 Loading of the BA-ST tank cooperating with the coil tank and the solar system.
CP1
CP1
CP2
CP1
GP12
QM32
QM31
FL1
QM1
CM1
PR1QM35
GP15
QM42
QM30
QM30
QM31
GP12
GP14
QM32
FL1
QM1
PR1
QM35
CM1
FL1
QM1
CM1
PR1
QM35
QM30
QM33
QM33 HQ1GP11
c.w.u.
c.w.u.
exchanger
supply
return from the
exchanger
water
supply
system
water
supply
system

10 Chapter 4 | Connection and start-up BA-ST 9022-9100-FE
• Check the operation of the safety valve as de-
scribed by the manufacturer of the valve.
• Clean the inside of the storage tank periodically.
Cleaning intervals depends, among other things,
on the hardness of the water present in a given
area.
• To ensure optimum protection of the storage tank
against corrosion, we recommended checking
the level of wear of the isolated magnesium an-
ode once a year.
• The isolated protective anode earth conductor
must be connected to the steel components of
the storage tank (top bottom of the tank). Other-
wise, the tank will not be protected against cor-
rosion.
• In order to eliminate any odour of hydrogen sul-
phide (caused by bacteria in the oxygen decient
water), we recommend observing the periodic
cleaning of the tank and replacement of the elec-
trode and, in addition, from time to time and in-
dependently of the normal temperature setting,
overheating the water in the tank to a tempera-
It is possible to grow Legionella bacteria in
domestic hot water. To eliminate this danger,
it is recommended to heat the water to 70oC
once a week and keep it at this temperature
for 5 minutes.
CAUTION
Warnings and Practical
Requirements
We recommend the following
1. Open the cold water cut-o󰀨 valve at the inlet and
the hot water intake point.
2. Fill the storage tank until obtaining uniform
water outow at the hot water intake point. Close
the intake points.
3. Check tightness of the entire system.
When properly lled and vented, the storage tank is
ready to use.
After the installation and levelling the tank, follow the
procedure below (for the connector pipe numbers,
refer to Fig. 3 and Fig. 5):
Fill the storage tank with water and vent it after mak-
ing correct connections.
1. Remove protecting plugs from the connector
pipes
2. Connect the hot water intake line (XL4).
3. Connect the cold water supply line together with
the required safety valves (XL3).
4. If the system has the hot water circulation
system, connect it to the connector pipe (XL5).
Otherwise, plug the pipe.
5. Connect all temperature sensors (UA1-3).
In order to minimize thermal energy losses, insulate
all connector pipes, pipelines and temperature sensor
covers thoroughly after the installation of the unit and
performance of the leak proof test. For this purpose,
use thermal insulation of correctly selected thickness
and thermal insulation parameters.
Filling and venting the hot water storage tank:
4 Connection and
start-up
Connection
The storage tank connections may not be
made of materials more precious than car-
bon steel due to the increased electrochem-
ical corrosion. This applies to connector
pipes (ttings) contacting the tank connector
pipe thread. Preferably, use galvanized pipe
connectors (ttings.)
CAUTION
If there is an electric heating module installed
in the storage tank, ll the tank with water be-
fore connecting it to the electrical installation.
CAUTION
Open the hot water intake valves before
heating the system up for the rst time or af-
ter a longer break in its operation in order to
check whether the storage tank is lled with
water and the cut-o valve at the cold water
inlet is not closed.
CAUTION
Start-Up
Thermal Insulation of the System
We recommend connecting the tank connec-
tor pipes with the system lines by means of
unions to allow disconnection of the tank, if
required.
INFORMATION
No thermal insulation, its inadequate thick-
ness or insulation made of improper materi-
als will degrade the thermal insulation of the
installation.
INFORMATION

11BA-ST 9022-9100-FE Chapter 4 |
Chapter 5 |
Connection and start-up
Maintenance
Periodic inspections and maintenance are the condi-
tions of continuous operational readiness, reliability
and a long service life of the product.
Maintenance activities include the following:
• Routine inspections and replacement of the
protective magnesium anode
• Cleaning of the storage tank
Storage tanks of BA-ST Series are, in order to protect
them against corrosion, coated inside with ceramic
enamel and in addition, protected with isolated pro-
tective magnesium anode. The anode corrodes  rst
under normal operation, thus protecting the storage
tank jacket. Therefore, you have to inspect its condi-
tion from time to time. Corrosion rate of the protective
anode is di󰀨 erent and depends upon the quality of
water in the area. We recommend checking the pro-
tective anode condition once a year in order to ensure
optimum corrosion protection.
• Activate the heating medium circuit or electric
heating unit if the tank is not  lled with water.
• Use the storage tank, if you  nd any malfunction
of the safety valve.
• Install any device (such as cut-o󰀨 and/or check
valves, etc.) between the storage tank and the
safety valve (except T-pipes).
• Make any unauthorized repairs.
• Stop water leaks from the safety valve.
Check the safety valve performance as spec-
i ed by the valve manufacturer periodically
(min. every 14 days) or before each start-up
of the heater after decommissioning.
CAUTION
The use of the isolated anode allows you to mon-
itor the degree of wear of the anode by measur-
ing the intensity of the protecting direct current
without having to remove it and empty the tank
(interrupting operation of the storage tank). This
solution simpli es operation and additionally
contributes to the reliability and long lifetime.
INFORMATION
Inspection of the Protective
Magnesium Anode
It is forbidden to
5 Maintenance
Fig. 12 Insulated protective magnesium anode.
ture above 70 °C. This also eliminates the risk of
Legionella bacteria growth.
• In the systems with the electric heating unit, en-
sure that the electrical installation is properly pro-
tected by protective circuit.
• When heating water using a coil, limit the tem-
perature of the heating medium to 80°C, it will
be possible to avoid turning on the temperature
limiter.
• In order to reduce the risk of scalding with water,
we recommend installing a anti-scalding valve.
• Report any malfunctions in the storage tank oper-
ation to the authorized service centres.
In order to check the degree of wear of the anode, do
the following (see Fig. 13):
1. Remove the housing cover together with thermal
insulation.
2. Disconnect the connecting conductor (protective)
from the storage tank top head.
3. Connect an electric meter (range in mA) between
the protective conductor and the M5 threaded pin
and measure the intensity of the protective direct
current.
Intensity of the protective direct current should not be
lower than 0.3 mA at full storage tank. If it is too low,
remove the anode and check its wear visually. If the
anode is signi cantly corroded (above 50 % loss),
replace it immediately. Connect the anode protective
conductor to the tank after the measurement.
If the current intensity measurements do not
indicate any wear of the anode, its max oper-
ating time is not longer than 18 months. The
anode should be replaced after this time.
CAUTION
Measurement of the Protective
Magnesium Anode Wear

12 BA-ST 9022-9100-FEChapter 5 | Maintenance
When replacing the magnesium anode, follow the
procedure below (see Fig. 14):
1. In units with the electric heating unit installed, dis-
connect power from the unit  rst.
2. Wait until the water inside cools down.
3. Cut-o󰀨 the hot water supply and drain some wa-
ter from the tank through the drain valve (see Fig.
9, 10, 11 item QM1).
4. Remove the housing cover together with thermal
insulation (1).
5. Remove the anode protective conductor (2).
6. Remove the worn magnesium anode (3).
7. Screw the new magnesium anode.
8. Connect the anode protective conductor to the
storage tank.
9. Fill the tank with water and vent it as described in
par. “Start-Up”.
10. Check tightness of the installed anode.
11. Reinstall the thermal insulation and the housing
cover.
Replace the protective magnesium anode every 18
months (regardless the measurement). In replace-
ment of the magnesium anode, you can use a tita-
nium anode, which you do not need to replace. Its
assembly should be carried out in accordance with
the assembly manuals of the anode manufacturer.
The replacement of the magnesium protec-
tive anode should be carried out at least once
every 18 months during the warranty period.
After the warranty expires, the frequency of
replacing the protective anode depends on
the degree of wear .Timely replacement and
correct installation are a condition for main-
taining the tank warranty.
CAUTION
Replacement of the Protective
Magnesium Anode
Fig. 13 Measurement of the protective direct current
intensity.
PE
M5 pin
0,3 mA
Fig. 14 Replacement of the protective magnesium
anode.
Connect the anode protective conductor to the M5 pin
 xed to the top head of the storage tank.
Once making the above steps, the storage tank is
ready to use.
Cleaning of the Storage Tank
During the use of the tank, the so-called boiler scale
precipitation occurs from the heated water. The
amount of deposited stone depends on the hardness
of water, working temperature and time of use. Cov-
ering the heating surfaces with stone reduces their
heating e󰀩 ciency, increases energy consumption
and lengthens the heating time. It is recommended
to clean the tank from accumulated deposits at a fre-
quency of at least once a year. In the case of hard or
very hard water, it is necessary to carry out cleaning
more frequently.
Storage tank cleaning procedure:
1. Prepare a new inspection opening gasket. The
old gasket may not be reused (for the list of the
inspection opening gaskets, see “Accessories
and Spare Parts”).
2. In storage tanks with the electric heating unit in-
stalled, disconnect power from the unit  rst.
3. Turn o󰀨 the heating devices supplying the stor-
age tank and wait until the water inside the tank
cools down.
4. Cut-o󰀨 the hot water supply and drain the storage
tank through the drain valve (see Fig. 9, 10, 11
item QM1)
5. Remove the inspection opening blanking plate
and gasket
6. Remove the inspection opening screws and
Ensure that the anode protective conductor
is connected to the storage tank top head
after installing the new isolated magnesium
anode. Lack of connection of the anode with
the tank will completely block the work of the
anode and the tank will be deprived of corro-
sion protection.
CAUTION
12
3

13BA-ST 9022-9100-FE Chapter 5 |
Chapter 6 |
Maintenance
Accessories and Spare Parts
6 Accessories and
spare parts
During mechanical cleaning, be careful to
not damage the enamel. In the case of chemi-
cal cleaning, pay special attention to neutral-
ize the chemicals used for cleaning.
INFORMATION
Torque
(Tab. 1)

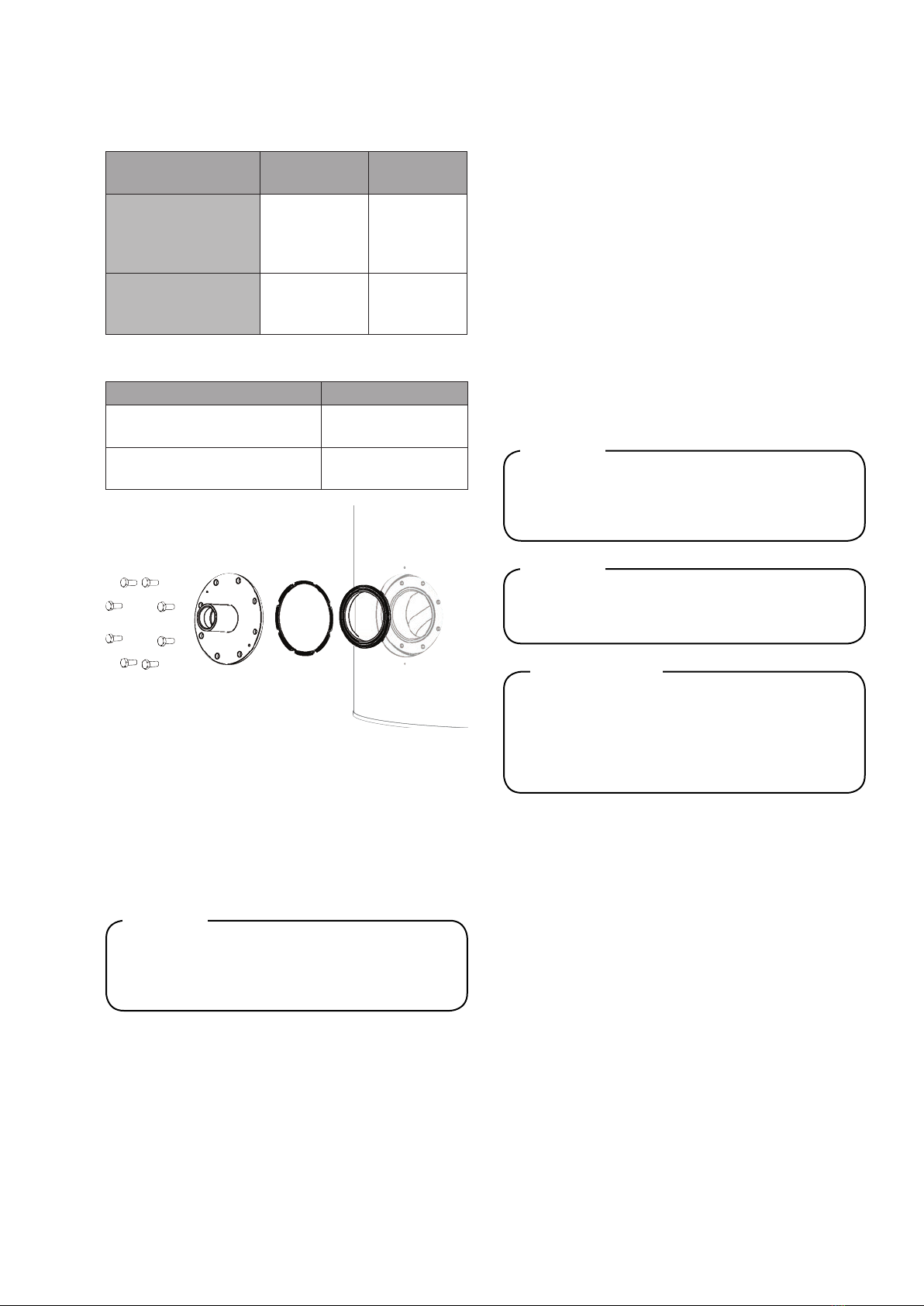

Fig. 15 Installation of the inspection opening cover
(mounting order).
Accessories and spare parts for BA-ST storage tanks
can be purchased at our distributors or authorized
service centres.
Once cleaned, the unit is ready to use.
Table 2. Heating units.
 anged cover and  ush the storage tank and re-
move accumulated sludge and lime slurry. Pay
special attention to not damage the ceramic
enamel coating.
7. Replace a new gasket and the inspection opening
 anged cover. Screw tightening torque according
to table 1.
8. Fill the tank with water and vent it as described in
par. “Start-Up”.
9. Check tightness of the inspection opening.
10. Replace the insulation and inspection opening
blanking plate.
Storage tank
model
Inspection
opening
diameter
Tightening
torque
BA-ST 9022-FE
BA-ST 9030-FE
BA-ST 9040-FE
BA-ST 9050-FE
ø 120 25 ± 5 Nm
BA-ST 9075-FE
BA-ST 9100-FE ø 180 35 ± 5 Nm
Table 1 Tightening torque
Storage tank
model Type Heating unit power
Connec-
tor pipe
dia
BA-ST
9022-FE
ME 0015 1,5 kW
1 ¼”
ME 0020 2,0 kW
ME 0030 3,0 kW
ME 0040 4,0 kW
BA-ST
9030-FE
ME 1045 4,5 kW
1½”ME 1030 3,0 kW
ME 1060 6,0 kW
BA-ST
9040-FE
BA-ST
9050-FE
ME 1045 4,5 kW
1½”
ME 1030 3,0 kW
ME 1060 6,0 kW
ME 1090 9,0 kW
BA-ST
9075-FE
ME 2090 9,0 kW 2”
ME 2180 18,0 kW
BA-ST
9100-FE
ME 2090 9,0 kW
2”ME 2120 12,0 kW
ME 2180 18,0 kW
Table 3. Protective anodes
Application Connector
pipe dia.
Type of
anode Amin
BA-ST
9022-FE
BA-ST
9030-FE
1”
Bar
ø26x650 680 mm
Chain
ø26x4 150 mm
¾” Titanium
anode 200 mm
BA-ST
9040-FE
1 ¼”
Bar
ø33x500 530 mm
Chain
ø33x3 150 mm
¾” Titanium
anode 200 mm
BA-ST
9050-FE
1 ¼”
Bar
ø33x500 530 mm
Chain
ø33x3 150 mm
¾” Titanium
anode 400 mm
BA-ST
9075-FE
BA-ST
9100-FE
1 ¼”
Bar
ø33x720 750 mm
Chain
ø33x5 150 mm
¾” Titanium
anode 400 mm

14 BA-ST 9022-9100-FEChapter 6 |
Chapter 7 |
Chapter 8 |
Accessories and spare parts
Service
Recycling and disposal
Report any malfunctions in the bu󰀨 er tank operation
to the authorized service centres.
7 Service
The storage tank may only be repaired/servi-
ced by an authorized service since improper
repair can cause safety risks, and the loss of
product warranty.
CAUTION
In order to prevent damage to piping systems
and environmental pollution, the product sho-
uld only be disassembled and taken out of
service by appropriately quali ed specialists.
CAUTION
At end-of-life, take care that the product and
all the equipment were disposed of in accor-
dance with applicable regulations.
CAUTION
8 Recycling and
disposal
According to the NIBE-BIAWAR rules, the products
have been manufactured of high quality materials us-
ing the latest technologies and solutions that do not
endanger the environment.
When selecting materials, we took into account both
the possibility of reuse of materials (recycling) that
can be disassembled and separated from materials
unsuitable for recycling, as well as risks arising from
the processing of materials not intended to reuse.
The purchased device consists in more than 90 % of
parts that can be recycled and reused, so they are
safe for the environment and human health.
The packaging, in which the product is de-
livered, is made mainly of materials suitable
for recycling and utilization. After installa-
tion, you should ensure the proper disposal
of packaging in accordance with applicable
regulations.
INFORMATION
Storage tank
model
Inspection
opening dia.
Type of
gasket
BA-ST 9022-FE
BA-ST 9030-FE
BA-ST 9040-FE
BA-ST 9050-FE
ø 120
Flanged
gasket
ø 150
BA-ST 9075-FE
BA-ST 9100-FE ø 180
Flanged
gasket
ø 180
Type Application
Mounting kit for electric heating
module - 1½” female
BA-ST
9022-9050-FE
Mounting kit for electric heating
module - 2” female
BA-ST
9075-9100-FE
Fig. 16. Mounting kit for electric heating module –
–  anged cover with 1 ½” or 2” sleeve.
Table 5. Mounting kit for electric heating module
Table 4. Inspection opening gaskets

15BA-ST 9022-9100-FE Chapter 9 | Technical data
Dimensions
Parameter U/m
Storage tank model
BA-ST
9022-FE
BA-ST
9030-FE
BA-ST
9040-FE
BA-ST
9050-FE
BA-ST
9075-FE
BA-ST
9100-FE
Energy effi ciency class - C C C C C C
Storage volume (V)* l222,3 293,1 384,7 488,8 742,0 983,7
Standing loss (S)* W79,2 88,8 92,5 102,9 118,3 130,0
Max tank operating
temp. °C 85
Max allowable instanta-
neous temp. in the tank °C 98
Max tank operating
pressure bar 6 10
Electric heating module
connection inch 1¼” female 1½” female 2” female
Corrosion protection ceramic enamel + magnesium anode
Anode connection inch 1” female 1¼” female
Magnesium anode
dimensions mm ø26x650 ø33x500 ø33x720
Weight kg 52 83 97 113 180 210
* Acc. to EU regulations No. 812/2013 & 814/2013.
9. Technical data
Table 6. Technical data
Fig. 17 Dimensions of the BA-ST 9022-9050-FE storage tanks.
F
E
D
W
G
O
N
M
K
J
I
H
XL3
XL35
QQ1
XL4
XL9
UA2
UA1
XL8
XL5
XL54

16 BA-ST 9022-9100-FEChapter 9 | Technical data
Dimensions
Fig. 18 Dimensions of the BA-ST 750-9100-FE storage tanks.
C
B
W
G
D
E
F
H
I
J
O
K
L
M
N
XL3
XL35
QQ1
XL4
XL9
UA2
UA1
XL8
XL5
XL54
UA3

17BA-ST 9022-9100-FE Chapter 9 | Technical data
Table 7. Connector pipe diameters
Table 8. Dimensions
Connection U/m
Storage tank
BA-ST
9022-FE
BA-ST
9030-FE
BA-ST
9040-FE
BA-ST
9050-FE
BA-ST
9075-FE
BA-ST
9100-FE
QQ1 Inspection opening mm ø120 ø180
XL35 Heating unit connection cal 1¼” Female 1 ½” Female 2” Female
XL54 Thermometer enclosure mm ø10 Female
XL3 Cold water supply cal ¾” Male 1” Male 1 ¼” Male
XL9 Cold water inlet cal ¾” Male 1” Male 1 ¼” Male
UA1 Temp. sensor enclosure mm ø16 Female
UA2 Temp. sensor enclosure mm ø16 Female
XL5 Hot water circulation cal ¾” Male 1” Male
UA3 Temp. sensor enclosure mm - ø16 Female
XL8 Hot water supply cal ¾” Male 1” Male 1 ¼” Male
XL4 Hot water outlet cal ¾” Male 1” Male 1 ¼” Male
Dimen-
sions U/m
Tank
BA-ST
9022-FE
BA-ST
9030-FE
BA-ST
9040-FE
BA-ST
9050-FE
BA-ST
9075-FE
BA-ST
9100-FE
B
mm
665 743 844 897 1055 1165
C 600 676 774 832 977 1087
D 267 315 323 337 541 576
E 919 930 913 967 1091 1126
F 1409 1325 1323 1477 1621 1656
G119 167 175 188 183 203
H 214 278 274 288 328 363
I 579 588 373 387 601 636
J 1159 1107 1095 1234 1021 1066
K 1259 1187 1165 1302 1141 1166
L - 1386 1421
M 1359 1287 1277 1441 1561 1596
N 1476 1398 1417 1545 1716 1766
O 1650 1634 1692 1835 2023 2091
W21 -0/+15

NOTES
