Canvas 085-1558-6 User manual

York Outdoor
Fire Table
MODEL N0. 085-1558-6
L-FT1109PST-B
ASSEMBLY INSTRUCTIONS
Toll-free 1-844-786-5691
IMPORTANT: Please read this manual carefully before beginning assembly of this product.
Keep this manual for future reference.

WARNING: For Outdoor Use Only.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odour continues, keep away from the
appliance and immediately call your gas
supplier or fire department.
Propane tank not included
AA battery needed, not included
WARNING:
Improper installation, adjustment, alteration,
service or maintenance can cause injury or
property damage. Read the installation,
operating and maintenance instructions
thoroughly before installing or servicing
this equipment.
WARNING:
Do not store or use gasoline or other flammable odour and liquids in the vicinity of this or any
other appliance.
An LP-cylinder not connected for use should not be stored in the vicinity of this or any other
appliance.
DANGER CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has no odour.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such as a camper, tent,
car or home.
This appliance complies with ANSI Z21.97-2014/CSA 2.41-2014, Outdoor Decorative Gas Appliances.
York Outdoor Fire Table Instructions

3MODEL NO. 085-1558-6
L-FT1109PST-B
TABLE OF CONTENTS
GENERAL INFORMATION
General information
Specifications
Important safety information and precautions
Expanded view
Parts list
Assembly
Location
Setup
Gas connection
Operation
Leak test
Lighting
Storage and maintenance
Troubleshooting
Limited warranty
IMPORTANT
3
4
4-5
6
7
9
9
10
9
10
11
8
7
8
8
Please take time to read these instructions thoroughly and follow each step carefully for safe and easy
operation. Keep this manual for installer and consumer future reference/use.

Product name
Model No.
Rated Heat Output
Fuel
Gas Supply
Manifold Pressure
Orifice Size (diameter)
Gas Supply Pressure
York Outdoor Fire Table
4
SPECIFICATION
IMPORTANT SAFETY INFORMATION AND PRECAUTIONS
085-1558-6
30,000 BTU/HR
Propane-LP
20 lb (9 kg) LP-Gas cylinder
11" W.C.
1.74 mm
Max 250 PSI
When the appliance is for connection to a fixed piping system, the installation must conform
with local codes, or in the absence of local codes with the National Fuel Gas Code, ANSI
Z223.1/NFPA54; International Fuel Gas Code, Natural Gas and Propane Installation Code, CSA
B149.1; or Propane Storage and Handling Code, B149.2, as applicable.
The LP gas supply cylinder to be used must be:
1-Constructed and marked in accordance with the U.S. Department of Transportation (D.O.T.)
Specifications for LP-Gas Cylinders, or the Standard for Cylinders, Spheres and Tubes for Trans-
portation of Dangerous Goods and Commission, CAN/CSA-B339 as applicable;
2-Provided with a listed overfilling prevention device;
3-Provided with a cylinder connection device compatible with the connection for the appliance.
Always place the appliance on a firm and level surface.
Solid fuels may not be burned in this gas appliance. When using decorative lava rocks, use only
provided lava rocks (INCLUDED).
The appliance must be used only outdoors in a well-ventilated space and must not be used in
a building, garage or any other enclosed area.
When in use, keep the appliance area clear and at least 40" / 101.6 cm side clearance from com-
bustible materials, gasoline and other flammable liquids and vapours. Do not use the appliance
under overhead combustible surfaces. Certain items or materials, when stored under the appli-
ance or nearby, will be subjected to radiant heat and could be damaged.
When in use, keep cylinder at least 30" / 76.2 cm side clearance from fire table. DO NOT trip
over the gas pipe between fire table and cylinder when passing through, to prevent cylinder
from tipping over.

5MODEL NO. 085-1558-6
L-FT1109PST-B
IMPROTANT SAFETY INFORMATION AND PRECAUTION
Product size:W40"XD28"XH17",When in use, keep cylin-
der at least 30 in / 76.2 cm side clearance from fire pit
table, DO NOT trip over the gas pipe between fire pit and
cylinder when passing through, to prevent cylinder from
tipping over.
Inspect the hose assembly and burner prior to each use.
If there is evidence of excessive abrasion or wear or if the
hose or burner is damaged, it must be replaced with the
appropriate part from the manufacturer.
Inspect the gas connections of the appliance prior to
each use. Do not operate the unit if there is a gas leak. Have
For the assembly of LP-gas and leak checking please refer to “Gas Connection” on page 8 and “Leak
Test” on page 9.
Children and adults should be alerted to the hazards of high surface temperatures and should
stay away to avoid burns or prevent clothing ignition.
Young children and pets should be carefully supervised when they are in the area of the appli-
ance.
Any guard or other protective device removed for servicing the appliance must be replaced prior
to operation.
Clothing or other flammable materials should not be hung from the appliance or placed on or
near the appliance.
Do not use the appliance if any part has been under water. Immediately call a qualified technician
to inspect the appliance and to replace any part of the control system and any gas control which has
been under water.
LP-gas supply cylinder to be used must be constructed and marked in accordance with the specifi-
cations for LP-gas cylinders of the Canadian. Department of Transportation (DOT).
The cylinders supply system must be arranged for vapour withdrawal and the cylinder must include
a collar to protect the cylinder valve.
Use only 20 lb / 9 kg LP-Gas cylinders.
Do not burn wood or any other materials in this appliance.
The appliance must be isolated from the gas supply piping system by closing its individual manual
shutoff valve during any pressure testing of the gas supply piping system at test pressure equal to or
less than 1/2 PSI (3.5 kPa).
Other cylinders may be acceptable for use with the appliance provided they are compatible with
the appliance retention means and accompanied by illustration(s) depicting the cylinder mounted to
the appliance utilizing the cylinder retention means and the point of contact between the cylinder and
the retention means.
Properly place the hose out of pathways where people may trip over it
or in areas where it may be subject to accidental damage.
The burner must be replaced prior to the appliance being put into
operation if it is evident that the burner is damaged. The replacement
burner must be the same as the part specified by manufacturer.
For cleaning of the appliance including the burner, please refer to
“Storage and Maintenance” on page 10.
the appliance inspected annually by a qualified service person.
The pressure regulator and hose assembly provided with the appliance must be used. The replace-
ment part must be the same as the part specified by manufacturer.

6

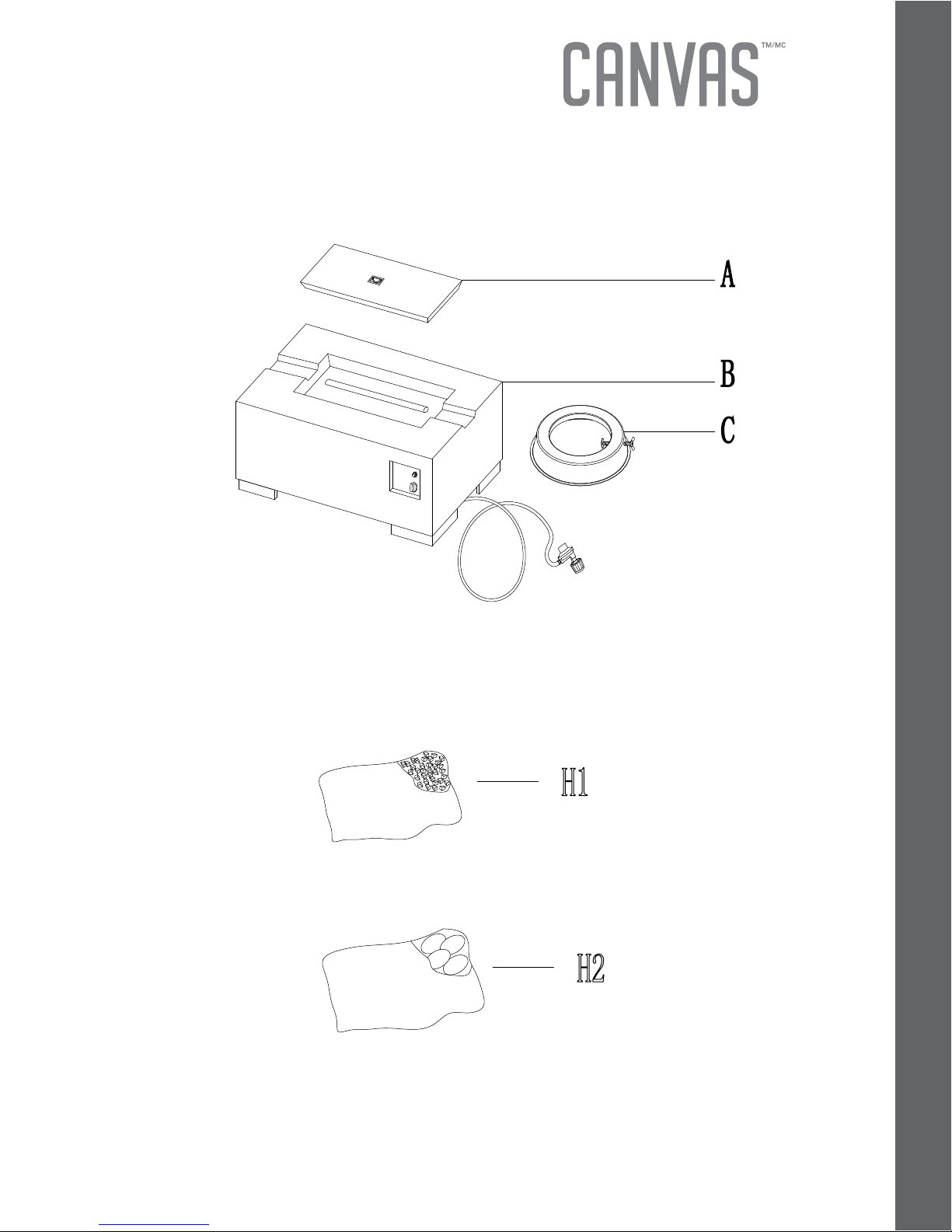

EXPANDED VIEW
H1
H2

7MODEL NO. 085-1558-6
L-FT1109PST-B
ASSEMBLY
PARTS LIST
Two or more adults are required to assemble this item.
Put the lid ( A ) onto the table top ( B ).
No. Description Qty
A1
1
1
1 (0.6KG)
9 lb (4 kg)
Lid
FT1109XXB01
Main body
FT1109XXB02
Tank rack
FT1109XXB03
Lava r ock
LPHSS23X1H
Fibre rock
LPXWQ06SHX
B
C
H1
H2
Step 1
Place the tank rack ( C ) next to the fire table at least a distance of 30" (76 cm) as
above shown above.
Step 2
30"/76.2 cm

Your gas appliance must be installed on a flat, stable surface, away from any
combustible materials or construction.
Your gas appliance comes assembled, ready for a gas connection.
1-Remove the appliance from container box and place it on any level, outdoor,
non-combustible surface.
NOTE: Do not place this appliance on grass or dirt area. This may prevent proper
safety venting.
2-Open the gas door and put the cylinder inside.

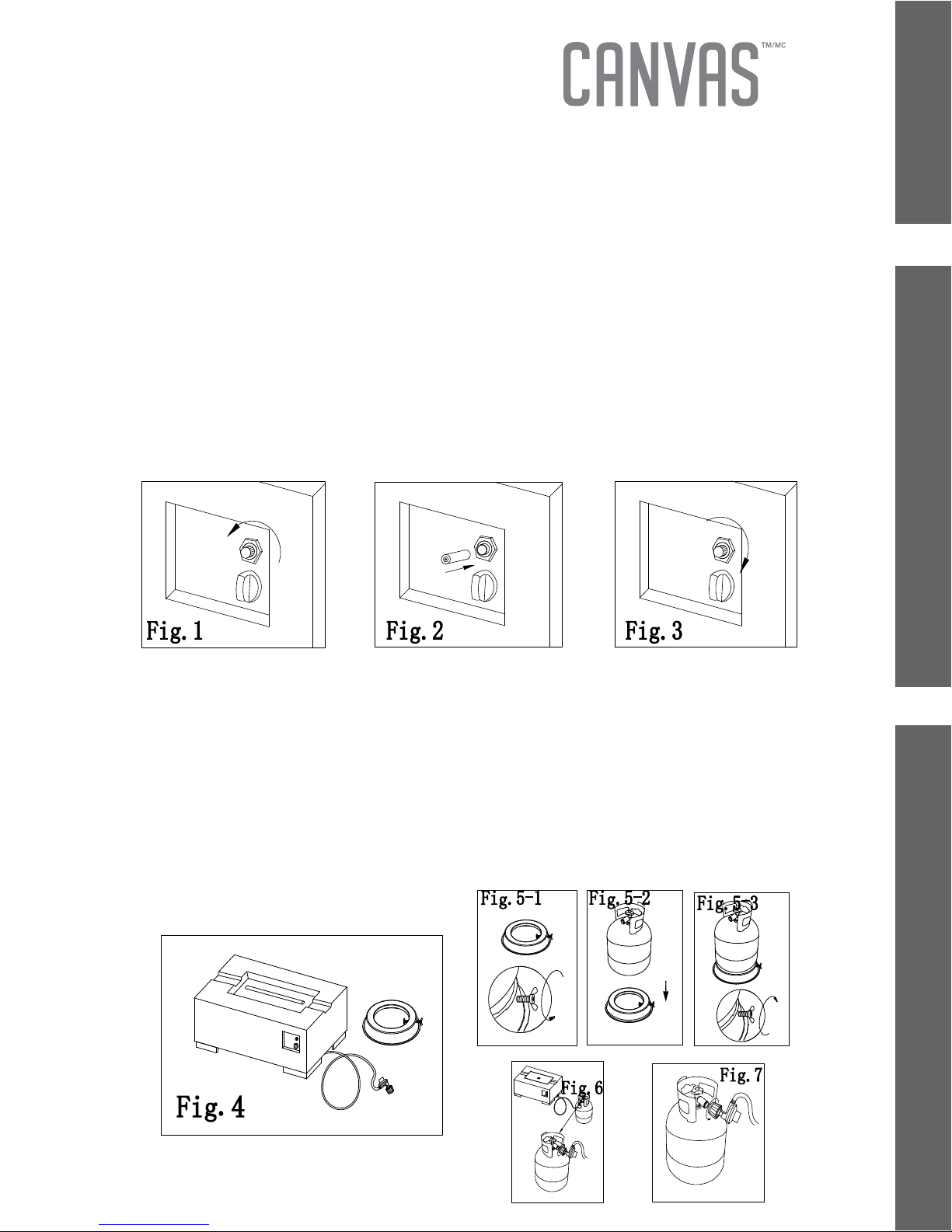

3-Unscrew the battery box as shown in Fig. 1 Insert the negative electrode side of
the battery into the bottom of battery box as shown in Fig. 2 Then screw the battery
box as shown in Fig. 3.
Note: If the battery of the pulse electronic igniter runs out of power, please replace
with new battery.
1-Check the pressure regulator and place the tank rack next to the fire table as
shown in Fig. 4.
2-Unscrew the locking device on tank rack per Fig. 5-1; place cylinder on the rack
and then tighten locking device as shown in Fig. 5-2 and Fig. 5-3.
3-Connect the regulator and the cylinder as shown in Fig.6. Make sure there is no
leakage or damage (please refer to “Leak Test” on page 9 and 10 damage checking
on page 5).
4- Disconnect the regulator and the cylinder as shown in Fig. 7.
8
LOCATION
SETUPGas Connection
8of 11

Do not use an open flame to check for leaks.
Do not smoke during testing.
Do not test indoors.
A leak test must be performed whenever the gas cylinder is replaced.
!!!WARNING!!!
NOTE: While in use, the burner flame should be mainly blue in appearance with a small
amount of yellow. The flame can be identified by the following figure.
1. Make sure the control knob is in the “OFF” position.
2. Make sure the gas cylinder is correctly and securely connected to the pressure regulator,
without over-tightening.
3. Turn on the gas cylinder valve. Apply 50% soap and 50% water solution to the gas hose
and connections between the control knob and gas cylinder.
4. If something is leaking, you will see bubbles form. In case of leaks, turn off the gas supply,
undo the leaking connection, re-connect it and try again. If the leak persists, consult Customer
Service Centre for assistance (1-844-786-5691).
5. If the connection does not leak, continue to the next step.
1. Make sure control valve is OFF.
2. Turn on gas tank valve.
3. Press in and turn control valve knob counter-clockwise to
LOW to light. See the figure to the right.
4. If burner is lit, continue pressing in the control valve knob
for a minute to heat the thermocouple.
5. When control valve knob is released, the burner should be
lit. If not, turn control valve knob clockwise to OFF. Wait for 5
minutes then start with step 3 above.
6. Press in and turn control valve knob to desired heat output,
LOW ~ HIGH.
LEAK TEST
9MODEL NO. 085-1558-6
L-FT1109PST-B
LIGHTING THE BURNERS
OPERATION & LEAK TEST
OFF
HIGH
MAX
BAS
ARRET
LOW
Warning: Lighting the fire table improperly could lead to an unsafe condition.
7. Press in and turn the control valve knob clockwise to OFF to shut down fire table.
Close the gas cylinder valve when the fire table is not in use.
(CAUTION: Do not kink flexible gas hose. If it is kinked, a gas leak could occur.)
YELLOW TIPS HIGH
LOW
LOW
BLUE
BLUE

To obtain the best performance from your fire table, you must perform the following
storage and maintenance activities on a regular basis:
Allow at least 35 minutes for the fire table to cool down after
use, before disconnecting and removing the gas cylinder.
Store the gas cylinder in a dry, well-ventilated and
sheltered area protected from inclement weather and dust,
out of the reach of children, and not in a building, garage or
any other closed area.
The fire table may be stored indoors only if the cylinder is
disconnected and removed.
Keep the fire table area clear and free from combustible
materials, gasoline and other flammable vapours and liquids.
Installation and repair should be done by a qualified service person. The fire table
should be inspected before use and at least annually by a qualified service person.
More frequent cleaning may be required as necessary. It is imperative that the control
compartment, burner, and circulating air passageways of the fire table be kept clean.
If you disassemble the burner when cleaning the fire table, please reassemble it
according to the picture on the right to make sure the burner induction tunnel is on
and exactly covers the orifice base. It is imperative that the control compartment,
burner, and circulating air passageways of the fire table be kept clean. It is recommended
not to disassemble the burner.
Permanent installation and repair should be done by a qualified service person. The
fire table should be inspected annually by a qualified service person.
10
STORAGE AND MAINTENANCESTORAGE AND MAINTENANCE
PROBLEM OBSERV
TROUBLESHOOTING
ED POSSIBLE CAUSE CORRECTIVE MEASURES
G as odour G as leak See “ If you smell gas ” on page 2.
Check all gas connections.
Delayed ignition Low gas pressure
Clogged or dirty burner ports
Clogged or dirty burner ports
Blocked orifice
Spent battery
Check gas supply pressure.
Clean burner ports-see manual
section.
Check orifice opening.
Change new battery.
Incorrect burner flame Incorrect gas supply or
pressure Blocked orifice
Check gas supply pressure.
Check and clean orifice opening.
Clean burner ports.

11 MODEL NO. 085-1558-6
L-FT1109PST-B
LIMITED WARRANTY
Made in China
Subject to the conditions set out below, this product is warranted to the original purchaser
to be free from defects in workmanship and materials for one (1) year from the date of pur-
chase.
Satisfactory proof of the purchase date must be furnished at the time of notification of the
defect for any claim under the warranty to be enforceable.
This warranty covers all parts found defective in workmanship and/or materials during the
warranty period and can be repaired or replaced at the discretion of the manufacturer at no
cost to the original purchaser.
This warranty will be void if the product has not been assembled, installed or operated
according to the instructions, or subjected to abuse, improperly treated, neglected, rusted
by exposure to the elements, misused and/or if any repairs, maintenance, or service has
been done by an unauthorized person.
Returns must be properly packaged and returned to the dealer from whom the product
was acquired.
The manufacturer, distributor and retailer will not be liable for any incidental or conse-
quential loss or damage arising from the installation or operation of the product and/or the
failure of any part for any reason.
There are no other express or implied warranties, except for those stipulated herein. This
warranty gives specific rights and the original purchaser may have additional rights and
remedies in law.
This warranty does not cover commercial use.
Imported by Trileaf Distribution Trifeuil Toronto, Canada M4S 2B8.
