thermo mate FTMB770 User manual

thermomate 30" FireTable
1 [phone]
[email protected]
3330-A Marathon Ct Charleston, SC 29418
www.thermomate.com
Live Smart, Better Life!
FTMB770
Instruction For Installation And Use
5018370

Live Smart, Better Life!
01
1(844) 334-4203
[email protected]
Contents
Warning ........................................................................................................
Safety Information ........................................................................................
Contents .......................................................................................................
Assembly Instructions ..................................................................................
Operation ......................................................................................................
Maintenance .................................................................................................
Troubleshooting ............................................................................................
Warranty .......................................................................................................
02
03
07
08
13
14
15
15

Live Smart, Better Life!
02
1(844) 334-4203
[email protected]
If you smell gas:
● Shut off gas to the appliance.
● Extinguish any open flame.
● If odor continues, leave the area immediately.
● After leaving the area, call your gas supplier or fire department.
Failure to follow these instructions could result in fire or explosion, which
could cause property damage, personal injury, or death.
DANGER
FIRE OR EXPLOSION HAZARD
Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance. An LP-cylinder not connected for use
shall not be stored in the vicinity of this or any other appliance.
WARNING
If the information in this manual is not followed exactly, a fire or explosion
may result causing property damage, personal injury, or loss of life.
WARNING
For outdoor use only.
Installation and service must be performed by a qualified installer, service
agency, or the gas supplier.
WARNING
Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
INSTALLER
Improper installation, adjustment, alteration, service or maintenance can
cause injury or property damage. Refer to the owner's information manual
provided with this appliance. For assistance or additional information consult
a qualified installer, services agency or the gas supplier.
WARNING

Live Smart, Better Life!
03
1(844) 334-4203
[email protected]

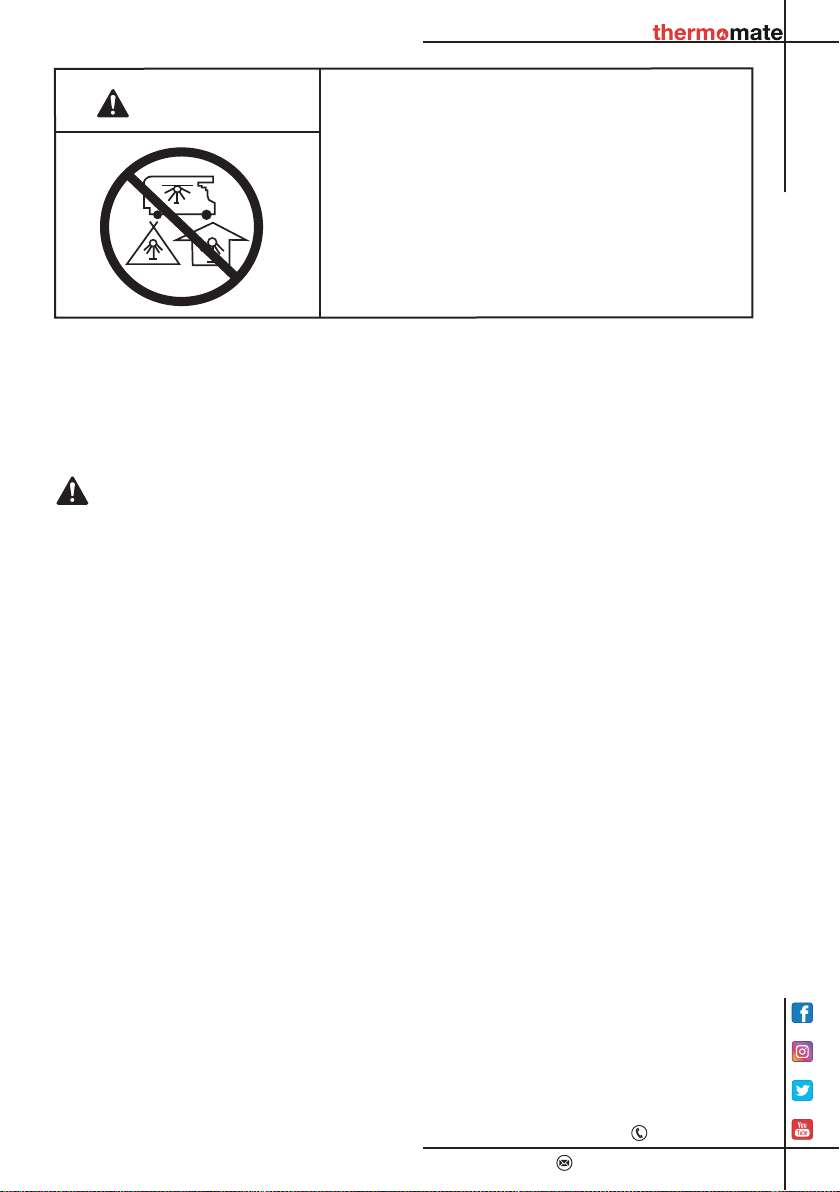

CARBON MONOXIDE HAZARD
This appliance can produce carbon monox-
ide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed
space such as a camper, tent , car or home.
DANGER
Safety Information
Before you assemble or operate this unit, please carefully read this entire
manual. Failure to do so may result in a fire, explosion, injury or death.
WARNING
● The installation of this unit must adhere to local codes or Propane Storage
and Handling Code, CSA B149.2.
● THIS UNIT IS INTENDED FOR OUTDOOR USE ONLY! This product shall
be used outdoors, in a ventilated space and shall not be used in any
enclosed area.
● This unit is to be used with propane gas only! (sold separately)
● Do not attach a remote gas supply to this unit.
● Only use propane gas for this unit.
● Solid fuels shall not be burned in this appliance.
● When igniting this unit, stay away from the burner as the flame will light up
and may cause injury.
● LP GAS WARNING: Do not use any more than 1/4 in depth lava rocks
/pumice stones above the burner holes. Doing so will suffocate the flame.
● If the propane gas tank is leaking gas, you may hear, see, or smell a hiss.
Do the following:
1. Disconnect the propane gas tank.
2. Do not attempt to fix the problem yourself.
3. Contact your gas supplier or fire department for help.
● Applying too much propane may result in gas pooling and will not burn.
Allow fresh air into the unit so that the remaining gas may escape.
● Do not use a flame to check for gas leaks.
● Manifold pressure: 11 inch w.c. (2.74kPa).
● Use LP propane tanks with the following dimensions: diameter 12 in, height
18 in-capacity 20 lbs.

Live Smart, Better Life!
04
1(844) 334-4203
[email protected]
● You must use a propane tank that has a collar to protect the gas valve.
● DO NOT fill tank over 80 percent full.
● The tank system must be set up for vapor withdrawal.
● Discontinue use if any part of the propane tank is damaged. Rust and dents
may be hazardous and should be inspected by a gas supplier.
● Do not burn anything other than the provided materials for this fire table.
● Keep away from the unit for the first 20 minutes after igniting your unit for
the first time, as lava rocks/pumice stones could pop out and cause injury.
Should any rocks pop out, discard them.
● Always ensure that lava rocks/pumice stones are completely dry before use.
Failure to do so will cause them to crack or pop.
● Do not operate unit until all parts are fully assembled.
● Do not paint or color any part of this heating unit.
● Unit may be hot while in use, do not attempt to move it while in use.
● Never leave this heating unit unattended while in use.
● This unit is not intended for cooking.
● Keep any flammable items away and do not use any other fireplace cover
for this unit.
● Keep a safe distance to avoid burning skin or clothing.
● Do not sit or rest hands or feet on this heating unit.
● Never place hands or fingers on upper portion of this unit while in use.
● Keep all electrical cords and fuel supply hose away from heated surfaces.
● Combustible material should not be within 60 inches of the top of the unit, or
within 48 inches around the entire unit.
● Keep the appliance area clear and free from combustible material, gasoline
and other flammable vapors and liquids.
● If the flame goes out while burning, turn the gas valve off. Wait 5 minutes
before repeating the initial lighting procedure. Once you have a flame
started, hold down the control knob for 1 minute.
● Do not add water into the unit.
● Do not operate unit if any part has been under water. Immediately call a
qualified service technician to inspect the appliance and replace any part of
the control system and any gas control that has been under water.
● Do not disconnect any part while unit is in use.
● Do not store a spare propane tank on or near this unit.
● If the heating unit is indoors, detach the propane tank and leave outdoors.
● Do not operate on a boat or vehicle. This unit must be used on a flat surface
and outdoors ONLY.
● Always remove protective cover before operating (if applicable).
● Do not set the protective cover over the unit until it is turned off and
completely cooled down.
● Check for leaks after not using the unit for long periods of time.

Live Smart, Better Life!
05
1(844) 334-4203
[email protected]
● Children should never operate this unit. Children must be supervised
while near this unit.
● Keep gas tank at least 5 feet away from unit when lit. (if external tank)
● Maximum gas supply: 250 psi; Min. gas supply: 10 psi.
● All installation and repair should be done by a qualified professional.
This unit should be inspected annually and cleaned regularly.
● Inspect all elements of this heating unit before each use. If there is damage,
the burner must be replaced.
● Keep the hose out from any pathways to eliminate any accidental damage.
(if external tank)
● Be aware of the hazards of high temperatures and stay away from the unit
to avoid any burns or injury.
● The gas supply tank should be constructed and marked with the
specifications for the LP gas tanks of the U.S. Department of Transportation
or the National Standard of Canada CAN/CSA-B339, LP gas tanks, spheres
and tubes for Transportation of Dangerous Goods; and Commission.
● The LP gas tank must have a listed overfilling prevention device and a
QCCI or Type I, (CGA791) LP gas tank connection.
● This heating appliance should not be used on plastic or artificial wood decks.
● Children and adults should be alerted to the hazards of high surface
temperatures and should stay away to avoid burns or clothing ignition.
● Young children should be carefully supervised when they are in the
area of the appliance.
● Clothing or other flammable materials should not be hung from the
appliance or placed on or near the appliance.
● Any guard or other protective device removed for servicing the
appliance shall be replaced prior to operating the appliance.
● Installation and repair should be done by a qualified service person.
The appliance should be inspected before use and at least annually by
a qualified service person. More frequent cleaning may be required
as necessary. It is imperative that the control compartment, burners
and circulating airways of the appliance are kept clean.
If applicable:
● Allow heating item to cool completely before placing on lid.
● DO NOT use heating item while lid is installed. Always remove the lid while
heating item is in use.
Only use the regulator and hose assembly provided with this unit.
Replacement parts must be supplied directly by thermomate.

Live Smart, Better Life!
06
1(844) 334-4203
[email protected]
Inspect the burner before use of this unit. If the burner shows any kind of
damage, do not operate the appliance. For assistance with repair or
replacement of the burner or any other parts, calls Number: 1 [phone],
E-mail: [email protected].
NOTE:You must follow all steps to properly assemble this heating item.
Make sure the gas valve is turned“OFF”before assembling. Do NOT
attempt to assemble without proper tools.

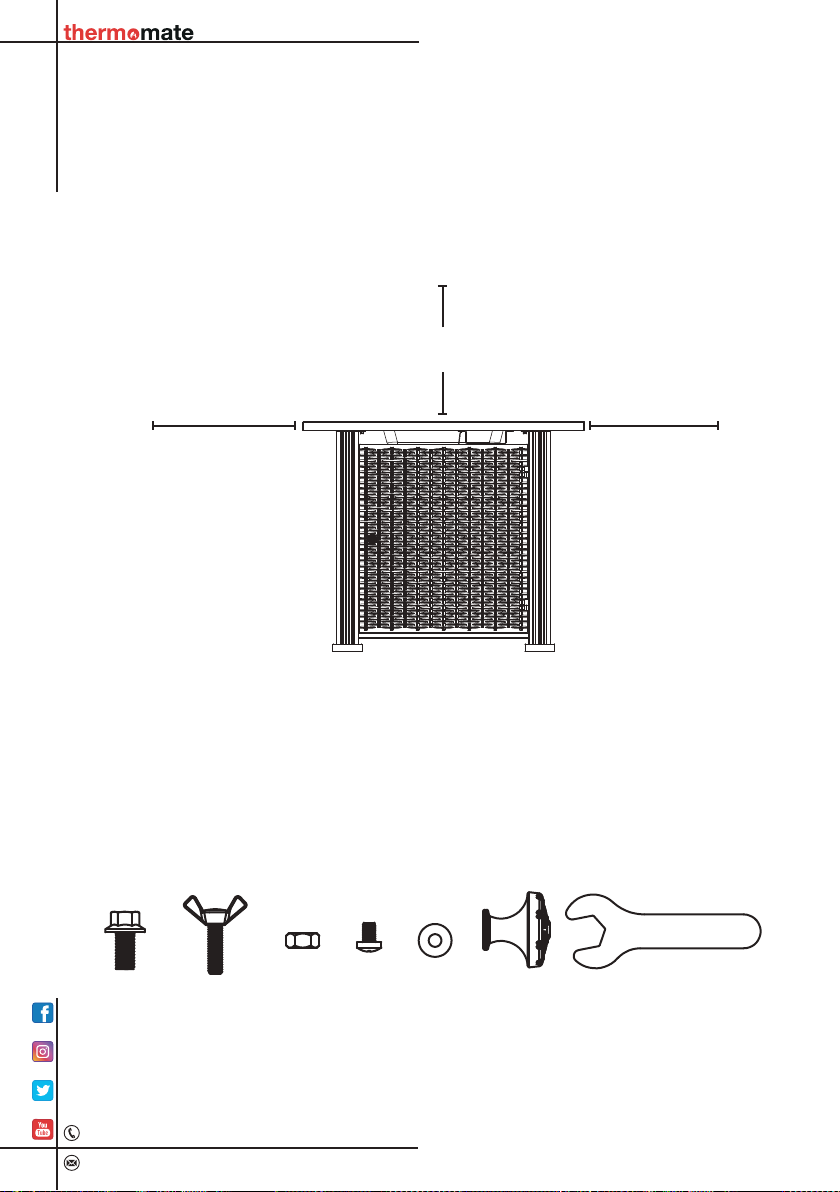

Min. Clearance
48 in. (121.9 cm) Min. Clearance 48 in. (121.9 cm)
Min. Clearance
60 in. (152.4 cm)
Combustible materials should not be within 60 inches of the top of the
unit, or within 48 inches around the entire unit.
AA BB CC DD EE FF GG
Hardware

Live Smart, Better Life!
07
1(844) 334-4203
[email protected]
Item
AA
BB
CC
DD
EE
FF
GG
Description
M6 x 10 Screw
M4 x 10 Screw
M6 Nut
M4 x 8 Screw
Washer
Door Knob
Wrench
Qty
24
1
12
1
1
1
1
Before beginning assembly of this product be sure all parts are present.
Compare parts with package contents list and hardware contents list. If any
part appears to be missing or damaged do not begin assembly of this product
and call customer service immediately.
Estimated assembly time: 30 minutes.
Tools required for assembly (not included): Phillips Screwdriver.
Contents A
L
K
J
QMBPON
E
D
C
E
G
FH
I

Live Smart, Better Life!
08
1(844) 334-4203
[email protected]
Item
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
Description
Lid
Table Top
Right Panel
Door
Left Panel / Back Panel
Left Front Leg
Left Back Leg
Right Front Leg
Right Back Leg
Metal Stand
Lava Rocks
Battery (AAA)
Control Knob (preassembled)
Guard (preassembled)
Firebowl (preassembled)
Burner (preassembled)
Electronic Igniter (preassembled)
Qty
1
1
1
1
2
1
1
1
1
1
1 box (6.6 LB)
Not included
1
1
1
1
1

Live Smart, Better Life!
09
1(844) 334-4203
[email protected]

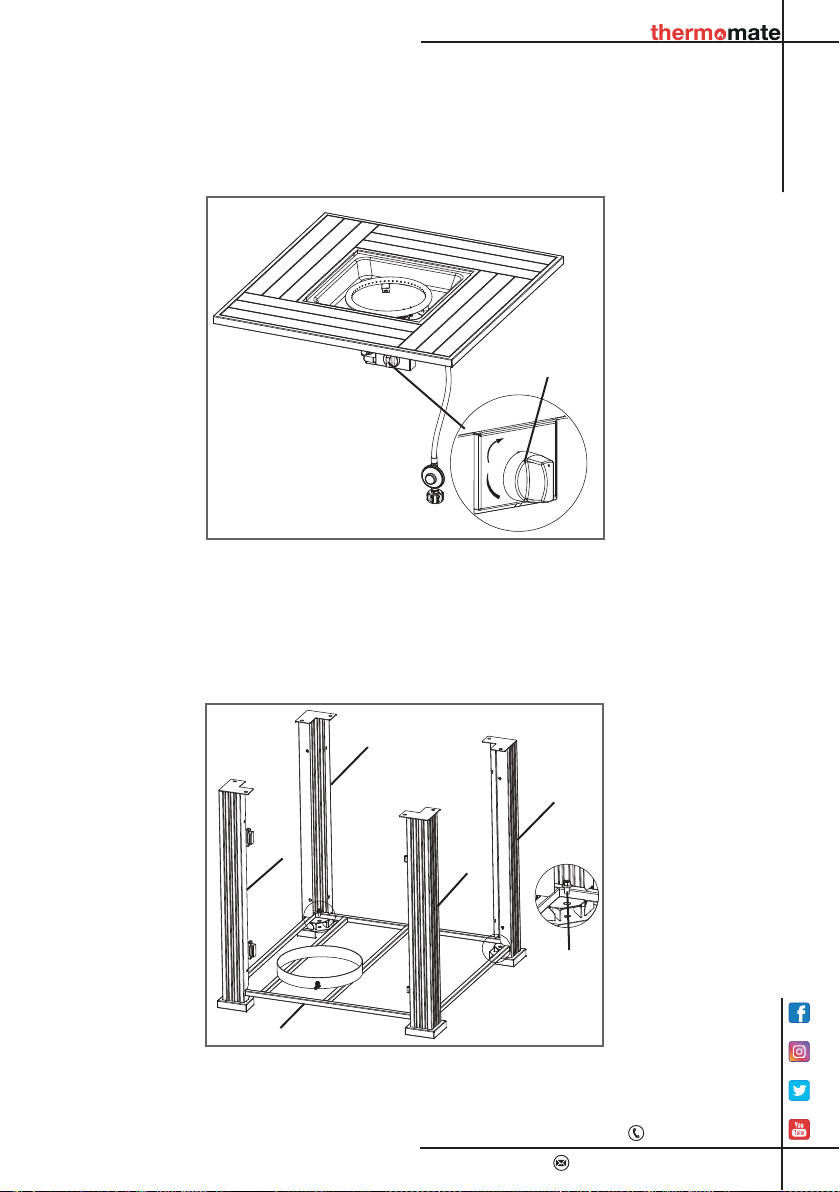

1. Check that the control knob (M) for the gas supply system is turned to the
“OFF” position before starting any assembly.
Assembly Instructions
2. Attach right front leg (H), right back leg (I), left front leg (F) and left back leg
(G) to the metal stand (J) using 4 pcs M6 x 10 screws (AA).
M
H
L
OFF
OFF
H
I
G
F
AA
J

Live Smart, Better Life!
10
1(844) 334-4203
[email protected]
3. Attach the 2 side panels (E) and left panel (C) to the legs using 12 pcs M6 x
10 screws (AA & CC).
4. Attach steel base to the bottom part of the table top (B) using 8 pcs M6 x 10
screws (AA).
B
AA
C
E
EAA
CC

Live Smart, Better Life!
11
1(844) 334-4203
[email protected]
5. Attach hose of regulator tightly to the bracket using 1 pc M4 x 10 screw (BB).
6. Insert the door (C) to left front leg and attach door knob (FF) to the door
using 1 pc M4 x 8 screw (DD) and 1 pc washer (EE).
BB
FF
C
DD
EE

Live Smart, Better Life!
12
1(844) 334-4203
[email protected]
7. Place propane gas tank (not included) into the metal stand (J). Make sure
the gas tank sits on the metal stand (J) completely. Turn the preassembled
wing screw on the outer part of metal stand (J) clockwise to secure the
propane gas tank tightly.
8. Turn the cylinder valve on the tank clockwise to close the propane tank.
Attach the preassembled regulator from the table top (B) to the cylinder
valve by turning the regulator coupling nut clockwise. Make sure it is
fastened securely and tighten connections by hand only.
Cylinder Valve Pressure
Relief Valve
Bleed-off
Valve
Black Coupling
Nut Turn Clockwise
To Connect
Regulator Turn Clockwise
To Reseal

Live Smart, Better Life!
13
1(844) 334-4203
[email protected]
9. Remove the rubber cap on the electronic igniter (Q) by unscrewing and
slide battery (L) into the battery slot. Make sure the positive side of the
battery faces outwards. Screw the electronic igniter cap (Q) over the
battery tightly.
Q
L
10. Pour the box of lava rocks (K) into the frebowl (O).
CAUTION
To ensure proper function, the guard (N) on this burner (P)
should be free of lava rocks at all times.
K
O
N

Live Smart, Better Life!
14
1(844) 334-4203
[email protected]
Operation
Before performing a leak test, be sure that no sparks can occur and you are in
a spacious outdoor area. Connect the propane gas tank to the regulator and
turn the valve on the unit to the “off” position. Brush a soap and water mixture
on all connections. Turn the gas supply on; if bubbles occur on any connec-
tion there may be a leak. If you smell gas or a leak is discovered turn the
gas valve off, disconnect propane gas tank and do not use the appliance
until the leak is repaired.
Do not use the heating unit without inspecting the gas hose. If there are signs
of wear or abrasion you must replace the hose (if applicable). Pumice
stones/lava rocks could pop up and strike somebody’s face during the process
of lighting this unit; stand away from the unit for the first 20 minutes after
igniting. Flame height should be a yellow/blue color between 2-10 inches in
height.
Wait 50 minutes after extinguishing fame prior to placing a lid (if applicable) or
protective cover on heating item.
To light
LP gas warning
Do not put too much lava on the firebowl.
Do not use any more than 1/4 in depth lava rocks stones above the burner
holes.Doing so will suffocate the flame.
Maintenance
● Before performing any maintenance always disconnect propane gas tank.
● Store your product indoors during winter months. Avoiding extreme
cold temperatures will prevent from exposure damage.
● Keep the heating item free and clear from combustible materials.
● Visually inspect burner for obstructions and keep tank enclosure free and
clear from debris.
● Use a soft brush to get rid of the mild stains, loose dirt and soil after the
burner and pumice stones/lava rocks are completely cooled down. Wipe
down with a soft cloth.
● Harsh weather conditions may cause stubborn stains, discoloration and
possibly rust pitting.

Live Smart, Better Life!
15
1(844) 334-4203
[email protected]
Troubleshooting
● Permanent damage may occur if powder or solvent comes in contact with
painted or plastic components on this heating unit.
● Keep the heating unit stored away from direct sunlight.
● If storing this unit inside, disconnect the propane gas tank from the gas valve.
● Not using manufacturer approved or supplied parts/accessories may result
in a defective condition and void the warranty of this heating unit.
● Always place lid (if applicable) or protective cover on heating item when not
in use.
Heating unit won’t light
Igniter pin and burner are wet Dry off with a soft cloth
Check which direction the battery is inserted
Contact for a replacement part
Reconnect wire to the igniter box located
inside the table behind the igniter box
Contact for a replacement part
Check that the gas tank isn’t empty
Tighten regulator connection to the gas tank
Check all hoses for kinks and bends
Turn all gas flow connections off. Insert an
opened paperclip (or similar item) into each
of the burner ports to clear them out
Check that all burner ports are free of
any small lava rocks/pumice stones/pieces
Straighten hose of all bends or kinks
Check that the gas tank isn’t empty
Turn the control knob to the ‘off’ position.
Close the tank valve and disconnect propane
gas tank. Turn the control knob to ‘high’; wait
1 minute. Turn the control knob back to the
‘off’ position. Reconnect propane gas tank.
Light the fire unit as indicated in the ‘To Light’
section of this manual
Increase flame to ‘high’
Check that the gas tank isn’t empty
See ‘sudden drop in gas flow’ above
Igniter battery is incorrectly inserted
Igniter pin is broken
Electrode wire is loose or disconnected
Electrode wire is shorting between valve
and igniter pin
Excess flow safety valve has been activated
High or gusting winds
No gas flow
No gas flow
Excess flow safety valve has been activated
No gas flow
Regulator isn’t connected securely to the tank
Gas flow is obstructed
Burner ports are clogged
Flame is obstructed at burner ports
Regulator hose is kinked
Burner won’t light
while using a match
Heating unit emits a lot
of black smoke
Sudden drop in gas flow
Flame blows out easily
Problem Cause Solution

Live Smart, Better Life!
16
1(844) 334-4203
[email protected]
Warranty
This product has a one-year warranty against manufacturing defects in
workmanship, or materials.
The manufacturer warranty will be voided, and manufacturer disclaims any
responsibility for the following actions:
● Modification of the unit and/or components including the gas valve
assembly.
● Use of any component part not manufactured or approved by thermomate.
● Use and installation other than what is listed in this manual.
Please contact the manufacturer for replacement parts.

1 [phone]
[email protected]
3330-A Marathon Ct Charleston, SC 29418
www.thermomate.com
