Thermo Scientific 700 Series User manual

Forma ULT Freezer
Model 700 Series Chest Freezer
Manual Number 7010708 Rev. 10

Thermo Fisher ScientificThermo Fisher Scientific
MANUAL NUMBER 7010708
10 23939 5/29/07 Added note - adjust LN2tank pressure relief valve to 30 PSI maximum blow-off ccs
-- 24100 5/29/07 Clarified turning battery switch to Standby mode with symbol ccs
9 23859/FR-1940 1/3/07 Clarified BUS install (probe/solenoid harness) instructions ccs
8 23700/FR-1919 10/09/06 Updated safety temp specs (from 5° - 40°C to 5° - 43°C) ccs
7 23579/FR-1911 8/18/06 Corrected start capacitor part number on elec schematic ccs
6 23170 2/9/06 Remote alarm connector is customer installed aks
5 23062 12/12/05 Changed display boards for 3 and 6.7 cu. ft. models aks
-- 22930 12/12/05 WEEE Directive aks
4 22895 8/15/05 Removed rotalock valves from compressors aks
3 22676 5/27/05 Changed control panel alarm indicators aks
2 22769 3/2/05 Changed circuit and breaker requirements for models 708 and 710 aks
-- 22562 3/2/05 Modified software to allow alarms within 5C of set point aks
1 22362 9/10/04 Changed micro board aks
0 22136 5/3/04 Release 2, change control panel and bezel 12, 17, 20 cu. ft. models aks
REV ECR/ECN DATE DESCRIPTION By
Preface
7010708 i
Models Covered Models Capacity Voltage
708 3120
709 3230
710 6.7 120
711 6.7 230
712 12.7 230
715 12.7 120
718 17 120
719 17 230
720 20 230
721 20 120
Part Number Description Quantity
34040 Key Ring 1
213F Key 2
380520 Neoprene Cap 2
510016 1/4-20 x 5-1/2” Bolt 2
402058 Vacu-Key 1
195763 Retaining Clip 1
370563 Remote Alarm Connector 1
Packing List

Thermo Fisher Scientificii 7010708 Thermo Fisher Scientific
Preface
Important Read this instruction manual. Failure to read, understand and follow the instructions in this manual
may result in damage to the unit, injury to operating personnel, and poor equipment performance. ▲
Caution All internal adjustments and maintenance must be performed by qualified service personnel. ▲
Material in this manual is for information purposes only. The contents and the product it describes are subject to
change without notice. Thermo Fisher Scientific makes no representations or warranties with respect to this
manual. In no event shall Thermo be held liable for any damages, direct or incidental, arising out of or related to
the use of this manual.
©2004 Thermo Fisher Scientific. All rights reserved.

Thermo Fisher Scientific 7010708 iiiThermo Fisher Scientific
Preface
Important operating and/or maintenance instructions. Read the accompanying text carefully.
Potential electrical hazards. Only qualified persons should perform procedures associated with this
symbol.
Equipment being maintained or serviced must be turned off and locked off to prevent possible injury.
Hot surface(s) present which may cause burns to unprotected skin, or to materials which may be
damaged by elevated temperatures.
Marking of electrical and electronic equipment, which applies to electrical and electronic equipment
falling under the Directive 2002/96/EC (WEEE) and the equipment that has been put on the market
after 13 August 2005.
This product is required to comply with the European Union’s Waste Electrical & Electronic
Equipment (WEEE) Directive 2002/96/EC. It is marked with the WEEE symbol. Thermo has
contracted with one or more recycling/disposal companies in each EU Member State European
Country, and this product should be disposed of or recycled through them. Further information on
Thermo’s compliance with this directive, the recyclers in your country and information on Thermo
Fisher Scientific products will be available at www.thermofisher.com.
✔Always use the proper protective equipment (clothing, gloves, goggles, etc.)
✔Always dissipate extreme cold or heat and wear protective clothing.
✔Always follow good hygiene practices.
✔Each individual is responsible for his or her own safety.

Thermo Fisher Scientificiv 7010708 Thermo Fisher Scientific
Preface
Do You Need Information or Assistance on
Thermo Fisher Scientific Products?
If you do, please contact us 8:00 a.m. to 6:00 p.m. (Eastern Time) at:
1-740-373-4763 Direct
1-888-213-1790 Toll Free, U.S. and Canada
1-740-373-4189 FAX
http://www.thermo.com/forma Internet Worldwide Web Home Page
Service E-Mail Address
Thermo Fisher Scientific Inc
Controlled Environment Equipment
401 Millcreek Road, Box 649
Marietta, OH 45750
Our staff can provide information on pricing and give you quotations. We can
take your order and provide delivery information on major equipment items or make
arrangements to have your local sales representative contact you. Our products are listed on the
Internet and we can be contacted through our Internet home page.
Our staff can supply technical information about proper setup, operation or
troubleshooting of your equipment. We can fill your needs for spare or replacement parts or
provide you with on-site service. We can also provide you with a quotation on our Extended
Warranty for your Thermo products.
Whatever Thermo products you need or use, we will be happy to discuss your applications. If
you are experiencing technical problems, working together, we will help you locate the problem
and, chances are, correct it yourself...over the telephone without a service call.
When more extensive service is necessary, we will assist you with direct factory trained
technicians or a qualified service organization for on-the-spot repair. If your service need is
covered by the warranty, we will arrange for the unit to be repaired at our expense and to your
satisfaction.
Regardless of your needs, our professional telephone technicians are available to assist you
Monday through Friday from 8:00 a.m. to 6:00 p.m. Eastern Time. Please contact us by
telephone or fax. If you wish to write, our mailing address is:
International customers, please contact your local Thermo distributor.
Sales Support
Service Support
[email protected]

7010708 vThermo Fisher Scientific
Table of Contents
Installation and Start-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 - 1
Freezer Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 - 1
Control Panel Keys, Displays and Indicators . . . . . . . . . . . . . . . . . .1 - 5
Operation of the Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 - 6
Install Freezer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 - 6
Choose Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 - 6
Install Wall Bumpers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 - 7
Remote Alarm Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 - 7
Attach Power Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 - 8
Connect Unit to Electrical Power . . . . . . . . . . . . . . . . . . . . . . . . .1 - 8
Freezer Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 - 9
Set Operating Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 - 9
Set High Temperature Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 -10
Set Low Temperature Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 -10
Run Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 -11
Calibrate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 - 1
Calibrate Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 - 1
Calibrate Control Probe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 - 1
Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 - 1
Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 - 1
Wrong Power Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 - 1
High Stage System Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 - 2
Probe Failure Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 - 2
Voltage Compensation Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 - 2
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 - 1
Clean Cabinet Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 - 1
Clean Air Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 - 1
Clean Condenser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 - 1
Clean Water-cooled Condenser . . . . . . . . . . . . . . . . . . . . . . . . . . .4 - 2
Defrost Chamber . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 - 2
Clean Lid Gasket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 - 3
Replace Battery(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 - 3
Prepare Unit for Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 - 5
Preventive Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 - 6
Section 1
Section 2
Section 3
Section 4

vi 7010708 Thermo Fisher Scientific
Factory Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 - 1
BUS (Back Up System) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 - 1
Install Injection Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 - 1
Install Temperature Probe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 - 2
Connect Probe/Solenoid Harness . . . . . . . . . . . . . . . . . . . . . . . . .5 - 4
BUS Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 - 4
Configure Optional BUS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 - 5
Set Optional BUS Set Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 - 6
Disconnect Fitting Assembly, Transfer Hose . . . . . . . . . . . . . . . . .5 - 6
Chart Recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 - 7
Install Chart Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 - 7
Recorder Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 - 7
Datalogger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 - 8
Water-Cooled Condenser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 - 9
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 - 1
Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 - 1
Refrigeration Schematics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 - 1
Electrical Schematics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 - 1
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 - 1
Handling Liquid Nitrogen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A - 1
Handling Liquid CO2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B - 1
First Aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C - 1
Table of Contents
Section 5
Section 6
Section 8
Section 7
Section 9
Section 10
Appendix B
Appendix A
Appendix C

7010708 1-1Thermo Fisher Scientific
Section 1 Installation and Start-up
Figures 1-1 and 1-2 show the front view of the freezer and indicate the
following freezer components:
• Control Panel - keypad, displays and indicators
• BUS (Optional Back Up System) panel
• Optional temperature recorder (7 day, one pen) or datalogger
• Key lock - keyed lid lock
Freezer Components
Figure 1-1. Front View Models 708, 709, 710, 711
Figure 1-2. Front View Models 712, 715, 718, 179, 720, 721

1-2 7010708 Thermo Fisher Scientific
Section 1
Installation and Start-up
Figures 1-3 and 1-4 display the rear view of the freezer and indicate the
following freezer components:
• Remote alarm contacts.
• Power inlet for power cord connection.
• Optional BUS connections for probe and solenoid.
• Power Switch (mains disconnect).
Figure 1-3. Rear View Models 708, 709, 710, 711
Figure 1-4. Rear View Models 712, 715, 718, 719, 720, 721

7010708 1-3Thermo Fisher Scientific
Section 1
Installation and Start-up

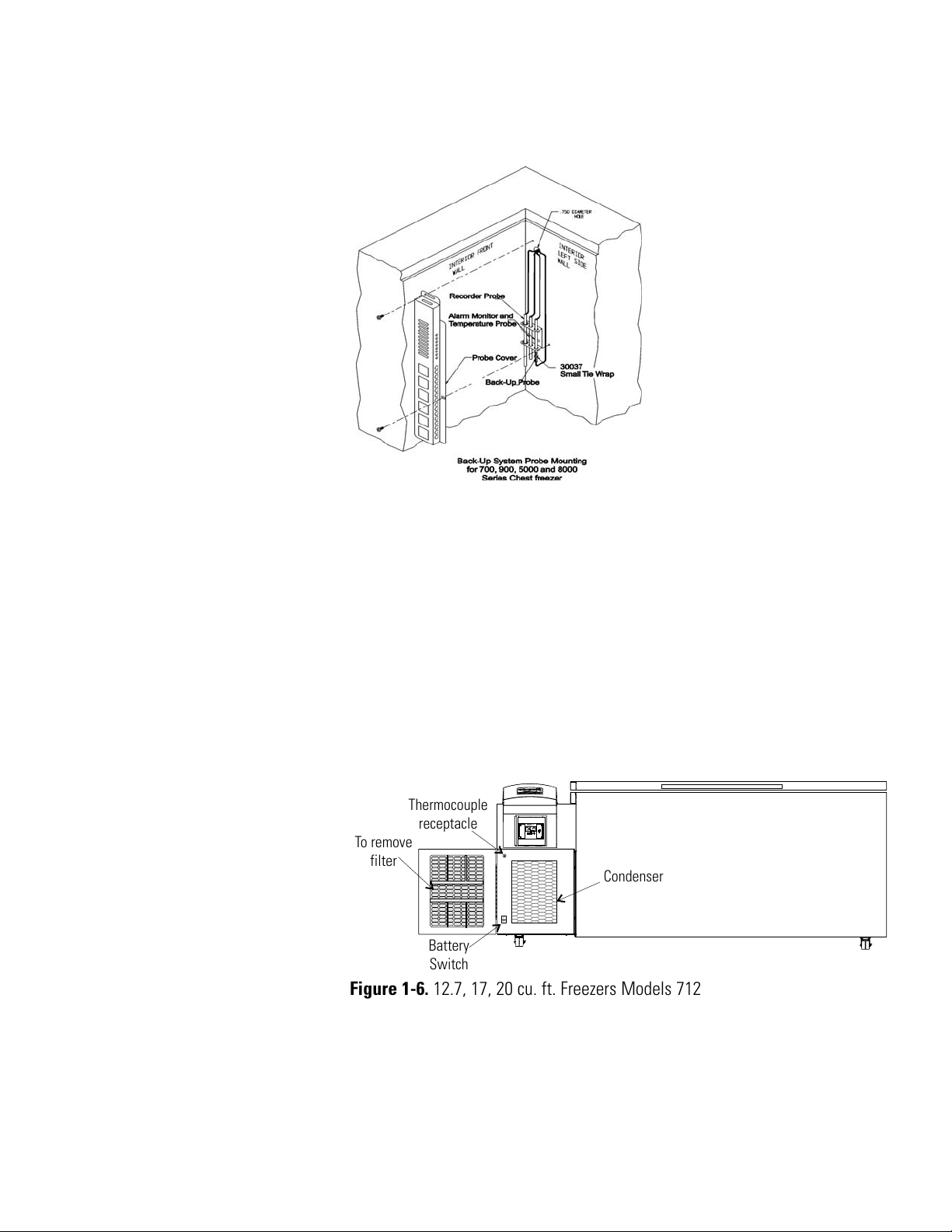

The probe cover - houses the control, optional recorder, datalogger, 1535
alarm, or BUS probes.
Figures 1-6, 1-7, and 1-8 indicate the following components:
• Freezer filter location.
• Battery power switch (freezer and BUS).
• Thermocouple receptacle.
• Battery mounting bracket .
• Freezer and optional BUS battery.
Figure 1-5. Probe Cover
aaaaaaa
a
aaaaa
a
a
aaaaa
a
a
aaaaa
a
a
aaaaa
a
a
aaaaa
a
a
aaaaa
a
a
aaaaa
a
a
aaaaa
a
a
aaaaa
a
a
aaaaa
a
a
aaaaa
a
a
aaaaa
a
a
aaaaa
a
a
aaaaa
a
a
aaaaa
a
a
aaaaa
a
a
a
a
a
a
a
a
CF
%RH
Alarm
Sensor
To remove
filter
Thermocouple
receptacle
O
Battery
Switch
Condenser
Figure 1-6. 12.7, 17, 20 cu. ft. Freezers Models 712, 715, 718, 720, 721

1-4 7010708 Thermo Fisher Scientific
Section 1
Installation and Start-up
O
aaaaaaaa
a
aaaaaa
a
a
aaaaaa
a
a
aaaaaa
a
a
aaaaaa
a
a
aaaaaa
a
a
aaaaaa
a
a
aaaaaa
a
a
aaaaaa
a
a
aaaaaa
a
a
aaaaaa
a
a
aaaaaa
a
a
aaaaaa
a
a
aaaaaa
a
a
a
a
a
a
a
aa
O
System
Battery
Battery
Switch
Thermocouple
Receptacle
To
remove filter
Figure 1-7. Freezer Left Side - Sidecar panel removed
Figure 1-8. 3, 6.7 cu. ft. Freezers - Models 708, 709, 710, 711

1. Temperature Display - Displays temperature in degrees Celsius.
2. Mode Select Switch - Used to select Run, Set Temperature, Set High
Alarm, Set Low Alarm, Calibrate, Backup.
3. Alarm Indicator - Light pulses on/off during an alarm condition of the
cabinet.
4. Silence - Silences the audible alarm.
5. Alarm Panel - indicates the current alarm condition.
6. Up and Down Arrows - Increases or decreases values, toggles between
choices.
7. Enter - Stores the value into memory.
7010708 1-5Thermo Fisher Scientific
Section 1
Installation and Start-up
Control Panel Keys,
Display, Indicators
Figure 1-9. Control Panel Keys, Display and Indicators

The 700 Series freezer has five basic modes which allow freezer setup and
operation. Press the Mode key to scroll through the mode selections.
Up Arrow: Increases or toggles the parameter value.
Enter: Must press Enter key to save to memory all changed
values.
Down Arrow: Decreases or toggles the parameter value.
Silence Key: Press to silence the audible alarm. See Section
4 for alarm ringback times.
Note If tipped more than 45°, allow the unit to set upright for 24 hours
before start up. ▲
To remove the freezer from the pallet, use a 7/16" wrench to remove all the
bolts securing the shipping bracket to the pallet.
Remove the shipping bracket. Remove the ramp boards from the pallet
and place the slotted end over the ramp brackets on the pallet. The
support blocks on the ramps will be facing down. Before moving the
freezer, make sure the casters are unlocked and moving freely. Align the
caster with the ramp boards. Use adequate personnel to roll the freezer off
the pallet.
The freezer can be easily pushed to the desired approved location,
described in the following section. When the freezer is in position, set the
front caster brakes.
Note The freezer must not be moved with the product load inside. ▲
Locate the freezer on a firm, level surface in an area with an ambient
temperature between 18°C and 32°C. Provide ample room to reach the
mains disconnect switch (power switch) located on the rear of the freezer.
Note For proper ventilation and airflow, a minimum clearance of 5” at the
rear and front and a clearance of 8” on the side of the freezer is required.
Allow adequate space for lid opening. If ambient increases above 36°C,
clearance at the rear of the cabinet must be increased to 8”. ▲
1-6 7010708 Thermo Fisher Scientific
Section 1
Installation and Start-up
Operation of Keypad
Install Freezer
Choose Location

The parts bag, located inside the cabinet, contains the following parts.
Install the bolts into the pre-tapped holes on the back of the freezer. Install
a neoprene cap on each bolt. Refer to Figures 1-3 and 1-4 for the locations
of the pre-tapped holes.
See Figures 1-3 and 1-4 for the location of the remote alarm contacts. The
remote alarm connector is located in the parts bag provided with the
manual. It must be installed if connecting the freezer to an alarm system.
After installing the wiring from the alarm system to the connector, install
the connector to the freezer microboard and secure with the two screws
provided. The remote alarm provides a NO (normally open) output, a NC
normally closed) output and COM (common). The contacts will trip on a
power outage, high temperature alarm or low temperature alarm. Figure
1-10 shows the remote contacts in alarm state.
7010708 1-7Thermo Fisher Scientific
Section 1
Installation and Start-up
Install Wall Bumpers
Quantity Stock # Description Purpose
2510016 1/4-20 x 5-1/2” Bolt Wall Bumper
2380520 Neoprene Cap Cap Protector
Remote Alarm Contacts
Figure 1-10. Remote Alarm Contacts

Insert the power cord into the power inlet module. Place the retaining
bracket (P/N 195763) over the connector. Tighten retaining screws to
secure.
Note See the serial tag on the side of the unit for electrical specifications or
refer to the electrical schematics in this manual. ▲
The freezer should be operated on a dedicated grounded service. Check the
voltage rating on the serial tag of the unit and compare it with the outlet
voltage. Then, with the power switch turned off, plug the line cord into
the wall outlet.
First, turn on the freezer power switch. Then open the lower front door by
grasping the bottom left corner. Locate the battery switch and turn it to
Standby mode ( ). See Figures 1-3 and 1-4. During initial freezer start-up,
the system battery may require charging and the Low Battery message may
appear in the message center.
Note Assure the battery switch is turned to Standby mode ( ). The
rechargeable batteries require 36 hours to charge at initial start-up. A “Low
Battery” alarm may occur until the batteries are fully charged. Should a
power failure occur during the initial start-up period, the electronics will
have limited operation. ▲
1-8 7010708 Thermo Fisher Scientific
Section 1
Installation and Start-up
Attach Power Cord
Figure 1-11. Power cord retaining bracket
Connect Unit to Electrical
Power

With the freezer properly installed and connected to power, system set
points can be entered. The following set points can be entered in Settings
mode: Control temperature, high temperature alarm set point, low
temperature alarm set point, and (optional) BUS set point. Default settings
are shown below.
Note If the set point is changed and the low temperature and high
temperature alarms are set 10° from the set point, the alarm set points will
be adjusted automatically to maintain a distance of at least 10° from set
point. ▲
The freezer has an operating temperature range of -50°C to -86°C,
depending on ambient temperature. The freezer is shipped from the
factory with a temperature set point of -80°C. To change the operating
temperature set point:
1. Press the Mode key until the Set Temperature indicator lights.
2. Press the up/down arrow key until the desired temperature set point is
displayed.
3. Press Enter to save the set point.
4. Press the Mode key until the Run indicator lights for Run mode.
If no keys are pressed, the freezer will automatically return to RUN mode
after 5 minutes.
7010708 1-9Thermo Fisher Scientific
Section 1
Installation and Start-up
Control Set Point -80°C
High Temperature Alarm -70°C
Low temperature alarm -90°C
Optional BUS Set Point -60°C
Freezer Start-Up
Set Operating
Temperature

The high temperature alarm will activate an audible/visual warning when
the freezer chamber temperature has reached or exceeded the high
temperature alarm set point.
To set the high temperature alarm set point:
1. Press the Mode key until the Set High Alarm indicator lights.
2. Press the up or down arrow key until the desired high temperature
alarm set point is displayed.
3. Press Enter to save the setting.
4. Press the Mode key until the Run indicator lights for Run mode
If no control keys are pressed, the freezer will automatically return to RUN
mode after 5 minutes.
Note The high alarm set point must be set at least 5°C from the control
set point. ▲
Note At initial start-up, the high temperature alarm is disabled until the
cabinet reaches set point or 12 hours elapse. ▲
The low temperature alarm will activate an audible/visual warning when
the freezer chamber temperature has reached or decrease below the low
temperature alarm set point.
To set the low temperature alarm set point:
1. Press the Mode key until the Set Low Alarm indicator lights.
2. Press the up or down arrow key until the desired low temperature
alarm set point is displayed.
3. Press Enter to save the setting.
4. Press the Mode key until the Run indicator lights for Run mode
If no control keys are pressed, the freezer will automatically return to RUN
mode after 5 minutes.
Note The low alarm set point must be set at least 5°C from the control set
point. ▲
1-10 7010708 Thermo Fisher Scientific
Section 1
Installation and Start-up
Set High Temperature
Alarm
Set Low Temperature
Alarm

The Run mode is the default mode for the freezer. Run mode displays the
cabinet temperature on the temperature display under normal operating
conditions. In addition, Run mode allows the high stage heat exchange
temperature to be displayed.
This information is scrolled by pressing the up or down arrow keys. The
display will return to the operating temperature in 10 seconds if no keys
are pressed.
7010708 1-11Thermo Fisher Scientific
Section 1
Installation and Start-up
Run Mode

7010708 2-1Thermo Fisher Scientific
Section 2 Calibrate
Once the freezer has stabilized, the control probe may need to be
calibrated. Calibration frequency is dependent on use, ambient conditions
and accuracy required. A good laboratory practice would require at least an
annual calibration check. On new installations, all parameters should be
checked after the stabilization period.
Before making any calibration or adjustments to the unit, it is imperative
that all reference instruments be properly calibrated.
Plug a type T thermocouple reader into the receptacle located inside the
lower door (see Figures 1-4 and 1-6). Compare the control temperature
set point to the temperature of the measuring device.
1. Press the Mode key until the Calibrate indicator lights.
2. Press up/down arrow to match the display to calibrated instrument.
3. Press Enter to store calibration.
4. Press the Mode key to return to Run mode.
Startup - Allow 12 hours for the temperature in the cabinet to stabilize
before proceeding.
Already Operating - Allow at least 2 hours after the display reaches set
point for temperature to stabilize before proceeding.
Note During calibration, the temperature display will not be available. ▲
If no keys are pressed for approximately 5 minutes while in calibration
mode, the system will reset to Run mode.
Calibrate Mode
Calibrate Control Probe
Temperature Stabilization
Periods
