Thermo Scientific 8100 Series Operating instructions

Model 8100 Series
Upright Blast Freezer
Operating and Maintenance Manual
7008101 Rev. 6

Thermo ScientificThermo Scientific
MANUAL NUMBER 7008101
6 25758/FR-1938 27Aug2009 Added production loading and defrost info to Section 2, pgs 2-3 & 2-4 ccs
5 FR-1938 04Jun2008 Updated specs w/ weight, revised schematics w/ power connections ccs
4 SI-9923 12Oct2007 Changed thermal expansion valve from 992314 to 220791 ccs
-- 24115/FR-1938 12Oct2007 Updated door switch to a 1950145 magnetic switch ccs
3 23830/FR-1938 26Sept2007 Updated door switch on 8106 from 360157 to 360277 w/ 360278 actuator ccs
2 23782/FR-1938 23Aug2007 Updated schematics (220778 coil), condensing unit specs ccs
1 23830/FR-1938 19Jan2007 Revised for Thermo approved install and set-up, connection limitation, schematics ccs
0 22697 8 July 2005 New operating manual aks
REV ECR/ECN DATE DESCRIPTION By
Preface
Blast Freezer i
Preface

Thermo Scientific Blast Freezer iiThermo Scientific
Preface
Important Read this instruction manual. Failure to read, understand and follow the instructions in this manual
may result in damage to the unit, injury to operating personnel, and poor equipment performance. s
Caution All internal adjustments and maintenance must be performed by qualified service personnel. s
Material in this manual is for information purposes only. The contents and the product it describes are subject to
change without notice. Thermo Scientific makes no representations or warranties with respect to this manual. In
no event shall Thermo be held liable for any damages, direct or incidental, arising out of or related to the use of
this manual.
©2005 Thermo Scientific. All rights reserved.

Thermo Scientificiii Blast Freezer Thermo Scientific
Preface
Do You Need Information or Assistance on
Thermo Scientific Products?
If you do, please contact us 8:00 a.m. to 6:00 p.m. (Eastern Time) at:
1-740-373-4763 Direct
1-866-984-3766 Toll Free, U.S. and Canada
1-740-373-4189 FAX
http://www.thermo.com Internet Worldwide Web Home Page
Service E-Mail Address
Thermo Scientific
Controlled Environment Equipment
401 Millcreek Road, Box 649
Marietta, OH 45750
Our staff can provide information on pricing and give you quotations. We can
take your order and provide delivery information on major equipment items or make
arrangements to have your local sales representative contact you. Our products are listed on the
Internet and we can be contacted through our Internet home page.
Our staff can supply technical information about proper setup, operation or
troubleshooting of your equipment. We can fill your needs for spare or replacement parts or
provide you with on-site service. We can also provide you with a quotation on our Extended
Warranty for your Thermo Scientific products.
Whatever Thermo Scientific products you need or use, we will be happy to discuss your
applications. If you are experiencing technical problems, working together, we will help you
locate the problem and, chances are, correct it yourself...over the telephone without a service
call.
When more extensive service is necessary, we will assist you with direct factory trained
technicians or a qualified service organization for on-the-spot repair. If your service need is
covered by the warranty, we will arrange for the unit to be repaired at our expense and to your
satisfaction.
Regardless of your needs, our professional telephone technicians are available to assist you
Monday through Friday from 8:00 a.m. to 6:00 p.m. Eastern Time. Please contact us by
telephone or fax. If you wish to write, our mailing address is:
International customers, please contact your local Thermo Scientific distributor.
Sales Support
Service Support
[e-mail]

Thermo Scientific Blast Freezer ivThermo Scientific
Preface
Alerts the user to important operating and/or maintenance instructions.
May be used alone or with other safety symbols. Read the accompanying
text carefully.
Potential electrical hazards. Only qualified persons should perform the
instructions and procedures associated with this symbol.
Hazard. Do not touch. Instructions associated with this symbol should
only be carried out when using special handing equipment or when
wearing special, protective clothing.
Potential biological hazards. Proper protective equipment and procedures
must be used when following instructions associated with this symbol.
Reference O.S.H.A. Regulation 1910-1030.
Potentially hazardous energy. Equipment being maintained or serviced
must be turned off and locked off to prevent possible injury. Reference
O.S.H.A. Regulation 1910-147.
Hot surface(s) present which may cause burns to unprotected skin or to
materials which may be damaged by elevated temperatures
4Always use the proper protective equipment (clothing, gloves, goggles,
etc.)
4Always dissipate extreme cold or heat and wear protective clothing.
4Always follow good hygiene practices.
4Each individual is responsible for his or her own safety.

Blast Freezer vThermo Scientific
Table of Contents
Set-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 - 1
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 - 1
Temperature Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 - 1
Set Point Adjustment Screwdriver . . . . . . . . . . . . . . . . . . . . . . . . . .2 - 2
Blower Control System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 - 2
Mode Select Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 - 2
Product Installation into Drawers . . . . . . . . . . . . . . . . . . . . . . . . . .2 - 3
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 - 4
Routine Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 - 1
Refrigeration System Maintenance . . . . . . . . . . . . . . . . . . . . . . . . .3 - 1
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 - 1
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 - 1
Servicing the Refrigeration System . . . . . . . . . . . . . . . . . . . . . . . . .4 - 1
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 - 1
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 - 1
Refrigeration Schematics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 - 1
Electrical Schematics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 - 1
Warranty Information
Section 1
Section 2
Section 3
Section 4
Section 5
Section 6
Section 7
Section 8

Blast Freezer 1-1Thermo Scientific
Section 1 Set-Up
Installation and start-up must be performed by Thermo approved
personnel only. s
The distance between the condensing unit and the blast freezer can be no
more than 100 equivalent feet (includes tubing, elbows, traps, etc.).

Blast Freezer 2-1Thermo Scientific
Section 2 Operation
The electronic temperature controller provides a constant display of the
freezer’s temperature. The numerical LED display provides readout of the
actual freezer chamber temperature in increments of 1°C.
The numerical LED display indicates the temperature setpoint when the
Press-To-Set button is pressed. To adjust the temperature setpoint, press
the Press-To-Set button and adjust the setpoint setscrew, using the
adjustment screwdriver shipped with the operating manual.
The temperature controller board controls power to the compressor and
the cooling fan. The temperature controller must be set and maintained
within the normal temperature specifications of 0°C to -50°C.
Adjustment of the temperature controller below the normal temperature
specification (-50°C) will void the warranty. s
Temperature
Controller

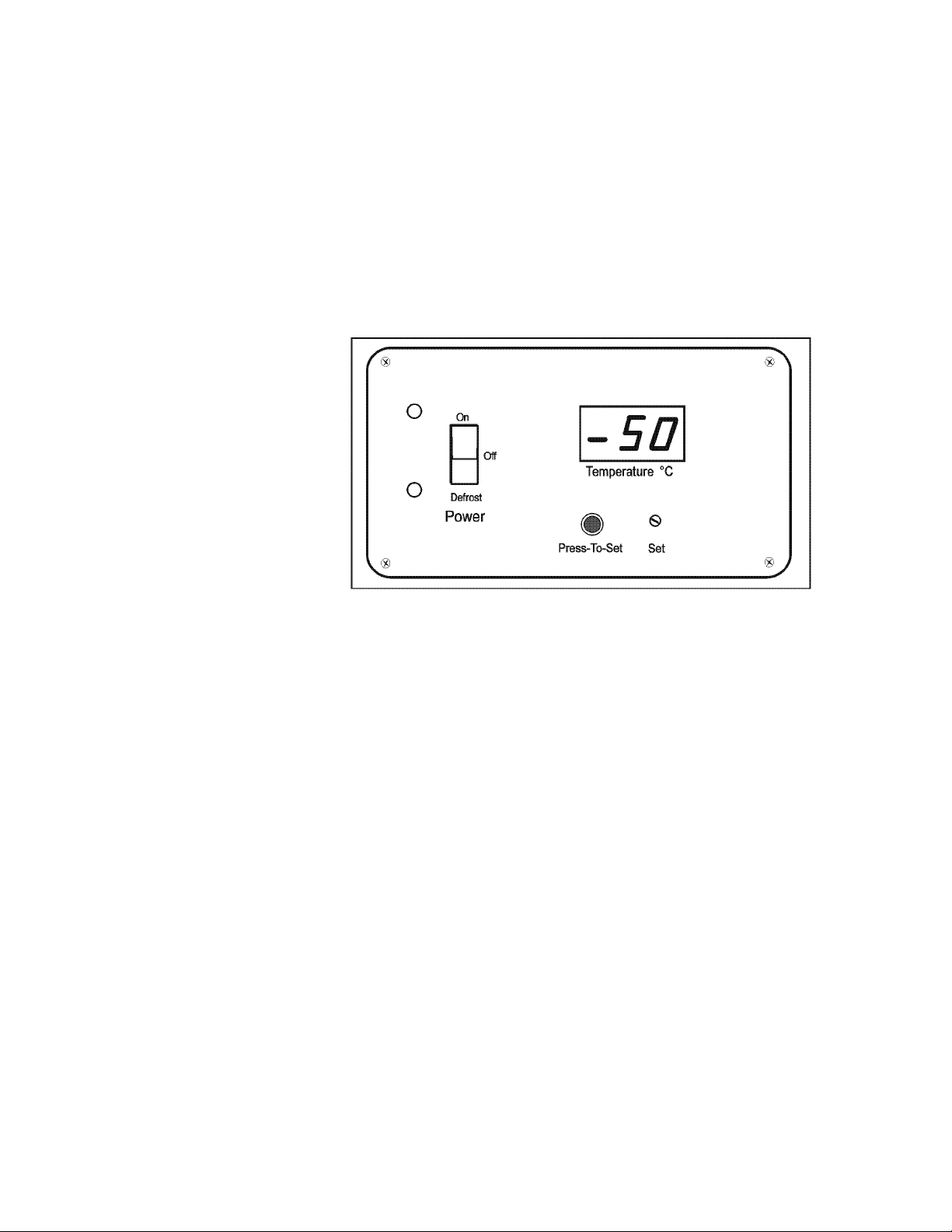

Figure 2-1. Temperature Controller

2-2 Blast Freezer Thermo Scientific
Section 2
Operation
A small screwdriver, shipped with the operating manual, is provided for
setting the temperature setpoint.
The blower control system consists of a door interlock switch and a
thermostat. The thermostat prevents the blower from operating until the
refrigeration coil temperature reaches approximately 5°C to prevent warm
air from circulating in the freezer.
The momentary door switch shuts off power to the cabinet blower during
door openings.
The Mode Select switch has three positions; ON, OFF and DEFROST.
When the switch is set to ON, power is applied to the refrigeration system
and the refrigeration indicator lights. The freezer will reach -50°C in about
20 minutes (with a pre-cooled cabinet).
When the switch is set to OFF (center), all freezer circuits are de-energized.
When the switch is in the DEFROST position, the defrost indicator lights
and the circulation blower activates. The freezer will warm to room
temperature. The door should be left open during defrost operation.
Note When the freezer reaches approximately 5°C, the blower turns off.
The defrost indicator remains on whenever the mode switch is in the
defrost position. s
Set Point Adjustment
Screwdriver
Blower Control
System
Mode Select Switch

Important The following paragraphs detail the installation of the freezer
drawers, including placement of their contents, into the unit for optimum
airflow and freeze time, based on manufacturer testing. s
Eleven drawers are included with each freezer. The baskets in the drawers
have been staggered to allow maximum airflow to freeze product quickly.
Six drawers have the basket on the left side as indicated below and five
drawers have the basket on the right. The drawers should be installed
alternately, as shown in Figure 2-2.
For quick and even freezing of bags placed in the drawers, there should be
only a single layer in each drawer; no overlapping (9 single unit bags
[500ml] per drawer). This allows airflow to reach each bag in its entirety.
Refer to Figure 1.
Caution For optimum freezing time, all product should be placed in the
freezer. The door should remain closed.
If additional product is loaded during the freezing process, freeze time will
be lengthened and there may be frost build-up. s
Blast Freezer 2-3Thermo Scientific
Section 2
Operation
Product Installation
Into Drawers

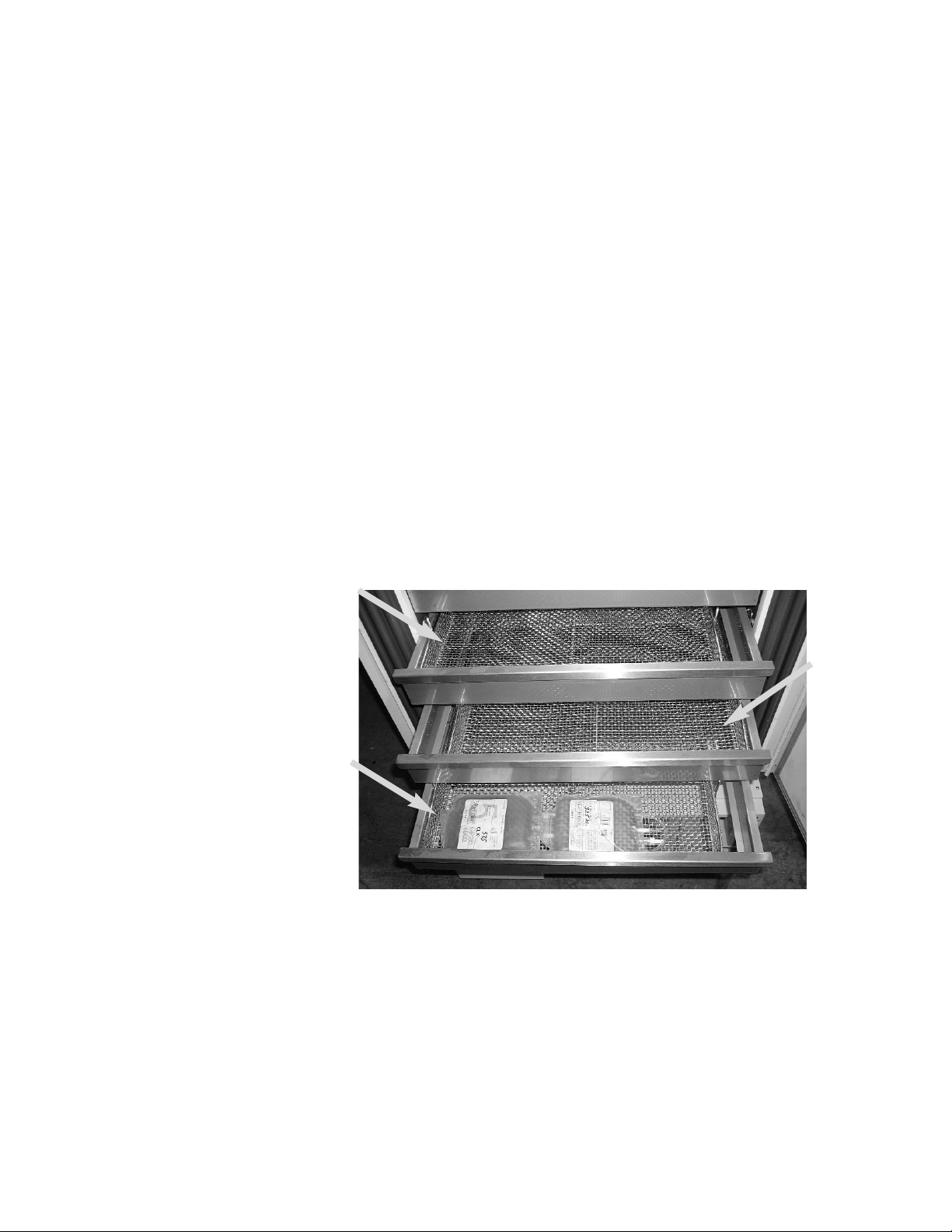

Figure 2-2. Product and Drawer Installation

Proper defrosting is a critical factor in the proper operation of the freezer.
Defrosting times will be determined by ambient conditions, door opening
frequency, usage and load.
If the freezer is to be used for continuous ‘blasting’, it must be defrosted at
the end of each 8 hour shift, or more frequently if frequent door openings,
ambient conditions, or heavy product load create the need.
1. To begin the defrost process, first remove all product to a storage
location.
2. Turn Power switch to Defrost. The Defrost light stays on (amber).
3. Allow the door to remain open at least 90°. Just opening the door a
small amount makes defrosting a lengthy process.
4. The time needed for the defrost process is dependent on the amount of
frost/ice and the ambient temperature.
5. After all frost has melted, wipe the cabinet dry. A general purpose
disinfectant can be used, if desired. Follow directions on disinfectant
for rinsing requirements. The drawers can be removed for cleaning
purposes, if desired.
6. The drain tube can also be flushed with a disinfectant. The inside drain
is shown in Figure 2-3. A hose can be attached to the drain outlet
(Figure 2-4) on the back of the unit. Route to a drain or bucket large
enough to catch all liquid.
2-4 Blast Freezer Thermo Scientific
Section 2
Operation
Defrosting
Figure 2-4. Drain Outlet
Figure 2-3. Inside Drain

Blast Freezer 3-1Thermo Scientific
Section 3 Routine Maintenance
De-energize all potential sources of energy to this unit and lockout/tagout
their controls. s
(Air cooled units only) The condenser should be cleaned as often as
necessary to ensure efficient compressor operation. A minimum of twice a
year is recommended.
The efficiency of the refrigeration unit is directly related to the temperature
of the air entering the air-cooled condenser. Dust in the condenser fins
slows the rate of heat dissipation and increases compressor operating
temperature (also decreasing compressor life). A dirty condenser will
reduce the overall performance of the refrigeration system in terms of
recovery time and set point control accuracy and may ultimately cause
compressor failure.
Refrigeration System
Maintenance

Blast Freezer 4-1Thermo Scientific
Section 4 Service
Service must be performed by experienced refrigeration service personnel
only. s
If the unit malfunctions, check all electrical components on the
compressor first:
• Starting relays
• Thermal protectors
• Starting capacitors
After checking the electrical components, check the refrigeration system.
EPA regulations require that refrigerant, evacuated from the refrigeration
system, must be recovered using an EPA approved recovery unit (USA). s
Electrical and Refrigeration schematics are included in this manual.
Servicing the
Refrigeration System

Section 5 Specifications
Temperature
Operating Temperature -50C (-58F)
Cabinet Dimensions
Exterior Dimensions (W x H x F-B) 33.3"W x 77.8"H x 37.0" (84.5cm x 197.6cm x 94.0cm)
Top mounted blower adds 11.0" (27.9 cm) to external
height
Add 3” (7.6 cm) to width for handle/hinge
Add 7” (17.8 cm) to F-B for control panel/wall spacer
Interior Dimensions (W x H x F-B) 23"W x 38.5"H x 16.9"F-B
less interior rack assembly and drawers
Plasma freezing area 19.5" x 24.2" x 15.9" (4.2 cu. ft)
Wire shelf loading area 19.5"W x 15.9" F-B (2.14 sq.ft.)
Dimension from drawer to drawer 3.5" (8.9cm)
Capacity 4.2 cu. ft.
Refrigeration and Blowers
HP (Freezer) 5 HP air or water cooled compressor
Blowers One ½ HP blower
Insulation 5.0" (12.7cm) non-CFC, foamed-in-place polyurethane
in Cabinet; 4.5"(11.4cm) in Door
Condensing Unit Dimensions
Air cooled 48”W x 48”F-B x 36”H (121.9 cm x 121.9 cm x 91.4 cm)
8101, 8116, 8187, 8194
Water cooled 60”x 30”F-B x 36”H (152.4 cm x 76.2 cm x 91.4 cm)
8106, 8117, 8188, 8195
Electrical
8101 120V Cabinet,
120V, 1PH, 50/60 Hz, 8 FLA
NEMA 5-15P plug
Air cooled condensing unit
208-230V, 60 Hz, 3PH, 23 FLA
8106 120V Cabinet
120V, 1PH, 50/60 Hz, 8 FLA
NEMA 5-15P plug
Water cooled condensing unit
208-230V, 3 PH, 50 Hz, 19.6 FLA
Blast Freezer 5-1Thermo Scientific

Electrical
8116 208V Cabinet,
208-230V, 1PH, 50/60 Hz, 6 FLA
CEE 7/7 plug
Air cooled condensing unit
380-420V, 3PH, 50 Hz, 12 FLA
8117 208V Cabinet
208-230V, 1PH, 50/60 Hz, 6 FLA
CEE 7/7 plug
Water cooled condensing unit
380-420V, 3PH, 50 Hz, 8.3 FLA
8187 120V Cabinet
120V, 1PH, 50/60 Hz, 8 FLA
NEMA 5-15P plug
Air cooled condensing unit
440-480V, 3PH, 60 Hz, 12 FLA
8188 120V Cabinet
120V, 1PH, 50/60 Hz, 8 FLA
NEMA 5-15P plug
Water cooled condensing unit
440-480V, 3PH, 60 Hz, 8.3 FLA
8194 208V Cabinet
208-230V, 1PH, 50/60 Hz, 6 FLA
CEE 7/7 plug
Air cooled condensing unit
200-220V, 3PH, 50 Hz, 23 FLA
8195 208V Cabnet
208-230V, 1PH, 50/60 Hz, 6 FLA
Water cooled condensing unit
200-220V, 3PH, 50 Hz, 19.6 FLA
5-2 Blast Freezer Thermo Scientific
Section 6
Specifications

Blast Freezer 5-3Thermo Scientific
Section 6
Specifications
Warranty 1 year parts and labor if installation is performed by
or supervised by Thermo. Otherwise, 1 year parts only
Estimated Weight
Cabinet
Actual 665 lbs (301.6kg)
Shipping 760 lbs (344.7kg)
Air Cooled Base
Actual 933 lbs (423.2kg)
Shipping 1173 lbs (532.1kg)
Water Cooled Base
Actual 827 lbs (375.1 kg)
Shipping 1067 lbs (483.9kg)
