ThermoSphere 12V DE Towel
Bar Installation Guide
Watch the video!

2+44 (0) 800 019 5899
Warranty terms &
conditions
ThermoSphere covers all its products
with a satisfaction guarantee. In
addition, ThermoSphere will supply a
replacement product where a fault is
shown to be caused by manufacture,
materials or workmanship providing the
goods have been installed correctly and
according to installation instructions.
This guarantee does not include removal,
freight or installation costs.
To use the warranty, repair or service
the customer must provide a purchase
invoice or receipt and a completed
warranty registration form.
If the product develops a fault within
the warranty period due to normal wear
and tear, ThermoSphere at its discretion
will recognise whether it‘s a faulty
product or not. If it is impossible or not
economical for the manufacturer to
repair the product, the manufacturer will
replace the faulty product with a new
unit of the same model or if there is no
stock available of the same model as the
product, the manufacturer will replace
the product with a new unit of a similar
size. No responsibility can be taken for
altered dimensions and lining up of
existing holes.
The repair service offered within the
warranty period only covers the faults
and problems as developed from the
manufacturer‘s errors. Any damage
caused by improper use, carelessness or
incorrect wiring is not covered.
ThermoSphere is not responsible for
any monetary loss or injuries caused
by improper use or installation of this
product.
Please Note: Full Terms and Conditions
are available on request.
Email [email protected] to
request your copy or give us a call.
Safety and care
information
ThermoSphere Towel Bars should be
connected to the electrical supply by a
qualied electrician and in accordance
with current local regulations.
We recommend that the towel bar is
installed with the bottom bar at least
600mm from the oor and with a
300mm clearance from permanent
xtures.
Recommended spacing between bars
is 150mm.
ThermoSphere Heated Towel Bars can
be xed onto timber stud, steel stud or
masonry (solid or cavity) walls.
Stud walls require noggins at the correct
position for all xings and if the exact
position cannot be determined early in
the job, we recommend using noggins
covered with 18mm construction ply or
OSB covering a larger area.
Fixing to plasterboard or cement
sheeting alone is not recommended as
the boards will not support the towel
bars and xings long term.
If your towel bars are going to be
installed before tiling it is imperative
that the xing spigots and/or mounting
system is installed perfectly level.
We recommend using a laser level
and checking the level periodically
throughout installation.
Towel bars are 12V SELV (safety extra
low voltage) and can be installed in
bathrooms.
Ensure any controls used are installed in
correct zone according to the IP rating of
the control .
Ensure that your towel bar electrical
circuit is protected by a suitably rated
RCD.
Do not use the towel bar to hold
towels or other articles that have been
in contact with oil, petroleum based
products or dry cleaning uids.
This appliance is intended to warm and
dry towels not heat spaces.
Do not immerse your towel bar in liquid.
Ensure the transformer is located no
further than 2m from the ThermoSphere
Towel Bar.
Ensure the transformer is accessible and
has adequate ventilation.
Care information
The Stainless Steel nish of your
towel bar is hard wearing and easy to
maintain. However any harsh scrubbing,
scratching or acid based cleaning
products will damage the surface of
your towel bar.
Clean with a soft cloth dampened with
warm and mild soapy water only. Dry
immediately for the best nish.
Max weight warning
ThermoSphere towel bars are designed
to hold towels only, and must not be
subjected to excessive forces over 10kg.
Towel bars must not be climbed on or
used as support rails.
This can result in injury and can cause
damage to the towel bars which is not
covered under the guarantee.

3[email protected]
Contents
What's in the box? .........................................
Key considerations .........................................
Installing over nished tiles ............................
Installing before tiles ......................................
Muliple bars before tiles ................................
Cable management ........................................
Wiring schematics ..........................................
Available models .............................................
4
5
6
8
10
12
13
14
Watch the installation videos!
How to install
over nished
tiles
How to install
with spigots
before tiling
How to install
multiple bars
with a mounting
system

4+44 (0) 800 019 5899
What’s in the box?
You will also need
1. Towel bar
2. Power lead 2m
3. Hex key
4. Mounting studs
5. Fixing screws
6. Wall plugs
• Fixings that are suitable for your wall substrate
• Laser level or spirit level
• Cordless drill or impact driver
• Marker pen or pencil
• 15mm diamond hole cutter bit
• 25mm timber hole cutter bit
• Suitably rated 12V transformer(s)
• 230V electrical supply
• Fibreglass mesh tape
1
2
3
4
5
6

5[email protected]
Key considerations
Install spigots (if using) before you tile!
You MUST make sure xing spigots are level!
Low voltage transformers
Max tiling depth is 45mm
Use the right xings for your wall substrate
DE Towel Bar xing spigots are designed for installation before
tiling. You must install the xing spigots and run cables before
you tile the wall. Each towel bar comes with xing studs for
installing over a nished tiled wall.
Because the xing spigots and mounting systems are installed
before you tile, you need to take extra care to make sure they
are installed level. We recommend using a laser level throughout
the process to check the towel bars are nice and level!
Towel Bars are 12V and there is no polarity. You must install
a suitably rated 12V transformer between the towel bar and
the 230V supply. You can connect multiple towel bars to one
transformer in parallel and the total load of the bars should
be between the min and max rating of the transformer. The
transformer should be somewhere accessible to facilitate
replacement.
The maximum combined depth of the wall layers that will
be situated over the xing spigot is 45mm. This includes any
boards, tile adhesive and tiles. Limiting the tiling depth ensures
that there is enough spigot protruding from the wall to achieve
a good, strong xing to the towel bar.
We recommend that you x our Towel Bars to a solid wall, such
as a brick/block cavity wall, a secure timber noggin within a
cavity wall or a plywood/OSB panel. Use xings that are suitable
for the type of wall you are xing to. We do not recommend
xing directly to plasterboard or tile backer boards as this results
in loose towel bars.
MAX 45MM
Fixing
spigot
plate
Tiling layers Towel bar
chassis
Grub screw
Spigot shaft inside
bar chassis

6+44 (0) 800 019 5899

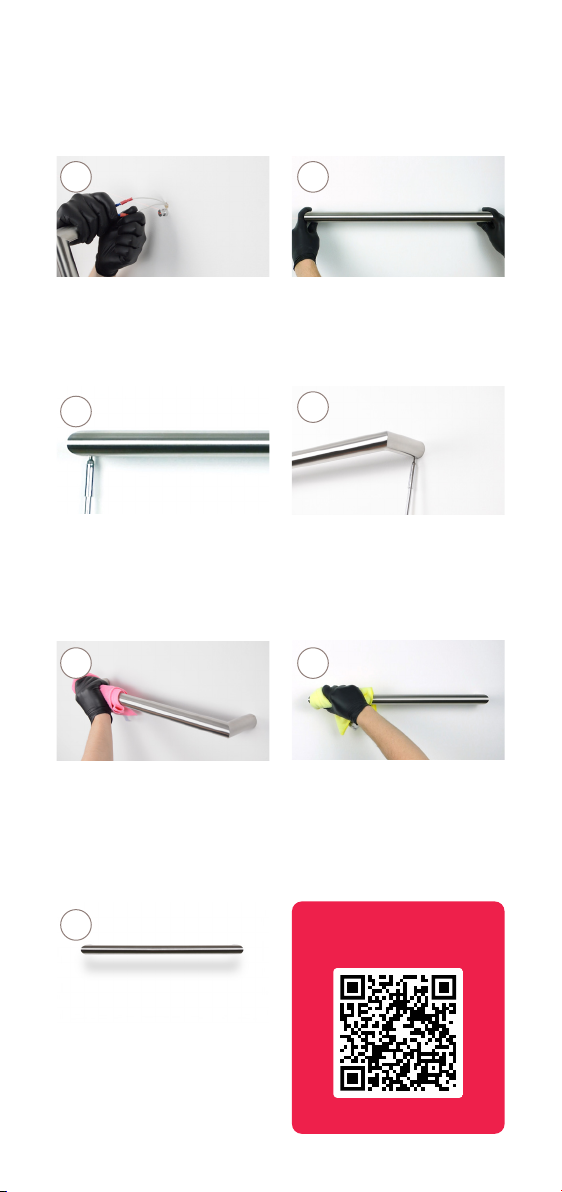

Installing over nished tiles
With supplied mounting studs
Measure and mark out xing
centres using a laser to make
sure they are level.
Screw the second xing stud
to the wall using a suitable
xing for the type of wall.
Screw the rst xing stud to
the wall using a suitable xing
for the type of wall.
Check you‘re happy with the
level by locating the towel bar
over the xing studs.
Drill a 10mm hole in the wall
above the right hand xing
stud.
Check the position of the
second xing stud using the
towel bar and a laser level.
Remove the towel bar from
the xing studs and keep it
clean, safe and protected from
scratches.
Run the 2m connection
cables into the wall cavity
and connect them at the
transformer location.
1
3
5
7
2
4
6
8
Level check!

7[email protected]
Plug the connection cable into
the towel bar with the push
connections.
Tighten the second grub screw
to hold the towel bar in place.
Push excess cable into the bar
and locate the towel bar over
the xing studs.
Clean the towel bar using a
clean cloth that is damp with
mild soapy water.
Your towel bar is installed and
ready to give you warm and
dry towels!
Tighten the grub screw to hold
the towel bar in place.
Dry and buff the towel
bar with a clean dry cloth
immediately for best results.
9
11
13
15
10
12
14
Watch the video!

8+44 (0) 800 019 5899
Mark out the xing positions
for the mounting spigots. A
laser level is recommended.
Locate the towel bar over the
spigots to make sure it ts and
that you‘re happy with the
level. Change it now if not!
Fix the mounting spigot
securely in place. Use xings
that are suitable for your wall
type.
If using tile backer board,
install this over the spigots. Do
not x spigots to XPS or tile
backer boards!
Cut away the tile backer board
to allow a recess for the cable.
Ensure the second spigot is
level with the rst and x in
position with suitable xings.
Drill a hole next to the right
hand spigot to push the cables
through to the wall cavity.
Feed the cables into the wall
cavity, run to the wiring point
and connect to a suitably
rated 12V transformer.
1
3
5
7
2
4
6
8
Level check!

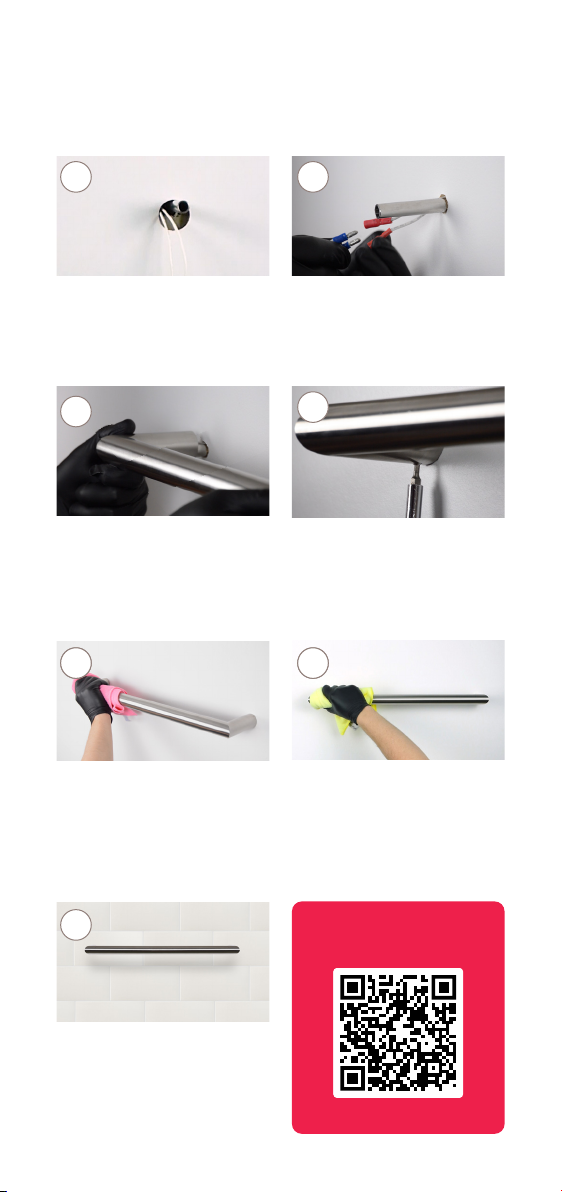

Installing before tiles
With mounting spigots (sold separately)

9[email protected]
Now tile the wall as normal.
Cut a hole (max 15 x 28mm)
in the tiles that will be
installed over the spigots.
Tighten both grub screws
to hold the bar securely in
position.
After the adhesive has cured,
offer the towel bar up to the
spigots and plug in the power
cables to the element.
Clean the towel bar using a
clean cloth that is damp with
mild soapy water.
Your towel bar is installed and
ready to give you warm and
dry towels!
Push any excess cable into the
bar (not the wall!) and push
the bar over the spigots until it
is tight to the wall.
Dry and buff the towel
bar with a clean dry cloth
immediately for best results.
5 6
9
11
13
15
10
12
14
Watch the video!

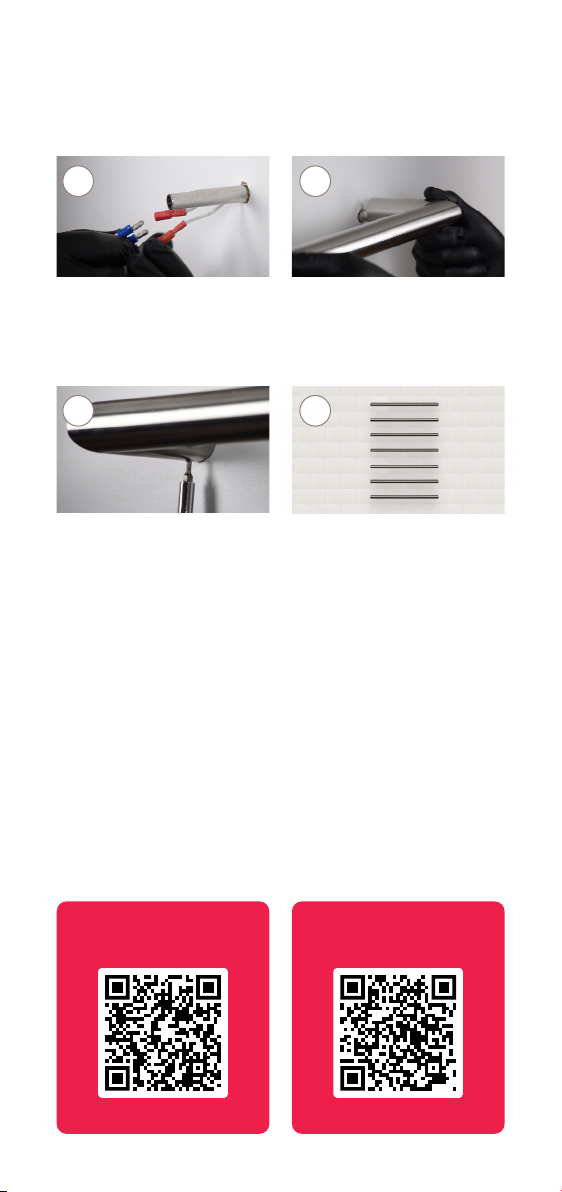

10 [phone]
Push spigots through the
back of the mounting systems
spaced correctly for each bar.
Ensuring you don‘t pinch
cables, x each mounting
system in one of the top
corners rst.
Fix the spigots in position with
the supplied screws. Ensure
they are tight and level.
Use a laser level to check
the mounting systems are
perfectly level.
Use a laser level to check
the mounting systems are
perfectly level.
Push cables through the holes
above each spigot and arrange
in the cable channel.
Fix both mounting systems in
place securely with suitable
xings. Use 2 screws at each
mounting spigot position.
Locate a towel bar over each
pair of spigots to check that
they are level and correctly
spaced before you start tiling!
5Level check!
Multiple bars before tiles
With mounting system (sold separately)
Level check!
1
3
5
7
2
4
6
8

11[email protected]
Use a laser level to check
that your towel bars are level.
Change it now if you need to!
Pass the cables into the cavity,
run to the wiring point and
connect to a suitable 12V
transformer.
Fix XPS or tile backer boards
after installing the mounting
system. Do not x towel bars
to XPS/backer boards.
Install the tile backer boards
in accordance with the
manufacturer‘s instructions.
Cover the mounting systems
with mesh tape. This helps to
prevent the tile adhesive from
slipping off the steel.
Now tile the wall as normal.
Cut a hole (max 15 x 28mm)
in the tiles that will be
installed over the spigots.
Drill a hole in the wall at the
top of the mounting system to
give access to the cavity.
Finish over boarding the walls
with XPS/backer board ush
to the sides of the mounting
systems.
Level check!
9
11
13
15 16
10
12
14

12 [phone]
After the adhesive has cured,
offer the towel bars up to the
spigots and plug in the power
cables to the elements.
Your towel bars are installed
and ready to give you warm
and dry towels!
Push any excess cable into the
bars (not the wall!) and push
the bars over the spigots until
tight to the wall.
Tighten both grub screws
to hold the bars securely in
position.
Cable management
The mounting system makes cable management easy. You can
run the cables behind the mounting system and drill a hole at
the top to pass them into the cavity and up to your wiring point.
If you‘re installing onto a solid brick/block wall you will need to
chase a channel for the cables or use multiple mounting systems
to run the cables behind. Cover the wall with a backer board
ush to the mounting systems before installing tiles.
Installation continued
With mounting system (sold separately)
17
19
18
20
Watch the video! Wiring video!

13[email protected]
Wiring schematics
All electrical work must be compliant with the relevant local
regulations and carried out by a professional electrician. Isolate
the electrical supply before you start.
ThermoSphere Towel Bars are 12V SELV and can be installed
safely anywhere in a bathroom. All electrical circuits in
bathrooms must be protected by a suitably rated RCD.
47mm deep box for
13Amp Fused Spur
Towel bar
cold tail cables
Transformer
flex
220/240V 20Amp supply
via dedicated 30Ma RCD
3 core flex
3 core flex
Switch
12V SELV Transformer
must be accessible
eg. in ceiling void
12V towel bars connected to
12V transofmer in parallel
FUSE
Multiple towel bars
Single towel bars

14 [phone]
Available models
Round 450mm prole
Round 632mm prole
SKU Finish Size (mm) Output
(W@ 10°C)
HTB-DR-450-DPS Diamond
polished
450 x 32 x 100
(c418) 25
HTB-DR-450-BSS Brushed stainless
steel
450 x 32 x 100
(c418) 25
HTB-DR-450-PLB Polished brass 450 x 32 x 100
(c418) 25
HTB-DR-450-BRB Brushed brass 450 x 32 x 100
(c418) 25
HTB-DR-450-MBK Matt black 450 x 32 x 100
(c418) 25
HTB-DR-450-MWT Matt white 450 x 32 x 100
(c418) 25
SKU Finish Size (mm) Output
(W@ 10°C)
HTB-DR-632-DPS Diamond
polished
632 x 32 x 100
(c600) 37
HTB-DR-632-BSS Brushed stainless
steel
632 x 32 x 100
(c600) 37
HTB-DR-632-PLB Polished brass 632 x 32 x 100
(c600) 37
HTB-DR-632-BRB Brushed brass 632 x 32 x 100
(c600) 37
HTB-DR-632-MBK Matt black 632 x 32 x 100
(c600) 37
HTB-DR-632-MWT Matt white 632 x 32 x 100
(c600) 37

15[email protected]
Square 450mm prole
Square 632mm prole
SKU Finish Size (mm) Output
(W@ 10°C)
HTB-DS-450-DPS Diamond
polished
450 x 40 x 100
(c430) 25
HTB-DS-450-BSS Brushed stainless
steel
450 x 40 x 100
(c430) 25
HTB-DS-450-PLB Polished brass 450 x 40 x 100
(c430) 25
HTB-DS-450-BRB Brushed brass 450 x 40 x 100
(c430) 25
HTB-DS-450-MBK Matt black 450 x 40 x 100
(c430) 25
HTB-DS-450-MWT Matt white 450 x 40 x 100
(c430) 25
SKU Finish Size (mm) Output
(W@ 10°C)
HTB-DS-632-DPS Diamond
polished
632 x 40 x 100
(c612) 37
HTB-DS-632-BSS Brushed stainless
steel
632 x 40 x 100
(c612) 37
HTB-DS-632-PLB Polished brass 632 x 40 x 100
(c612) 37
HTB-DS-632-BRB Brushed brass 632 x 40 x 100
(c612) 37
HTB-DS-632-MBK Matt black 632 x 40 x 100
(c612) 37
HTB-DS-632-MWT Matt white 632 x 40 x 100
(c612) 37

Thermogroup Ltd
T/A ThermoSphere
Bridge House
Pattenden Lane
Marden
Kent
TN12 9QJ
UNITED KINGDOM
www.thermosphere.com
[email protected]
[phone]
ThermoSphere DE Towel Bar
Installation Guide
Issue 1.0 September 2021
