Thermo Sphere QGW08-608 User manual

Instruction
Manual
Oscillating Parabolic
Radiant Heater
Model
No.
QGW08-608
SPHERE

Table
of
Contents
Important Instructions.
Product Information
....
Product Diagrams
.......
.
....
.
Operations Instructions
..
Safety Features
..
SPHERE
3
4
.
..
..
....
5
5
6
Cleaning, Maintenance and Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Troubleshooting
.........
..
...
....
....
.
.....
......
.
...
.
....
..
. .
.....
, . . . . . . . . . . . . . . . . . . . . 7
2

SPHERE

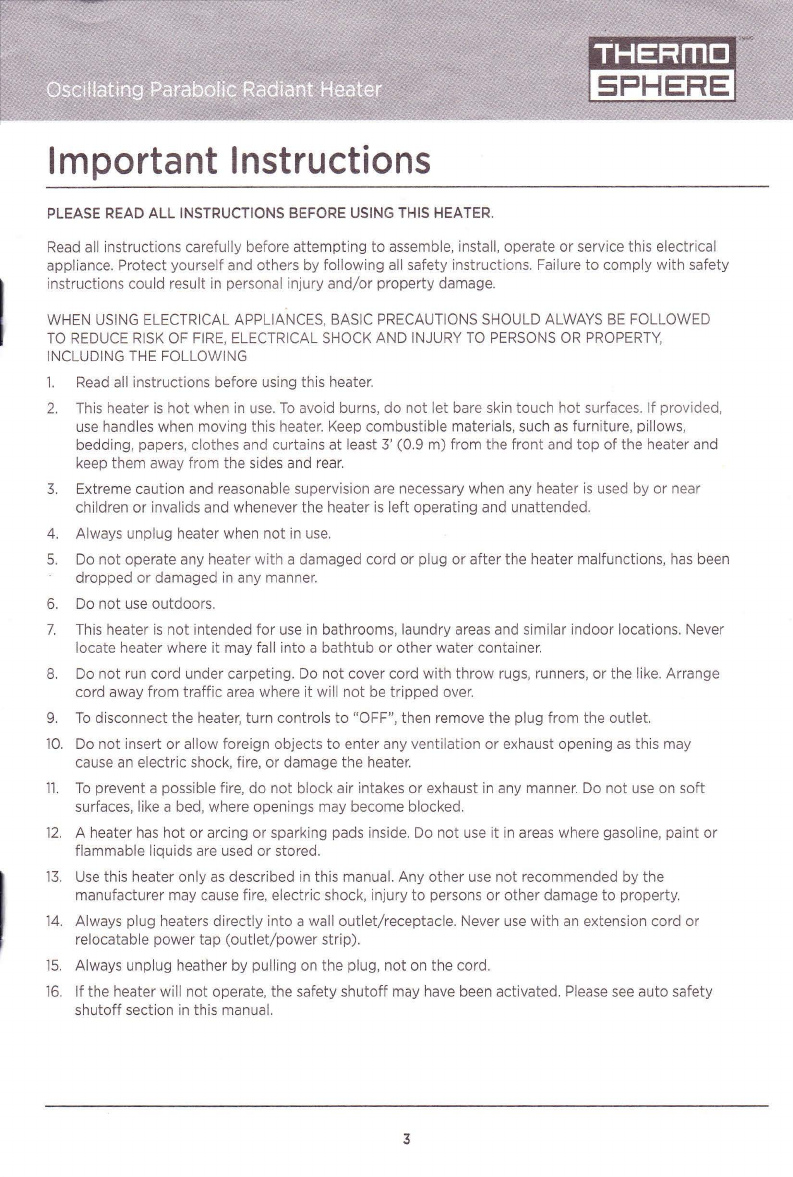

Important
Instructions
PLEASE
READ
ALL
INSTRUCTIONS
BEFORE
USING
THIS
HEATER.
Read
all
instructions carefully before attempting to assemble, install, operate or servi
ce
this electrical
appliance. Protect yourself and others by following
all
safety instructio
ns
. Failure to comply with safety
instructions could result
in
person
al
injury and/or property damage.
WHEN
USING
ELECTRICAL APPLIANCES, BASIC PRECAUTIONS SHOULD
ALWAYS
BE
FOLLOWED
TO
REDUCE
RISK
OF
FIRE
,
ELECTR
ICAL
SHOCK
AND INJURY
TO
PERSONS
OR
PROPERTY
,
INCLUDING
THE
FOLLOWING
1.
Read
all
instructions before using this heater.
2.
This
heater
is
hot when in
use.
To avoid burns, do n
ot
l
et
bare skin touch hot surfa
ces
. If provided,
use
handles when moving this heater.
Keep
combustible materials, such
as
furniture, pillows,
bedding, papers, clothes and curtai
ns
at least
3'
(0.9 m) from the front and
top
of
the heater and
keep them away f
ro
m the sides and
rear.
3.
Extreme caution and reasonable supervision are necessary when any heater
is
used by or
ne
ar
children or invalids and whenever the heater
is
left operating and unattended.
4. Always unplug heater when not
in
use.
S.
Do
not operate any heater with a damaged cord or plug or after the heater malfunctions,
has
been
dropped or damaged
in
any manner.
6.
Do
not
use
outdoors.
7.
This
heater
is
not intended for
use
in
bathrooms, laundry areas and similar indoor locations. Never
locate heater where it may fall into a bathtub or other water container.
8.
Do
not run cord under carpeting.
Do
not cover cord with throw rugs, runners, or the l
ike.
Arrange
cord away from traffic
area
where it will not
be
tripped
over.
9.
To
disconnect the heater, turn controls
to
"OFF", then remove the plug from the outlet.
10.
Do
not insert or allow foreign objects
to
enter any ventilation or exhaust opening
as
this may
cause
an
electric shock, fire, or damage the heater.
11
.
To
prevent a possible fire,
do
not block air intakes or exhaust
in
any manner.
Do
not
use
on soft
surfaces, like a bed, where openings may become blocked.
12.
A heater
has
hot or arcing or sparking pads inside.
Do
not
use
it
in
areas
where gasoline, paint
or
flammable liquids
are
used or stored.
13.
Use
this heater only
as
described
in
this manual. Any other
use
not recommended by the
manufacturer may cause fire, electric shock, injury to persons
or
other damage to property.
14.
Always plug heaters directly into a wall outlet/receptacle. Never
use
with
an
extension cord or
relocatable power tap
(outlet/power
strip).
lS. Always unplug heather by pulling
on
the plug, not
on
the cord.
16.
If the heater will not operate, the safety shutoff may have been activated. Please
see
auto safety
shutoff section
in
this manual.
3

SPHERE·
17.

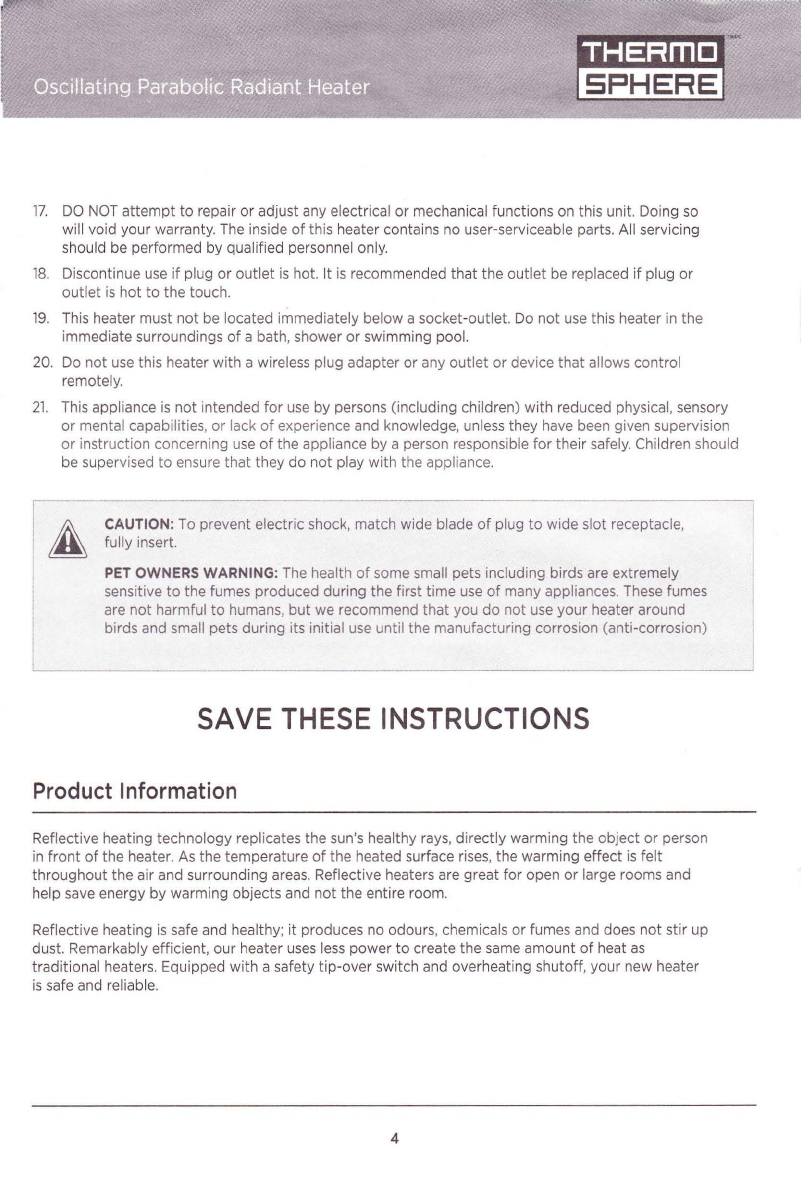

DO
NOT
attempt
to
repair or adjust
any
electrical or mechanical functions
on
this unit. Doing
so
will void your warranty.
The
inside
of
this heater contains no user-serviceable parts. All servicing
should be performed by qualified personnel only.
18.
Discontinue
use
if plug or outlet
is
hot. It
is
recommended that the outlet be replaced if plug or
outlet
is
hot
to
the touch.
19.
T
his
heater must not
be
located immediately below a socket-outlet.
Do
not
use
this heater
in
the
immediate surroundings
of
a bath, shower
or
swimming pool.
20.
Do
not
use
this heater with a wireless plug adapter or any outlet or device that allows control
remotely.
21.
This appliance
is
not intended for
use
by persons (including children) with reduced physical, sensory
or mental capabilities, or lack
of
experience and knowledge, unless they have been given supervision
or
instruction concerning
use
of
the appliance by a person responsible for their safely. Children should
be supervised to ensure that they do not play with the appliance.
I A CAUTION:
To
prevent electric shock, match wide blade
of
plug
to
wide slot receptacle,
U fully insert.
PET OWNERS WARNING:
The
health
of
some small pets including birds
are
extremely
sensitive
to
the fumes produced during the first time
use
of
many appliances.
These
fumes
are
not harmful to humans, but we recommend that you
do
not
use
your heater around
birds and small pets during its initial
use
until the manufacturing corrosion (anti-corrosion)
SAVE
THE
SE
INSTRUCTI
ONS
Product
Information
Reflective heating technology replicates the sun's healthy
rays,
directly warming the object or person
in
front
of
the heater.
As
the temperature
of
the heated surface
rises,
the warming effect
is
felt
throughout the air and surrounding
areas.
Reflective heaters are great for open
or
large rooms and
help save energy by warming objects and not the enti
re
room.
Reflective heating
is
safe and healthy; it produces no odours, chemicals or fumes and does not stir up
dust. Remarkably efficient, our heater
uses
l
ess
power
to
create the
same
amount
of
heat
as
traditional heaters. Equipped with a safety tip-over switch and overheating shutoff, your new heater
is
safe and reliable.
4

I
SPHERE

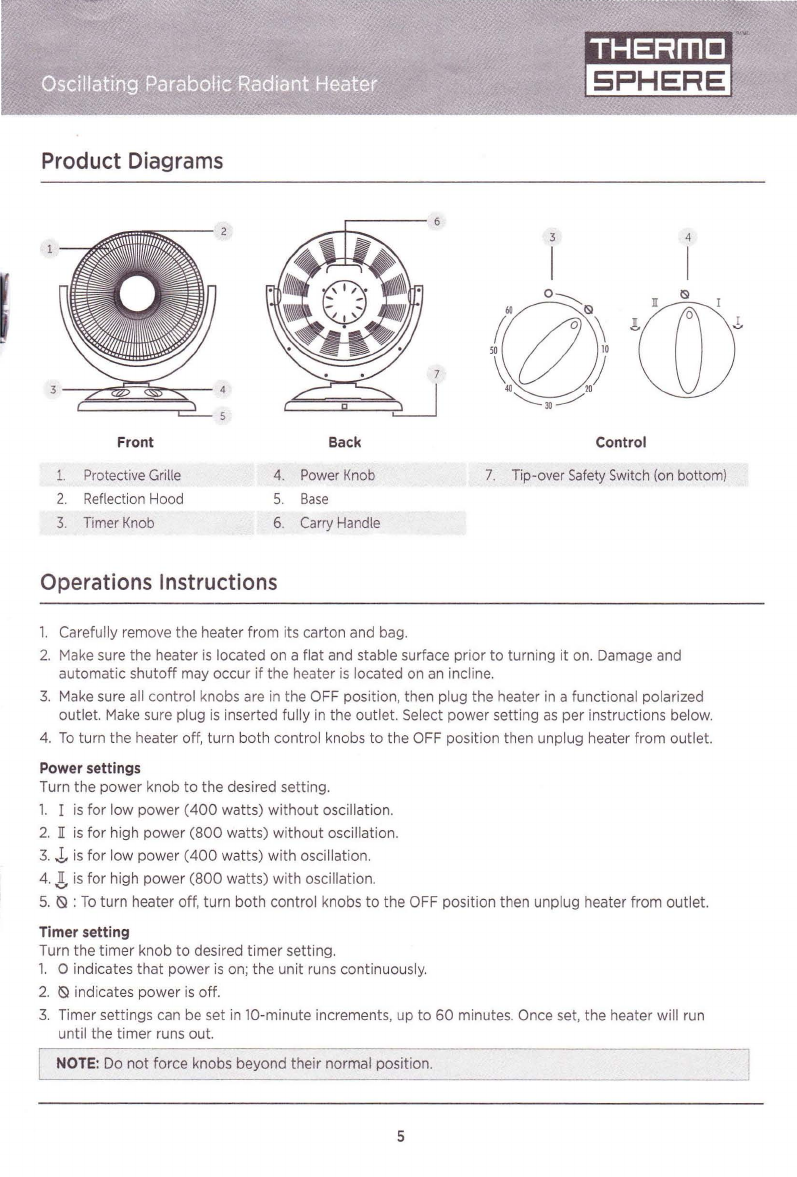

Product
Diagrams
g
Front
Back
Control
1.
Protective Grille
4.
Power
Knob
7.
Tip-over
Safety
Switch
(on
bottom)
2.
Reflection
Hood
5.
Base
3.
Timer
Knob
6.
Carry
Handle
Operations
Instructions
1.
Carefully remove the heater from its carton and bag.
2.
Make
sure the heater
is
located
on
a flat and stable surface prior
to
turning it
on.
Damage and
automatic shutoff may occur
if
the h
ea
ter
is
located
on
an
incline.
3.
Make
sure
all control knobs
are
in
the OFF position, then plug the heater
in
a functional polarized
outlet.
Make
sure plug
is
inserted fully
in
the outlet. Select power setting
as
per instructions below.
4.
To turn the heater off, turn both control knobs to the
OFF
position then unplug heater from outlet.
Power settings
Turn the power knob
to
the desired setting.
1.
I
is
for low power
(400
watts) without oscillation.
2.
IT
is
for high power
(800
watts) without oscillation.
3.
J,
is
for low power
(400
watts) with oscillation.
4.!
is
for high power
(800
watts) with oscillation.
5.
!Sl
:
To
turn heater off, turn both control knobs
to
the OFF position then unplug heater from outlet.
Timer setting
Turn the timer knob
to
desired timer setting.
1.
0 indicates that power
is
on;
the unit runs continuously.
2.
!Sl
indicates power
is
off.
3.
Timer settings
can
be
set
in
10-minute increments, up
to
60
minutes. Once set, the heater will run
until the timer runs out.
NOTE:
Do not force knobs beyond their normal position.
5

SPHERE
Safety
Features
Polarized
plug
This
appliance
has
a polarized plug (one blade
is
wider than the other).
To
reduce the risk
of
electric shock,
this plug
is
intended to fit a polarized outlet only one
way.
If the plug does not fit fully
in
the outlet, reverse
the plug. If it still does not fit, consult a qualified electrician.
DO
NOT
ATTEMPT
TO
MODIFY
THE
PLUG
OR
DEFEAT
THIS
FEATURE
IN
ANY
WAY.
Tip-over
switch
Your heater
is
equipped with a tip-over switch, which
is
designed to automatically shut
off
unit
wh
en tipped
forward or backwards. When returned to normal upright position, the heater will automati
cal
ly come on
again. This
is
a safety to avoid possibility
of
fire should the unit
be
accidentally tipped
over.
Overheating
shutoff
feature
This
heater includes
an
overheat protection system that shuts the unit
off
when parts
of
the heater over-
heat. If this occurs, turn the heater off, unplug it, and inspect and remove any objects on or adjacent
to
the
heater that may cause high temperatures.
Wait approximately 30 minutes for the unit to cool down, then plug it back
in
and resume normal operati
on.
Cleaning,
Maintenance
and
Storage
1.
Before
any
cleaning,
make
sure
that:
a.
The
heater
is
turned
OFF.
b.
Disconnect power supply at source by removing plug from power outlet.
c.
Let heater cool completely before cleaning.
2.
Regular
cleaning:
a.
Do
not
use
cleaning liquid
or
other chemicals to spray on the unit.
b.
To
clean the enclosure,
use
a clean, soft and lightly damp cloth to gently wipe
off
the
dirt
from the
surface
of
the unit.
Be
sure not to wet the heating element and the switches. Allow the unit to dry
completely before using it.
c.
DO
NOT
use
alcohol, gasoline, abrasive powders, furniture polish or rough brushes
or
pads to clean
the heater. This may cause damage or deterioration
on
the heater's outer surfaces.
CAUTION:
DO
NOT ALLOW WATER
TO
RUN
INTO
THE
INTERIOR
OF
THE
HEATER
AS
THIS
COULD
CREATE
A
FIRE
OR
ELECTRIC
SHOCK
HAZARD, DAMAGING
THE
UNIT.
3.
Storage:
Store the heater
in
a cool,
dry
location when not
in
use.
To
prevent dirt and dust build-up, it
is
recommended
to
store the heater
in
its carton.
6

•
SPHERE

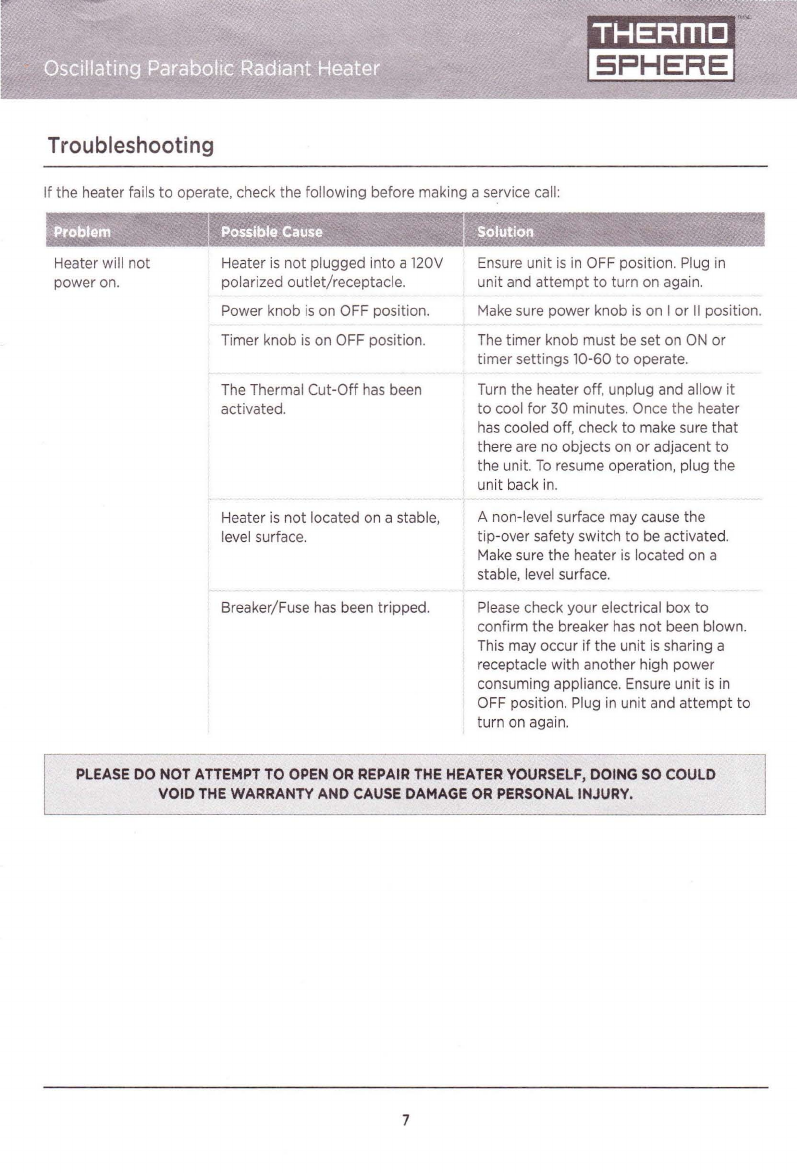

Troubleshooting
If the heater fails
to
operate, check the following before making a service call:
Problem
Possible
Cause
Solution
" >
Heater will not
power on. Heater
is
not plugged into a 120V
polarized outlet/receptacle.
Power knob is on OFF position.
Timer knob
is
on OFF position.
The
Thermal Cut-Off
has
been
activated.
Heater
is
not located
on
a stable,
level surface.
Breaker/F
use
has
been tripped.
Ensure unit
is
in
OFF position. Plug
in
unit and
attempt
to
turn on again.
Make sure power knob
is
on I or
II
position.
The
timer knob must be set on
ON
or
timer settings
10
-
60
to operate.
Turn the heater off, unplug and allow it
to
cool for 30 minutes. Once the heater
has
cooled
off
, check
to
make sure that
there are no objects
on
or adjacent to
the unit.
To
resume operation, plug the
unit back in.
A non-level surface may cause the
tip-over safety switch to be activated.
Make
su
re
t
he
heater
is
located on a
stabl
e,
level surface.
Please check your electrical box to
confirm the breaker
has
not been blown.
Th
is may occur if the unit
is
sharing a
receptacle with another high power
consuming appliance. Ensure unit
is
in
OFF position. Plug
in
unit and attempt
to
turn
on
again.
PLEASE
DO
NOT
ATTEMPT
TO
OPEN
OR
REPAIR
THE
HEATER
YOURSELF
,
DOING
SO
COULD
VOID
THE
WARRANTY
AND
CAUSE
DAMAGE
OR
PERSONAL
INJURY.
7

Table of contents
Other Thermo Sphere Electric Heater manuals
Popular Electric Heater manuals by other brands

Dimplex
Dimplex Alta Series installation guide

Heylo
Heylo DE 20 Translation of the original instruction manual

Thermofilm
Thermofilm HEATSTRIP THN2000 product manual

Harvia
Harvia Type KIP45 Instructions for installation and use

Black & Decker
Black & Decker BDHF30 Use and care book

LG
LG ANEH053B1 installation manual
