LG ANEH053B1 User manual

www.lg.com
INSTALLATION MANUAL
AIR CONDITIONER
• Please read this installation manual completely before installing the product.
• Installation work must be performed in accordance with the national wiring
standards by authorized personnel only.
• Please retain this installation manual for future reference after reading it
thoroughly.
TYPE : Electric Heater (For Vertical Air Handling Unit)
MODEL : Electric Heater
ANEH053B1/ANEH103B2
ANEH153B2/ANEH203B2
P/NO : MFL66300701
ENGLISH FRANÇAIS ESPAÑOL

2Electric Heater
IMPORTANT!
CAUTION : Improper installation, adjustment, alteration, service or maintenance can void the warranty.
The weight of the condensing unit requires caution and proper handling procedures when lifting
or moving to avoid personal injury. Use care to avoid contact with sharp or pointed edges.
Safety Precautions
• Always wear safety eye wear and work gloves when installing equipment.
• Never assume electrical power is disconnected. Check with meter and equipment.
• Keep hands out of fan areas when power is connected to equipment.
• R-410A causes frostbite burns.
• R-410A is toxic when burned.
NOTE TO INSTALLING DEALER: The Owners Instructions and Warranty are to be given to the owner
or prominently displayed near the indoor Furnace/Air Handler Unit.
When wiring:
Electrical shock can cause severe personal injury or death. Only a qualified,
experienced electrician should attempt to wire this system.
• Do not supply power to the unit until all wiring and tubing are completed or reconnected and checked.
• Highly dangerous electrical voltages are used in this system. Carefully refer to the wiring diagram and these
instructions when wiring. Improper connections and inadequate grounding can cause accidental injury or death.
• Ground the unit following local electrical codes.
• Connect all wiring tightly. Loose wiring may cause overheating at connection points and a possible fire hazard.
When transporting:
Be careful when picking up and moving the indoor and outdoor units. Get a partner to help, and
bend your knees when lifting to reduce strain on your back. Sharp edges or thin aluminum fins on
the air conditioner can cut your finger.
When installing...
... in a wall: Make sure the wall is strong enough to hold the unit's weight.
It may be necessary to construct a strong wood or metal frame to provide added support.
... in a room: Properly insulate any tubing run inside a room to prevent "sweating" that can cause
dripping and water damage to wall and floors.
... in moist or uneven locatinons: Use a raised concrete pad or concrete blocks provide a solid,
level foundation for the outdoor unit. This prevents water damage and abnormal vibration.
... in an area with high winds: Securely anchor the outdoor unit down with bolts and a metal
frame. Provide a suitable air baffle.
... in a snowy area(for Heat Pump Model): Install the outdoor unit on a raised platform that is
higher than drifting snow. Provide snow vents.
When connecting refrigerant tubing
• Keep all tubing runs as short as possible.
• Use the flare method for connecting tubing.
• Check carefully for leaks before starting the test run.
When servicing
• Turn the power OFF at the main power box(mains) before opening the unit to check or repair
electrical parts and wiring.
• Keep your fingers and clothing away from any moving parts.
• Clean up the site after you finish, remembering to check that no metal scraps or bits of wiring have
been left inside the unit being serviced.
WARNING
WARNING
• Installation or repairs made by unqualified persons can result in hazards to you and others.
Installation MUST conform with local building codes or, in the absence of local codes, with the National Electrical
Code NFPA 70/ANSI C1-1993 or current edition and Canadian Electrical Code Part1 CSA C.22.1.
• The information contained in the manual is intended for use by a qualified service technician familiar with safety
procedures and equipped with the proper tools and test instruments.
• Failure to carefully read and follow all instructions in this manual can result in equipment malfunction, property
damage, personal injury and/or death.
Please read this instruction sheet completely before installing the product.
This air conditioning system meets strict safety and operating standards. As the installer or service person,
it is an important part of your job to install or service the system so it operates safely and efficiently.

Installation Manual 3
Electric Heater INSTALLATION MANUAL
TABLE OF CONTENTS
1. Safety Precautions ............................................................................................................4
2. Included Items....................................................................................................................5
3. Assembly Diagram ............................................................................................................7
4. Electrical Wiring...............................................................................................................10
ENGLISH

4Electric Heater
To prevent injury to the user or other people and property damage, the following instructions
must be followed.
nIncorrect operation due to ignoring instruction will cause harm or damage. The seriousness
is classified by the following indications.
nMeanings of symbols used in this manual are as shown below.
WARNING
CAUTION
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage.
Be sure not to do.
Be sure to follow the instruction.
1. Safety Precautions
1. Safety Precautions
WARNING
CAUTION
Do not use a defective or underrated cir-
cuit breaker. Use this appliance on a
dedicated circuit.
• There is risk of fire or electric shock.
For electrical work, contact the dealer,
seller, a qualified electrician, or an Au-
thorized Service Center.
•
Do not disassemble or repair the product.
There is risk of fire or electric shock.
Always ground the product.
• There is risk of fire or electric shock.
Install the panel and the cover of control
box securely.
• There is risk of fire or electric shock.
Always install a dedicated circuit and
breaker.
• Improper wiring or installation may cause
fire or electric shock.
Use the correctly rated breaker or fuse.
• There is risk of fire or electric shock.
Before installation, read this manual and
carry out the works according to it.
Before installation, be sure to check all the
included items. (However, be sure to use all
kinds of certified products when purchas-
ing the items other than those provided by
LG at your local store.)
Be sure to carry out the earth work. (How-
ever, do not connect the unit to gas pipe,
water pipe, a lightning rod and a phone
earth line. In addition, if the earth wasnʼt
completely done, this may cause electric
shock and fire.)
When operating the machine (applying power to the machine), do not carry out any electric work and do not put hand or finger
into it. This may cause electric shock, injury and death.
Do not modify or extend the power
cable.
• There is risk of fire or electric shock.
If the installation isnʼt complete, electric
shock or fire may occur, or death or in-
jury can be caused.
If the capacity of the power circuit is in-
sufficient or its installation wasnʼt done
completely, this may cause electric
shock, fire or etc..

Installation Manual 5
ENGLISH

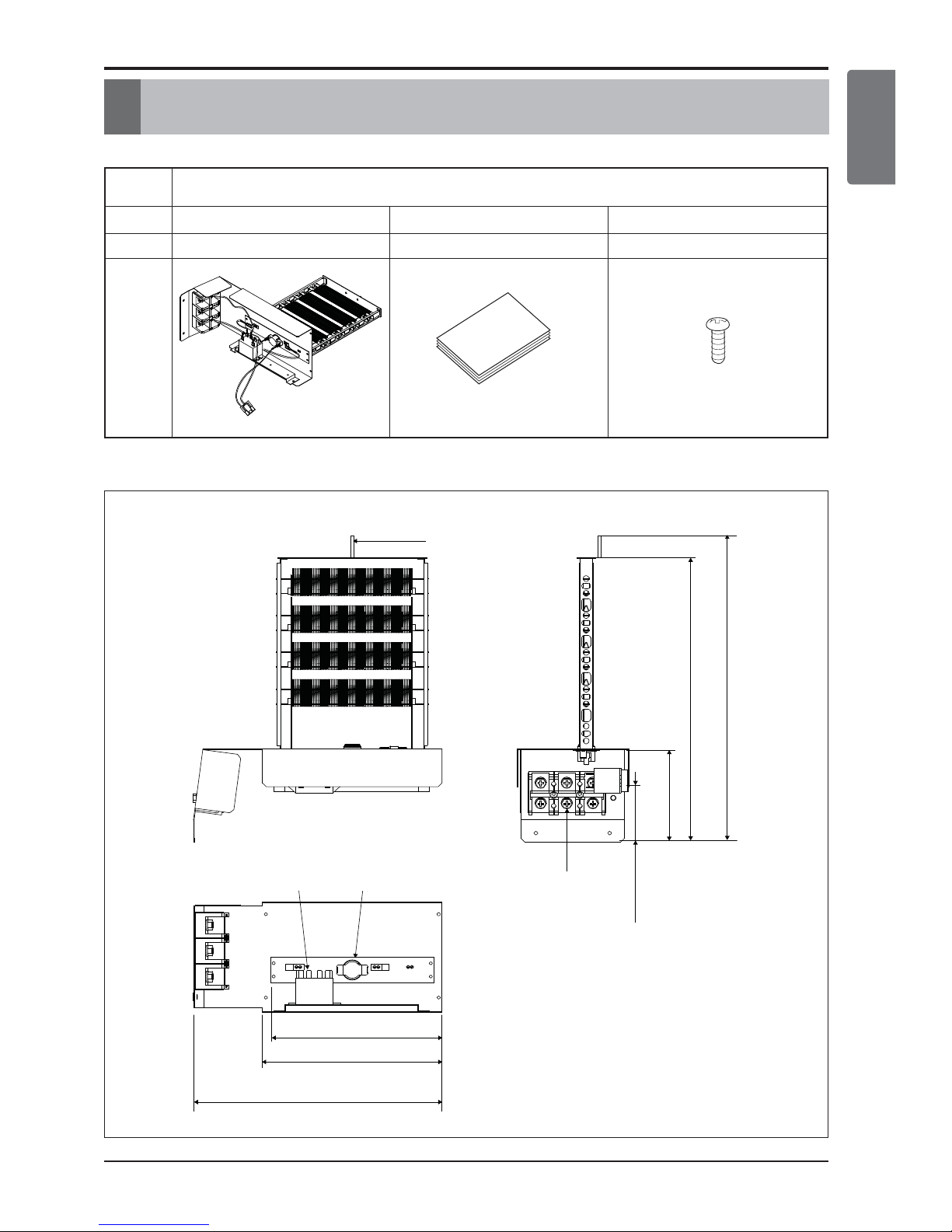

Item Electric Heater Installation Manual Screw
Qʼty 1 1 1
Model
2. Included Items
(Unit : inch(mm))
Figure
Electric Heater
2. Included Items
13- 1/8(333.7)
9- 1/2(241)
8- 11/16(220)
2-15/16(75)
4-15/16(126)
15-3/16 (385.8)
16-5/16(415)
Bi metal Terminal block
Heater bracket
Relay
Dimension
* Note: Image shown above may vary
depends on model capacity.
