AquanexTM Ultrapure Water Purification System Preface | 1
1 Preface
1.1 About this Manual
The Thermo Scientific™ Aquanex™ Ultrapure Water Purification System is designed to produce Type I and Type II water from
a tap water source. The Aquanex system includes features such as ergonomic and easy to use smart volumetric Type I
dispense capability, high-capacity de-ionization (DI) technology, water saving capability, easy access consumables, operational
flexibility, connectivity, ease-of-use, and system intelligence.
This user manual provides important details on installation, operation, and maintenance of the Aquanex System to ensure the
consistency of water quality and operation of the system.
1.2 Intended Use
The Aquanex Ultrapure Water Purification System is a general purpose, laboratory benchtop or wall-mount water purification
system, intended to treat tap water (pretreatment required in most cases) to deliver Type I (Ultrapure) and Type II (Pure) water
in a laboratory setting by filtering and treating the tap water with a Reverse Osmosis (RO) assembly, followed by Ultraviolet (UV)
oxidation, deionization and Ultra Filtration (UF) and Point of Use (POU) filtration.
The intended users of the Aquanex System are individuals with experience and training in using laboratory equipments.
1.3 Signal Words and Symbols
This symbol used alone indicates important operating instruction(s) which can reduce the risk of injury or poor
performance of the unit.
DANGER: When used with the word DANGER , this symbol indicates a potentially hazardous situation which,
if not avoided, could result in serious injury or death.
WARNING: When used with the word WARNING, this symbol indicates a potentially hazardous situation which,
if not avoided, could result in serious injury or death.
CAUTION: When used with the word CAUTION , this symbol indicates a potentially hazardous situation which,
if not avoided, could result in minor to moderate injury.
WARNING: This symbol indicates situations where dangerous voltages exist and potential for electrical shock is
present. Electrical work on the system must be carried out by qualified personnel.
This symbol indicates protective terminal ground conductor.
This symbol indicates earth ground terminal.

2 | Preface AquanexTM Ultrapure Water Purification System
Note: Information and notices are shared in the form of Note in this manual to provide the user with basic information.
1.4 Safety Instructions
Observe the precautions below for your own safety:
• Do not install or operate the system until you have carefully read the operating instructions and the notes and notices
contained therein.
• The Aquanex System must not be used with liquids other than water or for domestic purpose.
• Do not place materials or stack other equipment on the top of the product.
• Do not remove any labels.
• Make sure that the system is properly drained of water before attempting to move it.
• Lifting and carrying the Aquanex Ultrapure Water Purification System, e.g., to the installation location, must be carried out
by two people. To do this, lift the system in tandem using the handles on the bottom and back of the unit.
• Do not attempt to assemble, repair, or modify this product on your own as this will void the warranty and may create a
hazardous situation.
• Only accessories specified by the manufacturer must be used with the product.
This symbol indicates that the unit is ON. A blue light illuminates the symbol when the unit is on.
This symbol indicates alternating current.
This symbol indicates direct current.
PPE Required: This symbol indicates a need to use eye protection during the indicated procedures.
Local laws/regulations must be followed while using the proper PPE.
PPE Required: This symbol indicates a need to use gloves during the indicated procedures. If performing
decontamination procedures, use chemically resistant gloves. Local laws/regulations must be followed while using
the proper PPE.
PPE Required: This symbol indicates a need to use respiratory protection during the indicated procedures. Local
laws/regulations must be followed while using the proper PPE.
DANGER: Work must be performed on the system electronics when the system is switched OFF and when
Electrostatic Discharge (ESD) protection is in place. Only specially trained personnel must work on the system’s
electronics.
WARNING: During operation, UV lamps emit electromagnetic radiation at a wavelength of approximately 254 nm.
UVC radiation is hazardous to eyes and skin and causes skin rashes to severe burns, eye conjunctiva
inflammation, corneal infections and potential long-term eye damage. Never look directly into a UV lamp which is
powered ON, as UV light may damage eyesight and exposure to body may cause skin irritation.
CAUTION: The Thermo Scientific™ Aquanex™ Ultrapure Water Purification Systems are intended solely for the
treatment of pretreated tap water. This system must not be used in production of water intended to be consumed or
water that is used in manufacturing food and pharmaceuticals.

AquanexTM Ultrapure Water Purification System Preface | 3
• Always observe the applicable, pertinent codes and regulations valid at the installation location of the system and
follow all applicable accident prevention regulations.
• A grounded 100 - 240 V, 50/60 Hz electrical outlet must be available.
• Access to the power supply cord and plug must not be restricted or obstructed.
• Power supply must be properly grounded.
• Do not operate the system with a damaged power cord.
• Ensure the system is operated only with the provided power cord. Use of other cords may result in malfunctioning of the
product.
• Unplug the system from the power outlet for all maintenance work on the system. Follow the procedure below if the
system is has not been used for an extended period of time, e.g., over extended weekends or during a vacation period:
- Switch the system OFF and unplug the power cord from its outlet.
- Close the feedwater supply valve.
- The system must be disinfected or rinsed after extended down time.
• The pumps will be damaged if the system runs without any supply of feedwater. The manufacturer will not accept any
liability if this occurs.
• The surface on which the system is installed must be leveled and stable. Ensure that the installation surface is not uneven.
• Visually inspect the system at a regular interval. Never operate damaged or leaking equipment/accessories. Clean up any
water or spills found around the system immediately.
• To avoid tripping, ensure that the tubing does not lay over the floor in high-traffic areas.
• Apply the general rules of hygiene for laboratories when working with the system.
• Proceed as follows when the system has a defect:
- Switch the system OFF and unplug the system from the power outlet.
- Shut off the feedwater supply.
- Contact your local service organization.
CAUTION: To avoid the risk of pinching, crushing, cutting or electrical shock, never perform maintenance on the
system without its protective housing or while it is in operation. Maintenance work on the system must only be
performed by trained, authorized specialists.
• For safety information about disinfection, refer to SDS for the respective disinfection product in use.
• Wear safety gloves when changing the UV lamp to prevent skin from contacting the UV lamp glass and to
avoid potential contact with the mercury (Hg) housed with the UV lamp. Maintenance work on the system
must be performed only by trained, authorized specialists.
• Wear safety glasses when working with disinfection solutions.
• If the UV lamp is broken:
- Wear breathing protection, filter category FFP3, and replace the UV lamp.
- Ventilate the room well.

4 | Preface AquanexTM Ultrapure Water Purification System
1.5 Regulatory Compliance
1.5.1 European Union
Products not marked with a CE marking either do not operate in the 230V / 50Hz voltage range or are not intended to be sold
to the EU Member States or European Economic Area (EEA). Please reach out to the manufacturer for questions regarding
regulatory conformity.
1.5.2 United Kingdom
Products not marked with a UKCA marking either do not operate in the 230V / 50Hz voltage range or are not intended to be
sold to the UK region. Please reach out to the manufacturer for questions regarding regulatory conformity.
1.5.3 Product Safety
This product family has been tested to applicable product safety standards by a Nationally Recognized Test Laboratory (NRTL)
and may hold the NRTL’s mark of safety compliance to the applicable standards.
1.5.4 Electromagnetic Compatibility
This product family was tested for compatibility with shielded cabling at a maximum length of 6 ft (1.8 m).
1.5.4.1 FCC Statement (USA)
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
The European CE marking is applied on products that meet all the applicable requirements of the European
Directives and are marketed in the EU. These Directives are captured in the EU Declaration of Conformity
which may be obtained from the manufacturer.
The UKCA marking is applied on products that meet all the applicable requirements of the UK Directives and
are marketed in the UK. These Directives are captured in the UKCA Declaration of Conformity which may be
obtained from the manufacturer.
This device complies with Part 15 Subpart B of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired
operation. Any changes or modifications not expressly approved by the manufacturer could void the
user’s authority to operate the equipment.

AquanexTM Ultrapure Water Purification System Preface | 5
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
1.5.4.2 Canadian ISED IC Notice
This ISM digital apparatus complies with Canadian ICES-001, Class B.
Cet appareil ISM est conforme la norme NMB-001 du Canada, Classe B.
1.5.4.3 Korean KC Registration
1.5.5 Material Content and Evaluation of Chemicals
1.5.5.1 REACH – EUROPE
Thermo Fisher Scientific is committed to meeting all the compliance obligations to evaluate, communicate and register any
Substances of Very High Concern (SVHC), and finding alternates where appropriate.
1.5.5.2 RoHS – EUROPE
Thermo Fisher Scientific is determined to reduce the impact on the environment, and so can declare that this product complies
with the European Parliament’s RoHS2 (Restriction of Hazardous Substances) Directive 2011/65/EU and 2015/863 Annex II
(RoHS2 Amendment) with respect to the limitation of the following substances:
• Lead (0.1%)
• Mercury (0.1%)
• Cadmium (0.01%)
• Hexavalent Chromium (0.1%)
• Polybrominated Biphenyls (PBB) (0.1%)
WARNING: EMC registration is done on this equipment only for business use only. It may cause
interference when the product would be used in home. This warning statement applies for business
purpose.

6 | Preface AquanexTM Ultrapure Water Purification System
• Polybrominated Diphenyl Ethers (PBDE) (0.1%)
• Bis(2-ethylhexyl) Phthalate (DEHP) (0.1%)
• Butyl Benzyl Phthalate (BBP) (0.1%)
• Dibutyl Phthalate (DBP) (0.1%)
• Diisobutyl Phthalate (DIBP) (0.1%)
Our compliance is witnessed by written declaration from our suppliers and/or component testing. This confirms that any
potential trace contamination levels of the substances listed above are below the maximum level set by the latest regulations or
follow established exemptions of the regulation due to their application.
1.5.5.3 RoHS – China
This product complies with the requirements of the legislative act Administration on the Control of Pollution Caused by
Electronic Information Products (ACPEIP). A label of conformance, such as one of the following, may be found on the product:
A declaration may be obtained from the manufacturer with greater detail of this conformance.
1.5.5.4 Proposition 65 – California
1.5.6 WEEE Compliance
WARNING: This product may expose you to the chemicals like Mercury which is known to the State of
California to cause cancer/birth defect and/or other reproductive harm. For more information, go to
www.P65Warnings.ca.gov
This product is required to comply with the European Union’s Waste Electrical & Electronic Equipment
(WEEE) Directive 2012/19/EU. It is marked with the following symbol. Thermo Fisher Scientific has
contracted with one or more recycling/disposal companies in each EU member state and this product
should be disposed of or recycled through them. Further information on our compliance with these
Directives, the recyclers in your country and information on Thermo Fisher Scientific products which may
assist the detection of substances subject to applicable directives are available at
www.thermofisher.com/WEEERoHS.

AquanexTM Ultrapure Water Purification System Preface | 7
1.5.7 End of Life Care
Some considerations and suggestions are listed below for proper disposal of this product. While addressing these actions for
safe recycling and disposal, please follow all the guidelines, Safety Data Sheets (SDS), or regulations applicable to your country
and region.
• This product has materials and components that may be recycled or reused according to local guidelines and regulations.
• Remove any batteries present before disposal. Batteries, battery packs, and accumulators should not be disposed of as
unsorted household waste. Please use the public collection system to return, recycle, or treat them in compliance with
local regulations.
• Check the local laws and regulations for the proper disposal of the UV lamp.
• Before returning the Thermo Scientific™ Aquanex™ Ultrapure Water Purification Systems for waste disposal, contact your
local waste disposal company for proper disposal of the system and its components. Only specially trained personal
should take the system out of operation and dispose it properly.

8 | Technical Specifications AquanexTM Ultrapure Water Purification System
2 Technical Specifications
2.1 Technical Data
2.1.1 AquanexTM System Technical Specifications
2.1.2 Aquanex System Electrical Requirements and Connections
Table 1. Aquanex System Components Technical Specifications
10L Main Unit 30L Main Unit Smart
Dispenser 30L Tank
Height 622 mm / 25 in 622 mm / 25 in 882 mm / 35 in 606 mm / 24 in
Height with CO2
Adsorber 727 mm / 29 in - - 778 mm / 31 in
Width 610 mm / 24 in 610 mm / 24 in 271 mm / 11 in 388 mm / 16 in
Depth 406 mm / 16 in 406 mm / 16 in 380 mm / 15 in 384 mm / 15 in
Touchscreen Size 5.7 in 5.7 in 1.54 in -
Tank Capacity 10L - - 30L
Dry Weight 32 kg / 70 lbs (without DI
Packs)
31 kg / 68 lbs (without
DI Packs) 9 kg / 20 lbs 6 kg / 14 lbs
Wet Weight 57 kg / 125 lbs (includes DI
Packs)
46 kg / 101 lbs
(includes DI Packs) - 38 kg / 83 lbs
Sound Emissions < 60 dB < 60 dB - -
Horizontal Clearance Minimum 250 mm / 10 inch Minimum
360 mm / 14 in
Minimum
300 mm / 12 in
Vertical Clearance Minimum 250 mm / 10 inch Minimum
1065 mm / 42 in
Minimum
400 mm / 16 in
Table 2. Aquanex System Electrical Requirements and Connections
Parameters Values
Power adapter AC input voltage AC 100 – 240 VAC, 50 – 60 Hz
Power adapter DC output voltage DC 24 V, 5.0 A Max
Aquanex DC input DC 24 V, 5.0 A, 120 W
User Interface 2 USB Type A, 1 USB Type B, 1 Ethernet
Protection class Class II (external SMPS certified as Class I)

AquanexTM Ultrapure Water Purification System Technical Specifications | 9
2.1.3 Aquanex System ASTM Type I and Type II Water Quality
*When dispensed from Aquanex Touch Smart Dispenser with 0.1 µm POU final filter.
**Volumetric Dispense Accuracy at 20-100 mL is ±5%.
Table 3. Aquanex System ASTM Type I Water Quality*
Parameters Value Unit
Conductivity (reference temperature +25°C) 0.055 µS/cm
Resistance (reference temperature +25°C) 18.2 MΩ·cm
Total Organic Carbon (TOC) < 3 ppb
RNase 1 pg/mL
DNase 5 pg/mL
Protease 0.15 µg/mL
Bacteria 0.001 CFU/mL
Bacterial endotoxins 0.001 EU/mL
Particle 99.9 % Reduction > 0.1 µm
Sodium < 1 ppb
Chloride < 1 ppb
Silica total < 3 ppb
Dispense Rate (10L system) ≥ 2.0 L/min
Dispense Rate (30L system) ≥ 1.5 L/min
**Volumetric Dispense Accuracy at >100mL ±2 %
Table 4. Aquanex System ASTM Type II Water Quality
Parameters Value Unit
Conductivity (reference temperature +25 °C) 0.1 - 1.0 µS/cm
Resistance (reference temperature +25 °C) 1 - 10 MΩ·cm
Retention rate for bacteria and particles 99 %
Aquanex RO assembly permeate flow at 25 °C 16 ± 20% L/hr

10 | Technical Specifications AquanexTM Ultrapure Water Purification System
2.1.4 Tubing Connections for the Aquanex System
2.1.5 Aquanex System Materials in contact with High Purity Water
Table 5. List of Tubing Connections for the Aquanex System
Connection Tubing OD Max Distance (m)
Feedwater to Pretreatment 1/4" 3
Pretreatment to Main Unit 1/4" 3
Wastewater (Aquanex 30L) 8 mm 3
Overflow (Aquanex 30L) 8 mm
Wastewater (Aquanex 10L) 3/8" 3
Overflow (Aquanex 10L) 8 mm
Main Unit to 30L External Tank 3/8" 1.8
30L External Tank to Main Unit 8 mm 1.8
Dispenser to Main Unit 8 mm 3
Main Unit to Dispenser 8 mm 3
Table 6. Aquanex System Materials in contact with High Purity Water
Component Material(s) in contact
Pump head Nylon with glass fiber
UV lamp High-purity synthetic quartz
UV housing Stainless steel
DI packs Polypropylene housing
UF filter PES (Polyether Sulfone)
Conductivity measuring cell POM (Polyoxymethylene)
Dispensing valve PET (Polyethylene terephthalate)
Conductivity measuring cell POM, stainless steel
Distributor block POM
Connections POM
Tubing PE (Polyethylene)
O-Rings EPDM (Ethylene propylene diene rubber)
Solenoids Stainless steel

AquanexTM Ultrapure Water Purification System Technical Specifications | 11
2.2 Product Overview
2.2.1 Aquanex Ultrapure Water Purification System Components

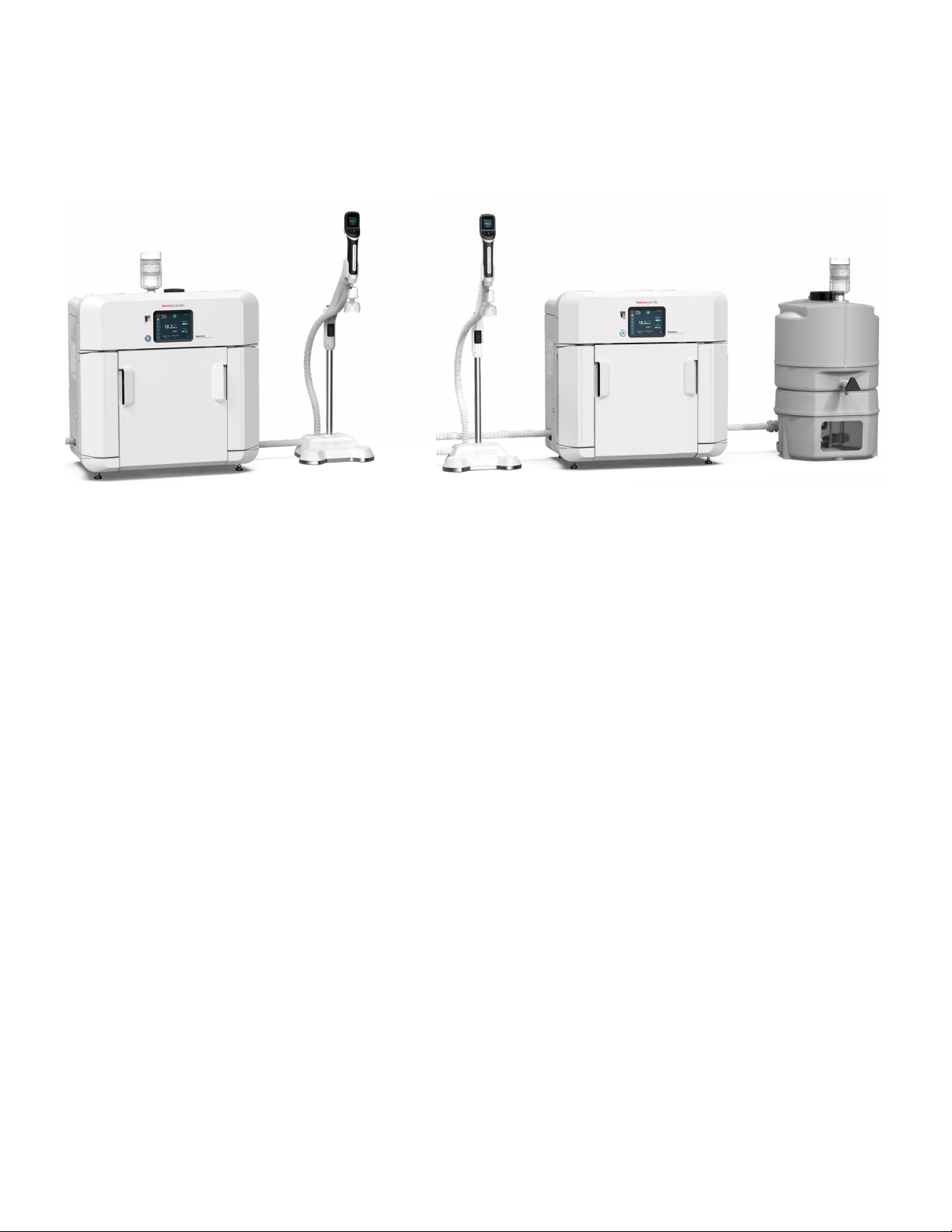

Figure 1. Aquanex Ultrapure 10L and 30L Water Purification Systems
The Aquanex Ultrapure Water Purification System (see Figure 1) is comprised of an automated Water Treatment Unit with
intuitive touchscreen interface and an AquanexTM Touch Smart Dispenser for Type I water.
The system is equipped with either a 10L built-in water storage tank or 30L external water storage tank, based on ordered
components.
The dispenser comes with a built-in UI screen that reflects the main display for ease of use and a benchtop dispenser stand
which can be transformed into a wall mount stand. Making changes to the smart dispenser UI screen automatically updates
information on the main screen of the instrument.
Users can select between manual and volumetric dispense operation. Users can also add an optional second smart dispenser
to take advantage of smart dispensing capability on both sides of the system.
The Aquanex System provides flexibility of assembly by supporting both a benchtop or wall-mounted configuration.
The Aquanex System is designed for easy access to consumables to enable quick replacement and hassle-free maintenance.
The system comes with one set of consumables, consisting of (1) RO assembly, (1) UV lamp, (2) Aquanex DI packs, (1) UF filter,
(1) 0.1 µm Point of Use (POU) filter, and (1) CO2 adsorber with filter. The system also comes with all feedwater tubes,
waste-water drain tubes, disinfectant bypass adapters, sterile overflow, and other necessary fittings for initial setup.
In operation, the source tap water is routed through the pretreatment device into the inlet of the Aquanex System’s main unit.
From the main unit, the water is routed to Dispenser 1 (D1) or Dispenser 2 (D2) depending on the configuration chosen by the
user.
A user can also dispense Type II water by adding a hand-held dispenser. In the 30L system, users can also access Type II
water from the tap on the 30L tank.
The Aquanex System helps in protecting the lab environment from leaks in and around the system with a leak detector installed
in the main unit. Additionally, the 30L system has a supplementary external leak detector that can be placed at a desired
location near the system.

12 | Technical Specifications AquanexTM Ultrapure Water Purification System
2.2.2 Modes of Operation
The unit supports the following modes of operation:
•Pack saver mode: The unit automatically operates to increase the lifespan of the Aquanex DI packs based on feedwater
quality and average usage.
•Water saver mode: Saves water compared to pack saver mode by recycling the RO concentrate waste stream and
combining it with source tap water as the feed to the instrument. The waste stream out of the system is reduced in this
mode.
•Dynamic mode: Intelligently switches between water saver and pack saver modes, depending on the feedwater quality.
User can set the transition point.
2.2.3 Pretreatment of Feedwater
To meet feedwater quality requirement, (see Table 7), it is recommended to use external pretreatment, such as the
BarnsteadTM Pretreatment System (P/N 50157886). Pretreatment is intended to protect the RO assembly from particles,
hardness and to eliminate chlorine that can be present in tap feedwater. Barnstead Pretreatment comes with a built-in pressure
reducer to meet the source inlet feedwater pressure requirement for the Aquanex System.
Note: Check feedwater quality at regular intervals.
Note: Absence of adequate pretreatment and the pressure reducer devices may lead to premature failure of the Aquanex
System and its components.
Note: It is recommended to rinse new pretreatment cartridges with a few liters of tap water prior to connecting to the Aquanex
System.
* Use of Barnstead Pretreatment System (P/N 50157886) ensures feedwater meets these requirements.
Table 7. Feedwater Requirements for Aquanex Ultrapure Water Purification System
Parameters Description
Source Potable tap water
Silt Density Index (SDI) < 3
Turbidity*< 1 NTU
Conductivity (reference temperature +25 °C) Up to 1500 µS/cm (670 Ω·cm)
Hardness*Hardness stabilized
Chlorine*Max. 0.1 ppm
pH Range 4 - 11
Temperature +2 °C to +35 °C
Pressure*
2 to 6 bar / 29 to 87 PSI
At Pressure > 6 bar / 87 PSI install a pressure
reducer upstream of the system

AquanexTM Ultrapure Water Purification System Description of Features | 13
3 Description of Features
3.1 Description
The Aquanex Ultrapure Water Purification System is an easy-to-use water purification system for use in laboratories. The
system comes with several advantageous features as described below.
The Aquanex System includes (1) Aquanex main unit, (1) Touch Type I smart dispenser, (1) set of consumables, and the
respective tank (10L internal tank or 30L external tank). The system can also be purchased with Barnstead Pretreatment
System. Additional accessories are also available for users to purchase separately.
3.1.1 Aquanex Main Unit
3.1.1.1 Front View
The front part of the Aquanex main unit features the Upper Front Panel, Left DI Pack, Right DI Pack, Consumables Access
Panel, and a CO2 adsorber (see Figure 2).

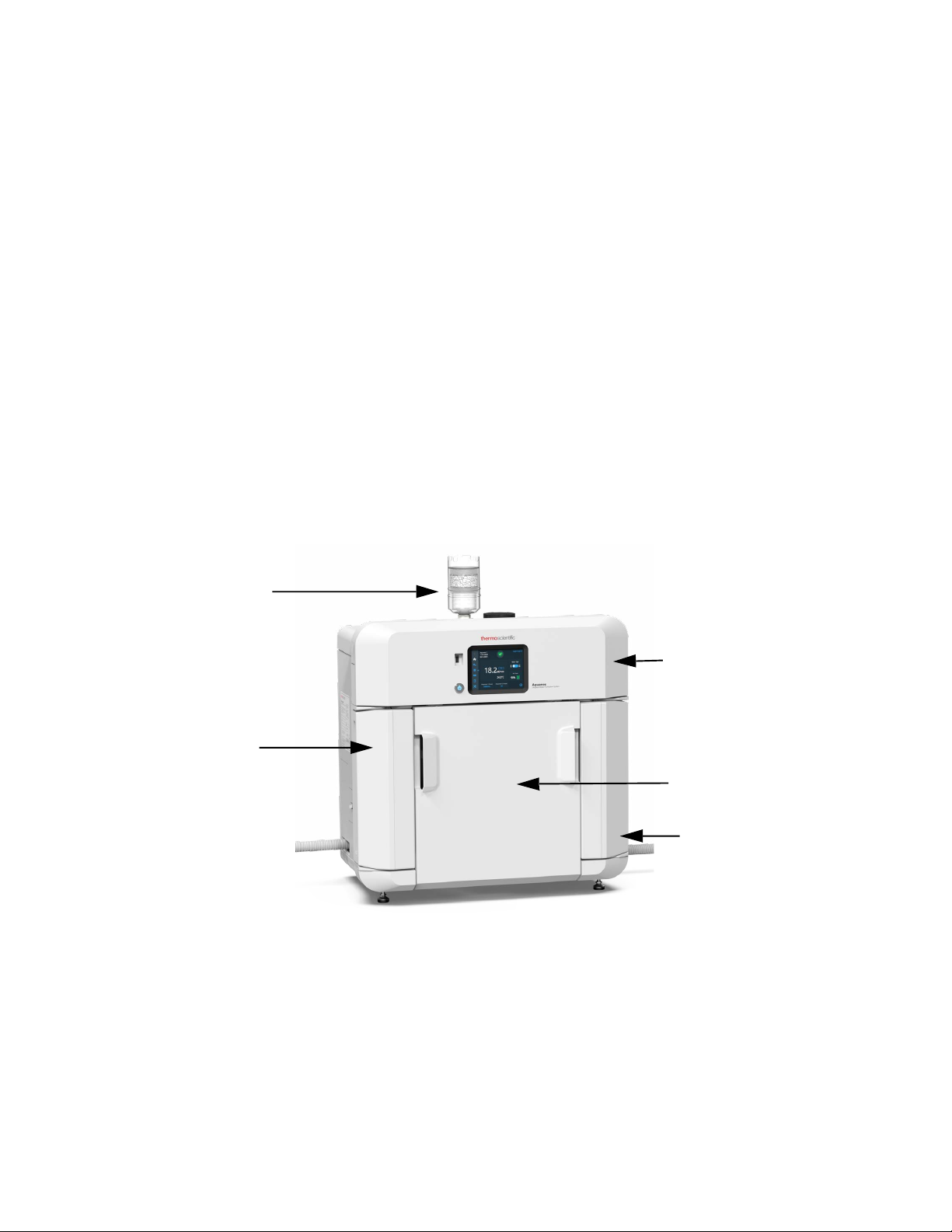

Figure 2. Aquanex Main Unit – Front View
•Upper Front Panel: This panel houses the touch screen display, a USB port, and the Power ON/OFF button.
•Left and Right DI Packs: The DI packs can slide in and out of the system. The left and right DI packs are
non-interchangeable to provide the correct configuration for deionization and purification. DI packs are labeled A (right)
and B (left) to distinguish from each other but are replaced as a set.
•Consumables Access Panel: This panel is magnetically held in place. It can be easily removed for access to
consumables.
10L Tank CO2 Adsorber
Upper Front Panel
Left DI Pack
Consumables Access Panel
Right DI Pack

14 | Description of Features AquanexTM Ultrapure Water Purification System
•CO2 Adsorber: The CO2 adsorber is fitted onto the top of the 10L tank in the 10L in-built main unit for air to pass
through the unit without compromising the air quality in the laboratory. For 30L main unit, the CO2 adsorber is fitted on
the 30L tank.
3.1.1.2 Side View
The side views show the Side Access Panels as well as the DI Packs Panels (see Figure 3).

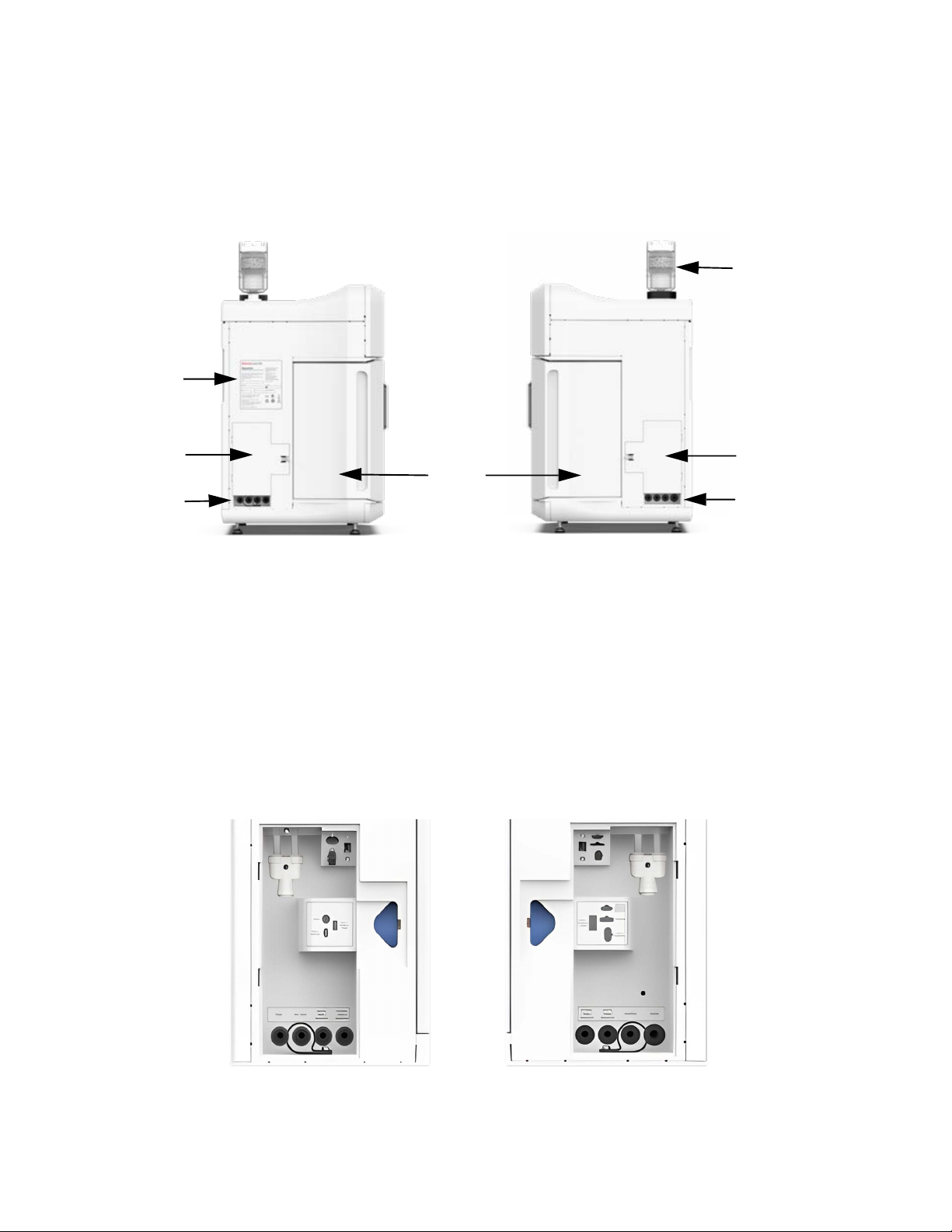

Figure 3. Aquanex Main Unit – Left and Right-Side Views
Aquanex DI Packs: Each side of the main unit has one DI pack. These packs are non-interchangeable with each other. The
docking slot present at the bottom of the panels help the packs to slide into place.
Note: Both the DI packs must be replaced at the same time.
Side Access Panels: The side access panels include fluid tubing ports and electrical connection ports on both sides. Type I
dispenser tubing ports are available on both the sides of the main unit. The system also has tubing ports to dispense Type II
water located on the right-side panel.
The Aquanex system comes with dispenser tubing ports on both left and right side for Type I and Type II (optional) dispenser(s).
All dispenser tubing ports come with a bypass installed in them to protect the unit during shipment (see Figure 4 & Figure 5).
Note: While connecting the dispensers, the user must ensure to remove the bypass from the ports.
Figure 4. Left and Right-Side Access Panels Removed for Aquanex 10L System
DI Packs
Unit Label
Side Access
Panel
Tubing Ports
Side Access
Panel
Tubing Ports
10L Tank CO2
Adsorber

AquanexTM Ultrapure Water Purification System Description of Features | 15
Figure 5. Left and Right-Side Access Panels Removed for Aquanex 30L System
3.1.1.3 Rear View
Exterior View
The rear view (see Figure 6) has three different connectors for USB and LAN connections. Four wall mount holes for wall
mounting and two hand grips to lift the unit are available on the rear side for the ease of handling.
Figure 6. Aquanex Main Unit – Rear View
Interior View of 10L Main Unit
Within the 10L Main Unit, the 10L water tank is placed at the rear side of the unit (see Figure 7).
4 Wall
Mount
Holes
Hand Grip Hand Grip
10L Tank CO2 Adsorber
USB & LAN Connection
10L Tank Cap

16 | Description of Features AquanexTM Ultrapure Water Purification System
Figure 7. Aquanex 10L Main Unit Rear View – Interior 10L Water Storage Tank
3.1.1.4 Top View
Aquanex 10L System main unit top view (see Figure 8) has a CO2 adsorber with sterile filter (0.2 µm), a reducing adapter for
the in-built 10L tank and a cap.
Aquanex 30L System comes with an external 30L tank with a CO2 adsorber and sterile filter and a cap.
CO2 Adsorber and Sterile Filter 0.2 µm: The purpose of the CO2 adsorber and sterile filter is to prevent carbon dioxide and
other particles from entering the water tank, helping to preserve the life of the DI Packs.
Cap: The cap on 10L tank serves the purpose of providing access to the storage tank to initiate disinfection procedure.
Figure 8. Aquanex 10L Main Unit – Top View
10L Tank CO2 Adsorber
10L Tank Cap
10L Tank
10L Tank Cap
Reducing Adapter
10L Tank CO2 Adsorber
