Thermokon LA+ CO2 V User manual

» LA+ CO2
Outdoor sensor for air quality
Thermokon Sensortechnik GmbH, Platanenweg 1, 35756 Mittenaar, Germany · tel: [phone] fax: -400 www.thermokon.com· [e-mail]
LA+_CO2_Datasheet_en-us.docx © 2020
Datasheet
Subject to technical alteration
Issue date: 8/17/2020 • A110
»APPLICATION
Sensor for outdoor CO2 measurement: cold rooms, greenhouses, production plants and warehouses. Designed for outdoor mounted
applications with 0..10 V or 4..20 mA output.
»TYPES AVAILABLE
Outdoor sensor CO2 – active 0..10 V | 4..20 mA
LA+ CO2 V
LA+ CO2 A
»SECURITY ADVICE – CAUTION
The installation and assembly of electrical equipment should only be performed by authorized personnel.
The product should only be used for the intended application. Unauthorised modifications are prohibited! The product must not
be used in relation with any equipment that in case of a failure may threaten, directly or indirectly, human health or life or result in
danger to human beings, animals or assets. Ensure all power is disconnected before installing. Do not connect to live/operating
equipment.
Please comply with
•Local laws, health & safety regulations, technical standards and regulations
•Condition of the device at the time of installation, to ensure safe installation
•This data sheet and installation manual
»PRODUCT TESTING AND CERTIFICATION
Declaration of conformity
The declaration of conformity of the products can be found on our website https://www.thermokon.de/.

Page 2 / 4 Issue date: 8/17/2020
Thermokon Sensortechnik GmbH, Platanenweg 1, 35756 Mittenaar, Germany · tel: [phone] fax: -400 www.thermokon.com· [e-mail]
LA+_CO2_Datasheet_en-us.docx © 2020
»NOTES ON DISPOSAL
As a component of a large-scale fixed installation, Thermokon products are intended to be used permanently as part of a building
or a structure at a pre-defined and dedicated location, hence the Waste Electrical and Electronic Act (WEEE) is not applicable.
However, most of the products may contain valuable materials that should be recycled and not disposed of as domestic waste.
Please note the relevant regulations for local disposal.
»INFORMATION ABOUT INDOOR AIR QUALITY CO2
EN 13779 defines several classes for indoor air quality:
Category
CO2content above the content in outdoor air in ppm
Description
Typical range
Standard value
IDA1
<400 ppm
350 ppm
Good indoor air quality
IDA2
400.. 600 ppm
500 ppm
Standard indoor air quality
IDA3
600..1.000 ppm
800 ppm
Moderate indoor air quality
IDA4
>1.000 ppm
1.200 ppm
Poor indoor air quality
»INFORMATION ABOUT SELF-CALIBRATION FEATURE CO2
All gas sensors are subject to drift caused by components. This fact results generally in the need to recalibrate the sensors regularly.
With dual channel technology Thermokon integrates automatic self-calibration for different fields of operation. In contrast to common used ABC-
Logic sensors with self-calibration dual channel are suitable for applications operating 24 hours, 7 days a week as for example hospitals.
Manual calibration is not necessary!
»TECHNICAL DATA
Measuring values
CO2
Output voltage
(type-dependent)
LA+ CO2 V
0..10 V, min. load10 kΩ
LA+ CO2 A
2x 0..10 V or 0..5 V, min load 10 kΩ
(live-zero configuration via Thermokon USEapp)
Output ampere
LA+ CO2 A
4..20 mA, max. load 500 Ω
Power supply
(type-dependent)
LA+ CO2 V
15..35 V = or 19..29 V ~ SELV
LA+ CO2 A
15..35 V = SELV
Power consumption
max. 2,5 W (24 V =) | 4,3 VA (24 V ~)
Measuring range CO2
(type-dependent)
LA+ CO2 V
0..2000 ppm
LA+ CO2 A
0..2000 ppm (Standard), 0..5000 ppm (optionally
configured via Thermokon USEapp)
Accuracy CO2
±50 ppm +3% of reading (typ. at 70 °F, 50% rH)
Calibration
self-calibration, Dual Channel
Sensor
NDIR (non-dispersiv, infrared)
Enclosure
enclosure USE-M, PC, pure white, with removable cable entry
Protection
IP65 according to EN 60529
Cable entry
Flextherm M20, for wire max. Ø=0.18..0.35 in., removable
Connection electrical
removeable plug-in terminal, max. 14 AWG
Ambient condition
+32..+122 °F, max. 85% rH short term condensation
Mounting
installation is also possible using mounting base

Issue date: 8/17/2020 Page 3 / 4
Thermokon Sensortechnik GmbH, Platanenweg 1, 35756 Mittenaar, Germany · tel: [phone] fax: -400 www.thermokon.com· [e-mail]
LA+_CO2_Datasheet_en-us.docx © 2020

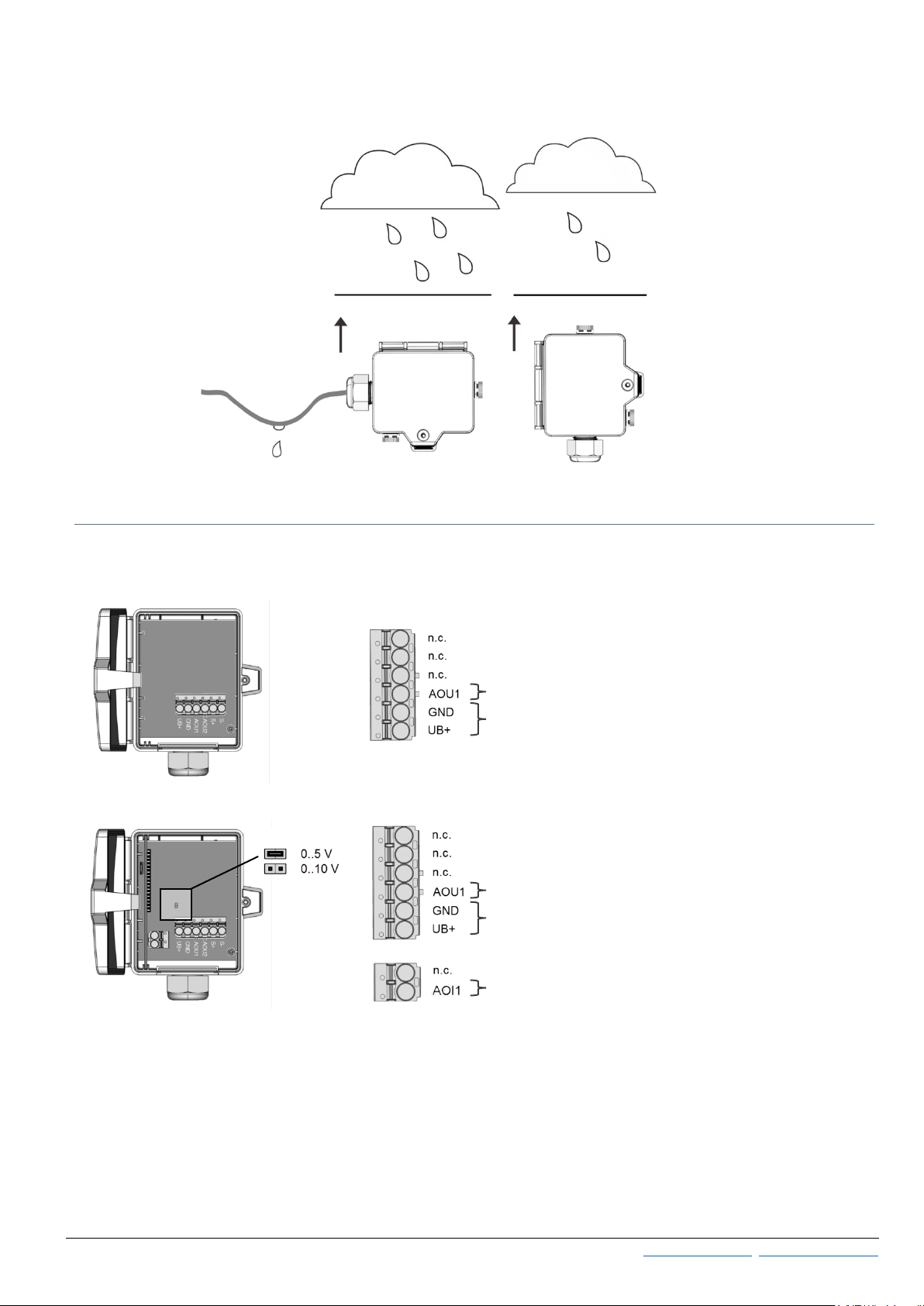

»MOUNTING ADVICES
In case of outdoor installation avoid direct rain and sun contact. Probably use sun respectively rain protection. Cable entry from bottom or side.
For side cable routing set loop so that precipitation can drain defined. Observe permissible ambient condition.
»CONNECTION PLAN
LA+ CO2 V
LA+ CO2 A
(CO2 | 0..10 V)
(15..35 V = or 19..29 V ~)
(CO2 | 0..10 V)
(CO2 | 4..20 mA)
(15..35 V =)

Page 4 / 4 Issue date: 8/17/2020
Thermokon Sensortechnik GmbH, Platanenweg 1, 35756 Mittenaar, Germany · tel: [phone] fax: -400 www.thermokon.com· [e-mail]
LA+_CO2_Datasheet_en-us.docx © 2020
»CONFIGURATION (POSSIBLE ONLY WITH TYPE LA + CO2 A)
The Thermokon bluetooth dongle with micro-USB is required for communication between USEapp and
USE-M / USE L (Item No..: 668262). Commercial bluetooth dongles are not compatible.
Application-specific reconfiguration of the devices can be carried out using the Thermokon USEapp. The
configuration is carried out in the voltage-supplied state.
The configuration-app and the app description can be found in the Google Play Store or in the Apple App
Store.
»APPLICATION NOTICE
The housing cover must be completely closed in order to ensure the accuracy and reproducibility of the measured values during
a test or service log via USEapp.
The Bluetooth dongle snaps into the socket easily. When removing, please fix the plug-in card (option PCB) so that it is not
unintentionally pulled out.

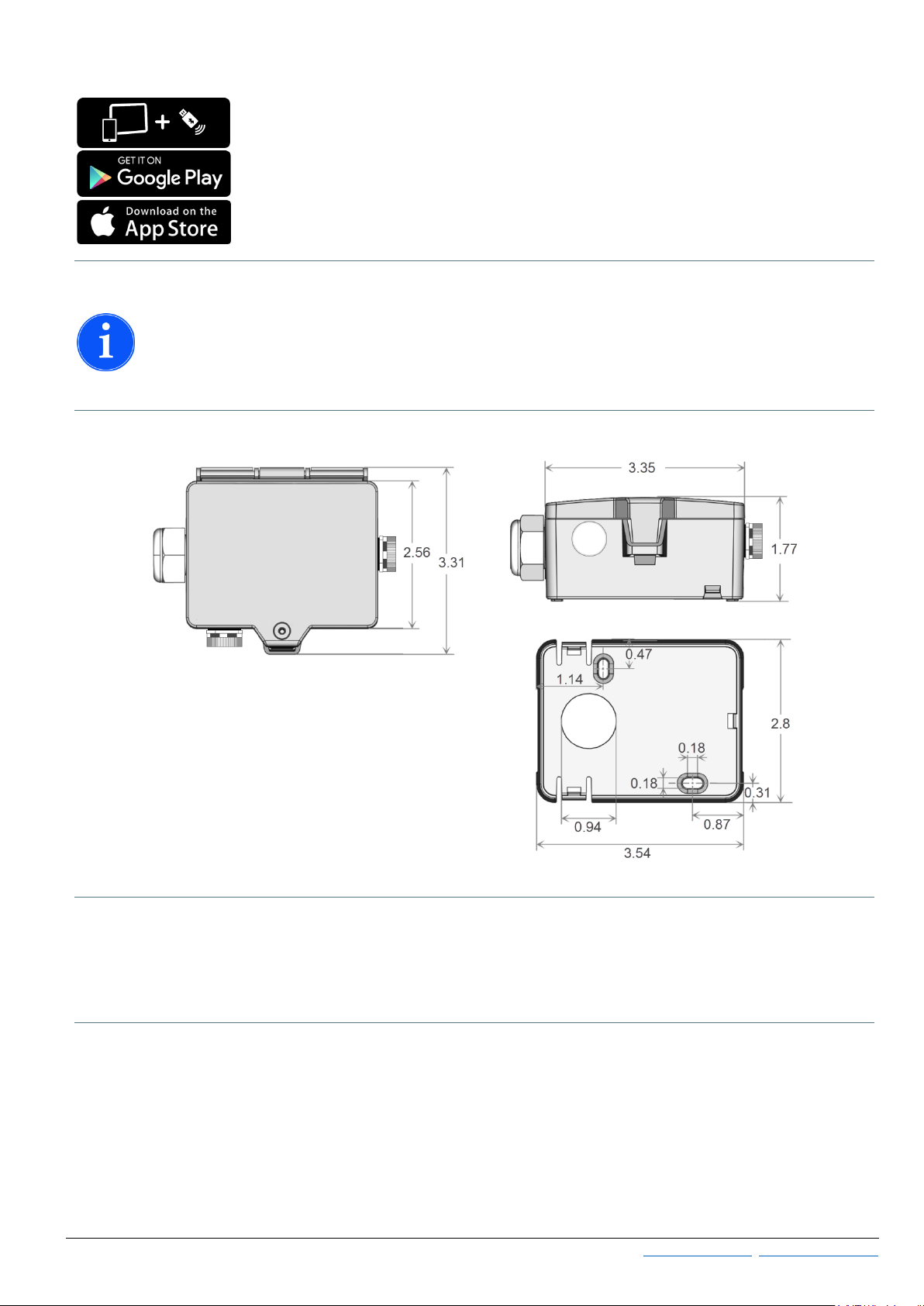

»DIMENSIONS (IN.)
»ACCESSORIES (INCLUDED IN DELIVERY)
Mounting base Item No. 631228
Mounting kit universal Item No. 698511
• Cover screw + screw cover• 2 Rawlplugs • 2 Screws (countersunk head) • 2 Screws (rounded head)
»ACCESSORIES (OPTIONAL)
Sealing insert M20 USE white, 2x Ø=0.28 in. (for 2 wire; PU 10 pieces) Item No. 641333
