INTRODUCTION The Aurora-2 is a Near-field Scanning Optical Microscope (NSOM). NSOM is an optical
microscopy technique that offers higher resolution limits than confocal microscopy.
Because NSOM combines optical and scanning probe microscopy, sample surface
chemistry can be imaged and analyzed simultaneously with surface topography measure-
ments. The ability to gather topographic data while producing an optical image is useful in
material characterization and analysis.
It is important to read this manual and be familiar with the Aurora-2 instrument to facilitate
more productive and efficient use of NSOM as a research tool.
ABOUT THIS
MANUAL Chapter 1 provides an overview of the theory of NSOM and how it is applied in the
Aurora-2instrument. Chapter2 describestheAurora-2instrumentcomponentsandset-up.
Chapters 3 and 4 provide step-by-step instructions for taking a topographic scan and an
NSOM scan, respectively, of the standard sample.
This manual covers those aspects of the SPMLab software that are specific to the Aurora-
2 configuration. For a thorough understanding of how to use the software, the user should
refer to the SPMLab Software Reference Manual.

vi
85-10316 REV. A
OPERATING SAFETY
All Warning and Caution statements in this manual should be strictly observed. Failure to
do so may result in serious injury, particularly blindness due to exposure to laser light, and
damage to your Aurora-2 instrument.
Warning statements—indicated by this symbol—alert you to possible serious injury, espe-
cially blindness due to laser light exposure. Procedures in this manual must be followed
exactly. Do not proceed beyond a warning until the conditions of the warning are under-
stood and met.
Caution statements—indicated by this symbol—call attention to possible damage to the
system or to the impairment of safety unless procedures described in this manual are
followed exactly.
WARNING NEVER LOOK DIRECTLY INTO THE LASER BEAM.
These labels are placed on the Aurora-2 to warn you of the danger of laser light. Exposure
to laser light is possible at the laser, at the end of the laser fiber, at the probe tip, or at any
point on the fiber-optic cable if it should break. Follow all set-up and operation procedures
in this manual carefully.
DANGER
LASER LIGHT
AVOID DIRECT
EYE EXPOSURE

PREFACE vii
Aurora-2 User’s Manual
THERMOMICROSCOPES PRODUCT WARRANTY
COVERAGE
ThermoMicroscopes warrants that products manufactured by ThermoMicroscopes will be
free of defects in materials and workmanship for one year from the date of shipment. The
product warranty provides for all parts (excluding consumables and maintenance items),
labor, and software upgrades.
Instruments, parts, and accessories not manufactured by ThermoMicroscopes may be
warranted by ThermoMicroscopes for the specific items and periods expressed in writing
on published price lists or quotes. However, all such warranties extended by ThermoMicro-
scopes are limited in accordance with all the terms, conditions, and other provisions stated
in this warranty. ThermoMicroscopes makes no warranty whatsoever concerning products
or accessories not of its manufacture except as noted above.
Customers outside the United States and Canada should contact their local ThermoMicro-
scopes representative for warranty information appropriate to their locale.
CUSTOMER RESPONSIBILITIES
1. Perform the routine maintenance and adjustments specified in ThermoMicroscopes’
manuals.
2. Use ThermoMicroscopes replacement parts.
3. Use ThermoMicroscopes or ThermoMicroscopes-approved consumables, such as
lamps, cantilevers, filters, etc.
4. Provide adequate and safe working space around the products for servicing by
ThermoMicroscopes personnel.
REPAIRS AND REPLACEMENTS
ThermoMicroscopes will, at its option, either repair or replace defective instruments or
parts. Repair or replacement of products or parts under warranty does not extend the
original warranty period. With the exception of consumable and maintenance items, re-
placement parts or products used on instruments out of warranty are themselves warranted
to be free of defects in materials and workmanship for 90 days. Any product, part, or
assembly returned to ThermoMicroscopes for examination or repair must have prior
approval from ThermoMicroscopes and be identified by a Return Materials Authorization
(RMA) number obtained before returning the product. The product, part, or assembly must
be sent freight prepaid to the factory by the Customer. Return transportation will be at Ther-
moMicroscopes’expense if the product, part, or assembly is defective and under warranty.
WARRANTY LIMITATIONS
Thiswarranty does notcover: a) Parts andaccessories which are expendableor consumable
in the normal operation of the products; b) Any loss, damage, and/or product malfunction
resulting from shipping or storage, accident, abuse, alteration, misuse, or use of user-
supplied software, hardware, replacement parts, or consumables other than those specified
by ThermoMicroscopes; c) Products which are not properly installed; d) Products which
are not operated within the specified environmental conditions; e) Products which have

viii
85-10316 REV. A
been modified or altered without written authorization from ThermoMicroscopes; f)
Products which have had the serial number altered or removed; g) Improper or inadequate
care, maintenance, adjustment, or calibration by the user.

Aurora-2 User’s Manual
CHAPTER
Chapter 1
Theory of Operation
NSOM THEORY Historically, the limiting factor in optical microscopy has been the diffraction limit of light.
Attempts to image features approximately the size of a wavelength of light met with frus-
tration because of diffraction. As far back as the 1930’s, a theoretical solution to this
problem was suggested.1However, it was not until the early 1980’s that the electronic
control and feedback capability existed to realize this solution.2If the aperture exposing
the sample is kept very small—on the order of 50 nm—and the aperture is kept close to the
sample surface—generally less than 20 nm—the diffraction problems can be avoided. It
was not until the development of scanning probe microscopes, however, that technology
existed to maintain such close tip-sample spacing while a tip was being scanned over a
sample.
NSOM TIPS The light source in an NSOM system is launched into an optical fiber. The end of the fiber
is “pulled down”to a diameter of 50 nm. The fiber is then coated with aluminum, approx-
imately 100 nm thick. The fiber becomes a “light funnel”directing light onto the sample.
Photodetectors are placed behind the sample (transmission mode) or beside the tip (reflec-
tion mode) to collect light emitted from the sample. A laser is used as a light source and is
coupled into the back side of the NSOM fiber-optic probe.
1. E.H. Synge: A Suggested Model for Extending Micro-
scopic Resolution into the Ultramicroscopic Region. Phil.
Mag. 6, 356-362 (1928).
2. D.W. Pohl, W. Denk, and M. Lanz: Optical Stethoscopy:
Image Recording with Resolution 1/20. Appl. Phys. Lett. 44,
No. 7, 651-653 (1984).

1-2
Figure 1-1 Fiber-Optic Probe Tip
DISTANCE
CONTROL
MECHANISMS
Tip geometry alone is not enough to produce images. The tip must also be very close to the
sample, typically <10 nm. These small separations are only possible with electronic
position detection and control. Distance control is currently achieved using a shear-force
mechanism. Two such mechanisms exist: light-lever and tuning fork. For these tech-
niques, the tip is attached to a vibrating element which is driven at its resonant frequency.
This vibration is parallel to the surface. As the tip approaches the surface, the vibration
amplitude and phase change. This change in amplitude and phase generates an electrical
signal that is input into the feedback loop.
The Aurora-2 uses the tuning fork mechanism for distance control, as it has the advantage
of producing an electrical signal directly, rather than relying on another device to generate
a signal. This direct connection provides better feedback control, uses much smaller
vibration amplitudes, and does not introduce unwanted light into the sample area.
Figure 1-2 Aurora-2 Fiber-Optic Probe
Sample Surface
Fiber Aluminum
coating
Aluminum
coating
100nm 50nm
Tuning fork
Contacts
Fiber

THEORY OF OPERATION 1-3
Aurora-2 User’s Manual
The fiber-optic probe is attached to one prong of a piezoelectric tuning fork. The tip
extends slightly beyond the end of the tuning fork. The tuning fork is vibrated using a
dithering piezoelectric device, which produces a vibrational amplitude at the tip of approx-
imately one nanometer. As the piezoelectric material of the fork vibrates, it produces a
small current. The vibration amplitude of the fiber can then be measured by measuring the
piezoelectric signal from the tuning fork. The current is amplified and input into a lock-in
amplifier. The phase change of the tuning fork signal relative to the driving signal is
measured and used in the feedback loop.
Figure 1-3 Tuning Fork Mechanism
MODES OF
OPERATION The NSOM instrument is a unique combination of a scanning probe microscope and an
ultra-high resolution optical microscope. Generally both modes—topography and
optical—are used together. However, there may be some situations where topography is
used alone.
The NSOM, used as an optical microscope, can be operated either in tip collection or tip
illumination mode. In tip collection mode, the sample is the light source, and the tip acts
as a way to collect this light. This method is best for samples such as waveguides and laser
diodes.
Tip illumination mode is perhaps the most common NSOM mode. Tip illumination uses
the tip as a “light funnel”to illuminate the sample in a precise, controlled manner. This
mode can be further subdivided into reflection collection, transmission collection, and li-
thography modes. Reflection collection gathers light that has been reflected from the
sample. It is used for opaque samples, such as semiconductor materials. This method is
not as efficient for gathering light, since the physical position of the tip collector does not
allow it to collect much of the reflected light. Reflection mode might also suffer from
image artifacts created by tip shadowing on the sample surface. Transmission mode is
more commonly used and is more efficient. The collector is placed behind the sample and
collects a majority of the light as it passes through the sample. The drawback to this mode
is that it requires the use of thin, transparent samples.

1-4
There are a number ofoperational techniques in transmission mode. The major techniques
are bright field, fluorescence, polarization, and spectroscopy. These techniques use
different properties of light. Bright field mode is similar to standard optical microscopy in
that the sample is exposed to light from the NSOM probe, and the resulting image is
recorded by detecting all wavelengths, including the source light, on the photomultiplier
tube (PMT). In fluorescence modes, the tip is used to excite the sample, and any resulting
fluorescence is captured and imaged. Polarization mode typically polarizes the incoming
light and looks at how the sample changes that polarization. In spectroscopy techniques,
the signal is the change (either time-scale or wavelength) the sample causes in the exposing
light. Figure 1-4 illustrates the relationships between these operational modes.
Figure 1-4 NSOM Operational Modes
Examples of NSOM imaging with the Aurora, using the modes referenced in Figure 1-4,
are included in the following literature.
1. P.J. Moyer, T. Cloninger, J. Gole, and L. Bottomley. Experimental evidence for
molecule-like absorption and emission of porous silicon using near-field and far-field
optical spectroscopy. Phys. Rev. B, 60, No. 7, 4889-4896 (1999).
2. P.F. Barbara, D.M. Adams, and D.B. O’Connor. Characterization of organic thin film
materials with near-field scanning optical microscopy (NSOM). Annu. Rev. Mater. Sci.,
29, 433-469 (1999).
3. A. Naber, H. Kock, and H. Fuchs. High-Resolution Lithography with Near-Field
Optical Microscopy. Scanning Vol. 18 (8), 567-571 (1996).
4. Ch. Lienau, A. Richter, A. Klehr, and T. Elsaesser. Near-Field Scanning Optical Micro-
scopy of Polarization Bistable Laser Diodes. Appl. Phys. Lett. 69, No. 17, 2471-2473
(1996).
Optical
&
Topography
Tip
Collection
Tip
Illumination
Sample Types
Waveguides
LED's
Diode lasers
Reflection
Transmission
Opaque Samples
Semiconductors
Bright field
Fluorescence
Polarization
Spectroscopy
1
2
3
4
Lithography

Aurora-2 User’s Manual
CHAPTER
Chapter 2
Aurora-2 Overview & Set-Up
INSTRUMENT
OVERVIEW The Aurora-2 instrument is a platform for obtaining topographic and optical images. It
offers a wide variety of configuration options, depending on the desired NSOM imaging
mode. The sample is mounted on a scanning stage which is controlled by a three-piezo
scanner arrangement. The fiber-optic probe is mounted on the removable Aurora-2 micro-
scope head and positioned above the sample. Topographic and optical images can be taken
simultaneously.

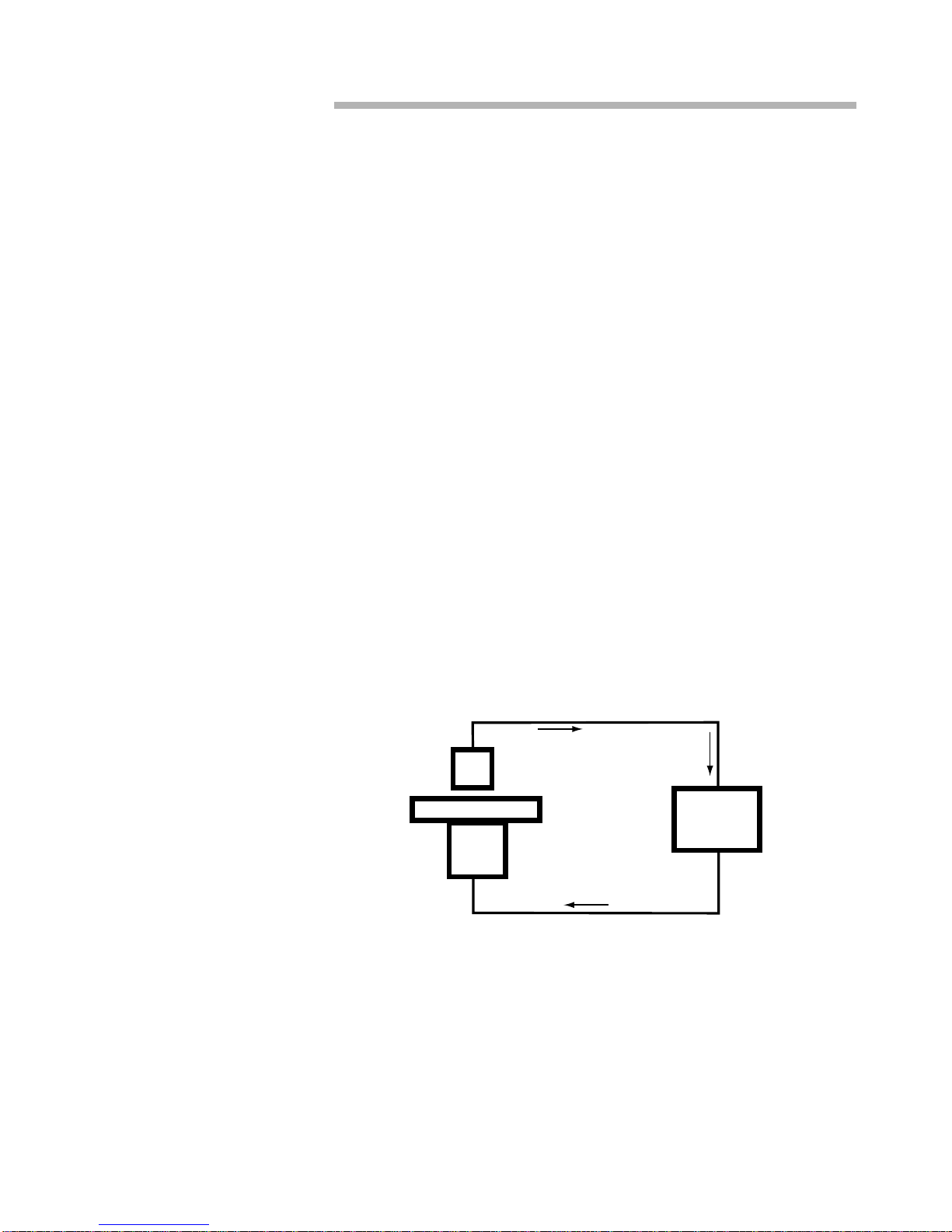

Figure 2-1 Topography Feedback Loop
The optical components of the Aurora-2 system are used for taking NSOM data as well as
for focusing the optics andmonitoringthe probe-sample approach. The rotating mirror(see
Figure 2-2) selects either the reflection or transmission objective. The two “flipper”
mirrors can be manually flipped down to allow the use of the PMT or optional hardware,
such as a photon counter or spectrometer.
XYZ
Piezo
Sample Stage
Probe
Control
electronics

2-2
.

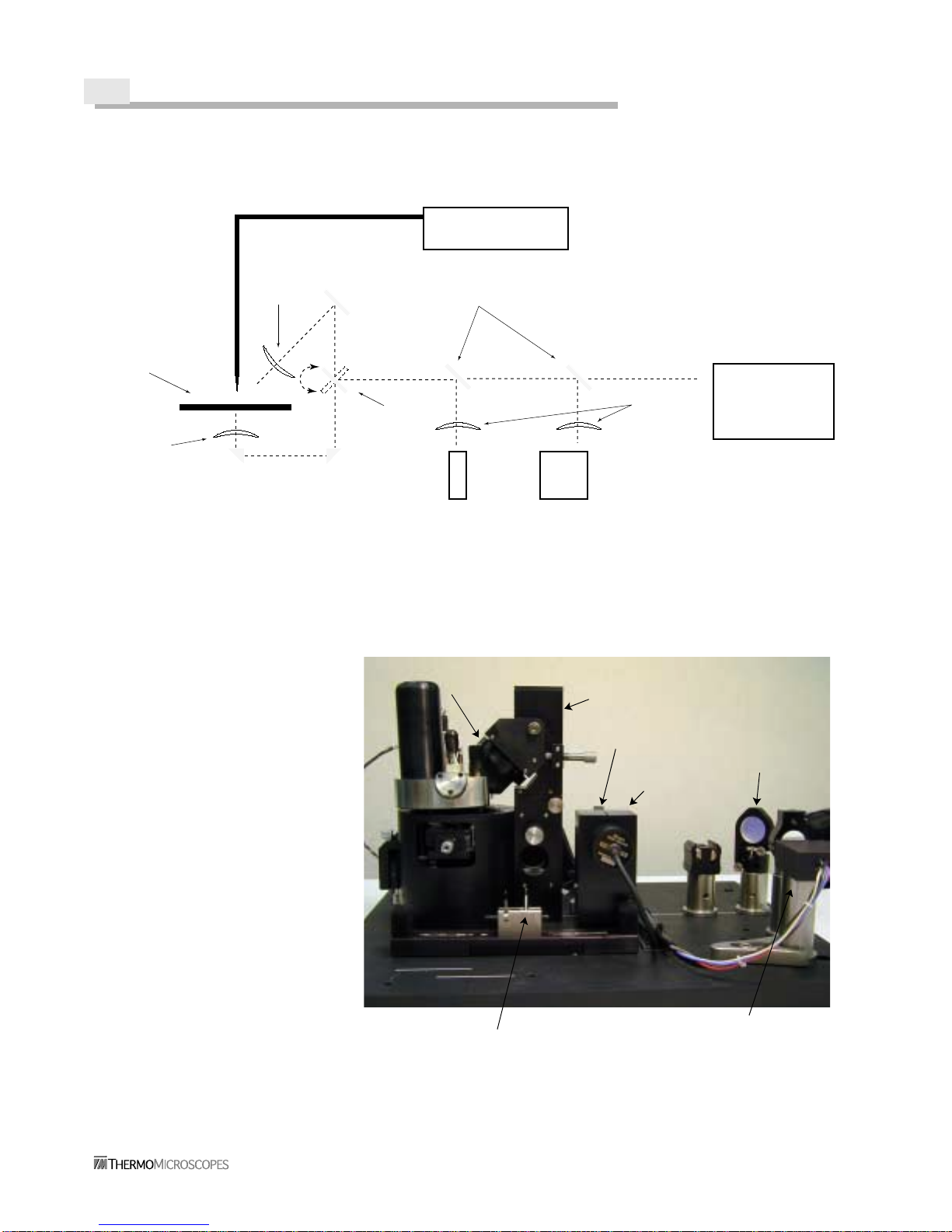

Figure 2-2 Aurora-2 Light Path
Figure 2-3 Instrument Components
Laser & coupler
Photomultiplier
tube (PMT)
CCD
camera
Flipper mirrors
Focusing
lenses
Reflection
objective
lens
Transmission
objective
lens
Stage
Rotating
mirror
Optional
Hardware
Head
CCD Camera
Reflection
tower
PMT flipper
Camera flipper
mirror (hidden) mirror
Cam splicer PMT
Reflection
objective
Scanning
Transmission
objective
stage
{
{
&

AURORA-2 OVERVIEW & SET-UP2-3
Aurora-2 User’s Manual
AURORA-2 PACKAGE
STANDARD
COMPONENTS All the components of the basic Aurora-2 configuration are listed below. It is a good idea
to go through this list to be sure that all the items have been received. Shipping errors can
be corrected by contacting Customer Service.
•Instrument stage (base plate with mounted hardware)
•Aurora-2 sensor head
•Electronic Control Unit-Plus (ECU-Plus) with I/O 10 and I/O MOD+ boards
•Aurora Control Unit
•Computer
•Video monitor
•NSOM fiber-optic tips
•Probe installation tool
•Fiber cleaver
•Fiber stripper tool
•Tool kit
•Cables
•NSOM standard sample
•User’s Manual
•Instrument enclosure
•SPMLab software
•SPMLab Software Reference Manual
OPTIONAL
EQUIPMENT •I/O-U input/output board
•I/O-P photon counter board
•Laser
•Laser coupler
•Daughter board for additional analog-to-digital conversion channels
•Explorer SPM head
•Vibration isolation table
The Explorer SPM head is a popular option, as it uses the same control hardware as the
Aurora-2. The User-Access board(I/O-U) provides access to mostof the input and monitor
signals on the ECU-Plus. The photon counter interface board (I/O-P) allows the user to
collect data through a photon counter, which is useful for very low light levels. Contact the
ThermoMicroscopes representative in your area for more information on these options.

2-4
Figure 2-4 Probe and Fiber Tools
INSTALLATION
INSTRUMENT
LOCATION
CONSIDERATIONS
The Aurora-2 should be mounted in an environment that is as vibration-free as possible.
Sources of mechanical and acoustic vibration will decrease the Aurora’s maximum resolu-
tion capability. The Aurora-2 should be placed on a its own vibration isolation table.
Computer cooling fans and mouse clicks produce vibration that negatively impacts image
quality, so place the computer on a separate table. Basement or ground floor rooms are
better for the instrument, since multi-story buildings usually have significant vibration on
the upper floors. Temperature and humidity should be controlled to maintain constant en-
vironmental conditions. Normal indoor conditions, i.e., “room temperature”and average
humidity, are sufficient. Extremes of temperature and humidity will negatively affect the
instrument and possibly cause damage.
CABLE
CONNECTIONS CAUTION Make sure the power is OFF to all the modules and the computer while
setting up. Connecting cables to powered-up electronics may damage the modules.
The cable connection diagrams (Figure 2-5 and Figure 2-6) show the configuration with
and without an external lock-in amplifier (a lock-in amplifier is also integrated into the I/O
MOD+ board). A photocopy of the appropriate diagram is useful for checking off the cable
connections as they are made.
Probe installation tool
Fiber stripper
Fiber cleaver

AURORA-2 OVERVIEW & SET-UP2-5
Aurora-2 User’s Manual
POWERING UP
THE SYSTEM WARNING To prevent serious injury, make sure the cover is on the laser coupler
before turning the laser on. Follow all safety warnings when powering up and using the
laser.
CAUTION Make sure the PMT voltage is turned all the way down (to the counter-
clockwise limit) before powering up the components.
Once all the connections are made, the components can be powered up. First turn on the
ECU-Plus, then the computer and the video monitor. (The ECU-Plus should always be
turned on before the computer so that the ECU interface is recognized and initialized.) The
laser is powered up separately. Power is automatically applied to the Aurora Control Unit
when the ECU-Plus is powered up.

2-6

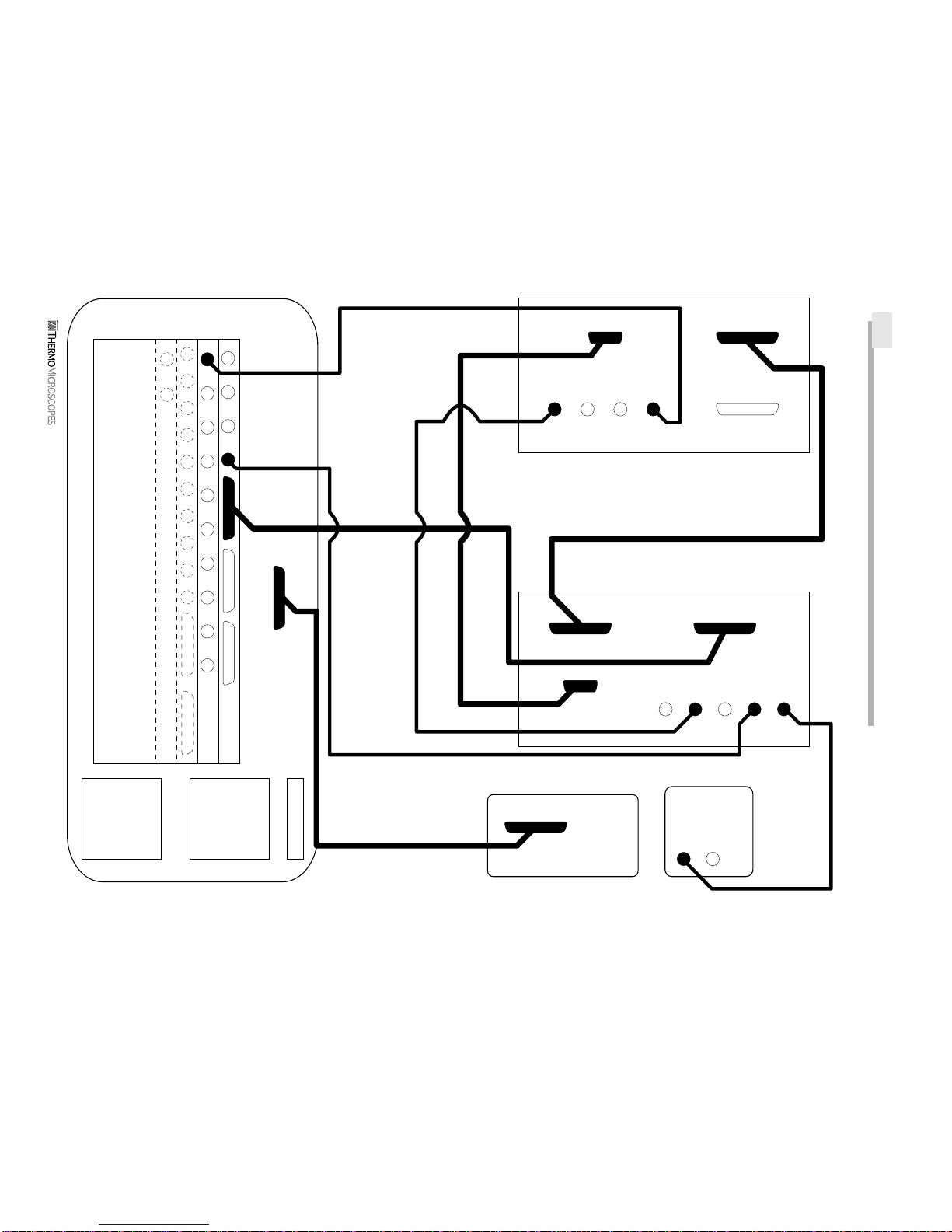

Figure 2-5 Aurora-2 Wiring Diagram
ECU-Plus (Rear panel)
OUT 1
OUT 2
IN 1
IN 2
CPU
POWER
STAGE
STAGE 2
MODULE
Vide M nit r (Rear Panel)
IN OUT
DSP
C mputer
Aur ra-2 Stage (Rear Panel)
Aur ra-2 C ntr l Unit (Rear panel)
ACU CABLE 1
CABLE 2
BNC 1 BNC 2 BNC 3 BNC 4
TO STAGE TO ECU
TO STAGE
MOD
IN
NSOM
IN
MOD
OUT
NSOM
OUT
VIDEO
OUT
OUT 1
OUT 2
OUT 3
OUT 4
SPARE
EFM
DRIVE
DRIVE
A
DRIVE
B
SIGNAL
IN A
SIGNAL
IN B
I/O-MOD+
I/O-10
I/O-U I/O-P
(Opti nal)

AURORA-2 OVERVIEW & SET-UP2-7
Aurora-2 User’s Manual
Figure 2-6 Aurora-2 Wiring Diagram for External Lock-in Amplifier
Vide M nit r (Rear Panel)
IN OUT
DSP
C mputer
Aur ra-2 Stage (Rear Panel)
ACU CABLE 1
CABLE 2
BNC 1 BNC 2 BNC 3 BNC 4
Aur ra-2 C ntr l Unit (Rear panel)
TO STAGE TO ECU
TO STAGE
MOD
IN
NSOM
IN
MOD
OUT
NSOM
OUT
VIDEO
OUT
ECU-Plus (Rear panel)
OUT 1
OUT 2
IN 1
IN 2
CPU
POWER
STAGE
STAGE 2
MODULE
OUT 1
OUT 2
OUT 3
OUT 4
SPARE
EFM
DRIVE
DRIVE
A
DRIVE
B
SIGNAL
IN A
SIGNAL
IN B
I/O-MOD+
I/O-10
XOSCILLATOR OUT
or SINE OUT
INPUT A
Lock-In Amplifier
I/O-U I/O-P

2-8

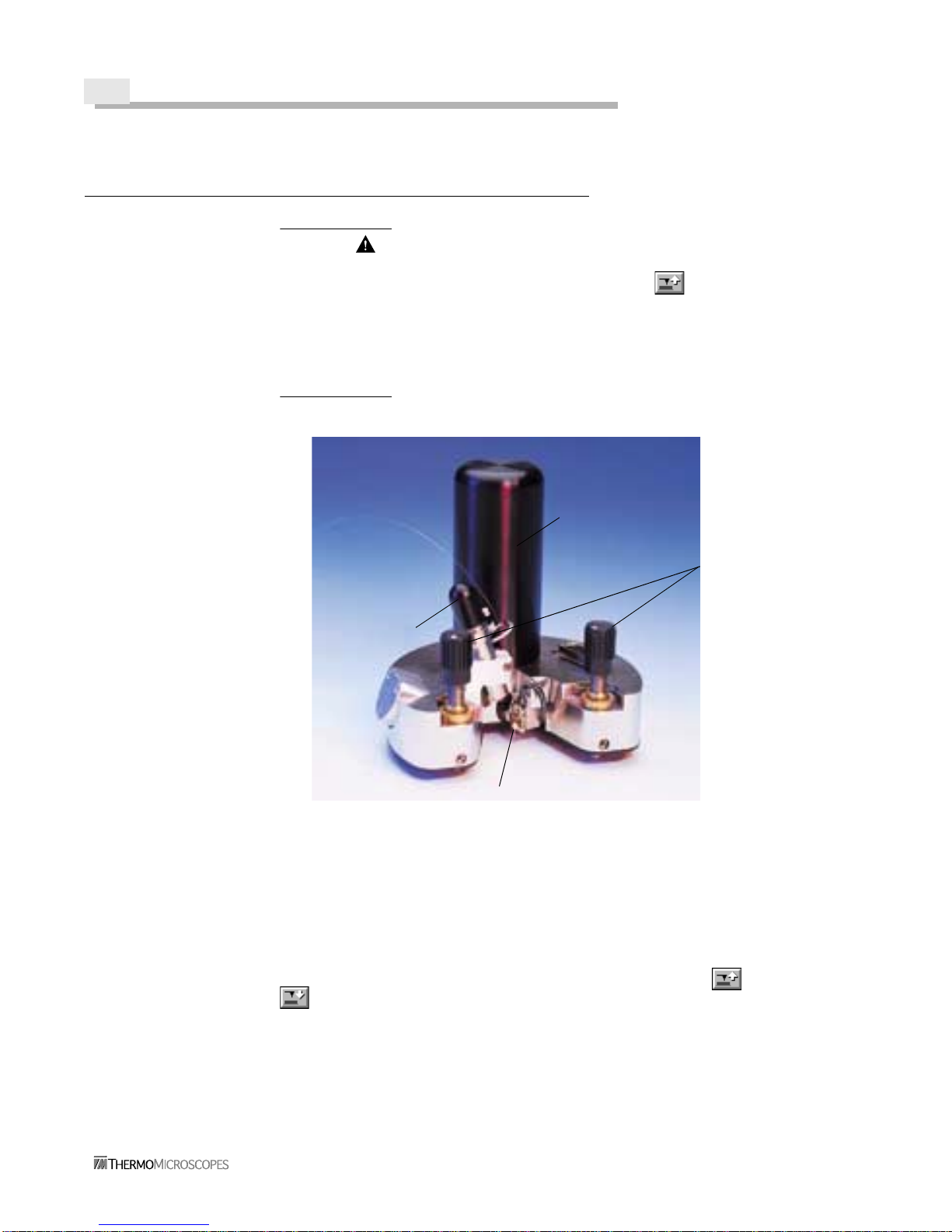

THE AURORA-2 HEAD
CAUTION To avoid damage to the probe and sample, handle the head with care, pay-
ing particular attention to the probe and probe mount on the bottom. Whenever the head
is removed from the microscope stage, use the Tip Up button on the Data Acquisition
tool bar to raise the tip a safe distance away from the sample. When placing the head on
the stage, or when carefully setting it down on a table or other flat surface, turn the Z-height
thumbscrews one full turn clockwise. Whenever the head is lowered using the Z motor or
thumbscrews, watch the image on the video monitor to make sure the probe does not crash
into the sample or stage.
Figure 2-7 Aurora-2 Head
The Aurora-2 head rests on a kinematic mount on the instrument base, as shown in
Figure 2-8 (note that there is also a kinematic mount for the Explorer head). The Z-height
betweenthe probeandthe samplestage iscontrolledby thethree Z-heightscrews, asshown
in Figure 2-9. On the bottom of each screw is a ball bearing that fits into the kinematic
mount. The motorized screw (Z motor) is controlled with the Tip Up and Tip Down
buttons on the Data Acquisition tool bar in the SPMLab software. The other two
screws are adjusted manually with the thumbscrews on the head.
Z-height
Light
Probe
Z motor
thumb screws
