Thiele Asian Electron PSW1500W Series User manual

Asian Electron Co., Ltd.
PSW1500W / PSW2000W Series
Pure Sine Wave Inverter
Instruction Manual
YOUR CONNECTION TO SAFETY
Thiele KG • Vorderer Weinberg 26 • D-71522 Backnang • Tel.: [phone] • Fax.: [phone] • [email protected] • www.thiele-kg.de
Thiele KG • Vorderer Weinberg 26 • D-71522 Backnang • Tel.: [phone] • Fax.: [phone] • [email protected] • www.thiele-kg.de
YOUR CONNECTION TO SAFETY
klick to
www
u-s-v
YOUR CONNECTION TO SAFETY
klick to
www
ACDC-DCDC
YOUR CONNECTION TO SAFETY
klick to
www
SYSTEME
YOUR CONNECTION TO SAFETY
klick to
www
CONTACT
YOUR CONNECTION TO SAFETY
klick to
www
CALLBACK

1
List of Contents
1. Features
1-1
Application
2
1-2
Electrical performance
3
1-3
Mechanical drawings
5
2. Introduction
2-1
Front panel operations
6
2-2
Rear panel operations
7
2-3
Installation
9
2-4
Quick hook – up and testing
10
2-5
AC safety grounding
11
2-6
Making DC wiring connections
12
2-7
Inverter operation
13
2-8
Cooling fan working code
16
3.
Maintenance
16
4.
Troubleshooting guide
16
5.
Warranty
17
6.
Important safety striations
6-1
General safety precautions
17
6-2
Precautions when working with batteries
17
7.
Appendices A
7-1
Dip switch
18
7-2
Tune VR
18
8.
Appendices B
8-1
Powering saving mode
18
YOUR CONNECTION TO SAFETY
Thiele KG • Vorderer Weinberg 26 • D-71522 Backnang • Tel.: [phone] • Fax.: [phone] • [email protected] • www.thiele-kg.de
Thiele KG • Vorderer Weinberg 26 • D-71522 Backnang • Tel.: [phone] • Fax.: [phone] • [email protected] • www.thiele-kg.de
YOUR CONNECTION TO SAFETY
klick to
www
u-s-v
YOUR CONNECTION TO SAFETY
klick to
www
ACDC-DCDC
YOUR CONNECTION TO SAFETY
klick to
www
SYSTEME
YOUR CONNECTION TO SAFETY
klick to
www
CONTACT
YOUR CONNECTION TO SAFETY
klick to
www
CALLBACK

2
1. Features
 Pure sine wave output (THD < 3%) R Load
 Output frequency : 50 / 60Hz switch
 Low powerȸPower Saving Modeȹto conserve energy
 RS – 232C interface / remote control port / wire connection to PC
 Wired remote control
 Loading and Temperature controlled cooling fan
 Advanced microprocessor
 Protection: Input Undervoltage
Input Overvoltage
Overload
Short circuit
Low battery alarm
Over temperature
1-1 Utilities Application
1-1-1 Power tools – circular saws, drills, grinders, sanders, buffers, weed and hedge trimmers,
air compressors.
1-1-2 Office equipment – computers, printers, monitors, facsimile machines, scanner.
1-1-3 Household items – vacuum cleaners, fans, fluorescent and incandescent lights, shavers,
sewing machines.
1-1-4 Kitchen appliances – microwave ovens, refrigerators and freezers, coffee makers,
blenders, ice markers, toasters.
1-1-5 Industrial equipment – metal halide lamp, high – pressure sodium lamp.
1-1-6 Home entertainment electronics – television, VCRs, video games, stereos, musical
instruments, satellite equipment.
YOUR CONNECTION TO SAFETY
Thiele KG • Vorderer Weinberg 26 • D-71522 Backnang • Tel.: [phone] • Fax.: [phone] • [email protected] • www.thiele-kg.de
Thiele KG • Vorderer Weinberg 26 • D-71522 Backnang • Tel.: [phone] • Fax.: [phone] • [email protected] • www.thiele-kg.de
YOUR CONNECTION TO SAFETY
klick to
www
u-s-v
YOUR CONNECTION TO SAFETY
klick to
www
ACDC-DCDC
YOUR CONNECTION TO SAFETY
klick to
www
SYSTEME
YOUR CONNECTION TO SAFETY
klick to
www
CONTACT
YOUR CONNECTION TO SAFETY
klick to
www
CALLBACK

3
1-2 Electrical PerformanceǺ
Ǻ
1500W
Specification
Model
Item
YK-
PSW12150
YK-
PSW24150
YK-
PSW48150
YK-
PSW12150E
YK-
PSW24150E
YK-
PSW48150E
Continuous Output Power
1500W
Maximum Output Power
1650W(3mins)
Surge Rating
3000W
Input Voltage
12V
24V
48V
12V
24V
48V
Input Voltage Range
10-16VDC
20-32VDC
42-62VDC
10-16VDC
20-32VDC
42-62VDC
Dc Input over voltage
alarm
15.5VDC
31VDC
61VDC
15.5VDC
31VDC
61VDC
Dc Input over voltag
e shut-
down
16.0VDC
32.0VDC
62.0VDC
16.0VDC
32.0VDC
62.0VDC
Dc Input under voltage alarm
10.5VDC
21.0VDC
43.0VDC
10.5VDC
21.0VDC
43.0VDC
Dc Input under voltage
shut-down
10.0VDC
20.0VDC
4
2
.0VDC
10.0
VDC
20
.0VDC
42
.0VDC
Frequency 50/60Hz s 0.05%( Switch Selectable)
Peak Output Current
25A
11A
Efficiency (full load)
86%
88%
89%
87%
90%
92%
No Load Current Draw
1.2A
0.55A
0.3A
1.6A
0.7A
0.36A
Stand by Current Draw
ู1.5W Power Saving Mode
Output Waveform
R Load Pure Sine Wave <3% THD
ġ
Output Voltage adjustment
100 ~120V (Tune VR)
200 ~ 240V (Tune VR)
Protection
Overload, Short Circuit, Reverse Polarity (fuse), Input Undervoltage,
Input Overvoltage, Over Temperature
Digital Display
OVP, UVP, OTP, OLP, VAC, AMP, WATT, VDC, TEMP, Hz
Safety
EN60950-1
EMC FCC Class B
EN55022:2010 /AC:2011 (Class B)
EN55024: 2010
EN61000
-3-
2: 2006+A1:2009+A2:2009
EN61000
-3-3: 2013
IEC 61000
-4-2:2008
IEC61000
-4-3:2006+A1:
2007+A2:2010
IEC61000
-4-4:2012
IEC61000
-4-6:2008
IEC61000
-4-8:2009
E-Mark
E9-10R-
02,6033
Power Saving Recovery Time
8 Seconds
Interface Control Port
RS-232C With Baud Rate 2400, 4800,9600,19200 (Switch Selectable)
Operating Temperature Range
-20ഒ to 50ഒ
Storage Temperature Range
-30ഒ to 70ഒ
Cooling
Loading and Temperature controlled cooling fan
Dimensions 388(L) 278(W) 102(H) mm
Weight
7.2kgs
YOUR CONNECTION TO SAFETY
Thiele KG • Vorderer Weinberg 26 • D-71522 Backnang • Tel.: [phone] • Fax.: [phone] • [email protected] • www.thiele-kg.de
Thiele KG • Vorderer Weinberg 26 • D-71522 Backnang • Tel.: [phone] • Fax.: [phone] • [email protected] • www.thiele-kg.de
YOUR CONNECTION TO SAFETY
klick to
www
u-s-v
YOUR CONNECTION TO SAFETY
klick to
www
ACDC-DCDC
YOUR CONNECTION TO SAFETY
klick to
www
SYSTEME
YOUR CONNECTION TO SAFETY
klick to
www
CONTACT
YOUR CONNECTION TO SAFETY
klick to
www
CALLBACK

4
Electrical PerformanceǺ
Ǻ
2000W
Specification
Model
Item
YK
-
PSW
12200
YK
-
PSW
24200
YK
-
PSW
48200
YK
-
PSW
110200
YK
-
PSW
220200
YK
-
PSW
12200E
YK
-
PSW
24200E
YK
-
PSW
48200E
YK
-
PSW
110200E
YK
-
PSW
220200E
Continuous Output Power
2000W
Maximum Output Power
2300W (3mins)
Surge Rating
4000W
Input Voltage
12V
24V
48V
110V
220V
12V
24V
48V
110V
220V
Input Voltage Range
10-
16
VDC
20-
32
VDC
42-
62
VDC
90
-
140
VDC
180
-
275
VDC
10-
16
VDC
20-
32
VDC
42-
62
VDC
90
-
140
VDC
180-275
VDC
DC Input over voltage
alarm
15.5VDC
31VDC
61VDC
135VDC
270VDC
15.5VDC
31VDC
61VDC
135VDC
270VDC
D
C Input over voltage shut-
down
16
.0
VDC
32.0VDC
62
.0
VDC
140VDC
275VDC
16
.0
VDC
32.0VDC
62
.0
VDC
140VDC
275VDC
DC
Input under voltage alarm
10.
5
VDC
21.0VDC
43.0VDC
95VDC
185VDC
10.
5
VDC
21.0VDC
43.0VDC
95VDC
185VDC
D
C Input under voltage shut-
down
10.0VDC
20.0VDC
42.0VDC
90VDC
180VDC
10.0VDC
20.0VDC
42.0VDC
90VDC
180VDC
Output Voltage adjustment
100 ~120V (Tune VR)
200 ~ 240V (Tune VR)
Frequency 50/60Hz
s
0.05% ( Switch Selectable)
Peak Output Current
36A
18A
Efficiency (full load)
86%
88%
89%
94%
94%
87%
90%
92%
94%
94%
No Load Current Draw
1.25A
0.56A
0.32A
0.38A
0.18A
1.79A
0.87A
0.40A
0.40A
0.20A
Stand by Current Draw
ู1.5W Power Saving Mode
Output Waveform
R Load Pure Sine Wave < 3% THD
Protection
Overload, Short Circuit, Reverse Polarity (Fuse), Input Undervoltage, Input
Overvoltage, Over Temperature
Digital Display
OVP, UVP, OTP, OLP, VAC, AMP, WATT, VDC, TEMP, Hz
Safety
EN60950-1
EMC FCC Class A
EN55022:2010 +AC:2011, Class A
EN55024: 2010
EN61000
-3-2: 2006+A2:2009
EN61000
-3-3: 2013
Power Saving Recovery Time
8 seconds
Interface Control Port
RS-232C With Baud Rate 2400, 4800,9600,19200 (Switch Selectable)
Remote Control Unit
Optional (RF Remote Control) or (wire Control)
Operating Temperature Range
-20ഒ to 50ഒ
Storage Temperature Range
-30ഒ to 70ഒ
Cooling
Loading and Temperature controlled cooling fan
Dimensions
388(L) 278(W) 102(H) mm
Weight
7.2kgs
Note: The specifications are subject to change without notice.
YOUR CONNECTION TO SAFETY
Thiele KG • Vorderer Weinberg 26 • D-71522 Backnang • Tel.: [phone] • Fax.: [phone] • [email protected] • www.thiele-kg.de
Thiele KG • Vorderer Weinberg 26 • D-71522 Backnang • Tel.: [phone] • Fax.: [phone] • [email protected] • www.thiele-kg.de
YOUR CONNECTION TO SAFETY
klick to
www
u-s-v
YOUR CONNECTION TO SAFETY
klick to
www
ACDC-DCDC
YOUR CONNECTION TO SAFETY
klick to
www
SYSTEME
YOUR CONNECTION TO SAFETY
klick to
www
CONTACT
YOUR CONNECTION TO SAFETY
klick to
www
CALLBACK

5
1-3 Mechanical Drawings
1500W & 2000W
YOUR CONNECTION TO SAFETY
Thiele KG • Vorderer Weinberg 26 • D-71522 Backnang • Tel.: [phone] • Fax.: [phone] • [email protected] • www.thiele-kg.de
Thiele KG • Vorderer Weinberg 26 • D-71522 Backnang • Tel.: [phone] • Fax.: [phone] • [email protected] • www.thiele-kg.de
YOUR CONNECTION TO SAFETY
klick to
www
u-s-v
YOUR CONNECTION TO SAFETY
klick to
www
ACDC-DCDC
YOUR CONNECTION TO SAFETY
klick to
www
SYSTEME
YOUR CONNECTION TO SAFETY
klick to
www
CONTACT
YOUR CONNECTION TO SAFETY
klick to
www
CALLBACK

6
2. Introduction
The power inverter series are the member of the most advanced line of mobile AC power
systems available.
To get the most out of the power inverter, it must be installed and used properly.
Please read the instructions in this manual before installing and using this model.
2-1 Front Panel Operation

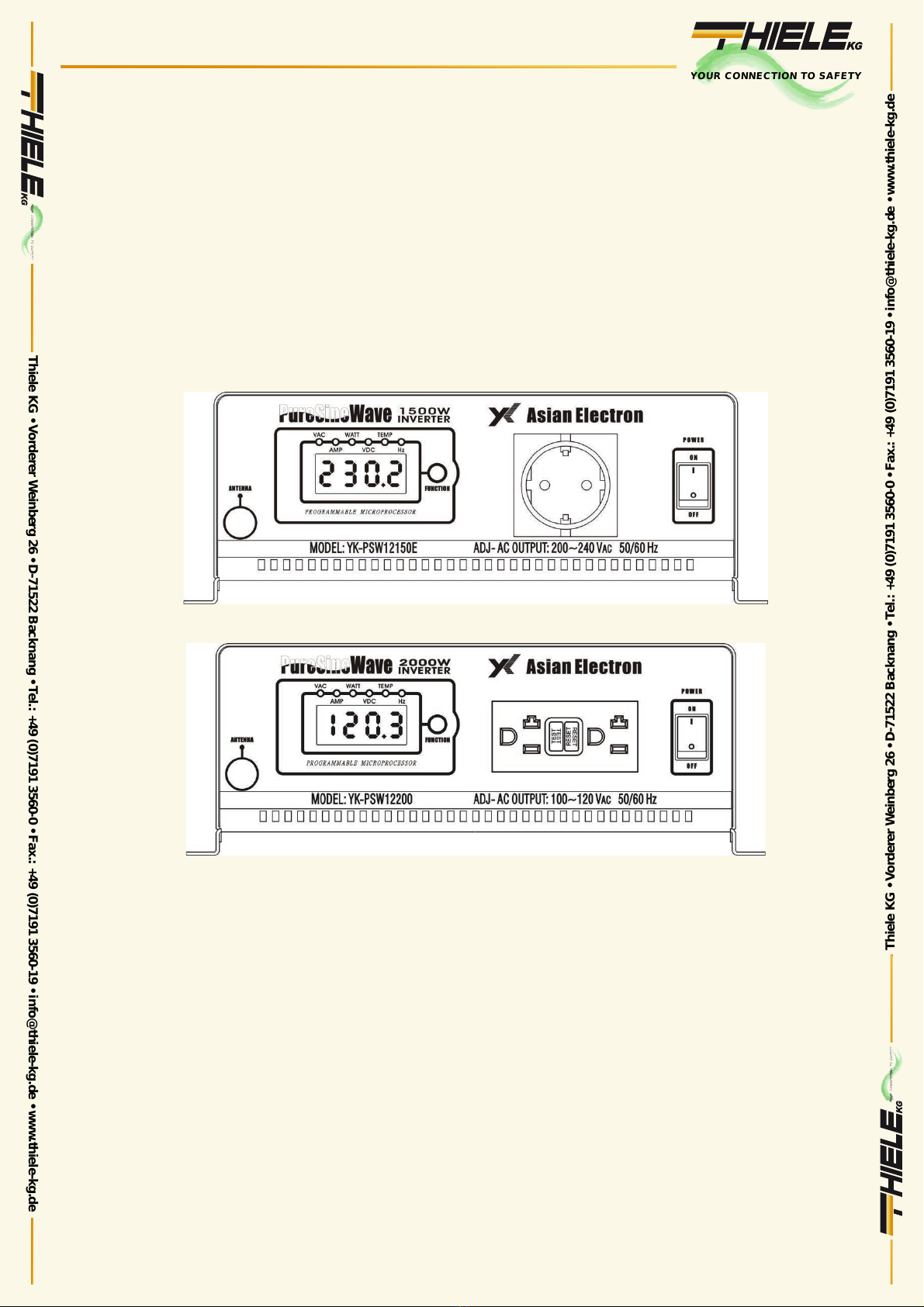

2-1-1 Front view:
2-1-2 ON / OFF switch:
Power ON / OFF switch, leave in the OFF position during installation.
2-1-3 Function key
When sequentially push “Function Key”, it will display various status on the function
screen, such as VAC, Amp, watts… and so on.
When malfunction is occurred, its display will be flashed on the screen.
YOUR CONNECTION TO SAFETY
Thiele KG • Vorderer Weinberg 26 • D-71522 Backnang • Tel.: [phone] • Fax.: [phone] • [email protected] • www.thiele-kg.de
Thiele KG • Vorderer Weinberg 26 • D-71522 Backnang • Tel.: [phone] • Fax.: [phone] • [email protected] • www.thiele-kg.de
YOUR CONNECTION TO SAFETY
klick to
www
u-s-v
YOUR CONNECTION TO SAFETY
klick to
www
ACDC-DCDC
YOUR CONNECTION TO SAFETY
klick to
www
SYSTEME
YOUR CONNECTION TO SAFETY
klick to
www
CONTACT
YOUR CONNECTION TO SAFETY
klick to
www
CALLBACK

7
2-1-4 AC outlet (Outlet sockets available):
2-2 Rear Panel Operation:
2-2-1 Ventilation openings:
Do not obstruct. Allow at least 3 inch for airflow.

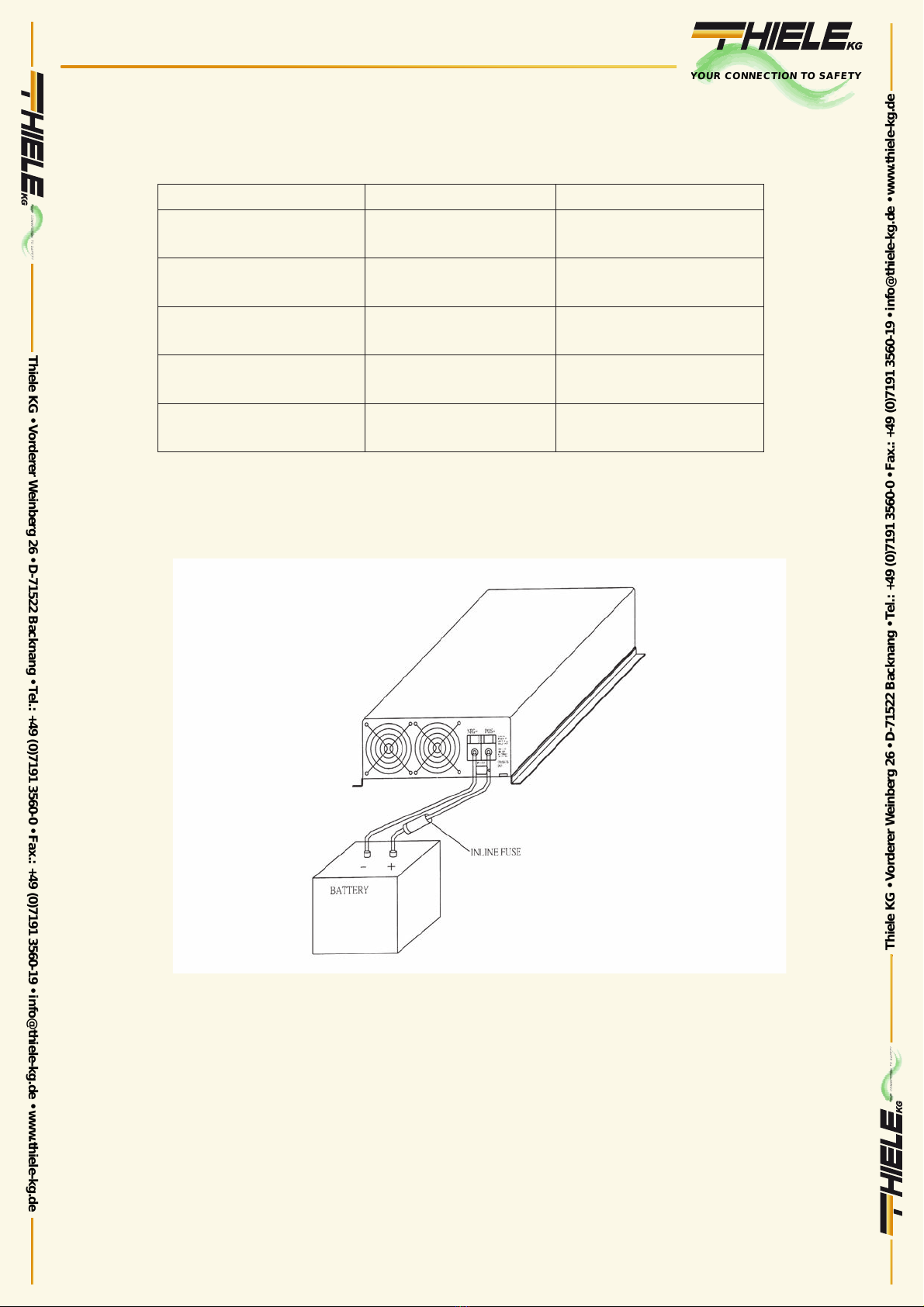

2-2-2 Battery terminals:
Connect to 12Vdc / 24Vdc / 48Vdc/110Vdc /220Vdc battery or other 12Vdc / 24Vdc /
48Vdc/ 110Vdc / 220Vdc power source.
Ȝɠȝis positive;Ȝɡȝis negative. Reversing polarity connection will blow internal
fuse and may damage inverter permanently.
YOUR CONNECTION TO SAFETY
Thiele KG • Vorderer Weinberg 26 • D-71522 Backnang • Tel.: [phone] • Fax.: [phone] • [email protected] • www.thiele-kg.de
Thiele KG • Vorderer Weinberg 26 • D-71522 Backnang • Tel.: [phone] • Fax.: [phone] • [email protected] • www.thiele-kg.de
YOUR CONNECTION TO SAFETY
klick to
www
u-s-v
YOUR CONNECTION TO SAFETY
klick to
www
ACDC-DCDC
YOUR CONNECTION TO SAFETY
klick to
www
SYSTEME
YOUR CONNECTION TO SAFETY
klick to
www
CONTACT
YOUR CONNECTION TO SAFETY
klick to
www
CALLBACK

8
WARNING!
Do not connect the 12V model to a 24V or 48V battery. The
unit will be destroyed immediately.
2-2-3 RS-232
Connect to remote control unit (option accessory) or connect to computer to remote
control working status.
YOUR CONNECTION TO SAFETY
Thiele KG • Vorderer Weinberg 26 • D-71522 Backnang • Tel.: [phone] • Fax.: [phone] • [email protected] • www.thiele-kg.de
Thiele KG • Vorderer Weinberg 26 • D-71522 Backnang • Tel.: [phone] • Fax.: [phone] • [email protected] • www.thiele-kg.de
YOUR CONNECTION TO SAFETY
klick to
www
u-s-v
YOUR CONNECTION TO SAFETY
klick to
www
ACDC-DCDC
YOUR CONNECTION TO SAFETY
klick to
www
SYSTEME
YOUR CONNECTION TO SAFETY
klick to
www
CONTACT
YOUR CONNECTION TO SAFETY
klick to
www
CALLBACK

9
WARNING!
Any damages caused by using incorrect RS232
cable wil
l be
outside of our
warranty
scope. If you are not sure which one
is correct RS232 cable, please purchase the correct RS232
cable from us directly.
2-2-4 Connect chassis ground terminal to earth or to vehicle chassis using # 8 AWG wire.
WARNING!
Operation of the inverter without a proper ground
, c
onnection
may result in an electrical safety h
azard.
WARNING!
Shock Hazard. Before proceeding further, carefully check the
inverter is NOT connected to any batteries,
and that all wiring
is
disconnected from any electrical
sources. Do not connect
the output terminals of the
inverter to an incoming
AC source.
2-3 Installation:
Where to installǺ
The power inverter should be installed in a location that meets the following requirements.
2-3-1 Dry – Do not allow water to drip or splash on the inverter.
2-3-2 Cool – Ambient air temperature should be between -20°C and 50°C, the cooler the better.
2-3-3 Safe – Do not install in a battery compartment or other areas where flammable fumes may
exist, such as fuel storage areas or engine compartments.
2-3-4 Ventilated – Allow at least 3 inch of clearance around the inverter for airflow. Ensure the
ventilation openings on the rear and bottom of the unit are not obstructed.
2-3-5 Dust-free – Do not install the inverter in a dusty environments where are dust, wood
particles or other filings/shavings.
These dusts can be pulled into the unit when the cooling fan is operating.
2-3-6 Close to batteries – Avoid excessive cable lengths but do not install the inverter in the
same compartment as batteries.
Use the recommended wire lengths and sizes (see section 2-6).
Also do not mount the inverter where it will be exposed to the gases produced by the
battery. These gases are very corrosive and prolonged exposure that will damage the
inverter.
YOUR CONNECTION TO SAFETY
Thiele KG • Vorderer Weinberg 26 • D-71522 Backnang • Tel.: [phone] • Fax.: [phone] • [email protected] • www.thiele-kg.de
Thiele KG • Vorderer Weinberg 26 • D-71522 Backnang • Tel.: [phone] • Fax.: [phone] • [email protected] • www.thiele-kg.de
YOUR CONNECTION TO SAFETY
klick to
www
u-s-v
YOUR CONNECTION TO SAFETY
klick to
www
ACDC-DCDC
YOUR CONNECTION TO SAFETY
klick to
www
SYSTEME
YOUR CONNECTION TO SAFETY
klick to
www
CONTACT
YOUR CONNECTION TO SAFETY
klick to
www
CALLBACK

10
2-4 Quick Hook – Up and Testing:
2-4-1 Unpack and inspect the power inverter, check to see that the power switch in the OFF
position.
2-4-2 Connect the cables to the power input terminals on the rear panel of power inverter.
The red terminal is positive (+) and black terminal is negative (-).
Insert the cables into the terminals and tighten relative nut to clamp the wires securely.
WARNING!
You may observe a spark when you make this connection
since current may
flow to charge capacitors in the power
inverter.
Do not make this connection in the presence of
f
lammable
fumes.
Explosion or fire may result.
WARNING!
Make sure all the DC connections are tight (torque to 9-10
ft-lbs, 11.7
-
13Nm). Loose connections will overheat and could
result in a potential hazard.
2-4-3 Before proceeding further, carefully check that cable you have just connected negative
terminal of inverter to the negative output power source.
CAUTION!
Reverse
polarity connection will blow a fuse in inverter and
may permanently damage
the inverter.
Damage caused by reversing polarity connection is not
covered by our warranty.
2-4-4 Connect the cable from the positive terminal of the inverter to the positive terminal of the
power source. Make a secure connection.
WAR
NING!
You may observe a spark when you make this connection
since current may flow to charge capacitors in the power
inverter.
Do not make this connection in the presence of
flammable
fumes. Explosio
n or fire may result.
YOUR CONNECTION TO SAFETY
Thiele KG • Vorderer Weinberg 26 • D-71522 Backnang • Tel.: [phone] • Fax.: [phone] • [email protected] • www.thiele-kg.de
Thiele KG • Vorderer Weinberg 26 • D-71522 Backnang • Tel.: [phone] • Fax.: [phone] • [email protected] • www.thiele-kg.de
YOUR CONNECTION TO SAFETY
klick to
www
u-s-v
YOUR CONNECTION TO SAFETY
klick to
www
ACDC-DCDC
YOUR CONNECTION TO SAFETY
klick to
www
SYSTEME
YOUR CONNECTION TO SAFETY
klick to
www
CONTACT
YOUR CONNECTION TO SAFETY
klick to
www
CALLBACK

11
2-4-5 Set the power switch to the ON position; you will hear the “bi-bi-bi” sound. At the same
time, the display shows the word “ASIAN” for two times. After that, you will hear the
continuous sound from internal alarm. Then, the AC voltage shows on the display. It
means the device has done the operation.
2-4-6 Set the power switch to the OFF position; the device shuts down completely.
2-4-7 Please use a power meter to accurately measure the true output R.M.S. voltage of
inverter.
Our company uses a power meter such as IDRC CP-350 or ABM 2019 to measure our
product.
2-5 AC Safety Grounding:
The AC output ground wire should go to the grounding point for your loads (for example, a
distribution panel ground bus).
2-5-1 Neutral grounding (GFCI’s):
2-5-1.1 120V Models:
The neutral conductor of the AC output circuit of the inverter is automatically
connected to the safety ground during inverter operation. According to National
Electrical Code requirements that separately derived AC sources (such as
inverter and generators) have their neutral conductors tied to ground in the same
way that the neutral conductor from the utility is tied to ground at the GFCI
breaker panel. For models configured with a transfer relay, while AC utility power
is presenting and the inverter is in bypass mode, this connection (neutral of the
inverter’s AC output to input safety ground) is not present so that the utility
neutral is only connected to ground at your breaker panel, as required.
2-5-1.2 230V Models:
There is no connection made inside the inverter from either the line or neutral
conductor to the safety ground.
Ground Fault Circuit Interrupters (GFCI’S):
Installations in Recreational Vehicles (for North American approvals) will require GFCI
protection of all branch circuit connected to the AC output of the hardwire terminal
equipped inverter. In addition, electrical codes require GFCI protection of certain
receptacles in residential installations. While the pure sine wave output of the inverter is
equivalent to the waveform provided by utilities, compliance with UL standards requires us
to test and recommend specific GFCI. Our company has tested the following
GFCI-protected 20A receptacles and found that they functioned properly when connected
to the output of the inverter.
YOUR CONNECTION TO SAFETY
Thiele KG • Vorderer Weinberg 26 • D-71522 Backnang • Tel.: [phone] • Fax.: [phone] • [email protected] • www.thiele-kg.de
Thiele KG • Vorderer Weinberg 26 • D-71522 Backnang • Tel.: [phone] • Fax.: [phone] • [email protected] • www.thiele-kg.de
YOUR CONNECTION TO SAFETY
klick to
www
u-s-v
YOUR CONNECTION TO SAFETY
klick to
www
ACDC-DCDC
YOUR CONNECTION TO SAFETY
klick to
www
SYSTEME
YOUR CONNECTION TO SAFETY
klick to
www
CONTACT
YOUR CONNECTION TO SAFETY
klick to
www
CALLBACK

12
WARNING!
Do not operate the power inverter without connecting it to
Ground.
Electrical shock hazard may result.
2-6 Making DC Wiring Connections:
Follow this procedure to connect the battery cables to the DC input terminals on the inverter.
Your cables should be as short as possible (ideally, less than 10 feet / 3 meters) and large
enough to handle the required current in accordance with the electrical codes or regulations
applicable to your installation.
Cables that are not an adequate gauge (too narrow) or are too long will cause decreased
inverter performance such as poor surge capability and frequent low input voltage warnings and
shutdowns.
These low input voltage warnings are due to DC voltage drop across the cables from the inverter
to the batteries.
The longer and narrower these cables, the greater the voltage drop.
WARNING!
The installation of a fuse must be on positive cable.
Failure to place a fuse on “+ “cables running between the
inverter and battery may cause
damage to the inverter and
will
void warranty.
Increasing your DC cable size will help improve the situation.
Our company recommends the following cables for optimum inverter performance (apply both
120V and 230V versions)
1500W
Model No
Wire AWG
Inline Fuse
YK-PSW12150
YK-PSW12150E
#2 200A
YK-PSW24150
YK-PSW24150E
#4 100A
YK-PSW48150
YK-PSW48150E
#6 50A
YOUR CONNECTION TO SAFETY
Thiele KG • Vorderer Weinberg 26 • D-71522 Backnang • Tel.: [phone] • Fax.: [phone] • [email protected] • www.thiele-kg.de
Thiele KG • Vorderer Weinberg 26 • D-71522 Backnang • Tel.: [phone] • Fax.: [phone] • [email protected] • www.thiele-kg.de
YOUR CONNECTION TO SAFETY
klick to
www
u-s-v
YOUR CONNECTION TO SAFETY
klick to
www
ACDC-DCDC
YOUR CONNECTION TO SAFETY
klick to
www
SYSTEME
YOUR CONNECTION TO SAFETY
klick to
www
CONTACT
YOUR CONNECTION TO SAFETY
klick to
www
CALLBACK

13
2000W
Model No
Wire AWG
Inline Fuse
YK-PSW12200
YK-PSW12200E
#2/0 250A
YK-PSW24200
YK-PSW24200E
#1/0 125A
YK-PSW48200
YK-PSW48200E
#2 70A
YK-PSW110200
YK-PSW110200E
#8 25A
YK-PSW220200
YK-PSW220200E
#16 15A
Also, use only high quality copper wiring and keep cable length short from 3-6 feet.
1500W & 2000W
2-7 Inverter Operation:
To operate the power inverter, turn it on using the ON/OFF switch on the front panel.
The power inverter is now ready to deliver AC power to your loads.
If you are operating several loads from the power inverter, turn them on separately after the
inverter has been turned on.
This will ensure that the power inverter does not have to deliver the starting currents for all the
loads at once.
YOUR CONNECTION TO SAFETY
Thiele KG • Vorderer Weinberg 26 • D-71522 Backnang • Tel.: [phone] • Fax.: [phone] • [email protected] • www.thiele-kg.de
Thiele KG • Vorderer Weinberg 26 • D-71522 Backnang • Tel.: [phone] • Fax.: [phone] • [email protected] • www.thiele-kg.de
YOUR CONNECTION TO SAFETY
klick to
www
u-s-v
YOUR CONNECTION TO SAFETY
klick to
www
ACDC-DCDC
YOUR CONNECTION TO SAFETY
klick to
www
SYSTEME
YOUR CONNECTION TO SAFETY
klick to
www
CONTACT
YOUR CONNECTION TO SAFETY
klick to
www
CALLBACK

14
2-7-1 Controls and indicators:
The ON / OFF switch turns the control circuit in the power inverter on and off.
The inverter operates from an input voltage range:
10.0 to 16.0 VDC for 12V models
20.0 to 32.0 VDC for 24V models
42.0 to 62.0 VDC for 48V models
90.0 to 140 VDC for 110V models
180 to 275 VDC for 220V models
The inverter will indicate high and low DC voltage conditions as follows:
Model
DC
Input
Over Voltage
Shut-
down
DC
Input
Over Voltage
Alarm
DC
Input
Under
V
oltage
Alarm
DC
Input
Under
V
oltage
Shut-
down
YK
-
PSW12150
YK
-
PSW12150E
YK-PSW12
200
YK-PSW1220
0E
16.0
VDC
15.5VDC
10.5
VDC
10.0
VDC
YK
-
PSW24150
YK
-
PSW24150E
YK-PSW24
200
YK-PSW2420
0E
32.0
VDC
31.0VDC
21.0
VDC
20
.0VDC
Y
K-
PSW48150
YK
-
PSW48150E
YK-PSW48
200
YK-PSW4820
0E
62.0
VDC
61.0VDC
43.0
VDC
42
.0VDC
---------
YK-PSW
110200
YK
-PSW
110200E
140VDC 135VDC 95VDC 90VDC
----------
YK-PSW
220200
YK
-PSW
220200E
275VDC 270VDC 185VDC 180VDC
2-7-2 Output Voltage indicator:
LED displays light on VAC as show as output voltage value
2-7-3 Output Current indicator
LED displays light on AMP as show as output current value
2-7-4 Output Watts indicator
LED displays light on Watts as show as output watts value
2-7-5 Input DC Voltage indicator
LED displays light on VDC as show as input DC voltage value
2-7-6 Temperature indicator
LED displays light on TEMP as show as internal operating temperature value
YOUR CONNECTION TO SAFETY
Thiele KG • Vorderer Weinberg 26 • D-71522 Backnang • Tel.: [phone] • Fax.: [phone] • [email protected] • www.thiele-kg.de
Thiele KG • Vorderer Weinberg 26 • D-71522 Backnang • Tel.: [phone] • Fax.: [phone] • [email protected] • www.thiele-kg.de
YOUR CONNECTION TO SAFETY
klick to
www
u-s-v
YOUR CONNECTION TO SAFETY
klick to
www
ACDC-DCDC
YOUR CONNECTION TO SAFETY
klick to
www
SYSTEME
YOUR CONNECTION TO SAFETY
klick to
www
CONTACT
YOUR CONNECTION TO SAFETY
klick to
www
CALLBACK

15
2-7-7 Output Frequency AC indicator
LED displays light on Hz as show as output frequency value
Please have the accuracy of 6 functions of display, as below:
Functions
VAC
AMP
WATT
VDC
TEMP
Frequency
Ranges
100-120
VAC
200-240
VAC
0-20A
0-2KW
10-16
VDC
20-32
VDC
42-62
VDC
90-140
VDC
180-275
VDC
0-50°C
50Hz
60Hz
Accuracy
±
1%
±
1%
1% ±
0.5A
± 3%
±
2%
±
2%
±
2%
± 2%
±
2%
± 1%
±0.01
±0.01
2-7-8 Over Voltage Protection indicator: (OVP)
The over voltage indicator indicates that the power inverter has shut itself down
because its input voltage exceeded 12V / 24V / 48VDC version. (Ref. point 2-7-1).
2-7-9 Under Voltage Protection indicator: (UVP)
The under voltage indicator indicates that the power inverter has shut itself down
because its input voltage fell below 12V / 24V / 48VDC. ((Ref. point 2-7-1).
2-7-10 Over Temp Protection indicator: (OTP)
The over temp indicator indicates that the power inverter has shut itself down because its
temperature has become overheated. The power inverter may overheat because it has
been operated at power levels above its rating, or because it has been installed in a
location which does not allow it to dissipate heat properly. The power inverter will
automatically back up, once it has cooled off.
2-7-11 Over Load Protection indicator: (OLP)
The overload indicator indicates that the power inverter has shut itself down. When output
voltage over its continuous voltage, then must return to operate manually.
YOUR CONNECTION TO SAFETY
Thiele KG • Vorderer Weinberg 26 • D-71522 Backnang • Tel.: [phone] • Fax.: [phone] • [email protected] • www.thiele-kg.de
Thiele KG • Vorderer Weinberg 26 • D-71522 Backnang • Tel.: [phone] • Fax.: [phone] • [email protected] • www.thiele-kg.de
YOUR CONNECTION TO SAFETY
klick to
www
u-s-v
YOUR CONNECTION TO SAFETY
klick to
www
ACDC-DCDC
YOUR CONNECTION TO SAFETY
klick to
www
SYSTEME
YOUR CONNECTION TO SAFETY
klick to
www
CONTACT
YOUR CONNECTION TO SAFETY
klick to
www
CALLBACK

16
2-8 Cooling Fan Working Code:
Cooling fan of inverter is through detecting output power and over temperature situation to work.
Regarding the Pure Sine Wave 1500W inverter:
When start to turn on the inverter and output power under 300W, the cooling fan does not start
running. It complies with saving energy sources requirement. Until, output power is up to 300W,
the cooling fan will start to work in order to drop the inner temperature.
Regarding the Pure Sine Wave 2000W inverter:
When start to turn on the inverter and output power under 60W, the cooling fan does not start
running. It complies with saving energy sources requirement. Until, output power is up to 60W,
the cooling fan will start to work in order to drop the inner temperature.
If the ventilation opening is obstructed, the inverter will enter Over Temperature Protection mode
(OTP). The cooling fan will continue working to drop the inner temperature. When the
temperature comes down to normal situation, the inverter will turn on automatically.
3. Maintenance:
Very little maintenance is required to keep your inverter operating properly.
You should clean the exterior of the unit periodically with a dry cloth to prevent accumulation of
dust and dirt. At the same time, tighten the screws on the DC input terminals.
4. Troubleshooting Guide:
WARNING!
Do not open or disassemble the inverter. Attempting to service
the unit yourself may result in a risk of electrical shock or fire.
Problem and Symptom
Possible Cause
Solution
Low output voltage
(110V: 95
-105VAC
220V: 190-210VAC)
Using average reading
voltmeter
Use true RMS reading meter
and cable
. ( Ref. point 2-4-
7)
Load
display OLP flash
Over load
Reduce load
No output voltage
Fault input voltage
Input Undervoltage
Input Overvoltage
Recharge battery,
check connections and cable.
( Ref. point 2-5 & point 2-6)
No output voltage
Over
temp indicator
Load less than
1300W
(for
1500W models)
Load less than 1700W (for
2000W models)
Input Undervoltage
Input Overvoltage
Improve ventilation
.
Make sure ventilation openings
in inverter are not obstructed.
Reduce ambient temperature.
No output voltage
Over load indicator
Short circuit or wiring error
Very high power load
Check AC wiring for short
circuit or improper polarity
.
(hot
and neutral reversed)
Remove load.
YOUR CONNECTION TO SAFETY
Thiele KG • Vorderer Weinberg 26 • D-71522 Backnang • Tel.: [phone] • Fax.: [phone] • [email protected] • www.thiele-kg.de
Thiele KG • Vorderer Weinberg 26 • D-71522 Backnang • Tel.: [phone] • Fax.: [phone] • [email protected] • www.thiele-kg.de
YOUR CONNECTION TO SAFETY
klick to
www
u-s-v
YOUR CONNECTION TO SAFETY
klick to
www
ACDC-DCDC
YOUR CONNECTION TO SAFETY
klick to
www
SYSTEME
YOUR CONNECTION TO SAFETY
klick to
www
CONTACT
YOUR CONNECTION TO SAFETY
klick to
www
CALLBACK

17
5. Warranty:
We warrant this product against defects in materials and workmanship during warranty period
and will repair or replace any defective power inverter when directly returned (postage paid) to
us.
This warranty will be considered void if the unit has suffered any obvious damage by natural and
man-made factors or alteration either internal or external and does not cover damage arising
from improper use such as plugging the unit into an unsuitable power sources attempts to
operate products with excessive power consumption requirement, or use in unsuitable
environments. This is the only warranty that the company makes.
No other warranties express or imply including warranties of merchantability and fitness for a
particular purpose. Repair and replacement are your sole remedies and the company shall not
be liable for damages, whether direct, incidental, special or consequential, even though caused
by negligence or other fault.
6. Important Safety Instructions:
6-1 General Safety Precautions
6-1-1 Do not expose the inverter to rain, snow, spray, bilge or dust. To reduce risk of hazard, do
not cover or obstruct the ventilation openings. Do not install the inverter in a
zero-clearance compartment. Overheating may result.
6-1-2 To avoid a risk of fire and electronic shock. Make sure that existing wiring is in good
electrical condition; and that wire size is not undersized. Do not operate the inverter with
damaged or substandard wiring.
6-2 Precautions When Working with Batteries
6-2-1 If battery acid contacts skin or clothing, wash immediately with soap and water. If acid
enters eye, immediately flood eye with running cold water for at lease 20 minutes and get
medical attention immediately.
6-2-2 Never smoke or allow a spark or flame in vicinity of battery or engine.
6-2-3 Do not drop a metal tool on the battery. The resulting sparks or short-circuit on the battery
or other electrical part may cause an explosion.
6-2-4 Remove personal metal items such as rings, bracelets, necklaces, and watches when
working with a lead-acid battery.
A lead-acid battery produces a short-circuit current high enough to weld a ring or the like
to metal, causing a severe burn.
WARNING!
Before you install and use your inverter, be to read and save
these safety instructions.
YOUR CONNECTION TO SAFETY
Thiele KG • Vorderer Weinberg 26 • D-71522 Backnang • Tel.: [phone] • Fax.: [phone] • [email protected] • www.thiele-kg.de
Thiele KG • Vorderer Weinberg 26 • D-71522 Backnang • Tel.: [phone] • Fax.: [phone] • [email protected] • www.thiele-kg.de
YOUR CONNECTION TO SAFETY
klick to
www
u-s-v
YOUR CONNECTION TO SAFETY
klick to
www
ACDC-DCDC
YOUR CONNECTION TO SAFETY
klick to
www
SYSTEME
YOUR CONNECTION TO SAFETY
klick to
www
CONTACT
YOUR CONNECTION TO SAFETY
klick to
www
CALLBACK

18
7. Appendices A
7-1 Dip Switch (at the left side of inverter)
S1
FREQ. (Hz)
S2
S3
BAUD RATE
S4
POWER SAVING
ACV-ADJ
ON
60
ON
ON
2400
ON
DISABLE
H--------L
240V 200V
OFF
50
OFF
ON
4800
OFF
ENABLE
H--------L
120V 100V
----
----
ON
OFF
9600
----
----- ----
----
----
OFF
OFF
19200
----
----- ----
S1 (FREQ. Hz) – 50Hz/60Hz
S2 S3 (BAUD RATE) – 2400 / 4800 / 9600 / 19200
S4 Power Saving Mode – Disable / Enable
When you set up S1~S4, please reset the inverter and let update data through CPU.
7-2 AC Output Voltage Tune (VR)
Tune VR (VAC) output voltage from 100 – 120 VAC or 200 – 240 VAC
The VAC value will gradually increase; tune VR from right to left.
8. Appendices B
8-1 Power Saving Mode
MICROPROCESSOR BASED SINE WAVE INVERTER SERIES ENABLING AND DILSABLING
POWER SAVING MODE
8-1-1 When an inverter is powered on and is running in idle condition (there is no load or the
load connected to the inverter has been switched off), it will still draw some power from the
batteries for keeping the system alive.
8-1-2 This inverter features a power saving “sleep“mode for conserving the battery power during
idle conditions. When this mode is enabled, the inverter senses the output power being
drawn and if this is less than 2 to 15 watts, the inverter shuts down the output power. Only
essential systems are kept alive to reduce power consumption from the batteries to a very
low value of only about 1.5 watts. As soon as a load is switched on, the inverter wakes up
from its “sleep” condition and restores the output power after a response time of about 8
seconds. Please note that on waking up from the power saving “sleep” mode, the inverter
requires some time to prepare all the systems before it can start delivering power to the
load. Hence, the output power will not be available immediately but after a time lag of
approx. 15 to 18 sec.
If using a hand tool or other appliance with a trigger, keep the trigger pressed for some
time till the power is available to drive the tool / appliance.
RE-MARK:
The user manual is subject to change without notice.
YOUR CONNECTION TO SAFETY
Thiele KG • Vorderer Weinberg 26 • D-71522 Backnang • Tel.: [phone] • Fax.: [phone] • [email protected] • www.thiele-kg.de
Thiele KG • Vorderer Weinberg 26 • D-71522 Backnang • Tel.: [phone] • Fax.: [phone] • [email protected] • www.thiele-kg.de
YOUR CONNECTION TO SAFETY
klick to
www
u-s-v
YOUR CONNECTION TO SAFETY
klick to
www
ACDC-DCDC
YOUR CONNECTION TO SAFETY
klick to
www
SYSTEME
YOUR CONNECTION TO SAFETY
klick to
www
CONTACT
YOUR CONNECTION TO SAFETY
klick to
www
CALLBACK
