Thies CLIMA Compact WSC11 User manual

Weather Station Compact WSC11
Short - Instruction for Use
4.9056.10.00x, 4.9056.10.701, 4.9056.10.801
from software version V3.00 Status: 03/2021
Dok. No. 021948/10/21
T H E W O R L D O F W E A T H E R D A T A

© Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 021948/10/21
Phone [phone] · Fax [phone] · inf[email protected] · www.thiesclima.com 2 - 14
Safety Instructions
•Before operating with or at the device/product, read through the operating instructions.
This manual contains instructions which should be followed on mounting, start-up, and operation.
A non-observance might cause:
- failure of important functions
- endangerment of persons by electrical or mechanical effect
- damage to objects
•
Mounting, electrical connection and wiring of the device/product must be carried out only by a qualified
technician who is familiar with and observes the engineering regulations, provisions and standards ap-
plicable in each case.
•Repairs and maintenance may only be carried out by trained staff or Adolf Thies GmbH & Co. KG.
Only components and spare parts supplied and/or recommended by Adolf Thies GmbH & Co. KG
should be used for repairs.
•Electrical devices/products must be mounted and wired only in a voltage-free state.
•Adolf Thies GmbH & Co KG guarantees proper functioning of the device/products provided that no
modifications have been made to the mechanics, electronics or software, and that the following points
are observed:
•All information, warnings and instructions for use included in these operating instructions must be
taken into account and observed as this is essential to ensure trouble-free operation and a safe condi-
tion of the measuring system / device / product.
•The device / product is designed for a specific application as described in these operating instructions.
•The device / product should be operated with the accessories and consumables supplied and/or rec-
ommended by Adolf Thies GmbH & Co KG .
•Recommendation: As it is possible that each measuring system / device / product may, under certain
conditions, and in rare cases, may also output erroneous measuring values, it is recommended using
redundant systems with plausibility checks for security-relevant applications.
Environment
•As a longstanding manufacturer of sensors Adolf Thies GmbH & Co KG is committed
to the objectives of environmental protection and is therefore willing to take back all
supplied products governed by the provisions of "ElektroG" (German Electrical and
Electronic Equipment Act) and to perform environmentally compatible disposal and
recycling. We are prepared to take back all Thies products concerned free of charge if
returned to Thies by our customers carriage-paid.
•Make sure you retain packaging for storage or transport of products. Should packag-
ing however no longer be required, please arrange for recycling as the packaging ma-
terials are designed to be recycled.
Documentation
•© Copyright Adolf Thies GmbH & Co KG, Göttingen / Germany
•Although these operating instructions have been drawn up with due care, Adolf Thies GmbH & Co
KG can accept no liability whatsoever for any technical and typographical errors or omissions in this
document that might remain.
•We can accept no liability whatsoever for any losses arising from the information contained in this doc-
ument.
•Subject to modification in terms of content.
•The device / product should not be passed on without the/these operating instructions.

© Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 021948/10/21
Phone [phone] · Fax [phone] · inf[email protected] · www.thiesclima.com 3 - 14
Table of contents
1Device Versions.............................................................................................................. 4
2Installation and Selection of Installation Site ................................................................... 4
2.1 Selection of installation site .......................................................................................4
2.2 Mechanical Mounting.................................................................................................4
2.2.1 North Alignment ................................................................................................. 5
2.3 Electrical Mounting....................................................................................................6
2.3.1 Cable, Cable Preparation, Connector Installation............................................... 6
2.4 Connecting Diagram..................................................................................................8
2.4.1 Connection using 5-core cable 510023 / 510024 / 510197 optional accessory... 8
2.4.2 Connection using 8-core cable 509584 / 509585 optional accessory ................. 9
3Maintenance................................................................................................................... 9
4LED Signals...................................................................................................................10
5Specifications.................................................................................................................11

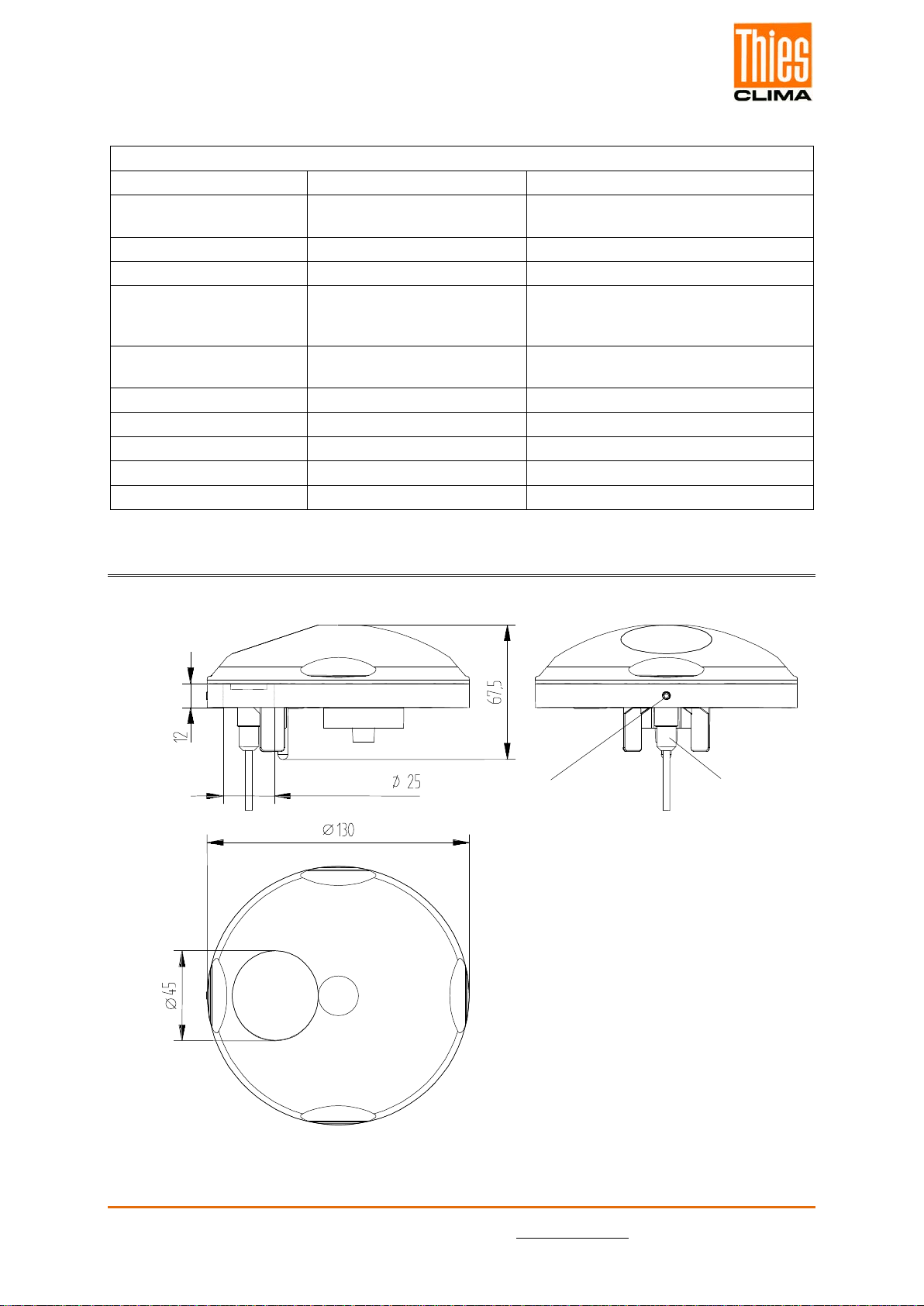

6Dimensional Drawing.....................................................................................................13
7More Information / Documents as download..................................................................14
Figures
Figure 3: LED signals...........................................................................................................10
Short Instructions for use
These short instructions for use describe the installation of the instrument. The detailed in-
structions allow users to modify the factory settings to their needs via the serial interface of
the Weather Station Compact WSC11.
Scope of supply
1 Weather Station Compact WSC11.
1 Copy of the short instructions for uses.
The instructions for use are available for download under the following link:
https://www.thiesclima.com/db/dnl/4.9056.10.x0x_WSC11_eng.pdf
For assisting the parameter settings and/or special configurations there is our cost-free De-
vice Utility Tool art.-no. 9.1700.81.000 available for download on our homepage. Please
download the tool with following link.
Link: https://www.thiesclima.com/de/Download/
In the section "General", the program "Thies Device Utility".

© Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 021948/10/21
Phone [phone] · Fax [phone] · inf[email protected] · www.thiesclima.com 4 - 14
1 Device Versions
Designation Order No. Output
terminal
Data format Operating
voltage
WEATHER STATION
COMPACT WSC11 4.9056.10.000 1 x RS485 Data in ASCII format (command interpreter: THIES) 18...30V DC 18...28V AC
WETTERSTATION
COMPACT WSC11 4.9056.10.001 1 x RS485 Data in binary format (command interpreter: MODBUS RTU) 18...30V DC 18...28V AC
WETTERSTATION
COMPACT WSC11
4.9056.10.701 Identical to 4.9056.10.001 with following special settings:
ID10
WETTERSTATION
COMPACT WSC11 4.9056.10.801 Identical to 4.9056.10.001 with following special settings: BR=192, ID =30, TT=0, SH= 3001
2 Installation and Selection of Installation Site
Please note:
The working position of the COMPACT WSC11 Weather Station is horizontal
(plug connection underneath).
During installation, de-installation, transport or maintenance of the
COMPACT WSC11 Weather Station make sure that no water gets into the de-
vice and connector.
2.1 Selection of installation site
An exposed position should be selected for this site. Measurement properties should not be
influenced by light reflections, cast shadows or the device being positioned in the lee of the
wind. Protection against lightning and overvoltages should also be provided by the customer.

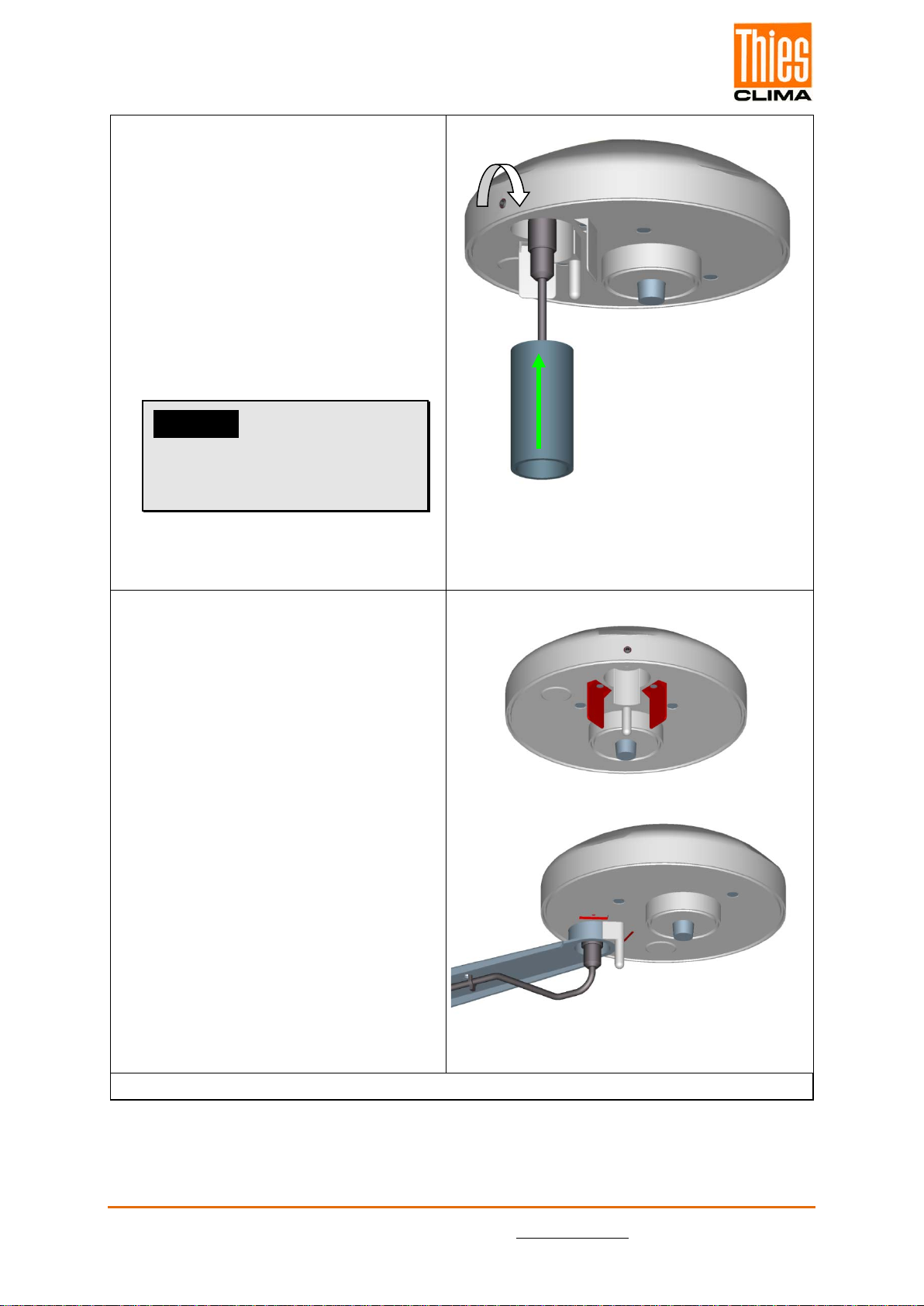

2.2 Mechanical Mounting
The intended installation of the Weather Station WSC11 requires the use of a pipe socket /
pipe with an outside diameter of ≤25mm. The inside diameter must be ≥19mm to admit
the connector and cable.

© Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 021948/10/21
Phone [phone] · Fax [phone] · inf[email protected] · www.thiesclima.com 5 - 14
Tool:
Hexagon socket wrench SW2mm
(socket wrench).
Procedure:
1. Push cable/plug connection
through the bore hole of the mast,
tube, bracket etc.
2. Put WSC11 on mast, tube.
3. Align WSC11 to “north”. (Proce-
dure see chapter 4.2.1).
4. Secure WSC11 by the M4- hexa-
gon socket screw.
Attention:
The hexagon socket screw is
to be tightened by max.
0.6Nm.
When using the
mounting angel article no. 509564 (see
chapter accessories) the guide angles
must be removed, see fig.
The mounting angle is not included in de-
livery.
Remark: Tube and mounting angle are not included in delivery.

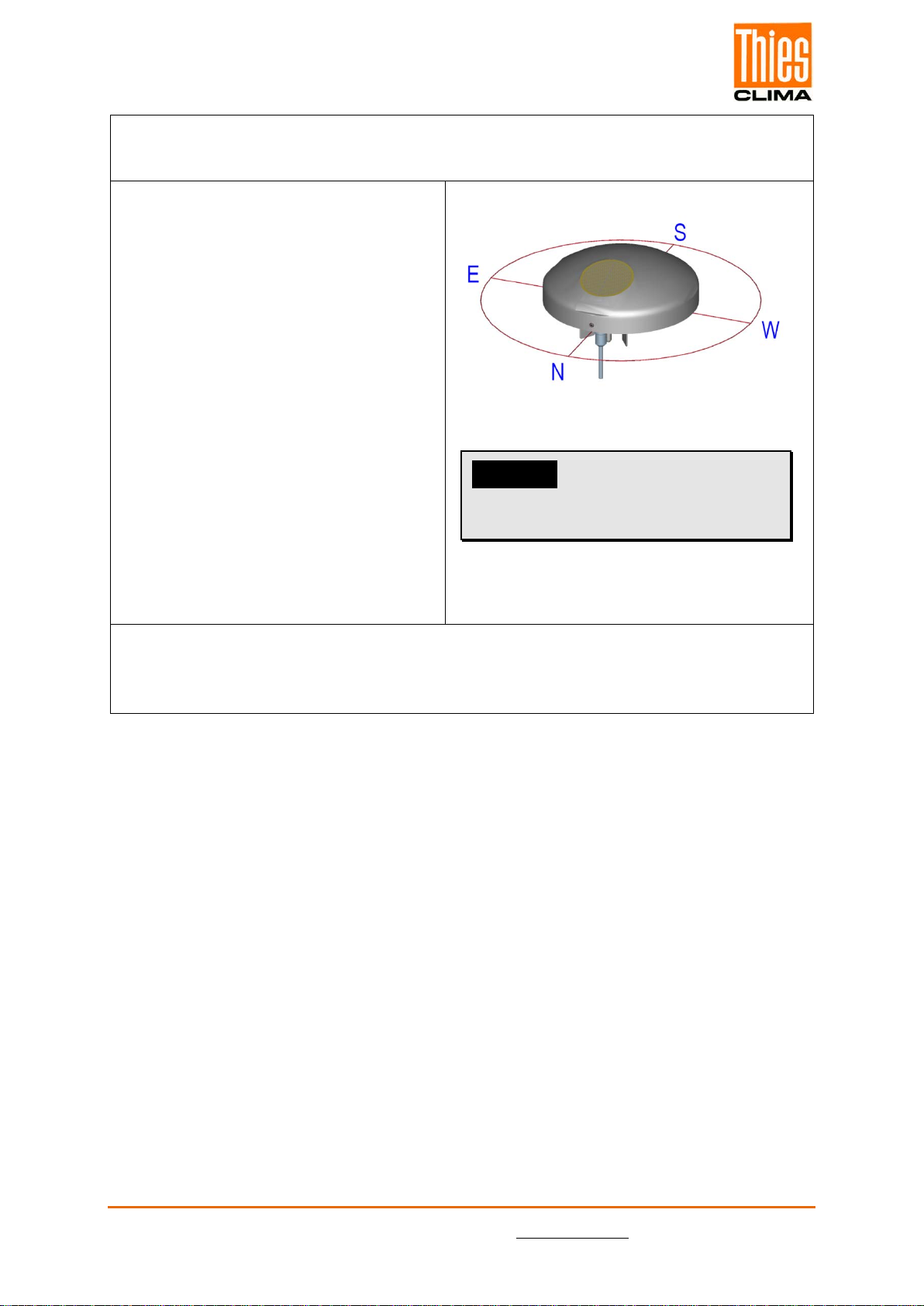

2.2.1 North Alignment

© Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 021948/10/21
Phone [phone] · Fax [phone] · inf[email protected] · www.thiesclima.com 6 - 14
For the exact determination of wind- and brightness direction the WEATHER
STATION COMPACT WSC11 must be mounted in north alignment (geographic
north).
The hexagon socket screw serves as
north marking (N)
Tool:
Hexagon socket wrench SW2mm
(socket wrench).
Procedure:
1. Detect a prominent object in the
surrounding area (tree, building
etc.) in north direction by means of
a compass.
2. Via the north marking (N) and an
imaginary north-south axis the
weather station is to be located on
the prominent object.
3. Align weather station.
The north marking must indicate to
the geographic north.
4. In case of match the weather sta-
tion is to be secured by an M4-
hexagon socket screw.
Attention:
The hexagon socket screw is to be
tightened by max. 0.6Nm.
Remark:
With the north alignment by means of a compass, the local variation (deviation in direction
of a compass needle from the true north direction) by interfering magnetic fields, and mag-
netic field influences by hardware and electric cable are to be considered.
2.3 Electrical Mounting
The COMPACT WSC11 Weather Station is equipped with a 7-pin plug for electrical connec-
tion. A cable socket (mating connector) is included in the scope of supply.
2.3.1 Cable, Cable Preparation, Connector Installation
The cable to be used for connection should have the following properties:
5 cores, core cross-section max. 0.14mm², cable diameter max. 5.0mm, resistant to ultravio-
let rays, overall shielding.

© Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 021948/10/21
Phone [phone] · Fax [phone] · inf[email protected] · www.thiesclima.com 7 - 14
Note:
A prepared connecting cable is available for the COMPACT WSC11 Weather Station as an
optional accessory.
Cable socket, type: Binder, series 711
Attention:
The voltage drop on the cable must be taken into consideration with long cable connections,
so that the supply voltage for the WEATHER STATION COMPACT WSC11 is guaranteed.
Calculation of the voltage drop on the cable. ULtg = RL* I; R = 2 ∗  ∗  A
⁄; ρ(rho) = 0,018
Example: I = 0,3A, A = 0,14mm², L = 100m
R = 2 ∗  ∗  A
⁄, R = 25,7Ω
ULtg = RL* I, ULtg = 7,7V

© Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 021948/10/21
Phone [phone] · Fax [phone] · inf[email protected] · www.thiesclima.com 8 - 14

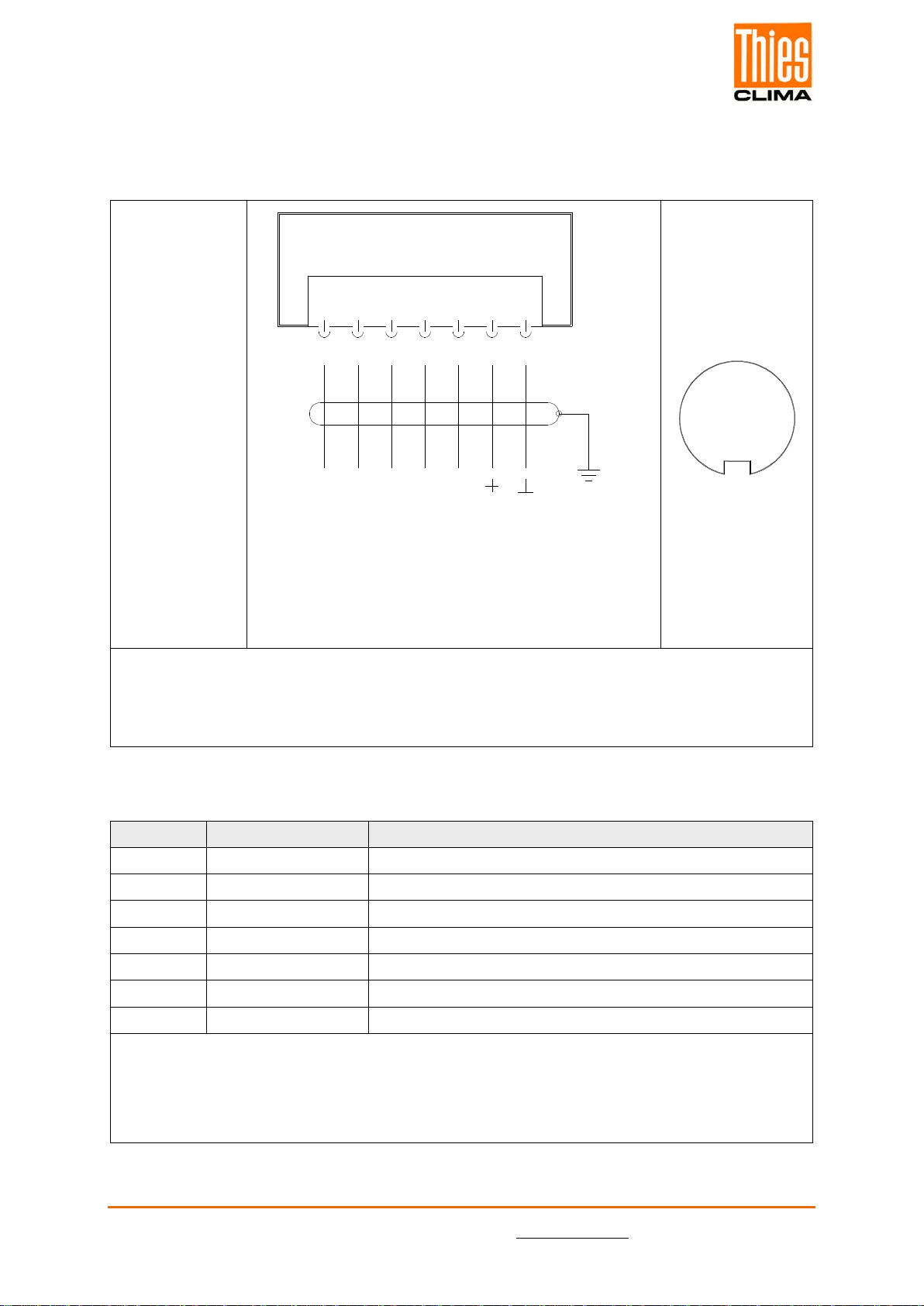

2.4 Connecting Diagram
Order No.
4.9056.10.00x
View of
solder terminal
of mating connector
(cable socket)
2
4
6
3
5
1
7
* With long transmission paths connection to the GND of data acquisition may reduce their suscepti-
bility to interference.
Important:
* Do not connect DATA_GND to the supply voltage-GND.
2.4.1 Connection using 5-core cable 510023 / 510024 / 510197 optional accessory
PIN
Core colour
Function
1 NC
2
WHITE
* DATA _ GND
3
BROWN
DATA +
4
GREEN
DATA -
5 NC
6 YELLOW + power 18...30V DC / 18...28V AC
7 GRAY - power 18...30V DC / 18...28V AC
Difference to part no. 509584/509585, 5 cores.
* With long transmission paths connection to the GND of data acquisition may reduce their suscepti-
bility to interference.
Important:
* Do not connect DATA_GND to the supply voltage-GND.
7 pol. Binder Steckverb. / Plug
7
Erde
Versorgung
DATA +
Earth
* DATA _ GND
Schirm / Shield
Power
18 ... 30 VDC
18 ... 28 VAC
DATA -
~~
NC NC
123456

© Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 021948/10/21
Phone [phone] · Fax [phone] · inf[email protected] · www.thiesclima.com 9 - 14
2.4.2 Connection using 8-core cable 509584 / 509585 optional accessory
PIN
Core colour
Function
1
WHITE
NC
2
BROWN
* DATA _ GND
3
GREEN
DATA +
4 YELLOW DATA -
5 GREY NC
6 PINK + power 18...30V DC / 18...28V AC
7 BLUE - power 18...30V DC / 18...28V AC
-
RED
NC
Difference to part no. 510023/510024, 8 cores, three not connected (NC).
* With long transmission paths connection to the GND of data acquisition may reduce their suscepti-
bility to interference.
Important:
* Do not connect DATA_GND to the supply voltage-GND.
3 Maintenance
As the device does not have any moving parts, i.e. is not subject to wear during operation,
only minimal servicing is required.
Depending on the location the instrument might pollute. The cleaning should be carried out
by means of water and a soft cloth. Aggressive cleaning agents must not be used.
Please note:
During storage, installation, de-installation, transport or maintenance of the
COMPACT WSC11 Weather Station make sure that no water gets into the de-
vice or connector.

© Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 021948/10/21
Phone [phone] · Fax [phone] · inf[email protected] · www.thiesclima.com 10 - 14
4 LED Signals
On the underside of the COMPACT WSC11 Weather Station there are 2 LEDs which are ex-
ternally visible through the housing.
If the Weather Station does not receive a command to query measured values for 3 seconds
or longer, the green LED flashes at a frequency of 1Hz and signals its readiness for opera-
tion. If automatic telegram output is enabled (see Command TT), the green LED remains
dark.
The flash frequency of the blue LED indicates the current wind speed (see Command LC).
The correlation between the flash frequency and wind speed is shown in the following figure:
0
5
10
15
20
25
30
35
40
0 5 10 15 20 25 30 35 40
Frequency [Hz]
WV [m/s]
Flash frequency of blue LED as a function of wind velocity
f = 0,9759*WG + 0,2
Figure 1: LED signals

© Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 021948/10/21
Phone [phone] · Fax [phone] · inf[email protected] · www.thiesclima.com 11 - 14
5 Specifications
Wind speed
Type
Thermal anemometer.
Measuring range
0 … 40m/s
Resolution
0.1m/s
Accuracy
To 10m/s:
±1m/s (rms - mean over 360°).
From 10m/s:
±5% (rms - mean over 360°).
Wind direction
Type
Thermal anemometer.
Measuring range
1 … 360°
Resolution
1°
Accuracy with laminar inci-
dent flow
±10°
Brightness
Type
Silicon sensor.
(north, east, south, west)
Measuring range
0 … 15kLux
Resolution
0.1kLux
Accuracy
±3% (± 4.5kLux)
Spectral range
475 ... 650nm
Twilight
Type
Silicon sensor.
Measuring range
0 … 999Lux
Resolution
1Lux
Accuracy
±10Lux
Global irradiance
Type
Silicon sensor.
Measuring range
0 … 1300W/m2
Resolution
1W/m
2
Accuracy
±10% (± 130W/m²)
Spectral range
350 ... 1100nm
Precipitation
Type
Ceramics, capacitive value measure-
ment, sensor area heated.
Measuring range
1 / 0 (precipitation yes/no)
Thermal output, sensor dry,
bedewing protection
0.1W
Thermal output, sensor wet
drying phase
1.1W

© Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 021948/10/21
Phone [phone] · Fax [phone] · inf[email protected] · www.thiesclima.com 12 - 14
Temperature
Type
PT1000
Measuring range
-30 … +60°C
Resolution
0.1°C
Accuracy with wind speed
>2m/s
±1°C (-5 … +25°C)
Air pressure sensor
Type
Piezoresistive.
Measuring range
300 … 1100hPa
Resolution
0.01hPa
Accuracy
±0.5hPa at 20°C
Long-term stability
±0.1hPa / year
Humidity sensor
Type
CMOS capacitive.
Relative humidity
Measuring range
0 … 100% rel. humidity
Resolution
0.1% rel. humidity
Accuracy with wind speed
>2m/s
±10% rel. humidity at 20°C
Absolute humidity
measuring range
0 ... 400g/m3
Resolution
0.01g/m
3
Dew-point temperature
Measuring range
-30 ... +60°C
Resolution
0.1°C
Inside temperature of housing
Type
Silicon sensor
Measuring range
-30 … +60°C
Resolution
0.1°C
Accuracy
±2°C
Digital interface
Type
RS485
Mode
Half-duplex mode
Baud rate
1200, 2400, 4800, 9600, 19200, 38400,
57600, 115200
Data format
-
ASCII (command interpreter: THIES)
- Binary (command interpreter:
MODBUS RTU)

© Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 021948/10/21
Phone [phone] · Fax [phone] · inf[email protected] · www.thiesclima.com 13 - 14
General
Operating voltage
18 ... 30VDC, 18 ... 28VAC
Power consumption
120mA @ 24 V (max. 1,5A AC, max
0,5A DC)
Ambient conditions
Temperature range
-30 ... +60°C
Humidity range
Non-condensing
GPS reception
GPS receiver with low power
consumption, built-in RTC
and antenna
Holding time of RTC (without
voltage supply)
Approx. 3 days
Housing
Material
Polycarbonate
Dimensions
See Dimension drawing
Weight
0.22kg
Type of protection
IP65 in working position
Type of connection
7-pin plug connector
6 Dimensional Drawing
Srew M4
Allen key size 2 mm
Plug connection
Mast holder

© Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 021948/10/21
Phone [phone] · Fax [phone] · inf[email protected] · www.thiesclima.com 14 - 14
7 More Information / Documents as download
Further information can be found in the short instructions for use. These document and also
the short instruction for use are available for download under the following links.
Short instruction for use
https://www.thiesclima.com/db/dnl/4.9056.10.x0x_WSC11_eng_short.pdf
Instruction for Use
https://www.thiesclima.com/db/dnl/4.9056.10.x0x_WSC11_eng.pdf
Please contact us for your system requirements.
We advise you
gladly.
ADOLF THIES GMBH & CO. KG
Meteorology and environmental metrology
Hauptstraße 76 · 37083 Göttingen · Germany
Phone [phone]
-0 · Fax [phone]
[email protected]
www.thiesclima.com
