Ninglu AM706D User manual

Model: AM706D
Weather Station
Operation Manual
Document: NLT-AM706D-SSEN
Edition: V140827

Quick User Guide
Warning function：Power failure,
Wind speed (Gust), temperature
and humidity alarm.
Mute: Press any button to mute.
Selectable Relative/True speed
direction.
Selectable day and night modes.
Direction calibration：After power
on, move wind vane toward the
ship bow direction, then press the
reset button inside junction box.
Independent temperature and
humidity sensor.
Barometer sensor inside main
unit.

Safe Operation
Please carefully read this page before operation in
order for safe and convenient operation.
Be sure no water
or rain into unit
Operation Warn
Do not refit unit
privately
Installation Warn
Do not operate
with water
Be sure the main
unit location is
IP23
If water leakage,
Power down
immediately
Be sure the wind
sensor installed
on the ventilated
place
Power off before
installation
Do not
disassemble unit
Warn Prohibit Attention

Contents
Introduction....................................................................1
Introduction .........................................................................................1
Measurement Principle.......................................................................1
System Introduction......................................................3
General View..........................................................................................3
System Overview....................................................................................4
Technical Requirements...............................................5
Basic Parameters ...................................................................................5
Environmental Conditions.......................................................................5
Technical Parameters.............................................................................6
Input and Output............................................................7
Data transmission for NMEA0183 ....................................................7
GPS data input—RMC .........................................................................7
GPS data input—GGA data input ...................................................8
GPS data input—VTG..........................................................................8
Speedlog data input--VBW .....................................................................9
Gyro data input --HDT ............................................................................9
Main unit output--MWV......................................................................9
Main unit output --MDA ...................................................................10
Main unit output --MHU ...................................................................10
Main unit output --MMB ...................................................................10
Main unit output --MTA ....................................................................10
Operating Instructions................................................11
Display..................................................................................................11
Key Introduction....................................................................................12
[POWER] Power On/Off ....................................................................13
Power Failure Alarm..........................................................................13
Alarm Mute.........................................................................................13
[GUST] Gust Alarm...........................................................................14
[H.TMP] High Temperature Alarm..................................................14
[L.TMP] Low Temperature Alarm....................................................15

[H.HUM] High Humidity Alarm .......................................................15
[BRILL] Adjustable Brightness .......................................................15
[PRINT] Printer Setup ......................................................................16
DPU-414 Printer Setup .............................................................16
DPU-414 Printer Printing Contents .........................................17
[MODE] Mode Switch .....................................................................17
[D/N] Day and Night ........................................................................17
[MENU]................................................................................................18
Maintenance.................................................................19
Main Unit.............................................................................................19
Sensor Part.........................................................................................19
Calibration....................................................................20
Installation....................................................................21
Main unit Installation AM706D .......................................................21
Table and Hanging Mounting ...................................................21
Flushing Mounting......................................................................22
Power Adapter Installation....................................................................23
Installation of Wind sensor AM706S .............................................24
Wind Vane and Wind Cup Installation....................................24
Integral Installation...................................................................25
Temperature and Humidity Sensor Installation...........................26
Temperature and Humidity Sensor AM706TH..............................26
Wiring explanation.......................................................27
Wiring diagram of AM706D back cover.................................................27
System internal connection...................................................................28
System internal wiring diagram..............................................28
Wind sensor AM706S - Main unit AM706D ...........................29
TMP and HUM sensor AM706TH-Main unit AM706D............29
Main unit AM706D Power in .....................................................30
System external connection..................................................................31
System external wiring diagram.............................................31

1
Introduction
Introduction
The marine weather station AM706D is a multi-functonal
measuring instrument with wind speed, direction, temperature,
humidity and barometric pressure. It can accurately measure and
display real-time relative wind speed and direction, true wind speed
and direction, air temperature, relative humidity and barometric
pressure. In addition, it can regularly print these parameters and
time, longitude and latitude, ship speed, and navigational signal. It is
important and necessary for observation and safe navigation.
AM706D is approved by China Classification Society (CCS).
The main unit AM706D adopts three mounting methods, table,
hung and flush mounting. The wind sensor AM706S should be
installed on natural ventilated place, such as mast. Please note, big
Radar antenna rotation can disturb the wind measurement. The
AM706TH is suggested to be mounted on a place there is no direct
sunlight and rain drop.
Measurement Principle

2
Wind sensor sends relative wind direction and speed signal (relative
to ship bow and absolute value of angle signal) in digital interface
format of RS422 to main unit through junction box.
Temperature and humidity sensor provides air temperature and
humidity signal in digital interface format of RS485 to main unit
through junction box
Barometric pressure signal is received from internal IC sensor of
main unit.
Main unit uses these signals to calculate, display and export.
True speed and direction:
There are two ways to get the true direction and speed.
First way, connecting external GPS (RMC) data input, main unit can
calculate true wind direction (relative to North Pole) and speed.
Second way, connecting both Gyro(HDT) and Speed Log(VBW) data,
main unit can display the true wind direction and speed.

3
System Introduction
General View

4
System Overview
Main unit AM706D
Application：Measure Barometric pressure and display values
and system control
Dimension：High 264 x width270 x thickness93 mm
Installation：Table, Hanging, Flush mounting
Location：Cab
Wind Direction and Speed Sensor AM706S
Application：Measure relative wind direction and speed,
export to Main unit
Dimension：Total high 838mm，max action radius 550mm
Installation：Binding mounting
Location：Ventilated and high outdoor, such as mast
Constitution：Wind direction and speed sensor, holder and
junction box
Wind direction sensor：Wind indicator with empennage and weight，
and absolute-value angle sensor near axis
Wind speed sensor：Three wind cups located with balanced 120o,
photoelectric speed sensor is near axis
Holder：Used to install direction and speed sensor and to
fasten junction box
Junction box：Waterproof box and sensor converter
Temperature and Humidity Sensor AM706TH
Application：Measure temperature and humidity,
and export to Main unit
Dimension：Total high 400mm
Installation：Bulkhead mounting
Location：Ventilated outdoor，such as top of cab
Constitution：Sensor, junction box and shelter

5
Technical Requirements
Basic Parameters
Dimension：10 inch TFT
Display：Wind direction, speed, temperature,
humidity, barometric pressure, print
interval, alarm setting.
Wind direction simulation range：±180°
Wind direction simulation accuracy：±1°
Input/output port：Wind direction/speed input: 1 channel
DC power input：2 channels
Temperature-humidity input：1 channel
NMEA0183 input：3 channels
NMEA0183output：2 channels
Printer output：1 channel
Sound-light alarm output：1 channel
Power supply：DC24V (20~32V)
One channel power through adapter：110/220V 50/60Hz AC
Environmental Conditions
Operating
temperature
Storage
temperature
Relative
humidity
Water
proof
Main unit
-15°C～+55°C
-20°C～+70°C
10%～90%
IP23
Wind sensor
-15°C～+85°C
-20°C～+85°C
10%～100%
IP56
Temperature
humidity sensor
-20°C ～+80°C
-20°C ～+80°C
0%～100%
IP54

6
Technical Parameters
Wind direction range：0~360°
Wind direction accuracy：±1°
Wind speed range：1.2~25m/s
Wind speed accuracy：±5%（min 0.1m/s）
Min start speed：≤1.2m/s
Temperature range：-20~+80°C
Temperature accuracy：±0.5°C
Humidity range：0~100%RH
Humidity accuracy：±4.5%RH
Barometric pressure range：500~1100hPa
Barometric pressure accuracy：±4hPa

7
Input and Output
Data transmission for NMEA0183
Data transmission adpots NMEA0183 format and conforms
IEC61162-1 standards.

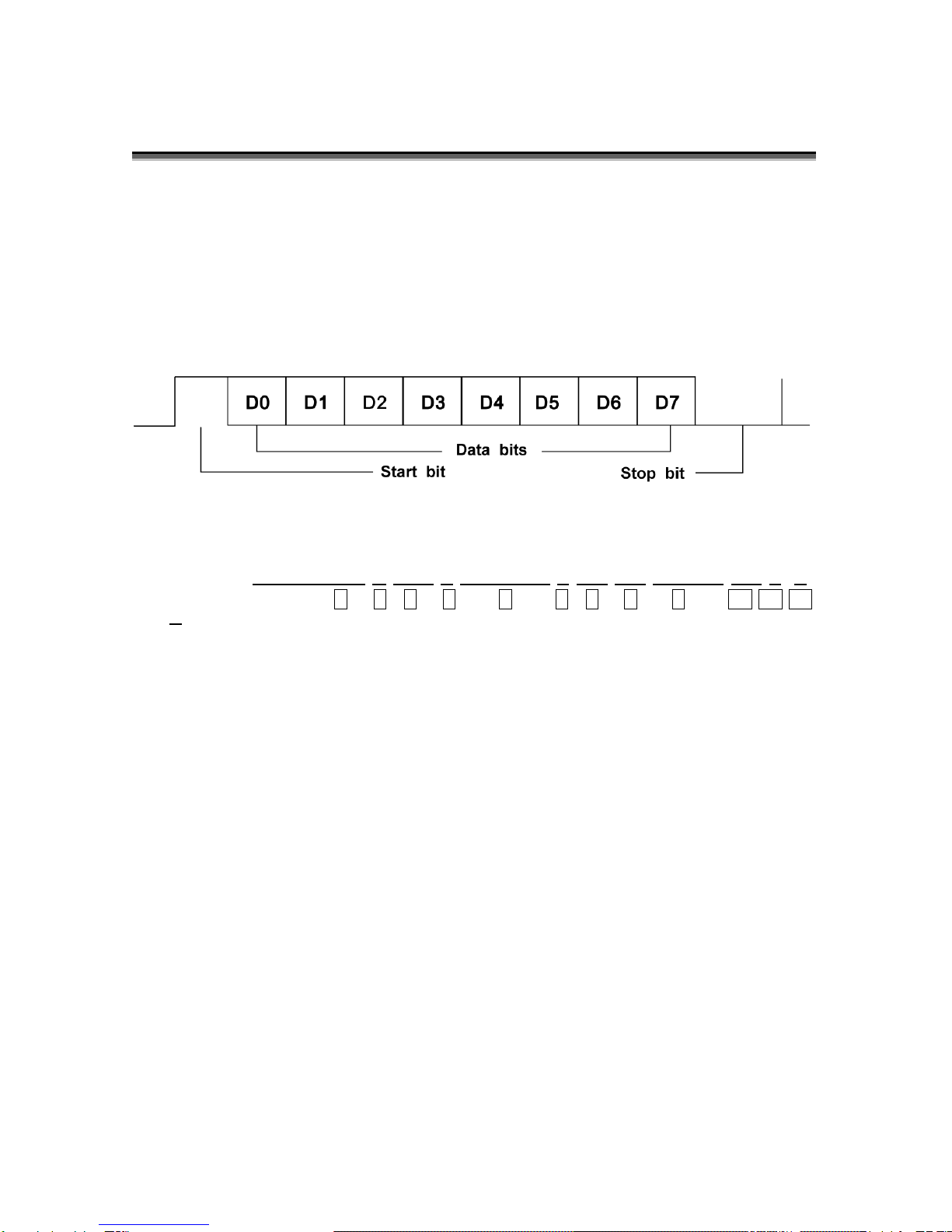

Date is transmitted in serial asynchronous form. 4800 baud rate is
4800, 8-bit data, no parity bit and one stop bit.
GPS data input—RMC
$--RMC,hhmmss.ss,A,llll.ll,a,yyyyy.yy,a,x.x,x.x,xxxxxx,x.x,a*h
h<CR><LF>
(1) UTC of position fix
(2) Status, A=data valid, V=navigation receiver warning
(3) Latitude
(4) Latitude, N/S
(5) Longitude
(6) Longitude, E/W
(7) Speed over ground, knots
(8) Course over ground, degree true
(9) UTC date，dd/mm/yy
(10) Magnetic variation, degree, E/W
(11) Mode indicator, A=Autonomous mode
D=Differential mode
E=Estimated（dead reckoning）mode
M=Manual input mode
S=Simulator mode
N=Data not valid
(12) Checksum value
1234 5 6 78 9 10 11 12

8
GPS data input—GGA data input
$--GGA,hmmss.sss,ddmm.mmmm,a,dddmm.mmmm,a,x,xx,
x.x,x.x,M,x.x,M,x.x,xxxx*hh<CR><LF>
(1) UTC of position
(2) Latitude
(3) Latitude N/S
(4) Longitude
(5) Longitude E/W
(6) GPS quality indicator：0=fix not available or invalid
1= GPS SPS mode, fix valid
2=differential GPS, SPS mode, fix valid
6=Estimated (dead reckoning) mode
(7) Number of satellites in use, 00-12, may be different from the number
in view
(8) Horizontal dilution of precision
(9) Antenna altitude above/below mean sea level(geoid)
(10) Units of antenna altitude, m
(11) Geoidal separation
(12) Units of geoidal separation, m
(13) Age of differential GPS data
(14) Differential reference station ID, 0000-1023
(15) Checksum value
GPS data input—VTG
$--VTG,x.x,T,x.x,M,x.x,N,x.x,K,a*hh<CR><LF>
(1) Course over ground, degree true
(2) Course over ground, degree magnetic
(3) Speed over ground, knots
(4) Speed over ground, km/h
(5) Mode indicator，A=Autonomous mode
D=Differential mode
E=Estimated（dead reckoning）mode
M=Manual input mode
S=Simulator mode
N=Data not valid
(6) Checksum value
1
2
3
4
5
6
7
8
10
9
11
12
13
1 2 3 4 5 6
14
15

9
Speedlog data input--VBW
Water-referenced and ground-referenced speed data
$--VBW,x.x,x.x,A,x.x,x.x,A,x.x,A,x.x,A*hh<CR><LF>
(1) Longitudinal water speed, Knots
(2) Transverse water speed, Knots
(3) Status：water speed, A=data valid, V=data invalid
(4) Longitudinal ground speed, Knots
(5) Transverse ground speed, Knots
(6) Status：ground speed, A=data valid, V=data invalid
(7) Stern transverse water speed, Knots
(8) Status：stern water speed, A=data valid, V=data invalid
(9) Stern transverse ground speed, Knots
(10) Status：stern ground speed, A=data valid, V=data invalid
(11) Checksum value
Gyro data input --HDT
$--HDT,x.x,T*hh<CR><LF>
(1) Heading, degree true
(2) T = true
(3) Checksum value
Main unit output--MWV
$--MWV,x.x,a,x.x,a,A*hh<CR><LF>
(1) Wind angle, 0°to359°
(2) Reference, R = relative, T = true
(3) Wind speed
(4) Wind speed units, K=km/h
M=m/s
N=knots
(5) Status, A = data valid V=data invalid
(6) Checksum value
1234 5 6
1
2
3
4
5
6
7
8
10
9
11
1 2 3

10
Main unit output --MDA
$--MDA,x.x,I,x.x,B,x.x,C,x.x,C,x.x,x.x,x.x,C,x.x,T,x.x,M,x.x,N,x.x,M*hh<CR><LF>
12 3 456789 10 11 12 13 14 15 16 17 18 19 20 21
(1) Barometric pressure (2) Barometric pressure unit, I=inHg
(3) Barometric pressure (4) Barometric pressure unit, B=bars
(5) Air temperature (6) Temperature unit, C=degree
(7) Water temperature (8) Temperature unit, C=degree
(9) Relative humidity, % (10) Absolute humidity, %
(11) Dew point (12) Dew point temperature, C=degree
(13) Relative direction (14)Wind direction unit, degree T=true
(15) Relative direction (16)Relative direction, degree M=Relative
(17) Wind speed (18)Wind speed unit, N=knots
(19) Wind speed (20) Wind speed unit, M=m/s
(21) Checksum value
Main unit output --MHU
$--MHU,x.x,x.x,x.x,C*hh<CR><LF>
1 2 34 5
(1) Relative humidity, %
(2) Absolute humidity, %
(3) Dew point
(4) Dew point unit, C=degree
(5) Checksum value
Main unit output --MMB
$--MMB,x.x,I,x.x,B*hh<CR><LF>
12345
(1) Barometric pressure
(2) Barometric pressure unit, I=inches of mercury
(3) Barometric pressure
(4) Barometric pressure unit, B=bars
(5) Checksum value
Main unit output --MTA
$--MTA,x.x,C*hh<CR><LF>
12 3
(1) Air temperature
(2) Temperature unit, C=degree
(3) Checksum value

11
Operating Instructions
Display
No.
Display
Explanation
5
Menu
Press [MENU] to open window
Use direction keys to set up parameters
Press [OK] to save settings and exit
Automatically save settings and exit without operation
in 10s
6
Relative wind
direction
analog display
Analog display the relative direction of wind and ship
bow
7
H.HUM alarm
Set Value
Press [H.HUM] to set alarm value or turn off
8
Current
relative HUM
Display current relative humidity
No.
Display
Explanation
1
Current
relative/tr
ue wind
speed
Press [MODE] to
switch relative/
true mode.
Press [MODE] to
switch speed
unit.
2
Current
relative/tr
ue wind
direction
Press [MODE] to
switch relative
or true mode.
3
Power
failure
alarm
Anyone of two
channels power
supply failure
causes Power
Failure Alarm
4
Print set
value
Press [PRINT] to
select the
interval time of
printing.

12
9
Current
Barometric
pressure
Press [MENU] to switch Barometric pressure unit
10
Current TEMP
Press [MENU] to switch temperature unit
11
H/L TEMP
Alarm Value
Press [H.TMP] or [L.TMP] to set alarm value or turn off
12
Gust Alarm
Press [GUST] to set alarm value or turn off
13
Input Signal
Window
Press [MENU] to open the window and observe input
signal
Key Introduction
Switch on/off：0-OFF,1-ON
Gust Alarm：OFF、1~25m/s
High Temperature Alarm：-20~80℃、OFF
Low Temperature Alarm：OFF、-20~80℃
High Humidity Alarm：OFF、1~99%RH
Print Setup：off、5s、15s、30s、60s
Brightness：Adjustable 8 levels，dim ~ bright
[OK]：In menu, press [OK] to save settings
and exit
Direction Key：In menu, up/down keys for options and
left/right keys for parameters
parameters
[MODE]：Switch relative and true mode
[D/N]：Switch day and night display
[MENU]：Open menu and automatically save/exit

13
[POWER] Power On/Off
Press[POWER 1]to turn on the system，software version is
shown at the top left top corner and then the main display.
Power Failure Alarm
After turning on, it self-checks the both channels of power supply.
Anyone channel is disconnected, it will cause Power Failure alarm.
When power failure alarm is triggered, the main unit buzzer provides
long tone alarm (external alarm will not be on when power failure)
and red words ‘Power Failure’are flashing.
Alarm Mute
When alarm is triggered, press any button to mute the alarm
(Buzzer and external alarm), but flashing words are still on (External
light alarm is also on). When the alarm is triggered again, the system
will give the alarm again.
Flashing words (External light alarm) disappear when alarm is
turnoff or removed.

14
[GUST] Gust Alarm
Press [GUST] left and right arrowheads to set gust alarm limits and
the factory setting is OFF.
Set Value
Unit
OFF、1~25
m/s
OFF、1~90
km/h
OFF、1~49
kn
When current relative/true wind speed is over alarm limits, main unit
buzzer and external alerter are turned on, wind value color turns
yellow to red and continuously flashing.
[H.TMP] High Temperature Alarm
Press left/right arrows of [H.TMP] to set the high temperature alarm
and factory setting is OFF.
Set Value
Unit
L.TMP ~80、OFF
℃
L.TMP ~176、OFF
℉
When current temperature is higher than alarm limits, main unit
buzzer and external alerter are turned on, temperature value color
turns yellow to red and continuously flashing.
H.TMP limit should be higher
than L.TMP limit
H.TEMP > L. TEMP

15
[L.TMP] Low Temperature Alarm
Press left/right arrows of [L.TMP] to set the low temperature alarm
and factory setting is OFF.
Set Value
Unit
OFF、-20 ~ H.TMP
℃
OFF、-4 ~ H.TMP
℉
When current temperature is lower than alarm limits, main unit
buzzer and external alerter are turned on), temperature value color
turns yellow to red and continuously flashing.
[H.HUM] High Humidity Alarm
Press left/right arrows of [H.HUM] to set the high humidity alarm and
factory setting is OFF.
Settings：OFF、1~99%RH
When current relative humidity is less than alarm limits, main unit
buzzer bells, humidity number color becomes from yellow to red and
continuously flashing.
[BRILL] Adjustable Brightness
Press left and right arrows of [BRILL] to adjust the screen brightness
(8 levels) for different ambient brightness.
H.TMP limit should be higher
than L.TMP limit
L.TEMP < H. TEMP
