Thinklogical Q-Series User manual

Revision E, March 2020

Page 1
Q-Series KMASS Module Product Manual, Rev. E, March 2020 thinklogical®
Copyright Notice
Copyright © 2020. All rights reserved. Printed in the U.S.A.
Thinklogical, A BELDEN BRAND
100 Washington Street
Milford, Connecticut 06460 U.S.A.
Telephone: [phone]
All trademarks and service marks are property of their respective owners.
Subject: Q-Series KMASS Modules Product Manual (Q-Series Fiber Extension)
Revision: E, March 2020
Thinklogical®
Website: www.thinklogical.com
Facebook: www.facebook.com/ThinklogicalUSA
LinkedIn: www.linkedin.com/company/thinklogical
Google+: http://plus.google.com/u/0/109273605590791763795/about
YouTube: www.youtube.com/user/thinklogicalNA
Twitter: @thinklogical

Page 2
Q-Series KMASS Module Product Manual, Rev. E, March 2020 thinklogical®
Table of Contents
PREFACE 4
About Thinklogical 4
Conventions Used in this Manual 5
Class 1 Laser Information 5
1. THINKLOGICAL’S Q-SERIES KMASS MODULES 6
1.1. Product Overview 6
1.2. System Features 7
1.2.1. The Q-Series Chassis 7
1.2.2. Mixing TLX Modules and Non-TLX Modules in a Single Chassis 8
1.2.2.1. Air-Flow through VQM Modules 8
1.3. Q-Series KMASS Modules 9
1.3.1. USB 2.0, USB HID, Audio and PS2 Modules 9
1.3.2. USB HID, Audio and PS2 Modules 9
1.3.3. Dual USB HID and Audio Modules (6 Gbps) 10
1.3.4. Dual USB HID and Audio Modules (2 Gbps) 10
1.3.5. Redundant USB HID and Audio Modules 11
1.3.5.1. Unbalanced Audio Specifications 11
1.3.6. USB 2.0 Modules 12
1.3.7. Dual USB 2.0 Modules 12
1.3.8. Redundant USB 2.0 Modules 12
1.3.9. Dual 4-Port USB 2.0 Receiver Module 13
1.3.10. Secure USB 2.0 Transmitter and Receiver Modules 13
1.4. Q-Series KMASS Modules Technical Specifications 14
2. CONNECTING Q-SERIES KMASS MODULES 15
2.1. Fiber-Optic Cables 15
2.2. Transmitter Connections 15
2.3. Receiver Connections 15
2.4. Supplied Cables 16
2.5. Q-Series System Connections 17
3. UPDATING Q-SERIES KMASS MODULES 19
3.1. HID Microprocessor Programming 19
4. REGULATORY & SAFETY COMPLIANCE 20
Symbols Found on Our Products 20
Regulatory Compliance 20
North America 20
Australia & New Zealand 20
European Union 20
Standards to which Our Products Comply 20
Supplementary Information 21
Product Serial Number 21
Connection to the Product 21

Page 3
Q-Series KMASS Module Product Manual, Rev. E, March 2020 thinklogical®
Table of Contents (cont.)
5. THINKLOGICAL SUPPORT 22
Customer Support 22
Website 22
Email 22
Telephone 22
Fax 22
Product Support 22
Warranty 22
Return Authorization 22
Our Addresses 22
APPENDIX A: Q-Series KMASS Module Quick Start Guide 23
MADE IN USA

Page 4
Q-Series KMASS Module Product Manual, Rev. E, March 2020 thinklogical®
PREFACE
About Thinklogical
Thinklogical, a Belden brand, is the leading manufacturer and provider of fiber-optic and
CATx video, KVM, audio, and peripheral extension and switching solutions used in video-
rich, big-data computing environments.
Thinklogical offers the only fiber-optic KVM Matrix Switches in the world that are
accredited to the Common Criteria EAL4, TEMPEST SDIP 24 Level B, and NATO
NIAPC Evaluation Scheme: GREEN and the U.S. DoD DISA JITC UCR 2013 APL
information assurance standards. And Thinklogical Velocity products are the first
system with both KVM and video matrix switching capabilities to be placed on the
Unified Capabilities Approved Product List (UC APL) under the Video Distribution
System (VDS) category.
Thinklogical products are designed and manufactured in the USA and are certified
to the ISO 9001:2015 standard.
Thinklogical is headquartered in Milford, Connecticut and is owned by Belden, Inc., St. Louis,
MO (http://www.belden.com). For more information about Thinklogical products and
services, please visit https://www.thinklogical.com.

Page 5
Q-Series KMASS Module Product Manual, Rev. E, March 2020 thinklogical®
Conventions Used in this Manual
Throughout this manual you will notice certain conventions that bring your attention to important
information. These are Notes and Warnings. Examples are shown below.
Note: Important Notes appear in blue text preceded by a yellow exclamation point
symbol, as shown here.
A note is meant to call the reader’s attention to helpful information at a point in the text that is relevant
to the subject being discussed.
Warning! All Warnings appear in red text, followed by blue text, and preceded by a red
stop sign, as shown here.
A warning is meant to call the reader’s attention to critical information at a point in the text that is
relevant to the subject being discussed.
Class 1 Laser Information
Thinklogical’s Fiber-optic Extenders and Matrix Switches are designed and identified as Class 1
LASER products. This means the maximum permissible exposure (MPE) cannot be exceeded
when viewing the laser with the naked eye or with the aid of typical magnifying optics (e.g. telescope
or microscope).
CLASS 1 LASERS do not require any special
precautions under conditions of normal use.
SFP
Modules
Fiber-Optic
Cables
Class 1 Lasers

Page 6
Q-Series KMASS Module Product Manual, Rev. E, March 2020 thinklogical®
1. Thinklogical’s®Q-Series KMASS Modules
1.1. Product Overview
Thinklogical’s Q-Series KMASS Modules provide users with a convenient, cost-effective and
space-saving way to extend audio and USB over fiber. Up to four modules can be housed in a
single, one rack unit Q-4300 Chassis, making the Q-Series an ideal solution where space, security
and economy are vital. And if one module is all you need do the job, Thinklogical also offers a
single-module Q-1300 chassis for desktop applications.
Incorporating standard SFP+ transceivers, the system uses fiber-optic cables to allow the placement
of audio and USB devices up to 1000 meters (3280 feet) away from the controlling computer
without loss of signal or resolution. Installation is plug-and-play and no adjustments are
necessary.
All Q-Series KMASS modules are connected by fiber-optic cables to provide communications
between the transmitters and receivers. The transmitter module connects to a CPU with supplied
audio (unbalanced), USB and PS2 cables. The receiver module provides an interface to the
destination audio and USB devices.
HID HID
K1 K2
K1 K2 LINE IN
MIC OUT
LINE IN
MIC OUT
K2
VQM-HA0006-LCTX
K1
K2
K1
Q-Series Dual Transmitter with USB HID and Audio Ports
H: 1.592” (4.04cm) x D: 6.366” (16.17cm) x W: 3.693” (93.8cm)

Page 7
Q-Series KMASS Module Product Manual, Rev. E, March 2020 thinklogical®
1.2. System Features
Thinklogical’s Q-Series line of KMASS (K eyboard, M ouse, A udio, S erial, S tereo 3D ) Modules
includes a variety of TX and RX models, designed to meet almost any data extension
applications. Each module can be used in our stand-alone Q-1300 Chassis or, for more
extensive applications, our two-module Q-2300 chassis or our four-module Q-4300 chassis,
each of which will support any combination of transmitters and receivers.
The Q-4300’s chassis allows up to four hot-swappable interface modules to be used in a variety of
applications, as either transmitters, receivers, or as transceivers. Q-Series KMASS modules support
two-way, unbalanced audio, high speed USB 2.0 (480 Mbps) and low speed USB HID (1.5 Mbps).
Installation possibilities are expanded with built-in support for either multi-mode or single mode fiber,
making this a convenient and cost-effective solution to transmit quality data signals over long
distances. Each module is hot swappable, and in addition, the standard SFP+ optics (with LC
connectors) are hot swappable/pluggable.
Every Q-Series module is fully compatible with Thinklogical’s TLX, VX and MX Matrix Switch®
product lines.

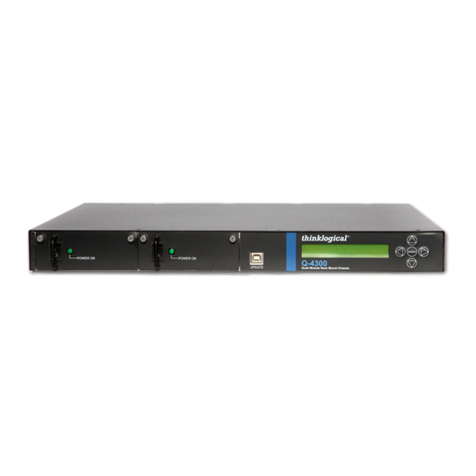

1.2.1. The Q-Series Chassis
Each Q-Series Chassis provides a framework for mounting, powering, upgrading and
interfacing with a variety of modules that perform the functions of a KVM and video distribution
system. The Q-4300 chassis supports up to 4 modules, features redundant power supplies, an
LCD/button interface and provides convenient upgrade ports for the chassis and modules. Fans
mounted inside the chassis provide cooling and all modules and power supplies are hot swappable.
The chassis may be rack or desktop mounted. Other installable modules include our DVI and SDI lines
of extenders. (See pg. 22 to contact a Thinklogical®sales representative for more details.)
Q-4300 Chassis: (VQS-004300) Supports up to four KMASS, DVI, RGB/DVI or SDI Q-Series
modules. Dual interface and current sharing power supplies. Desktop or 19" rack-mount.
Q-2300 Chassis: (VQS-002300) Supports up to two KMASS, DVI, RGB/DVI or SDI Q-Series
modules. Desktop or 19" rack-mount.
Q-1300 Chassis: (VQS-001300) Supports one KMASS, DVI, RGB/DVI or SDI Q-Series module.
Desktop only.

Page 8
Q-Series KMASS Module Product Manual, Rev. E, March 2020 thinklogical®
1.2.2. Mixing Q-Series Modules and TLX Modules in a single Chassis
Besides Q-Series products, Thinklogical also carries the TLX line of 10G extension products in a
modular format. Non-Q-Series modules, such as TLX, are compatible with the Q-4300, Q-2300
and Q-1300 chassis as well as their own CHS-4, CHS-2 and CHS-1 chassis. However, because
VQM modules generate less heat than TLX modules, they were not deigned to allow air-flow through
their enclosures as in TLX modules.
1.2.2.1. Air-Flow through VQM Modules
To avoid over-heating of TLX modules when mixed with non-TLX modules, the simple solution
is to always install all non-TLX modules on the left side of the chassis (as looking from the back
where the modules are loaded) and install all TLX modules on the right side, next to the cooling-
air intake fans (The side next to the power cord receptacles). This will allow proper air-flow over the
warmer TLX modules and will prevent over-heating. This is true for both the Q-4300 and Q-2300
Chassis and for both the CHS-4 and CHS-2 Chassis.
Warning! To avoid over-heating of TLX modules, always install all non-TLX modules
on the left side of the chassis (as looking from the back where the modules are loaded)
and install all TLX modules on the right side, next to the cooling-air intake fans (The side next
to the power cord receptacles) .
Note: Non-TLX modules, such as Thinklogical’s Q-Series (VQM), were not deigned to
allow air-flow through their enclosures as in TLX modules.
To avoid over-heating, always install all non-TLX modules on the left side of the chassis and install
all TLX modules on the right

Page 9
Q-Series KMASS Module Product Manual, Rev. E, March 2020 thinklogical®
1.3. Q-Series KMASS Modules
There are nine varieties of Q-Series KMASS Modules, each featuring a combination of one or
more USB HID, PS2 to USB HID, USB 2.0 and two-way, unbalanced Audio ports, including
models with dual ports and redundant fibers. (See pg. 22 to contact a Thinklogical®sales
representative for more details.)
1.3.1. USB 2.0, USB HID, Audio and PS2 Modules
Each Transmitter (TX) Module features a USB HID port, a USB 2.0 port, two PS2 ports* (for local
keyboard & mouse) and a LINE IN and MIC OUT port. The Receiver (RX) Module features four
USB HID ports (including keyboard & mouse), four USB 2.0 ports and a LINE OUT and MIC IN
port. Each module also has a pair of fiber connectors used for transferring data between the
Transmitters and Receivers. Status LEDS provide system information.
*Use either the USB HID or the PS2 transmitter ports for keyboard and mouse. If both are used simultaneously, the HID
port will over-ride the PS2 ports.
VQM-UAP001-LCTX (Transmitter) VQM-UAP001-LCRX (Receiver)
MOUSE
K1 K2 K2 K1
MIC OUT
LINE IN
VQM-UAP001-LCTX
K1
K2
MIC IN LINE OUT
VQM-UAP001-LCRX
HID
KYBD
USB 2.0
UPDATE USB HID
USB 2.0
K1
K2 LINK
HOST
VQM-UAP001 LED functions:
TX: K 1; SFP Output Ready LINK; USB2.0 Extension Connected to Rx
K 2; Fiber Input Valid HOST; USB2.0 Link Connected CPU to Rx Ports
RX: K 2; SFP Output Ready K 1; Fiber Input Valid (Unmarked LEDs are AUX)
1.3.2. USB HID, Audio and PS2 Modules
Each Transmitter (TX) Module features two PS2 ports* (for local keyboard & mouse) and a LINE
IN and MIC OUT port. The Receiver (RX) Module features four USB HID ports and a LINE OUT
and MIC IN port. Each module also has a pair of fiber connectors used for transferring data
between the Transmitters and Receivers. Status LEDS provide system information.
*Use either the USB HID or the PS2 transmitter ports for keyboard and mouse. If both are used simultaneously, the HID
port will over-ride the PS2 ports.
VQM-HAP001-LCTX (Transmitter) VQM-HAP001-LCRX (Receiver)

Page 10
Q-Series KMASS Module Product Manual, Rev. E, March 2020 thinklogical®
1.3.3. Dual USB HID and Audio Modules (6 Gbps)
Each Dual Transmitter (TX) Module features a pair of USB HID ports and a pair of LINE IN and
MIC OUT ports. The Dual Receiver (Rx) Module features two pairs of USB HID ports and a pair
of LINE OUT and MIC IN ports. Each module also has two pairs of fiber connectors used for
transferring data between the Transmitters and Receivers at a data rate of 6 Gbps. Status LEDS
provide system information.
VQM-HA0006-LCTX (Transmitter) VQM-HA0006-LCRX (Receiver)
1.3.4. Dual USB HID and Audio Modules (2 Gbps)
Each Dual Transmitter (TX) Module features a pair of USB HID ports and a pair of LINE IN and
MIC OUT ports. The Dual Receiver (Rx) Module features two pairs of USB HID ports and a pair
of LINE OUT and MIC IN ports. Each module also has two pairs of fiber connectors used for
transferring data between the Transmitters and Receivers at a data rate of 2 Gbps. Status LEDS
provide system information.
VQM-HA0002-LCTX (Transmitter) VQM-HA0002-LCRX (Receiver)
VQM-HAP001, VQM-HA0002 and VQM-HA0006 LED functions:
TX: LED 1; SFP Output Ready LED 2; Fiber Input Valid
RX: LED 1; Fiber Input Valid LED 2; SFP Output Ready

Page 11
Q-Series KMASS Module Product Manual, Rev. E, March 2020 thinklogical®
1.3.5. Redundant USB HID and Audio Modules
Each Redundant Transmitter (TX) Module features a USB HID port and a LINE IN and MIC
OUT port. Each Redundant Receiver (RX) Module features a pair of USB HID ports and a LINE
OUT and MIC IN port. Each module also has two pairs of fiber connectors (Primary and
Redundant) used for transferring redundant data between the Transmitters and Receivers. Status
LEDS provide system information.
VQM-HAR001-LCTX (Transmitter) VQM-HAR001-LCRX (Receiver)
HID
K1' K2'
K1 K2 K2 K1 K2' K1'
LINE IN
MIC OUT
K1
K2
K1'
K2'
K1
K2
K1'
K2'
UPDATE
USB HID
LINE OUT
MIC IN
VQM-HAR001-LCTX VQM-HAR001-LCRX
VQM-HAR001 LED functions:
TX: LED 1; SFP Output Ready LED 2; Fiber Input Valid
RX: LED 1; Fiber Input Valid LED 2; SFP Output Ready
1.3.5.1. Unbalanced Audio Specifications
Audio Sampling Rate
46.875 kHz
Transmitter
Line Input Impedance: 10KΩ
Maximum Line Input:2.5 volts peak to peak
Microphone Output Impedance: 300Ω
Maximum Microphone Output: 0.45 volts peak to peak
Receiver
Line Output Impedance: 560Ω
Maximum Output: 3 volts peak to peak
Microphone Input Impedance: 5KΩ
Maximum Microphone Input: 0.24 volts peak to peak

Page 12
Q-Series KMASS Module Product Manual, Rev. E, March 2020 thinklogical®
1.3.6. USB 2.0 Modules
Each Transmitter (TX) Module features a USB 2.0 B port. Each Receiver (RX) Module features
a USB 2.0 A port. Each module also has a pair of fiber connectors used for transferring data
between the Transmitters and Receivers. Status LEDS provide system information.
VQM-U00001-LCTX (Transmitter) VQM-U00001-LCRX (Receiver)
K1 K2 K2 K1
VQM-U00001-LCTX
K1
K2
VQM-U00001-LCRX
USB 2.0
USB 2.0
K1
K2 LINK
HOST
1.3.7. Dual USB 2.0 Modules
Each Transmitter (TX) Module features twoUSB 2.0 B ports. Each Receiver (RX) Module
features two USB 2.0 A ports. Each module also has two pairs of fiber connectors used for
transferring data between the Transmitters and Receivers. Status LEDS provide system
information.
VQM-U00002-LCTX (Transmitter) VQM-U00002-LCRX (Receiver)
1.3.8. Redundant USB 2.0 Modules
Each Redundant Transmitter (TX) Module features a USB 2.0. Each Redundant Receiver (RX)
Module features a pair of USB 2.0 ports. Each module also has two pairs of fiber connectors
(Primary and Redundant) used for transferring redundant data between the Transmitters and
Receivers. Status LEDS provide system information.
VQM-U0R001-LCTX (Transmitter) VQM-U0R001-LCRX (Receiver)
VQM-U0R001 LED functions:
TX: K 1; SFP Output Ready LINK; USB2.0 Extension Connected to Rx
K 2; Fiber Input Valid HOST; USB2.0 Link Connected CPU to Rx Ports
RX: K 2; SFP Output Ready K 1; Fiber Input Valid

Page 13
Q-Series KMASS Module Product Manual, Rev. E, March 2020 thinklogical®
1.3.9. Dual 4-Port USB 2.0 Receiver Module
Each Receiver (RX) Module features two 4-Port sets of USB 2.0 A outputs. Each module also
has two pairs of fiber connectors used for transferring data between the Transmitters and
Receivers. Status LEDS provide system information.
VQM-U00008-LCRX (Receiver)
1.3.10. Secure USB 2.0 Transmitter and Receiver Modules
Thinklogical’s Secure Q-Series Modules communicate only with other Secure Q-Series
Modules. Direct fiber-optic links prevent unauthorized signal access. Each Transmitter (Tx) and
Receiver (RX) Module features either one or two USB 2.0 ports and one or two pairs of fiber
connectors used for transferring data between the Transmitters and Receivers. Status LEDS
provide system information.*
VQM-U000S1-LCTX (Transmitter) VQM-U0R0S1-LCRX (Receiver)
VQM-U000S2-LCTX (Transmitter) VQM-U000S2-LCRX (Receiver)
*On the VQM-U0000S2-LCRX, the DEV LED does not function.

Page 14
Q-Series KMASS Module Product Manual, Rev. E, March 2020 thinklogical®
1.4. Q-Series KMASS Modules Technical Specifications
KMASS Modules
Dimensions:
Height: 1.592” (40.43 mm)
Depth: 6.366" (161.69 mm)
Width: 3.513" (89.92 mm)
Electrical Cables
Supplied with
Transmitters
[Quantity]
VQM-UAP001-LCTX:
CBL000006-006FR PS2 (6-pin MINI DIN) Cable, 6FT [2]
CBL000015-006FR USB A-B Cable, 6FT [2]
CBL000016-006FR 3.5mm Male to 3.5mm Male Plug, 6FT [2]
VQM-HAP001-LCTX:
CBL000006-006FR PS2 (6-pin MINI DIN) Cable, 6FT [2]
CBL000015-006FR USB A-B Cable, 6FT [1]
CBL000016-006FR 3.5mm Male to 3.5mm Male Plug, 6FT [2]
VQM-HA0002-LCTX:
CBL000015-006FR USB A-B Cable, 6FT [2]
CBL000016-006FR 3.5mm Male to 3.5mm Male Plug, 6FT [4]
VQM-HA0006-LCTX:
CBL000015-006FR USB A-B Cable, 6FT [2]
CBL000016-006FR 3.5mm Male to 3.5mm Male Plug, 6FT [4]
VQM-HAR001-LCTX:
CBL000015-006FR USB A-B Cable, 6FT [1]
CBL000016-006FR 3.5mm Male to 3.5mm Male Plug, 6FT [2]
VQM-U00001-LCTX:
CBL000015-006FR USB A-B Cable, 6FT [1]
VQM-U00002-LCTX:
CBL000015-006FR USB A-B Cable, 6FT [2]
VQM-U0R001-LCTX:
CBL000015-006FR USB A-B Cable, 6FT [1]
VQM-U000S2-LCTX:
CBL000015-006FR USB A-B Cable, 6FT [2]
VQM-U0R0S1-LCTX:
CBL000015-006FR USB A-B Cable, 6FT [1]
Optical Distance
Multi-Mode:
Up to 65 meters with Type OM1
Up to 350 meters with Type OM2
Up to 650 meters with Type OM3
Up to 1000 meters with Type OM4
Single-Mode:
Up to 80km with Type OS2 9/125 for all distances
Input Rating
100-240VAC, 50-60Hz
Max. DC Power
Consumption
Tx Modules: 5W (1 amp @ 5VDC)
Rx Modules: 25W (5 amps @ 5VDC with 4 keyboard/mouse load)
Operating Temp
and Humidity
0° to 50°C (32° to 122 °F), 5% to 95% RH, non-condensing
Thermal
Heat load (BTU/HR): Equal to DC Power consumption x 3.412
Tx: 17.1 BTU/HR
Rx: 85.3 BTU/HR (with 4 keyboard/mouse load)
Regulatory
US/Canada EN 90650, FCC 47 CFR Part 15, ICES, CE
Warranty
12 months from date of purchase. Extended warranties available.

Page 15
Q-Series KMASS Module Product Manual, Rev. E, March 2020 thinklogical®
2. Connecting Q-Series KMASS Modules
All physical connections to the product use industry-standard connectors. Non-supplied cables
that may be needed are commercially available. All connections are found on the rear of the
chassis.
2.1. Fiber Optic Cables
All KMASS TX modules are connected to RX modules through fiber optic cables, either
directly or through a KVM Matrix Switch to provide communication between the transmitter
and the receiver. The standard multi-mode fiber optic cables must be 50 or 62.5 microns, up to 1000
meters (3280’) long and terminated with LC-type fiber optic connectors.
T R T R
LC LC
◄Transmit◄Receive
2.2. Transmitter Connections
A TX module connects to a source CPU and peripheral device sources through provided copper
cables. The connector configurations of the Q-Series Transmitters can be viewed in detail on pg.
9-13.
2.3. Receiver Connections
An RX module connects to the destination USB and audio devices with their own standard cables. The
connector configurations of the Q-Series Receivers can be viewed in detail on pg. 9-13.
12 3 4
K2
K1
K1
K2
Transmitter Connections Receiver Connections

Page 16
Q-Series KMASS Module Product Manual, Rev. E, March 2020 thinklogical®
2.4. Supplied Cables
Depending on the customer-specified system configuration, peripheral device cables will be
supplied by Thinklogical in quantities specific to each configuration:
3.5mm to 3.5mm Audio Cable, 6 Feet (CBL000016-006FR)
3.5mm 3.5mm
USB A-B Cable, 6 Feet (CBL000015-006FR)
USB B USB A
PS2 Keyboard & Mouse, 6 Feet (CBL000006-006FR)

Page 17
Q-Series KMASS Module Product Manual, Rev. E, March 2020 thinklogical®
2.5. Q-Series System Connections
The Q-4300’s chassis allows up to four hot-swappable interface modules to be used in a variety
of applications, as either transmitters, receivers, or as transceivers. Q-Series KMASS modules
support audio, high speed USB 2.0 (480 Mbps) and low speed USB HID (1.5 Mbps). Transmitters
can be connected directly to receivers or through a KVM Matrix Switch.
Also see the Quick Start Guide in Appendix A, pg. 23.
Mod.1
Mod.2
Mod.3
Mod.4
PS2 (Kybd/Mouse) Source 4
Mod. 4
Control CPU
VX160 Router
Q-4300: VQM-UAP001-LCTX Transmitters (4)
Source CPUs
1
2
3
4
Mod. 3
Mod. 2
Mod. 1
43
12
Q-4300:
VQM-UAP001-LCRX
Receivers (4)
Fiber Optic Cables: K1: KMASS Tx to Rx K2: KMASS Rx to Tx Copper Cables: USB (HID cable and/or 2.0 cable) Audio (IN and OUT cables) PS2 (Kybd. and Mouse cables)
Rx
Tx
The Q-4300 Fiber Extension System-VQM-UAP001: Extend up to 4 sets of USB HID, USB 2.0 and Audio
signals over 8 fibers in a 1 Rack Unit chassis using four VQM-UAP001 Tx and Rx Modules. In this example,
all transmitters are connected to the receivers through a KVM Matrix Switch (Thinklogical’s VX160®).

Page 18
Q-Series KMASS Module Product Manual, Rev. E, March 2020 thinklogical®
Mod. 1
Mod. 2
Mod. 3
Mod. 4
Fiber Optic Cables: èK1: USB HID and Audio IN, Tx to Rx, Primary èK1': USB HID and Audio IN, Tx to Rx, Redundant çK2: USB HID and Audio OUT, Rx to Tx, Primary çK2': USB HID and Audio OUT, Rx to Tx, Redundant
Source CPU Mod. 4
Source CPU Mod. 3
Source CPU Mod. 2
Source CPU Mod. 1
Q-Series:
VQM-HAR001-LCRX Redundant
Receiver Modules (4)
Fiber Optic Cables
Q-Series: VQM-HAR001-LCTX Redundant Transmitter Modules (4)
1
2
3
4
Copper Cables: Module 1: Primary KMASS Module 1: Redundant KMASS Module 2: Primary KMASS Module 2: Redundant KMASS Module 3: Primary KMASS Module 3: Redundant KMASS Module 4: Primary KMASS Module 4: Redundant KMASS
Mod. 3
Mod. 4
Mod. 2
Mod. 1
Rx
Tx
The Q-4300 Redundant Fiber Extension System, VQM-HAR001- Extend up to 4 redundant sets of USB
HID and Audio signals over 16 fibers in a 1 Rack Unit chassis using four VQM-HAR001 Tx and Rx Modules.
In this example, transmitters are connected directly to the receivers.

Page 19
Q-Series KMASS Module Product Manual, Rev. E, March 2020 thinklogical®
3. Updating Q-Series KMASS Modules
FPGA and Firmware Upgrade Applications are available through Thinklogical’s®Technical
Assistance Department. Please call us at 1-203-647-8700 and we’ll be happy to provide you with
all the assistance you’ll need to keep your system up and running at its optimum performance
level.
USB-A
CPU
USB-B
Quad Module Rack Mount Chassis
Q-4300
enterPOWER POWER
UPDATE
Thi nkl ogi cal
Q4300 Rack Ct r l V23. XX
Q-4300 Front Panel
3.1. HID Microprocessor Programming
Each Q-Series KMASS Transmitter Module with USB HID has an HID PORT that serves as both an
HID Microprocessor Programming port and as a USB HID source. Each Q-Series KMASS Receiver
Module with USB HID has an UPDATE PORT that serves as an HID Microprocessor Programming
port.
A transmitter’s USB HID port is to update DEVICE firmware. A receiver’s USB UPDATE
port is to update HOST firmware.
DEVICE HOST
When updating the transmitter device port, the USB cable must be removed from the HID port
while the chassis power is off in order to reboot the module.
