1 General notes
This manual contains important instructions for the safe operation of the unit. Read and follow
the safety instructions and all other instructions. Keep the manual for future reference. Make
sure that it is available to all those using the device. If you sell the unit please make sure that
the buyer also receives this manual.
Our products are subject to a process of continuous development. Thus, they are subject to
change.
General notes
blinder
4

1.1 Further information
On our website (www.thomann.de) you will find lots of further information and details on the
following points:
Download This manual is also available as PDF file for you to download.
Keyword search Use the search function in the electronic version to find the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the
customer service will gladly assist you.
General notes
Blinder 4-Lite
5

1.2 Symbols and signal words
In this section you will find an overview of the meaning of symbols and signal words that are
used in this manual.
Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in death or serious
injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
General notes
blinder
6

Warning signs Type of danger
Warning – high-voltage.
Warning – hot surface.
Warning – suspended load.
Warning – danger zone.
General notes
Blinder 4-Lite
7

2 Safety instructions
This device is intended to be used as an illumination effect. Use the device only as described in
this user manual. Any other use or use under other operating conditions is considered to be
improper and may result in personal injury or property damage. No liability will be assumed for
damages resulting from improper use.
This device may be used only by persons with sufficient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
DANGER!
Dangerous voltages
The rewiring, exchanging of light bulbs and general electrical maintenance of this
product should only be carried out by electrical specialists. Failure to follow these
safety precautions can result in electric shock, fire and/or death.
The product must be switched off and de-energised (mains plug / power supply
disconnected) before carrying out any maintenance / repair work.
Intended use
Safety
Safety instructions
blinder
8

DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never
remove any covers.
There are no user-serviceable parts inside.
Do not use the device if covers, protectors or optical components are missing or
damaged.
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
Safety instructions
Blinder 4-Lite
9

WARNING!
Eye damage caused by high light intensity
Never look directly into the light source.
WARNING!
Risk of burns
The surface of the device can become very hot during operation.
Do not touch the device with bare hands during operation, and after switching
off wait for at least 15 minutes.
Safety instructions
blinder
10

NOTICE!
Risk of overheating
The distance between the light output and the illuminated surface must be more
than 2.0 m (78.7 in).
Always ensure sufficient ventilation.
The ambient temperature must always be below 40 °C (104 °F).
NOTICE!
Risk of fire
Do not cover the device nor any ventilation slots. Do not place the device near
any direct heat source. Keep the device away from naked flames.
Safety instructions
Blinder 4-Lite
11

NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.
NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches
the voltage rating of the device and that the AC outlet is protected by a residual
current circuit breaker. Failure to do so could result in damage to the device and
possibly injure the user.
Unplug the device before electrical storms occur and when it is unused for long
periods of time to reduce the risk of electric shock or fire.
Safety instructions
blinder
12

3 Features
The blinder is particularly suitable for the illumination of areas and specific lighting effects in
the auditorium at events, rock concerts as well as in theatres and musicals.
Special features of this device:
nTwo rotatable elements with shatter protection for 2 × 2 DWE illuminants
(illuminants not included)
nDouble round-tube bracket for secure and solid mounting.
nCable set included.
Features
Blinder 4-Lite
13

4 Installation
Unpack and carefully check that there is no transportation damage before using the unit. Keep
the equipment packaging. To fully protect the device against vibration, dust and moisture
during transportation or storage use the original packaging or your own packaging material
suitable for transport or storage, respectively.
WARNING!
Risk of injury caused by falling objects
Make sure that the installation complies with the standards and rules that apply
in your country. Always secure the device with a secondary safety attachment,
such as a safety cable or a safety chain.
Installation
blinder
14

NOTICE!
Überhitzungsgefahr
Der Abstand zwischen der Lichtquelle und der beleuchteten Fläche muss größer
als 2 m sein.
Sorgen Sie stets für ausreichende Belüftung.
Die Umgebungstemperatur muss immer unter 40 °C liegen.
Betreiben Sie das Gerät niemals länger als 15 Minuten durchgehend und halten
Sie entsprechende Abkühlzeiten ein.
Sie können das Gerät hängend oder stehend installieren. Die Befestigung während des
Gebrauchs muss immer auf einer festen Oberfläche oder an einem dafür zugelassenen Träger
erfolgen. Benutzen Sie zur Befestigung die dafür vorgesehenen Öffnungen des Bügels.
Arbeiten Sie immer von einer stabilen Plattform aus, wenn Sie das Gerät installieren, bewegen
oder Wartungsarbeiten daran durchführen. Dabei muss der Bereich unterhalb des Geräts
abgesperrt sein.
Das Sicherheitsfangseil muss am Bügel befestigt werden.
Befestigungsmöglichkeiten
Installation
Blinder 4-Lite
15

5 Wiring
DANGER!
Dangerous voltages
The rewiring, exchanging of light bulbs and general electrical maintenance of this
product should only be carried out by electrical specialists. Failure to follow these
safety precautions can result in electric shock, fire and/or death.
The product must be switched off and de-energised (mains plug / power supply
disconnected) before carrying out any maintenance / repair work.
nRemove the shatter protection grilles of the illuminant elements (4 × 2 knurled-head
screws with locking spring).
nRemove the cable compartment cover on the rear panel of the unit (six tapping screws).
nRun the cables provided through the two holes inside the housing.
nWire the Illuminants according to the following diagram.
nFinally, assemble the cable cover on the rear panel of the unit and the shatter protection
grilles of the illuminant elements.
Wiring
blinder
16

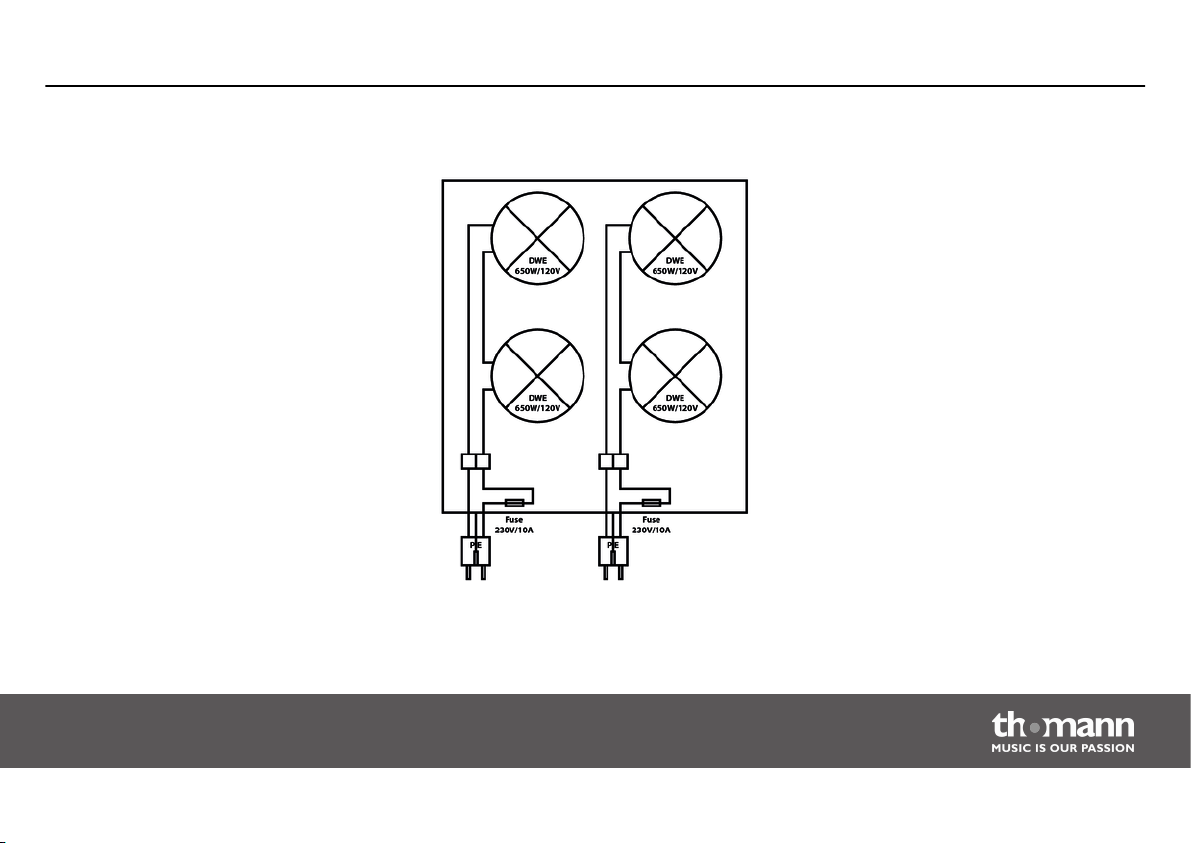

Schematic for four lamps
Wiring
Blinder 4-Lite
17

6 Starting up
Make sure that the unit is properly installed and wired. Fix the lamp holders in the desired
position using the hand screws. Connect the power cable to a grounded outlet to start up the
unit.
NOTICE!
Risk of overheating
Never operate the unit for more than 15 minutes continuously and stick to appro‐
priate cool-down times.
Starting up
blinder
18

7 Connections and operating elements
Front panel
Connections and operating elements
Blinder 4-Lite
19

1 Round-tube bracket.
2 Shatter protection.
3 Knurled-head screws for fixing the shatter protection.
4 Handscrews for fixing the round-tube bracket.
5 Handscrews for positioning of the rotatable elements.
