thomann Pyrit T10 User manual

Pyrit 10, 12, 15
passive 2 way
full-range speaker
user manual

Musikhaus Thomann e.K.
Treppendorf 30
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
29.11.2012

Table of contents
1 General notes............................................................................................................................................... 4
2 Safety instructions..................................................................................................................................... 7
3 Features....................................................................................................................................................... 10
4 Installation.................................................................................................................................................. 11
4.1 Tips on handling speakers............................................................................................................ 13
4.2 Speaker rigging................................................................................................................................. 14
4.3 NL4 connections............................................................................................................................... 15
5 Technical specifications....................................................................................................................... 17
6 Protecting the environment.............................................................................................................. 19
Table of contents
Pyrit 10, 12, 15
3

1 General notes
This user manual contains important information on safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to other users, be sure
that they also receive this manual.
Our products are subject to a process of continuous development. We therefore reserve the
right to make changes without notice.
General notes
passive 2 way full-range speaker
4

This section provides an overview of the symbols and signal words used in this user manual.
Signal word Meaning
DANGER! This combination of symbol and signal word
indicates an immediate dangerous situation
that will result in death or serious injury if it is
not avoided.
WARNING! This combination of symbol and signal word
indicates a possible dangerous situation that
can result in death or serious injury if it is not
avoided.
CAUTION! This combination of symbol and signal word
indicates a possible dangerous situation that
can result in minor injury if it is not avoided.
NOTICE! This combination of symbol and signal word
indicates a possible dangerous situation that
can result in material and environmental
damage if it is not avoided.
Symbols and signal words
General notes
Pyrit 10, 12, 15
5

Warning signs Type of danger
Warning – suspended load.
Warning – danger zone.
General notes
passive 2 way full-range speaker
6

2 Safety instructions
This device is intended to be used in a sound reinforcement system. Use the device only as
described in this user manual. Any other use or use under other operating conditions is consid‐
ered to be improper and may result in personal injury or property damage. No liability will be
assumed for damages resulting from improper use.
This device may be used only by persons with sufficient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
Intended use
Safety
Safety instructions
Pyrit 10, 12, 15
7

CAUTION!
Possible hearing damage
The device can produce volume levels that may cause temporary or permanent
hearing impairment. Over an extended period of time, even levels that seem to
be uncritical can cause hearing damage.
Decrease the volume level immediately if you experience ringing in your ears or
hearing impairment. If this is not possible, keep a greater distance or use suffi‐
cient ear protectors.
CAUTION!
Risk of injury due to heavy weight
Due to the heavy weight of the device, at least two persons are required for trans‐
port and installation.
Safety instructions
passive 2 way full-range speaker
8

NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.
Safety instructions
Pyrit 10, 12, 15
9

3 Features
The device is particularly suitable for use in churches, conference rooms and multi-purpose
halls.
Special features of the device:
nItem no. 299642: 10" woofer, 1.4" tweeter
Item no. 299643: 12" woofer, 1.7" tweeter
Item no. 299646: 15" woofer, 1.7" tweeter
n2 × NL4 connections
nM8 rigging points
nBuilt-in feet for monitor applications
nDouble pole mounting flange (vertical and 5° inclination)
nCeiling mountable (with optional mounting bracket)
nPowder-coated front grille
Features
passive 2 way full-range speaker
10

4 Installation
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the device against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
You can install the device on the wall, ceiling or floor.
WARNING!
Risk of injury caused by falling objects
Make sure that the installation complies with the standards and rules that apply
in your country. Always secure the device with a secondary safety attachment,
such as a safety cable or a safety chain.
Installation
Pyrit 10, 12, 15
11

CAUTION!
Risk of injury due to heavy weight
Due to the heavy weight of the device, at least two persons are required for trans‐
port and installation.
NOTICE!
Possible property damage by magnetic fields
Loudspeakers produce a static magnetic field. Therefore, maintain an appropriate
distance to devices that can be adversely affected or damaged by an external
magnetic field.
NOTICE!
Use of stands
When mounting the device onto a stand, ensure that the stand is in a safe and
stable position and that the weight of the device does not exceed the maximum
permissible load capacity of the stand.
Installation
passive 2 way full-range speaker
12

4.1 Tips on handling speakers
We recommend you to set up the speakers in a way, that their sound signals can reach the
audience unobstructedly.
Always use high grade cables to connect your equipment. Otherwise you won't reach max‐
imum sound quality.
For optimum results both impedance and power handling of the speakers must match the
requirements of the amplifier. Always follow the technical specifications of all equipment
involved!
The overall impedance of the connected loudspeakers must not deceed the minimum output
impedance of the amp. The amps max. RMS output power should be 50 % above the power
handling capacity of the connected speakers.
If you notice distortion during operation, either the amp or the speaker is overloaded. This may
permanently damage the amp or the speaker. Always reduce the volume as soon as you notice
distortion.
Installation
Pyrit 10, 12, 15
13

4.2 Speaker rigging
For rigging the speaker box on special mounting devices, M8 threads are flush-mounted on
top, bottom and sides of the box. You can insert screw eyes (double studs) into these threads.
Check for secure connection of the screw eyes to the box, before rigging the box.
Installation
passive 2 way full-range speaker
14

4.3 NL4 connections
On the back of the unit are the two NL4 connectors.
1, 2 NL4 connectors wired in parallel
One connector is used to connect the device to the signal source, the other is used to connect
an additional speaker of the same type.
Installation
Pyrit 10, 12, 15
15

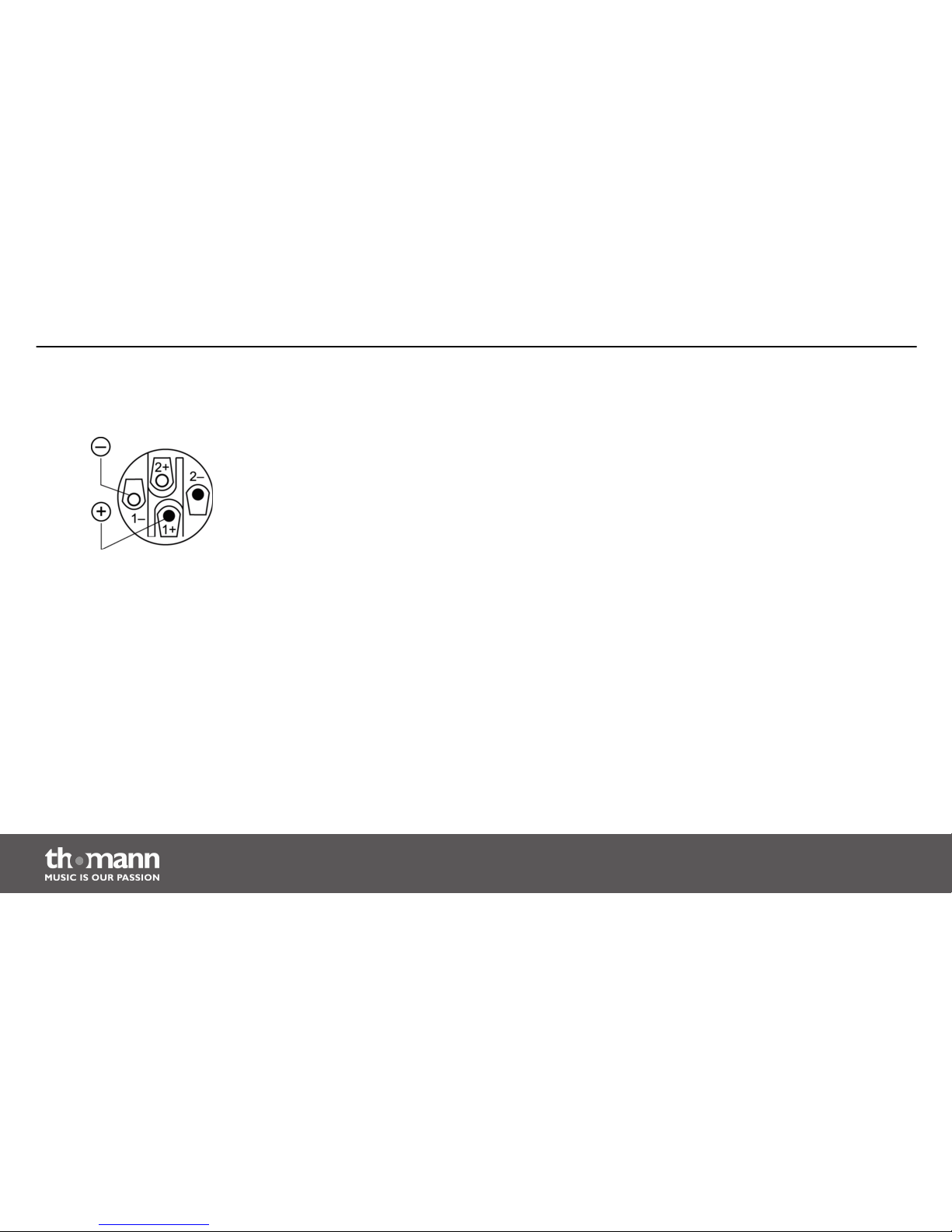

The drawing alongside shows the pin assignment of the lockable NL4 mounting connectors.NL4 mounting connector for
speaker connection
Installation
passive 2 way full-range speaker
16

5 Technical specifications
Pyrit T10, item no. 299642 Pyrit T12, item no. 299643 Pyrit T15, item no. 299646
System Passive 2-way full-range
speaker box Passive 2-way full-range speaker box Passive 2-way full-range speaker box
Speakers 1 × 10" woofer 1 × 12" woofer 1 × 15" woofer
Titan compression driver for
1 × 1.4" tweeter Titan compression driver for 1 × 1.7" tweeter Titan compression driver for 1 × 1.7" tweeter
Frequency response
(–3 dB) 55 Hz … 20 kHz 50 Hz … 20 kHz 45 Hz … 20 kHz
Power handling 250 W (RMS) 300 W (RMS 350 W (RMS)
500 W (peak) 600 W (peak) 700 W (peak)
Sound pressure level 93 dB 98 dB 99 dB
Impedance 8 Ω 8 Ω 8 Ω
Dispersion angle (V × H) 60° × 90° 60° × 90° 60° × 90°
Technical specifications
Pyrit 10, 12, 15
17

Pyrit T10, item no. 299642 Pyrit T12, item no. 299643 Pyrit T15, item no. 299646
Dimensions (W × H × D) 306 mm × 516 mm × 238 mm 368 mm × 630 mm × 349 mm 460 mm × 780 mm × 396 mm
Weight 13.2 kg 20 kg 26.8 kg
Technical specifications
passive 2 way full-range speaker
18

6 Protecting the environment
For the transport and protective packaging, environmentally friendly materials have been
chosen that can be supplied to normal recycling.
Ensure that plastic bags, packaging, etc. are properly disposed of.
Do not just dispose of these materials with your normal household waste, but make sure that
they are collected for recycling. Please follow the notes and markings on the packaging.
This device is subject to the European directive 2002/96/EC.
Do not dispose of the device with your normal household waste.
Dispose of this device through an approved waste disposal firm or through your local waste
facility. When discarding the device, comply with the rules and regulations that apply in your
country. If in doubt, consult your local waste disposal facility.
Disposal of the packaging mate‐
rial
Disposal of your old device
Protecting the environment
Pyrit 10, 12, 15
19

Notes
