thomann harley benton User manual

Powerplant
power supply
user manual

Musikhaus Thomann e.K.
Treppendorf 30
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
26.02.2013

Table of contents
1 General notes............................................................................................................................................... 4
2 Safety instructions..................................................................................................................................... 6
3 Installation and starting up................................................................................................................ 10
4 Components and functions................................................................................................................ 13
5 Technical specifications....................................................................................................................... 16
6 Protecting the environment.............................................................................................................. 17
Table of contents
Powerplant
3

1 General notes
This user manual contains important information on safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to other users, be sure
that they also receive this manual.
Our products are subject to a process of continuous development. We therefore reserve the
right to make changes without notice.
General notes
power supply
4

This section provides an overview of the symbols and signal words used in this user manual.
Signal word Meaning
DANGER! This combination of symbol and signal word
indicates an immediate dangerous situation
that will result in death or serious injury if it is
not avoided.
NOTICE! This combination of symbol and signal word
indicates a possible dangerous situation that
can result in material and environmental
damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – danger zone.
Symbols and signal words
General notes
Powerplant
5

2 Safety instructions
This device transforms mains voltage into safety extra-low voltage, e.g. for the voltage supply
of effects pedals. Use the device only as described in this user manual. Any other use or use
under other operating conditions is considered to be improper and may result in personal
injury or property damage. No liability will be assumed for damages resulting from improper
use.
This device may be used only by persons with sufficient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Intended use
Safety instructions
power supply
6

DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never
remove any covers.
There are no user-serviceable parts inside.
Safety
Safety instructions
Powerplant
7

DANGER!
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord) with a pro‐
tective contact plug. Do not modify the mains cable or the plug. Failure to do so
could result in electric shock/death or fire. If in doubt, seek advice from a regis‐
tered electrician.
NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.
Safety instructions
power supply
8

NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches
the voltage rating of the device and that the AC outlet is protected by a residual
current circuit breaker. Failure to do so could result in damage to the device and
possibly injure the user.
Unplug the device before electrical storms occur and when it is unused for long
periods of time to reduce the risk of electric shock or fire.
Safety instructions
Powerplant
9

3 Installation and starting up
Unpack and carefully check that there is no transportation damage before using the unit. Keep
the equipment packaging. To fully protect the device against vibration, dust and moisture
during transportation or storage use the original packaging or your own packaging material
suitable for transport or storage, respectively.
Make all connections when the device is not connected to the power grid. Use the supplied
cables for all connections.
The following cable types are available:
Wiring
Installation and starting up
power supply
10

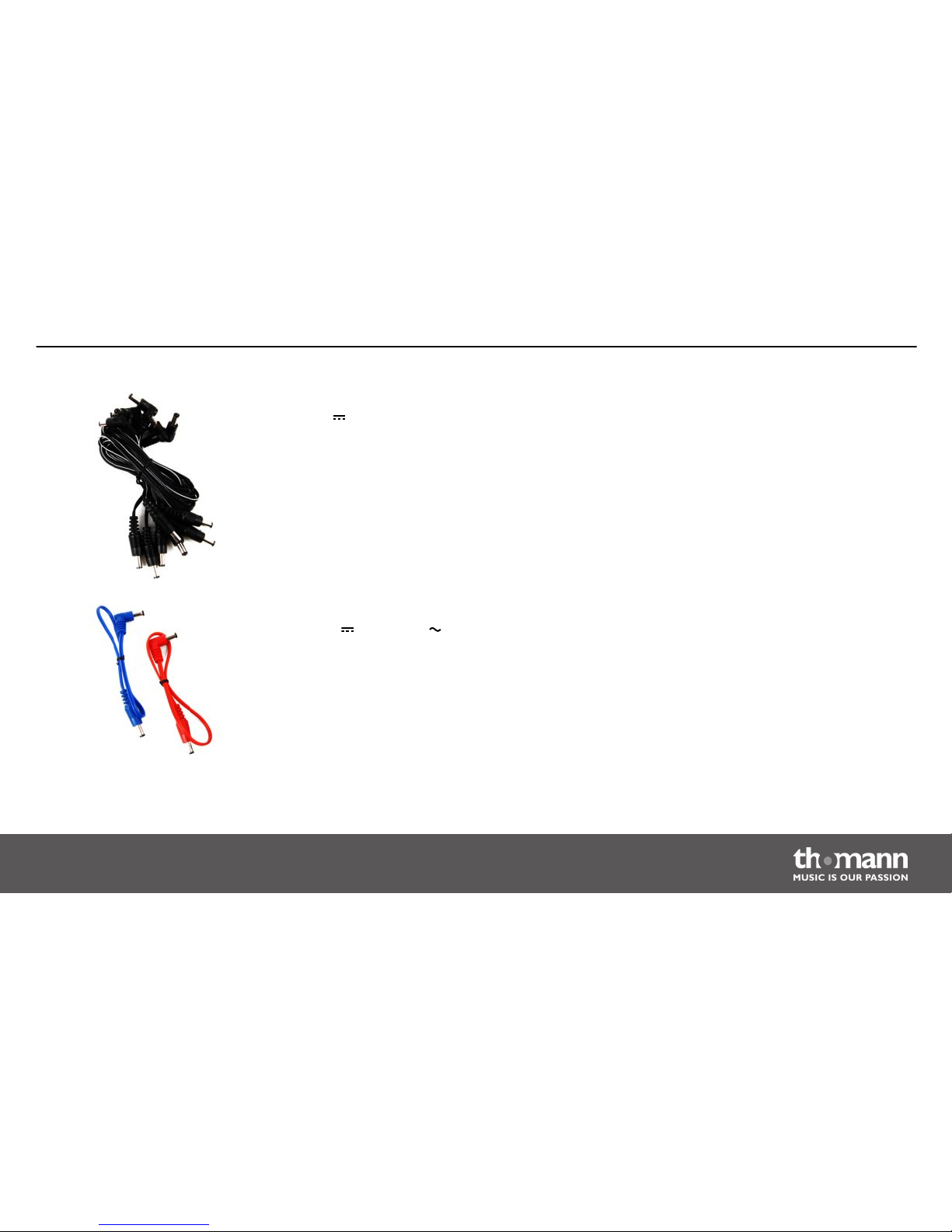

8 standard cables (1:1), plug-to-plug, length 55 cm, each to supply one effects pedal with
DC 9 V , black/white, inner contact = minus pole.
2 standard cables (1:1), plug-to-plug, length 35 cm, each to supply one effects pedal with
DC 12 V or AC 12 V respectively, 1 × red, 1 × blue, inner contact = minus pole.
Installation and starting up
Powerplant
11

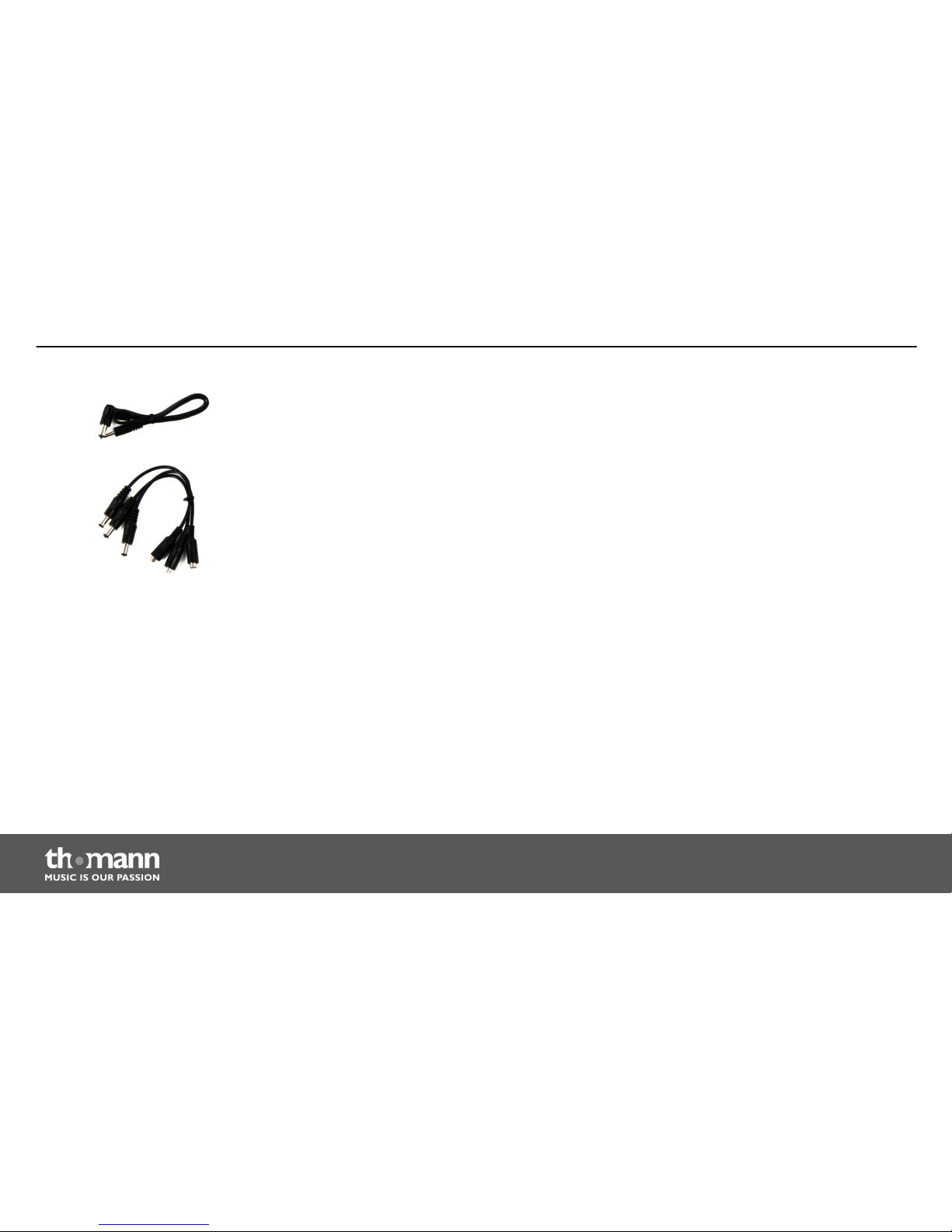

1 adapter cable with 1/8" mini phone plug (1:1), plug-to-socket, length 35 cm, to supply one
effects pedal.
3 adapter cables plug-to-socket to change the polarity of the inner contact from minus to plus
pole, length 20 cm.
Installation and starting up
power supply
12

4 Components and functions
Connection panel
Components and functions
Powerplant
13

1Outlet sockets for the power supply of effects pedals with DC 9 V .
2POWER
Blue pilot LED. Indicates that the device is connected to the power grid. The LED
turns off a few seconds after the device is disconnected from the mains power
supply.
3Outlet socket for the power supply of effects pedals with DC 12 V .
4Outlet socket for the power supply of effects pedals with AC 12 V .
Components and functions
power supply
14

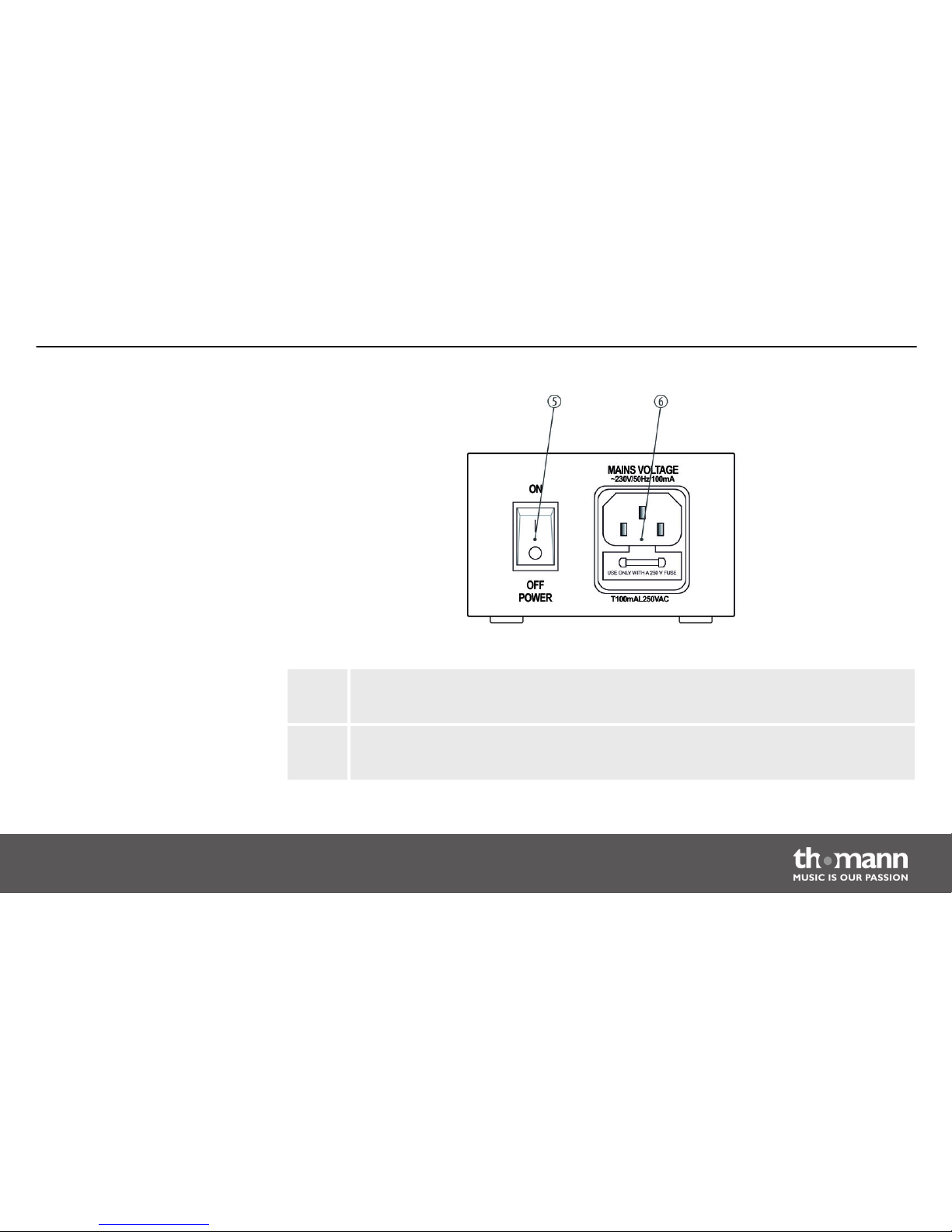

5POWER ON|OFF
Mains power switch to turn the device on or off.
6MAINS VOLTAGE
IEC chassis plug with fuse holder for power supply.
Left side view
Components and functions
Powerplant
15

5 Technical specifications
Operating supply voltage AC 230 V , 50 Hz
Fuse 0.1 A / 250 V (fast-acting)
Power consumption 1.54 W
Output voltage 8 × DC 9 V , max. 500 mA in total
1 × DC 12 V , max. 250 mA
1 × AC 12 V , max. 250 mA
Dimensions (W × D × H) 165 mm × 85 mm × 50 mm
Weight 1 kg
Technical specifications
power supply
16

6 Protecting the environment
For the transport and protective packaging, environmentally friendly materials have been
chosen that can be supplied to normal recycling.
Ensure that plastic bags, packaging, etc. are properly disposed of.
Do not just dispose of these materials with your normal household waste, but make sure that
they are collected for recycling. Please follow the notes and markings on the packaging.
This device is subject to the European directive 2002/96/EC.
Do not dispose of the device with your normal household waste.
Dispose of this device through an approved waste disposal firm or through your local waste
facility. When discarding the device, comply with the rules and regulations that apply in your
country. If in doubt, consult your local waste disposal facility.
Disposal of the packaging mate‐
rial
Disposal of your old device
Protecting the environment
Powerplant
17

Notes
power supply
18
