thomann Achat 112 MA User manual

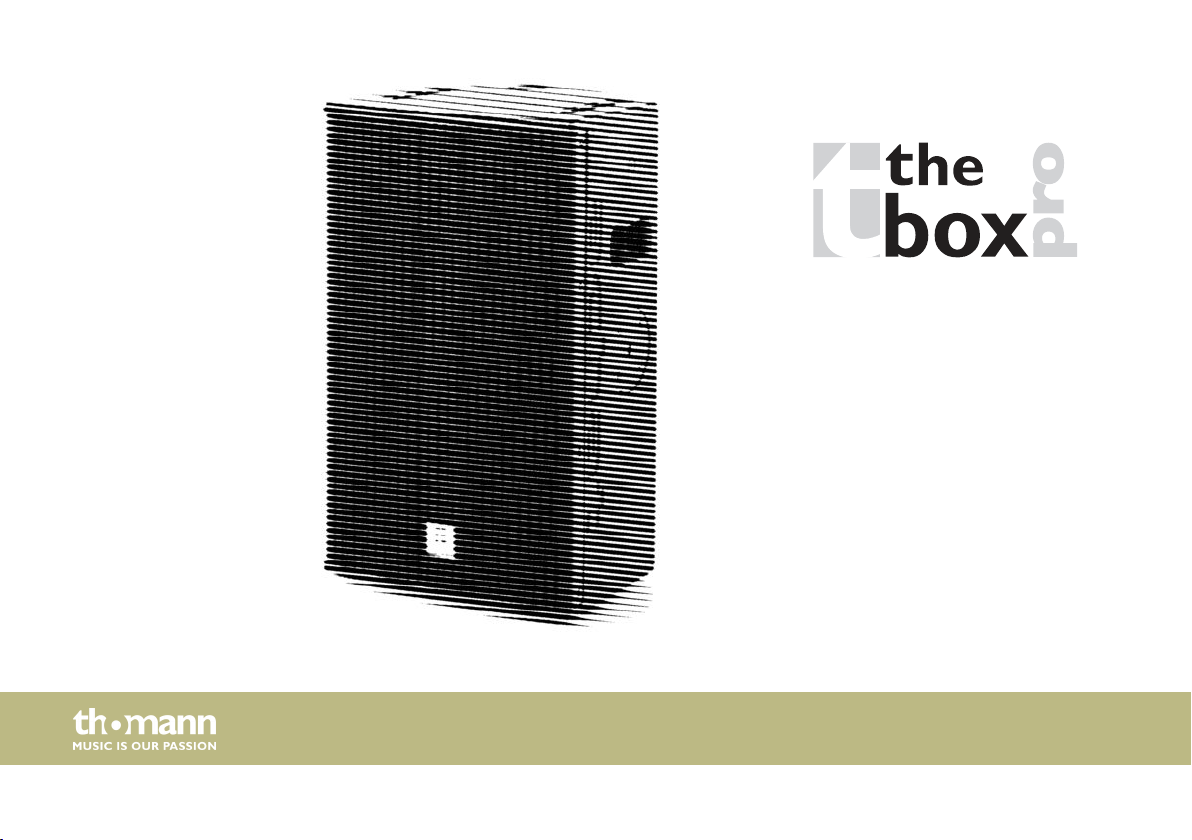

Achat 112 MA
Achat 112 MA WH
active speaker
user manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
17.06.2021, ID: 230513, 354548 (V2)

Table of contents
1 General information................................................................................................................................. 4
1.1 Further information........................................................................................................................... 5
1.2 Notational conventions.................................................................................................................... 6
1.3 Symbols and signal words............................................................................................................... 6
2 Safety instructions..................................................................................................................................... 9
3 Features....................................................................................................................................................... 13
4 Installation.................................................................................................................................................. 14
4.1 Pin assignment.................................................................................................................................. 15
4.2 Tips on handling speakers............................................................................................................ 18
4.3 Hanging the speaker box.............................................................................................................. 19
5 Operating elements............................................................................................................................... 20
6 Technical specications....................................................................................................................... 23
7 Protecting the environment.............................................................................................................. 26
Table of contents
Achat 112 MA Achat 112 MA WH
3

1 General information
This user manual contains important information on the safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to another user, be sure
that they also receive this manual.
Our products and user manuals are subject to a process of continuous development. We there‐
fore reserve the right to make changes without notice. Please refer to the latest version of the
user manual which is ready for download under www.thomann.de.
General information
active speaker
4

1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
General information
Achat 112 MA Achat 112 MA WH
5

1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
Letterings
General information
active speaker
6

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in death or serious
injury if it is not avoided.
CAUTION! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in minor injury if it
is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
General information
Achat 112 MA Achat 112 MA WH
7

Warning signs Type of danger
Warning – suspended load.
Warning – danger zone.
General information
active speaker
8

2 Safety instructions
This device is designed for sound reinforcement. Use the device only as described in this user
manual. Any other use or use under other operating conditions is considered to be improper
and may result in personal injury or property damage. No liability will be assumed for damages
resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Safety
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking
hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and
choke! Never let children unattended use electrical devices.
Intended use
Safety instructions
Achat 112 MA Achat 112 MA WH
9

DANGER!
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord) with a protective contact plug. Do not modify the mains cable
or the plug. Failure to do so could result in electric shock/death or re. If in doubt, seek advice from a registered electrician.
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts
inside. Do not use the device if covers, protectors or optical components are missing or damaged.
WARNING!
Consequences of faulty mounting
Faulty mounting may lead to lethal injuries or property damage. Please ensure that the norms and regulations valid in your country
are always observed when mounting and operating your product. In Germany: BGV C1, “Event and Production Sites for Stage Pre‐
sentations”. Only expertly trained sta may mount speakers.
CAUTION!
Possible hearing damage
The device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of
time, even levels that seem to be uncritical can cause hearing damage. Decrease the volume level immediately if you experience
ringing in your ears or hearing impairment. If this is not possible, keep a greater distance or use sucient ear protectors.
Safety instructions
active speaker
10

NOTICE!
Risk of re
Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked ames.
NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid
direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specied in the chapter
‘Technical specications’ of this user manual. Avoid heavy temperature uctuations and do not switch the device on immediately
after it was exposed to temperature uctuations (for example after transport at low outside temperatures). Dust and dirt inside can
damage the unit. When operated in harmful ambient conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by
qualied service personnel at regular intervals to prevent overheating and other malfunction.
NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC
outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the
user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric
shock or re.
NOTICE!
Possible damage due to installation of a wrong fuse
The use of dierent types of fuses can cause serious damage to the unit. Fire hazard! Only fuses of the same type may be used.
Safety instructions
Achat 112 MA Achat 112 MA WH
11

NOTICE!
Possible staining
The plasticiser contained in the rubber feet of this product may possibly react with the coating of your parquet, linoleum, laminate
or PVC oor and after some time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the oor, but
use felt-pad oor protectors or a carpet.
Safety instructions
active speaker
12

3 Features
Special features of the device:
nActive 2 way-full-range-loudspeaker with built-in crossover
nConnection options: XLR / 1/4" jack combo socket for signal input, XLR panel plug for
signal output.
nPower supply switch
nFlying tracks on top of the housing and an eye on the back for tilting. Mounting for vertical
hanging optionally available
n36 mm pole ange on the bottom
nRotatable horn
nBlack textured paint (item no. 230513) or white textured paint (item no. 354548)
Features
Achat 112 MA Achat 112 MA WH
13

4 Installation
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
WARNING!
Risk of injury caused by falling objects
Make sure that the installation complies with the standards and rules that apply
in your country. Always secure the device with a secondary safety attachment,
such as a safety cable or a safety chain.
Installation
active speaker
14

NOTICE!
Possible property damage by magnetic elds
Loudspeakers produce a static magnetic eld. Therefore, maintain an appropriate
distance to devices that can be adversely aected or damaged by an external
magnetic eld.
NOTICE!
Use of stands
When mounting the device onto a stand, ensure that the stand is in a safe and
stable position and that the weight of the device does not exceed the maximum
permissible load capacity of the stand.
4.1 Pin assignment
You may use XLR and jack connectors with either balanced or unbalanced pinout. Below you
will nd an overview of the dierent options.
Installation
Achat 112 MA Achat 112 MA WH
15

XLR panel sockets are provided for signal inputs. XLR panel plugs are provided for signal out‐
puts. The gure and the table show the XLR pin assignment.
Balanced pinout:
1 Ground
2 Positive signal (+)
3 Negative signal (–)
Unbalanced pinout:
1 Ground
2 Signal
3 Jumpered with pin 1
XLR connections for signal
inputs/outputs
Installation
active speaker
16

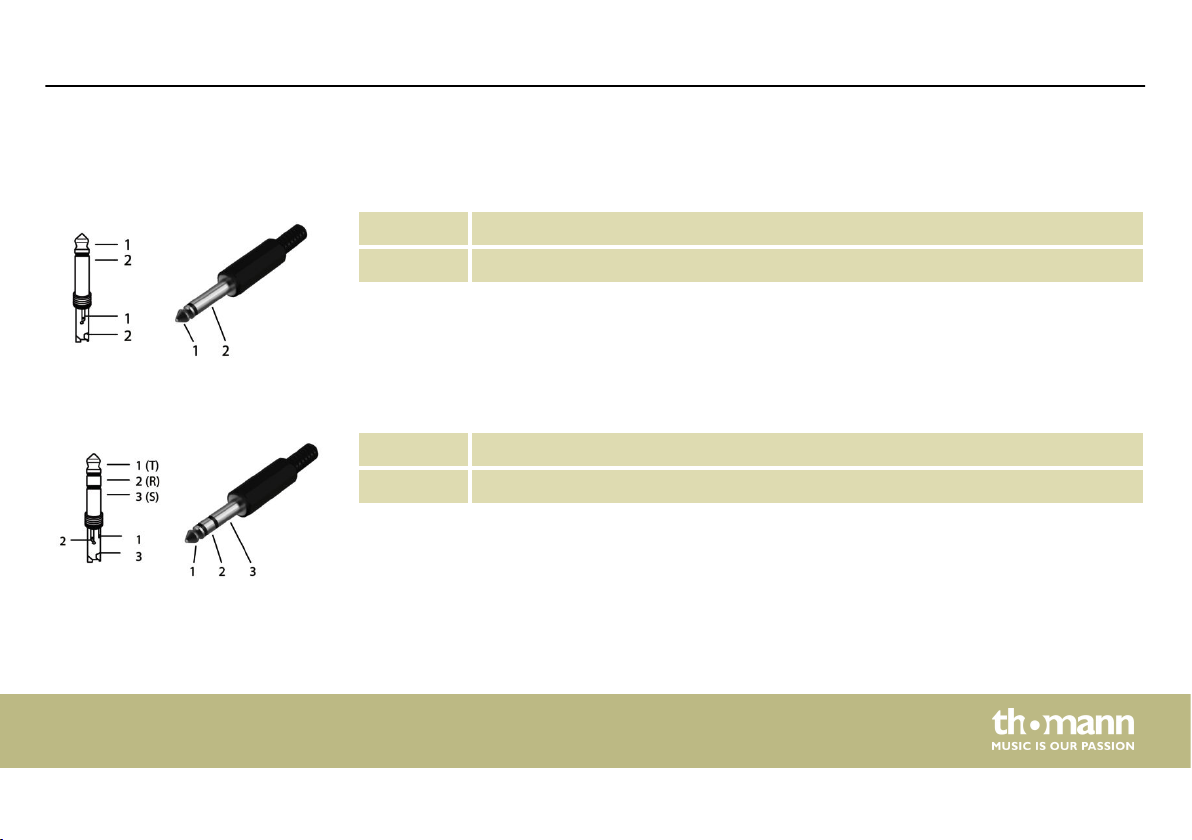

The gure and the table show the pin assignment for ¼-inch jack plugs.
Unbalanced wiring (jack plug, mono):
1 Signal
2 Ground
Unbalanced wiring (jack plug, stereo):
1 Signal
2, 3 Ground
Jack plug for signal in and out‐
puts
Installation
Achat 112 MA Achat 112 MA WH
17

Balanced wiring (jack plug, stereo):
1 (tip) Positive signal (+)
2 (ring) Negative signal (–)
3 (sleeve) Ground
4.2 Tips on handling speakers
We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐
ence unobstructedly. It will often be helpful to mount the speakers on tripods. Thus, the sound
will be evenly spread with maximum range throughout the audience area.
Always use high grade cable to connect your equipment. Otherwise you won't reach max‐
imum sound quality.
If you notice distortion during operation, the active speaker is overloaded. This may perma‐
nently damage the device. Always reduce the volume as soon as you hear distortion.
Installation
active speaker
18

4.3 Hanging the speaker box
To hang the speaker box on special mounting devices (aka ‘ying’), the top of the box oers
built-in Aeroquip or y tracks. In these tracks safety eyelets (double studs) can be screwed or
latched. Check the secure connection of the safety eyelets with the box carefully, before you
use it in ‘ying mode’.
Using an additional loop on the back of the box, it is possible to tilt the box. This additional
loop must not solely be in charge to secure the entire suspended weight.
Installation
Achat 112 MA Achat 112 MA WH
19

5 Operating elements
& ' ( )
%$#
Operating elements
active speaker
