thomann Achat 110 MA User manual

Achat 110 MA MKII
Achat 112 MA MKII
Achat 115 MA MKII
Active Speaker
User Manual

Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
Internet: www.thomann.de
22.07.2022, ID: 498102, 498103, 498105 (V3)

Table of contents
1 General information................................................................................................................................. 5
1.1 Further information........................................................................................................................... 6
1.2 Notational conventions.................................................................................................................... 6
1.3 Symbols and signal words............................................................................................................... 7
2 Safety instructions..................................................................................................................................... 9
3 Features....................................................................................................................................................... 13
4 Installation.................................................................................................................................................. 16
4.1 Tips on handling speakers............................................................................................................ 18
4.2 Hanging the speaker box.............................................................................................................. 19
4.3 Mounting bracket............................................................................................................................ 19

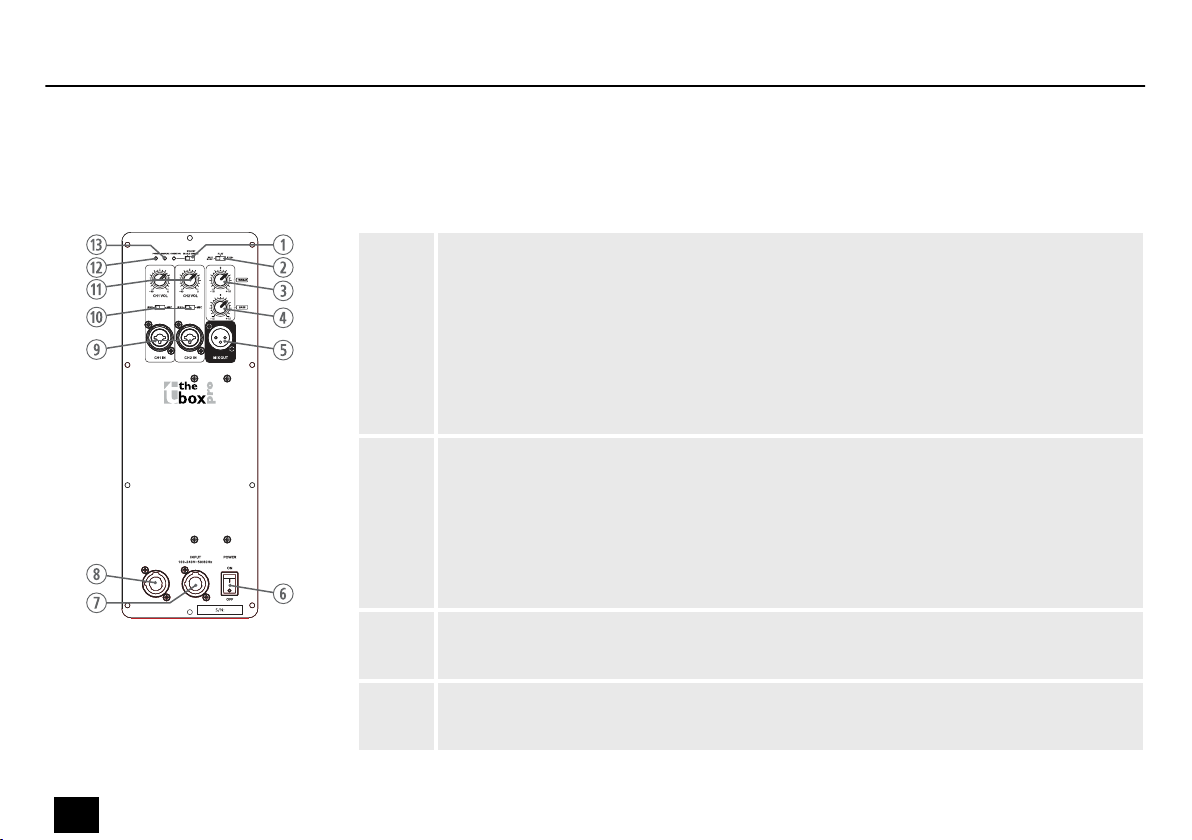

5 Connections and operating elements........................................................................................... 20
6 Technical specications....................................................................................................................... 25
7 Protecting the environment.............................................................................................................. 36
Table of contents
Achat 110 MA MKII Achat 112 MA MKII Achat 115 MA MKII 3
Active Speaker

4Achat 110 MA MKII Achat 112 MA MKII Achat 115 MA MKII
Active Speaker

1 General information
This user manual contains important information on the safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to another user, be sure
that they also receive this manual.
Our products and user manuals are subject to a process of continuous development. We there‐
fore reserve the right to make changes without notice. Please refer to the latest version of the
user manual which is ready for download under www.thomann.de.
General information
Achat 110 MA MKII Achat 112 MA MKII Achat 115 MA MKII 5
Active Speaker

1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
1.2 Notational conventions
This manual uses the following notational conventions:
General information
6Achat 110 MA MKII Achat 112 MA MKII Achat 115 MA MKII
Active Speaker

The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in death or serious
injury if it is not avoided.
CAUTION! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in minor injury if it
is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Letterings
General information
Achat 110 MA MKII Achat 112 MA MKII Achat 115 MA MKII 7
Active Speaker

Warning signs Type of danger
Warning – high-voltage.
Warning – suspended load.
Warning – danger zone.
General information
8Achat 110 MA MKII Achat 112 MA MKII Achat 115 MA MKII
Active Speaker

2 Safety instructions
This device is designed for sound reinforcement. Use the device only as described in this user
manual. Any other use or use under other operating conditions is considered to be improper
and may result in personal injury or property damage. No liability will be assumed for damages
resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Safety
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking
hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and
choke! Never let children unattended use electrical devices.
DANGER!
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord) with a protective contact plug. Do not modify the mains cable
or the plug. Failure to do so could result in electric shock/death or re. If in doubt, seek advice from a registered electrician.
Intended use
Safety instructions
Achat 110 MA MKII Achat 112 MA MKII Achat 115 MA MKII 9
Active Speaker

DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts
inside. Do not use the device if covers, protectors or optical components are missing or damaged.
WARNING!
Consequences of faulty mounting
Faulty mounting may lead to lethal injuries or property damage. Please ensure that the norms and regulations valid in your country
are always observed when mounting and operating your product. In Germany: DGUV rule 17 „Veranstaltungs- und Produktions‐
stätten für szenische Darstellung“ (event and production sites for stage presentations). Only expertly trained sta may mount
speakers.
WARNING!
Risk of injury caused by falling objects
Portable PA systems should be secured from falling using two independently working devices, for example, safety ropes.
CAUTION!
Possible hearing damage
The device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of
time, even levels that seem to be uncritical can cause hearing damage. Decrease the volume level immediately if you experience
ringing in your ears or hearing impairment. If this is not possible, keep a greater distance or use sucient ear protectors.
CAUTION!
Risk of injury due to heavy weight
Due to the heavy weight of the device, at least two persons are required for transport and installation.
Safety instructions
10 Achat 110 MA MKII Achat 112 MA MKII Achat 115 MA MKII
Active Speaker

NOTICE!
Risk of re
Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked ames.
NOTICE!
Fire hazard due to exceedance of the maximum current
The device can power other devices of identical construction. The current consumption of all other devices connected in series must
not exceed the values indicated in the technical specications. Otherwise you risk injuries and irreparable damages to the device.
Only connect so many identical devices that the maximum current consumption is not exceeded. Ensure the sucient dimensioning
(wire cross section) of the power cables used for all devices connected in series.
NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid
direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specied in the chapter
‘Technical specications’ of this user manual. Avoid heavy temperature uctuations and do not switch the device on immediately
after it was exposed to temperature uctuations (for example after transport at low outside temperatures). Dust and dirt inside can
damage the unit. When operated in harmful ambient conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by
qualied service personnel at regular intervals to prevent overheating and other malfunction.
NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC
outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the
user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric
shock or re.
Safety instructions
Achat 110 MA MKII Achat 112 MA MKII Achat 115 MA MKII 11
Active Speaker

NOTICE!
Possible damage due to installation of a wrong fuse
The use of dierent types of fuses can cause serious damage to the unit. Fire hazard! Only fuses of the same type may be used.
NOTICE!
Possible staining
The plasticiser contained in the rubber feet of this product may possibly react with the coating of your surface and after some time
cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the surface and use a suitable underlay if neces‐
sary, i.e. felt pads or similar.
Safety instructions
12 Achat 110 MA MKII Achat 112 MA MKII Achat 115 MA MKII
Active Speaker

3 Features
Special features of the device:
nActive 2-way full-range speaker box with built-in crossover
n10 inch Ferrit woofer and 1 inch compression driver (woofer with 3 inch voice coil)
nOutput power: 140 W RMS, 550 W Peak
n2 × XLR / 1/4" jack combo socket (mic / line input)
n1 × XLR line output (mix)
nSwitchable presets (bass boost / at / 120 Hz HPF)
n2-band EQ
nLockable in and output socket (Power Twist)
nBlack textured paint
n36 mm pole mount ange socket
nM10 rigging points
nmatching protective cover optionally available (item no. 243783)
nmatching U bracket optionally available (item no. 258813)
nmatching ight case optionally available (item no. 280588)
ndeveloped in Germany
Achat 110 MA MKII
Features
Achat 110 MA MKII Achat 112 MA MKII Achat 115 MA MKII 13
Active Speaker

Special features of the device:
nActive 2-way full-range speaker box with built-in crossover
n12 inch Ferrit woofer and 1.75 inch mid / high speaker (woofer with 3 inch voice coil)
nOutput power: 350 W RMS, 1400 W Peak
n2 × XLR / 1/4" jack combo socket (mic / line input)
n1 × XLR line output (mix)
nSwitchable presets (bass boost / at / 120 Hz HPF)
n2-band EQ
nLockable in and output socket (Power Twist)
nBlack textured paint
n36 mm pole mount ange socket
nAeroquip rail on the top side
nAttachment eyelet on the rear side
nmatching protective cover optionally available (item no. 243017)
nmatching U bracket optionally available (item no. 258814)
nmatching ight case optionally available (item no. 280589)
ndeveloped in Germany
Achat 112 MA MKII
Features
14 Achat 110 MA MKII Achat 112 MA MKII Achat 115 MA MKII
Active Speaker

Special features of the device:
nActive 2-way full-range speaker box with built-in crossover
n15 inch woofer and 3 inch Ferrit mid / high speaker
nOutput power: 350 W RMS, 1400 W Peak
n2 × XLR / 1/4" jack combo mic / line input
n1 × XLR line output (mix)
nSwitchable presets (bass boost / at / 120 Hz HPF)
n2-band EQ
nLockable in and output socket (Power Twist)
nBlack textured paint
n36 mm pole mount ange socket
nAeroquip rail on the top side
nAttachment eyelet on the rear side
nmatching protective cover optionally available (item no. 249422)
nmatching U bracket optionally available (item no. 258815)
nmatching ight case optionally available (item no. 451589)
ndeveloped in Germany
Achat 115 MA MKII
Features
Achat 110 MA MKII Achat 112 MA MKII Achat 115 MA MKII 15
Active Speaker

4 Installation
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
DANGER!
Electric shock caused by high voltages at the power amplier output
The output voltages of modern high-performance ampliers may result in death
or serious injury.
Never touch the bare ends of loudspeaker cables when the amplier is on.
Installation
16 Achat 110 MA MKII Achat 112 MA MKII Achat 115 MA MKII
Active Speaker

WARNING!
Risk of injury caused by falling objects
Make sure that the installation complies with the standards and rules that apply
in your country. Always secure the device with a secondary safety attachment,
such as a safety cable or a safety chain.
NOTICE!
Possible property damage by magnetic elds
Loudspeakers produce a static magnetic eld. Therefore, maintain an appropriate
distance to devices that can be adversely aected or damaged by an external
magnetic eld.
NOTICE!
Use of stands
When mounting the device onto a stand, ensure that the stand is in a safe and
stable position and that the weight of the device does not exceed the maximum
permissible load capacity of the stand.
Installation
Achat 110 MA MKII Achat 112 MA MKII Achat 115 MA MKII 17
Active Speaker

4.1 Tips on handling speakers
We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐
ence unobstructedly. It will often be helpful to mount the speakers on tripods. Thus, the sound
will be evenly spread with maximum range throughout the audience area.
Always use high grade cable to connect your equipment. Otherwise you won't reach max‐
imum sound quality.
For optimum results both impedance and power handling of the speakers must match the
requirements of the amplier. Always follow the technical specications of the speakers! The
overall impedance of the connected loudspeakers must not deceed the minimum output
impedance of the amp. The amps max. RMS output power should be 50 % above the power
handling capacity of the connected speakers.
If you notice distortion during operation, either the amp or the speaker is overloaded. This may
permanently damage the amp or the speaker. Always reduce the volume when you hear dis‐
tortion.
Installation
18 Achat 110 MA MKII Achat 112 MA MKII Achat 115 MA MKII
Active Speaker

4.2 Hanging the speaker box
To hang the speaker box on special mounting devices (aka ‘ying’), the top of the housing of
Achat 112 and Achat 115 MA MKII oer built-in Aeroquip or y tracks. In these tracks safety
eyelets (double studs) can be screwed or latched. With the Achat 110 MA MKII, M10 ying
points are available for suspension. Check the secure connection of the box with the respec‐
tive suspension, before you use it in ‘ying mode’.
4.3 Mounting bracket
Using the optional mounting brackets (U brackets) for vertical and horizontal mounting, the
speaker can stably and securely mounted to the wall, the ceiling or a pipe clamp (half coupler),
and, thus, secured to trusses.
Installation
Achat 110 MA MKII Achat 112 MA MKII Achat 115 MA MKII 19
Active Speaker

5 Connections and operating elements
1[STANDBY | CONDITION]
Slide switch to enable or disable the power saving mode.
If the speaker box is in power save mode and receives no signal for 60 minutes, it
switches to standby mode. As soon as the unit receives a signal, it switches auto‐
matically back to normal mode.
The CONDITION LED lights up continuously in normal operation and turns o when
the box - on activated power save mode - switches to standby mode.
2[BASS BOOST | FLAT | 120Hz HPF]
Preset switch
[BASS BOOST]: Increasing the low frequencies.
[FLAT]: Even frequency response.
[120Hz HPF]: Attenuation of frequencies below 120 Hz (high pass lter).
3[TREBLE]
Controller to increase or decrease the treble by up to 15 db.
4[BASS]
Controller to increase or decrease the bass by up to 15 db.
Achat 110 MA MKII
OUTPUT
100-240V~50/60Hz
max. 12A
Connections and operating elements
20 Achat 110 MA MKII Achat 112 MA MKII Achat 115 MA MKII
Active Speaker
