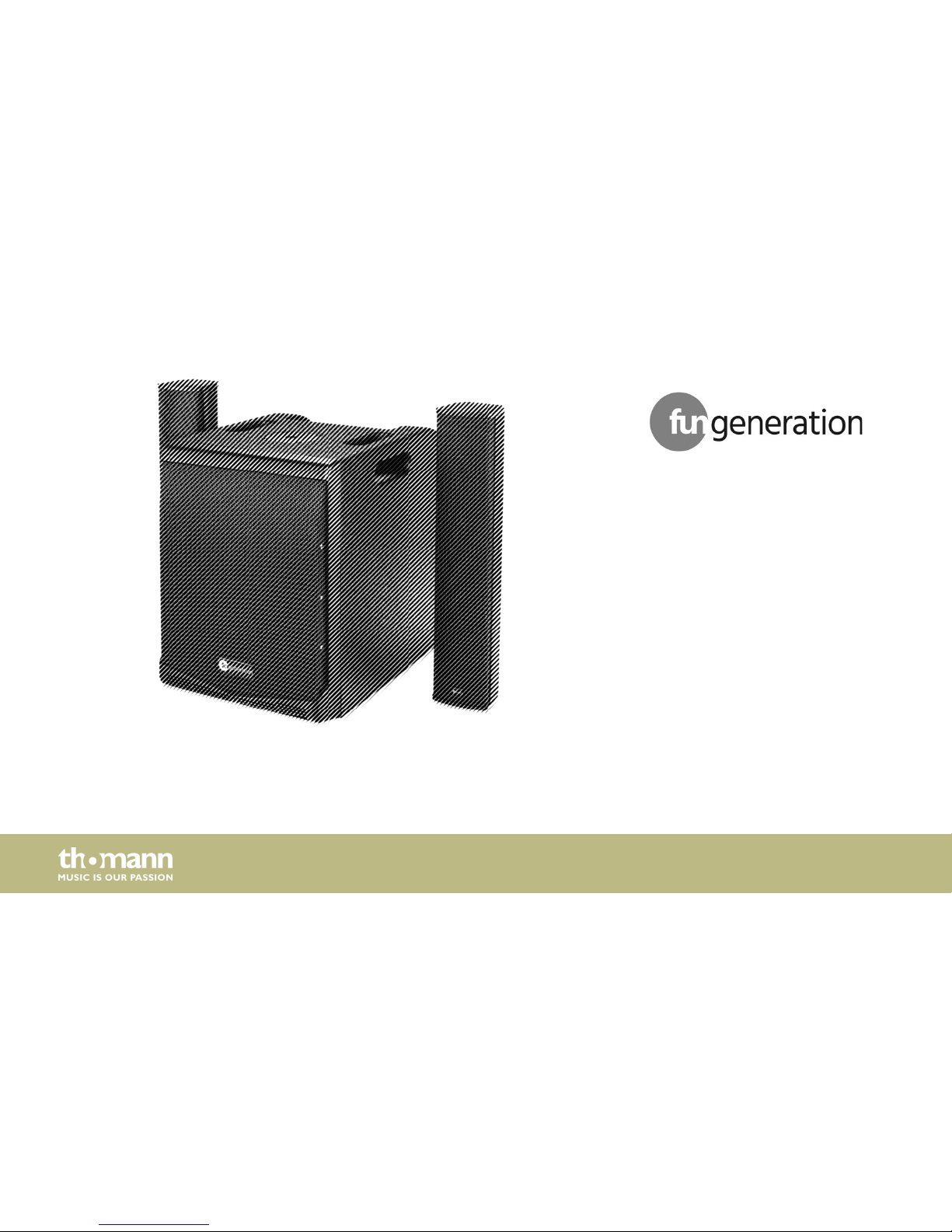

thomann fun generation Satmix 2.1 User manual

Satmix 2.1
PA system
user manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
30.08.2018, ID: 432022

Table of contents
1 General information................................................................................................................................. 4
1.1 Further information........................................................................................................................... 5
1.2 Notational conventions.................................................................................................................... 6
1.3 Symbols and signal words............................................................................................................... 6
2 Safety instructions..................................................................................................................................... 8
3 Features....................................................................................................................................................... 12
4 Installation.................................................................................................................................................. 13
4.1 Tips on handling speakers............................................................................................................ 14
5 Connections and controls................................................................................................................... 15
6 Technical specications....................................................................................................................... 20
7 Plug and connection assignment.................................................................................................... 23
8 Protecting the environment.............................................................................................................. 27
Table of contents
Satmix 2.1
3

1 General information
This manual contains important instructions for the safe operation of the unit. Read and follow
the safety instructions and all other instructions. Keep the manual for future reference. Make
sure that it is available to all those using the device. If you sell the unit please make sure that
the buyer also receives this manual.
Our products are subject to a process of continuous development. Thus, they are subject to
change.
General information
PA system
4

1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
General information
Satmix 2.1
5

1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
Letterings
General information
PA system
6

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
CAUTION! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in minor injury if it
is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – danger zone.
General information
Satmix 2.1
7

2 Safety instructions
This device is intended to be used in a sound reinforcement system. Use the device only as
described in this user manual. Any other use or use under other operating conditions is consid‐
ered to be improper and may result in personal injury or property damage. No liability will be
assumed for damages resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
Intended use
Safety
Safety instructions
PA system
8

DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never
remove any covers.
There are no user-serviceable parts inside.
Do not use the device if covers, protectors or optical components are missing or
damaged.
DANGER!
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord) with a pro‐
tective contact plug. Do not modify the mains cable or the plug. Failure to do so
could result in electric shock/death or re. If in doubt, seek advice from a regis‐
tered electrician.
Safety instructions
Satmix 2.1
9

CAUTION!
Possible hearing damage
The device can produce volume levels that may cause temporary or permanent
hearing impairment. Over an extended period of time, even levels that seem to
be uncritical can cause hearing damage.
Decrease the volume level immediately if you experience ringing in your ears or
hearing impairment. If this is not possible, keep a greater distance or use su‐
cient ear protectors.
NOTICE!
Risk of re
Do not block areas of ventilation. Do not install the device near any direct heat
source. Keep the device away from naked ames.
Safety instructions
PA system
10

NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.
NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches
the voltage rating of the device and that the AC outlet is protected by a residual
current circuit breaker. Failure to do so could result in damage to the device and
possibly injure the user.
Unplug the device before electrical storms occur and when it is unused for long
periods of time to reduce the risk of electric shock or re.
Safety instructions
Satmix 2.1
11

3 Features
nActive 2.1 system consisting of an active subwoofer with built-in 4-channel mixer and two
satellites
nInputs: XLR / 1/4" combo socket, RCA jack, 3.5 mm socket Bluetooth
nOutputs: Lockable input sockets (Speaker Flex)
nReverb eect switchable
nDigital signal processor with four presets for dierent sound characteristics
nStandby function
Features
PA system
12

4 Installation
Unpack and carefully check that there is no transportation damage before using the unit. Keep
the equipment packaging. To fully protect the device against vibration, dust and moisture
during transportation or storage use the original packaging or your own packaging material
suitable for transport or storage, respectively.
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
NOTICE!
Possible property damage by magnetic elds
Loudspeakers produce a static magnetic eld. Therefore, maintain an appropriate
distance to devices that can be adversely aected or damaged by an external
magnetic eld.
Installation
Satmix 2.1
13

Press [BLUETOOTH PAIR] to pair the device with other Bluetooth devices. It is visible under the
name “Satmix 2.1”. After successful pairing the LED lights.
4.1 Tips on handling speakers
We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐
ence unobstructedly. It will often be helpful to mount the speakers on tripods. Thus, the sound
will be evenly spread with maximum range throughout the audience area.
Always use high grade cable to connect your equipment. Otherwise you won't reach max‐
imum sound quality.
For optimum results both impedance and power handling of the speakers must match the
requirements of the amplier. Always follow the technical specications of the speakers! The
overall impedance of the connected loudspeakers must not deceed the minimum output
impedance of the amp. The amps max. RMS output power should be 50 % above the power
handling capacity of the connected speakers.
If you notice distortion during operation, either the amp or the speaker is overloaded. This may
permanently damage the amp or the speaker. Always reduce the volume when you hear dis‐
tortion.
Pairing with Bluetooth devices
Installation
PA system
14

5 Connections and controls
Rear panel
Connections and controls
Satmix 2.1
15

1[CH 1], [CH 2]
Inputs for line or microphone level signals (XLR / 1/4" combo sockets).
2[LINE/MIC]
Switch for the signal level at the input. Switch released: Line level, switch pressed: microphone level.
3[VOLUME]
Volume control for the respective channel
4[REVERB]
Control for the reverb eect in the respective channel
5, 6, 7 [LOW], [MID], [HIGH]
Volume control for the respective channel
8 Volume for the Bluetooth channel
9
Indicator LED for the Bluetooth pairing
Connections and controls
PA system
16

10 [BLUETOOTH PAIR]
Starts the pairing with a Bluetooth device
11 [SUBVOL]
This rotary control can be used to adjust the subwoofer volume.
12 [MASTER]
This rotary control can be used to adjust the overall volume (subwoofer and connected external speakers).
13 [POWER]
This LED indicates that the device is switched on and operational.
14 [LIMIT]
This LED indicates that the input level is too high and thus the input is overloaded. In this case, reduce the level of the
connected device.
15 [MONO / STEREO]
Toggles between mono and stereo operation
Connections and controls
Satmix 2.1
17

16 [DSP PRESET]
Toggles the built-in digital signal processor between the dierent settings to adjust the sound characteristic. The
indicator LEDs indicate the selected setting:
n[MUSIC]
n[LIVE]
n[DJ]
n[SPEECH]
17 [MIX OUT]
At this line level output, the sum signal is present which e.g. can be sent to a separate power amp.
18 [AUX]
Input for a line level signal, designed as 3.5 mm phone socket (stereo)
19 [L], [R]
Inputs for balanced or unbalanced line level signals (1/4" phone sockets)
20 [L], [R]
Inputs for balanced or unbalanced line level signals (RCA sockets)
Connections and controls
PA system
18

21 [Auto Stand-by]
Switch that turns the automatic shutdown function on and o. When pressed, the function is deactivated, when not
pressed, it is activated. The device will turn o after approx. 60 minutes without input signal. When the input signal
recurs, the device returns automatically.
This LED lights when the automatic shutdown function is turned on.
22 [POWER]
Main switch. Turns the device on and o
23 [INPUT]
IEC chassis plug for power supply with fuse holder. Should the fuse have blown, disconnect the unit from the power
supply and replace the fuse with a new fuse of the same type.
24 [STBY]
The LED indicates that the device is in Standby mode.
25 [VOLTAGE]
Voltage selector
26,27 [Mid/High Out LEFT], [Mid/High Out RIGHT]
Speaker outputs, designed as lockable input sockets (Speaker Twist)
Connections and controls
Satmix 2.1
19

6 Technical specications
Speaker 1 × 10" woofer with 2" voice coil
Inputs 2 × XLR/1/4" combo socket (balanced), 2 × 6.35 mm jack (balanced/unbalanced), 1 × 3.5 mm
phone socket, 2 × RCA sockets
Outputs 2 × input sockets (Speaker Twist) for the satellites, 1 × XLR chassis sockets for line output to
other audio devices
Power output subwoofer 300 W (RMS)
600 W (PEAK)
Power output to satellites 2 × 150 W (RMS)
2 × 300 W (PEAK)
Sound pressure level 124 dB (max.)
Operating supply voltage AC 110/230 V 50/ 60 Hz
Power consumption 850 W
Subwoofer
Technical specications
PA system
20
