thomann Achat 108 Sub the box pro User manual

Achat 108 Sub A
active speaker
user manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
04.08.2021, ID: 266719, 302856 (V2)

Table of contents
1 General information................................................................................................................................. 4
1.1 Further information........................................................................................................................... 5
1.2 Notational conventions.................................................................................................................... 6
1.3 Symbols and signal words............................................................................................................... 6
2 Safety instructions..................................................................................................................................... 9
3 Features....................................................................................................................................................... 13
4 Installation and starting up................................................................................................................ 14
4.1 Pin assignment.................................................................................................................................. 15
4.2 Tips on handling speakers............................................................................................................ 17
5 Connections and operating elements........................................................................................... 18
6 Technical specications....................................................................................................................... 21
7 Protecting the environment.............................................................................................................. 25
Table of contents
Achat 108 Sub A
3

1 General information
This user manual contains important information on the safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to another user, be sure
that they also receive this manual.
Our products and user manuals are subject to a process of continuous development. We there‐
fore reserve the right to make changes without notice. Please refer to the latest version of the
user manual which is ready for download under www.thomann.de.
General information
active speaker
4

1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
General information
Achat 108 Sub A
5

1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
Letterings
General information
active speaker
6

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
CAUTION! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in minor injury if it
is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
General information
Achat 108 Sub A
7

Warning signs Type of danger
Warning – danger zone.
General information
active speaker
8

2 Safety instructions
This device is designed for sound reinforcement. Use the device only as described in this user
manual. Any other use or use under other operating conditions is considered to be improper
and may result in personal injury or property damage. No liability will be assumed for damages
resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Safety
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking
hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and
choke! Never let children unattended use electrical devices.
Intended use
Safety instructions
Achat 108 Sub A
9

DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts
inside. Do not use the device if covers, protectors or optical components are missing or damaged.
DANGER!
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord) with a protective contact plug. Do not modify the mains cable
or the plug. Failure to do so could result in electric shock/death or re. If in doubt, seek advice from a registered electrician.
CAUTION!
Possible hearing damage
The device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of
time, even levels that seem to be uncritical can cause hearing damage. Decrease the volume level immediately if you experience
ringing in your ears or hearing impairment. If this is not possible, keep a greater distance or use sucient ear protectors.
NOTICE!
Risk of re
Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked ames.
Safety instructions
active speaker
10

NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid
direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specied in the chapter
‘Technical specications’ of this user manual. Avoid heavy temperature uctuations and do not switch the device on immediately
after it was exposed to temperature uctuations (for example after transport at low outside temperatures). Dust and dirt inside can
damage the unit. When operated in harmful ambient conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by
qualied service personnel at regular intervals to prevent overheating and other malfunction.
NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC
outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the
user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric
shock or re.
NOTICE!
Possible damage due to installation of a wrong fuse
The use of dierent types of fuses can cause serious damage to the unit. Fire hazard! Only fuses of the same type may be used.
Safety instructions
Achat 108 Sub A
11

NOTICE!
Possible staining
The plasticiser contained in the rubber feet of this product may possibly react with the coating of your parquet, linoleum, laminate
or PVC oor and after some time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the oor, but
use felt-pad oor protectors or a carpet.
Safety instructions
active speaker
12

3 Features
Special features of the device:
nInputs: XLR / 1/4" jack combo sockets, RCA sockets
nOutputs: 2 lockable NL4 chassis connector for passive speaker boxes (Top)
n8" woofer
nControls for volume and bass
nStructure paint
Features
Achat 108 Sub A
13

4 Installation and starting up
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
NOTICE!
Possible property damage by magnetic elds
Loudspeakers produce a static magnetic eld. Therefore, maintain an appropriate
distance to devices that can be adversely aected or damaged by an external
magnetic eld.
Installation and starting up
active speaker
14

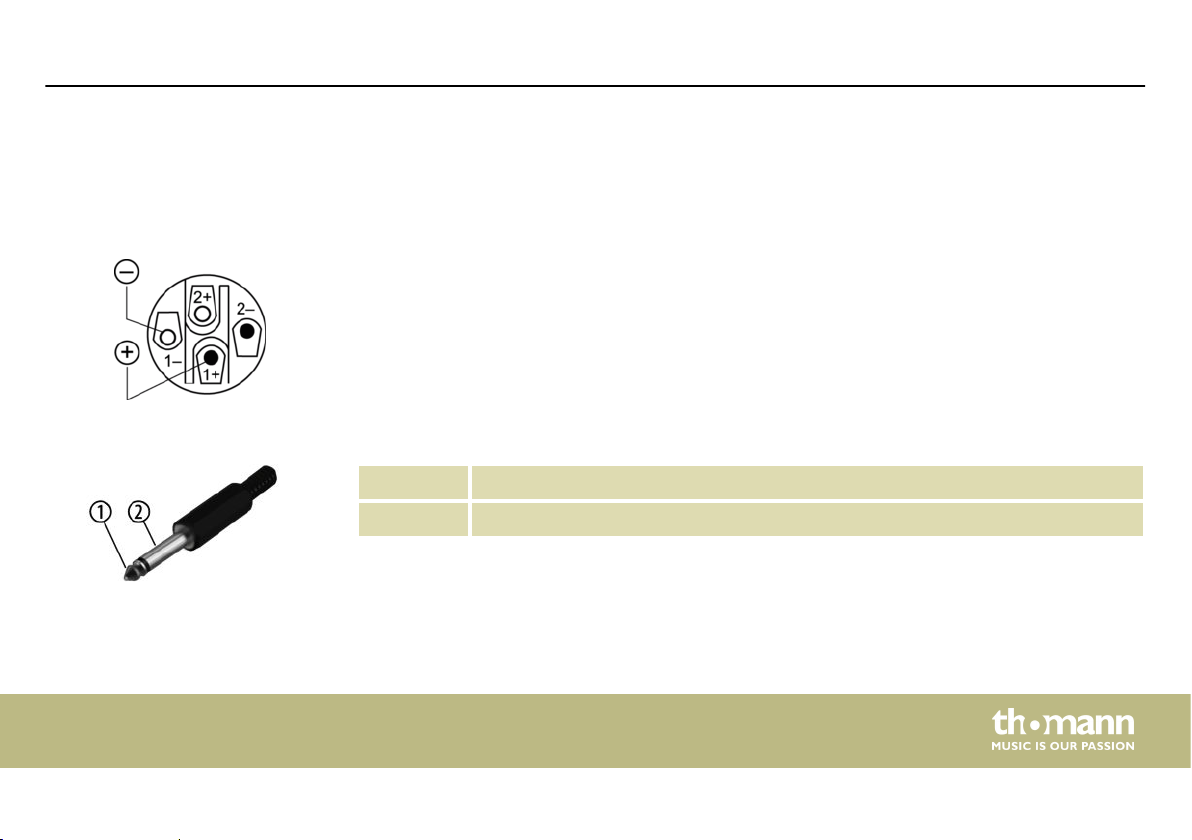

4.1 Pin assignment
The adjoining gure shows the pin assignment of the lockable NL4 panel connectors.
The gure and the table show the pin assignment of the 1/4” jack plugs (mono).
1 Signal
2 Ground
NL4 mounting connectors for
speaker connections
Jack plugs for signal inputs
Installation and starting up
Achat 108 Sub A
15

XLR / 1/4” jack combo sockets (balanced) are used for the signal inputs. The gure and the
table show the XLR pin assignment.
1 Ground
2 Positive signal (+)
3 Negative signal (–)
The gure and the table show the RCA plugs pin assignment.
1 Signal
2 Ground
XLR connectors for signal inputs
RCA connectors for signal inputs
Installation and starting up
active speaker
16

4.2 Tips on handling speakers
We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐
ence unobstructedly. It will often be helpful to mount the speakers on tripods. Thus, the sound
will be evenly spread with maximum range throughout the audience area.
Always use high grade cable to connect your equipment. Otherwise you won't reach max‐
imum sound quality.
For optimum results both impedance and power handling of the speakers must match the
requirements of the amplier. Always follow the technical specications of the speakers! The
overall impedance of the connected loudspeakers must not deceed the minimum output
impedance of the amp. The amps max. RMS output power should be 50 % above the power
handling capacity of the connected speakers.
If you notice distortion during operation, either the amp or the speaker is overloaded. This may
permanently damage the amp or the speaker. Always reduce the volume when you hear dis‐
tortion.
Installation and starting up
Achat 108 Sub A
17

5 Connections and operating elements
Connections and operating elements
active speaker
18

1[POWER]
The indicator light indicates that the device is switched on and operational.
2[SIG]
The indicator light indicates that an input signal is present.
3[CLIP]
Indicates overload (clipping). In this case, the level of the input signal is too high.
4[BASS]
Control for boosting / attenuating the low frequencies
5[VOLUME]
Control for adjusting the master volume (built-in subwoofer and connected external loudspeakers)
6 Phasing switch. Shifts the phase of the subwoofer signal by 180 °, if necessary. This avoids unwanted cancellation
eects in combination with other speakers.
7[INPUT]
Signal inputs, designed as RCA sockets
Connections and operating elements
Achat 108 Sub A
19

8[INPUT]
Signal inputs, designed as XLR / 1/4” jack combo sockets
9[OUTPUT]
Terminal connections for a pair of external, passive loudspeakers, designed as NL4 sockets
10 IEC chassis plug for power supply with fuse holder
11 [POWER]
Mains switch. Turns the device on and o.
Connections and operating elements
