1 General information
1.1 General notes
This manual contains important instructions for the safe operation of the unit. Read and follow
the safety instructions and all other instructions. Keep the manual for future reference. Make
sure that it is available to all those using the device. If you sell the unit please make sure that
the buyer also receives this manual.
Our products are subject to a process of continuous development. Thus, they are subject to
change.
General information
MIDI footswitch
4

1.1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
General information
MP-100
5

1.1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
Texts and values displayed on the device are marked by quotation marks and italics.
Examples: ‘24ch’ , ‘OFF’ .
Letterings
Displays
General information
MIDI footswitch
6

The individual steps of an instruction are numbered consecutively. The result of a step is
indented and highlighted by an arrow.
Example:
1. Switch on the device.
2. Press [Auto].
ðAutomatic operation is started.
3. Switch o the device.
1.1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
Instructions
General information
MP-100
7

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in death or serious
injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – danger zone.
General information
MIDI footswitch
8

2 Safety instructions
This device is used to control guitar ampliers or eect devices via footswitches and MIDI. Use
the device only as described in this user manual. Any other use or use under other operating
conditions is considered to be improper and may result in personal injury or property damage.
No liability will be assumed for damages resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
Intended use
Safety
Safety instructions
MP-100
9

WARNING!
Incorrect handling of lithium batteries can result in injury
In the event of a short circuit, overheating or mechanical damage, lithium bat‐
teries can cause severe injuries.
Follow the advice on the correct handling of lithium batteries in the present sec‐
tion.
NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.
Safety instructions
MIDI footswitch
10

NOTICE!
External power supply
The device is powered by an external power supply. Before connecting the
external power supply, ensure that the input voltage (AC outlet) matches the
voltage rating of the device and that the AC outlet is protected by a residual cur‐
rent circuit breaker. Failure to do so could result in damage to the device and pos‐
sibly the user.
Unplug the external power supply before electrical storms occur and when the
device is unused for long periods of time to reduce the risk of electric shock or
re.
NOTICE!
Risk of re due to incorrect polarity
Incorrectly inserted batteries may destroy the device or the batteries.
Ensure that proper polarity is observed when inserting batteries.
Safety instructions
MP-100
11

NOTICE!
Possible damage by leaking batteries
Leaking batteries can cause permanent damage to the device.
Take batteries out of the device if it is not going to be used for a longer period.
Safety instructions
MIDI footswitch
12

3 Features
nUSB/MIDI footswitch for controlling guitar amps or eect devices via mobile end devices
and apps (iOS, Mac OS and Android systems)
nUSB MIDI control and standard MIDI control
n10 programmable footswitches
n2 inputs for eect pedals with display to control the eect parameters (eect pedals not
included)
n1 USB port
n1 MIDI output
nPre-programmed congurations for common software or devices, e.g. Bias FX, JamUp,
Kemper or Axe FX
nPower supply via USB or 2 × AAA batteries or AAA batteries (not included)
nBuilt-in battery charging function
nMIDI cable and USB cable (type B) included in delivery
Features
MP-100
13

4 Installation and starting up
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
Installation and starting up
MIDI footswitch
14

5 Connections and controls
Front panel
Connections and controls
MP-100
15

1 Display
2[A]…[D]
Footswitch for sending program change and control change MIDI commands
3[/CHG]
Increases the displayed value by one and selects menu items.
4[/SET]
Decreases the displayed value by one and selects menu items.
5[1]…[4/E]
Footswitch for sending program change and control change MIDI commands
Connections and controls
MIDI footswitch
16

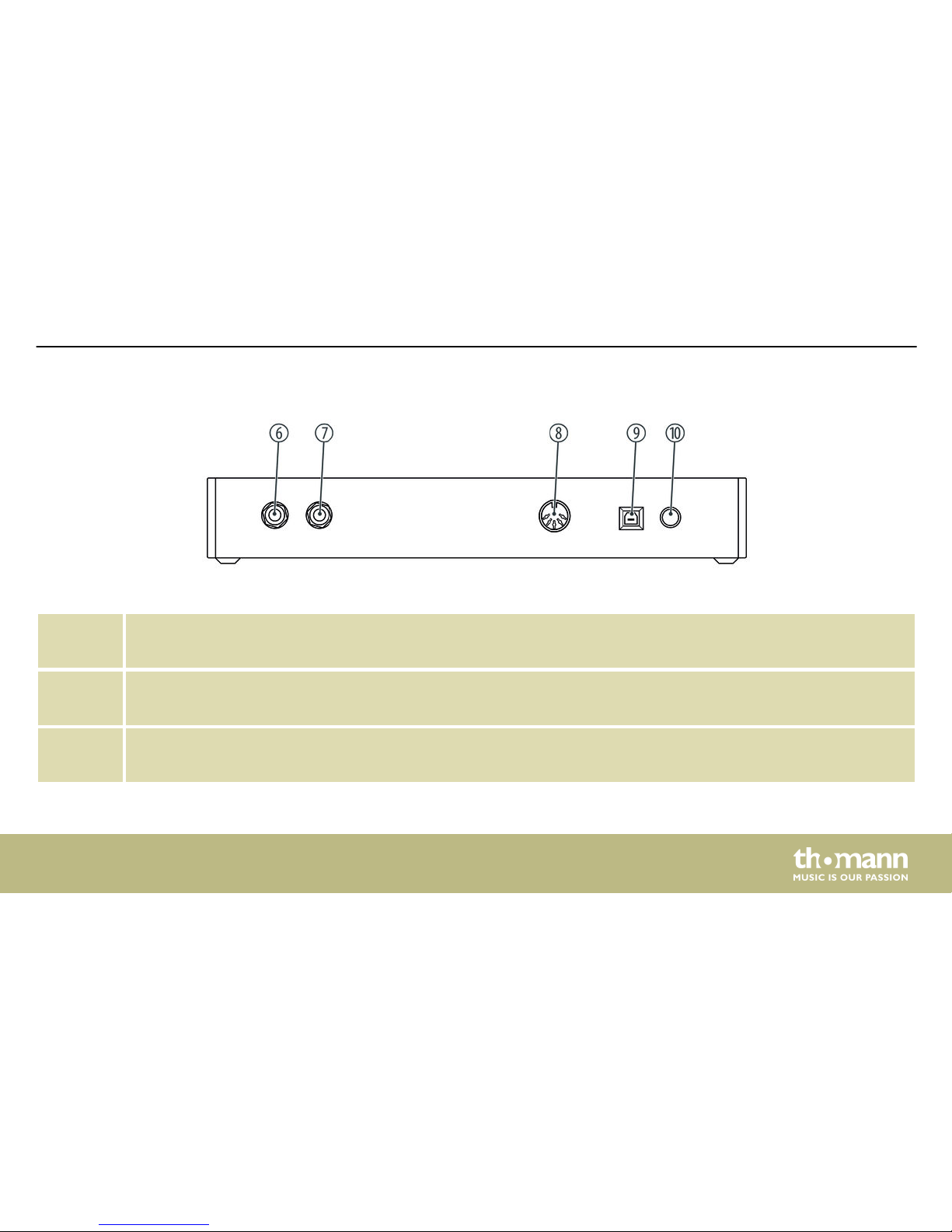

6[EXP2], [EXP2]
Input for connecting an eect pedal, designed as a 6.35 mm jack plug
7[EXP1]
Input for connecting an eect pedal, designed as a 6.35 mm jack plug
8[MIDI OUT]
MIDI output for connecting external devices, designed as DIN connector (5-pin)
Rear panel
Connections and controls
MP-100
17

9[USB]
USB interface for power supply and connection of mobile end devices or PC
10
Main switch. Turns the device on and o.
Display
Connections and controls
MIDI footswitch
18

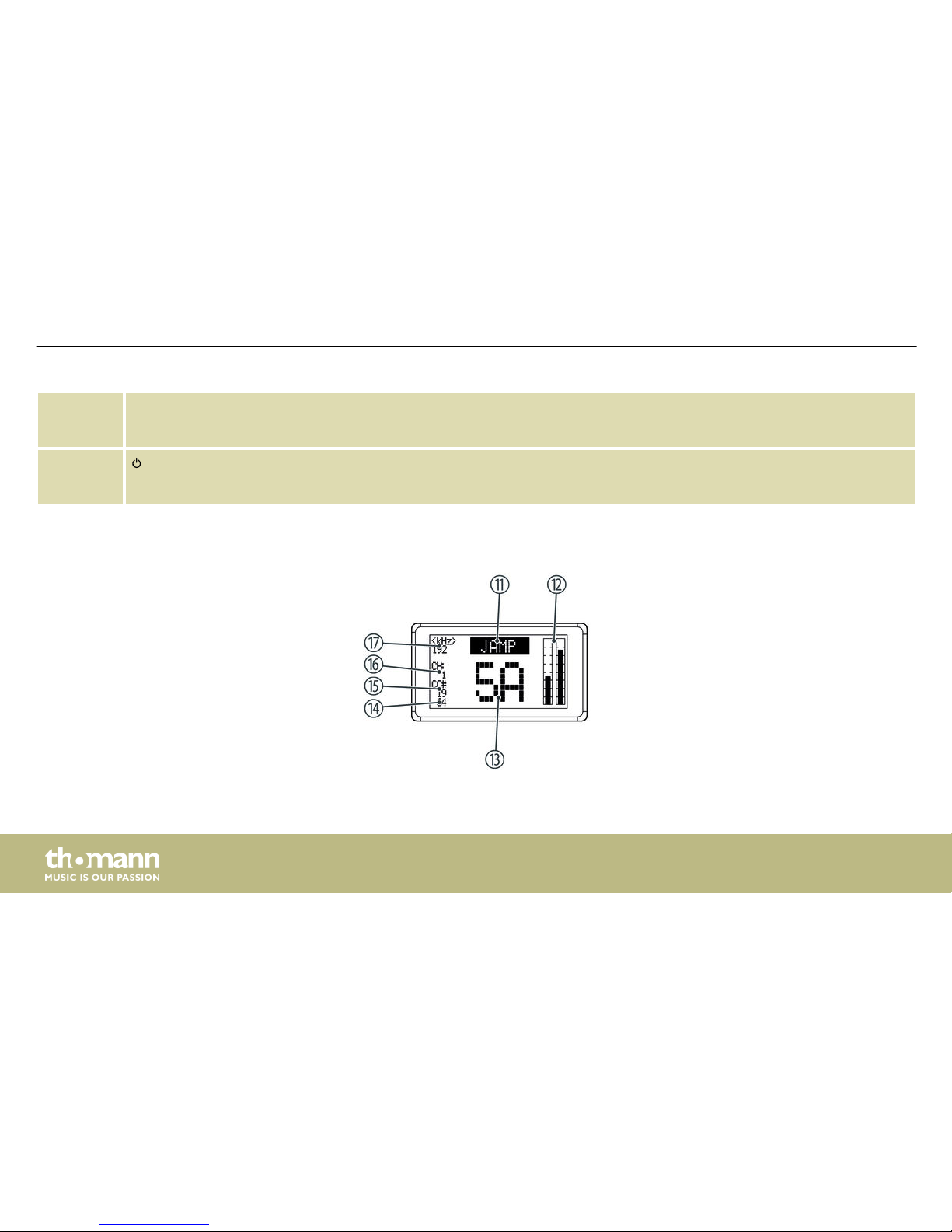

11 Conguration
12 Dynamic display for [EXP1] (empty if no eect pedal is connected to EXP1)
Dynamic display for [EXP2] (empty if no eect pedal is connected to EXP2)
13 Current number of the program change MIDI command
14 Sub-parameter of the sent control change MIDI command (updated only if changed and held for 0.5 s)
15 Sent control change MIDI command (updated only when changed and held for 0.5 s)
16 MIDI channel used
17 Sampling rate
Connections and controls
MP-100
19

6 Operating
The device can be powered by batteries or rechargeable batteries if the device is not con‐
nected to the power supply via a USB cable.
Insert 2 x AAA batteries into the battery compartment on the bottom of the device. You can
use conventional AAA batteries or rechargeable AAA NiMH batteries.
You can charge rechargeable AAA NiMH batteries directly in the device. Activate the built-in
charging function only if you have inserted rechargeable batteries.
1. Insert two AAA NiMH batteries.
2. Connect the device to the power supply with the USB cable.
3. Press [ /CHG], hold down the button, and turn the device o and on again at the main
switch.
ðThe charge mode for rechargeable batteries is activated. Charging stops automati‐
cally when the battery is fully charged (average charging time approx. 3 hours).
Inserting a battery
Charging the battery
Operating
MIDI footswitch
