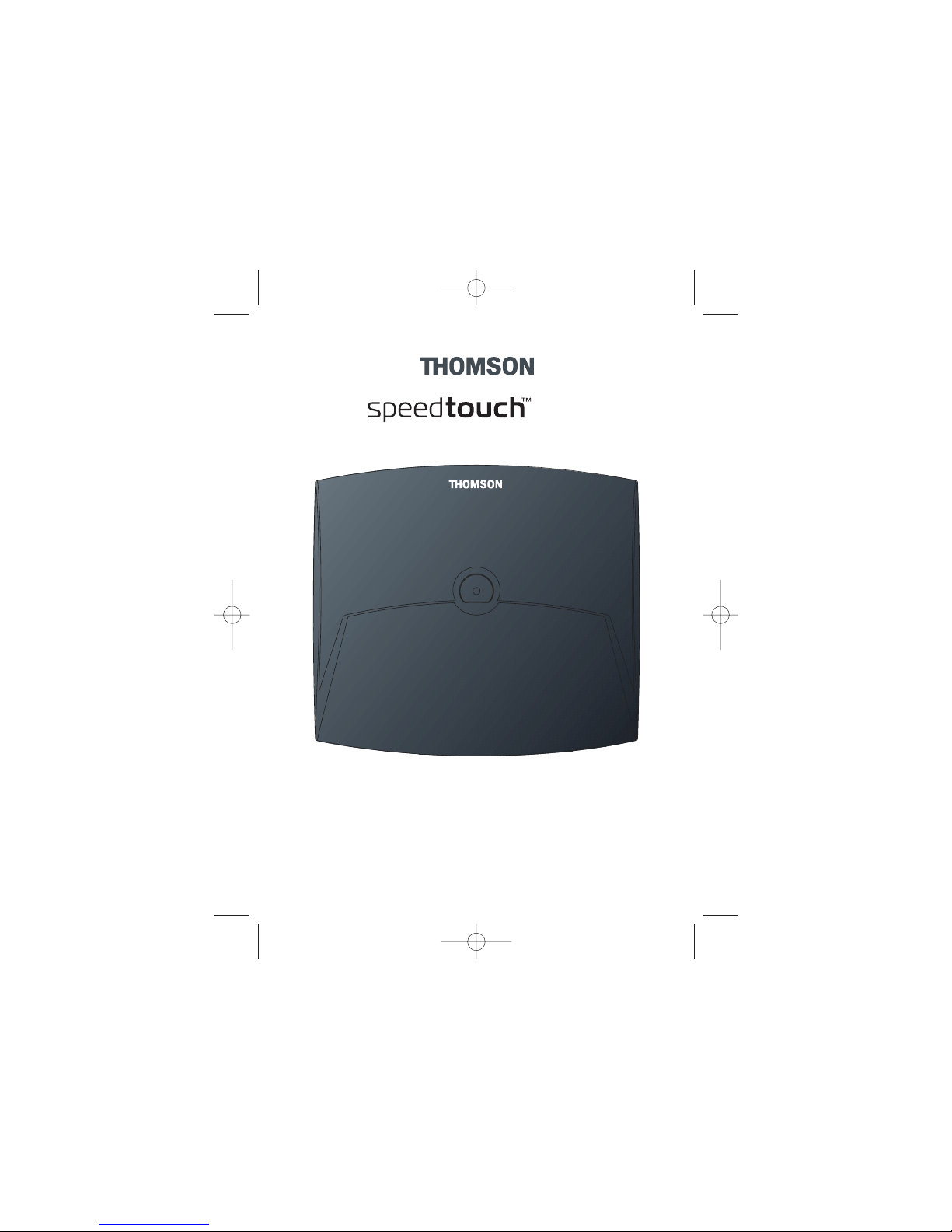

Thomson Speedtouch d52 User manual

User guide

D52

STD52_AU_Ed01.pdf 29/11/04 12:00 Page 1

1. GENERAL

This DECT™* repeater is intended to extend the range of your 2 line

DECT 2 base (supplied in the pack).

!Your DECT mini system installation cannot include more than 2

repeaters.

Repeaters cannot be installed in series, meaning that each repeater must

be directly linked within the radio field of the base.

2. INSTALLATION

!Before installing the repeater, you must associate it with the

2 line base.

2.1 ASSOCIATING THE REPEATER WITH THE DECT

BASE

In order to associate the repeater, it must be in the immediate vicinity

of the base.

Check that the repeater's power supply is not plugged into the mains.

From one of the handsets already associated with the system (for exam-

ple, the ):

Press to enter the menu.

Select "BS Setting" and press to confirm.

Enter the "Master PIN": 1590 (default) and press to confirm.

Select "New HS" and press to confirm.

D50

D150

ENGLISH

* DECT is a registered trade mark of the ETSI.

STD52_AU_Ed01.pdf 29/11/04 12:00 Page 2

Enter "

Sub PIN:

" 1590 (default) and press to confirm.

The screen displays "HS No : Auto".

Press to confirm.

Then, connect the repeater to the mains.

The repeater's light flashes rapidly.

Then, press and hold down the repeater's recording key (which is on

its back) for 5 to 10 seconds.

The repeater's light flashes slowly. Your repeater is now associated

with the base.

Unplug the repeater to install it in its permanent position, then plug it

in again.

2.2 SITING THE REPEATER

In order to optimise the radio quality of communications, fix the repeater

in a vertical position 2 metres from the floor, preferably away from obsta-

cles which may cause radio interference.

The minimum distance between 2 repeaters must be 10 metres.

!If the repeater's light flashes rapidly, it is out of range of the

base; move it nearer to the base.

STD52_AU_Ed01.pdf 29/11/04 12:00 Page 3

3. TECHNICAL CHARACTERISTICS

Standard: DECT

Radio frequency: from 1880 MHz to 1900 MHz

Range in open air: 300 m*

Range inside: 50 m*

DECT links per repeater: 2

Automatic base handover during conversation

Mains adapter: input AC 230 V / 50 Hz / 39 mA

output DC 9 V / 300 mA

Operating temperature: between + 5 °C and + 40 °C

In case of problem, you can call the hotline on the following number:

, from Monday to Friday, from 9 a.m. to 5 p.m. (call

billed at current rates).

The store where you bought your is also able to inform

you and provide after-sales service.

D52

1300 302 699

* Data supplied for informative purposes.

STD52_AU_Ed01.pdf 29/11/04 12:00 Page 4

4. SAFETY

In the event of danger, the mains adapter acts as 230V power isolating

device. It should therefore, as a precaution, be installed close to the

appliance and be easily accessible.

If the mains adapter fails, it must be replaced by an identical model.

We recommend that you unplug this device during electrical storms.

Clean the repeater with a slightly moist soft cloth only

Only install this product inside a building and do not expose it to humidity

STD52_AU_Ed01.pdf 29/11/04 12:00 Page 5

5. WARRANTY

complies with requirements of the Australian Com-

munications Authority as certified by the A-Tick.

You are covered by a legal warranty for this product and for all informa-

tion concerning this warranty, please contact your reseller.

Notwithstanding other applicable statutory warranties, the reseller war-

rants that the product complies with the applicable technical specifications

and is free from any defect in workmanship and materials for a period of

twelve (12) months from the date of purchase shown on the invoice or

receipt. You should therefore keep your invoice or till receipt specifying

the date of purchase of the product and the name of the reseller.

Nonetheless, if the statutory warranty in force in your country exceeds

twelve (12) months, the statutory warranty in force in your country will

apply in lieu of the manufacturer's warranty.

The manufacturer undertakes to repair or replace at its option the defec-

tive product or part thereof with a comparable product or part or at least

equivalent as to the performances and functionality. The replacement pro-

duct or parts, which may be new or reconditioned, are warranted for a per-

iod expiring either simultaneously with the initial warranty of the concer-

ned product or part thereof or three (3) months after delivery of such

repaired product or part, which ever is later. Moreover, upon proof evi-

dence, the initial warranty period may be extended for the period you

have not been able to use the product due to the repair. All product or

parts that are replaced become the property of the manufacturer.

This warranty does not cover damage caused by:

Non-compliance with the instructions for use, installation or mainte-

nance of the product, in particular regarding the power supply and cli-

matic conditions.

Improper maintenance of energy sources and of the general electrical

installation.

Acts of vandalism, lightning, fire, humidity, bad weather.
