1 - ACCESING SERVICE MODE
EFC031E
1.1 TV set ON.
1.2 While keeping pressed the ”VOL-” key on the TV keyboard
press ”EXIT” on the RC until TV set switch on and enter service mode.
(Main menu).
IFC130 - EFC031E (according software version)
1.1 Switch the TV set into the Standby Mode.
1.2 While keeping pressed the ”VOL-” key on the TV keyboard press
”VOL-” on the RC until TV set switch on and enter service mode (Main menu).
2 - TEMPORARY EXIT FROM SERVICE MODE
2.1- 2.1- To temporary leave the Service Mode from the Main menu, goto the point ”Return”.
To access the everyday menus, press the ‘’Menu’’ button on the RCU.
Note :
- According to the type RCU it is possible to temporary leave the Service Mode by pressing Exit or Return key.
RETURN TO THE MAIN MENU
EFC031E
2.2 - To return to the Main menu, While keeping pressed the ”VOL-” key on the TV keyboard press
”Exit” on the RC until TV set switch on and enter service mode.
IFC130
2.2 - To return to the Main menu, press on the magenta key (”text”) on the RCU.
Note :
- A IFC130 menu not used during 3 minutes disappears. Press on the magenta key (”text”) on
the RCU to return to the Main menu.
3 - EXITING FROM SERVICE MODE
3.1- To exit the Service Mode switch off the mains supply to the TV.
All change in service mode will be saved in EEPROM automatically.
4 - EXITING FROM A SUB-MENU
4.1- To exit from a Sub-Menu (see §8) and return to the Main menu press the ”Exit key or the ”Return” key on the
RCU.
5 - NAVIGATION INSIDE THE SERVICE MODE
TV CONTROL PANEL
EFC031E - IFC130
First issue 02 / 06 1
I - SERVICE-MODE
EN
(
Factory setting
EFC031_X181-0
Return
Sound
Video
Field Service
...
...
...
...
Miscellaneous ...
EFC031E MAIN MENU
- Selec option*
- “Change value“
navigation up Navigation down
VALUE
VALUE
Vol. +
-
Vol.
PR
VOL
--
++
(
Factory setting
EFC031_X181-0
Return
Sound
Video
Field Service
...
...
...
...
Miscellaneous ...
(
Factory setting
EFC031_X181-0
Return
Sound
Video
Field Service
...
...
...
...
Miscellaneous ...
➠
➠
(
Service Menu
BL1.41
Return
Sound
Video
SAA7117AE
...
...
...
PW2300 ...
Misc ...
PW218 1st page ...
PW218 2nd page ...
IFC130 MAIN MENU
* Select option is possible with ”OK”

REMOTE CONTROL
EFC031E - IFC130
2First issue 02 / 06
6 - DISPLAYING THE VALUE OF THE SETTING
VIDEO
7 - TOGGLE FUNCTION
To enable a function check (tick) the box.
: Implemented function : No implemented function
(Brightness -0003
Affichage
➠ + >NVM valeur Affichage
➠
-
<NVM valeur
Valeur décimale
Valeur de réglage
: NVM valeur
><
➠
➠
OK PR
VOL
--
++
(
Factory setting
EFC031_X181-0
Return
Sound
Miscellaneous
Video
Field Service
...
...
...
...
...
Alignment
Alignement
Ableigh
Regolazione
Alineacion
Software version
Version Software
Software Version
Versione softaware
Versión software
- Select option*
- “Change“value
(
Factory setting
EFC031_X181-0
Return
Sound
Video
Field Service
...
...
...
...
Miscellaneous ...
(
Factory setting
EFC031_X181-0
Return
Sound
Video
Field Service
...
...
...
...
Miscellaneous ...
➠
➠
Navigation up Navigation down
OK
VALUE
VALUE
>
<
* Select option is possible with ”OK”
8 - LITE MENU FOR FIELD SERVICE
MAIN MENU

EFC031E - IFC130
First issue 02 / 06 3
(
Factory setting
EFC031_X181-0
Return
Sound
Miscellaneous
Video
Field Service
...
...
...
...
...
Alignment
Alignement
Ableigh
Regolazione
Alineacion
Software version
Version Software
Software Version
Versione softaware
Versión software
SUBMENU

EFC031E - IFC130
4First issue 02 / 06
II - EFC031E CHASSIS - ALIGNMENT
1 VIDEO
1.1 Conditions
- The TV set should be warmed up for 60 minutes.
- The following conditions are automatically set when entering the Video submenu.
* Set these conditions in the User menu

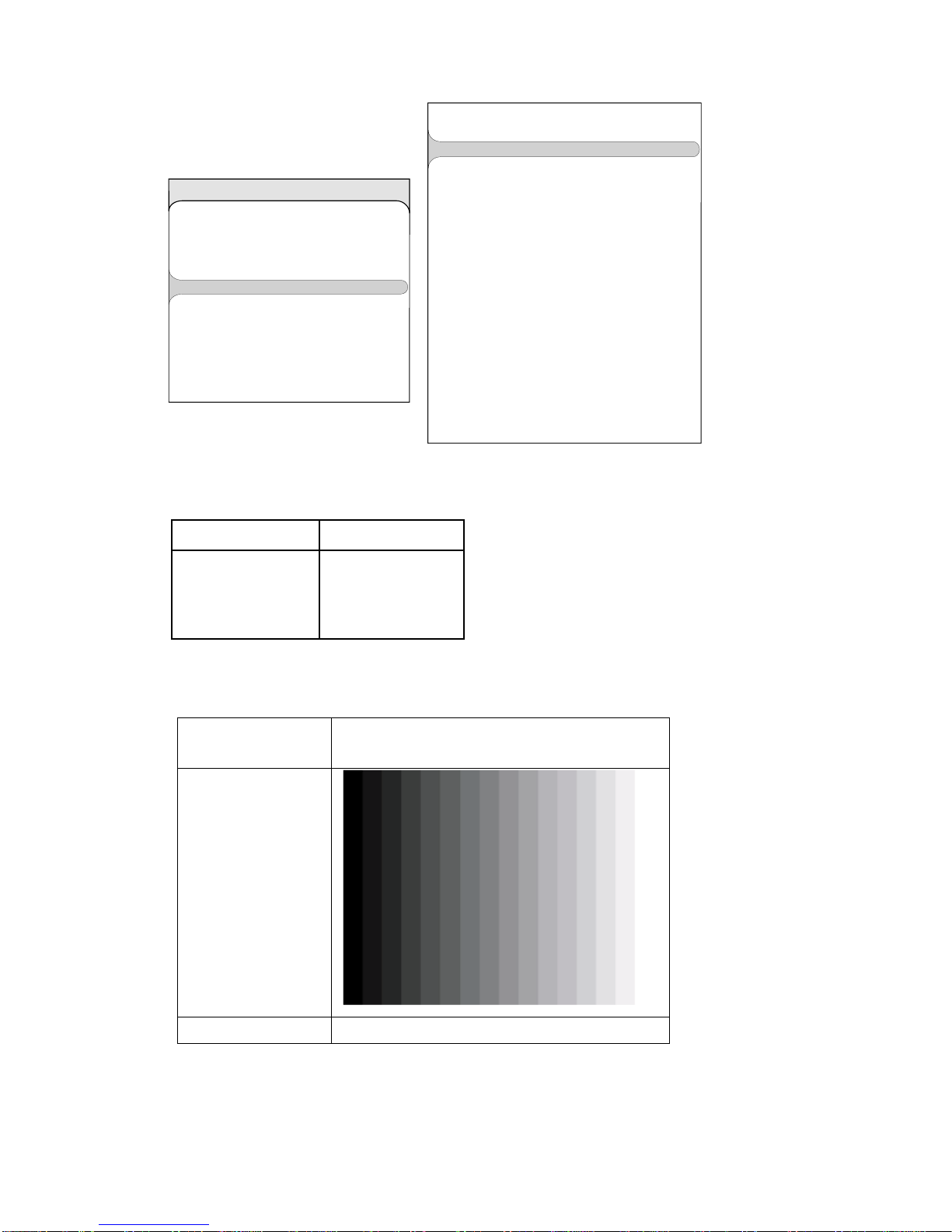

1.2 Y, Pb, Pr Component Input
Video test pattern
1.3 VGA Input

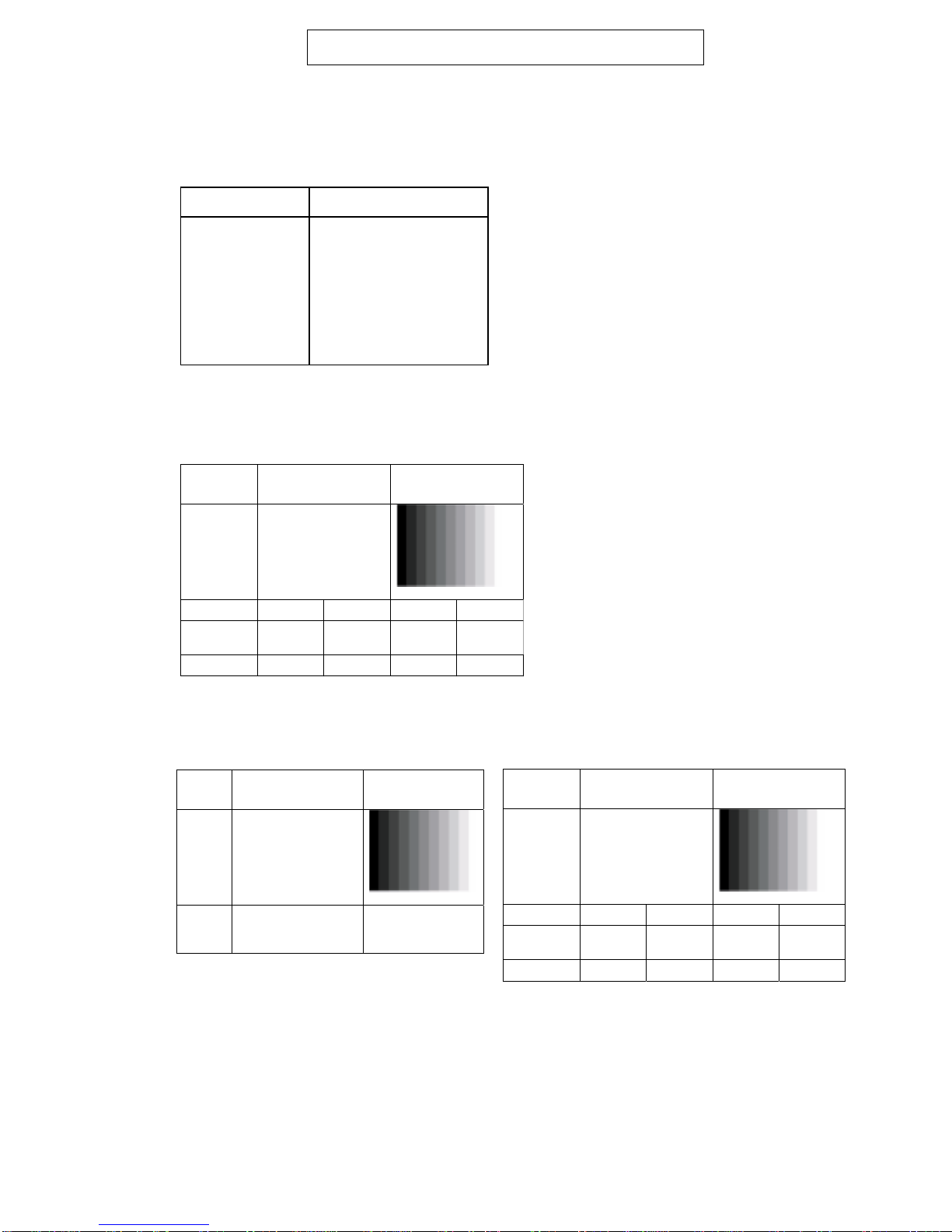

Standard Monitor Format (VESA) Standard TV Display Format
Test
Pattern
Philips test pattern 12 steps greyscale
Format 4:3 16:9 4:3 16:9
1H 576i25Hz 1080i25H
z
576i25Hz 1080i25Hz
2H 576p50Hz 720p60Hz 576p50Hz 720p60Hz
Test
Pattern
Philips test pattern 12 steps greyscale
Format 4:3 16:9 4:3 16:9
1H 576i25Hz 1080i25H
z
576i25Hz 1080i25Hz
2H 576p50Hz 720p60Hz 576p50Hz 720p60Hz
Test
Pattern
Philips test pattern 12 steps greyscale
Format 640x480@60Hz,
800x600@85Hz,
1280x1024@75Hz
640x480@60Hz,
800x600@85Hz,
1280x1024@75Hz
Function Alignment Value
Brightness Standard
Colour Standard
Contrast Standard (70%)
Black Extand Off...*
Tone Neutral...
Sharpness Not applicable*
Noise reduction Off...*
Couleur NTSC 50%
Mode zoom Standard

EFC031E - IFC130
First issue 02 / 06 5
1.4 Video Calibration
EFC031E
1.4.1 MST9883 ADC Calibration
YPbPr Calibration for TV display format
- Connect Y, Pb, Pr signal to BV280 connector (”Video Components Enter”) with the following standard.
Input signal parameters:
- Exit temporary from Service Mode and select the ”Video Components Enter”(press the magenta key on the
RCU ”Text”to come back at the service mode )
- Video pattern to calibrate
- Select YPbPr and ”Calibration”in the ”Miscelaneous”Menu of Sevice Mode and press on
the RCU OK key .
The screen is flashing few minutes and stable after few seconds.
Signal Value (Vp-p)
Y: Sync to Peak white 0.7
Pr:Sync to Peak white 0.7
Pb:Sync to Peak white 0.7
Calibration Pattern Color bar with no Gamma correction
Format 480p60Hz, 1H, 4:3
(
Factory Misc
( Reset the values to ROM default Yes?
LUMA_TEMPORAL-NR
CHROMA_TEMPORAL-NR
Calibration ...
Debug ...
Reset the Alignment values
Yes?
TT 27Y24 Packet Enable*
Factory setting
EFC031_X181-0
Return
Sound
Video
Field Service
* According software version
...
...
...
...
Miscellaneous ...

EFC031E - IFC130
6First issue 02 / 06
1.4.2 RGB
RGB Calibration for Standard monitor format (VESA)
- Connect R, G, B Hsync and Vsync with following standard into VGA BV300
connector:
- Exit temporary from Service Mode and select the VGA enter (press the magenta key on the RCU ”Text”to come
back at the service mode)
- Video pattern to calibrate
- Select ”Calibration”in ”Miscelaneous”Menu of the Service Mode and press on the RCU ”OK”key.
The screen is flashing few minutes and stable after few seconds.
Note:
The others items of the ”Miscellaneous”menu are described at §4.
Signal Value (Vp-p)
R (Red) 0.7
G (Green) 0.7
B (Blue) 0.7
Hsync. 2.4V
Vsync. 2.4V
Calibration Pattern 16 step Gray scale with no gamma
correction
Format 800x600@85Hz

EFC031E - IFC130
First issue 02 / 06 7
2.1 Cut Off
Cutt Off alignment has to be done for the following standards :
Note: After Cut Off alignment control white point alignment. Repeat the adjustments if necessary.
R offset
G Offset
B Offset
+0007
+0024
+0016
- Insert a grey test pattern giving 15 Nits luminance level
- Measure the color co-ordinates near the screen center.
- Fix B Offset to the centre of the alignment range.
- Adjust R Offset - G Offset:
Colour Co-ordinates Value
x 0.282
y 0.293
Input Video Standard
SCART PAL / SECAM/ RGB
YPbPr SDTV (576i)
HDTV (108i 25)
HDTV (720p 60)
VGA VESA (DMT 1060)
SD Video (576i)
HD Video (1080i 25)
HDMI HDTV (720p 60)
FAV (CVBS) SD Video (576i)
(
Factory video
(Cut Off Alignment ...
Whitepoint alignment ...
Scalling Brightness Alignment...
Scalling Color Alignment ...
Scale Tint Alignment ...
Peak White Alignment ...
Text Contrast alignment ...
Preset for Video Alignment ...
Factory setting
EFC031_X181-0
Return
Sound
Video
Field Service
...
...
...
...
Miscellaneous ...
EFC031E
2.2 Whitepoint
- Whitepoint alignment has to be done for the same standards of the Cuttoff alignment :
2.3 Scaling Brightness Alignment
-The Scalling Brightness is a factory alignment.
EFC031E: Brightness = +0003
R Gain
G Gain
B Gain
+0496
+0531
+0513
- Insert a grey test pattern with 50 IRE in one of the above mentioned standards.
- Measure the color co-ordinates near the screen center.
- Fix B Gain to the centre of the alignment range.
- Adjust R Gain - G gain to the following color co-ordinates:
Colour Co-ordinates Value
x 0.282
y 0.298
Brightness -0003
2 - VIDEO ALIGNMENT

EFC031E - IFC130
8First issue 02 / 06
2.4 Scaling Colour
- Scaling Color Alignment has to be done for the following standards :
- 75% Color bar test pattern.
- Measure the Blue output and adjust Colour to equal levels as shown bellow:
2.5 Scale Tint
-No alignment for EU models.
2.6 Peak White Alignment
- Peak White test pattern (100%).Colourimeter.
- Peak White alignment has to be done for the following standards :
- Adjust Contrast to the level : 450 Nits +20% -15%.
2.7 Text Contrast.
- Selecting this item inserts a white centered pad.
-Measure the optical luminance output level (Y Nits) of the white pad.
- Adjust Text Contrast to the 60% of the PW level.
Colour +0512
Input Video Standard
SCART PAL / SECAM/ RGB
YPbPr SDTV (576i)
HDTV (108i 25)
HDTV (720p 60)
VGA VESA (DMT 1060)
SD Video (576i)
HD Video (1080i 25)
HDMI HDTV (720p 60)
FAV (CVBS) SD Video (576i)
NTSC Tint +0000
Contrast +0534
Input Video Standard
SCART PAL / SECAM/ RGB
YPbPr SDTV (576i)
HDTV (108i 25)
HDTV (720p 60)
VGA VESA (DMT 1060)
SD Video (576i)
HD Video (1080i 25)
HDMI HDTV (720p 60)
FAV (CVBS) SD Video (576i)
Contrast +0534
Text Contrast 14

EFC031E - IFC130
First issue 02 / 06 9
3 - SOUND
- The items of the SOUND menu are not used
4 - MISCELLANEOUS
- EFC031E
4.1 Reset the values to ROM default
- Reset all the EEPROM data to FF.
Only required if the EEPROM data are corrupted.
After ”reset the values to ROM default”the alignment, calibration and channel installation is necessary.
4.2 LUMA_TEMPORAL_NR
- Temporal noise reduction setting for luminance.
Factory adjusted. It is not necessary to do adjustment on this item.
4.3 CHROMA_TEMPORAL_NR
- Temporal noise reduction setting for chrominance.
Factory adjusted. It is not necessary to do adjustment on this item.
4.4 Calibration
See §1.4
4.5 Debug
- Bus quiet mode for main I2C Bus. Used only in development purpose.
4.6 Reset the Alignment values
- Reset all alignment values to default value. Used only if the TV need new alignment.
In that case it is necessary to start alignments by Video Calibration (ADC YPbPr).
Note:
After loading of a new software select ”Reset the alignment values”and check the TV alignment.
4.7 TT 27Y24 Packet Enable
According to software version. Factory adjust.
Improve teletext performance for some special French channels
(
Factory Misc
( Reset the values to ROM default Yes?
LUMA_TEMPORAL-NR
CHROMA_TEMPORAL-NR
Calibration ...
Debug ...
Reset the Alignment values
Yes?
TT 27Y24 Packet Enable*
Factory setting
EFC031_X181-0
Return
Sound
Video
Field Service
* According software version
...
...
...
...
Miscellaneous ...

EFC031E - IFC130
10 First issue 02 / 06
5 - FIELD SERVICE (Spécifique EFC031E)
5.1 Test Patterns
To check the Scaler Board:
- Press ”Left ”or ”Right ”key on RCU activate the purity test patterns in the following order:
Continous, white, black, red, green, blue, off.
5.2 Power Usage - LCD Usage
Power Usage and LCD Usage are time counters.
- ”Power Usage”indicates the Power supply number of service hours and minutes.
- ”LCD Usage”indicates the TV number of service hours and minutes.
The display is decimal.
5.3 Clear Event History
To clear all error codes stored in the NVM.
Action : Select the line and Press the right key on RCU to confirm.
5.4 Error Codes
1 - The last five Error codes are stored and displayed with a time stamp from the runtime counter.
Each each error code in this list has an error counter that counts further occurences of a particular error.
2 - If an error occurs that is already in the list the time stamp is updated and the error counter is
incremented anymore.
3 - The errors are displayed with the most recent error on top on the list. The others follow with descending
time stamps.
Displaying Error Codes with LED
1 - In addition to storing an error code it must also be displayed with TV’s standby LED.
Only the last error that occured is displayed.
2 - Decimal error codes from 11 to 18 are signaled.
3 - The error code is displayed as two separate digits separate by a suitable pause, this is repeated according
to a specific sequence.
For example Error-code 13 will be displayed thus :
1 flash and a short pause
3 flashes and a long pause
......
List of Error Codes (Specific EFC031E):
11 ERR_EEPROM 15 ERR_TEA6415C
12 ERR_SAA7117A 16 ERR_MSP4411K
13 ERR_MST9883C 17 ERR_MAD4868
14 ERR_MASTER TUNER 18 ERR_TEA6422D
(
Factory setting
EFC031_X181-0
Return
Sound
Video
Field Service
...
...
...
...
Miscellaneous ...
Field Service
(Test patterns Off
Power Usage: 000030:29 LCD Usage: 000030:05
Clear Event History ...
Code Count Timestamp
00 000 000000:00
00 000 000000:00
00 000 000000:00
00 000 000000:00
00 000 000000:00

EFC031E - IFC130
First issue 02 / 06 11
1 VIDEO
1.1 Conditions
- The TV set should be warmed up for 60 minutes.
- The following conditions are automatically set when entering the Video submenu.
* Set these conditions in the User menu
1.2 Y, Pb, Pr Component Input
Video test pattern
1.3 VGA I
Format Moniteur standard (VESA) Format affichage TV standard
Fonction Valeur
Lumière Standard
Couleur Standard
Contraste Standard (70%)
Noir renforcéInactif*
TonalitéNeutre
Contour 50%
Réducteur de bruit Inactif*
Couleur NTSC 50%
Mode zoom Standard
Test
Pattern
Philips test pattern 12 steps greyscale
Format 4:3 16:9 4:3 16:9
1H 576i25Hz 1080i25H
z
576i25Hz 1080i25Hz
2H 576p50Hz 720p60Hz 576p50Hz 720p60Hz
Test
Pattern
Philips test pattern 12 steps greyscale
Format 4:3 16:9 4:3 16:9
1H 576i25Hz 1080i25H
z
576i25Hz 1080i25Hz
2H 576p50Hz 720p60Hz 576p50Hz 720p60Hz
Test
Pattern
Philips test pattern 12 steps greyscale
Format 640x480@60Hz,
800x600@85Hz,
1280x1024@75Hz
640x480@60Hz,
800x600@85Hz,
1280x1024@75Hz
III - IFC130 CHASSIS - ALIGNMENT

EFC031E - IFC130
12 First issue 02 / 06
1.4 VIDEO CALIBRATION
1.4.1 YPbPr Calibration for TV display format
IFC130
- Connect Y, Pb, Pr signal to BV600 (”Video Components Enter”) with the following standard.
- Exit temporary from Service Mode and select the ”Video Components Enter”(press the magenta key on the
RCU ”Text”to come back at the service mode )
- Video pattern to calibrate
- Select ”YPbPr Calibration”in the ”PW218 1st page”Menu of the Service Mode and press the OK key on
the RCU.
The screen is flashing few minutes and stable after few seconds.
Signal Valeur (Vp-p)
Y: Sync to teak white 0.7
Pr:Sync to teak white 0.7
Pb:Sync to teak white 0.7
Calibration Pattern Color bar with no Gamma correction
Format 720p60Hz, 2H, 16:9
(
Return
Panel Selection 009
Analog RGB Calibration
YCbCr Calibration
Factory Reset
BW Expand 000
CUEC / ICP 001
FRMEC 001
Flestone Correction 000
Film Mode 000
3:2 Film Sensitivity 000
2:2 Film sensitivity 004
Pixel Boost 000
DCS 000
DCTI 000
Peaking 001
Spatial noise Filter 000
LumaTemp.Noise Filter 064
LAI 000
Service Menu
BL1.41
Return
Sound
Video
SAA7117AE
...
...
...
PW2300 ...
Misc ...
PW218 1st page ...
PW218 2nd page ...

EFC031E - IFC130
First issue 02 / 06 13
1.4 2 RGB
Analog RGB Calibration
- Connect R, G, B Hsync and Vsync with following standard into VGA BV300
connector:
- Exit temporary from Service Mode and select the VGA enter (press the magenta key on the RCU ”Text”to come
back at the service mode)
- Video pattern to calibrate
- Select ”Analog RGB Calibration” in the ”PW218 1st page”menu of the Service Mode and press the OK key on
the RCU.
The screen is flashing few minutes and stable after few seconds.
Note:
The others items of the ”PW218 1st page”are described at §5.
Signal Value (Vp-p)
R (Red) 0.7
G (Green) 0.7
B (Blue) 0.7
Hsync. 2.4V
Vsync. 2.4V
Calibration Pattern 16 step Gray scale with no gamma
correction
Format 1024x768@60Hz
(
Return
Panel Selection 009
Analog RGB Calibration
YCbCr Calibration
Factory Reset
BW Expand 000
CUEC / ICP 001
FRMEC 001
Flestone Correction 000
Film Mode 000
3:2 Film Sensitivity 000
2:2 Film sensitivity 004
Pixel Boost 000
DCS 000
DCTI 000
Peaking 001
Spatial noise Filter 000
LumaTemp.Noise Filter 064
LAI 000
Service Menu
BL1.41
Return
Sound
Video
SAA7117AE
...
...
...
PW2300 ...
Misc ...
PW218 1st page ...
PW218 2nd page ...

EFC031E- IFC130
14 First issue 02 / 06
2 - VIDEO ALIGNMENT
2.1 Cut Off
Cutt Off alignment has to be done for the following standards :
Note: After Cut Off alignment control white point alignment. Repeat the adjustments if necessary.
2.2 Whitepoint
-Whitepoint alignment has to be done for the same standards of the Cuttoff alignment :
2.3 Scaling Brightness Alignment
-Scaling Brightness Alignment est un réglage usine.
IFC130 : Brightness = +0024
- Insert a grey test pattern giving 15 Nits luminance level
- Measure the color co-ordinates near the screen center.
- Fix B Cutoff to the centre of the alignment range.
- Ajuster R Cutoff - G Cutoff:
Colour Co-ordinates Value
x 0.282
y 0.293
R Cutoff
G Cutoff
B Cutoff
-0028
-0004
-0016
Input Video Standard
SCART PAL / SECAM/ RGB
YPbPr SDTV (576i)
HDTV (108i 25)
HDTV (720p 60)
VGA VESA (DMT 1060)
SD Video (576i)
HD Video (1080i 25)
HDMI HDTV (720p 60)
FAV (CVBS) SD Video (576i)
IFC130
(
Service Video
(Cut Off Alignment ...
Whitepoint alignment ...
Scalling Brightness Alignment...
Scalling Color Alignment ...
Scale Tint Alignment ...
Peak White Alignment ...
Text Contrast alignment ...
Preset for Video Alignment ...
Service Menu
BL1.41
Return
Sound
Video
SAA7117AE
...
...
...
PW2300 ...
Misc ...
PW218 1st page ...
PW218 2nd page ...
Coordonnées couleur Valeur
x 0.282
y 0.298
Brightness -0003
R Gain
G Gain
B Gain
+0528
+0520
+0544
- Insert a grey test pattern with 50 IRE in one of the above mentioned standards.
- Measure the color co-ordinates near the screen center.
- Fix B Gain to the centre of the alignment range.
- Adjust R Gain - G gain to the following color co-ordinates:

EFC031E - IFC130
First issue 02 / 06 15
2.4 Scaling Colour
- Scaling Color Alignment has to be done for the following standards :
- 75% Color bar test pattern.
- Measure the Blue output and adjust Colour to equal levels as shown bellow:
2.5 Scale Tint
-No alignment for EU models.
2.6 Peak White Alignment
- Peak White test pattern (100%).Colourimeter.
- Peak White alignment has to be done for the following standards :
- Adjust Contrast to the level : 450 Nits +20% -15%.
3 - SOUND
-The items of the SOUND menu are not used.
4 - MISCELLANEOUS
- IFC130
Colour +0512
NTSC Tint +0000
Contrast +0534
Input Video Standard
SCART PAL / SECAM/ RGB
YPbPr SDTV (576i)
HDTV (108i 25)
HDTV (720p 60)
VGA VESA (DMT 1060)
SD Video (576i)
HD Video (1080i 25)
HDMI HDTV (720p 60)
FAV (CVBS) SD Video (576i)
Input Video Standard
SCART PAL / SECAM/ RGB
YPbPr SDTV (576i)
HDTV (108i 25)
HDTV (720p 60)
VGA VESA (DMT 1060)
SD Video (576i)
HD Video (1080i 25)
HDMI HDTV (720p 60)
FAV (CVBS) SD Video (576i)
(
Misc
Return
ADC Calibration ...
Test pattern ...
Service Menu
BL1.41
Return
Sound
Video
SAA7117AE
...
...
...
PW2300 ...
Misc ...
PW218 1st page ...
PW218 2nd page ...

EFC031E - IFC130
16 First issue 02 / 06
4.1 ADC Calibration
- Not used in this Menu.
The ADC Calibration adjustment is done in the ”PW218 1st page”(see §1.4).
4.2 Test pattern
To check the Scaler Board:
- Press ”Left ”or ”Right ”key on RCU activate the purity test patterns in the following order:
Continous, white, black, red, green, blue, off.
5 -PW218 1st page - PW218 2nd page - PW2300 (spécific IFC130)
NOTE :
The Analog RGB Calibration and YCbCr Calibration items are described at §1.4.
Except other indication the following items , only deal with factory adjustments. Their
meaning is given for information only.
5.1 - PW218 1st page
Panel Selection
- Different panel timing selection.
Factory adjust.
If this item is modified, set it to the previous value (009) then exit from the Service Mode and enter again.
(
Return
Panel Selection 009
Analog RGB Calibration
YCbCr Calibration
Factory Reset
BW Expand 000
CUEC / ICP 001
FRMEC 001
Flestone Correction 000
Film Mode 000
3:2 Film Sensitivity 000
2:2 Film sensitivity 004
Pixel Boost 000
DCS 000
DCTI 000
Peaking 001
Spatial noise Filter 000
LumaTemp.Noise Filter 064
LAI 000
Service Menu
BL1.41
Return
Sound
Video
SAA7117AE
...
...
...
PW2300 ...
Misc ...
PW218 1st page ...
PW218 2nd page ...
!

EFC031E - IFC130
First issue 02 / 06 17
Factory Reset
- Factory reset of EEPROM data to default value.
Used only if the alignment have somthing wrong and need to align the TV again.
Installed channel will lost. ADC calibration no change.
Note:
After loading of a new software select ”Factory reset”and check the TV alignment.
BW Expand: Black expand.
CUEC/ICP: Color Upsampling Error Correction / Inter-Chroma Processing.
FRMEC: Frame Rate Motion Error Correction.
Fleshtone Correction: Color correction.
Film Mode: Film Mode On / Off.
3:2 Film Sensitivity - 2:2 Film Sensitivity: Film Mode 3:2 (or 2:2) sensitivity setting.
Pixel/Boost : Pixel boost On / Off.
DCS: Dynamic Color Saturation.
DCTI: Digital Color Transient Improvement
Peaking: Peaking Gain setting.
Spatial Noise Filter: Spatial Noise Filtering setting.
LumaTemp Noise Filter: Luma temporal Noise filtering setting.
LAI : Low Angle Interpolation
5.2 - PW218 2nd page
Blue Cal: Blue Calibration.
BWE Enable: Black White Expansion On / Off.
BWE Mode : Black White Expansion Mode.
DYNKDEINT Enable: Dynamic Motion weighting factor for DEINTerlacer
5.3 SAA7117AE
Not used.
(Quit
Blue Cal 000
BWE Enable 000
BWE Mode 000
DYNKDEINT Enable 001
Service Menu
BL1.41
Return
Sound
Video
SAA7117AE
...
...
...
PW2300 ...
Misc ...
PW218 1st page ...
PW218 2nd page ...

EFC031E - IFC130
18 First issue 02 / 06
5.4 PW2300
Selected Feta: Select the PW2300 IC if there are>1.
3D Comb Filter: Validation On / Off de 3D Comb Filter.
FTC Level: Fleshtone correction Level.
FTC Angle: Fleshtone correction Angle.
DCTI Gain: Digital Color Transient Improvement Gain.
DCTI frequency: Digital Color Transient Improvement Frequency.
Luma Peaking Gain: Luma Peaking gain.
Luma Peaking L Threash: Luma Peaking Lower Threshold.
Luma Peaking U Threash: Luma Peaking Upper Threshold.
Luma Peaking L Trans: Luma Peaking Lower Transient.
Luma Peaking U Trans: Luma Peaking Upper Transient.
Luma Sharpness gain: Luma Sharpness Gain.
Luma Sharpness freq: Luma Sharpness Filter Cutoff frequency.
Black Stretch: Black Strech On / Off.
White Stretch: White Strech On / Off..
(
Selected Feta 000
3D Comb Filter 001
FTC Level 128
FTC Angle 035
DCTI Gain 007
DCTI Frequency 000
DLTI Gain 000
DLTI Frequency 000
Luma Peaking Gain 000
Luma Peaking L Threash 001
Luma Peaking U Threash 000
Luma Peaking L Trans 000
Luma Peaking U Trans 000
Luma Sharpness Gain 000
Luma Sharpness Freq 003
Black Stretch 128
White Stretch 128
Service Menu
BL1.41
Return
Sound
Video
SAA7117AE
...
...
...
PW2300 ...
Misc ...
PW218 1st page ...
PW218 2nd page ...

EFC031-IFC130-IFC230
First issue 12/05
IFC130E I/O Concept
Flash Memory
32Mbit
M29W320EB70N6
CH1
32bits data
12bits address
16bits data
21bits address
5 channel
LVDS
signal
CH0
64kbit
EEPROM
14.318
MHz
Scart 1
Scart 2
MA_Tuner
+
MM 1507
MM 1511
MM 1511
Mux/ Drv
MM 1507
Mux/ Drv +
HALF
SCART
FULL
SCART
cv
cv
TEA6415C
CHR
Y
Y
AV1_CVBS_OUT
AV1_Y_OUT
AV1_CHR_IN
CHR AV1_CHR_OUT
AV1_CVBS/Y_IN
INTERBOARD
CONNECTION
MA_TUNER_CVBS
AV2_Y_OUT
AV2_CHR_OUT
AV2_CVBS_OUT
AV2_CVBS/Y_IN
AV2_CHR_IN
CVBS_OUT
CVBS_OUT
FAV_CVBS/Y_IN
FAV_CHR_IN
Flat Panel Display
MA_Tuner
_CVBS
'L'=YC
'H'=CVBS
'L'=YC
'H'=CVBS
19
19
TV K B
DV D KB
FRONT CINCH
CVBS SVHS
LVDS OUT
IR
0x40/
0x48H
CVBS_3D
MA_Tuner_CVBS
32.11
MHz
MUX MUX
AV1_CVBS/YC
Scart1
AV2_CVBS/YC
Scart2
FAV_CVBS/YC
FAV
RGB+FB
Scart1
24-bits RGB
H+V+Clock
16MB
SDRAM
VGA_RGB
27
MHz
MU X
MUX
DDR Frame Buffer
4Mx32bitsx4banks
MT46V16M16-6T
256Mbit
(166MHz)
MT46V16M16-6T
256Mbi
(166MHz)
C_AV_IN
YC_SEL_CTRL1
Audio Block
Diagram
VGA_TX, VGA_RX
VGA_Right_Audio
VGA_Left_Audi0
MM1117/
1 117/
MM1228
MM1113/
MM1224
C Mux
C_AV1
C_AV2
AV3/FAV_CHR_IN
Y_AV1
Y_AV2
AV3/FAV_CVBS/Y_IN
VGA_RGB
RS232
DRV
VGA
2kbit
EEPROM
COMP_YPbPr1
DVD
Y_AV_IN
YC_SEL_CTRL2
DVD_Right_Audio
DVD_Left_Audio
Master_Mute
Audio_STBY
RESET_AUDIO
YC_SEL_CTRL1
YC_SEL_CTRL2
CVBSOUT_AV1_CTRL
CVBSOUT_AV2_CTRL
YC_DVD_SEL_CTRL
Video
Decoder
PW2300
Video
Decoder
SAA7117A
LCD/Plasma TV
Controller
PW118B
COMP_YPbPr2
Card Reader
Module
FE6233
MM1508
Y Mux
Y Mux
MM1506
C Mux
YC_DVD_SEL_CTRL
Comp IN
UART1
DVD_CVBS
DVD_YC
DVD_CVBS
Audio Jack
H-port 8 bits
I-port 8 bits
H+V+Clock
16-bits YCbCr
H+V+Clock
LINE_O/P_L
LINE_O/P_R
Audio Cinch Output
UART1
COMP_YPbPr2
COMP_YPbPr1
Prepared
2kbit
EEPROM
TMDS
28.322
MHz
HDMI Rx
SiI9011
LRCLK, BCLK,
PCMDATA
HDMI_Right_Audio
HDMI_Left_Audio
CVBSOUT_AV2_CTRL CVBSOUT_AV1_CTRL
0xC2H
I2 C
0x06H
I2 C
0xA0H
I2 C
I2 CC 0x80, 82, 9AH
VGA_Right_Audio, VGA_Left_Audio
Comp_Right_Audio, Comp_Left_Audio
Comp_Right_Audio
Comp_Left_Audio
Card Reader_Right_Audio, Card Reader_Left_Audio
Card Reader_Right_Audio
Card Reader_Left_Audio
Master_Mute
AUDIO_STBY
RESET_AUDIO
RGB+FB Scart1, AV1_CVBS/YC Scart1
FAV_CVBS/YC FAV
AV2_CVBS/YC Scart2
0x06H
I2 C
0xA0H
I2 C
0x66H
I2 C
0xA0H
I2 C
I2 C
BLOCK DIAGRAM - SCHEMA SYNOPTIQUE - BLOCKSCHALTBILD - SCHEMA A BLOCCHI - ESQUEMA DE BLOQUES
