Thor Fiber F-M1SDI-TR-ET User manual

F-M1SDI-TR-ET
1-Bidirectional HD-SDI Optical
Transceiver with RS485 and
10/100 Fast Ethernet
User Manual
2017

 
Thor Fiber 2017 Tel: [phone] Email: [e-mail] http://www.thorbroadcast.com
Contents
CHAPTER 1. INTRODUCTION......................................................................................................2
 ........................................................................................................................................
 ..........................................................................................................................................
 .....................................................................................................................
CHAPTER 2. F-M1SDI-TR-ET PANELS ........................................................................................4
...................................................................................................................................
.....................................................................................................................................
CHAPTER 3. TECHNICAL SPECIFICATIONS..............................................................................7

 
Thor Fiber 2017 Tel: [phone] Email: [e-mail] http://www.thorbroadcast.com
Chapter 1. Introduction
1.1 Overview
The Thor Fiber F-M1SDI-TR-ET is a compact power house that will allow any user to transport one single
channel of 1.485Gbps HD-SDI Serial Data Interface bi-directionally while simultaneously transmitting
10/100Mb/s Ethernet Data. Furthermore this Thor Fiber Kit of Transmitter and Receiver will send RS485 in
reverse for easy control over the kit. This sturdy unit creates an easy drop environment for users that
require HD-SDI and Fast Ethernet across application and even allows additional AUX Cards which can
allow a plethora of other options such as RS232 and RS422, and even capable of carrying external analog
audio instead of the SDI embedded audio. Thor Fiber has an excellent reputation for high quality and low
cost products to help complete your project on time, in a loss free high quality kit that will ensure you stay
under budget. Commonly used in security applications, live performance environments, video surveillance,
SDI distribution and control in any environment.
1.2 Feature



、、





            


 
Thor Fiber 2017 Tel: [phone] Email: [e-mail] http://www.thorbroadcast.com
1.3 Application Drawing

 
Thor Fiber 2017 Tel: [phone] Email: [e-mail] http://www.thorbroadcast.com
Chapter 2. F-M1SDI-TR-ET Panels

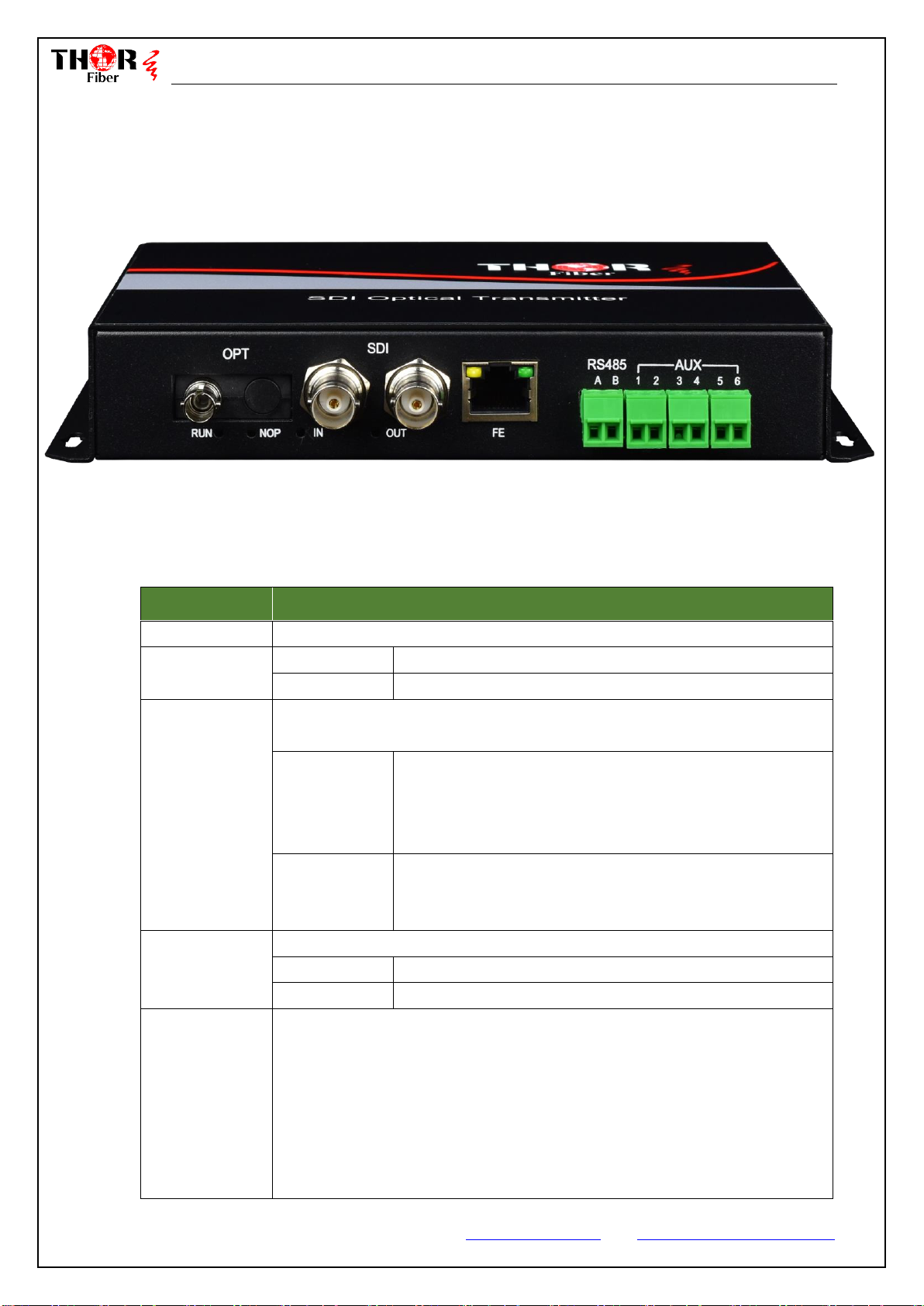

2.1 Front Panel


Name
Description

Optical interface, bi-directional, ST/PC Connector






          


 link indicator, green.
ON: Normal link but no data transmit or receive;
Blink: Normal link and there are data transmitting and receiving;
OFF: No link or the interface is damaged

FE speed indicator, yellow.
ON: operating with 100M;
OFF: operating with 10M

RS485 interface, adopts PHOENIX connector





One auxiliary channel, which can be 2-channel bi-directional audio, or 2-channel
unidirectional audio, or 1-channel bi-directional RS422 or 2-channel RS232 channel.
Refer to table 2-1-3 for more.
Note: if the auxiliary channel is used as the audio
channel, the embedded audio channel in the HD-SDI
signal will be unavailable.

 
Thor Fiber 2017 Tel: [phone] Email: [e-mail] http://www.thorbroadcast.com

Name
Description


















Blink: There are data transmitting and receiving;
OFF: No data transmit or receive;

AUX interface
No.
Name
Description
2-channel bi-
directional audio


















1-channel bi-
directional
RS422


















2-channel bi-
directional
RS232



















 
Thor Fiber 2017 Tel: [phone] Email: [e-mail] http://www.thorbroadcast.com
2.2 Rear Panel

 
Name
Description





 
Thor Fiber 2017 Tel: [phone] Email: [e-mail] http://www.thorbroadcast.com

Chapter 3. Technical Specifications
3-1 
Item
Typical value
Video Interface









±
（）







Audio Interface (Optional)



Ω











Ω
FE Interface














RS485 Interface








CONSOLE Interface

RJ45



 
Thor Fiber 2017 Tel: [phone] Email: [e-mail] http://www.thorbroadcast.com






EMU/EMU-EX Interface




Power and Consumption


DC input voltage range
8V~14V
Power consumption
±10％
Environment Requirements

～℃

％

～℃
Equipment dimension


Note: The optical module is optional for users, the default is 20Km on single mode fiber, other long distance
needs to be declared when ordering.
