Thor Kitchen TMD2401 User manual

USE AND CARE MANUAL
COOK
LIKE
A
GOD
TMD2401
24 INCH MICROWAVE DRAWER

24 INCH MICROWAVE
DRAWER
USE AND CARE MANUAL
TMD2401

E2
PRECAUTIONS TO
AVOID POSSIBLE
EXPOSURE TO
EXCESSIVE
MICROWAVE ENERGY
• Donotattempttooperatethis oven withthe
door open since open-door operation can
result in harmful exposure to microwave
energy. It is important not to defeat or
tamper with the safety interlocks.
• Do not place any object between the oven
front face and the door or allow soil or
cleaner residue to accumulate on sealing
surfaces.
• Do not operate the microwave oven if it is
damaged. It is particularly important that
the microwave oven door close properly
and that there is no damage to the: (1)
door (bent), (2) hinges and latches (broken
or loosened), (3) door seals and sealing
surfaces.
• The microwave oven should not be
adjusted or repaired by anyone except
properly qualified service personnel.
WARNING:
This equipment generates and uses ISM frequency
energy and if not installed and used properly, that is in
strict accordance with the manufacturer's instructions,
may cause interference to radio and television
reception.
It has been type-tested and found to comply with limits
for an ISM Equipment pursuant to part 18 of FCC Rules,
which are designed to provide reasonable protection
against such interference in a residential installation.
However, there is no guarantee that interference will
not occur in a particular installation.
If this equipment does cause interference to radio
or television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or
more of the following:
• Reorient the receiving antenna of radio or
television.
• Relocate the Microwave oven with respect to the
receiver.
• Move the microwave oven away from the receiver.
• Plug the microwave oven into a different outlet so
that microwave oven and receiver are on different
branch circuits.
THE MANUFACTURER is not responsible for any
radio or TV interference caused by UNAUTHORIZED
MODIFICATION to this microwave oven. It is the
responsibility of the user to correct such interference.

24 INCH MICROWAVE
DRAWER
USE AND CARE MANUAL
TMD2401

3E
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY......................................... 2
IMPORTANT SAFETY INSTRUCTIONS.................................... 4
IMPORTANT INFORMATION YOU NEED TO KNOW ................. 5
ABOUT UNPACKING AND EXAMINING YOUR
DRAWER MICROWAVE...................................................................... 5
ELECTRICAL GROUNDING INSTRUCTIONS .................................... 5
RADIO OR TV INTERFERENCE ......................................................... 5
ABOUT YOUR DRAWER MICROWAVE............................................... 5
COOKWARE SAFETY ......................................................................... 5
ACCESSORIES................................................................................... 6
CHILD SAFETY .................................................................................. 6
FOOD SAFETY.................................................................................... 6
COOKING SAFETY............................................................................. 7
ABOUT FOODS .................................................................................. 7
BEFORE OPERATING ............................................................. 8
TO SET THE CLOCK........................................................................... 8
STOP/CLEAR..................................................................................... 8
OPEN OR CLOSE DRAWER MICROWAVE ........................................ 8
FEATURES AND CONTROL PANEL......................................... 9
SETTINGS ............................................................................ 10
TIME COOKING................................................................................ 10
TO SET POWER LEVEL.................................................................... 10
SENSOR SETTINGS......................................................................... 10
COVERING FOODS .......................................................................... 10
SENSOR POPCORN / SENSOR REHEAT ........................................ 11
SENSOR COOK................................................................................ 12
DEFROST......................................................................................... 13
MANUAL DEFROST......................................................................... 13
REHEAT ........................................................................................... 14
BEVERAGE CENTER ....................................................................... 14
MELT / SOFTEN / WARM.................................................................. 15
KEEP WARM.................................................................................... 16
MULTIPLE SEQUENCE COOKING................................................... 16
ADDAMINUTE .............................................................................. 16
MORE OR LESS TIME ADJUSTMENT ............................................. 16
HELP (IN THE DISPLAY)..........................................................16
CONTROL LOCK.............................................................................. 16
SETUP/ HELP.................................................................................. 16
AUDIBLE SIGNAL ELIMINATION.................................................... 17
END OF COOKING REMINDER ....................................................... 17
AUTO START.................................................................................... 17
SETUP/ HELP.................................................................................. 17
DEMONSTRATION MODE................................................................ 17
STANDBY MODE.............................................................................. 17
CLEANING AND MAINTENANCE.......................................... 18
EXTERIOR........................................................................................ 18
STAINLESS STEEL SURFACE......................................................... 18
FRONT SIDE OF THE DRAWER....................................................... 18
TOUCH CONTROL PANEL............................................................... 18
DRAWER GUIDES............................................................................ 18
INTERIOR ........................................................................................ 18
WAVEGUIDE COVER........................................................................ 18
ODOR REMOVAL.............................................................................. 18
BEFORE YOU CALL FOR SERVICE........................................ 19
WARRANTY.......................................................................... 20
CONTENTS

4 E
When using electrical appliances, basic safety precautions
should be followed, including the following:
WARNING - To reduce the risk of burns, electric shock, fire,
injury to persons or exposure to excessive microwave energy:
1. Read all instructions before using the appliance.
2. Read and follow the specific “PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY” on page 2.
3. This appliance must be properly grounded. Connect only to
properly grounded outlet. See ELECTRICAL GROUNDING
INSTRUCTIONS on page 5.
4. Install or locate this appliance only in accordance with the
provided Installation Guide.
5. Some products such as whole eggs and sealed containers—
for example, closed glass jars—are able to explode and
should not be heated in the appliance.
6. Use this appliance only for its intended use as described
in this manual. Do not use corrosive chemicals or vapors
in this appliance. This appliance is specifically designed
to heat, cook or dry food. It is not designed for industrial
or laboratory use.
7. As with any appliance, close supervision is necessary when
used by children.
8. Do not operate this appliance if it has a damaged cord or
plug, if it is not working properly or if it has been damaged
or dropped.
9. This appliance should be serviced only by qualified service
personnel. Contact nearest Authorized Servicer for
examination, repair or adjustment.
10. Do not cover or block any openings on the appliance.
11. Do not store or use this appliance outdoors. Do not use this
product near water—for example, near a kitchen sink, in a
wet basement, near a swimming pool or similar locations.
12. Do not immerse cord or plug in water.
13. Keep cord away from heated surfaces.
14. Do not climb or sit on the appliance.
15. Be sure that fingers or other objects or materials are not
around the appliance opening when the appliance is closed.
16. Do not put fingers or clothes around the drawer guides
when the appliance is opened or closed. They could be
caught in the guides when the appliance is closed.
17. Be sure that the food and container are shorter than the
drawer before closing it. You can refer to the height of the
side walls of the drawer.
18. When cleaning appliance sealing surfaces that come
together on closing the drawer, use only mild, nonabrasive
soaps or detergents applied with a sponge or soft cloth.
See cleaning instructions on page 18.
19. To reduce the risk of fire in the appliance cavity:
a. Do not overcook food. Carefully attend appliance
when paper, plastic or other combustible materials
are placed inside the appliance to facilitate cooking.
b. Remove wire twist-ties from paper or plastic bags
before placing bag in appliance.
c. If materials inside the appliance ignite, keep appliance
door closed, turn microwave off and shut off power at
the fuse or circuit breaker panel.
d. Do not use the appliance for storage purposes. Do not
leave paper products, cooking utensils, or food in the
appliance when not in use.
20. Liquids, such as water, coffee or tea are able to be
overheated beyond the boiling point without appearing
to be boiling due to surface tension of the liquid. Visible
bubbling or boiling when the container is removed from
the appliance is not always present. THIS COULD RESULT
IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN
A SPOON OR OTHER UTENSIL IS INSERTED INTO THE
LIQUID.
To reduce the risk of injury to persons:
a. Do not overheat the liquid.
b. Stir the liquid both before and halfway through heating
it.
c. Do not use straight-sided containers with narrow
necks. Use a wide-mouthed container.
d. After heating, allow the container to stand in the
appliance at least for 20 seconds before removing
the container.
e. Use extreme care when inserting a spoon or other
utensil into the container.
21. If the appliance light fails, consult a AUTHORIZED
SERVICER.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS

5E
ABOUT UNPACKING AND EXAMINING YOUR
DRAWER MICROWAVE
1. Remove all packing materials from inside the Drawer
Microwave. DO NOT REMOVE THE WAVEGUIDE COVER,
which is located on the top of the Drawer Microwave.
2. Remove the feature sticker, if there is one. Check the
drawer for any damage, such as misaligned or bent
drawer, damaged drawer seals and sealing surfaces,
broken or loose drawer guides and dents inside the cavity
or on the front side of the drawer. If there is any damage,
do not operate the Drawer Microwave and contact your
AUTHORIZED SERVICER.
Waveguide
Cover
Sealing
Surface
Oven
Cavity
Sealing
Surface

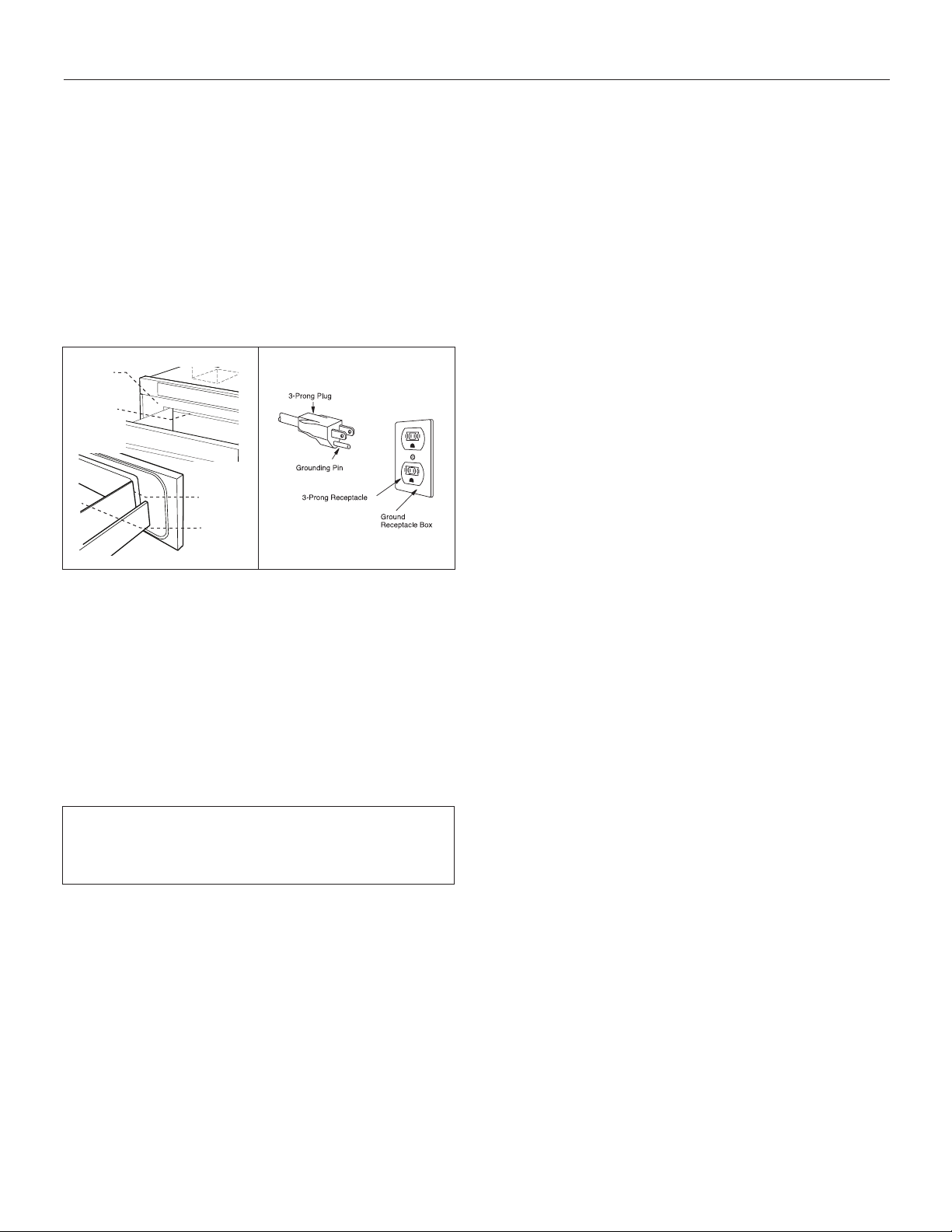

ELECTRICAL GROUNDING
INSTRUCTIONS
This appliance must be grounded. The oven is equipped with
a cord having a grounding wire with a grounding plug. It must
be plugged into a wall receptacle that is properly installed and
grounded in accordance with the National Electrical Code and
local codes and ordinances. In the event of an electrical short
circuit, grounding reduces risk of electric shock by providing
an escape wire for the electric current.
WARNING:
Improper use of the grounding plug can result in a risk of
electric shock.
Do not use an extension cord. If the power supply cord is too
short, have a qualified electrician or serviceman install an
outlet near the appliance.
If you have any questions about the grounding or electrical
instructions, consult a qualified electrician or serviceperson.
NOTE:
• If you have any questions about the grounding or electrical
instructions, consult a qualified electrician or serviceperson.
• Neither THOR nor the dealer can accept any liability for
damage to the oven or personal injury resulting from failure
to observe the correct electrical connection procedures.
RADIO OR TV INTERFERENCE
Should there be any interference caused by the Drawer
Microwave to your radio or TV, check that the Drawer
Microwave is on a different electrical circuit, relocate the radio
or TV as far away from the oven as feasible or check position
and signal of receiving antenna.
ABOUT YOUR DRAWER MICROWAVE
ALWAYS have food in the Drawer Microwave when it is on to
absorb the microwave energy.
The vent under the Drawer Microwave must not be blocked.
During microwaving, steam may come from the right side of
the vent.
When using the Drawer Microwave at power levels below
100%, you may hear the magnetron cycling on and off. It is
normal for the exterior of the Drawer Microwave to be warm
to the touch when cooking or reheating.
Condensation is a normal part of microwave cooking. Room
humidity and the moisture in food will influence the amount of
moisture that condenses in the Drawer Microwave. Generally,
covered foods will not cause as much condensation as
uncovered ones.
The Drawer Microwave is for food preparation only. It should
not be used to dry clothes or newspapers.
Your Drawer Microwave is rated 950 watts by using the IEC
Test Procedure. In using recipes or package directions, check
food a minute or two before the minimum time and add time
accordingly.
When opening or closing the Drawer Microwave quickly, food
in the Drawer Microwave may be spilled. To clean, please refer
to the Cleaning and Maintenance section on page 18.
COOKWARE SAFETY
• Use dry, sturdy pot-holders. Damp pot-holders may cause
burns from steam. Dishtowels or other substitutes should
NEVER be used as potholders because they can trail
across hot surface elements and ignite or get caught on
appliance parts.
• DO NOT heat unopened food containers; buildup of
pressure may cause the container to explode and result
in injury.
• Use care when opening the drawer microwave. Let hot air
or steam escape before removing or replacing food.
• PREPARED FOOD WARNING: Follow food manufacturer's
instructions. If a plastic frozen food container and/or its
cover distorts, warps, or is otherwise damaged during
cooking, immediately discard the food and its container.
The food could be contaminated.
It is not necessary to buy all new cookware. Many pieces
already in your kitchen can be used successfully in your new
Drawer Microwave. Make sure the utensil does not touch the
interior walls during cooking.
IMPORTANT INFORMATION YOU NEED TO KNOW
IMPORTANT SAFETY INSTRUCTIONS

6 E
Use these utensils for safe microwave cooking and reheating:
• glass ceramic (Pyroceram®), such as Corningware®.
• heat-resistant glass (Pyrex®)
• microwave-safe plastics
• microwave-safe paper plates
• microwave-safe pottery, stoneware and porcelain
• browning dish (Do not exceed recommended preheating
time. Follow manufacturer’s directions.)
These items can be used for short time reheating of foods that
have little fat or sugar in them:
• wood, straw, wicker
DO NOT USE:
• metal pans and bakeware (cookie sheets / brownie pans)
• dishes with metallic trim
• non-heat-resistant glass
• non-microwave-safe plastics (margarine tubs)
• recycled paper products
• brown paper bags
• food storage bags
• metal twist-ties
Should you wish to check if a dish is safe for microwaving,
place the empty dish in the oven and microwave on HIGH for
30 seconds. A dish which becomes very hot should not be used.
The following coverings are ideal:
• Paper towels are good for covering foods for reheating and
absorbing fat while cooking bacon.
• Wax paper can be used for cooking and reheating.
• Plastic wrap that is specially marked for microwave use can
be used for cooking and reheating. DO NOT allow plastic
wrap to touch food. Vent so steam can escape.
• Lids that are microwave-safe are a good choice because
heat is kept near the food to hasten cooking.
• Oven cooking bags are good for large meats or foods that
need tenderizing. DO NOT use metal twist-ties. Remember
to slit bag so steam can escape.
How to use aluminum foil in your Drawer Microwave:
• Small flat pieces of aluminum foil placed smoothly on the
food can be used to shield areas that are either defrosting
or cooking too quickly.
• Foil should not come closer than one inch to any surface
of the Drawer Microwave.
Should you have questions about utensils or coverings, check
a good microwave cookbook or follow recipe suggestions.
Accessories
There are many microwave accessories available for purchase.
Evaluate carefully before you purchase so that they meet
your needs. A microwave-safe thermometer will assist you in
determining correct doneness and assure you that foods have
been cooked to safe temperatures. THOR is not responsible
for any damage to the Drawer Microwave when accessories
are used.
CHILD SAFETY
• Children below the age of 7 should use the Drawer
Microwave with a supervising person very near to them.
Between the ages of 7 and 12, the supervising person
should be in the same room. The child must be able to
reach the Drawer Microwave comfortably.
• At no time should anyone be allowed to lean or swing on
the Drawer Microwave.
• Children should be taught all safety precautions: use
potholders, remove coverings carefully, pay special
attention to packages that crisp food because they may
be extra hot.
• Don't assume that because a child has mastered one
cooking skill he/she can cook everything.
• Children need to learn that the Drawer Microwave is not a
toy. See page 16 for Control Lock feature.
FOOD SAFETY
• Arrange food carefully. Place thickest areas towards
outside of dish.
• Watch cooking time. Cook for the shortest amount of
time indicated and add more as needed. Food severely
overcooked can smoke or ignite.
• Cover foods while cooking. Check recipe or cookbook for
suggestions: paper towels, wax paper, microwave plastic
wrap or a lid. Covers prevent spattering and help foods to
cook evenly.
• Shield with small flat pieces of aluminum foil any thin areas
of meat or poultry to prevent overcooking before dense,
thick areas are cooked thoroughly.
• Stir foods from outside to center of dish once or twice
during cooking, if possible.
• Turn foods over once during microwaving to speed cooking
of such foods as chicken and hamburgers. Large items like
roasts must be turned over at least once.
• Rearrange foods such as meatballs halfway through
cooking both from top to bottom and from right to left.
• Add standing time. Remove food from Drawer Microwave
and stir, if possible. Cover for standing time which allows
the food to finish cooking without overcooking.
• Check for doneness. Look for signs indicating that cooking
temperatures have been reached.
Doneness signs include:
• Food steams throughout, not just at edge.
• Center bottom of dish is very hot to the touch.
• Poultry thigh joints move easily.
• Meat and poultry show no pinkness.
• Fish is opaque and flakes easily with a fork.
IMPORTANT INFORMATION YOU NEED TO KNOW

7E
COOKING SAFETY
Check foods to see that they are cooked to the United States
Department of Agriculture's recommended temperatures.
TEMP FOOD
145˚F (63˚C) Fish
160˚F (71˚C) Pork, ground beef/veal/lamb, egg
dishes
165˚F (74˚C) For leftover, ready-to-reheat
refrigerated, and deli and carry-out
“fresh” food. Whole, pieces and ground
turkey/chicken/duck.
170˚F (74˚C) White meat of poultry.
180˚F (74˚C) Dark meat of poultry.
To test for doneness, insert a meat thermometer in a thick
or dense area away from fat or bone. NEVER leave the
thermometer in the food during cooking, unless it is approved
for microwave use.
• ALWAYS use potholders to prevent burns when handling
utensils that are in contact with hot food. Enough heat from
the food can transfer through utensils to cause skin burns.
• Avoid steam burns by directing steam away from the face
and hands. Slowly lift the farthest edge of a dish’s covering
and carefully open popcorn and oven cooking bags away
from the face.
• Stay near the Drawer Microwave while it is in use and check
cooking progress frequently so that there is no chance of
overcooking food.
• NEVER use the oven for storing cookbooks or other items.
• Select, store and handle food carefully to preserve its high
quality and minimize the spread of foodborne bacteria.
• Keep waveguide cover clean. Food residue can cause arcing
and/or fires.
ABOUT FOODS
FOOD DO DON'T
Eggs,
sausages, nuts,
seeds, fruits &
vegetables
• Puncture egg yolks before cooking to prevent “explosion”.
• Pierce skins of potatoes, apples, squash, hot dogs and
sausages so that steam escapes.
• Cook eggs in shells.
• Reheat whole eggs.
• Dry nuts or seeds in shells.
Popcorn • Use specially bagged popcorn for the microwave.
• Listen while popping corn for the popping to slow to 1 or 2
seconds or use special Sensor Popcorn pad.
• Pop popcorn in regular brown bags or
glass bowls.
• Exceed maximum time on popcorn
package.
Baby food
• Transfer baby food to small dish and heat carefully, stirring
often. Check temperature before serving.
• Put nipples on bottles after heating and shake thoroughly.
“Wrist” test before feeding.
• Heat disposable bottles.
• Heat bottles with nipples on.
• Heat baby food in original jars.
General
• Cut baked goods with filling after heating to release steam and
avoid burns.
• Stir liquids briskly before, during and after heating to avoid
“eruption”.
• Use deep bowl, when cooking liquids or cereals, to prevent
boilovers.
• Food should be shorter than the Drawer Microwave. Please
refer to the height of side walls of the drawer.
• Heat or cook in closed glass jars or air
tight containers.
• Can in the microwave as harmful bacteria
may not be destroyed.
• Deep fat fry.
• Dry wood, gourds, herbs or wet papers.
IMPORTANT INFORMATION YOU NEED TO KNOWIMPORTANT INFORMATION YOU NEED TO KNOW

8 E
Before operating your new Drawer Microwave make sure you
read and understand this Use and Care Guide completely.
The following steps MUST be taken before any functions can
be used.
Before you use the Drawer Microwave:
1. Plug in the Drawer Microwave.
ENJOY YOUR MICROWAVE TOUCH
CLEAR AND TOUCH CLOCK
will appear.
2. Touch the Stop/Clear pad.
: will appear.
3. Set clock.
TO SET THE CLOCK
1. Touch Timer/Clock pad and number 2.
2. Enter the correct time of day by touching the numbers in
sequence. Touch Timer/Clock pad.
This is a 12 hour clock. If you attempt to enter an incorrect
clock time,
ERROR will appear in the display. Touch the Stop/
Clear pad and re-enter the time.
• If the electrical power supply to your Drawer Microwave
should be interrupted, the display will intermittently show
ENJOY YOUR MICROWAVE TOUCH CLEAR AND TOUCH CLOCK after
the power is reinstated. If this occurs during cooking, the
program will be erased. The time of day will also be erased.
Simply touch Stop/Clear pad and reset the clock for the
correct time of day.
STOP/CLEAR
Touch the Stop/Clear pad to:
1. Erase if you make a mistake during programming.
2. Cancel timer.
3. Stop the oven temporarily during timed cooking.
4. Return the time of day to the display.
5. Cancel a program during cooking, touch twice.
OPEN OR CLOSE DRAWER MICROWAVE
Always Touch the OPEN or CLOSE pad on the control panel to
open or close the Drawer Microwave.
Do not push or pull the drawer by hand, except in case of
emergency, such as a power failure. If necessary, push or
pull slowly.
BEFORE OPERATING

9E

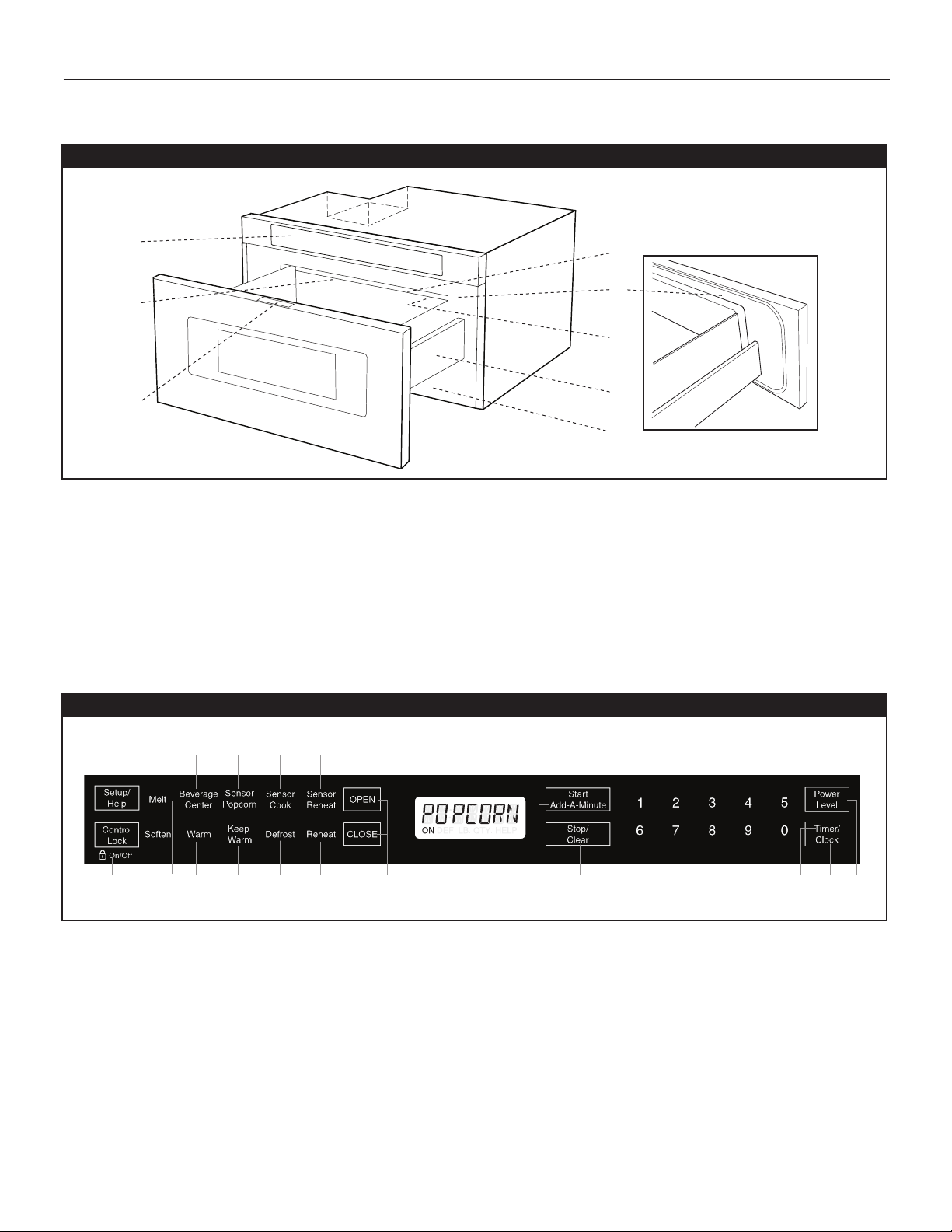

1 Control panel
2 Waveguide cover DO NOT REMOVE
3 Drawer Microwave Menu Label
4 Drawer sealing surfaces
5 Drawer light
6 Drawer Microwave guides
7 Vent
8 Nameplate: open the Drawer Microwave
fully. The label is beyond the back wall of the
microwave cavity facing up from the flat surface.
DRAWER MICROWAVE
2
1
5
4
3
7
6
8
KEYSHEET
16-17 14 11 12 11
15 8 16 101715
16 13 14 8 816
Numbers next to the keysheet illustration indicate pages on which
there are feature descriptions and usage information.
FEATURES AND CONTROL PANELBEFORE OPERATING

10 E
TIME COOKING
Your Drawer Microwave can be programmed for 99 minutes 99
seconds (99.99). Always enter the seconds after the minutes,
even if they are both zeros.
• Cook for 5 minutes at 100%
1. Enter cooking time 5 0 0.
2. Touch Start /Add-A-Minute pad.
TO SET POWER LEVEL
There are eleven preset power levels.
Using lower power levels increases the cooking time, which is
recommended for foods such as cheese, milk and long slow
cooking of meats. Consult a microwave cookbook or recipes
for specific recommendations.
• Defrost for 5 minutes at 30%
1. Enter defrost time 5 0 0.
2. Touch Power Level 8 times.
3. Touch Start /Add-A-Minute.
TOUCH POWER
LEVEL PAD NUMBER
OF TIMES FOR
DESIRED POWER
APPROXIMATE
PERCENTAGE OF
POWER
COMMON
WORDS
FOR POWER LEVELS
Power Level x 1 100% High
Power Level x 2 90%
Power Level x 3 80%
Power Level x 4 70% Medium High
Power Level x 5 60%
Power Level x 6 50% Medium
Power Level x 7 40%
Power Level x 8 30% Med Low/Defrost
Power Level x 9 20%
Power Level x 10 10% Low
Power Level x 11 0%
SENSOR SETTINGS
Sensor is a semi-conductor device that detects the vapor
(moisture and humidity) emitted from the food as it heats. The
sensor adjusts the cooking times and power levels for various
foods and quantities.
• After the oven is plugged in, wait 2 minutes before using
any sensor setting.
• Be sure the exterior of the cooking container and the
interior of the oven are dry. Wipe off any moisture with a
dry cloth or paper towel.
• The sensorworks with foods at normalstoragetemperature.
For example, popcorn would be at room temperature.
• Any sensor selection can be programmed with More or
Less Time Adjustment. See page 16.
• More or less food than the quantity listed in the charts
should be cooked following the guidelines in any microwave
cookbook.
• During the first part of sensor use, the food name will
appear on the display. Do not open the oven or touch Stop/
Clear during this part of the cycle. The measurement of
vapor will be interrupted. If this occurs, an error message
will appear. To continue cooking, touch the Stop/Clear pad
and cook manually.
• When the sensor detects the vapor emitted from the food,
the remainder of cooking/reheating time will appear. The
oven may be opened when the remaining time appears
on the display. At this time, you may stir or season food,
as desired.
• Except for Popcorn, if the sensor does not detect vapor
properly when cooking other foods,
ERROR will be displayed,
and the microwave will turn off.
• Check food temperature after cooking. If additional time
is needed, continue to cook manually.
• Each food has a cooking hint. Touch the Set Up/Help pad
when the HELP indicator is lighted in the display.
COVERING FOODS
Some foods work best when covered. Use the cover
recommended in the charts for these foods. You may refer
to the hints by touching the Set Up/Help pad. See page 16.
• Casserole lid
• Plastic wrap: Use plastic wrap recommended for microwave
cooking. Cover dish loosely; allow approximately 1/2 inch to
remain uncovered to allow steam to escape. Plastic wrap
should not touch food.
• Wax paper: Cover dish completely. Fold excess wrap under
dish to secure. If dish is wider than paper, overlap two
pieces at least one inch to cover.
Be careful when removing any covering to allow steam to
escape away from you.
SETTINGS

11E
SENSOR POPCORN / SENSOR REHEAT
You can pop popcorn and reheat many foods and don’t need
to calculate cooking time or power level.
Touch Sensor Reheat or Sensor Popcorn and Start/Add-A-
Minute pad.
When the sensor detects the vapor emitted from the food, the
remainder of cooking/reheating time will appear.
NOTE:
• The Sensor Popcorn setting has 2 choices. Follow directions
in the display to choose desired option.
Sensor Popcorn / Sensor Reheat Chart
FOOD AMOUNT PROCEDURE
Sensor Popcorn Only 1 package at a time Use only popcorn packaged for the microwave. Try several brands to decide
which you like. Do not try to pop unpopped kernels.
2.85 - 3.5 oz.
(Regular / Regular light)
Touch Sensor Popcorn pad once.
1.2 - 1.75 oz. (Mini /
Snack)
Touch Sensor Popcorn pad twice.
Sensor Reheat 4 - 36 oz Place in dish or casserole slightly larger than amount to be reheated. Flatten,
if possible. Cover with lid, plastic wrap or wax paper. Use covers such as plastic
wrap or lids with larger quantities of more dense foods such as stews. After
reheating, stir well, if possible. Re-cover and allow to stand 2 to 3 minutes.
Foods should be very hot. If not, continue to heat with variable power and time.
SETTINGSSETTINGS

12 E
SENSOR COOK
1. Touch Sensor Cook pad once.
2. See Menu Label. Select desired food by touching number
pad. Ex: Touch 5 for baked potatoes.
3. Touch Start /Add-A-Minute pad.
NOTE:
• To heat or cook other foods or foods above or below the
quantity allowed on the Sensor Cook Chart, cook manually.
Sensor Cook Chart
FOOD AMOUNT PROCEDURE
1. Fresh vegetables: Quick
Broccoli
Brussels sprouts
Cabbage
Cauliflower (flowerets)
Cauliflower (whole)
Spinach
Zucchini
Baked apples
.25 - 2.0 lb.
.25 - 2.0 lb.
.25 - 2.0 lb.
.25 - 2.0 lb.
1 med.
.25 - 1.0 lb.
.25 - 2.0 lb.
2 - 4 med.
Wash and place in casserole. Add no water if vegetables have just been washed.
Cover with lid for tender vegetables. Use plastic wrap for tender-crisp vegetables.
After cooking, stir, if possible. Let stand, covered, for 2 to 5 minutes.
2. Fresh vegetables: Longer
Carrots, sliced
Corn on the cob
Green beans
Winter squash:
diced
halves
.25 - 1.5 lb.
2 - 4
.25 - 1.5 lb
.25 - 1.5 lb.
1 - 2
Place in casserole. Add 1-4 tablespoons water. Cover with lid for tender vegetables.
Use plastic wrap cover for tender-crisp vegetables. After cooking, stir, if possible.
Let stand, covered, for 2 to 5 minutes.
3. Frozen vegetables .25 - 1.25 lb. Add no water. Cover with lid or plastic wrap. After cooking, stir and let stand,
covered, for 3 minutes.
4. Frozen entrees 6 - 17 oz. Use this pad for frozen convenience foods. It will give satisfactory results for most
brands. You may wish to try several and choose your favorite. Remove package
from outer wrapping and follow package directions for covering. After cooking, let
stand, covered, for 1-3 minutes
5. Baked potatoes
6. Sweet potatoes
1 - 6 med.
1 - 6 med.
Pierce. Place on paper-towel-lined Drawer Microwave. After cooking, remove from
microwave, wrap in aluminum foil and let stand 5 to 10 minutes.
7. Ground meat .25 - 2.0 lb. Use this setting to cook ground beef or turkey as patties or in a casserole to be
added to other ingredients. Place patties on a microwave-safe rack and cover with
wax paper. Place ground meat in a casserole and cover with wax paper or plastic
wrap. When microwave stops, turn patties over or stir meat in casserole to break
up large pieces. Re-cover and touch Start /Add-A-Minute. After cooking, let stand,
covered, for 2 to 3 minutes.
8. Fish/Seafood .25 - 2.0 lb. Arrange in ring around shallow glass dish (roll fillet with edges underneath). Cover
with vented plastic wrap. After cooking, let stand, covered for 3 minutes.
9. White rice
10.Brown rice
.5 - 2.0 cups
.5 - 2.0 cups
Place rice into a deep casserole and add double quantity of water. Cover with lid
or plastic wrap. After cooking, stir, cover and let stand 3 to 5 minutes or until all
liquid has been absorbed.
Rice Water Size of casserole
.5 cup 1 cup 1.5 quart
1 cup 2 cups 2 quart
1.5 cups 3 cups 2.5 or 3 quart
2 cups 4 cups 3 quart or larger
SETTINGS

13E
Defrost Chart
FOOD AMOUNT PROCEDURE
1. Ground Meat .5 - 2.0 lb. Pull apart and remove any thawed pieces after each stage. Let stand, covered, for 5 to
10 minutes.
2. Steaks/chops .5 - 3.0 lb. After each stage, rearrange and if there are warm or thawed portions, shield with small
flat pieces of aluminum foil. Remove any meat or fish that is nearly defrosted. Let stand,
covered, for 10 to 20 minutes.
3. Boneless poultry .5 - 2.0 lb. Use boneless breast of chicken or turkey. After each stage, if there are warm or thawed
portions, rearrange or remove. Let stand, covered, for 10 to 20 minutes.
4. Bone-in poultry .5 - 3.0 lb. Arrange pieces with meatiest portions toward outside of glass dish or microwave safe
rack. After each stage, if there are warm or thawed portions, rearrange or remove. Let
stand, covered, for 10 to 20 minutes.
5. Roast 2.0 - 4.0 lb Start defrosting with fat side down. After each stage, turn roast over and shield the warm
portions with aluminum foil. Let stand, covered, for 30 to 60 minutes.
DEFROST
Use this feature to defrost the foods shown in the Defrost
Chart below.
1. Touch Defrost pad.
2. See Menu Label. Select desired food by touching the
number pad. Ex: Touch 2 for steaks/chops.
3. Enter weight by touching number keys.
4. Touch Start /Add-A-Minute pad.
The oven will stop so that the food can be checked.
5. After the first stage, open the Drawer Microwave. Turn
steak over and shield any warm portions. Close the Drawer
Microwave. Touch Start /Add-A-Minute pad.
6. After the second stage, open the Drawer Microwave. Shield
any warm portions. Close the Drawer Microwave. Touch
Start /Add-A-Minute pad.
7. After defrost cycle ends, cover and let stand as indicated
in the chart below.
NOTE:
• Defrost can be programmed with More or Less Time
Adjustment. See page 16.
• To defrost other foods or foods above or below the weights
allowed on the Defrost Chart, see Manual Defrost below.
• Check foods when oven signals. After final stage, small
sections may still be icy. Let stand to continue thawing. Do
not cook until all ice crystals are thawed.
• Shielding prevents cooking from occurring before the
center of the food is defrosted. Use small smooth strips
of aluminum foil to cover edges and thinner sections of
the food.
MANUAL DEFROST
If the food that you wish to defrost is not listed on the Defrost
Chart or is above or below the limits in the amount column on
the Defrost Chart, you need to defrost manually.
You can defrost any frozen food, either raw or previously
cooked, by using Power Level at 30%. Follow the exact 3-step
procedure found under To Set Power Level on page 10.
Estimate defrosting time and Touch Power Level pad eight
times for 30% power.
For either raw or previously cooked frozen food the rule of
thumb is approximately 4 minutes per pound. For example,
defrost 4 minutes for 1 pound of frozen spaghetti sauce.
Always stop the oven periodically to remove or separate the
portions that are defrosted. If food is not defrosted at the end
of the estimated defrosting time, program the oven in 1 minute
increments on Power Level 30% until totally defrosted.
When using plastic containers from the freezer, defrost only
long enough to remove from the plastic in order to place in a
microwave-safe dish.
SETTINGSSETTINGS

14 E
SETTINGS
REHEAT
Reheat automatically computes the correct warming time and
microwave power level for foods shown in the chart below.
1. Touch Reheat pad once.
2. See Menu Label. Select desired food by touching number
pad. Ex: Touch 2 for frozen rolls or muffins.
3. Touch the number pad to select quantity. Ex: Touch 2 for
2 rolls or muffins.
4. Touch Start /Add-A-Minute pad.
Reheat Chart
FOOD AMOUNT PROCEDURE
1. Fresh Rolls/
Muffins
1 - 8 pcs Use this pad to warm rolls, muffins, biscuits, bagels etc. Large items should be considered as 2
or 3 regular size. Arrange on plate; cover with paper towel. For refrigerated rolls or muffins, it
may be necessary to double the entered amount to ensure the proper serving temperature. For
example, enter quantity of 2 for 1 refrigerated muffin.
2. Frozen Rolls/
Muffins
1 - 8 pcs Use this pad to warm frozen rolls, muffins, biscuits, bagels etc. Large items should be considered
as 2 or 3 regular size. Arrange on plate; cover with paper towel.
BEVERAGE CENTER
Beverage Center enables you to reheat coffee or tea to restore
to a more suitable drinking temperature or to make instant
coffee or tea.
1. Touch Beverage Center pad once.
2. See Menu Label. Select desired selection by touching
number pad. Ex: Touch 2 to make coffee.
3. Repeating touching same number pad to select quantity.
Ex: Touch 2 two more times for 2 cups of coffee.
4. Touch Start /Add-A-Minute pad.
NOTE:
• Reheat can be programmed with More or Less Time
Adjustment. See page16.
• To reheat other foods or foods above or below the quantity
allowed on the Reheat Chart, heat manually.
NOTE:
• Beverage Center can be programmed with More or Less
Time Adjustment. See page 16.
• Should you attempt to enter more or less than the allowed
amount, an error message will appear in the display.
Beverage Center Chart
FOOD AMOUNT PROCEDURE
1. Reheat
beverage
.5 - 2.0 cups This setting is good for restoring cooled beverage to a better drinking temperature. Touch
number 1 pad for a 0.5 cup increase per touch. Stir after heating.
2. Hot water 1 - 6 cups Use this setting for heating COLD TAP WATER to a temperature somewhat below the boiling
point to make instant coffee or tea. Touch number 2 pad for 1 cup increase per touch. Stir
liquid briskly before and after heating to avoid “eruption”.

15E
MELT / SOFTEN / WARM
Melt, Soften and Warm automatically compute the correct
heating time and microwave power level for melting, softening
and warming foods shown in the chart below.
1. Touch Melt pad once.
2. See Menu Label. Select desired food by touching number
pad. Ex: Touch 2 for chocolate.
3. Repeat touching same number pad to select quantity. Ex:
Touch 2 two more times for 1 square.
4. Touch Start /Add-A-Minute pad.
Melt / Soften / Warm Chart
FOOD AMOUNT PROCEDURE
Melt Use a Pyrex measuring cup. Cover with plastic wrap.
1. Butter 2 tbsp
.5 cup
After touching Melt, touch 1 two times for 2 tbsp.
After touching Melt, touch 1 three times for .5 cup.
2. Chocolate 1 cup chips
1 square
After touching Melt, touch 2 two times for 1 cup chips.
After touching Melt, touch 2 three times for 1 square.
Soften DO NOT COVER.
1. Ice cream 1 pint
.5 gallon
After touching Soften, touch 1 two times for 1 pint.
After touching Soften, touch 1 three times for .5 gallon.
2. Cream cheese 3 oz.
8 oz.
After touching Soften, touch 2 two times for 3 oz.
After touching Soften, touch 2 three times for 8 oz.
Warm Use a Pyrex measuring cup. DO NOT COVER.
1. Syrup 1/4 cup
1/2 cup
After touching Warm, touch 1 two times for 1/4 cup.
After touching Warm, touch 1 three times for 1/2 cup.
2. Dessert toppings 1/4 cup
1/2 cup
After touching Warm, touch 2 two times for 1/4 cup.
After touching Warm, touch 2 three times for 1/2 cup.
NOTE:
• Melt, Soften and Warm can be programmed with More or
Less Time Adjustment. See page 16.
• To melt, soften or warm other food or foods above or below
the quantity allowed on the Melt/Soften/Warm Chart, use
manual operation.
SETTINGSSETTINGS

16 E
KEEP WARM
Keep Warm allows you to keep food warm up to 30 minutes.
Direct use
1. Touch Keep Warm pad.
2. Enter desired time by touching the number keys. To enter
30 minutes, touch 3 0 0 0.
3. Touch Start /Add-A-Minute pad.
The oven will start. The display will show
30.00 and count
down.
KEEP WARM will be displayed intermittently during the
countdown.
With Manual Cooking
1. Enter desired cooking time and power level.
2. Touch Keep Warm pad.
3. Enter desired warming time up to 30 minutes.
4. Touch Start /Add-A-Minute pad.
The operation will start. When the cooking time is complete,
a long tone will sound and Keep Warm will start. The display
will count down.
KEEP WARM will be displayed intermittently
during the countdown.
NOTE:
•If you attempt to enter more than 30 minutes for Keep
Warm, an error message will appear in the display.
•Keep Warm cannot be programmed with Sensor Popcorn,
Sensor Reheat, Sensor Cook, Defrost or Reheat.
MULTIPLE SEQUENCE COOKING
Your Drawer Microwave can be programmed for up to 4
automatic cooking sequences, switching from one power level
setting to another automatically.
Sometimes cooking directions tell you to start on one power
level and then change to a different power level. Your Drawer
Microwave can do this automatically.
1. First enter cooking time. Then touch Power Level pad once
for 100% cooking or repeat touching Power Level pad for
a lower power level.
2. Enter second cooking time. Repeat touching Power Level
pad for desired level. You can follow this procedure up to
4 times.
3. Touch Start /Add-A-Minute pad.
NOTE:
•If Power Level pad is touched once, HIGH will be displayed.
•If 100% is selected as the final sequence, it is not necessary
to touch the Power Level pad.
•If you wish to know power level during cooking, simply touch
the Power Level pad. As long as your finger is touching the
Power Level pad, the power level will be displayed.
•Keep Warm can be programmed even if 4 cooking
sequences have been set.
ADD-A-MINUTE
Add-A-Minute allows you to cook for a minute at 100% by
simply touching the Add-A-Minute pad. You can also extend
cooking time in multiples of 1 minute by repeatedly touching
the Add-A-Minute pad during manual cooking.
NOTE:
•To use Add-A-Minute, touch pad within 3 minutes after
cooking, closing the drawer or touching the Stop/Clear pad.
•Add-A-Minute cannot be used with Sensor settings, Reheat
or Defrost.
MORE OR LESS TIME ADJUSTMENT
Should you discover that you like any of the Sensor, Reheat or
Defrost settings slightly more done, touch the Power Level pad
once after touching your selection. The display will show
MORE .
For slightly less done, touch the Power Level pad twice after
touching your selection. The display will show
LESS .
HELP (IN THE DISPLAY)
Each setting of Sensor Reheat, Sensor Cook, Sensor Popcorn,
Keep Warm, Reheat and Defrost has a cooking hint. If you wish
to check, touch Set Up/Help whenever HELP is lighted in the
Interactive Display for these and other manual operation hints.
CONTROL LOCK
The Control Lock prevents unwanted drawer operation such
as by small children. The Drawer Microwave can be set so
that the control panel and the automatic door mechanism are
deactivated or locked.
To Lock
Touch Control Lock pad and hold for 3 seconds. The display
shows
LOCK ON.
To Unlock
Touch Control Lock pad and hold for 3 seconds. The display
shows
LOCK OFF .
The Control Lock is canceled when the electrical power supply
to your oven is interrupted. Set the Control Lock again when
power to the oven is restored.
SETUP/ HELP
If the electrical power supply to your Drawer Microwave should
be interrupted, the display will intermittently show
ENJOY YOUR
MICROWAVE TOUCH CLEAR AND TOUCH CLOCK
after the power is
reinstated. If this occurs, the Setup/Help option you input will
be erased. Simply touch Stop/Clear pad and reset.
SETTINGS

17E
AUDIBLE SIGNAL ELIMINATION
At the end of timed cook, beeps will sound. The audible signal
can be turned off if you prefer quiet operation.
To Turn Sound Off
1. Touch Setup/Help pad.
2. Touch Setup/Help pad again.
3. Touch Start /Add-A-Minute pad. The display shows
SOUND
OFF.
To Restore Sound
1. Touch Setup/Help pad.
2. Touch Setup/Help pad again.
3. Touch Start /Add-A-Minute pad. The display shows
SOUND
ON.
END OF COOKING REMINDER
At end of timed cooking, the microwave will signal every 10
seconds for the first minute; then every 3 minutes until Stop/
Clear pad is touched, up to one hour.
To Turn Reminder Off
1. Touch Setup/Help pad three times. The display shows
REMIND SIGNAL OFF? TOUCH START.
2. Touch Start /Add-A-Minute pad. The display shows REMIND
SIGNAL OFF
.
To Turn Reminder Signal Back On
1. Touch Setup/Help pad three times. The display shows
REMIND SIGNAL ON? TOUCH START.
2. Touch Start /Add-A-Minute pad. The display shows REMIND
SIGNAL ON
.
AUTO START
If you wish to program the Drawer Microwave to begin
cooking automatically at a designated time of day, follow this
procedure.
1. Touch Setup/Help pad 4 times. The display shows
AUTO
START TOUCH START.
2. Touch Start /Add-A-Minute pad.
3. Enter start time.
4. Touch Timer/Clock pad.
5. Touch the number keys to enter cooking time.
Touch Power Level pad repeatedly until the desired power
level is reached.
6. Touch Start /Add-A-Minute pad.
DEMONSTRATION MODE
To Select Demo Mode
1. Touch Setup/Help pad five times. The display shows DEMO
ON? HOLD START 3 SEC.
2. Hold Start /Add-A-Minute pad for 3 seconds. The display
shows
DEMO ON.
To Cancel Demo Mode
1. Touch Setup/Help pad five times. The display shows DEMO
OFF? TOUCH START.
2. Touch Start /Add-A-Minute pad. The display shows DEMO
OFF.
NOTE:
• Drawer Microwave doesn’t heat in Demo Mode.
• Display counts down quickly.
TIMER
1. Touch Timer/Clock pad and number 1.
2. Enter time.
3. Touch Timer/Clock pad again.
To cancel timer, touch Stop/Clear.
STANDBY MODE
This microwave will go into standby mode after a period of
inactivity. The backlight of the display will automatically dim
after 3 minutes if the unit has not been in operation. If the
display is in standby mode, simply touch the control panel
or open/close the door to return the backlight to maximum
brightness.
SETTINGSSETTINGS

18 E
Any piece of equipment works better and lasts longer when
maintained properly and kept clean. Cooking equipment is
no exception. Your Drawer Microwave must be kept clean
and maintained properly.
Disconnect the power cord before cleaning or leave the door
open to inactivate the oven during cleaning.
EXTERIOR
The outside surface is precoated metal and plastic. Clean the
outside with mild soap and water; rinse and dry with a soft
cloth. Do not use any type of household or abrasive cleaner.
STAINLESS STEEL SURFACE
The exterior should be wiped often with a soft damp cloth and
polished with a soft dry cloth to maintain its beauty. There are
also a variety of products designed especially for cleaning and
shining the stainless exterior of the oven. We recommend that
the cleaner be applied to a soft cloth and then carefully used
on the stainless exterior rather than sprayed directly on to it.
Follow package directions carefully.
FRONT SIDE OF THE DRAWER
Wipe the window on both sides with a soft damp cloth to
remove any spills or spatters. Metal parts will be easier to
maintain if wiped frequently with a soft damp cloth. Avoid the
use of spray and other harsh cleaners as they may stain, streak
or dull the drawer surface.
TOUCH CONTROL PANEL
If desired, the touch keys may be deactivated before cleaning.
See the Control Lock information on page 16 of this manual.
Wipe the panel with a cloth dampened slightly with water only.
Dry with a soft cloth. Do not scrub or use any sort of chemical
cleaners. Close drawer and follow directions on page 16 for
turning Control Lock off. Touch Stop/Clear.
DRAWER GUIDES
Remove the food crumbs from the drawer guides. Wipe with a
soft dry cloth in order to keep the Drawer Microwave opening
and closing smoothly.
INTERIOR
Before cleaning the the Drawer Microwave, touch and hold the
Control Lock button for 3 seconds to lock the control pad and
the automatic door mechanism. The drawer can be locked in
either the open or closed position. The display will show
LOCK
ON
. This will prevent the drawer from accidentally opening or
closing during cleaning. After cleaning, touch and hold the
Control Lock button for 3 seconds to turn the lock off. The
display will show
LOCK OFF .
Cleaning is easy because no heat is generated to the interior
surfaces; therefore, there is no baking and setting of spills or
spattering. To clean the interior surfaces, including drawer
sealing surfaces, wipe with a soft damp cloth. DO NOT USE
ABRASIVE OR HARSH CLEANERS OR SCOURING PADS. For
heavier soil, use mild soap; wipe clean with a soft damp cloth.
Do not use any chemical oven cleaners.
WAVEGUIDE COVER
ATTENTION The waveguide cover, located on the inside top of
the Drawer Microwave area, is made from mica, so it requires
special care. Keep the waveguide cover clean to assure good
microwave performance. Carefully wipe with a soft damp cloth
any food spatters from the surface of the cover immediately
after they occur. Built-up splashes may overheat and cause
smoke or possibly catch fire. Do not remove the waveguide
cover.
ODOR REMOVAL
Occasionally, a cooking odor may remain in the Drawer
Microwave. To remove odor, combine 1 cup water, grated peel
and juice of one lemon and several whole cloves in a 2-cup
glass microwave-safe measuring cup. Boil for several minutes
using 100% power. Leave in the Drawer Microwave until water
cools. Wipe interior with a soft cloth.
CLEANING AND MAINTENANCE
