THOR GL165-P Owner's manual

Thor Gas Fryer
Installation and Operation Instructions
Model: GL165-P, GL165-N, GL166-P, GL166-N
IMPORTANT FOR FUTURE REFERENCE
Please complete this information and retain this manual for the life of the equipment. For
Warranty Service and/or parts, this information is required.
Model Number Serial Number Date Purchased
WARNING: For your safety, do not store or use gasoline or other flammable vapors or
liquids in the vicinity of this or any other appliances. Keep the area free and clear of
combustible materials.
WARNING：Improper installation, adjustment, alteration, service or maintenance can
cause property damage, injury, or death. Read the installation operating and
maintenance instructions thoroughly before installing, or servicing this equipment.
WARNING ：Instructions must be posted in a prominent location. All safety
precautions must be taken in the event the user smells gas. Safety information can be
obtained from your local gas supplier.
Fourth Way, Avonmouth, Bristol, BS11 8TB

Thor Fryer Manual 12082014 Page 2
Contents
Introduction
.............................................................................................3
Specifications ...........................................................................................4
General
Pack Contents
Gas Supply Requirements
Dimensions
................................................................................................5
Installation
................................................................................................6
Installation Requirements
Unpacking
Location
Clearances
Assembly
Gas Connection
Commissioning
Operation
.................................................................................................10
Operation Guide
Filling the Fryer Pot
Shutdown Procedure
Relighting

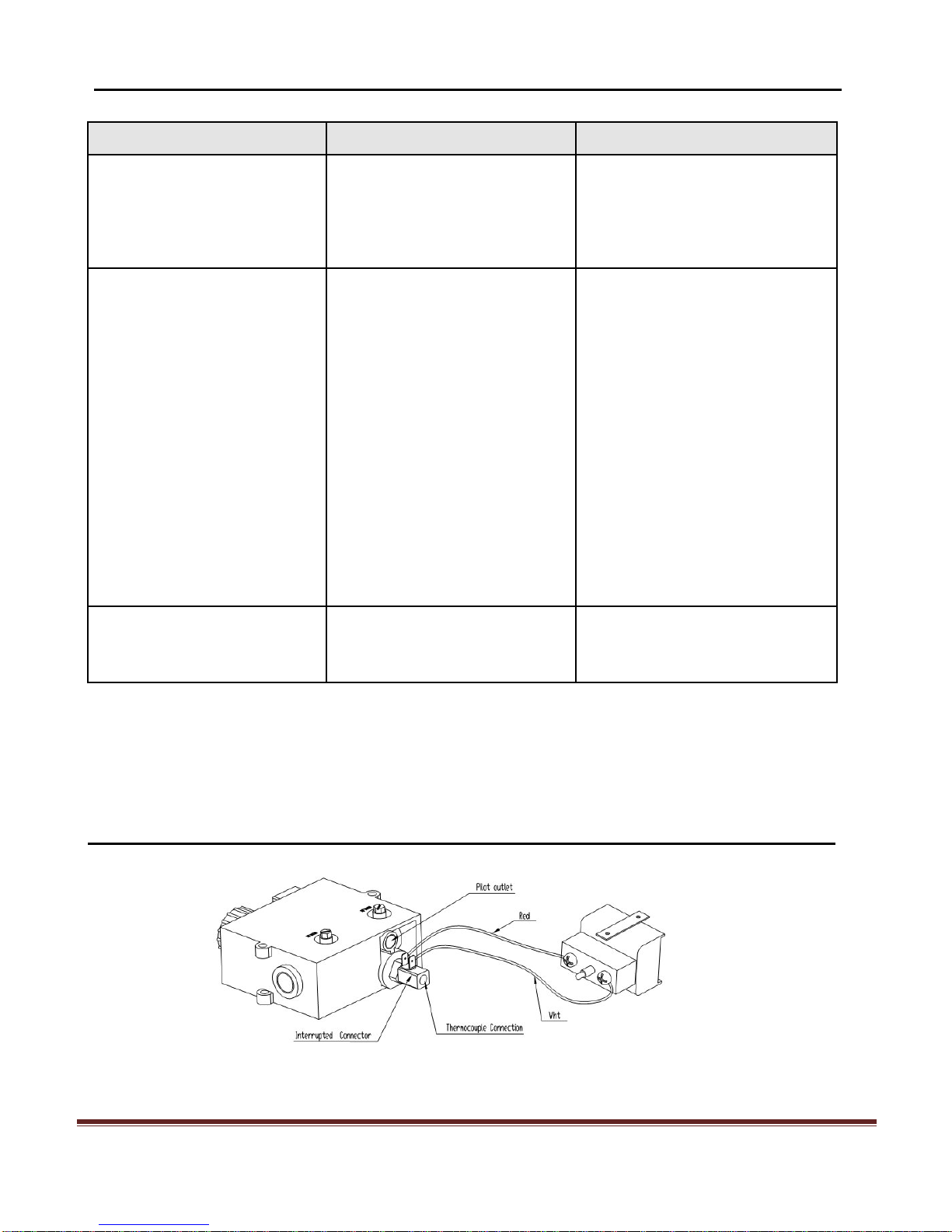

Automatic Pilot Valve
High Limit Control
Cleaning and Maintenance
..........................................................................13
Routine Maintenance
Daily Cleaning
Weekly Cleaning
Service & Adjustments
................................................................................15
Trouble shooting….. ..............................................................................……16
Wiring Diagram.. ........................................................................................16
Explosion Drawing. .....................................................................................17
Spare Parts List .........................................................................................18

Thor Fryer Manual 12082014 Page 3
Introduction
We are confident that you will be delighted with your Thor Gas Fryer, and it will become a most valued
appliance in your commercial kitchen.
To ensure you receive the utmost benefit from your new Gas Fryer, there are two important things you
can do.
Firstly
:
Please read the instruction book carefully and follow the directions given.
Secondly
:
If you are unsure of any aspect of the installation, instructions or performance of your appliance,
contact your dealer promptly. In many cases a phone call could answer your question.
CE Only
:
These instructions are only valid if the country code appears on the appliance. If the code does not
appear on the appliance, refer to the supplier of this appliance to obtain the technical instructions for
adapting the appliance to the conditions for use in that country.
WARNING:
IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR MAINTENANCE CAN CAUSE PROPERTY
DAMAGE, INJURY OR DEATH.
READ THE INSTALLATION, OPERATING AND MAINTENANCE INSTRUCTIONS THOROUGHLY BEFORE INSTALLING OR
SERVICING THIS APPLIANCE.
WARNING:
INSTRUCTIONS TO BE FOLLOWED INTHE EVENT THE USER SMELLS GAS ARE TO BE POSTED IN A PROMINENT
LOCATION. THIS INFORMATION SHALL BE OBTAINED BY CONSULTING THE LOCAL GAS SUPPLIER.
WARNING:
GREAT CARE MUST BE TAKEN BY THE OPERATOR TO USE THE EQUIPMENT SAFELY TO GUARD IT AGAINST RISK OF
FIRE.
• THE APPLIANCE MUST NOT BE LEFT ON UNATTENDED.
• IT IS RECOMMENDED THAT A REGULAR INSPECTION IS MADE BY A COMPETENT SERVICE PERSON TO
ENSURE CORRECT AND SAFE OPERATION OF YOUR APPLIANCE IS MAINTAINED.
• DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPOURS OR LIQUIDS IN THE VICINITY OF THIS
OR ANY OTHER APPLIANCE.
• DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN OPERATION.
CAUTION:
THIS APPLIANCE IS;
• FOR PROFESSIONAL USE AND IS TO BE USED BY QUALIFIED PERSONS ONLY.
• ONLY QUALIFIED SERVICE PERSONS ARE TO CARRY OUT INSTALLATION, SERVICING AND GAS CONVERSION
OPERATIONS.
• COMPONENTS HAVING ADJUSTMENTS PROTECTED BY THE MANUFACTURER SHOULD NOT BE ADJUSTED BY
THE USER/OPERATOR.
• DO NOT OPERATE THE APPLIANCE WITHOUT THE CASTORS SUPPLIED FITTED.

Thor Fryer Manual 12082014 Page 4
Specifications
General
Stainless steel enclosure
All burners have flame safeguard
The valve is the modulating thermostat with on/off function with temperature selecting knob
Cast iron burner
Thermostat with manual reset limit switch
Three/four burner; Three/four combustion tube
Oil Tank size14"*14"
Pack Contents
The following is included:
Gas Fryer
Castors
Instruction
Fryer Restraint Chain
Gas Supply
Requirements
Natural Gas(G20) Propane(G31)
Butane(G30)
GL165-N GL166-N GL165-P GL166-P GL165-P GL166-P
Single burner Heat Input
8.8 KW 8.8 KW 8.8 KW 8.8 KW 8.8 KW 8.8 KW
Heat Total 26.4KW 35.2 KW 26.4KW 26.4KW 35.2 KW 26.4KW
Burner Operating 17 mbar 14 mbar 36 mbar 34 mbar 27-29 mbar
Supply Pressure 20 mbar 37 mbar 28-30 mbar
Gas Connection ¾” BSP Male ¾” BSP Male ¾” BSP Male
The burner operating pressure is to be measured at the gas control valve outlet test point with one burner
operating at ‘High’ setting. The operating pressure is ex-factory set, through the appliance regulator and not
to be adjusted.

Thor Fryer Manual 12082014 Page 5

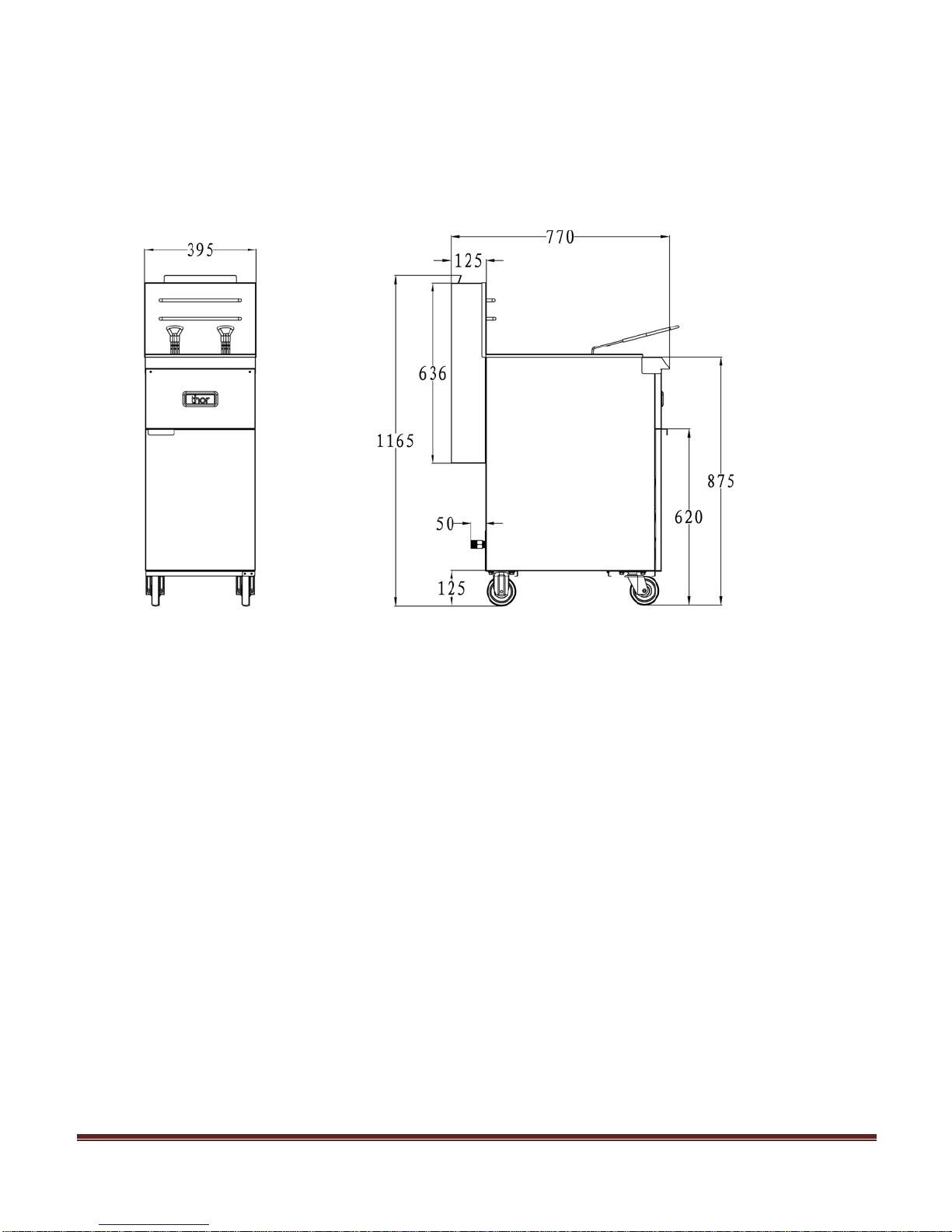

Dimensions
GL165-P, GL165-N, GL166-P, GL166-N

Thor Fryer Manual 12082014 Page 6
Installation
Installation Requirements
NOTE:
• It is most important that this appliance is installed correctly and that operation is correct
before use. Installation shall comply with local gas, health and safety requirements.
• This appliance shall be installed with sufficient ventilation to prevent the occurrence of
unacceptable concentrations of substances harmful to health.
Our Gas Fryers are designed to provide years of satisfactory service and correct installation is essential to
achieve the best performance, efficiency and trouble-free operation.
This appliance must be installed in accordance with National installation codes and in addition, in
accordance with relevant National / Local codes covering gas and fire safety.
Australia:
AS 5601/AG 601 (to be AS 5601) - Gas Installations
New Zealand:
NZS 5261-Gas Installation.
United Kingdom:
Gas Safety (Installation and Use) Regulations 1998
BS 6173-Installation of Catering Appliances.
BS 5440-1&2 Installation Flueing & Ventilation.
Ireland:
IS 820-Non Domestic Gas Installations.
Installations must be carried out by qualified persons only. Failure to install equipment to
the relevant codes and manufacturer’s specifications shown in this section will void the
warranty. Components having adjustments protected by the manufacturer are only to be
adjusted by an authorized service agent. They are not to be adjusted by the installation
person.
Unpacking
• Remove all packaging and transit protection from the appliance including all protective plastic
coating from the exterior stainless steel panels.
• Check equipment and parts for damage. Report any damage immediately to the carrier and
distributor.
• Ensure that the 4 adjustable castors are fitted with the protruding centre screw.
• Report any deficiencies to the distributor who supplied the appliance.
• Check that the available gas supply is correct to that shown on the rating plate located on the
right hand panel.
Location
1. Installation must allow for a sufficient flow of fresh air for the combustion air supply.
2. Installation must include adequate ventilation means, to prevent dangerous build-up of
combustion products.
3. Any gas burning appliance requires adequate clearance and ventilation for optimum and
trouble-free operation. The minimum installation clearances shown below are to be adhered to.
4. Position the appliance in its approximate working position.
5. All air for burner combustion is supplied from underneath the unit. The legs must always be
fitted and no obstructions placed on the underside or around the base of the unit, as
obstructions will cause incorrect operation and / or failure of the appliance.
6. Components having adjustments protected by manufacturer are only allowed to be adjusted by
an authorized service agent. They are not to be adjusted by the installation person.

Thor Fryer Manual 12082014 Page 7
Installation
Clearances
NOTE: Only non-combustible materials can be used in close proximity to this appliance.
Combustible Surface Non Combustible Surface
Left / Right Hand Side
Rear 355mm 250mm 0mm 0mm
Assembly
NOTE:
• This appliance is assembled before delivery except castors.
• This appliance is fitted with adjustable castors to enable the appliance to be positioned securely
and level. This should be carried out on completion of the gas connection. Refer to the ‘Gas
Connection’ section.
•When a fryer is installed on castors, the fryer restraint chain must be attached to the back of the
unit and adjacent wall

Thor Fryer Manual 12082014 Page 8
Gas Connection
NOTE: ALL GAS FITTING MUST ONLY BE CARRIED OUT BY A QUALIFIED PERSON.
A 3/4" male BSP line for the gas connection is located near the lower right rear corner of the fryer.
The serial plate (located inside the front door of the fryer) indicates the type of gas the unit is
equipped to burn (natural gas or propane). The fryer should be connected ONLY to the type of gas
for which it is equipped.
If applicable, the vent line from the gas appliance pressure regulator shall be installed to the
outdoors in accordance with local codes or, in the absence of local codes, with the
Australia: AS
5601/AG 601 (to be AS 5601) - Gas Installations or New Zealand: NZS 5261 - Gas Installation.
An adequate gas supply is imperative. Undersized or low pressure lines will restrict the volume of
gas necessary for satisfactory performance. A combination gas valve and pressure regulator, which
is provided with each unit, is set to maintain a 1.0kPa manifold pressure for natural gas or 2.75kPa
manifold pressure for propane gas. Fluctuations of more than 25% on natural gas or10% on
propane gas will create problems and affect burner operating characteristics.
Purge the supply line to clean out dust, dirt, or other foreign matter before connecting the line to
the unit. It is recommended that an individual manual shutoff valve be installed in the gas
Supply line to the unit. Use pipe joint compound that is suitable for use with both natural and LP
gas on all threaded connections.
ALL PIPE JOINTS AND CONNECTIONS MUST BE TESTED THOROUGHLY FOR GAS LEAKS. USE
GAS LEAK DETECTION FLUID FOR TESTING ON ALL GASES.NEVER USE AN OPEN FLAME TO
CHECK FOR GAS LEAKS.ALL CONNECTIONS MUST BE CHECKED FOR LEAKS AFTER THE UNIT
HAS BEEN PUT INTO OPERATION.TEST PRESSURE SHOULD NOT EXCEED 3.45kPa

Thor Fryer Manual 12082014 Page 9
Installation
! CAUTION
THIS APPLIANCE AND ITS INDIVIDUAL COMBINATION GAS VALVE MUST BE DISCONNECTED
FROM THE GAS SUPPLY PIPING SYSTEM DURING ANY PRESSURE TESTING OF THAT SYSTEM
AT TEST PRESSURES IN EXCESS OF 14”WC (1/2 PSIG or 3.45kPa).
If the incoming gas pressure is in excess of 14"WC (1/2PSI, 3.45kPa), a proper
step-down regulator will be required.
Connect the gas supply directly to the 3/4"male BSP connector located near the lower left rear corner of
the fryer. When tightening the supply pipe, be sure to hold the mating connector extending from the unit
securely with a wrench. This will prevent any damage or distortion to the internal piping and controls of
the unit.
After connecting the gas supply, check again that the fryer is level. Use along spirit level four ways;
across the front and rear of the fryer pot, and along each edge.
Commissioning
1. Before leaving the new installation;
a. Check the following functions in accordance with the operating instructions specified in the
‘Operation’ section of this manual.
• Light the Pilot Burner.
• Light the Main Burner.
• Turning 'Off' the Main Burner/Pilot.
b. Ensure that the operator has been instructed in the areas of correct lighting, operation,
and shutdown procedure for the appliance.
2. This manual must be kept by the owner for future reference and a record of the Date of Purchase,
Date of Installation and the Serial Number of the Appliance must be recorded and kept with this
manual. (These details can be found on the Rating label, refer to the ‘Gas Connection’ section).
NOTE: If for some reason it is not possible to get the appliance to operate correctly, shut off the gas
supply and contact the supplier of this appliance.

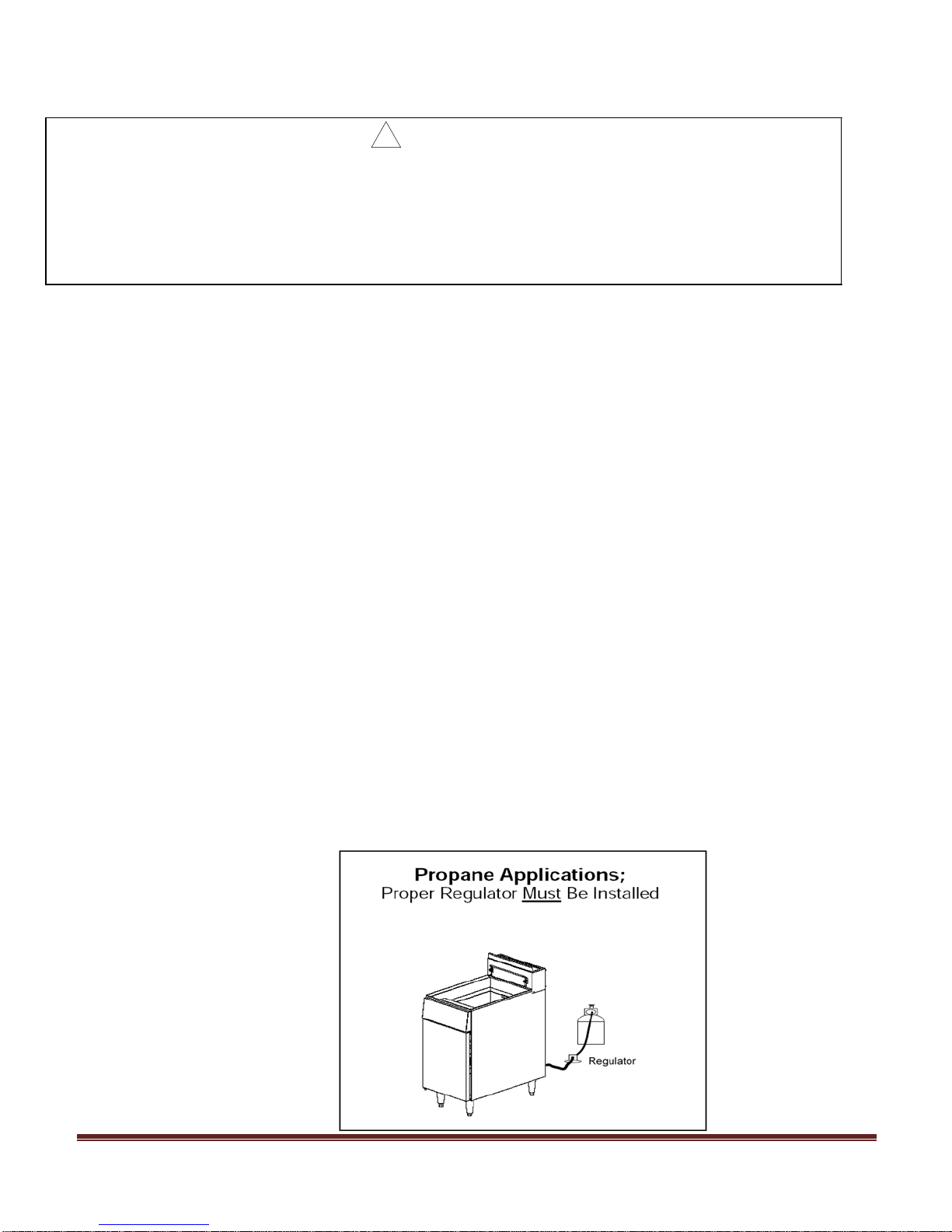

Install the Regulator

Thor Fryer Manual 12082014 Page 10
Operation
Operation Guide
CAUTION:
• THIS APPLIANCE IS FOR PROFESSIONAL USE AND IS ONLY TO BE USED BY QUALIFIED PEOPLE.
• ONLY QUALIFIED SERVICE PERSONS ARE TO CARRY OUT INSTALLATION, SERVICING OR GAS CONVERSION
OPERATIONS.
• COMPONENTS HAVING ADJUSTMENTS PROTECTED (E.G. PAINT SEALED) BY THE MANUFACTURER SHOULD NOT
BE ADJUSTED BY THE USER/OPERATOR.
Open the burner compartment door and do the following:
1．Turn thermostat to “0” before lighting the pilot.
2．Press down the ignition button and hold down.
3．While pressing the ignition button down, use a lit match or piezo ignitor to ignite the pilot. Continue to
press the knob down for about 30 seconds. If the pilot does not stay lit when the ignition button is
released, repeat the lighting procedure and keep the ignition button down longer. Adjustment of pilot
flame may be necessary.
4．When the pilot stays lit, turn the knob counter clockwise to the temperature required. Do not press
down on the knob in this step.
5．Do NOT turn the thermostat on until the fryer pot is filled with oil or solid shortening.
6．Once the fryer pot is filled with oil, set the thermostat to the desired temperature
Filling the fryer pot
1. Close drain valve completely before filling the fryer pot.
2. When the fryer is new, fill the fryer pot with water and clean thoroughly (see “Weekly Cleaning” on
page 14) in order to remove protective coatings and any foreign matter.
3. The recommended solid shortening capacity for the fryer pot(35lbs/16kgs,45lbs/20kgs,55lbs/25kgs)is
described on the serial plate (which is located inside the front door).
4. Remove the basket support frame when filling the fryer pot with solid shortening.
Shut-down Button
Thermostat
Pilot Position
Piezo Ignitor

Thor Fryer Manual 12082014 Page 11
Operation
5. When solid shortening is used, be careful not to bend, break, or twist the thin capillary wires of the
elements located in the fryer pot.
6. Pack solid shortening into the zone below the tubes, all spaces between the tubes, and at least an
inch above the top of the tubes before lighting the fryer. If any air spaces are left around the heat
tube surfaces when the heat is turned on, the tube surfaces will become red hot, burn the solid
shortening, weaken the fryer pot, and could result in a fire.
! CAUTION
NEVER ATTEMPT TO MELT A SOLID BLOCK OF SHORTENING ON TOP OF THE HEAT TUBES. NEVER
START THE BURNERS WHEN THE FRY POT IS EMPTY.
7. To prevent burning or scorching the solid shortening, keep the thermostat set at the lowest
temperature until all the solid shortening between and above the tubes has been melted.
Additional solid shortening can then be added until the desired frying depth has been reached.
8. Replace the basket support frame over the fryer pot heat tubes.
Shutdown Procedure
Standby: Turn thermostat on the combination gas valve to the“0”position.At this setting ,only the pilot
burner will remain ignited.
Complete Shutdown: Press the shut-down button to extinguish pilot burner and main burner and turn
thermostat completely off.
Relighting
In the event of a main burner ignition failure, a five minute purge period must be observed prior to re-
establishing the ignition source.
1. Shut off all gas.
2. Wait five minutes.
3. Follow the “Lighting” procedure described on page11.
Automatic Pilot Valve
The Automatic Pilot Valve provides an automatic safety shut off or the fryer when the pilot flame is
extinguished. When the pilot flame is burning, the valve is held open electromagnetically by the electrical
current from a thermopile in the pilot flame. When the pilot flame goes out, generation of current ceases
and the valve closes automatically.

Thor Fryer Manual 12082014 Page 12
Operation
High Limit Control
Thor Fryers are equipped with a secondary heat control that prevents the oil temperature from rising
above 195°C/450°F. (Because of the accuracy tolerance of the sensor, the oil temperature may reach as
high as 200°C/475°F.)
In the event the fryer shuts down due to this condition, the oil must be cooled to below185°C/400°F
before the pilot burner can be re-ignited. When the oil has cooled, use the “Lighting” procedure on
page 11 to place the fryer back in operation. If the problem persists, contact our Thor Service
Representative or the Thor Service Department.
Main burner air supply:
1. For efficient burner operation, a proper balance of gas volume and primary air supply must be
maintained which will result in complete combustion. Insufficient air supply results in a yellow
streaming flame. Primary air supply is controlled by an air shutter on the front of the burner.
2. Loosen the screws on the front of the burner and adjust the air shutter to just eliminate the yellow
tips of the burner flame. Lock the air shutter in place by tightening the screws.
CAUTION
The space between the castors at the bottom admits combustion air. DO NOT BLOCK THIS SPACE.
All burners are lit from constantly burning pilots. Turning the valve to the desired flame height is all
that is required to put the unit in service.
Do not permit fans to blow directly at the unit. Wherever possible, avoid open windows next to the
units' sides or back. Avoid wall type fans which create air cross-currents within a room.
It is also necessary that sufficient air should be allowed to enter the room to compensate for the
amount of air removed by any ventilating system. Otherwise, a subnormal atmospheric pressure will
occur, affecting operation and causing undesirable working conditions.
A properly designed and installed hood will act as the heart of the ventilating system for the room or
area in which the unit is installed, and will leave the unit independent of changing draft conditions.
All valves must be checked and lubricated periodically. This must be done by an authorized service
representative in your area.
Note:
Please wait at least 15 seconds to restart the main burners to maintain the best function of the
thermostat valve after turning off the main burners.
IMPORTANT
Should any abnormal operation like;
- ignition problems,
- abnormal burner flame,
- burner control problems,
- partial or full loss of burner flame in normal operation, be noticed, the appliance requires IMMEDIATE
service by a qualified service person and should not be used until such service is carried out.

Thor Fryer Manual 12082014 Page 13
Cleaning and Maintenance
Thor equipment is constructed with the best quality materials and is designed to provide durable
service when properly maintained. To expect the best performance, your equipment must be
maintained in good condition and cleaned daily. Naturally, the frequency and extent of cleaning
depends on the amount and degree of us age.
Following daily and more extensive periodic maintenance procedures will increase the life of your
equipment. Climatic conditions (e.g., salt air) may result in the need for more thorough hand more
frequent cleaning in order to keep equipment performing at optimal levels.
If necessary to move the fryer for cleaning, etc., drain oil first to avoid death or serious injury.
If disconnection of the restraint is necessary to move the appliance for cleaning, etc., reconnect it when
the appliance is moved to it originally installed position.
DAILY CLEANING
1. Turn thermostat knob to “0” position.
2. Place hot-oil safe container under the drain and drain the fryer pot completely.
3. Remove the basket support frame (if applicable) and flush out any sediment remaining in the fryer pot
with a little hot oil.
4. Wipe off the basket support frame and the inside of the fryer pot with a clean cloth.
! CAUTION
SOME AREAS OF THE FRYPOT MAY BE HOT!
5. Close drain valve and strain the oil back into the fryer pot through several thicknesses of cheese cloth,
or filter it back using a filter machine.
6. Replace the basket support frame (if applicable)
7. Add oil or shortening to MIN oil level mark on rear of fryer pot.
8. To resume cooking, turn the thermostat on.
WEEKLY CLEANING
1. Follow steps 1 through 4 of the Daily Cleaning procedure (see previous section).
2. Close drain valve and fill fryer pot with a solution of warm water and boil-out compound
3. Relight the fryer and bring the solution to a gentle boil for at least five minutes.
4. Turn off main burners and let the solution stand until the gum deposits are softened and the carbon
spots and burned grease spots can be rubbed off.
5. Scrub the fryer pot walls and heat tubes, then drain out fryer pot and rinse it with clean water.
6. Refill the fryer pot with clean water and boil again.
7. Turn off gas and drain and rinse well until clean.
8. Wipe dry with a clean cloth.
9. Refill as specified in the “Filling the Fryer “pot” section

Thor Fryer Manual 12082014 Page 14
Cleaning and Maintenance
MONTHLY CLEANING
1. Perform the Weekly Cleaning procedure (see previous section).
2. Clean around burner and orifices if lint has accumulated.
3. Visually check that burner carry-over ports are unobstructed.
CLEANING STAINLESS STEEL SURFACES
To remove normal dirt, grease and product residue from stainless steel use ordinary soap and
Water (with or without detergent) applied with a sponge or cloth. Dry thoroughly with a clean cloth.
Never use vinegar or any corrosive cleaner.
To remove grease and food splatter or condensed vapors that have baked on the equipment, apply
cleanser to a damp cloth or sponge and rub cleanser on the metal in the direction of the polishing lines
on the metal. Rubbing cleanser, as gently as possible, in the direction of the polished lines will not mar
the finish of the stainless steel. NEVER RUB WITH A CIRCULAR MOTION. Soil and burnt deposits that
do not respond to the above procedure can usually be removed by rubbing the surface with
SCOTCH-BRITE scouring pads or STAINLESS scouring pads.DO NOT USE ORDINARY STEEL WOOL, as
any particles left on the surface will rust and further spoil the appearance of the finish. NEVER USE A
WIRE BRUSH, STEEL SCOURING PADS (EXCEPT STAINLESS), SCRAPER, FILE OR OTHER STEEL TOOLS.
Surfaces that are marred collect dirt more rapidly and become more difficult to clean.
Marring also increases the possibility of corrosive attack. Refinishing may then be required.
Darkened areas, called “heat tint,” some-times appear on stainless steel surfaces where the area has
been subjected to excessive heat. These darkened areas are caused by thickening of the protective
surface of the stainless steel and are not harmful. Heat tint can normally be removed by the above
cleaning techniques, but tint which does not respond to that procedure calls for a vigorous scouring in
the direction of the polish lines, using SCOTCH-BRITE scouring pads or a STAINLESS scouring pad in
combination with a powered cleanser. Heat tint action may be lessened by not applying or by
reducing, heat to equipment during slack periods.

Thor Fryer Manual 12082014 Page 15
Service (For Authorized Service Technician Only)
NOTICE
Warranty will be void and the manufacturer is relieved of all liability if:
Service work is performed by other than a qualified technician OR Other than approved
Thor replacement parts are installed.
!WARNING
Adjustments and service work may be performed only by a qualified technician who is experienced in,
and knowledgeable with, the operation of commercial gas cooking equipment. However, to assure your
confidence, contact your Thor Service Representative for reliable service, dependable advice or other
assistance, and for genuine factory parts.
All units are adjusted at the factory. In case of problems in operation at initial installation, check type of
gas and manifold pressure and compare with information listed on the serial plate.
A mill voltage circuit diagram is located inside the front door of the fryer, and also on page 18.
CHECKING AND ADJUSTING MAIN BURNERS
The main burners should burn with a steady blue flame, and the inner cone of the flame from each port
should be about 19mm long. The flame from each main burner should enter each heat tube without
touching the front of the fryer pot or the sides, top, or bottom of each tube.

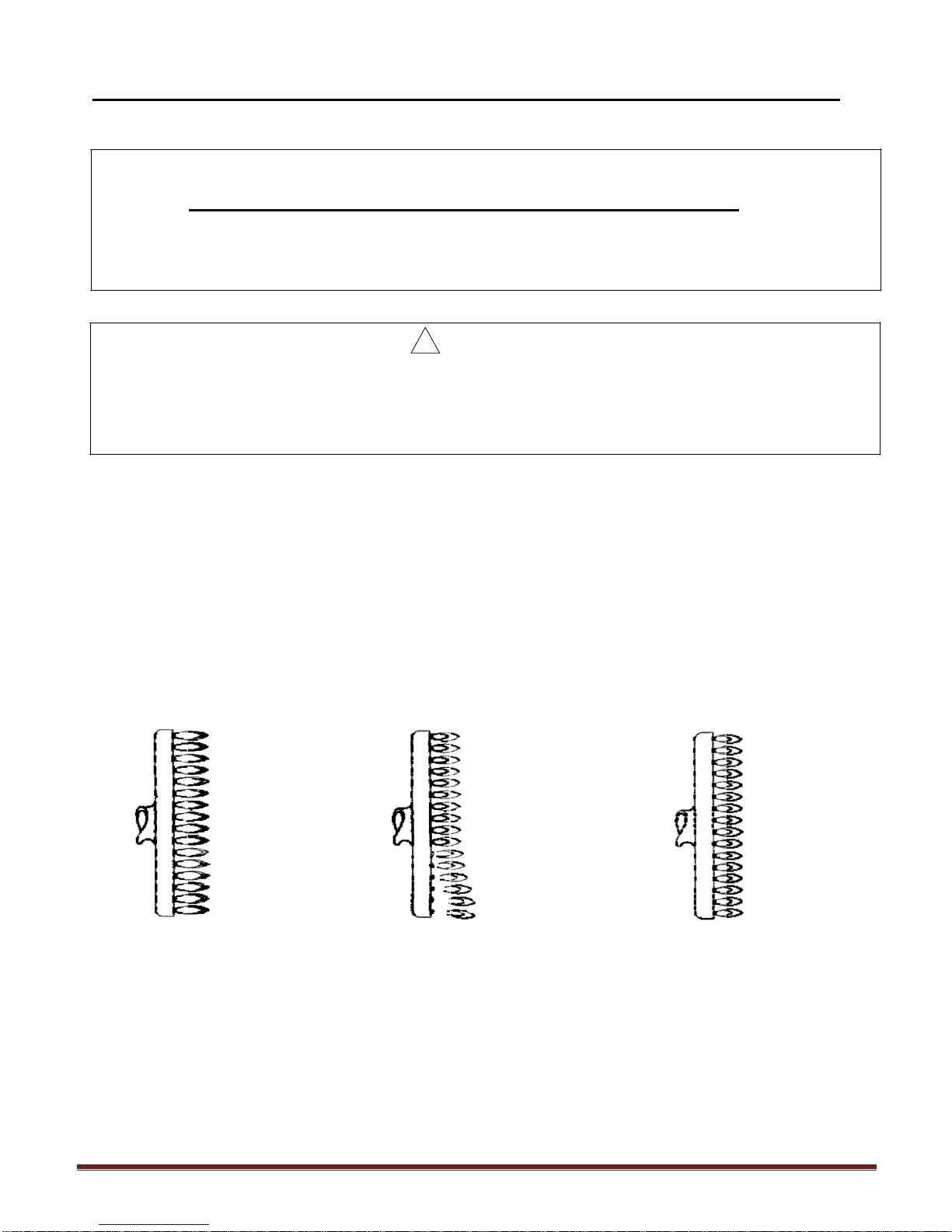

YellowTips
(too little air or
too much gas)
Blowing or Lifting Flames Normal Flame
(too much air)

Thor Fryer Manual 12082014 Page 16
Trouble shooting
Fault Possible Cause Remedy
Pilot won’t light. No gas supply.
Ensure gas isolation valve is turned
on, and that bottles are not empty.
Call the service provider.
Pilot goes out when gas control
knob released.
Releasing knob before the
thermocouple has heated.
Pilot flame too small.
- Gas pressure too low.
- Partially blocked pilot injector.
Thermocouple connection to the
gas control is loose or faulty.
Thermocouple faulty.
Electromagnet in the rear of the
gas control unit is faulty.
Hold knob in for at least 20
seconds following ignition of the
pilot.
Clean or replace the pilot injector.
Tighten the thermocouple
connection.
Check that the thermocouple is
producing between 20-30mV.
Inspect and replace if not in good
working order.
Call the service provider.
Main burner will not light. Incorrect supply pressure.
Faulty gas control.
Call the service provider.
Call the service provider.
NOTE: Vibration shock caused by shaking or pounding baskets on top surface or by slamming door may cause
Hi-Limit Control Switch to open. If this condition persists, additional cushioning may be added to the rubber
grommets supporting this control to absorb these shocks.
Wiring Diagram

Explosion drawing
GL165-P, GL165-N, GL166-P, GL166-N
Thor Fryer Manual 01112013 Page 17

Spare Parts List
NO. DESCRIPTION MODEL CODE QTY
1 Drain Extension GL165-P / GL165-N
GL166-P / GL166-N
01.02.1005325 2
2 Combination Valve
GL165-P / GL165-N
GL166-P / GL166-N
01.20.1068561 1
3 Valve, Ball GL165-P / GL165-N
GL166-P / GL166-N
01.20.1068560 1
4 Burner
GL165-P / GL165-N
GL166-P / GL166-N
01.03.1015095
3
4
5 Crumb Screen GL165-P / GL165-N
GL166-P / GL166-N
01.11.1062050 1
6
Flame Device System
(Does not include
injector)
GL166-N / GL165-N
GL165-P / GL166-P 01.22.1069545 1
ODS injector-0.01”
GL165-P / GL166-P
01.20.1068567
1
ODS injector-0.026” GL166-N / GL165-N 01.20.1068571 1
7 Basket GL165-P / GL165-N
GL166-P / GL166-N
01.10.1061027 2
8 Flue Rear
GL165-P / GL165-N
GL166-P / GL166-N
01.15.1066336
01.15.1066411
1
9 Fryer Restraint Chain GL165-P / GL166-P
GL165-N / GL166-N
06.05.1472505 1
10 Orifice
GL165-N
GL166-N
01.20.1068636
01.20.1068631
3
4
GL165-P
GL166-P
01.20.1068652 3
4
11 Valve Connection GL165-P / GL165-N
GL166-P / GL166-N
01.18.1067440 1
12 Foot(optional)
GL165-P / GL165-N
GL166-P / GL166-N 01.02.1005382 4
13 High Temperature
Protector
GL165-P / GL165-N
GL166-P / GL166-N
03.99.1290101 1
14 Piezo Igniter GL165-P / GL165-N
GL166-P / GL166-N
03.99.1290085 1
15 Fixed Caster
GL165-P / GL165-N
GL166-P / GL166-N
01.02.1005320 2
16 Universal Caster GL165-P / GL166-P
GL165-N / GL166-N
01.02.1005319 2
Thor Fryer Manual 01112013 Page 18

V1.Rev2.12-14
