Owner’s Manual
For The Warranty Terms & Conditions, Please Refer To Warranty Certificate.

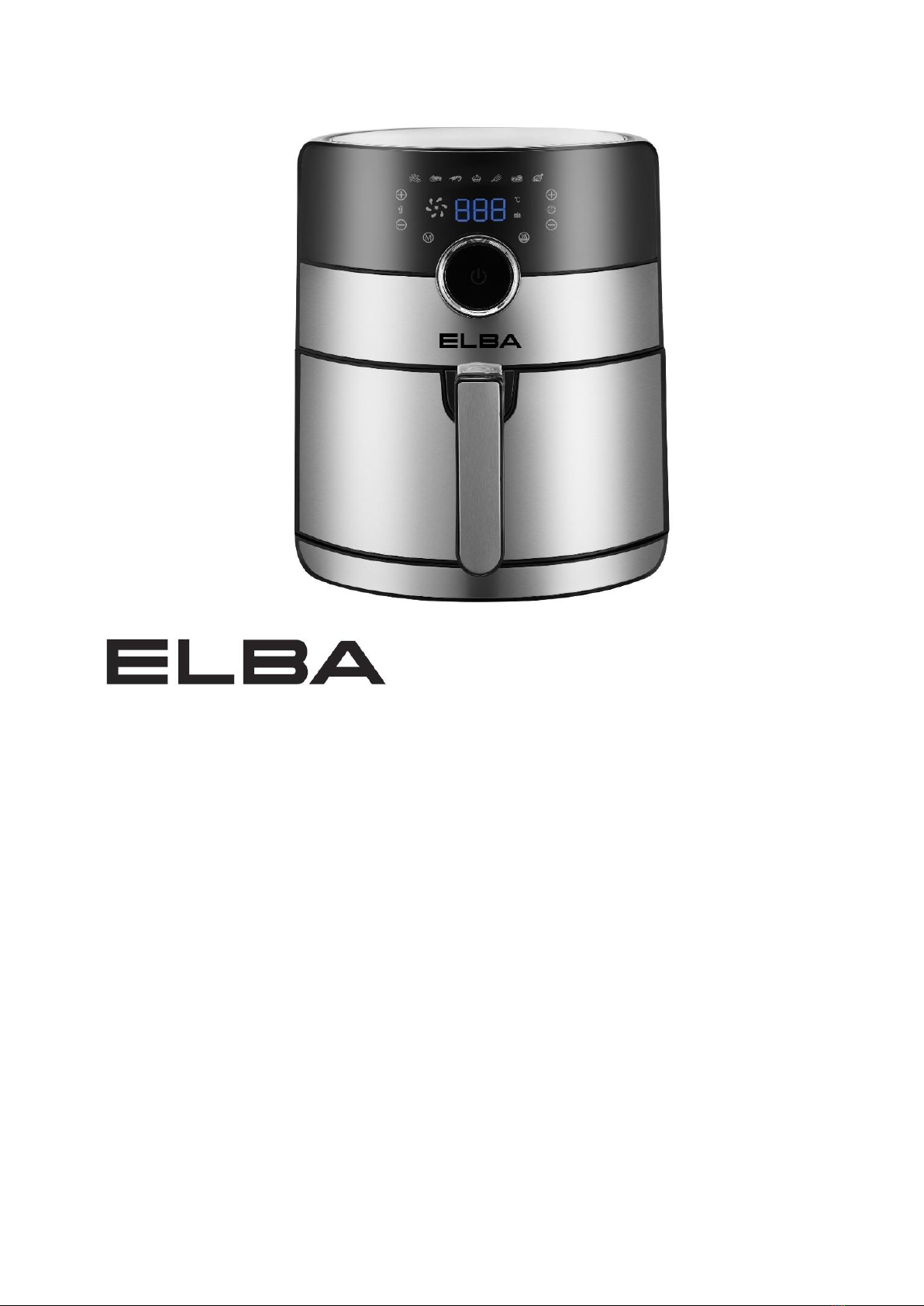

AIR FRYER
MODEL: EAF-K5130D(SS)
Please read this manual carefully
before operating your set.
Retain it for future reference.
Record model number and serial
number of the set.
See the label attached on the set
and quote this information to your
dealer when you require service.

IMPORTANT SAFEGUARDS
Before using the electrical appliance, the following basic precautions should always be followed:
1. Read all instructions before using.
2. Before using check that the voltage of wall outlet corresponds to the one shown on the rating
plate.
3. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions,
or is dropped or damaged in any manner. Return appliance to the nearest authorized service
agent for examination, repair or electrical or mechanical adjustment.
4. To protect against electric shock do not immerse cord, plugs, or housing in water or other liquid.
5. To avoid the hazard caused by overload of the circuit, do not use the extension cord.
6. Do not let the power cord hang over edge of table or counter, or touch on hot surface.
7. Do not place the appliance on unstable surfaces or surfaces that can affected by heat, near walls
or furniture. Leave at least 10cm free space at the back, both sides and top of the appliance.
8. Do not cover the air inlet or air outlet when the appliance is operating.
9. The use of accessory not recommended by the appliance manufacturer may cause injuries.
10. This appliance is not intended for used by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliances by a person responsible for their
safety.
11. Children should be supervised to ensure that they do not play with the appliance.
12. Do not place any items on top or next to this appliance at any time to prevent fire. Keep this
appliance clear of contact with any flammable material including curtain, walls, walls, cloth,
paper, cardboard, plastic material, etc at all times.
13. Do not let the appliance operates unattended.
14. When operating the appliance, hot steam will release through air outlet. Keep hands and face
at a safe distance from the air outlet. Beware of hot steam and hot surfaces when removing the
tray from the appliance.
15. Do not overfill the basket! Oversized food must not be inserted into the basket as it may cause
fire.
16. Improper handling of the tray or basket may cause the non-stick coating to peel off.
17. Do not fill the tray with oil or use this appliance as a deep fryer as this may cause fire hazards.
18. Immediately unplug the appliance if you see dark smoke coming out from the appliance. Wait
until the smoke emission to stop before removing the tray from the appliance.
19. Always unplug from the wall outlet when not in use. Let the appliance to cool down completely
before putting on or taking off parts before cleaning or putting away.
20. This appliance has been incorporated with a grounded plug. Please ensure the wall outlet in
your house is well earthed.
21. This appliance has been designed for domestic and household use only. Any commercial use,
inappropriate use or failure to comply with the instructions, ELBA accepts no responsibility and
the warranty will not apply.
22. Be CAUTION: the surface may get hot during the operation.
23. Do not use outdoors.
24. Save these instructions.
1

PRODUCT DESCRIPTIONS
1.
Frying Basket
8.
Power Cord
2.
Safety Cover for Basket Release Button
9.
Temperature Increase Button
3.
Basket Release Button
10.
Temperature Decrease Button
4.
Frying Basket Handle
11.
Timer Increase Button
5.
Frying Pot
12.
Timer Decrease Button
6.
On/Off Button
13.
Menu Button
7.
Air Outlet
14.
Keep Warm Button
BEFORE THE FIRST USE
1. Remove all packing materials and stickers or labels from appliance.
2. Thoroughly clean the basket and pot with water and some washing liquids. Use a non-abrasive
sponge.
3. Wipe the inside and outer surface of the appliance with a moist cloth.
Note: There is no need to fill the tray with oil as this appliance works on hot air.
2

OPERATION PREPARATION
1. Put the appliance on a levelled, even and stable surface. Do not put the appliance on non-heat-
resistant surface.
2. Put the frying basket into the frying pot properly and you hear the sound signal “tang” when fix
into position. Slide the frying pot back to the appliance completely and appliance only can start
working.
3. Do not put anything on top of the appliance this to prevent the air flow and affects the hot air
frying result.
Note: Do not fill the frying tray with oil or any other liquid.
OPERATING THE APPLIANCE
1. Insert the plug into grounded socket.
2. Put the appliance on a levelled, even and stable surface. Do not put the appliance on non-heat-
resistant surface.
3. Carefully slide out the frying pot and insert the ingredient into the basket.
Note:
*Do not fill the frying basket with oil or any other liquid.
*Do not put anything on top of the appliance this to prevent the air flow and affects the hot air
frying result.
*Do not exceed the maximum line.
*Ensure frying pot is slide into the position completely, and appliance is ready to operate now.
4. Power on the appliance and will light up. Press the on/off button, the control panel will light
up. The display shows 15 minutes and 180°C as default setting.
5. By pressing menu button to select the desired cooking menu of french fries, meat slices, shrimp,
cake, chicken wing, steak and fish.
6. Press the temperature and timer increase and decrease buttons to set temperature and timer
according to the ingredients.
7. Press the on/off button, to start the appliance. Now power and cooking indicator will light up.
The red indicator will on and off regularly, this is indicating the heating element is switched on
and off to maintain the set temperature.
8. The timer will begin to count down when the appliance reaches the set timing.
9. Press the menu button to select the pre-setting programs for convenient operation. The control
panel shows the program with symbols as per below:
3

Icon
Programs
Temperature
Timer
Icon
Programs
Temperature
Timer
French
Fries
200°C
20 mins
Chicken
180°C
25 mins
Meat Slice
180°C
15 mins
Steak
160°C
20 mins
Shrimp
160°C
20 mins
Cake
180°C
20 mins
Cake
160°C
40 mins
Remark: Temperature and timer may vary according to portion of foods.
10. The setting of timer and temperature is adjustable by pressing timer and temperature button to
your desired setting.
11. Once the timer and temperature is confirmed, press on/off button to start the cooking process.
12. Some ingredients required shaking halfway through cooking. To shake the food ingredients, hold
the frying basket handle, pull out the frying pan from the appliance and shake. The appliances
will stop operating immediately. After shaking the foods, slide it back into the appliance and the
appliance will resume back the cooking process immediately.
Note:
*Do not press the basket release button of the frying basket during shaking.
*To reduce weight, you can remove the frying basket from the frying pot. To do this, pull the
frying pot out from the appliance, place it on a heat resistance surface and push the release
button on the handle.
13. When the cooking time is finished, the appliance will “beep” sound it means the cooking process
is complete. Pull the frying pot from the appliances and place it on a heat resistance surface.
14. Check the foods and if there are not well cooked, slide the frying pot back into appliance and set
a few more minutes to cook.
15. To pour out the small size food (e.g. Fried) please press the basket button of the frying basket
and take the frying basket out of the frying pot.
16. To remove large or fragile foods, you can use the clamp to take them out from the frying basket
by using a pair of tongs.
17. To use keep warm function, after select the desire cooking function and press for the keep warm
function button. This function will automatic activated once the cooking process is complete. It
can keep warm for 120 minutes.
Note:
*Do not turn the basket up and down with the frying pot still attached to it, as any redundant oil
that has collected on the bottom of frying pot will leak onto the ingredients.
*After hot air frying, the frying pot and the ingredients are still very hot. Depending on the type of
ingredients in the appliance, steam may escape from the frying pot.
4

COOKING TIPS
1. Smaller size of foods usually require a slightly shorter preparation time than larger size of foods.
2. Shaking smaller ingredients halfway during the preparation time optimize the end result and can
help to prevent unevenly cooking.
3. Add a few drops of oil to fresh potatoes for a crispy result. Cook your foods within a few minutes
after adding the oil.
4. Place a baking tin or oven dish in the basket if you want bake a cake or quiche or if you want to
fry fragile or filled ingredients.
5. You can use the appliance to reheat the food. To reheat food, set the temperatures at 150°C, the
maximum cooking time is 10 minutes.
CLEANING AND MAINTENANCE
Always remove the plug from wall outlet when not in use. Let the appliance to cool down completely
before cleaning.
1. Use a clean damp cloth to wipe the product body.
Note: Do not use thinner, benzene, blench, abrasive cleaning agents or sources to clean the
appliance, frying pot and frying basket.
2. Remove the frying pot and frying basket from the appliance. Clean them with soapy water and
rinse thoroughly. Dry with a soft cloth.
3. If dirt is stuck to the frying basket or bottom of the tray, fill the tray with warm water with some
washing-up liquid. Put the frying basket into the tray and let the tray and basket soak for about
10 minutes.
4. Clean the inside the appliance with warm water and non-abrasive sponge.
Note: Any residue, seasonings, vinegar or salt may cause the coating of the tray to corrode.
5. Clean the heating element with a damp cloth or a cleaning brush to remove any food residues.
APPLIANCE STORAGE
1. Unplug the appliance and let it cool down thoroughly.
2. Make sure that all the parts are cleaned and dry.
5

TROUBLESHOOTING
No.
Problem
Possible Causes
Solution
1.
The air fryer does
not work
The appliance is not unplugged in
Insert the plug into the grounded
power socket
Did not press on/off button
Press start/ pause button after all
settings to make appliance start
working
No frying pot in the appliance
Put frying pot back into appliance. The
switch will be on when it is in place.
Did not press for menu button
Press for the menu button to select
desired cooking programme, then
press the ON/OFF button
2.
The ingredients
fried by the frying
tray not ripe
enough
The amount of the ingredients in
the basket is too big
Put smaller batches of ingredients in
the basket. Smaller batches are fried
more evenly
The set temperature is too low
Adjust the temperature button to set
the temperature required
The cooking time is too short
Adjust the timer button to decide the
time for cooking
3.
The ingredients
are fried unevenly
in the Air Fryer
Certain types of ingredients need
to be shaken halfway through the
preparation time
Ingredients that lie on top of or across
other (e.g. Fries) need to be shaken
halfway through the preparation time.
4.
Fried snacks are
not crispy when
they come out of
the Air Fryer
You used a type of snacks meant
to be prepared in a traditional
deep fryer
Use oven snacks or lightly brush some
oil onto the snacks for a crispier result
5.
I cannot slide the
tray into the
appliance
properly
There are too much ingredients in
the basket
Do not fill the basket beyond the
maximum line.
The basket is not placed in the
tray correctly
Push the basket down into the tray
until you hear a “click” sound
Basket handle bar stuck
Place the handle bar in horizontal
position.
6.
While smoke
coming out of the
product
You are preparing greasy
ingredients
When you are preparing greasy
ingredients in the Air fryer, it will be
caused large amount of oil fume will
infiltrate into the frying tray. The oil
will produce while fume, and the frying
tray might be hotter than usual. But
this will not affect the final cooking
effect
The frying pot still contains
greasy residues from previous
use
White smoke is caused by greasy
heating up in the tray. Make sure you
clean the frying tray properly after
each use
6

No.
Problem
Possible Causes
Solution
7.
Fresh fries are
fried unevenly in
the Air Fryer
You did not soak the potato sticks
properly before you fried them
Soak potato sticks in a bowl for a least
30 minutes, take them out and dry
them with kitchen paper
You did not use the right potato
type
Use fresh potatoes and make sure
they stay firm during frying
8.
Fresh fries are not
crispy when they
come out from
Air Fryer
The crispiness of the fries depends
on the amount of oil and water in
the fries.
Make sure you dry the potatoes sticks
properly before you add the oil
Cut the potato sticks smaller for a
crispier result
Add slightly more oil for a crispier
result
ERROR CODE
E1
E2
Short Circuit of Sensor
Sensor Open Failure
ENVIRONMENT FRIENDLY DISPOSAL
Correct Disposal of this appliance:
This marking indicates that this appliance should not be disposed with other
household wastes. To prevent possible harm to the environment or human
health from uncontrolled waste disposal, recycle it responsibly to promote the
sustainable reuse of material resources.
7
