Tiffin Motorhomes Wayfarer TM 2021 Series User manual

2021 OWNER'S MANUAL
2021 Wayfarer TM Series Owners Manual V1.0
TM SERIES

11
12
16
16
17
17
17
17
17
18
18
18
18
19
20
TABLE OF CONTENTS
(*VIEWING VIA PDF: Each page number is cross referenced for your convenience.
Simply click on the desired page number to direct you straight to that page.*)
THE MOTORHOME CAB
WARNING LIGHTS
TROUBLESHOOTING THE ABS
WARRANTY SERVICE
TIFFIN MOTORHOMES LIMITED WARRANTY
SAFETY ICONS & MESSAGES
DISCLAIMER
WELCOME TO LIFE OF "ROUGHING IT SMOOTHLY"
ABOUT THIS MANUAL
DELIVERY
DEALER RESPONSIBILITIES
CUSTOMER RESPONSIBILITIES
MAJOR EQUIPMENT MANUFACTURERS
CUSTOMER RELATIONS

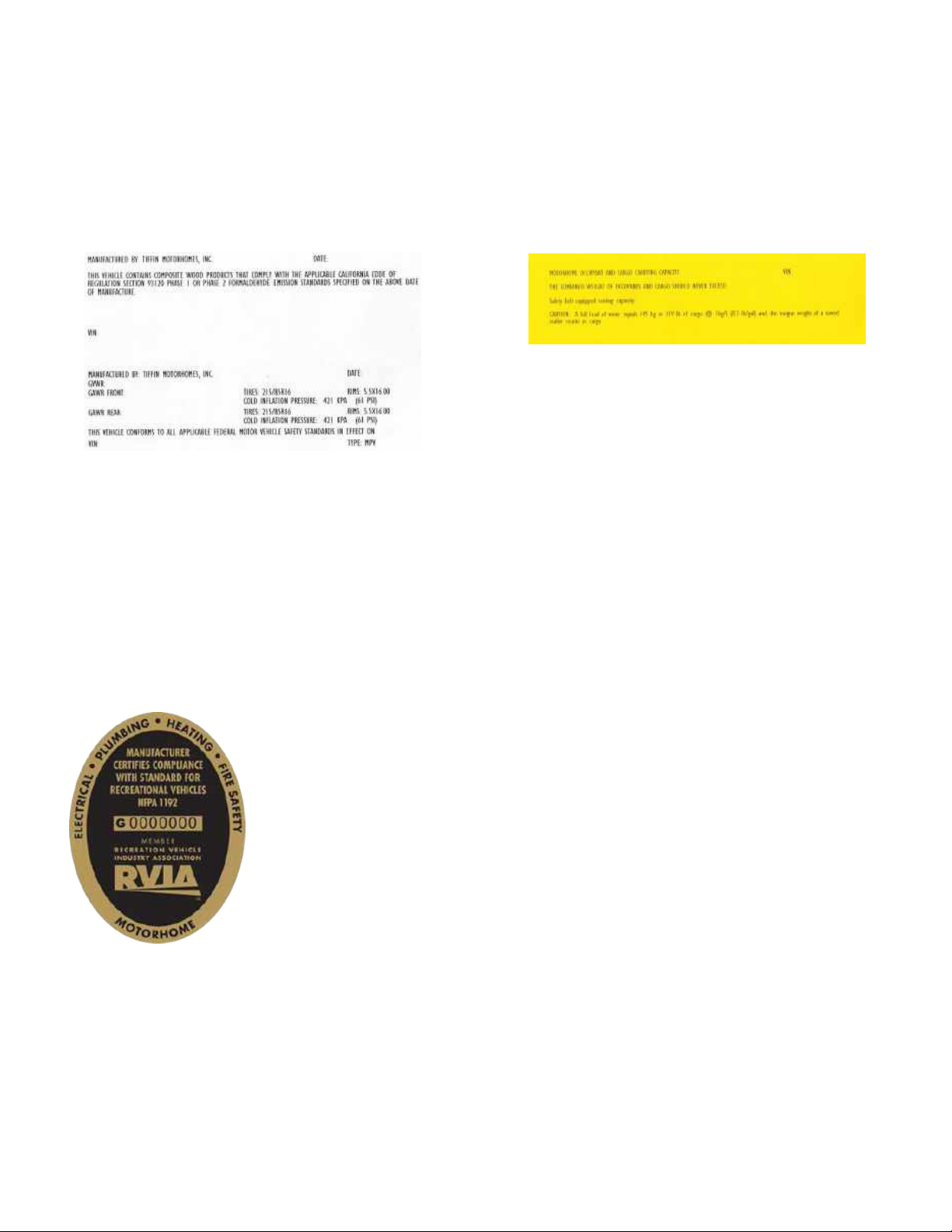

SPECIFICATION LABELS
CHAPTER 1
GENERAL INFORMATION
CHAPTER 2
MOTORHOME CAB
SAFETY BELT WARNING CHIME
KEY-IN-IGNITION WARNING CHIME
HEADLAMPS ON WARNING CHIME
CONTROLS
ENGINE COOLANT TEMPERATURE GAUGE
FUEL GAUGE
PARKING BRAKE ON WARNING CHIME
GAUGES
ENGINE OIL PRESSURE GAUGE
BATTERY VOLTAGE GAUGE
TOW/HAUL LIGHTS
WARNING CHIMES AND BUZZERS
2
3
3
4
4
5
5
6
6
6
7
9

20
20
20
20
21
21
21
22
24
24
24
26
26
26
27
27
28
30
30
30
31
31
32
33
33
34
35
35
36
36
36
36
36
37
37
EMERGENCY START
DRIVING YOUR MOTORHOME
BRAKES
FOUR-WHEEL ANTI-LOCK BRAKE SYSTEM (ABS)
REVERSE
IN CASE OF SUDDEN TIRE FAILURE
BRAKE SHIFT INTERLOCK
DRIVING USING THE GEARSHIFT
PARK
NEUTRAL
DRIVE
WHEN TO USE 4 (FOURTH GEAR)
WHEN TO USE 2 (SECOND GEAR)
HEADLAMP CONTROL
DAYTIME RUNNING LAMPS
SAFE DRIVING
BEFORE DRIVING AWAY
BE SURE THAT
PREPARING TO START YOUR VEHICLE
HIGH BEAM CONTROL
PANEL DIMMER CONTROL
WINDSHIELD WIPER/WASHER CONTROL
HAZARD FLASHER SWITCH
DIRECTIONAL INDICATORS
CRUISE CONTROL
HEATING, VENTILATION AND AIR CONDITIONING
TEMPERATURE CONTROL KNOB
MODE SELECTOR CONTROL
SEATS AND SEAT BELTS
SAFETY RESTARINTS
SAFETY BELT PRETENSIONER
SAFETY BELT HEIGHT ADJUSTMENT
IGNITION SWITCH
TILT STEERING
STARTING THE ENGINE
CHAPTER 3
DRIVING AND ROAD RULES

37
38
38
38
38
39
39
39
39
40
40
40
41
41
42
42
43
45
45
46
46
46
47
49
49
50
50
51
51
51
52
53
CARBON MONOXIDE/LIQUID PROPANE GAS DETECTOR
TROUBLE SHOOTING THE CO/LP DETECTOR
EMERGENCY EXIT
HILLS (UP AND DOWN DRIVING)
TURNING
BRAKING AND STOPPING
ACCESS CONTROL DEVICES
INCLIMENT OR FREEZING WEATHER
STOPPING FOR FUEL AND LIQUID PROPANE (LP) GAS
TIRES
ENGINE COMPARTMENT DIAGRAM
WHEN TO USE 1 (LOW GEAR)
SAFE DRIVING TIPS
USE TRUCK/RV LANES AT TOLL BOOTHS
NIGHT DRIVING
PARKING AND BACKING UP
BACKUP ALARM
BACKUP RADAR
SPEED
OVERHEAD CLEARANCE
SMOKE DETECTOR
CHAPTER 4
SAFETY EQUIPMENT
CHAPTER 5
CAMPGROUND TIPS AND VEHICLE SPECIFICATIONS
CAMPGROUND ETIQUETTE
CAMPGROUND VEHICLE SECURITY
OVERNIGHTING AT PRIMITIVE SITES
DEPARTING THE CAMPGROUND
TYPICAL MOTORHOME SPECIFICATIONS
ARRIVING AT THE CAMPGROUNDS
ELECTRICAL HOOKUP
WATER HOOKUP
SEWER HOOK UP
FIRE EXTINGUISHER
WINDOW OPERATION

54
54
54
55
55
57
58
59
59
60
60
62
63
63
64
64
65
67
68
69
70
70
72
73
73
74
75
76
THE REFRIGERATOR
OPERATING INSTRUCTIONS
RESTARTING A STALLED GENERATOR
RESETTING CIRCUIT BREAKERS
TROUBLESHOOTING THE GENERATOR
LIQUID PROPANE (LP) GAS SYSTEM
IF YOU SMELL LIQUID (LP) GAS
LIQUID PROPANE (LP) GAS/CO LEAK DETECTOR
TROUBLESHOOTING THE LIQUID PROPANE (LP) SYSTEM
12-VOLT SYSTEM
TROUBLESHOOTING THE 12-VOLT SYSTEM
120-VOLT SYSTEM
TROUBLESHOOTING THE 120-VOLT SYSTEM
40AMP RESET LOCATION
THE POWER CONVERTER
THE GENERATOR
STARTING THE GENERATOR
STOPPING THE GENERATOR
MONITOR PANEL
CHECKING TANK LEVELS
CHECKING BATTERY CONDITIONS
CONTROL SWITCHES ON THE MONITOR PANEL
HELPFUL HINTS
CHAPTER 6
THE ELECTRICAL SYSTEM
TROUBLESHOOTING THE MICROWAVE OVEN
ROOF AIR CONDITIONER
AIR CONDITIONER START UP
TROUBLESHOOTING THE AIR CONDITIONER
THE MICROWAVE OVEN
CHAPTER 7
THE 120-VOLT APPLIANCES
CHAPTER 8
THE LIQUID PROPANE (LP) GAS APPLIANCES

77
77
78
78
78
79
80
80
80
81
82
83
85
85
85
86
87
88
88
89
90
92
92
92
93
95
TROUBLESHOOTING THE REFRIGERATOR (LP) GAS
TROUBLESHOOTING THE REFRIGERATOR 120-VOLT
STOVE-TOP RANGE
USING THE STOVE-TOP
USING THE IGNITOR KNOB
STOVE-TOP RANGE USING A MATCH TO LIGHT
THE FURNACE
HOW IT OPERATES
FURNACE START UP
TROUBLESHOOTING THE FURNACE
WATER HEATER
TROUBLESHOOTING THE WATER HEATER
CHAPTER 9
THE WATER SYSTEM
TROUBLESHOOTING THE WASTEWATER SYSTEM
THE WATER PUMP
TROUBLESHOOTING THE FRESH WATER SYSTEM
THE WASTE WATER SYSTEM
THE MOTORHOME TOILET
DUMPING THE HOLDING TANKS
THE FRESH WATER SYSTEM
CAMPSITE WATER HOOK-UP (CITY WATER)
ON-BOARD FRESH WATER SYSTEM (TANK AND PUMP)
DRY METHOD
WET METHOD
TIPS FOR COLD WEATHER CAMPING
CHAPTER 11
CHAPTER 12
MAINTENANCE AND DATA CHART
CHAPTER 10
WINTER OPERATIONS
FREEZE DAMAGE PRECAUTION
TROUBLESHOOTING INDEX
TROUBLESHOOTING INDEX

105
MOTORHOME OWNERS DATA SHEET

GENERAL INFORMATION
CHAPTER
1
2021 Wayfarer TM Series Owners Manual V1.0
1

Many of the features and appliances in this manual may or may not be reflected in the actual
motorhome purchased, depending on the options and models selected by the motorhome owner.
All items, materials, instructions and guidance described in this manual are as accurate as
possible at the time of printing. However due to Tiffin Motorhomes ongoing and dedicated
commitment to excellence, improvement of Tiffin motorhomes is an ongoing and continuous
process.
Consequently, Tiffin Motorhomes reserves the right to make substitutions and improvements to
its makes and models of motorhomes without prior notification. Substitutions of comparable or
better materials, finishes, appliances, instrumentation and instruction may be made at any time it
is deemed necessary to provide our owner's with the best possible motorhome meeting the
owner's requirements.
Copyright by Tiffin Motorhomes Inc. - All Rights
Reserved Tiffin Motorhomes Inc.
625 Fawn Grove Road Winfield, Alabama 35594
Phone: [phone]
Fax: [phone]
FORD 24 HOUR ROAD SIDE SERVICE
800-241-3673
Email: [email protected]
[email protected]
DISCLAIMER
2021 Wayfarer TM Series Owners Manual V1.0
2

This operator/owner's manual was prepared with you in mind. We want to provide you with the
information you need to properly care for and use your motorhome and all of its equipment. Please
carefully read through this manual to help you understand how everything in your motorhome works.
NOTE: This owner's manual describes many features of your Tiffin Wayfarer and includes
instructions for its safe use. The manual however, including its photography and illustrations is of a
general nature. Some equipment and features described may be optional and or unavailable on your
model.
The instructions included are meant to serve as a guide and in no way extend the
responsibilities of Tiffin Motorhomes beyond the standard written warranty.
The descriptions, illustrations and specifications in this manual were correct at the time of printing
and Tiffin Motorhomes reserves the right to change specifications or design without notice and
without incurring obligation to install the same products previously manufactured.
WELCOME TO A LIFE OF "ROUGHING IT SMOOTHLY"
Tiffin Motorhomes is excited that you have entered the world of motorhome travel. We believe
that you and your family will enjoy this lifestyle for years to come. Your Tiffin motorhome
provides all the luxuries and comforts of home while allowing you to travel freely as you choose.
Before heading out on the open roads, please take the time to make yourself familiar with this
owner's manual to learn more about the operations of your motorhome.
Also, please work with your dealer to learn as much as possible about the functionality and
features of your coach. And always remember - "Wherever you go, we go."
ABOUT THIS MANUAL
2021 Wayfarer TM Series Owners Manual V1.0
3

DELIVERY
Throughout the entire manufacturing process, your Tiffin motorhome has been regularly
inspected by our qualified factory personnel to assure you of the finest product of the finest
quality without exception.
However, the final inspection at our factory is not meant to be the last one. The pre-delivery
inspection and system check that your dealer performs are the final inspections done to your
particular motorhome prior to you actually receiving your coach.
Your dealer is also available to assist you in understanding the warranties and completing the
necessary forms to activate the warranties for the various appliances and accessories installed in
your motorhome.
DEALER RESPONSIBILITIES
1. A pre-delivery inspection and systems check is performed to assure a thorough inspection of
the motorhome and to assure the proper operation of factory installed components.
2. A customer walk through is performed to familiarize the new owner with the motorhome, its
systems and components, and their proper and safe operation.
3. Assisting the customer in completing the registration forms to avoid loss of warranty
coverage. The dealer should review the limited warranty provisions with the customer to
stress the importance of completing the warranty cards and registration forms for the
components in the motorhome to enable the various manufacturers to receive them within
the required time frame.
4. Providing the customer with information regarding warranty and non-warranty work on the
vehicle and its separately warranted components.
2021 Wayfarer TM Series Owners Manual V1.0
4

GENERAL INFORMATION
CUSTOMER RESPONSIBILITIES
The customer is responsible for regular and proper maintenance of the motorhome and its
various components. Properly maintaining your motorhome will help prevent conditions
arising from neglect that are not covered by your Tiffin Motorhome and components limited
warranty.
The maintenance guidelines in this manual and any other applicable manual(s) should be
followed. It is the owner's responsibility and obligation to return the vehicle to an authorized
dealer for repairs and service.
To assist you in avoiding problems with your motorhome, it is recommended that you do the
following:
1. Read the warranty. Go over it thoroughly with your dealer to make sure you understand
all the terms and conditions of the warranty.
2. Please ask questions about anything you don't fully understand about your Wayfarer.
Tiffin Motorhomes is here to serve you and assure that you have all the information
necessary for your safe and enjoyable use of your new motorhome.
3. When you are taking delivery, setup an appointment for adjustments. This appointment
should be within two weeks after you accept delivery of your new motorhome.
4. You are responsible for an expected to use your Wayfarer in a responsible and safe
manner. Please take the time to familiarize yourself with the proper operation of the
motorhome and all of its features before you attempt to use your motorhome.
5. Once a year the roof seals need to be inspected and replaced if need be to prevent leaks.
This can be done at a Tiffin Motorhomes Service Facility.
TIFFIN MOTORHOMES LIMITED WARRANTY
The Tiffin Motorhomes limited warranty was provided to you by your authorized Tiffin
Motorhomes dealer during the pre-delivery inspection. When you inquire about your Tiffin
Motorhomes warranty, please refer to this document. Should you need an additional copy,
please contact:
Tiffin Motorhomes Inc.
625 Fawn Grove Road Winfield,
Alabama 35594
Tiffin Motorhomes will be pleased to send you an additional copy or any other information
requested, as may be warranted.
2021 Wayfarer TM Series Owners Manual V1.0
5

MAJOR EQUIPMENT MANUFACTURERS
For those looking for more information (e.g., locations of authorized subsidiaries) the
following website, www.rvamerica.com/data/s/_alist.htm should be very helpful. This site
provides complete, alphabetical listings of all suppliers and vendors for all contemporary
recreational vehicles and motorhomes.
WARRANTY SERVICE
Ford Motor Company covers for the full term of the bumper-to-bumper chassis warranty of 3
years or 36,000 miles, whichever comes first. It also provides for 4 years 60,000 miles on the
engine and transmission.
Tiffin Motorhomes warranties its utilized construction for 1 (one) year and its laminations for
1 (one) year. Any service work performed after the expiration of the Tiffin Motorhomes
warranties WILL NOT be covered under the conditions of the implied Tiffin Motorhome
warranty. Exceptions may be made on an individual basis, to this deadline on account of the
unavailability of parts and/or service appointment time where work is to be performed.
Neither Ford Motor Company nor Tiffin Motorhomes provides warranty for the motorhome
tires. Please refer to the tire manufacturers guide provided in the Owner's Information Packet
for any warranty information.
However, do not rely on the possibility of an exception: please schedule any desired in-
warranty work before the expiration of your motorhome warranty.
CUSTOMER RELATIONS
If you wish to schedule maintenance, service or to order parts, you should notify your local
authorized Tiffin Motorhomes dealership to setup an appointment or place an order. If you
are unsure of the location of your nearest authorized Tiffin Motorhomes dealership, please
access the Tiffin Motorhomes website at www.tiffinmotorhomes.com and then click on the
"Locate Dealer" tab and then enter the appropriate search criteria such as state and retail
sales. Then click on the Red Ball located on the map to pull up the dealer information for that
area.
2021 Wayfarer TM Series Owners Manual V1.0
6

SPECIFICATION LABELS
There are two main labels used to identify your Tiffin Motorhomes Wayfarer. The Vehicle
Identification Number (VIN) is the legal identification of the completed motorhome. The VIN
is the number used by the state for the vehicle identification and registration.
(Figure 7.1 & 7.2)
Figure 7.3
RVIA Official Label
Another label affixed to your Tiffin Wayfarer is the Recreational
Vehicle Industrial Association (RVIA) label for Tiffin Motorhomes
(Figure 7.3).
As a manufacturers member of the RVIA Tiffin Motorhomes has the
obligation to disclose the following information to the purchaser of the
motorhome:
•An indication of the contents of the motorhome weight label affixed
to the motorhome
•A concise explanation of the following items: Vehicle Weight
Distribution and Proper weighing techniques to be used when
weighing the coach.
•Specific definitions for the following terminology:
(Continued on Page 8)
Figure 7.1
Wayfarer Vehicle Identification Label 1
Figure 7.2
Wayfarer Vehicle Identification Label 2
2021 Wayfarer TM Series Owners Manual V1.0
7

SPECIFICATION LABELS CONTINUED
•Gross Vehicle Weight Rating (GVWR) - This is the maximum weight of the motorhome
when it is fully loaded.
•Unloaded Vehicle Weight (UVW) - This is the weight of the motorhome as built at the
factory, with full fuel, engine oil and coolants. The UVW does not include cargo, fresh
water, LP gas or any dealer installed components.
•Cargo Carrying Capacity (CCC) - This is the maximum weight of all occupants including
the driver, passenger(s), personal belongings, food, fresh water, waste water, gas, tools,
tongue weight of towed vehicle (if applicable), dealer installed accessories and the like. The
CCC is equal to or less than the GVWR minus the UVW.
•Gross Combination Weight Rating (GCWR) - This is the value specified by the chassis
manufacturer as the maximum loaded weight of the motorhome with a towed trailer or
vehicle (if applicable).
•Sleeping Capacity Weight Rating (SCWR) - This is the maximum weight capacity of the
combined number of persons (i.e., number of people multiplied by 154 pounds per person)
permitted to sleep within the motorhome.
(Please note this is a median average and actual passenger weight may vary).
•Gross Axle Weight Rating (GAWR) - This is the maximum allowable weight for an axle;
the GAWR considers the weakest link in the tire, wheel, brakes, hubs, axle, springs and
attaching parts. To illustrate, if the axle is rated for 15,000 pounds and the tires are rated at
3,200 pounds each as a dual installation, then the maximum GAWR would be 12,800
pounds for a four tire vehicle.
2021 Wayfarer TM Series Owners Manual V1.0
8

SAFETY ICONS AND MESSAGES
Please note that several icons and labels listed in this manual represent items that need your
attention. The Notice, Caution, Warning and Danger icons and labels alert you to
precautions that may help you avoid damage to your motorhome, its equipment and to
your personal safety.
Please read and follow them carefully.
NOTICE: Notice is used to address practices not related to personal injury.
CAUTION: Caution indicates a hazardous situation, which if not avoided
could result in minor or moderate personal injury.
WARNING: Warning indicates a hazardous situation, which if not avoided
could result in serious personal injury or death.
DANGER: Danger indicates a hazardous situation, which if not avoided will
result in serious personal injury or death.
2021 Wayfarer TM Series Owners Manual V1.0
9

MOTORHOME CAB
CHAPTER
2
2021 Wayfarer TM Series Owners Manual V1.0
10

THE MOTORHOME CAB
MOTORHOME CAB LAYOUT
1. Turn signal and wiper/washer control.
2. Headlamp control.
3. Driver airbag.
4. Cruise control buttons.
5. Instrument cluster.
6. Gear shift.
7. Electronic sound system.
8. Climate control system.
9. Emergency start.
2021 Wayfarer TM Series Owners Manual V1.0
11

WARNING LIGHTS
INSTRUMENT PANEL
1. Fuel gauge.
2. Engine coolant.
3. Engine oil.
4. Battery voltage.
2021 Wayfarer TM Series Owners Manual V1.0
12

WARNING LIGHTS CONTINUED
TOW HAUL (ALSO See P.16)
Illuminates when Tow/Haul is active. If
light flashes steadily, contact an authorized
Ford Dealership for maintenance.
ENGINE COOLANT TEMPERATURE
Illuminates when the engine coolant
temperature is high. Stop the vehicle as
soon as possible, turn off the engine and let
it cool.
ELECTRONIC THROTTLE
CONTROL
Illuminates when the engine is in reduced
power or "limp mode". Contact an
authorized Ford Dealership for
maintenance.
CHECK FUEL CAP
Illuminated when fuel cap may not be
properly installed. May also cause the
Service Engine Soon (SES) light to
illuminate.
AIR-BAG READINESS
Comes on momentarily when the ignition
is turned to the ON position. If the light
fails to illuminate, continues to flash or
remains on, contact an authorized Ford
Dealership for maintenance.
HIGH BEAMS
Illuminates when the high beam headlights
are turned on.
ANTI-LOCK BRAKE SYSTEM (ABS)
If the light remains on or flashes
continuously, contact an authorized Ford
Dealership for maintenance.
With the ABS light on, the anti-lock brake
system is disabled and normal braking is
still effective unless the brake warning light
also remains luminated with the parking
brake released.
2021 Wayfarer TM Series Owners Manual V1.0
13
